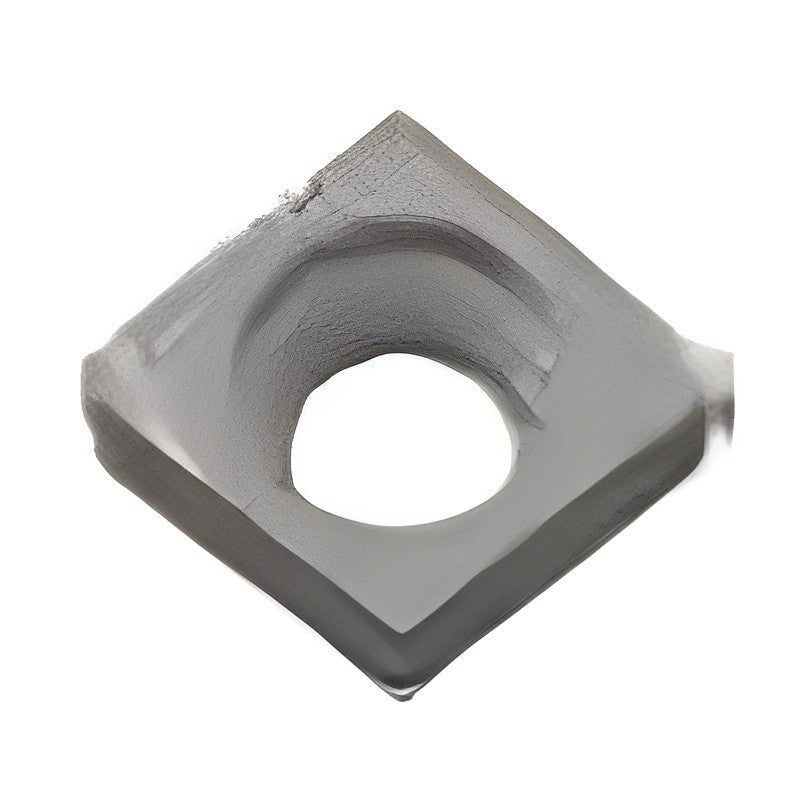

Sumitomo Electric Hardmetal IGETALLOY CCGT Positive Turning Insert, AY Chipbreaker

80° rhombic positive turning insert (countersunk hole, single-sided chipbreaker), ISO type CCGT with the AY chipbreaker, offered in cemented carbide grades.

Key features

Corner radius range: 0.1–0.4 mm
Stocked grades: H1

Specifications

Product line	IGETALLOY
Insert shape	80° rhombic
Clearance angle	7°
Hole / chipbreaker	Countersunk hole, single-sided chipbreaker
Chipbreaker	AY

CCGT060201R-AY H1		IC (mm): 6.35 \| S (mm): 2.38 \| RE (mm): 0.1 \| L (mm): 6.4 \| D1 (mm): 2.8 \| Hand: Right \| Grade: H1 \| Grade material: Cemented carbide \| Stock: Yes
CCGT060201L-AY H1		IC (mm): 6.35 \| S (mm): 2.38 \| RE (mm): 0.1 \| L (mm): 6.4 \| D1 (mm): 2.8 \| Hand: Left \| Grade: H1 \| Grade material: Cemented carbide \| Stock: Yes
CCGT060202R-AY H1		IC (mm): 6.35 \| S (mm): 2.38 \| RE (mm): 0.2 \| L (mm): 6.4 \| D1 (mm): 2.8 \| Hand: Right \| Grade: H1 \| Grade material: Cemented carbide \| Stock: Yes
CCGT060202L-AY H1		IC (mm): 6.35 \| S (mm): 2.38 \| RE (mm): 0.2 \| L (mm): 6.4 \| D1 (mm): 2.8 \| Hand: Left \| Grade: H1 \| Grade material: Cemented carbide \| Stock: Yes
CCGT060204R-AY H1		IC (mm): 6.35 \| S (mm): 2.38 \| RE (mm): 0.4 \| L (mm): 6.4 \| D1 (mm): 2.8 \| Hand: Right \| Grade: H1 \| Grade material: Cemented carbide \| Stock: Yes
CCGT060204L-AY H1		IC (mm): 6.35 \| S (mm): 2.38 \| RE (mm): 0.4 \| L (mm): 6.4 \| D1 (mm): 2.8 \| Hand: Left \| Grade: H1 \| Grade material: Cemented carbide \| Stock: Yes
CCGT09T301R-AY H1		IC (mm): 9.525 \| S (mm): 3.97 \| RE (mm): 0.1 \| L (mm): 9.7 \| D1 (mm): 4.4 \| Hand: Right \| Grade: H1 \| Grade material: Cemented carbide \| Stock: Yes
CCGT09T301L-AY H1		IC (mm): 9.525 \| S (mm): 3.97 \| RE (mm): 0.1 \| L (mm): 9.7 \| D1 (mm): 4.4 \| Hand: Left \| Grade: H1 \| Grade material: Cemented carbide \| Stock: Yes
CCGT09T302R-AY H1		IC (mm): 9.525 \| S (mm): 3.97 \| RE (mm): 0.2 \| L (mm): 9.7 \| D1 (mm): 4.4 \| Hand: Right \| Grade: H1 \| Grade material: Cemented carbide \| Stock: Yes
CCGT09T302L-AY H1		IC (mm): 9.525 \| S (mm): 3.97 \| RE (mm): 0.2 \| L (mm): 9.7 \| D1 (mm): 4.4 \| Hand: Left \| Grade: H1 \| Grade material: Cemented carbide \| Stock: Yes
CCGT09T304R-AY H1		IC (mm): 9.525 \| S (mm): 3.97 \| RE (mm): 0.4 \| L (mm): 9.7 \| D1 (mm): 4.4 \| Hand: Right \| Grade: H1 \| Grade material: Cemented carbide \| Stock: Yes
CCGT09T304L-AY H1		IC (mm): 9.525 \| S (mm): 3.97 \| RE (mm): 0.4 \| L (mm): 9.7 \| D1 (mm): 4.4 \| Hand: Left \| Grade: H1 \| Grade material: Cemented carbide \| Stock: Yes

Turning InsertsSumitomo Electric Hardmetal

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal IGETALLOY CCGT Positive Turning Insert, AY Chipbreaker

Brand Sumitomo Electric Hardmetal·Turning Inserts

Available part numbers (12)

CCGT060201R-AY H1, CCGT060201L-AY H1, CCGT060202R-AY H1, CCGT060202L-AY H1, CCGT060204R-AY H1, CCGT060204L-AY H1, CCGT09T301R-AY H1, CCGT09T301L-AY H1, CCGT09T302R-AY H1, CCGT09T302L-AY H1 + 2 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
