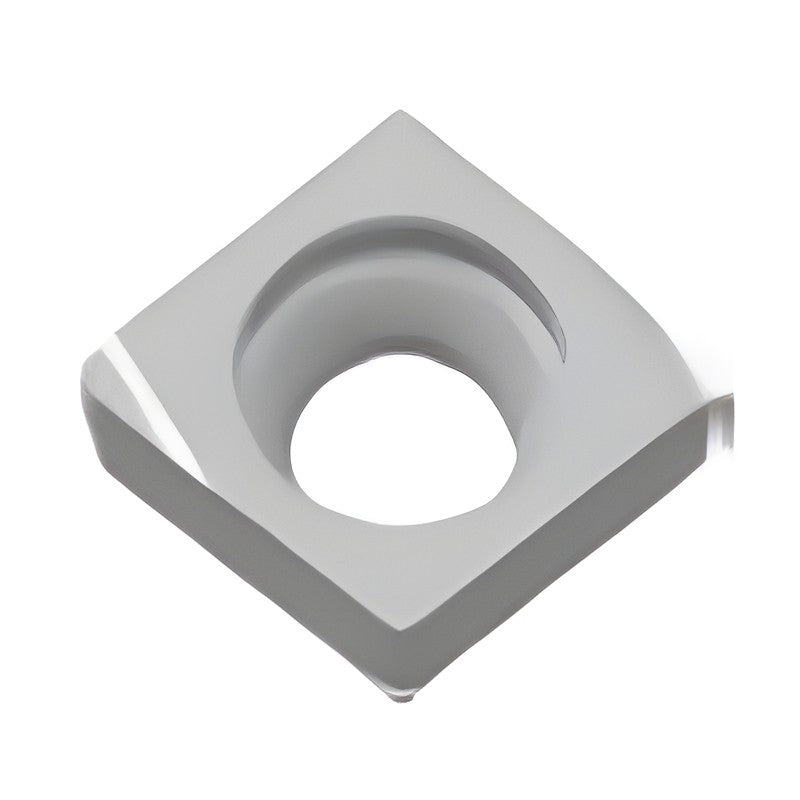

Sumitomo Electric Hardmetal IGETALLOY CCGT Positive Turning Insert, FY Chipbreaker

Sumitomo Electric Hardmetal IGETALLOY CCGT Positive Turning Insert, FY Chipbreaker

80° rhombic positive turning insert (countersunk hole, single-sided chipbreaker), ISO type CCGT with the FY chipbreaker, offered in coated carbide and coated cermet and cermet grades.

Key features

  • Corner radius range: 0.1–0.4 mm
  • Stocked grades: AC5015S, AC5025S, AC1030U, T1500Z, T1000A, T1500A

Specifications

Product line IGETALLOY
Insert shape 80° rhombic
Clearance angle 7°
Hole / chipbreaker Countersunk hole, single-sided chipbreaker
Chipbreaker FY
CCGT03X101R-FY AC5015S IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: AC5015S | Grade material: Coated carbide | Stock: Yes
CCGT03X101R-FY AC5025S IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: AC5025S | Grade material: Coated carbide | Stock: Yes
CCGT03X101R-FY AC1030U IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCGT03X101R-FY T1500Z IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: T1500Z | Grade material: Coated cermet | Stock: Yes
CCGT03X101R-FY T1000A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCGT03X101R-FY T1500A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCGT03X101L-FY AC5015S IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: AC5015S | Grade material: Coated carbide | Stock: Yes
CCGT03X101L-FY AC5025S IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: AC5025S | Grade material: Coated carbide | Stock: Yes
CCGT03X101L-FY AC1030U IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCGT03X101L-FY T1500Z IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: T1500Z | Grade material: Coated cermet | Stock: Yes
CCGT03X101L-FY T1000A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCGT03X101L-FY T1500A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCGT03X102R-FY AC5015S IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: AC5015S | Grade material: Coated carbide | Stock: Yes
CCGT03X102R-FY AC5025S IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: AC5025S | Grade material: Coated carbide | Stock: Yes
CCGT03X102R-FY AC1030U IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCGT03X102R-FY T1500Z IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: T1500Z | Grade material: Coated cermet | Stock: Yes
CCGT03X102R-FY T1000A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCGT03X102R-FY T1500A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCGT03X102L-FY AC5015S IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: AC5015S | Grade material: Coated carbide | Stock: Yes
CCGT03X102L-FY AC5025S IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: AC5025S | Grade material: Coated carbide | Stock: Yes
CCGT03X102L-FY AC1030U IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCGT03X102L-FY T1500Z IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: T1500Z | Grade material: Coated cermet | Stock: Yes
CCGT03X102L-FY T1000A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCGT03X102L-FY T1500A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCGT03X104R-FY AC5015S IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: AC5015S | Grade material: Coated carbide | Stock: Yes
CCGT03X104R-FY AC5025S IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: AC5025S | Grade material: Coated carbide | Stock: Yes
CCGT03X104R-FY AC1030U IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCGT03X104R-FY T1500Z IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: T1500Z | Grade material: Coated cermet | Stock: Yes
CCGT03X104R-FY T1000A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCGT03X104R-FY T1500A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCGT03X104L-FY AC5015S IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: AC5015S | Grade material: Coated carbide | Stock: Yes
CCGT03X104L-FY AC5025S IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: AC5025S | Grade material: Coated carbide | Stock: Yes
CCGT03X104L-FY AC1030U IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCGT03X104L-FY T1500Z IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: T1500Z | Grade material: Coated cermet | Stock: Yes
CCGT03X104L-FY T1000A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCGT03X104L-FY T1500A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCGT04X101R-FY AC5015S IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: AC5015S | Grade material: Coated carbide | Stock: Yes
CCGT04X101R-FY AC5025S IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: AC5025S | Grade material: Coated carbide | Stock: Yes
CCGT04X101R-FY AC1030U IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCGT04X101R-FY T1500Z IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: T1500Z | Grade material: Coated cermet | Stock: Yes
CCGT04X101R-FY T1000A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCGT04X101R-FY T1500A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCGT04X101L-FY AC5015S IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: AC5015S | Grade material: Coated carbide | Stock: Yes
CCGT04X101L-FY AC5025S IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: AC5025S | Grade material: Coated carbide | Stock: Yes
CCGT04X101L-FY AC1030U IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCGT04X101L-FY T1500Z IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: T1500Z | Grade material: Coated cermet | Stock: Yes
CCGT04X101L-FY T1000A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCGT04X101L-FY T1500A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCGT04X102R-FY AC5015S IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: AC5015S | Grade material: Coated carbide | Stock: Yes
CCGT04X102R-FY AC5025S IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: AC5025S | Grade material: Coated carbide | Stock: Yes
CCGT04X102R-FY AC1030U IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCGT04X102R-FY T1500Z IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: T1500Z | Grade material: Coated cermet | Stock: Yes
CCGT04X102R-FY T1000A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCGT04X102R-FY T1500A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCGT04X102L-FY AC5015S IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: AC5015S | Grade material: Coated carbide | Stock: Yes
CCGT04X102L-FY AC5025S IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: AC5025S | Grade material: Coated carbide | Stock: Yes
CCGT04X102L-FY AC1030U IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCGT04X102L-FY T1500Z IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: T1500Z | Grade material: Coated cermet | Stock: Yes
CCGT04X102L-FY T1000A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCGT04X102L-FY T1500A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCGT04X104R-FY AC5015S IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: AC5015S | Grade material: Coated carbide | Stock: Yes
CCGT04X104R-FY AC5025S IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: AC5025S | Grade material: Coated carbide | Stock: Yes
CCGT04X104R-FY AC1030U IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCGT04X104R-FY T1500Z IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: T1500Z | Grade material: Coated cermet | Stock: Yes
CCGT04X104R-FY T1000A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCGT04X104R-FY T1500A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCGT04X104L-FY AC5015S IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: AC5015S | Grade material: Coated carbide | Stock: Yes
CCGT04X104L-FY AC5025S IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: AC5025S | Grade material: Coated carbide | Stock: Yes
CCGT04X104L-FY AC1030U IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCGT04X104L-FY T1500Z IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: T1500Z | Grade material: Coated cermet | Stock: Yes
CCGT04X104L-FY T1000A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCGT04X104L-FY T1500A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
Turning InsertsSumitomo Electric Hardmetal
72 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal IGETALLOY CCGT Positive Turning Insert, FY Chipbreaker

Brand Sumitomo Electric Hardmetal·Turning Inserts

Available part numbers (72)

CCGT03X101R-FY AC5015S, CCGT03X101R-FY AC5025S, CCGT03X101R-FY AC1030U, CCGT03X101R-FY T1500Z, CCGT03X101R-FY T1000A, CCGT03X101R-FY T1500A, CCGT03X101L-FY AC5015S, CCGT03X101L-FY AC5025S, CCGT03X101L-FY AC1030U, CCGT03X101L-FY T1500Z + 62 more — see full table ↓
