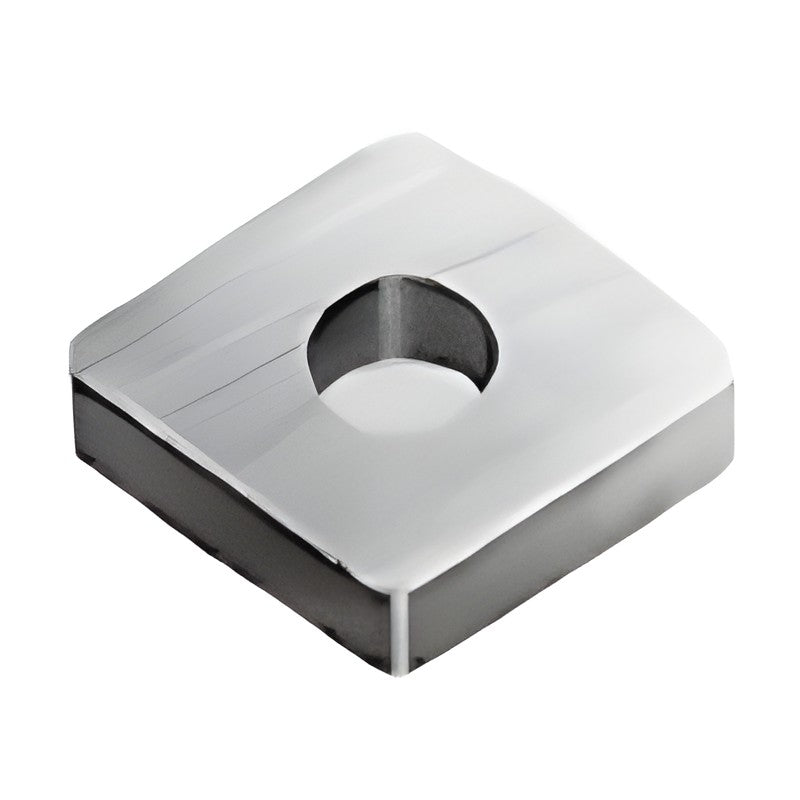

Sumitomo Electric Hardmetal IGETALLOY CNGA Negative Turning Insert

Sumitomo Electric Hardmetal IGETALLOY CNGA Negative Turning Insert

80° rhombic negative turning insert (with hole, no chipbreaker), ISO type CNGA, offered in coated carbide grades.

Key features

  • Corner radius range: 0.2–0.8 mm
  • Stocked grades: AC503U

Specifications

Product line IGETALLOY
Insert shape 80° rhombic
Clearance angle 0°
Hole / chipbreaker With hole, no chipbreaker
CNGA120402 AC503U IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.2 | L (mm): 12.9 | D1 (mm): 5.16 | Grade: AC503U | Grade material: Coated carbide | Stock: Yes
CNGA120404 AC503U IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.4 | L (mm): 12.9 | D1 (mm): 5.16 | Grade: AC503U | Grade material: Coated carbide | Stock: Yes
CNGA120408 AC503U IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.9 | D1 (mm): 5.16 | Grade: AC503U | Grade material: Coated carbide | Stock: Yes
Turning InsertsSumitomo Electric Hardmetal
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal IGETALLOY CNGA Negative Turning Insert

Brand Sumitomo Electric Hardmetal·Turning Inserts

Available part numbers (3)

CNGA120402 AC503U, CNGA120404 AC503U, CNGA120408 AC503U

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CNGA120402 AC503UIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.2 | L (mm): 12.9 | D1 (mm): 5.16 | Grade: AC503U | Grade material: Coated carbide | Stock: Yes
CNGA120404 AC503UIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.4 | L (mm): 12.9 | D1 (mm): 5.16 | Grade: AC503U | Grade material: Coated carbide | Stock: Yes
CNGA120408 AC503UIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.9 | D1 (mm): 5.16 | Grade: AC503U | Grade material: Coated carbide | Stock: Yes
