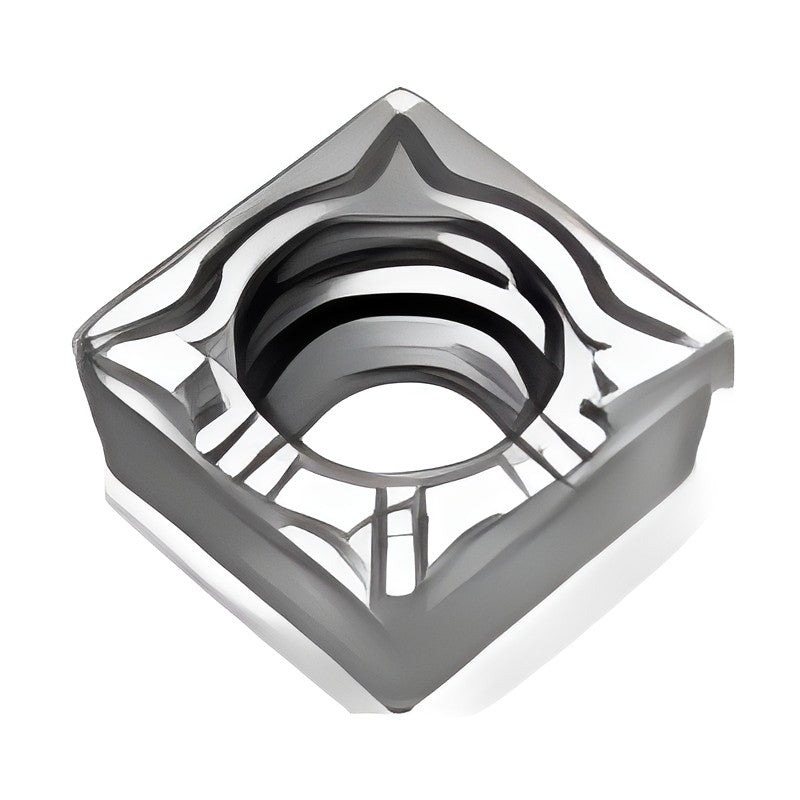

Sumitomo Electric Hardmetal IGETALLOY SCMT Positive Turning Insert, GU Chipbreaker

Sumitomo Electric Hardmetal IGETALLOY SCMT Positive Turning Insert, GU Chipbreaker

Square positive turning insert (countersunk hole, single-sided chipbreaker), ISO type SCMT with the GU chipbreaker, offered in coated carbide grades.

Key features

  • General-purpose chipbreaker with low cutting resistance and high wear resistance
  • Corner radius range: 0.4–0.8 mm
  • Stocked grades: AC8115P, AC8020P, AC8025P, AC8035P, AC6020M, AC6030M, AC6135M, AC6145M

Specifications

Product line IGETALLOY
Insert shape Square
Clearance angle 7°
Hole / chipbreaker Countersunk hole, single-sided chipbreaker
Chipbreaker GU
SCMT09T304N-GU AC8115P IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.4 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC8115P | Grade material: Coated carbide | Stock: Yes
SCMT09T304N-GU AC8020P IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.4 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC8020P | Grade material: Coated carbide | Stock: Yes
SCMT09T304N-GU AC8025P IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.4 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC8025P | Grade material: Coated carbide | Stock: Yes
SCMT09T304N-GU AC8035P IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.4 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC8035P | Grade material: Coated carbide | Stock: Yes
SCMT09T304N-GU AC6020M IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.4 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC6020M | Grade material: Coated carbide | Stock: Yes
SCMT09T304N-GU AC6030M IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.4 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC6030M | Grade material: Coated carbide | Stock: Yes
SCMT09T304N-GU AC6135M IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.4 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC6135M | Grade material: Coated carbide | Stock: Yes
SCMT09T304N-GU AC6145M IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.4 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC6145M | Grade material: Coated carbide | Stock: Yes
SCMT09T308N-GU AC8115P IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.8 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC8115P | Grade material: Coated carbide | Stock: Yes
SCMT09T308N-GU AC8020P IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.8 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC8020P | Grade material: Coated carbide | Stock: Yes
SCMT09T308N-GU AC8025P IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.8 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC8025P | Grade material: Coated carbide | Stock: Yes
SCMT09T308N-GU AC8035P IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.8 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC8035P | Grade material: Coated carbide | Stock: Yes
SCMT09T308N-GU AC6020M IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.8 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC6020M | Grade material: Coated carbide | Stock: Yes
SCMT09T308N-GU AC6030M IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.8 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC6030M | Grade material: Coated carbide | Stock: Yes
SCMT09T308N-GU AC6135M IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.8 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC6135M | Grade material: Coated carbide | Stock: Yes
SCMT09T308N-GU AC6145M IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.8 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC6145M | Grade material: Coated carbide | Stock: Yes
SCMT120408N-GU AC8115P IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | D1 (mm): 5.5 | Grade: AC8115P | Grade material: Coated carbide | Stock: Yes
SCMT120408N-GU AC8020P IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | D1 (mm): 5.5 | Grade: AC8020P | Grade material: Coated carbide | Stock: Yes
SCMT120408N-GU AC8025P IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | D1 (mm): 5.5 | Grade: AC8025P | Grade material: Coated carbide | Stock: Yes
SCMT120408N-GU AC8035P IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | D1 (mm): 5.5 | Grade: AC8035P | Grade material: Coated carbide | Stock: Yes
Turning InsertsSumitomo Electric Hardmetal
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal IGETALLOY SCMT Positive Turning Insert, GU Chipbreaker

Brand Sumitomo Electric Hardmetal·Turning Inserts

Available part numbers (20)

SCMT09T304N-GU AC8115P, SCMT09T304N-GU AC8020P, SCMT09T304N-GU AC8025P, SCMT09T304N-GU AC8035P, SCMT09T304N-GU AC6020M, SCMT09T304N-GU AC6030M, SCMT09T304N-GU AC6135M, SCMT09T304N-GU AC6145M, SCMT09T308N-GU AC8115P, SCMT09T308N-GU AC8020P + 10 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCMT09T304N-GU AC8115PIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.4 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC8115P | Grade material: Coated carbide | Stock: Yes
SCMT09T304N-GU AC8020PIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.4 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC8020P | Grade material: Coated carbide | Stock: Yes
SCMT09T304N-GU AC8025PIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.4 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC8025P | Grade material: Coated carbide | Stock: Yes
SCMT09T304N-GU AC8035PIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.4 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC8035P | Grade material: Coated carbide | Stock: Yes
SCMT09T304N-GU AC6020MIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.4 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC6020M | Grade material: Coated carbide | Stock: Yes
SCMT09T304N-GU AC6030MIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.4 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC6030M | Grade material: Coated carbide | Stock: Yes
SCMT09T304N-GU AC6135MIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.4 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC6135M | Grade material: Coated carbide | Stock: Yes
SCMT09T304N-GU AC6145MIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.4 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC6145M | Grade material: Coated carbide | Stock: Yes
SCMT09T308N-GU AC8115PIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.8 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC8115P | Grade material: Coated carbide | Stock: Yes
SCMT09T308N-GU AC8020PIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.8 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC8020P | Grade material: Coated carbide | Stock: Yes
SCMT09T308N-GU AC8025PIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.8 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC8025P | Grade material: Coated carbide | Stock: Yes
SCMT09T308N-GU AC8035PIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.8 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC8035P | Grade material: Coated carbide | Stock: Yes
SCMT09T308N-GU AC6020MIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.8 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC6020M | Grade material: Coated carbide | Stock: Yes
SCMT09T308N-GU AC6030MIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.8 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC6030M | Grade material: Coated carbide | Stock: Yes
SCMT09T308N-GU AC6135MIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.8 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC6135M | Grade material: Coated carbide | Stock: Yes
SCMT09T308N-GU AC6145MIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.8 | L (mm): 9.525 | D1 (mm): 4.4 | Grade: AC6145M | Grade material: Coated carbide | Stock: Yes
SCMT120408N-GU AC8115PIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | D1 (mm): 5.5 | Grade: AC8115P | Grade material: Coated carbide | Stock: Yes
SCMT120408N-GU AC8020PIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | D1 (mm): 5.5 | Grade: AC8020P | Grade material: Coated carbide | Stock: Yes
SCMT120408N-GU AC8025PIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | D1 (mm): 5.5 | Grade: AC8025P | Grade material: Coated carbide | Stock: Yes
SCMT120408N-GU AC8035PIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | D1 (mm): 5.5 | Grade: AC8035P | Grade material: Coated carbide | Stock: Yes
