• Sumitomo Electric Hardmetal IGETALLOY SNGG Negative Turning Insert, C Chipbreaker
1 1

Sumitomo Electric Hardmetal IGETALLOY SNGG Negative Turning Insert, C Chipbreaker

Sumitomo Electric Hardmetal IGETALLOY SNGG Negative Turning Insert, C Chipbreaker

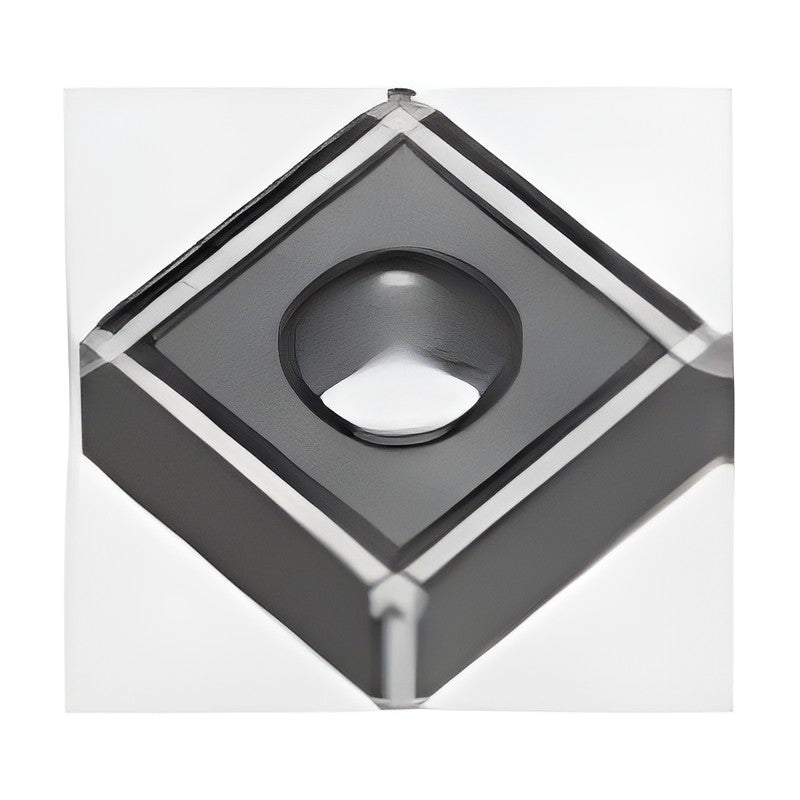

Square negative turning insert (with hole, double-sided chipbreaker), ISO type SNGG with the C chipbreaker, offered in cemented carbide grades.

Key features

  • Stocked grades: ST10P, ST20E, G10E, H1

Specifications

Product line IGETALLOY
Insert shape Square
Clearance angle 0°
Hole / chipbreaker With hole, double-sided chipbreaker
Chipbreaker C
SNGG07T200-C ST10P IC (mm): 7.94 | S (mm): 2.78 | L (mm): 7.94 | D1 (mm): 3.15 | Grade: ST10P | Grade material: Cemented carbide | Stock: Yes
SNGG07T200-C ST20E IC (mm): 7.94 | S (mm): 2.78 | L (mm): 7.94 | D1 (mm): 3.15 | Grade: ST20E | Grade material: Cemented carbide | Stock: Yes
SNGG07T200-C G10E IC (mm): 7.94 | S (mm): 2.78 | L (mm): 7.94 | D1 (mm): 3.15 | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
SNGG090300-C ST10P IC (mm): 9.525 | S (mm): 3.18 | L (mm): 9.525 | D1 (mm): 3.81 | Grade: ST10P | Grade material: Cemented carbide | Stock: Yes
SNGG090300-C ST20E IC (mm): 9.525 | S (mm): 3.18 | L (mm): 9.525 | D1 (mm): 3.81 | Grade: ST20E | Grade material: Cemented carbide | Stock: Yes
SNGG090300-C G10E IC (mm): 9.525 | S (mm): 3.18 | L (mm): 9.525 | D1 (mm): 3.81 | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
SNGG120400-C ST20E IC (mm): 12.7 | S (mm): 4.76 | L (mm): 12.7 | D1 (mm): 5.16 | Grade: ST20E | Grade material: Cemented carbide | Stock: Yes
SNGG120400-C G10E IC (mm): 12.7 | S (mm): 4.76 | L (mm): 12.7 | D1 (mm): 5.16 | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
SNGG120400-C H1 IC (mm): 12.7 | S (mm): 4.76 | L (mm): 12.7 | D1 (mm): 5.16 | Grade: H1 | Grade material: Cemented carbide | Stock: Yes
Turning InsertsSumitomo Electric Hardmetal
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal IGETALLOY SNGG Negative Turning Insert, C Chipbreaker

Brand Sumitomo Electric Hardmetal·Turning Inserts

Available part numbers (9)

SNGG07T200-C ST10P, SNGG07T200-C ST20E, SNGG07T200-C G10E, SNGG090300-C ST10P, SNGG090300-C ST20E, SNGG090300-C G10E, SNGG120400-C ST20E, SNGG120400-C G10E, SNGG120400-C H1

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SNGG07T200-C ST10PIC (mm): 7.94 | S (mm): 2.78 | L (mm): 7.94 | D1 (mm): 3.15 | Grade: ST10P | Grade material: Cemented carbide | Stock: Yes
SNGG07T200-C ST20EIC (mm): 7.94 | S (mm): 2.78 | L (mm): 7.94 | D1 (mm): 3.15 | Grade: ST20E | Grade material: Cemented carbide | Stock: Yes
SNGG07T200-C G10EIC (mm): 7.94 | S (mm): 2.78 | L (mm): 7.94 | D1 (mm): 3.15 | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
SNGG090300-C ST10PIC (mm): 9.525 | S (mm): 3.18 | L (mm): 9.525 | D1 (mm): 3.81 | Grade: ST10P | Grade material: Cemented carbide | Stock: Yes
SNGG090300-C ST20EIC (mm): 9.525 | S (mm): 3.18 | L (mm): 9.525 | D1 (mm): 3.81 | Grade: ST20E | Grade material: Cemented carbide | Stock: Yes
SNGG090300-C G10EIC (mm): 9.525 | S (mm): 3.18 | L (mm): 9.525 | D1 (mm): 3.81 | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
SNGG120400-C ST20EIC (mm): 12.7 | S (mm): 4.76 | L (mm): 12.7 | D1 (mm): 5.16 | Grade: ST20E | Grade material: Cemented carbide | Stock: Yes
SNGG120400-C G10EIC (mm): 12.7 | S (mm): 4.76 | L (mm): 12.7 | D1 (mm): 5.16 | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
SNGG120400-C H1IC (mm): 12.7 | S (mm): 4.76 | L (mm): 12.7 | D1 (mm): 5.16 | Grade: H1 | Grade material: Cemented carbide | Stock: Yes
