Sumitomo Electric Hardmetal IGETALLOY SNGG Negative Turning Insert, GX Chipbreaker

Sumitomo Electric Hardmetal IGETALLOY SNGG Negative Turning Insert, GX Chipbreaker

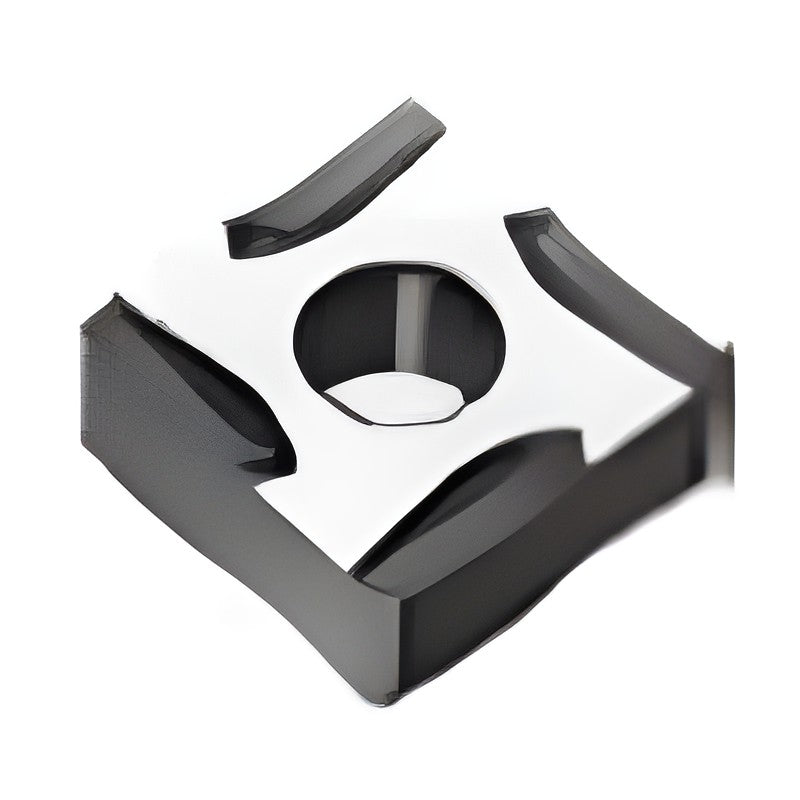

Square negative turning insert (with hole, double-sided chipbreaker), ISO type SNGG with the GX chipbreaker, offered in cemented carbide grades.

Key features

  • Corner radius range: 0.4–0.8 mm
  • Stocked grades: ST20E, ST10P, G10E, H1

Specifications

Product line IGETALLOY
Insert shape Square
Clearance angle 0°
Hole / chipbreaker With hole, double-sided chipbreaker
Chipbreaker GX
SNGG07T204R-GX ST20E IC (mm): 7.94 | S (mm): 2.78 | RE (mm): 0.4 | L (mm): 7.94 | D1 (mm): 3.15 | Hand: Right | Grade: ST20E | Grade material: Cemented carbide | Stock: Yes
SNGG07T204L-GX ST10P IC (mm): 7.94 | S (mm): 2.78 | RE (mm): 0.4 | L (mm): 7.94 | D1 (mm): 3.15 | Hand: Left | Grade: ST10P | Grade material: Cemented carbide | Stock: Yes
SNGG07T204L-GX ST20E IC (mm): 7.94 | S (mm): 2.78 | RE (mm): 0.4 | L (mm): 7.94 | D1 (mm): 3.15 | Hand: Left | Grade: ST20E | Grade material: Cemented carbide | Stock: Yes
SNGG07T208L-GX ST10P IC (mm): 7.94 | S (mm): 2.78 | RE (mm): 0.8 | L (mm): 7.94 | D1 (mm): 3.15 | Hand: Left | Grade: ST10P | Grade material: Cemented carbide | Stock: Yes
SNGG07T208L-GX ST20E IC (mm): 7.94 | S (mm): 2.78 | RE (mm): 0.8 | L (mm): 7.94 | D1 (mm): 3.15 | Hand: Left | Grade: ST20E | Grade material: Cemented carbide | Stock: Yes
SNGG07T208L-GX G10E IC (mm): 7.94 | S (mm): 2.78 | RE (mm): 0.8 | L (mm): 7.94 | D1 (mm): 3.15 | Hand: Left | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
SNGG090308R-GX ST20E IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.8 | L (mm): 9.525 | D1 (mm): 3.81 | Hand: Right | Grade: ST20E | Grade material: Cemented carbide | Stock: Yes
SNGG090308R-GX G10E IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.8 | L (mm): 9.525 | D1 (mm): 3.81 | Hand: Right | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
SNGG090308L-GX ST20E IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.8 | L (mm): 9.525 | D1 (mm): 3.81 | Hand: Left | Grade: ST20E | Grade material: Cemented carbide | Stock: Yes
SNGG090308L-GX G10E IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.8 | L (mm): 9.525 | D1 (mm): 3.81 | Hand: Left | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
SNGG090308L-GX H1 IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.8 | L (mm): 9.525 | D1 (mm): 3.81 | Hand: Left | Grade: H1 | Grade material: Cemented carbide | Stock: Yes
SNGG120404L-GX ST20E IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.4 | L (mm): 12.7 | D1 (mm): 5.16 | Hand: Left | Grade: ST20E | Grade material: Cemented carbide | Stock: Yes
SNGG120404L-GX G10E IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.4 | L (mm): 12.7 | D1 (mm): 5.16 | Hand: Left | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
SNGG120408R-GX G10E IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | D1 (mm): 5.16 | Hand: Right | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
SNGG120408L-GX ST20E IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | D1 (mm): 5.16 | Hand: Left | Grade: ST20E | Grade material: Cemented carbide | Stock: Yes
SNGG120408L-GX G10E IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | D1 (mm): 5.16 | Hand: Left | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
SNGG120408L-GX H1 IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | D1 (mm): 5.16 | Hand: Left | Grade: H1 | Grade material: Cemented carbide | Stock: Yes
Turning InsertsSumitomo Electric Hardmetal
17 product codes available in this family
