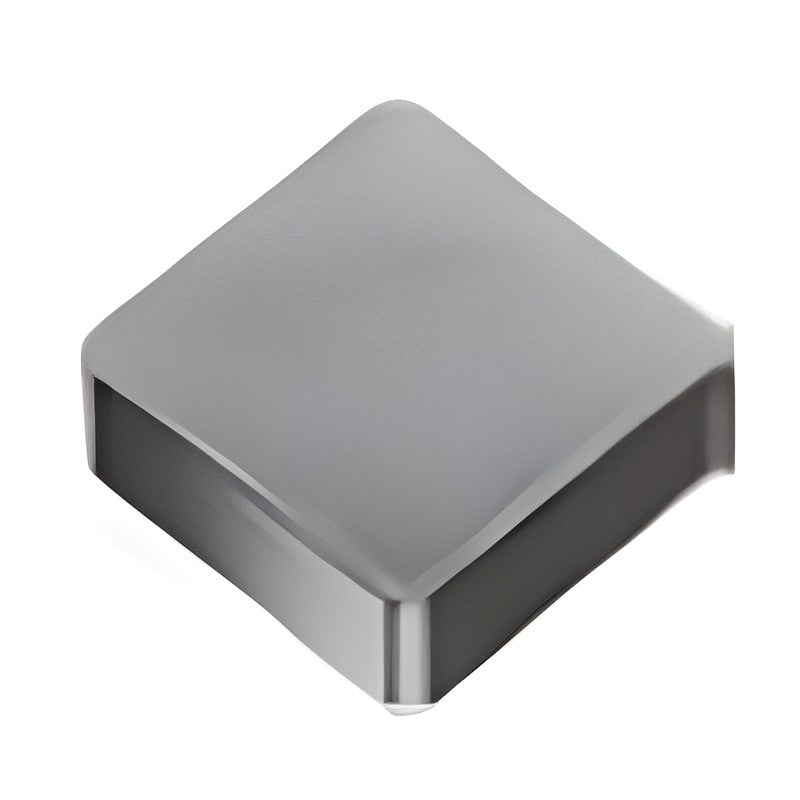

Sumitomo Electric Hardmetal IGETALLOY SNMN Negative Turning Insert

Sumitomo Electric Hardmetal IGETALLOY SNMN Negative Turning Insert

Square negative turning insert (without hole, no chipbreaker), ISO type SNMN, offered in cemented carbide and coated carbide and cermet grades.

Key features

  • Corner radius range: 0.4–2.4 mm
  • Stocked grades: ST10P, AC4010K, AC4015K, AC4125K, AC5005S, AC5015S, AC5025S, AC510U, T1000A, T1500A, ST20E, A30, G10E, AC530U

Specifications

Product line IGETALLOY
Insert shape Square
Clearance angle 0°
Hole / chipbreaker Without hole, no chipbreaker
SNMN120404 ST10P IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.4 | L (mm): 12.7 | Grade: ST10P | Grade material: Cemented carbide | Stock: Yes
SNMN120408 AC4010K IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: AC4010K | Grade material: Coated carbide | Stock: Yes
SNMN120408 AC4015K IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: AC4015K | Grade material: Coated carbide | Stock: Yes
SNMN120408 AC4125K IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: AC4125K | Grade material: Coated carbide | Stock: Yes
SNMN120408 AC5005S IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: AC5005S | Grade material: Coated carbide | Stock: Yes
SNMN120408 AC5015S IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: AC5015S | Grade material: Coated carbide | Stock: Yes
SNMN120408 AC5025S IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: AC5025S | Grade material: Coated carbide | Stock: Yes
SNMN120408 AC510U IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: AC510U | Grade material: Coated carbide | Stock: Yes
SNMN120408 T1000A IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: T1000A | Grade material: Cermet | Stock: Yes
SNMN120408 T1500A IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: T1500A | Grade material: Cermet | Stock: Yes
SNMN120408 ST10P IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: ST10P | Grade material: Cemented carbide | Stock: Yes
SNMN120408 ST20E IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: ST20E | Grade material: Cemented carbide | Stock: Yes
SNMN120408 A30 IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: A30 | Grade material: Cemented carbide | Stock: Yes
SNMN120408 G10E IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
SNMN120412 AC4010K IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 12.7 | Grade: AC4010K | Grade material: Coated carbide | Stock: Yes
SNMN120412 AC4015K IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 12.7 | Grade: AC4015K | Grade material: Coated carbide | Stock: Yes
SNMN120412 AC4125K IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 12.7 | Grade: AC4125K | Grade material: Coated carbide | Stock: Yes
SNMN120412 AC5005S IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 12.7 | Grade: AC5005S | Grade material: Coated carbide | Stock: Yes
SNMN120412 AC5015S IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 12.7 | Grade: AC5015S | Grade material: Coated carbide | Stock: Yes
SNMN120412 AC5025S IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 12.7 | Grade: AC5025S | Grade material: Coated carbide | Stock: Yes
SNMN120412 AC510U IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 12.7 | Grade: AC510U | Grade material: Coated carbide | Stock: Yes
SNMN120412 AC530U IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 12.7 | Grade: AC530U | Grade material: Coated carbide | Stock: Yes
SNMN120412 A30 IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 12.7 | Grade: A30 | Grade material: Cemented carbide | Stock: Yes
SNMN120412 G10E IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 12.7 | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
SNMN120416 AC4010K IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.6 | L (mm): 12.7 | Grade: AC4010K | Grade material: Coated carbide | Stock: Yes
SNMN120416 AC4015K IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.6 | L (mm): 12.7 | Grade: AC4015K | Grade material: Coated carbide | Stock: Yes
SNMN120416 AC4125K IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.6 | L (mm): 12.7 | Grade: AC4125K | Grade material: Coated carbide | Stock: Yes
SNMN120416 AC5005S IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.6 | L (mm): 12.7 | Grade: AC5005S | Grade material: Coated carbide | Stock: Yes
SNMN120416 AC5015S IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.6 | L (mm): 12.7 | Grade: AC5015S | Grade material: Coated carbide | Stock: Yes
SNMN120416 AC5025S IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.6 | L (mm): 12.7 | Grade: AC5025S | Grade material: Coated carbide | Stock: Yes
SNMN120416 AC510U IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.6 | L (mm): 12.7 | Grade: AC510U | Grade material: Coated carbide | Stock: Yes
SNMN120420 AC530U IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 2.0 | L (mm): 12.7 | Grade: AC530U | Grade material: Coated carbide | Stock: Yes
SNMN120424 AC530U IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 2.4 | L (mm): 12.7 | Grade: AC530U | Grade material: Coated carbide | Stock: Yes
SNMN150408 ST10P IC (mm): 15.875 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 15.875 | Grade: ST10P | Grade material: Cemented carbide | Stock: Yes
SNMN150408 G10E IC (mm): 15.875 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 15.875 | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
SNMN190412 A30 IC (mm): 19.05 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 19.05 | Grade: A30 | Grade material: Cemented carbide | Stock: Yes
SNMN190412 G10E IC (mm): 19.05 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 19.05 | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
Turning InsertsSumitomo Electric Hardmetal
37 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal IGETALLOY SNMN Negative Turning Insert

Brand Sumitomo Electric Hardmetal·Turning Inserts

Available part numbers (37)

SNMN120404 ST10P, SNMN120408 AC4010K, SNMN120408 AC4015K, SNMN120408 AC4125K, SNMN120408 AC5005S, SNMN120408 AC5015S, SNMN120408 AC5025S, SNMN120408 AC510U, SNMN120408 T1000A, SNMN120408 T1500A + 27 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SNMN120404 ST10PIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.4 | L (mm): 12.7 | Grade: ST10P | Grade material: Cemented carbide | Stock: Yes
SNMN120408 AC4010KIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: AC4010K | Grade material: Coated carbide | Stock: Yes
SNMN120408 AC4015KIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: AC4015K | Grade material: Coated carbide | Stock: Yes
SNMN120408 AC4125KIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: AC4125K | Grade material: Coated carbide | Stock: Yes
SNMN120408 AC5005SIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: AC5005S | Grade material: Coated carbide | Stock: Yes
SNMN120408 AC5015SIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: AC5015S | Grade material: Coated carbide | Stock: Yes
SNMN120408 AC5025SIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: AC5025S | Grade material: Coated carbide | Stock: Yes
SNMN120408 AC510UIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: AC510U | Grade material: Coated carbide | Stock: Yes
SNMN120408 T1000AIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: T1000A | Grade material: Cermet | Stock: Yes
SNMN120408 T1500AIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: T1500A | Grade material: Cermet | Stock: Yes
SNMN120408 ST10PIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: ST10P | Grade material: Cemented carbide | Stock: Yes
SNMN120408 ST20EIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: ST20E | Grade material: Cemented carbide | Stock: Yes
SNMN120408 A30IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: A30 | Grade material: Cemented carbide | Stock: Yes
SNMN120408 G10EIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 12.7 | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
SNMN120412 AC4010KIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 12.7 | Grade: AC4010K | Grade material: Coated carbide | Stock: Yes
SNMN120412 AC4015KIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 12.7 | Grade: AC4015K | Grade material: Coated carbide | Stock: Yes
SNMN120412 AC4125KIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 12.7 | Grade: AC4125K | Grade material: Coated carbide | Stock: Yes
SNMN120412 AC5005SIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 12.7 | Grade: AC5005S | Grade material: Coated carbide | Stock: Yes
SNMN120412 AC5015SIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 12.7 | Grade: AC5015S | Grade material: Coated carbide | Stock: Yes
SNMN120412 AC5025SIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 12.7 | Grade: AC5025S | Grade material: Coated carbide | Stock: Yes
SNMN120412 AC510UIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 12.7 | Grade: AC510U | Grade material: Coated carbide | Stock: Yes
SNMN120412 AC530UIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 12.7 | Grade: AC530U | Grade material: Coated carbide | Stock: Yes
SNMN120412 A30IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 12.7 | Grade: A30 | Grade material: Cemented carbide | Stock: Yes
SNMN120412 G10EIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 12.7 | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
SNMN120416 AC4010KIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.6 | L (mm): 12.7 | Grade: AC4010K | Grade material: Coated carbide | Stock: Yes
SNMN120416 AC4015KIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.6 | L (mm): 12.7 | Grade: AC4015K | Grade material: Coated carbide | Stock: Yes
SNMN120416 AC4125KIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.6 | L (mm): 12.7 | Grade: AC4125K | Grade material: Coated carbide | Stock: Yes
SNMN120416 AC5005SIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.6 | L (mm): 12.7 | Grade: AC5005S | Grade material: Coated carbide | Stock: Yes
SNMN120416 AC5015SIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.6 | L (mm): 12.7 | Grade: AC5015S | Grade material: Coated carbide | Stock: Yes
SNMN120416 AC5025SIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.6 | L (mm): 12.7 | Grade: AC5025S | Grade material: Coated carbide | Stock: Yes
SNMN120416 AC510UIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.6 | L (mm): 12.7 | Grade: AC510U | Grade material: Coated carbide | Stock: Yes
SNMN120420 AC530UIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 2.0 | L (mm): 12.7 | Grade: AC530U | Grade material: Coated carbide | Stock: Yes
SNMN120424 AC530UIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 2.4 | L (mm): 12.7 | Grade: AC530U | Grade material: Coated carbide | Stock: Yes
SNMN150408 ST10PIC (mm): 15.875 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 15.875 | Grade: ST10P | Grade material: Cemented carbide | Stock: Yes
SNMN150408 G10EIC (mm): 15.875 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 15.875 | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
SNMN190412 A30IC (mm): 19.05 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 19.05 | Grade: A30 | Grade material: Cemented carbide | Stock: Yes
SNMN190412 G10EIC (mm): 19.05 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 19.05 | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
