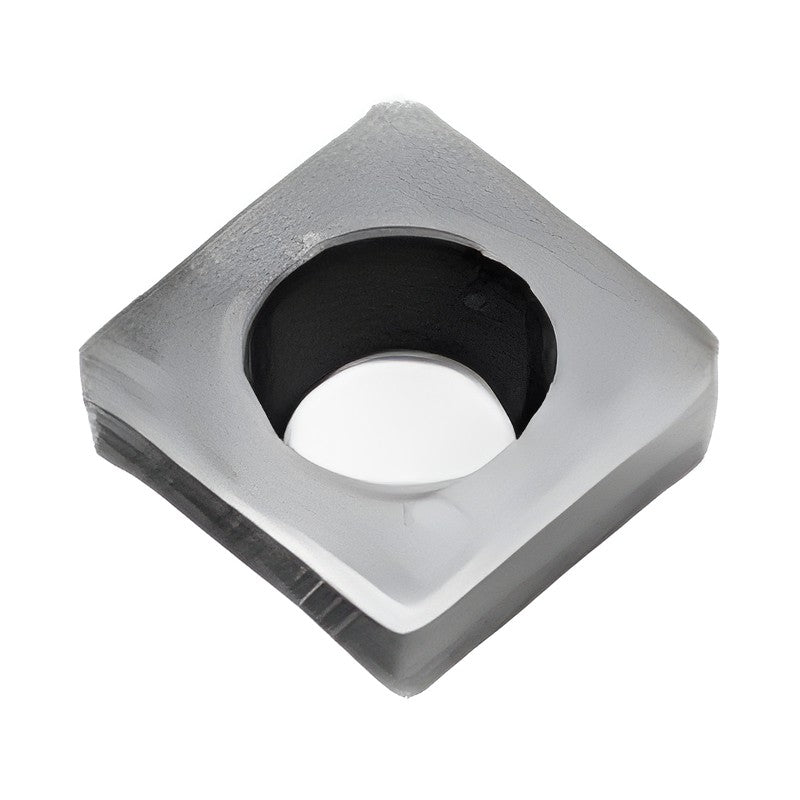

Sumitomo Electric Hardmetal IGETALLOY SPGW Positive Turning Insert

Sumitomo Electric Hardmetal IGETALLOY SPGW Positive Turning Insert

Square positive turning insert (countersunk hole, no chipbreaker), ISO type SPGW, offered in coated carbide and cemented carbide grades.

Key features

  • Corner radius range: 0.4–0.8 mm
  • Stocked grades: AC4015K, G10E, H1

Specifications

Product line IGETALLOY
Insert shape Square
Clearance angle 11°
Hole / chipbreaker Countersunk hole, no chipbreaker
SPGW070304 AC4015K IC (mm): 7.94 | S (mm): 3.18 | RE (mm): 0.4 | L (mm): 7.94 | D1 (mm): 3.4 | Grade: AC4015K | Grade material: Coated carbide | Stock: Yes
SPGW070304 G10E IC (mm): 7.94 | S (mm): 3.18 | RE (mm): 0.4 | L (mm): 7.94 | D1 (mm): 3.4 | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
SPGW070304 H1 IC (mm): 7.94 | S (mm): 3.18 | RE (mm): 0.4 | L (mm): 7.94 | D1 (mm): 3.4 | Grade: H1 | Grade material: Cemented carbide | Stock: Yes
SPGW070308 AC4015K IC (mm): 7.94 | S (mm): 3.18 | RE (mm): 0.8 | L (mm): 7.94 | D1 (mm): 3.4 | Grade: AC4015K | Grade material: Coated carbide | Stock: Yes
SPGW070308 H1 IC (mm): 7.94 | S (mm): 3.18 | RE (mm): 0.8 | L (mm): 7.94 | D1 (mm): 3.4 | Grade: H1 | Grade material: Cemented carbide | Stock: Yes
SPGW090304 AC4015K IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.4 | L (mm): 9.525 | D1 (mm): 3.4 | Grade: AC4015K | Grade material: Coated carbide | Stock: Yes
SPGW090304 G10E IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.4 | L (mm): 9.525 | D1 (mm): 3.4 | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
SPGW090304 H1 IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.4 | L (mm): 9.525 | D1 (mm): 3.4 | Grade: H1 | Grade material: Cemented carbide | Stock: Yes
SPGW090308 AC4015K IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.8 | L (mm): 9.525 | D1 (mm): 3.4 | Grade: AC4015K | Grade material: Coated carbide | Stock: Yes
SPGW090308 H1 IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.8 | L (mm): 9.525 | D1 (mm): 3.4 | Grade: H1 | Grade material: Cemented carbide | Stock: Yes
Turning InsertsSumitomo Electric Hardmetal
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal IGETALLOY SPGW Positive Turning Insert

Brand Sumitomo Electric Hardmetal·Turning Inserts

Available part numbers (10)

SPGW070304 AC4015K, SPGW070304 G10E, SPGW070304 H1, SPGW070308 AC4015K, SPGW070308 H1, SPGW090304 AC4015K, SPGW090304 G10E, SPGW090304 H1, SPGW090308 AC4015K, SPGW090308 H1

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SPGW070304 AC4015KIC (mm): 7.94 | S (mm): 3.18 | RE (mm): 0.4 | L (mm): 7.94 | D1 (mm): 3.4 | Grade: AC4015K | Grade material: Coated carbide | Stock: Yes
SPGW070304 G10EIC (mm): 7.94 | S (mm): 3.18 | RE (mm): 0.4 | L (mm): 7.94 | D1 (mm): 3.4 | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
SPGW070304 H1IC (mm): 7.94 | S (mm): 3.18 | RE (mm): 0.4 | L (mm): 7.94 | D1 (mm): 3.4 | Grade: H1 | Grade material: Cemented carbide | Stock: Yes
SPGW070308 AC4015KIC (mm): 7.94 | S (mm): 3.18 | RE (mm): 0.8 | L (mm): 7.94 | D1 (mm): 3.4 | Grade: AC4015K | Grade material: Coated carbide | Stock: Yes
SPGW070308 H1IC (mm): 7.94 | S (mm): 3.18 | RE (mm): 0.8 | L (mm): 7.94 | D1 (mm): 3.4 | Grade: H1 | Grade material: Cemented carbide | Stock: Yes
SPGW090304 AC4015KIC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.4 | L (mm): 9.525 | D1 (mm): 3.4 | Grade: AC4015K | Grade material: Coated carbide | Stock: Yes
SPGW090304 G10EIC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.4 | L (mm): 9.525 | D1 (mm): 3.4 | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
SPGW090304 H1IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.4 | L (mm): 9.525 | D1 (mm): 3.4 | Grade: H1 | Grade material: Cemented carbide | Stock: Yes
SPGW090308 AC4015KIC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.8 | L (mm): 9.525 | D1 (mm): 3.4 | Grade: AC4015K | Grade material: Coated carbide | Stock: Yes
SPGW090308 H1IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.8 | L (mm): 9.525 | D1 (mm): 3.4 | Grade: H1 | Grade material: Cemented carbide | Stock: Yes
