Sumitomo Electric Hardmetal IGETALLOY TNMG Negative Turning Insert, SX Chipbreaker

Sumitomo Electric Hardmetal IGETALLOY TNMG Negative Turning Insert, SX Chipbreaker

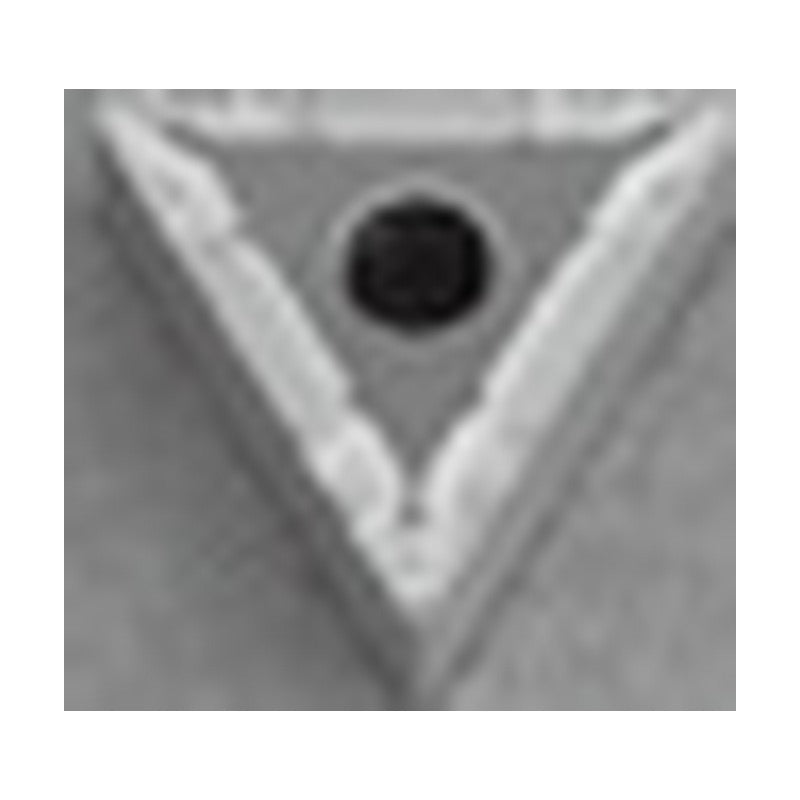

Triangular negative turning insert (with hole, double-sided chipbreaker), ISO type TNMG with the SX chipbreaker, offered in coated carbide and coated cermet and cermet grades.

Key features

  • Corner radius range: 0.4–1.2 mm
  • Stocked grades: AC8115P, AC8020P, AC8025P, AC8035P, T1500Z, T2500Z, T1500A

Specifications

Product line IGETALLOY
Insert shape Triangular
Clearance angle 0°
Hole / chipbreaker With hole, double-sided chipbreaker
Chipbreaker SX
TNMG160304N-SX AC8115P IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.4 | L (mm): 16.5 | D1 (mm): 3.81 | Grade: AC8115P | Grade material: Coated carbide | Stock: Yes
TNMG160304N-SX AC8020P IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.4 | L (mm): 16.5 | D1 (mm): 3.81 | Grade: AC8020P | Grade material: Coated carbide | Stock: Yes
TNMG160304N-SX AC8025P IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.4 | L (mm): 16.5 | D1 (mm): 3.81 | Grade: AC8025P | Grade material: Coated carbide | Stock: Yes
TNMG160308N-SX AC8115P IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.8 | L (mm): 16.5 | D1 (mm): 3.81 | Grade: AC8115P | Grade material: Coated carbide | Stock: Yes
TNMG160308N-SX AC8020P IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.8 | L (mm): 16.5 | D1 (mm): 3.81 | Grade: AC8020P | Grade material: Coated carbide | Stock: Yes
TNMG160308N-SX AC8025P IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.8 | L (mm): 16.5 | D1 (mm): 3.81 | Grade: AC8025P | Grade material: Coated carbide | Stock: Yes
TNMG160308N-SX AC8035P IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.8 | L (mm): 16.5 | D1 (mm): 3.81 | Grade: AC8035P | Grade material: Coated carbide | Stock: Yes
TNMG160404N-SX AC8115P IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.4 | L (mm): 16.5 | D1 (mm): 3.81 | Grade: AC8115P | Grade material: Coated carbide | Stock: Yes
TNMG160404N-SX AC8020P IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.4 | L (mm): 16.5 | D1 (mm): 3.81 | Grade: AC8020P | Grade material: Coated carbide | Stock: Yes
TNMG160404N-SX AC8025P IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.4 | L (mm): 16.5 | D1 (mm): 3.81 | Grade: AC8025P | Grade material: Coated carbide | Stock: Yes
TNMG160404N-SX AC8035P IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.4 | L (mm): 16.5 | D1 (mm): 3.81 | Grade: AC8035P | Grade material: Coated carbide | Stock: Yes
TNMG160404N-SX T1500Z IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.4 | L (mm): 16.5 | D1 (mm): 3.81 | Grade: T1500Z | Grade material: Coated cermet | Stock: Yes
TNMG160404N-SX T2500Z IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.4 | L (mm): 16.5 | D1 (mm): 3.81 | Grade: T2500Z | Grade material: Coated cermet | Stock: Yes
TNMG160404N-SX T1500A IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.4 | L (mm): 16.5 | D1 (mm): 3.81 | Grade: T1500A | Grade material: Cermet | Stock: Yes
TNMG160408N-SX AC8115P IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 16.5 | D1 (mm): 3.81 | Grade: AC8115P | Grade material: Coated carbide | Stock: Yes
TNMG160408N-SX AC8020P IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 16.5 | D1 (mm): 3.81 | Grade: AC8020P | Grade material: Coated carbide | Stock: Yes
TNMG160408N-SX AC8025P IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 16.5 | D1 (mm): 3.81 | Grade: AC8025P | Grade material: Coated carbide | Stock: Yes
TNMG160408N-SX AC8035P IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 16.5 | D1 (mm): 3.81 | Grade: AC8035P | Grade material: Coated carbide | Stock: Yes
TNMG160408N-SX T1500Z IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 16.5 | D1 (mm): 3.81 | Grade: T1500Z | Grade material: Coated cermet | Stock: Yes
TNMG160408N-SX T2500Z IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 16.5 | D1 (mm): 3.81 | Grade: T2500Z | Grade material: Coated cermet | Stock: Yes
TNMG160408N-SX T1500A IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 16.5 | D1 (mm): 3.81 | Grade: T1500A | Grade material: Cermet | Stock: Yes
TNMG220404N-SX AC8115P IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.4 | L (mm): 22.0 | D1 (mm): 5.16 | Grade: AC8115P | Grade material: Coated carbide | Stock: Yes
TNMG220404N-SX AC8020P IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.4 | L (mm): 22.0 | D1 (mm): 5.16 | Grade: AC8020P | Grade material: Coated carbide | Stock: Yes
TNMG220404N-SX AC8025P IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.4 | L (mm): 22.0 | D1 (mm): 5.16 | Grade: AC8025P | Grade material: Coated carbide | Stock: Yes
TNMG220404N-SX AC8035P IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.4 | L (mm): 22.0 | D1 (mm): 5.16 | Grade: AC8035P | Grade material: Coated carbide | Stock: Yes
TNMG220408N-SX AC8115P IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 22.0 | D1 (mm): 5.16 | Grade: AC8115P | Grade material: Coated carbide | Stock: Yes
TNMG220408N-SX AC8020P IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 22.0 | D1 (mm): 5.16 | Grade: AC8020P | Grade material: Coated carbide | Stock: Yes
TNMG220408N-SX AC8025P IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 22.0 | D1 (mm): 5.16 | Grade: AC8025P | Grade material: Coated carbide | Stock: Yes
TNMG220408N-SX AC8035P IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 22.0 | D1 (mm): 5.16 | Grade: AC8035P | Grade material: Coated carbide | Stock: Yes
TNMG220412N-SX AC8115P IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 22.0 | D1 (mm): 5.16 | Grade: AC8115P | Grade material: Coated carbide | Stock: Yes
TNMG220412N-SX AC8020P IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 22.0 | D1 (mm): 5.16 | Grade: AC8020P | Grade material: Coated carbide | Stock: Yes
TNMG220412N-SX AC8025P IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 22.0 | D1 (mm): 5.16 | Grade: AC8025P | Grade material: Coated carbide | Stock: Yes
TNMG220412N-SX AC8035P IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 22.0 | D1 (mm): 5.16 | Grade: AC8035P | Grade material: Coated carbide | Stock: Yes
