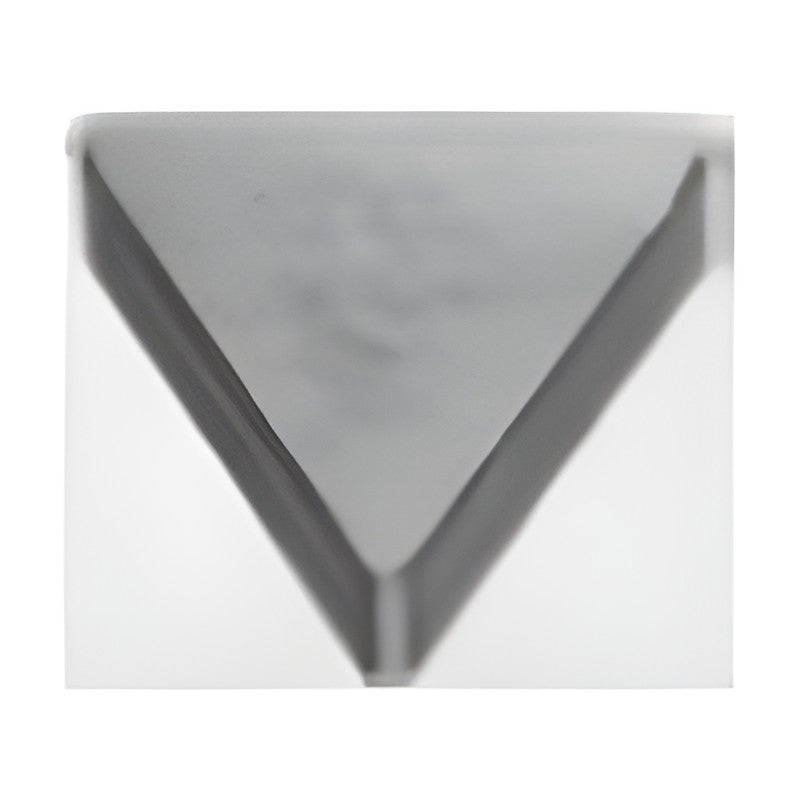

Sumitomo Electric Hardmetal IGETALLOY TNMN Negative Turning Insert

Sumitomo Electric Hardmetal IGETALLOY TNMN Negative Turning Insert

Triangular negative turning insert (without hole, no chipbreaker), ISO type TNMN, offered in cemented carbide and coated carbide grades.

Key features

  • Corner radius range: 0.4–1.6 mm
  • Stocked grades: G10E, AC4010K, AC4015K, AC4125K, ST20E, ST10P, A30

Specifications

Product line IGETALLOY
Insert shape Triangular
Clearance angle 0°
Hole / chipbreaker Without hole, no chipbreaker
TNMN160404 G10E IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.4 | L (mm): 16.5 | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
TNMN160408 AC4010K IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 16.5 | Grade: AC4010K | Grade material: Coated carbide | Stock: Yes
TNMN160408 AC4015K IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 16.5 | Grade: AC4015K | Grade material: Coated carbide | Stock: Yes
TNMN160408 AC4125K IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 16.5 | Grade: AC4125K | Grade material: Coated carbide | Stock: Yes
TNMN160408 ST20E IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 16.5 | Grade: ST20E | Grade material: Cemented carbide | Stock: Yes
TNMN160408 G10E IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 16.5 | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
TNMN160412 AC4010K IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 16.5 | Grade: AC4010K | Grade material: Coated carbide | Stock: Yes
TNMN160412 AC4015K IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 16.5 | Grade: AC4015K | Grade material: Coated carbide | Stock: Yes
TNMN160412 AC4125K IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 16.5 | Grade: AC4125K | Grade material: Coated carbide | Stock: Yes
TNMN160416 AC4010K IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 1.6 | L (mm): 16.5 | Grade: AC4010K | Grade material: Coated carbide | Stock: Yes
TNMN160416 AC4015K IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 1.6 | L (mm): 16.5 | Grade: AC4015K | Grade material: Coated carbide | Stock: Yes
TNMN160416 AC4125K IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 1.6 | L (mm): 16.5 | Grade: AC4125K | Grade material: Coated carbide | Stock: Yes
TNMN220408 ST10P IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 22.0 | Grade: ST10P | Grade material: Cemented carbide | Stock: Yes
TNMN220408 A30 IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 22.0 | Grade: A30 | Grade material: Cemented carbide | Stock: Yes
Turning InsertsSumitomo Electric Hardmetal
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal IGETALLOY TNMN Negative Turning Insert

Brand Sumitomo Electric Hardmetal·Turning Inserts

Available part numbers (14)

TNMN160404 G10E, TNMN160408 AC4010K, TNMN160408 AC4015K, TNMN160408 AC4125K, TNMN160408 ST20E, TNMN160408 G10E, TNMN160412 AC4010K, TNMN160412 AC4015K, TNMN160412 AC4125K, TNMN160416 AC4010K + 4 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TNMN160404 G10EIC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.4 | L (mm): 16.5 | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
TNMN160408 AC4010KIC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 16.5 | Grade: AC4010K | Grade material: Coated carbide | Stock: Yes
TNMN160408 AC4015KIC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 16.5 | Grade: AC4015K | Grade material: Coated carbide | Stock: Yes
TNMN160408 AC4125KIC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 16.5 | Grade: AC4125K | Grade material: Coated carbide | Stock: Yes
TNMN160408 ST20EIC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 16.5 | Grade: ST20E | Grade material: Cemented carbide | Stock: Yes
TNMN160408 G10EIC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 16.5 | Grade: G10E | Grade material: Cemented carbide | Stock: Yes
TNMN160412 AC4010KIC (mm): 9.525 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 16.5 | Grade: AC4010K | Grade material: Coated carbide | Stock: Yes
TNMN160412 AC4015KIC (mm): 9.525 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 16.5 | Grade: AC4015K | Grade material: Coated carbide | Stock: Yes
TNMN160412 AC4125KIC (mm): 9.525 | S (mm): 4.76 | RE (mm): 1.2 | L (mm): 16.5 | Grade: AC4125K | Grade material: Coated carbide | Stock: Yes
TNMN160416 AC4010KIC (mm): 9.525 | S (mm): 4.76 | RE (mm): 1.6 | L (mm): 16.5 | Grade: AC4010K | Grade material: Coated carbide | Stock: Yes
TNMN160416 AC4015KIC (mm): 9.525 | S (mm): 4.76 | RE (mm): 1.6 | L (mm): 16.5 | Grade: AC4015K | Grade material: Coated carbide | Stock: Yes
TNMN160416 AC4125KIC (mm): 9.525 | S (mm): 4.76 | RE (mm): 1.6 | L (mm): 16.5 | Grade: AC4125K | Grade material: Coated carbide | Stock: Yes
TNMN220408 ST10PIC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 22.0 | Grade: ST10P | Grade material: Cemented carbide | Stock: Yes
TNMN220408 A30IC (mm): 12.7 | S (mm): 4.76 | RE (mm): 0.8 | L (mm): 22.0 | Grade: A30 | Grade material: Cemented carbide | Stock: Yes
