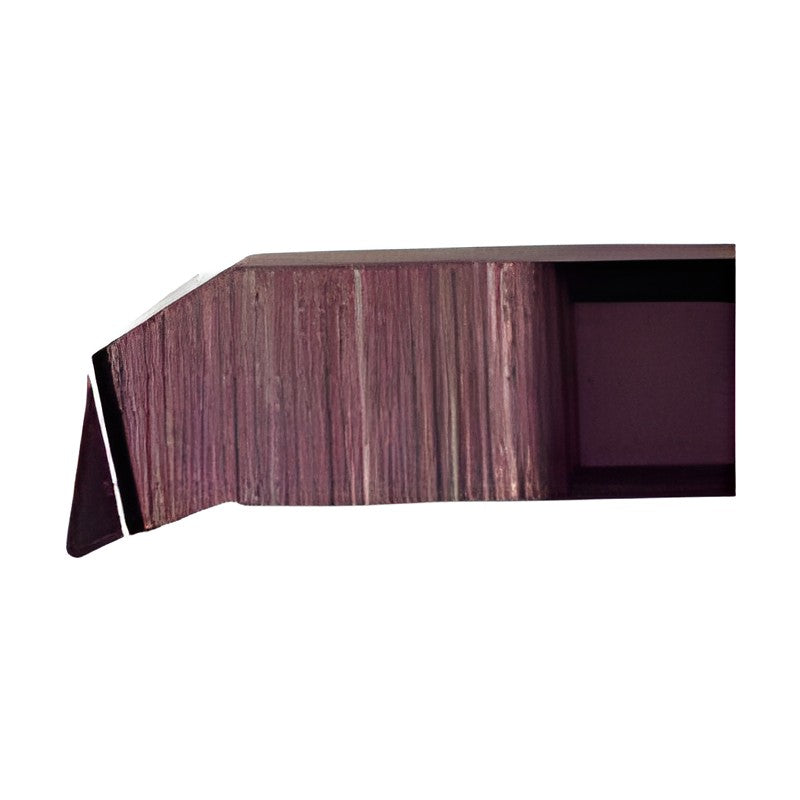

Sumitomo Electric Hardmetal Micro Boring Inserts KBMX

Sumitomo Electric Hardmetal Micro Boring Inserts KBMX

Micro boring inserts for CKB holders (internal turning), coated carbide AC1030U, minimum bore from 1 mm.

KBMXR0103-05 AC1030U Grade: AC1030U | Min. bore DMIN (mm): 1.0 | WF3 (mm): 4.00 | Offset E3 (mm): 0.20 | RE (mm): 0.05 | Length L (mm): 20.5 | Depth CDX (mm): 3 | Stock: Yes
KBMXR0103-20 AC1030U Grade: AC1030U | Min. bore DMIN (mm): 1.0 | WF3 (mm): 4.00 | Offset E3 (mm): 0.20 | RE (mm): 0.20 | Length L (mm): 20.5 | Depth CDX (mm): 3 | Stock: Yes
KBMXR01506-05 AC1030U Grade: AC1030U | Min. bore DMIN (mm): 1.5 | WF3 (mm): 4.05 | Offset E3 (mm): 0.25 | RE (mm): 0.05 | Length L (mm): 23.5 | Depth CDX (mm): 6 | Stock: Yes
KBMXR01506-20 AC1030U Grade: AC1030U | Min. bore DMIN (mm): 1.5 | WF3 (mm): 4.05 | Offset E3 (mm): 0.25 | RE (mm): 0.20 | Length L (mm): 23.5 | Depth CDX (mm): 6 | Stock: Yes
KBMXR0206-05 AC1030U Grade: AC1030U | Min. bore DMIN (mm): 2.0 | WF3 (mm): 4.05 | Offset E3 (mm): 0.25 | RE (mm): 0.05 | Length L (mm): 23.5 | Depth CDX (mm): 6 | Stock: Yes
KBMXR0206-20 AC1030U Grade: AC1030U | Min. bore DMIN (mm): 2.0 | WF3 (mm): 4.05 | Offset E3 (mm): 0.25 | RE (mm): 0.20 | Length L (mm): 23.5 | Depth CDX (mm): 6 | Stock: Yes
KBMXR0311-05 AC1030U Grade: AC1030U | Min. bore DMIN (mm): 3.0 | WF3 (mm): 4.10 | Offset E3 (mm): 0.30 | RE (mm): 0.05 | Length L (mm): 28.5 | Depth CDX (mm): 11 | Stock: Yes
KBMXR0311-20 AC1030U Grade: AC1030U | Min. bore DMIN (mm): 3.0 | WF3 (mm): 4.10 | Offset E3 (mm): 0.30 | RE (mm): 0.20 | Length L (mm): 28.5 | Depth CDX (mm): 11 | Stock: Yes
KBMXR0411-05 AC1030U Grade: AC1030U | Min. bore DMIN (mm): 4.0 | WF3 (mm): 4.30 | Offset E3 (mm): 0.50 | RE (mm): 0.05 | Length L (mm): 28.5 | Depth CDX (mm): 11 | Stock: Yes
KBMXR0411-20 AC1030U Grade: AC1030U | Min. bore DMIN (mm): 4.0 | WF3 (mm): 4.30 | Offset E3 (mm): 0.50 | RE (mm): 0.20 | Length L (mm): 28.5 | Depth CDX (mm): 11 | Stock: Yes
KBMXR0420-05 AC1030U Grade: AC1030U | Min. bore DMIN (mm): 4.0 | WF3 (mm): 4.30 | Offset E3 (mm): 0.50 | RE (mm): 0.05 | Length L (mm): 37.5 | Depth CDX (mm): 20 | Stock: Yes
KBMXR0420-20 AC1030U Grade: AC1030U | Min. bore DMIN (mm): 4.0 | WF3 (mm): 4.30 | Offset E3 (mm): 0.50 | RE (mm): 0.20 | Length L (mm): 37.5 | Depth CDX (mm): 20 | Stock: Yes
KBMXR0511-05 AC1030U Grade: AC1030U | Min. bore DMIN (mm): 5.0 | WF3 (mm): 4.50 | Offset E3 (mm): 0.70 | RE (mm): 0.05 | Length L (mm): 28.5 | Depth CDX (mm): 11 | Stock: Yes
KBMXR0511-20 AC1030U Grade: AC1030U | Min. bore DMIN (mm): 5.0 | WF3 (mm): 4.50 | Offset E3 (mm): 0.70 | RE (mm): 0.20 | Length L (mm): 28.5 | Depth CDX (mm): 11 | Stock: Yes
KBMXR0520-05 AC1030U Grade: AC1030U | Min. bore DMIN (mm): 5.0 | WF3 (mm): 4.50 | Offset E3 (mm): 0.70 | RE (mm): 0.05 | Length L (mm): 37.5 | Depth CDX (mm): 20 | Stock: Yes
KBMXR0520-20 AC1030U Grade: AC1030U | Min. bore DMIN (mm): 5.0 | WF3 (mm): 4.50 | Offset E3 (mm): 0.70 | RE (mm): 0.20 | Length L (mm): 37.5 | Depth CDX (mm): 20 | Stock: Yes
Turning InsertsSumitomo Electric Hardmetal
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Micro Boring Inserts KBMX

Brand Sumitomo Electric Hardmetal·Turning Inserts

Available part numbers (16)

KBMXR0103-05 AC1030U, KBMXR0103-20 AC1030U, KBMXR01506-05 AC1030U, KBMXR01506-20 AC1030U, KBMXR0206-05 AC1030U, KBMXR0206-20 AC1030U, KBMXR0311-05 AC1030U, KBMXR0311-20 AC1030U, KBMXR0411-05 AC1030U, KBMXR0411-20 AC1030U + 6 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KBMXR0103-05 AC1030UGrade: AC1030U | Min. bore DMIN (mm): 1.0 | WF3 (mm): 4.00 | Offset E3 (mm): 0.20 | RE (mm): 0.05 | Length L (mm): 20.5 | Depth CDX (mm): 3 | Stock: Yes
KBMXR0103-20 AC1030UGrade: AC1030U | Min. bore DMIN (mm): 1.0 | WF3 (mm): 4.00 | Offset E3 (mm): 0.20 | RE (mm): 0.20 | Length L (mm): 20.5 | Depth CDX (mm): 3 | Stock: Yes
KBMXR01506-05 AC1030UGrade: AC1030U | Min. bore DMIN (mm): 1.5 | WF3 (mm): 4.05 | Offset E3 (mm): 0.25 | RE (mm): 0.05 | Length L (mm): 23.5 | Depth CDX (mm): 6 | Stock: Yes
KBMXR01506-20 AC1030UGrade: AC1030U | Min. bore DMIN (mm): 1.5 | WF3 (mm): 4.05 | Offset E3 (mm): 0.25 | RE (mm): 0.20 | Length L (mm): 23.5 | Depth CDX (mm): 6 | Stock: Yes
KBMXR0206-05 AC1030UGrade: AC1030U | Min. bore DMIN (mm): 2.0 | WF3 (mm): 4.05 | Offset E3 (mm): 0.25 | RE (mm): 0.05 | Length L (mm): 23.5 | Depth CDX (mm): 6 | Stock: Yes
KBMXR0206-20 AC1030UGrade: AC1030U | Min. bore DMIN (mm): 2.0 | WF3 (mm): 4.05 | Offset E3 (mm): 0.25 | RE (mm): 0.20 | Length L (mm): 23.5 | Depth CDX (mm): 6 | Stock: Yes
KBMXR0311-05 AC1030UGrade: AC1030U | Min. bore DMIN (mm): 3.0 | WF3 (mm): 4.10 | Offset E3 (mm): 0.30 | RE (mm): 0.05 | Length L (mm): 28.5 | Depth CDX (mm): 11 | Stock: Yes
KBMXR0311-20 AC1030UGrade: AC1030U | Min. bore DMIN (mm): 3.0 | WF3 (mm): 4.10 | Offset E3 (mm): 0.30 | RE (mm): 0.20 | Length L (mm): 28.5 | Depth CDX (mm): 11 | Stock: Yes
KBMXR0411-05 AC1030UGrade: AC1030U | Min. bore DMIN (mm): 4.0 | WF3 (mm): 4.30 | Offset E3 (mm): 0.50 | RE (mm): 0.05 | Length L (mm): 28.5 | Depth CDX (mm): 11 | Stock: Yes
KBMXR0411-20 AC1030UGrade: AC1030U | Min. bore DMIN (mm): 4.0 | WF3 (mm): 4.30 | Offset E3 (mm): 0.50 | RE (mm): 0.20 | Length L (mm): 28.5 | Depth CDX (mm): 11 | Stock: Yes
KBMXR0420-05 AC1030UGrade: AC1030U | Min. bore DMIN (mm): 4.0 | WF3 (mm): 4.30 | Offset E3 (mm): 0.50 | RE (mm): 0.05 | Length L (mm): 37.5 | Depth CDX (mm): 20 | Stock: Yes
KBMXR0420-20 AC1030UGrade: AC1030U | Min. bore DMIN (mm): 4.0 | WF3 (mm): 4.30 | Offset E3 (mm): 0.50 | RE (mm): 0.20 | Length L (mm): 37.5 | Depth CDX (mm): 20 | Stock: Yes
KBMXR0511-05 AC1030UGrade: AC1030U | Min. bore DMIN (mm): 5.0 | WF3 (mm): 4.50 | Offset E3 (mm): 0.70 | RE (mm): 0.05 | Length L (mm): 28.5 | Depth CDX (mm): 11 | Stock: Yes
KBMXR0511-20 AC1030UGrade: AC1030U | Min. bore DMIN (mm): 5.0 | WF3 (mm): 4.50 | Offset E3 (mm): 0.70 | RE (mm): 0.20 | Length L (mm): 28.5 | Depth CDX (mm): 11 | Stock: Yes
KBMXR0520-05 AC1030UGrade: AC1030U | Min. bore DMIN (mm): 5.0 | WF3 (mm): 4.50 | Offset E3 (mm): 0.70 | RE (mm): 0.05 | Length L (mm): 37.5 | Depth CDX (mm): 20 | Stock: Yes
KBMXR0520-20 AC1030UGrade: AC1030U | Min. bore DMIN (mm): 5.0 | WF3 (mm): 4.50 | Offset E3 (mm): 0.70 | RE (mm): 0.20 | Length L (mm): 37.5 | Depth CDX (mm): 20 | Stock: Yes
