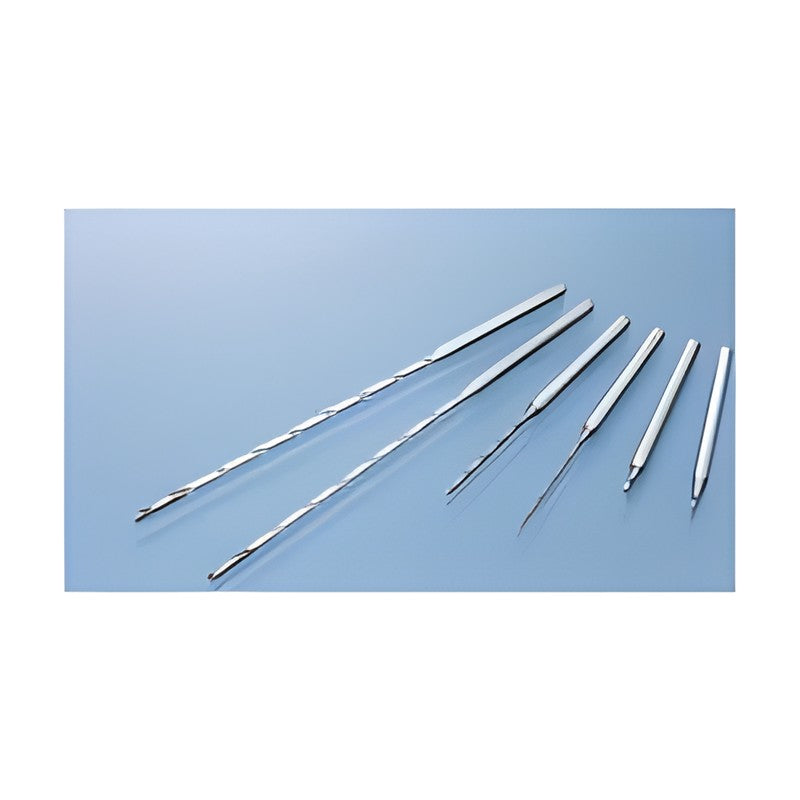

Sumitomo Electric Hardmetal Micro Long Drill MLDH-L / MLDH-P Type (Internal Coolant)

Sumitomo Electric Hardmetal Micro Long Drill MLDH-L / MLDH-P Type (Internal Coolant)

Oil-hole micro drill for deep small-diameter holes; MLDH-P is the pilot type and MLDH-L the long type up to 30D.

Key features

  • Flute shape combining rigidity and chip evacuation
  • Deep holes up to 30 x D
  • Dedicated coating
  • Grade ACV70

Specifications

Coolant Internal
Grade ACV70
MLDH0800P DC (mm): 0.80 | L/D: 2 | LU (mm): 2.0 | LCF (mm): 3.2 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0800L5 DC (mm): 0.80 | L/D: 5 | LU (mm): 6.8 | LCF (mm): 8 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0800L12 DC (mm): 0.80 | L/D: 12 | LU (mm): 12.8 | LCF (mm): 14 | OAL (mm): 55 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0800L20 DC (mm): 0.80 | L/D: 20 | LU (mm): 17.8 | LCF (mm): 19 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0800L30 DC (mm): 0.80 | L/D: 30 | LU (mm): 26.8 | LCF (mm): 28 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0810P DC (mm): 0.81 | L/D: 2 | LU (mm): 2.0 | LCF (mm): 3.2 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0810L5 DC (mm): 0.81 | L/D: 5 | LU (mm): 7.8 | LCF (mm): 9 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0810L12 DC (mm): 0.81 | L/D: 12 | LU (mm): 12.8 | LCF (mm): 14 | OAL (mm): 55 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0810L20 DC (mm): 0.81 | L/D: 20 | LU (mm): 17.8 | LCF (mm): 19 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0810L30 DC (mm): 0.81 | L/D: 30 | LU (mm): 26.8 | LCF (mm): 28 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0820P DC (mm): 0.82 | L/D: 2 | LU (mm): 2.1 | LCF (mm): 3.3 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0820L5 DC (mm): 0.82 | L/D: 5 | LU (mm): 7.8 | LCF (mm): 9 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0820L12 DC (mm): 0.82 | L/D: 12 | LU (mm): 12.8 | LCF (mm): 14 | OAL (mm): 55 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0820L20 DC (mm): 0.82 | L/D: 20 | LU (mm): 18.8 | LCF (mm): 20 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0820L30 DC (mm): 0.82 | L/D: 30 | LU (mm): 26.8 | LCF (mm): 28 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0830P DC (mm): 0.83 | L/D: 2 | LU (mm): 2.1 | LCF (mm): 3.3 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0830L5 DC (mm): 0.83 | L/D: 5 | LU (mm): 7.8 | LCF (mm): 9 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0830L12 DC (mm): 0.83 | L/D: 12 | LU (mm): 12.8 | LCF (mm): 14 | OAL (mm): 55 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0830L20 DC (mm): 0.83 | L/D: 20 | LU (mm): 18.8 | LCF (mm): 20 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0830L30 DC (mm): 0.83 | L/D: 30 | LU (mm): 26.8 | LCF (mm): 28 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0840P DC (mm): 0.84 | L/D: 2 | LU (mm): 2.1 | LCF (mm): 3.4 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0840L5 DC (mm): 0.84 | L/D: 5 | LU (mm): 7.7 | LCF (mm): 9 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0840L12 DC (mm): 0.84 | L/D: 12 | LU (mm): 12.7 | LCF (mm): 14 | OAL (mm): 55 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0840L20 DC (mm): 0.84 | L/D: 20 | LU (mm): 18.7 | LCF (mm): 20 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0840L30 DC (mm): 0.84 | L/D: 30 | LU (mm): 27.7 | LCF (mm): 29 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0850P DC (mm): 0.85 | L/D: 2 | LU (mm): 2.1 | LCF (mm): 3.4 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0850L5 DC (mm): 0.85 | L/D: 5 | LU (mm): 7.7 | LCF (mm): 9 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0850L12 DC (mm): 0.85 | L/D: 12 | LU (mm): 12.7 | LCF (mm): 14 | OAL (mm): 55 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0850L20 DC (mm): 0.85 | L/D: 20 | LU (mm): 18.7 | LCF (mm): 20 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0850L30 DC (mm): 0.85 | L/D: 30 | LU (mm): 27.7 | LCF (mm): 29 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0860P DC (mm): 0.86 | L/D: 2 | LU (mm): 2.1 | LCF (mm): 3.4 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0860L5 DC (mm): 0.86 | L/D: 5 | LU (mm): 7.7 | LCF (mm): 9 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0860L12 DC (mm): 0.86 | L/D: 12 | LU (mm): 13.7 | LCF (mm): 15 | OAL (mm): 55 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0860L20 DC (mm): 0.86 | L/D: 20 | LU (mm): 19.7 | LCF (mm): 21 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0860L30 DC (mm): 0.86 | L/D: 30 | LU (mm): 27.7 | LCF (mm): 29 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0870P DC (mm): 0.87 | L/D: 2 | LU (mm): 2.2 | LCF (mm): 3.5 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0870L5 DC (mm): 0.87 | L/D: 5 | LU (mm): 7.7 | LCF (mm): 9 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0870L12 DC (mm): 0.87 | L/D: 12 | LU (mm): 13.7 | LCF (mm): 15 | OAL (mm): 55 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0870L20 DC (mm): 0.87 | L/D: 20 | LU (mm): 19.7 | LCF (mm): 21 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0870L30 DC (mm): 0.87 | L/D: 30 | LU (mm): 28.7 | LCF (mm): 30 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0880P DC (mm): 0.88 | L/D: 2 | LU (mm): 2.2 | LCF (mm): 3.5 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0880L5 DC (mm): 0.88 | L/D: 5 | LU (mm): 7.7 | LCF (mm): 9 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0880L12 DC (mm): 0.88 | L/D: 12 | LU (mm): 13.7 | LCF (mm): 15 | OAL (mm): 55 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0880L20 DC (mm): 0.88 | L/D: 20 | LU (mm): 19.7 | LCF (mm): 21 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0880L30 DC (mm): 0.88 | L/D: 30 | LU (mm): 28.7 | LCF (mm): 30 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0890P DC (mm): 0.89 | L/D: 2 | LU (mm): 2.3 | LCF (mm): 3.6 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0890L5 DC (mm): 0.89 | L/D: 5 | LU (mm): 7.7 | LCF (mm): 9 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0890L12 DC (mm): 0.89 | L/D: 12 | LU (mm): 13.7 | LCF (mm): 15 | OAL (mm): 55 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0890L20 DC (mm): 0.89 | L/D: 20 | LU (mm): 19.7 | LCF (mm): 21 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0890L30 DC (mm): 0.89 | L/D: 30 | LU (mm): 28.7 | LCF (mm): 30 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0900P DC (mm): 0.90 | L/D: 2 | LU (mm): 2.3 | LCF (mm): 3.6 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0900L5 DC (mm): 0.90 | L/D: 5 | LU (mm): 7.7 | LCF (mm): 9 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0900L12 DC (mm): 0.90 | L/D: 12 | LU (mm): 13.7 | LCF (mm): 15 | OAL (mm): 55 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0900L20 DC (mm): 0.90 | L/D: 20 | LU (mm): 20.7 | LCF (mm): 22 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0900L30 DC (mm): 0.90 | L/D: 30 | LU (mm): 29.7 | LCF (mm): 31 | OAL (mm): 75 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0910P DC (mm): 0.91 | L/D: 2 | LU (mm): 2.2 | LCF (mm): 3.6 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0910L5 DC (mm): 0.91 | L/D: 5 | LU (mm): 8.6 | LCF (mm): 10 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0910L12 DC (mm): 0.91 | L/D: 12 | LU (mm): 13.6 | LCF (mm): 15 | OAL (mm): 55 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0910L20 DC (mm): 0.91 | L/D: 20 | LU (mm): 20.6 | LCF (mm): 22 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0910L30 DC (mm): 0.91 | L/D: 30 | LU (mm): 29.6 | LCF (mm): 31 | OAL (mm): 75 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0920P DC (mm): 0.92 | L/D: 2 | LU (mm): 2.3 | LCF (mm): 3.7 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0920L5 DC (mm): 0.92 | L/D: 5 | LU (mm): 8.6 | LCF (mm): 10 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0920L12 DC (mm): 0.92 | L/D: 12 | LU (mm): 14.6 | LCF (mm): 16 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0920L20 DC (mm): 0.92 | L/D: 20 | LU (mm): 20.6 | LCF (mm): 22 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0920L30 DC (mm): 0.92 | L/D: 30 | LU (mm): 29.6 | LCF (mm): 31 | OAL (mm): 75 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0930P DC (mm): 0.93 | L/D: 2 | LU (mm): 2.3 | LCF (mm): 3.7 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0930L5 DC (mm): 0.93 | L/D: 5 | LU (mm): 8.6 | LCF (mm): 10 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0930L12 DC (mm): 0.93 | L/D: 12 | LU (mm): 14.6 | LCF (mm): 16 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0930L20 DC (mm): 0.93 | L/D: 20 | LU (mm): 20.6 | LCF (mm): 22 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0930L30 DC (mm): 0.93 | L/D: 30 | LU (mm): 30.6 | LCF (mm): 32 | OAL (mm): 75 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0940P DC (mm): 0.94 | L/D: 2 | LU (mm): 2.4 | LCF (mm): 3.8 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0940L5 DC (mm): 0.94 | L/D: 5 | LU (mm): 8.6 | LCF (mm): 10 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0940L12 DC (mm): 0.94 | L/D: 12 | LU (mm): 14.6 | LCF (mm): 16 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0940L20 DC (mm): 0.94 | L/D: 20 | LU (mm): 21.6 | LCF (mm): 23 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0940L30 DC (mm): 0.94 | L/D: 30 | LU (mm): 30.6 | LCF (mm): 32 | OAL (mm): 75 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0950P DC (mm): 0.95 | L/D: 2 | LU (mm): 2.4 | LCF (mm): 3.8 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0950L5 DC (mm): 0.95 | L/D: 5 | LU (mm): 8.6 | LCF (mm): 10 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0950L12 DC (mm): 0.95 | L/D: 12 | LU (mm): 14.6 | LCF (mm): 16 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0950L20 DC (mm): 0.95 | L/D: 20 | LU (mm): 21.6 | LCF (mm): 23 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0950L30 DC (mm): 0.95 | L/D: 30 | LU (mm): 30.6 | LCF (mm): 32 | OAL (mm): 75 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0960P DC (mm): 0.96 | L/D: 2 | LU (mm): 2.4 | LCF (mm): 3.8 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0960L5 DC (mm): 0.96 | L/D: 5 | LU (mm): 8.6 | LCF (mm): 10 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0960L12 DC (mm): 0.96 | L/D: 12 | LU (mm): 14.6 | LCF (mm): 16 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0960L20 DC (mm): 0.96 | L/D: 20 | LU (mm): 21.6 | LCF (mm): 23 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0960L30 DC (mm): 0.96 | L/D: 30 | LU (mm): 31.6 | LCF (mm): 33 | OAL (mm): 75 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0970P DC (mm): 0.97 | L/D: 2 | LU (mm): 2.4 | LCF (mm): 3.9 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0970L5 DC (mm): 0.97 | L/D: 5 | LU (mm): 8.5 | LCF (mm): 10 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0970L12 DC (mm): 0.97 | L/D: 12 | LU (mm): 14.5 | LCF (mm): 16 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0970L20 DC (mm): 0.97 | L/D: 20 | LU (mm): 21.5 | LCF (mm): 23 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0970L30 DC (mm): 0.97 | L/D: 30 | LU (mm): 31.5 | LCF (mm): 33 | OAL (mm): 75 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0980P DC (mm): 0.98 | L/D: 2 | LU (mm): 2.4 | LCF (mm): 3.9 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0980L5 DC (mm): 0.98 | L/D: 5 | LU (mm): 8.5 | LCF (mm): 10 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0980L12 DC (mm): 0.98 | L/D: 12 | LU (mm): 15.5 | LCF (mm): 17 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0980L20 DC (mm): 0.98 | L/D: 20 | LU (mm): 22.5 | LCF (mm): 24 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0980L30 DC (mm): 0.98 | L/D: 30 | LU (mm): 31.5 | LCF (mm): 33 | OAL (mm): 75 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0990P DC (mm): 0.99 | L/D: 2 | LU (mm): 2.5 | LCF (mm): 4 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0990L5 DC (mm): 0.99 | L/D: 5 | LU (mm): 8.5 | LCF (mm): 10 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0990L12 DC (mm): 0.99 | L/D: 12 | LU (mm): 15.5 | LCF (mm): 17 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0990L20 DC (mm): 0.99 | L/D: 20 | LU (mm): 22.5 | LCF (mm): 24 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0990L30 DC (mm): 0.99 | L/D: 30 | LU (mm): 32.5 | LCF (mm): 34 | OAL (mm): 75 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1000P DC (mm): 1.00 | L/D: 2 | LU (mm): 2.5 | LCF (mm): 4 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1000L5 DC (mm): 1.00 | L/D: 5 | LU (mm): 8.5 | LCF (mm): 10 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1000L12 DC (mm): 1.00 | L/D: 12 | LU (mm): 15.5 | LCF (mm): 17 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1000L20 DC (mm): 1.00 | L/D: 20 | LU (mm): 22.5 | LCF (mm): 24 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1000L30 DC (mm): 1.00 | L/D: 30 | LU (mm): 32.5 | LCF (mm): 34 | OAL (mm): 75 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1050P DC (mm): 1.05 | L/D: 2 | LU (mm): 2.6 | LCF (mm): 4.2 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1050L5 DC (mm): 1.05 | L/D: 5 | LU (mm): 10.4 | LCF (mm): 12 | OAL (mm): 55.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1050L12 DC (mm): 1.05 | L/D: 12 | LU (mm): 16.4 | LCF (mm): 18 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1050L20 DC (mm): 1.05 | L/D: 20 | LU (mm): 23.4 | LCF (mm): 25 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1050L30 DC (mm): 1.05 | L/D: 30 | LU (mm): 34.4 | LCF (mm): 36 | OAL (mm): 80 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1100P DC (mm): 1.10 | L/D: 2 | LU (mm): 2.8 | LCF (mm): 4.4 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1100L5 DC (mm): 1.10 | L/D: 5 | LU (mm): 10.4 | LCF (mm): 12 | OAL (mm): 55.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1100L12 DC (mm): 1.10 | L/D: 12 | LU (mm): 17.4 | LCF (mm): 19 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1100L20 DC (mm): 1.10 | L/D: 20 | LU (mm): 24.4 | LCF (mm): 26 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1100L30 DC (mm): 1.10 | L/D: 30 | LU (mm): 35.4 | LCF (mm): 37 | OAL (mm): 80 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1150P DC (mm): 1.15 | L/D: 2 | LU (mm): 2.9 | LCF (mm): 4.6 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1150L5 DC (mm): 1.15 | L/D: 5 | LU (mm): 10.3 | LCF (mm): 12 | OAL (mm): 55.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1150L12 DC (mm): 1.15 | L/D: 12 | LU (mm): 18.3 | LCF (mm): 20 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1150L20 DC (mm): 1.15 | L/D: 20 | LU (mm): 26.3 | LCF (mm): 28 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1150L30 DC (mm): 1.15 | L/D: 30 | LU (mm): 37.3 | LCF (mm): 39 | OAL (mm): 80 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1200P DC (mm): 1.20 | L/D: 2 | LU (mm): 3.0 | LCF (mm): 4.8 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1200L5 DC (mm): 1.20 | L/D: 5 | LU (mm): 10.2 | LCF (mm): 12 | OAL (mm): 55.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1200L12 DC (mm): 1.20 | L/D: 12 | LU (mm): 18.2 | LCF (mm): 20 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1200L20 DC (mm): 1.20 | L/D: 20 | LU (mm): 27.2 | LCF (mm): 29 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1200L30 DC (mm): 1.20 | L/D: 30 | LU (mm): 39.2 | LCF (mm): 41 | OAL (mm): 85 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1250P DC (mm): 1.25 | L/D: 2 | LU (mm): 3.1 | LCF (mm): 5.0 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1250L5 DC (mm): 1.25 | L/D: 5 | LU (mm): 12.1 | LCF (mm): 14 | OAL (mm): 55.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1250L12 DC (mm): 1.25 | L/D: 12 | LU (mm): 19.1 | LCF (mm): 21 | OAL (mm): 65 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1250L20 DC (mm): 1.25 | L/D: 20 | LU (mm): 28.1 | LCF (mm): 30 | OAL (mm): 70 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1250L30 DC (mm): 1.25 | L/D: 30 | LU (mm): 41.1 | LCF (mm): 43 | OAL (mm): 85 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1300P DC (mm): 1.30 | L/D: 2 | LU (mm): 3.3 | LCF (mm): 5.2 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1300L5 DC (mm): 1.30 | L/D: 5 | LU (mm): 12.1 | LCF (mm): 14 | OAL (mm): 55.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1300L12 DC (mm): 1.30 | L/D: 12 | LU (mm): 20.1 | LCF (mm): 22 | OAL (mm): 65 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1300L20 DC (mm): 1.30 | L/D: 20 | LU (mm): 29.1 | LCF (mm): 31 | OAL (mm): 75 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1300L30 DC (mm): 1.30 | L/D: 30 | LU (mm): 42.1 | LCF (mm): 44 | OAL (mm): 85 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1350P DC (mm): 1.35 | L/D: 2 | LU (mm): 3.4 | LCF (mm): 5.4 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1350L5 DC (mm): 1.35 | L/D: 5 | LU (mm): 12.0 | LCF (mm): 14 | OAL (mm): 55.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1350L12 DC (mm): 1.35 | L/D: 12 | LU (mm): 21.0 | LCF (mm): 23 | OAL (mm): 65 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1350L20 DC (mm): 1.35 | L/D: 20 | LU (mm): 30.0 | LCF (mm): 32 | OAL (mm): 75 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1350L30 DC (mm): 1.35 | L/D: 30 | LU (mm): 44.0 | LCF (mm): 46 | OAL (mm): 90 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1400P DC (mm): 1.40 | L/D: 2 | LU (mm): 3.5 | LCF (mm): 5.6 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1400L5 DC (mm): 1.40 | L/D: 5 | LU (mm): 11.9 | LCF (mm): 14 | OAL (mm): 55.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1400L12 DC (mm): 1.40 | L/D: 12 | LU (mm): 21.9 | LCF (mm): 24 | OAL (mm): 65 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1400L20 DC (mm): 1.40 | L/D: 20 | LU (mm): 31.9 | LCF (mm): 34 | OAL (mm): 75 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1400L30 DC (mm): 1.40 | L/D: 30 | LU (mm): 45.9 | LCF (mm): 48 | OAL (mm): 90 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1450P DC (mm): 1.45 | L/D: 2 | LU (mm): 3.6 | LCF (mm): 5.8 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1450L5 DC (mm): 1.45 | L/D: 5 | LU (mm): 13.8 | LCF (mm): 16 | OAL (mm): 55.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1450L12 DC (mm): 1.45 | L/D: 12 | LU (mm): 22.8 | LCF (mm): 25 | OAL (mm): 65 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1450L20 DC (mm): 1.45 | L/D: 20 | LU (mm): 32.8 | LCF (mm): 35 | OAL (mm): 75 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1450L30 DC (mm): 1.45 | L/D: 30 | LU (mm): 46.8 | LCF (mm): 49 | OAL (mm): 90 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1500P DC (mm): 1.50 | L/D: 2 | LU (mm): 3.8 | LCF (mm): 6 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1500L5 DC (mm): 1.50 | L/D: 5 | LU (mm): 13.8 | LCF (mm): 16 | OAL (mm): 55.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1500L12 DC (mm): 1.50 | L/D: 12 | LU (mm): 23.8 | LCF (mm): 26 | OAL (mm): 65 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1500L20 DC (mm): 1.50 | L/D: 20 | LU (mm): 33.8 | LCF (mm): 36 | OAL (mm): 75 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1500L30 DC (mm): 1.50 | L/D: 30 | LU (mm): 48.8 | LCF (mm): 51 | OAL (mm): 90 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1550P DC (mm): 1.55 | L/D: 2 | LU (mm): 3.9 | LCF (mm): 6.2 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1550L5 DC (mm): 1.55 | L/D: 5 | LU (mm): 13.7 | LCF (mm): 16 | OAL (mm): 55.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1550L12 DC (mm): 1.55 | L/D: 12 | LU (mm): 23.7 | LCF (mm): 26 | OAL (mm): 65 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1550L20 DC (mm): 1.55 | L/D: 20 | LU (mm): 34.7 | LCF (mm): 37 | OAL (mm): 80 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1550L30 DC (mm): 1.55 | L/D: 30 | LU (mm): 50.7 | LCF (mm): 53 | OAL (mm): 95 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1600P DC (mm): 1.60 | L/D: 2 | LU (mm): 4.0 | LCF (mm): 6.4 | OAL (mm): 45 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1600L5 DC (mm): 1.60 | L/D: 5 | LU (mm): 13.6 | LCF (mm): 16 | OAL (mm): 55.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1600L12 DC (mm): 1.60 | L/D: 12 | LU (mm): 24.6 | LCF (mm): 27 | OAL (mm): 70 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1600L20 DC (mm): 1.60 | L/D: 20 | LU (mm): 35.6 | LCF (mm): 38 | OAL (mm): 80 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1600L30 DC (mm): 1.60 | L/D: 30 | LU (mm): 51.6 | LCF (mm): 54 | OAL (mm): 95 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1650P DC (mm): 1.65 | L/D: 2 | LU (mm): 4.1 | LCF (mm): 6.6 | OAL (mm): 50 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1650L5 DC (mm): 1.65 | L/D: 5 | LU (mm): 15.5 | LCF (mm): 18 | OAL (mm): 60.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1650L12 DC (mm): 1.65 | L/D: 12 | LU (mm): 25.5 | LCF (mm): 28 | OAL (mm): 70 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1650L20 DC (mm): 1.65 | L/D: 20 | LU (mm): 37.5 | LCF (mm): 40 | OAL (mm): 80 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1650L30 DC (mm): 1.65 | L/D: 30 | LU (mm): 53.5 | LCF (mm): 56 | OAL (mm): 95 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1700P DC (mm): 1.70 | L/D: 2 | LU (mm): 4.3 | LCF (mm): 6.8 | OAL (mm): 50 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1700L5 DC (mm): 1.70 | L/D: 5 | LU (mm): 15.5 | LCF (mm): 18 | OAL (mm): 60.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1700L12 DC (mm): 1.70 | L/D: 12 | LU (mm): 26.5 | LCF (mm): 29 | OAL (mm): 70 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1700L20 DC (mm): 1.70 | L/D: 20 | LU (mm): 38.5 | LCF (mm): 41 | OAL (mm): 80 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1700L30 DC (mm): 1.70 | L/D: 30 | LU (mm): 55.5 | LCF (mm): 58 | OAL (mm): 100 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1750P DC (mm): 1.75 | L/D: 2 | LU (mm): 4.4 | LCF (mm): 7 | OAL (mm): 50 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1750L5 DC (mm): 1.75 | L/D: 5 | LU (mm): 15.4 | LCF (mm): 18 | OAL (mm): 60.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1750L12 DC (mm): 1.75 | L/D: 12 | LU (mm): 27.4 | LCF (mm): 30 | OAL (mm): 70 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1750L20 DC (mm): 1.75 | L/D: 20 | LU (mm): 39.4 | LCF (mm): 42 | OAL (mm): 85 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1750L30 DC (mm): 1.75 | L/D: 30 | LU (mm): 57.4 | LCF (mm): 60 | OAL (mm): 100 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1800P DC (mm): 1.80 | L/D: 2 | LU (mm): 4.5 | LCF (mm): 7.2 | OAL (mm): 50 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1800L5 DC (mm): 1.80 | L/D: 5 | LU (mm): 15.3 | LCF (mm): 18 | OAL (mm): 60.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1800L12 DC (mm): 1.80 | L/D: 12 | LU (mm): 28.3 | LCF (mm): 31 | OAL (mm): 70 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1800L20 DC (mm): 1.80 | L/D: 20 | LU (mm): 40.3 | LCF (mm): 43 | OAL (mm): 85 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1800L30 DC (mm): 1.80 | L/D: 30 | LU (mm): 58.3 | LCF (mm): 61 | OAL (mm): 100 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1850P DC (mm): 1.85 | L/D: 2 | LU (mm): 4.6 | LCF (mm): 7.4 | OAL (mm): 50 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1850L5 DC (mm): 1.85 | L/D: 5 | LU (mm): 17.2 | LCF (mm): 20 | OAL (mm): 60.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1850L12 DC (mm): 1.85 | L/D: 12 | LU (mm): 28.2 | LCF (mm): 31 | OAL (mm): 70 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1850L20 DC (mm): 1.85 | L/D: 20 | LU (mm): 41.2 | LCF (mm): 44 | OAL (mm): 85 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1850L30 DC (mm): 1.85 | L/D: 30 | LU (mm): 59.2 | LCF (mm): 62 | OAL (mm): 103 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1900P DC (mm): 1.90 | L/D: 2 | LU (mm): 4.8 | LCF (mm): 7.6 | OAL (mm): 50 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1900L5 DC (mm): 1.90 | L/D: 5 | LU (mm): 17.2 | LCF (mm): 20 | OAL (mm): 60.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1900L12 DC (mm): 1.90 | L/D: 12 | LU (mm): 29.2 | LCF (mm): 32 | OAL (mm): 75 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1900L20 DC (mm): 1.90 | L/D: 20 | LU (mm): 43.2 | LCF (mm): 46 | OAL (mm): 85 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1900L30 DC (mm): 1.90 | L/D: 30 | LU (mm): 60.2 | LCF (mm): 63 | OAL (mm): 103 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1950P DC (mm): 1.95 | L/D: 2 | LU (mm): 4.9 | LCF (mm): 7.8 | OAL (mm): 50 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1950L5 DC (mm): 1.95 | L/D: 5 | LU (mm): 17.1 | LCF (mm): 20 | OAL (mm): 60.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1950L12 DC (mm): 1.95 | L/D: 12 | LU (mm): 30.1 | LCF (mm): 33 | OAL (mm): 75 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1950L20 DC (mm): 1.95 | L/D: 20 | LU (mm): 44.1 | LCF (mm): 47 | OAL (mm): 85 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1950L30 DC (mm): 1.95 | L/D: 30 | LU (mm): 61.1 | LCF (mm): 64 | OAL (mm): 103 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH2000P DC (mm): 2.00 | L/D: 2 | LU (mm): 5.0 | LCF (mm): 8 | OAL (mm): 50 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH2000L5 DC (mm): 2.00 | L/D: 5 | LU (mm): 17.0 | LCF (mm): 20 | OAL (mm): 60.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH2000L12 DC (mm): 2.00 | L/D: 12 | LU (mm): 31.0 | LCF (mm): 34 | OAL (mm): 75 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH2000L20 DC (mm): 2.00 | L/D: 20 | LU (mm): 45.0 | LCF (mm): 48 | OAL (mm): 90 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH2000L30 DC (mm): 2.00 | L/D: 30 | LU (mm): 63.0 | LCF (mm): 66 | OAL (mm): 103 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
DrillsSumitomo Electric Hardmetal
205 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Micro Long Drill MLDH-L / MLDH-P Type (Internal Coolant)

Brand Sumitomo Electric Hardmetal·Drills

Available part numbers (205)

MLDH0800P, MLDH0800L5, MLDH0800L12, MLDH0800L20, MLDH0800L30, MLDH0810P, MLDH0810L5, MLDH0810L12, MLDH0810L20, MLDH0810L30 + 195 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MLDH0800PDC (mm): 0.80 | L/D: 2 | LU (mm): 2.0 | LCF (mm): 3.2 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0800L5DC (mm): 0.80 | L/D: 5 | LU (mm): 6.8 | LCF (mm): 8 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0800L12DC (mm): 0.80 | L/D: 12 | LU (mm): 12.8 | LCF (mm): 14 | OAL (mm): 55 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0800L20DC (mm): 0.80 | L/D: 20 | LU (mm): 17.8 | LCF (mm): 19 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0800L30DC (mm): 0.80 | L/D: 30 | LU (mm): 26.8 | LCF (mm): 28 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0810PDC (mm): 0.81 | L/D: 2 | LU (mm): 2.0 | LCF (mm): 3.2 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0810L5DC (mm): 0.81 | L/D: 5 | LU (mm): 7.8 | LCF (mm): 9 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0810L12DC (mm): 0.81 | L/D: 12 | LU (mm): 12.8 | LCF (mm): 14 | OAL (mm): 55 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0810L20DC (mm): 0.81 | L/D: 20 | LU (mm): 17.8 | LCF (mm): 19 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0810L30DC (mm): 0.81 | L/D: 30 | LU (mm): 26.8 | LCF (mm): 28 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0820PDC (mm): 0.82 | L/D: 2 | LU (mm): 2.1 | LCF (mm): 3.3 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0820L5DC (mm): 0.82 | L/D: 5 | LU (mm): 7.8 | LCF (mm): 9 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0820L12DC (mm): 0.82 | L/D: 12 | LU (mm): 12.8 | LCF (mm): 14 | OAL (mm): 55 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0820L20DC (mm): 0.82 | L/D: 20 | LU (mm): 18.8 | LCF (mm): 20 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0820L30DC (mm): 0.82 | L/D: 30 | LU (mm): 26.8 | LCF (mm): 28 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0830PDC (mm): 0.83 | L/D: 2 | LU (mm): 2.1 | LCF (mm): 3.3 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0830L5DC (mm): 0.83 | L/D: 5 | LU (mm): 7.8 | LCF (mm): 9 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0830L12DC (mm): 0.83 | L/D: 12 | LU (mm): 12.8 | LCF (mm): 14 | OAL (mm): 55 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0830L20DC (mm): 0.83 | L/D: 20 | LU (mm): 18.8 | LCF (mm): 20 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0830L30DC (mm): 0.83 | L/D: 30 | LU (mm): 26.8 | LCF (mm): 28 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0840PDC (mm): 0.84 | L/D: 2 | LU (mm): 2.1 | LCF (mm): 3.4 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0840L5DC (mm): 0.84 | L/D: 5 | LU (mm): 7.7 | LCF (mm): 9 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0840L12DC (mm): 0.84 | L/D: 12 | LU (mm): 12.7 | LCF (mm): 14 | OAL (mm): 55 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0840L20DC (mm): 0.84 | L/D: 20 | LU (mm): 18.7 | LCF (mm): 20 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0840L30DC (mm): 0.84 | L/D: 30 | LU (mm): 27.7 | LCF (mm): 29 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0850PDC (mm): 0.85 | L/D: 2 | LU (mm): 2.1 | LCF (mm): 3.4 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0850L5DC (mm): 0.85 | L/D: 5 | LU (mm): 7.7 | LCF (mm): 9 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0850L12DC (mm): 0.85 | L/D: 12 | LU (mm): 12.7 | LCF (mm): 14 | OAL (mm): 55 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0850L20DC (mm): 0.85 | L/D: 20 | LU (mm): 18.7 | LCF (mm): 20 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0850L30DC (mm): 0.85 | L/D: 30 | LU (mm): 27.7 | LCF (mm): 29 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0860PDC (mm): 0.86 | L/D: 2 | LU (mm): 2.1 | LCF (mm): 3.4 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0860L5DC (mm): 0.86 | L/D: 5 | LU (mm): 7.7 | LCF (mm): 9 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0860L12DC (mm): 0.86 | L/D: 12 | LU (mm): 13.7 | LCF (mm): 15 | OAL (mm): 55 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0860L20DC (mm): 0.86 | L/D: 20 | LU (mm): 19.7 | LCF (mm): 21 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0860L30DC (mm): 0.86 | L/D: 30 | LU (mm): 27.7 | LCF (mm): 29 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0870PDC (mm): 0.87 | L/D: 2 | LU (mm): 2.2 | LCF (mm): 3.5 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0870L5DC (mm): 0.87 | L/D: 5 | LU (mm): 7.7 | LCF (mm): 9 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0870L12DC (mm): 0.87 | L/D: 12 | LU (mm): 13.7 | LCF (mm): 15 | OAL (mm): 55 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0870L20DC (mm): 0.87 | L/D: 20 | LU (mm): 19.7 | LCF (mm): 21 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0870L30DC (mm): 0.87 | L/D: 30 | LU (mm): 28.7 | LCF (mm): 30 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0880PDC (mm): 0.88 | L/D: 2 | LU (mm): 2.2 | LCF (mm): 3.5 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0880L5DC (mm): 0.88 | L/D: 5 | LU (mm): 7.7 | LCF (mm): 9 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0880L12DC (mm): 0.88 | L/D: 12 | LU (mm): 13.7 | LCF (mm): 15 | OAL (mm): 55 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0880L20DC (mm): 0.88 | L/D: 20 | LU (mm): 19.7 | LCF (mm): 21 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0880L30DC (mm): 0.88 | L/D: 30 | LU (mm): 28.7 | LCF (mm): 30 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0890PDC (mm): 0.89 | L/D: 2 | LU (mm): 2.3 | LCF (mm): 3.6 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0890L5DC (mm): 0.89 | L/D: 5 | LU (mm): 7.7 | LCF (mm): 9 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0890L12DC (mm): 0.89 | L/D: 12 | LU (mm): 13.7 | LCF (mm): 15 | OAL (mm): 55 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0890L20DC (mm): 0.89 | L/D: 20 | LU (mm): 19.7 | LCF (mm): 21 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0890L30DC (mm): 0.89 | L/D: 30 | LU (mm): 28.7 | LCF (mm): 30 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0900PDC (mm): 0.90 | L/D: 2 | LU (mm): 2.3 | LCF (mm): 3.6 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0900L5DC (mm): 0.90 | L/D: 5 | LU (mm): 7.7 | LCF (mm): 9 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0900L12DC (mm): 0.90 | L/D: 12 | LU (mm): 13.7 | LCF (mm): 15 | OAL (mm): 55 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0900L20DC (mm): 0.90 | L/D: 20 | LU (mm): 20.7 | LCF (mm): 22 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0900L30DC (mm): 0.90 | L/D: 30 | LU (mm): 29.7 | LCF (mm): 31 | OAL (mm): 75 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0910PDC (mm): 0.91 | L/D: 2 | LU (mm): 2.2 | LCF (mm): 3.6 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0910L5DC (mm): 0.91 | L/D: 5 | LU (mm): 8.6 | LCF (mm): 10 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0910L12DC (mm): 0.91 | L/D: 12 | LU (mm): 13.6 | LCF (mm): 15 | OAL (mm): 55 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0910L20DC (mm): 0.91 | L/D: 20 | LU (mm): 20.6 | LCF (mm): 22 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0910L30DC (mm): 0.91 | L/D: 30 | LU (mm): 29.6 | LCF (mm): 31 | OAL (mm): 75 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0920PDC (mm): 0.92 | L/D: 2 | LU (mm): 2.3 | LCF (mm): 3.7 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0920L5DC (mm): 0.92 | L/D: 5 | LU (mm): 8.6 | LCF (mm): 10 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0920L12DC (mm): 0.92 | L/D: 12 | LU (mm): 14.6 | LCF (mm): 16 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0920L20DC (mm): 0.92 | L/D: 20 | LU (mm): 20.6 | LCF (mm): 22 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0920L30DC (mm): 0.92 | L/D: 30 | LU (mm): 29.6 | LCF (mm): 31 | OAL (mm): 75 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0930PDC (mm): 0.93 | L/D: 2 | LU (mm): 2.3 | LCF (mm): 3.7 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0930L5DC (mm): 0.93 | L/D: 5 | LU (mm): 8.6 | LCF (mm): 10 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0930L12DC (mm): 0.93 | L/D: 12 | LU (mm): 14.6 | LCF (mm): 16 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0930L20DC (mm): 0.93 | L/D: 20 | LU (mm): 20.6 | LCF (mm): 22 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0930L30DC (mm): 0.93 | L/D: 30 | LU (mm): 30.6 | LCF (mm): 32 | OAL (mm): 75 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0940PDC (mm): 0.94 | L/D: 2 | LU (mm): 2.4 | LCF (mm): 3.8 | OAL (mm): 45 | PL (mm): 0.1 | DCON (mm): 3.0 | Stock: Yes
MLDH0940L5DC (mm): 0.94 | L/D: 5 | LU (mm): 8.6 | LCF (mm): 10 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0940L12DC (mm): 0.94 | L/D: 12 | LU (mm): 14.6 | LCF (mm): 16 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0940L20DC (mm): 0.94 | L/D: 20 | LU (mm): 21.6 | LCF (mm): 23 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0940L30DC (mm): 0.94 | L/D: 30 | LU (mm): 30.6 | LCF (mm): 32 | OAL (mm): 75 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0950PDC (mm): 0.95 | L/D: 2 | LU (mm): 2.4 | LCF (mm): 3.8 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0950L5DC (mm): 0.95 | L/D: 5 | LU (mm): 8.6 | LCF (mm): 10 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0950L12DC (mm): 0.95 | L/D: 12 | LU (mm): 14.6 | LCF (mm): 16 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0950L20DC (mm): 0.95 | L/D: 20 | LU (mm): 21.6 | LCF (mm): 23 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0950L30DC (mm): 0.95 | L/D: 30 | LU (mm): 30.6 | LCF (mm): 32 | OAL (mm): 75 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0960PDC (mm): 0.96 | L/D: 2 | LU (mm): 2.4 | LCF (mm): 3.8 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0960L5DC (mm): 0.96 | L/D: 5 | LU (mm): 8.6 | LCF (mm): 10 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0960L12DC (mm): 0.96 | L/D: 12 | LU (mm): 14.6 | LCF (mm): 16 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0960L20DC (mm): 0.96 | L/D: 20 | LU (mm): 21.6 | LCF (mm): 23 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0960L30DC (mm): 0.96 | L/D: 30 | LU (mm): 31.6 | LCF (mm): 33 | OAL (mm): 75 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0970PDC (mm): 0.97 | L/D: 2 | LU (mm): 2.4 | LCF (mm): 3.9 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0970L5DC (mm): 0.97 | L/D: 5 | LU (mm): 8.5 | LCF (mm): 10 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0970L12DC (mm): 0.97 | L/D: 12 | LU (mm): 14.5 | LCF (mm): 16 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0970L20DC (mm): 0.97 | L/D: 20 | LU (mm): 21.5 | LCF (mm): 23 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0970L30DC (mm): 0.97 | L/D: 30 | LU (mm): 31.5 | LCF (mm): 33 | OAL (mm): 75 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0980PDC (mm): 0.98 | L/D: 2 | LU (mm): 2.4 | LCF (mm): 3.9 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0980L5DC (mm): 0.98 | L/D: 5 | LU (mm): 8.5 | LCF (mm): 10 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0980L12DC (mm): 0.98 | L/D: 12 | LU (mm): 15.5 | LCF (mm): 17 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0980L20DC (mm): 0.98 | L/D: 20 | LU (mm): 22.5 | LCF (mm): 24 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0980L30DC (mm): 0.98 | L/D: 30 | LU (mm): 31.5 | LCF (mm): 33 | OAL (mm): 75 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0990PDC (mm): 0.99 | L/D: 2 | LU (mm): 2.5 | LCF (mm): 4 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0990L5DC (mm): 0.99 | L/D: 5 | LU (mm): 8.5 | LCF (mm): 10 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0990L12DC (mm): 0.99 | L/D: 12 | LU (mm): 15.5 | LCF (mm): 17 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0990L20DC (mm): 0.99 | L/D: 20 | LU (mm): 22.5 | LCF (mm): 24 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH0990L30DC (mm): 0.99 | L/D: 30 | LU (mm): 32.5 | LCF (mm): 34 | OAL (mm): 75 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1000PDC (mm): 1.00 | L/D: 2 | LU (mm): 2.5 | LCF (mm): 4 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1000L5DC (mm): 1.00 | L/D: 5 | LU (mm): 8.5 | LCF (mm): 10 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1000L12DC (mm): 1.00 | L/D: 12 | LU (mm): 15.5 | LCF (mm): 17 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1000L20DC (mm): 1.00 | L/D: 20 | LU (mm): 22.5 | LCF (mm): 24 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1000L30DC (mm): 1.00 | L/D: 30 | LU (mm): 32.5 | LCF (mm): 34 | OAL (mm): 75 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1050PDC (mm): 1.05 | L/D: 2 | LU (mm): 2.6 | LCF (mm): 4.2 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1050L5DC (mm): 1.05 | L/D: 5 | LU (mm): 10.4 | LCF (mm): 12 | OAL (mm): 55.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1050L12DC (mm): 1.05 | L/D: 12 | LU (mm): 16.4 | LCF (mm): 18 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1050L20DC (mm): 1.05 | L/D: 20 | LU (mm): 23.4 | LCF (mm): 25 | OAL (mm): 65 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1050L30DC (mm): 1.05 | L/D: 30 | LU (mm): 34.4 | LCF (mm): 36 | OAL (mm): 80 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1100PDC (mm): 1.10 | L/D: 2 | LU (mm): 2.8 | LCF (mm): 4.4 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1100L5DC (mm): 1.10 | L/D: 5 | LU (mm): 10.4 | LCF (mm): 12 | OAL (mm): 55.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1100L12DC (mm): 1.10 | L/D: 12 | LU (mm): 17.4 | LCF (mm): 19 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1100L20DC (mm): 1.10 | L/D: 20 | LU (mm): 24.4 | LCF (mm): 26 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1100L30DC (mm): 1.10 | L/D: 30 | LU (mm): 35.4 | LCF (mm): 37 | OAL (mm): 80 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1150PDC (mm): 1.15 | L/D: 2 | LU (mm): 2.9 | LCF (mm): 4.6 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1150L5DC (mm): 1.15 | L/D: 5 | LU (mm): 10.3 | LCF (mm): 12 | OAL (mm): 55.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1150L12DC (mm): 1.15 | L/D: 12 | LU (mm): 18.3 | LCF (mm): 20 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1150L20DC (mm): 1.15 | L/D: 20 | LU (mm): 26.3 | LCF (mm): 28 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1150L30DC (mm): 1.15 | L/D: 30 | LU (mm): 37.3 | LCF (mm): 39 | OAL (mm): 80 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1200PDC (mm): 1.20 | L/D: 2 | LU (mm): 3.0 | LCF (mm): 4.8 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1200L5DC (mm): 1.20 | L/D: 5 | LU (mm): 10.2 | LCF (mm): 12 | OAL (mm): 55.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1200L12DC (mm): 1.20 | L/D: 12 | LU (mm): 18.2 | LCF (mm): 20 | OAL (mm): 60 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1200L20DC (mm): 1.20 | L/D: 20 | LU (mm): 27.2 | LCF (mm): 29 | OAL (mm): 70 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1200L30DC (mm): 1.20 | L/D: 30 | LU (mm): 39.2 | LCF (mm): 41 | OAL (mm): 85 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1250PDC (mm): 1.25 | L/D: 2 | LU (mm): 3.1 | LCF (mm): 5.0 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1250L5DC (mm): 1.25 | L/D: 5 | LU (mm): 12.1 | LCF (mm): 14 | OAL (mm): 55.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1250L12DC (mm): 1.25 | L/D: 12 | LU (mm): 19.1 | LCF (mm): 21 | OAL (mm): 65 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1250L20DC (mm): 1.25 | L/D: 20 | LU (mm): 28.1 | LCF (mm): 30 | OAL (mm): 70 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1250L30DC (mm): 1.25 | L/D: 30 | LU (mm): 41.1 | LCF (mm): 43 | OAL (mm): 85 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1300PDC (mm): 1.30 | L/D: 2 | LU (mm): 3.3 | LCF (mm): 5.2 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1300L5DC (mm): 1.30 | L/D: 5 | LU (mm): 12.1 | LCF (mm): 14 | OAL (mm): 55.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1300L12DC (mm): 1.30 | L/D: 12 | LU (mm): 20.1 | LCF (mm): 22 | OAL (mm): 65 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1300L20DC (mm): 1.30 | L/D: 20 | LU (mm): 29.1 | LCF (mm): 31 | OAL (mm): 75 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1300L30DC (mm): 1.30 | L/D: 30 | LU (mm): 42.1 | LCF (mm): 44 | OAL (mm): 85 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1350PDC (mm): 1.35 | L/D: 2 | LU (mm): 3.4 | LCF (mm): 5.4 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1350L5DC (mm): 1.35 | L/D: 5 | LU (mm): 12.0 | LCF (mm): 14 | OAL (mm): 55.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1350L12DC (mm): 1.35 | L/D: 12 | LU (mm): 21.0 | LCF (mm): 23 | OAL (mm): 65 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1350L20DC (mm): 1.35 | L/D: 20 | LU (mm): 30.0 | LCF (mm): 32 | OAL (mm): 75 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1350L30DC (mm): 1.35 | L/D: 30 | LU (mm): 44.0 | LCF (mm): 46 | OAL (mm): 90 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1400PDC (mm): 1.40 | L/D: 2 | LU (mm): 3.5 | LCF (mm): 5.6 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1400L5DC (mm): 1.40 | L/D: 5 | LU (mm): 11.9 | LCF (mm): 14 | OAL (mm): 55.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1400L12DC (mm): 1.40 | L/D: 12 | LU (mm): 21.9 | LCF (mm): 24 | OAL (mm): 65 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1400L20DC (mm): 1.40 | L/D: 20 | LU (mm): 31.9 | LCF (mm): 34 | OAL (mm): 75 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1400L30DC (mm): 1.40 | L/D: 30 | LU (mm): 45.9 | LCF (mm): 48 | OAL (mm): 90 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1450PDC (mm): 1.45 | L/D: 2 | LU (mm): 3.6 | LCF (mm): 5.8 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1450L5DC (mm): 1.45 | L/D: 5 | LU (mm): 13.8 | LCF (mm): 16 | OAL (mm): 55.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1450L12DC (mm): 1.45 | L/D: 12 | LU (mm): 22.8 | LCF (mm): 25 | OAL (mm): 65 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1450L20DC (mm): 1.45 | L/D: 20 | LU (mm): 32.8 | LCF (mm): 35 | OAL (mm): 75 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1450L30DC (mm): 1.45 | L/D: 30 | LU (mm): 46.8 | LCF (mm): 49 | OAL (mm): 90 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1500PDC (mm): 1.50 | L/D: 2 | LU (mm): 3.8 | LCF (mm): 6 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1500L5DC (mm): 1.50 | L/D: 5 | LU (mm): 13.8 | LCF (mm): 16 | OAL (mm): 55.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1500L12DC (mm): 1.50 | L/D: 12 | LU (mm): 23.8 | LCF (mm): 26 | OAL (mm): 65 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1500L20DC (mm): 1.50 | L/D: 20 | LU (mm): 33.8 | LCF (mm): 36 | OAL (mm): 75 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1500L30DC (mm): 1.50 | L/D: 30 | LU (mm): 48.8 | LCF (mm): 51 | OAL (mm): 90 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1550PDC (mm): 1.55 | L/D: 2 | LU (mm): 3.9 | LCF (mm): 6.2 | OAL (mm): 45 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MLDH1550L5DC (mm): 1.55 | L/D: 5 | LU (mm): 13.7 | LCF (mm): 16 | OAL (mm): 55.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1550L12DC (mm): 1.55 | L/D: 12 | LU (mm): 23.7 | LCF (mm): 26 | OAL (mm): 65 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1550L20DC (mm): 1.55 | L/D: 20 | LU (mm): 34.7 | LCF (mm): 37 | OAL (mm): 80 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1550L30DC (mm): 1.55 | L/D: 30 | LU (mm): 50.7 | LCF (mm): 53 | OAL (mm): 95 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1600PDC (mm): 1.60 | L/D: 2 | LU (mm): 4.0 | LCF (mm): 6.4 | OAL (mm): 45 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1600L5DC (mm): 1.60 | L/D: 5 | LU (mm): 13.6 | LCF (mm): 16 | OAL (mm): 55.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1600L12DC (mm): 1.60 | L/D: 12 | LU (mm): 24.6 | LCF (mm): 27 | OAL (mm): 70 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1600L20DC (mm): 1.60 | L/D: 20 | LU (mm): 35.6 | LCF (mm): 38 | OAL (mm): 80 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1600L30DC (mm): 1.60 | L/D: 30 | LU (mm): 51.6 | LCF (mm): 54 | OAL (mm): 95 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1650PDC (mm): 1.65 | L/D: 2 | LU (mm): 4.1 | LCF (mm): 6.6 | OAL (mm): 50 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1650L5DC (mm): 1.65 | L/D: 5 | LU (mm): 15.5 | LCF (mm): 18 | OAL (mm): 60.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1650L12DC (mm): 1.65 | L/D: 12 | LU (mm): 25.5 | LCF (mm): 28 | OAL (mm): 70 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1650L20DC (mm): 1.65 | L/D: 20 | LU (mm): 37.5 | LCF (mm): 40 | OAL (mm): 80 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1650L30DC (mm): 1.65 | L/D: 30 | LU (mm): 53.5 | LCF (mm): 56 | OAL (mm): 95 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1700PDC (mm): 1.70 | L/D: 2 | LU (mm): 4.3 | LCF (mm): 6.8 | OAL (mm): 50 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1700L5DC (mm): 1.70 | L/D: 5 | LU (mm): 15.5 | LCF (mm): 18 | OAL (mm): 60.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1700L12DC (mm): 1.70 | L/D: 12 | LU (mm): 26.5 | LCF (mm): 29 | OAL (mm): 70 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1700L20DC (mm): 1.70 | L/D: 20 | LU (mm): 38.5 | LCF (mm): 41 | OAL (mm): 80 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1700L30DC (mm): 1.70 | L/D: 30 | LU (mm): 55.5 | LCF (mm): 58 | OAL (mm): 100 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1750PDC (mm): 1.75 | L/D: 2 | LU (mm): 4.4 | LCF (mm): 7 | OAL (mm): 50 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1750L5DC (mm): 1.75 | L/D: 5 | LU (mm): 15.4 | LCF (mm): 18 | OAL (mm): 60.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1750L12DC (mm): 1.75 | L/D: 12 | LU (mm): 27.4 | LCF (mm): 30 | OAL (mm): 70 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1750L20DC (mm): 1.75 | L/D: 20 | LU (mm): 39.4 | LCF (mm): 42 | OAL (mm): 85 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1750L30DC (mm): 1.75 | L/D: 30 | LU (mm): 57.4 | LCF (mm): 60 | OAL (mm): 100 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1800PDC (mm): 1.80 | L/D: 2 | LU (mm): 4.5 | LCF (mm): 7.2 | OAL (mm): 50 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1800L5DC (mm): 1.80 | L/D: 5 | LU (mm): 15.3 | LCF (mm): 18 | OAL (mm): 60.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1800L12DC (mm): 1.80 | L/D: 12 | LU (mm): 28.3 | LCF (mm): 31 | OAL (mm): 70 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1800L20DC (mm): 1.80 | L/D: 20 | LU (mm): 40.3 | LCF (mm): 43 | OAL (mm): 85 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1800L30DC (mm): 1.80 | L/D: 30 | LU (mm): 58.3 | LCF (mm): 61 | OAL (mm): 100 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1850PDC (mm): 1.85 | L/D: 2 | LU (mm): 4.6 | LCF (mm): 7.4 | OAL (mm): 50 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1850L5DC (mm): 1.85 | L/D: 5 | LU (mm): 17.2 | LCF (mm): 20 | OAL (mm): 60.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1850L12DC (mm): 1.85 | L/D: 12 | LU (mm): 28.2 | LCF (mm): 31 | OAL (mm): 70 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1850L20DC (mm): 1.85 | L/D: 20 | LU (mm): 41.2 | LCF (mm): 44 | OAL (mm): 85 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1850L30DC (mm): 1.85 | L/D: 30 | LU (mm): 59.2 | LCF (mm): 62 | OAL (mm): 103 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1900PDC (mm): 1.90 | L/D: 2 | LU (mm): 4.8 | LCF (mm): 7.6 | OAL (mm): 50 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1900L5DC (mm): 1.90 | L/D: 5 | LU (mm): 17.2 | LCF (mm): 20 | OAL (mm): 60.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1900L12DC (mm): 1.90 | L/D: 12 | LU (mm): 29.2 | LCF (mm): 32 | OAL (mm): 75 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1900L20DC (mm): 1.90 | L/D: 20 | LU (mm): 43.2 | LCF (mm): 46 | OAL (mm): 85 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1900L30DC (mm): 1.90 | L/D: 30 | LU (mm): 60.2 | LCF (mm): 63 | OAL (mm): 103 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1950PDC (mm): 1.95 | L/D: 2 | LU (mm): 4.9 | LCF (mm): 7.8 | OAL (mm): 50 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH1950L5DC (mm): 1.95 | L/D: 5 | LU (mm): 17.1 | LCF (mm): 20 | OAL (mm): 60.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1950L12DC (mm): 1.95 | L/D: 12 | LU (mm): 30.1 | LCF (mm): 33 | OAL (mm): 75 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1950L20DC (mm): 1.95 | L/D: 20 | LU (mm): 44.1 | LCF (mm): 47 | OAL (mm): 85 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH1950L30DC (mm): 1.95 | L/D: 30 | LU (mm): 61.1 | LCF (mm): 64 | OAL (mm): 103 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH2000PDC (mm): 2.00 | L/D: 2 | LU (mm): 5.0 | LCF (mm): 8 | OAL (mm): 50 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MLDH2000L5DC (mm): 2.00 | L/D: 5 | LU (mm): 17.0 | LCF (mm): 20 | OAL (mm): 60.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH2000L12DC (mm): 2.00 | L/D: 12 | LU (mm): 31.0 | LCF (mm): 34 | OAL (mm): 75 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH2000L20DC (mm): 2.00 | L/D: 20 | LU (mm): 45.0 | LCF (mm): 48 | OAL (mm): 90 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MLDH2000L30DC (mm): 2.00 | L/D: 30 | LU (mm): 63.0 | LCF (mm): 66 | OAL (mm): 103 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
