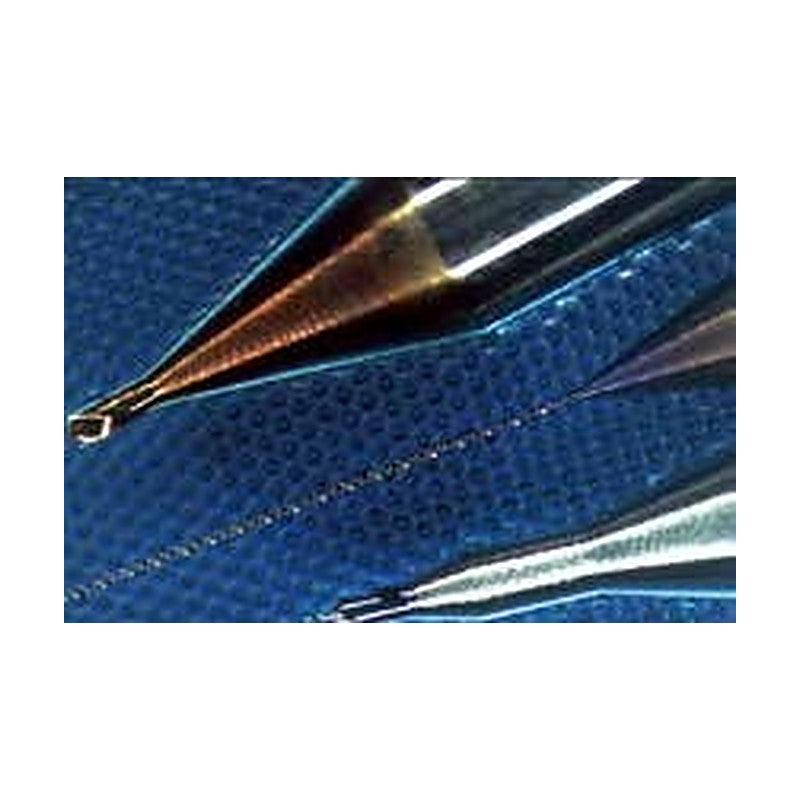

Sumitomo Electric Hardmetal Micro Multi Drill MDUS Type

Sumitomo Electric Hardmetal Micro Multi Drill MDUS Type

Micro solid carbide drill for steel, stainless steel and nonferrous metals, diameter 0.03-0.19 mm, with TiAlN ultra-multilayer coating.

Key features

  • High-precision h3 shank, runout 0.3 um or less
  • TiAlN ultra-multilayer coating
  • Made in 0.005 mm diameter steps
  • Grade KP011

Specifications

Coolant External
Grade KP011
MDUS0030-30C DC (mm): 0.030 | L/D: 10 | LU (mm): 0.26 | OAL (mm): 38.0 | PL (mm): 0.01 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDUS0035-30C DC (mm): 0.035 | L/D: 10 | LU (mm): 0.35 | OAL (mm): 38.0 | PL (mm): 0.01 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Made to order
MDUS0040-30C DC (mm): 0.040 | L/D: 10 | LU (mm): 0.34 | OAL (mm): 38.0 | PL (mm): 0.01 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDUS0045-30C DC (mm): 0.045 | L/D: 10 | LU (mm): 0.46 | OAL (mm): 38.0 | PL (mm): 0.01 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Made to order
MDUS0050-30C DC (mm): 0.050 | L/D: 10 | LU (mm): 0.45 | OAL (mm): 38.0 | PL (mm): 0.01 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDUS0055-30C DC (mm): 0.055 | L/D: 10 | LU (mm): 0.55 | OAL (mm): 38.0 | PL (mm): 0.02 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Made to order
MDUS0060-30C DC (mm): 0.060 | L/D: 10 | LU (mm): 0.54 | OAL (mm): 38.0 | PL (mm): 0.02 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Made to order
MDUS0065-30C DC (mm): 0.065 | L/D: 10 | LU (mm): 0.64 | OAL (mm): 38.0 | PL (mm): 0.02 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Made to order
MDUS0070-30C DC (mm): 0.070 | L/D: 10 | LU (mm): 0.63 | OAL (mm): 38.0 | PL (mm): 0.02 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Made to order
MDUS0075-30C DC (mm): 0.075 | L/D: 10 | LU (mm): 0.73 | OAL (mm): 38.0 | PL (mm): 0.02 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Made to order
MDUS0080-30C DC (mm): 0.080 | L/D: 10 | LU (mm): 0.72 | OAL (mm): 38.0 | PL (mm): 0.02 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDUS0085-30C DC (mm): 0.085 | L/D: 10 | LU (mm): 0.92 | OAL (mm): 38.0 | PL (mm): 0.02 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Made to order
MDUS0090-30C DC (mm): 0.090 | L/D: 10 | LU (mm): 0.91 | OAL (mm): 38.0 | PL (mm): 0.03 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Made to order
MDUS0095-30C DC (mm): 0.095 | L/D: 10 | LU (mm): 0.91 | OAL (mm): 38.0 | PL (mm): 0.03 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Made to order
MDUS0100-30C DC (mm): 0.100 | L/D: 10 | LU (mm): 0.90 | OAL (mm): 38.0 | PL (mm): 0.03 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDUS0110-30C DC (mm): 0.110 | L/D: 10 | LU (mm): 1.09 | OAL (mm): 38.0 | PL (mm): 0.03 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Made to order
MDUS0120-30C DC (mm): 0.120 | L/D: 10 | LU (mm): 1.08 | OAL (mm): 38.0 | PL (mm): 0.03 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDUS0130-30C DC (mm): 0.130 | L/D: 10 | LU (mm): 1.37 | OAL (mm): 38.0 | PL (mm): 0.04 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Made to order
MDUS0140-30C DC (mm): 0.140 | L/D: 10 | LU (mm): 1.36 | OAL (mm): 38.0 | PL (mm): 0.04 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Made to order
MDUS0150-30C DC (mm): 0.150 | L/D: 10 | LU (mm): 1.35 | OAL (mm): 38.0 | PL (mm): 0.04 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDUS0160-30C DC (mm): 0.160 | L/D: 10 | LU (mm): 1.64 | OAL (mm): 38.0 | PL (mm): 0.05 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Made to order
MDUS0170-30C DC (mm): 0.170 | L/D: 10 | LU (mm): 1.63 | OAL (mm): 38.0 | PL (mm): 0.05 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Made to order
MDUS0180-30C DC (mm): 0.180 | L/D: 10 | LU (mm): 1.62 | OAL (mm): 38.0 | PL (mm): 0.05 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDUS0190-30C DC (mm): 0.190 | L/D: 10 | LU (mm): 1.71 | OAL (mm): 38.0 | PL (mm): 0.05 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Made to order
DrillsSumitomo Electric Hardmetal
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Micro Multi Drill MDUS Type

Brand Sumitomo Electric Hardmetal·Drills

Available part numbers (24)

MDUS0030-30C, MDUS0035-30C, MDUS0040-30C, MDUS0045-30C, MDUS0050-30C, MDUS0055-30C, MDUS0060-30C, MDUS0065-30C, MDUS0070-30C, MDUS0075-30C + 14 more — see full table ↓
