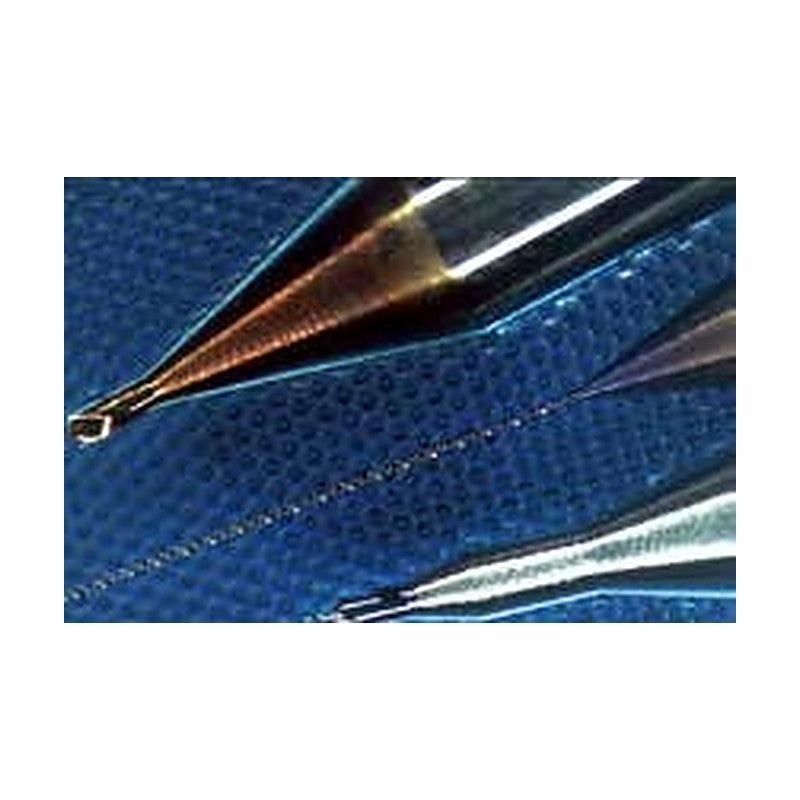

Sumitomo Electric Hardmetal Micro Multi Pointing Drill MDUP Type

Sumitomo Electric Hardmetal Micro Multi Pointing Drill MDUP Type

Micro pointing drill used to make guide holes for the MDUS micro drill, diameter 0.03-0.18 mm.

Key features

  • Guide-hole drill for MDUS
  • h3 shank tolerance
  • Grade KP011

Specifications

Grade KP011
Coolant External
MDUP0030-30C DC (mm): 0.03 | LU (mm): 0.02 | OAL (mm): 38.2 | PL (mm): 0.01 | DCON (mm): 3.0 | Grade: KP011 | Stock: Yes
MDUP0040-30C DC (mm): 0.04 | LU (mm): 0.04 | OAL (mm): 38.2 | PL (mm): 0.01 | DCON (mm): 3.0 | Grade: KP011 | Stock: Yes
MDUP0050-30C DC (mm): 0.05 | LU (mm): 0.05 | OAL (mm): 38.2 | PL (mm): 0.01 | DCON (mm): 3.0 | Grade: KP011 | Stock: Yes
MDUP0080-30C DC (mm): 0.08 | LU (mm): 0.06 | OAL (mm): 38.2 | PL (mm): 0.02 | DCON (mm): 3.0 | Grade: KP011 | Stock: Yes
MDUP0100-30C DC (mm): 0.10 | LU (mm): 0.10 | OAL (mm): 38.2 | PL (mm): 0.03 | DCON (mm): 3.0 | Grade: KP011 | Stock: Yes
MDUP0120-30C DC (mm): 0.12 | LU (mm): 0.08 | OAL (mm): 38.2 | PL (mm): 0.03 | DCON (mm): 3.0 | Grade: KP011 | Stock: Yes
MDUP0150-30C DC (mm): 0.15 | LU (mm): 0.08 | OAL (mm): 38.2 | PL (mm): 0.04 | DCON (mm): 3.0 | Grade: KP011 | Stock: Yes
MDUP0180-30C DC (mm): 0.18 | LU (mm): 0.17 | OAL (mm): 38.2 | PL (mm): 0.05 | DCON (mm): 3.0 | Grade: KP011 | Stock: Yes
DrillsSumitomo Electric Hardmetal
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Micro Multi Pointing Drill MDUP Type

Brand Sumitomo Electric Hardmetal·Drills

Available part numbers (8)

MDUP0030-30C, MDUP0040-30C, MDUP0050-30C, MDUP0080-30C, MDUP0100-30C, MDUP0120-30C, MDUP0150-30C, MDUP0180-30C

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MDUP0030-30CDC (mm): 0.03 | LU (mm): 0.02 | OAL (mm): 38.2 | PL (mm): 0.01 | DCON (mm): 3.0 | Grade: KP011 | Stock: Yes
MDUP0040-30CDC (mm): 0.04 | LU (mm): 0.04 | OAL (mm): 38.2 | PL (mm): 0.01 | DCON (mm): 3.0 | Grade: KP011 | Stock: Yes
MDUP0050-30CDC (mm): 0.05 | LU (mm): 0.05 | OAL (mm): 38.2 | PL (mm): 0.01 | DCON (mm): 3.0 | Grade: KP011 | Stock: Yes
MDUP0080-30CDC (mm): 0.08 | LU (mm): 0.06 | OAL (mm): 38.2 | PL (mm): 0.02 | DCON (mm): 3.0 | Grade: KP011 | Stock: Yes
MDUP0100-30CDC (mm): 0.10 | LU (mm): 0.10 | OAL (mm): 38.2 | PL (mm): 0.03 | DCON (mm): 3.0 | Grade: KP011 | Stock: Yes
MDUP0120-30CDC (mm): 0.12 | LU (mm): 0.08 | OAL (mm): 38.2 | PL (mm): 0.03 | DCON (mm): 3.0 | Grade: KP011 | Stock: Yes
MDUP0150-30CDC (mm): 0.15 | LU (mm): 0.08 | OAL (mm): 38.2 | PL (mm): 0.04 | DCON (mm): 3.0 | Grade: KP011 | Stock: Yes
MDUP0180-30CDC (mm): 0.18 | LU (mm): 0.17 | OAL (mm): 38.2 | PL (mm): 0.05 | DCON (mm): 3.0 | Grade: KP011 | Stock: Yes
