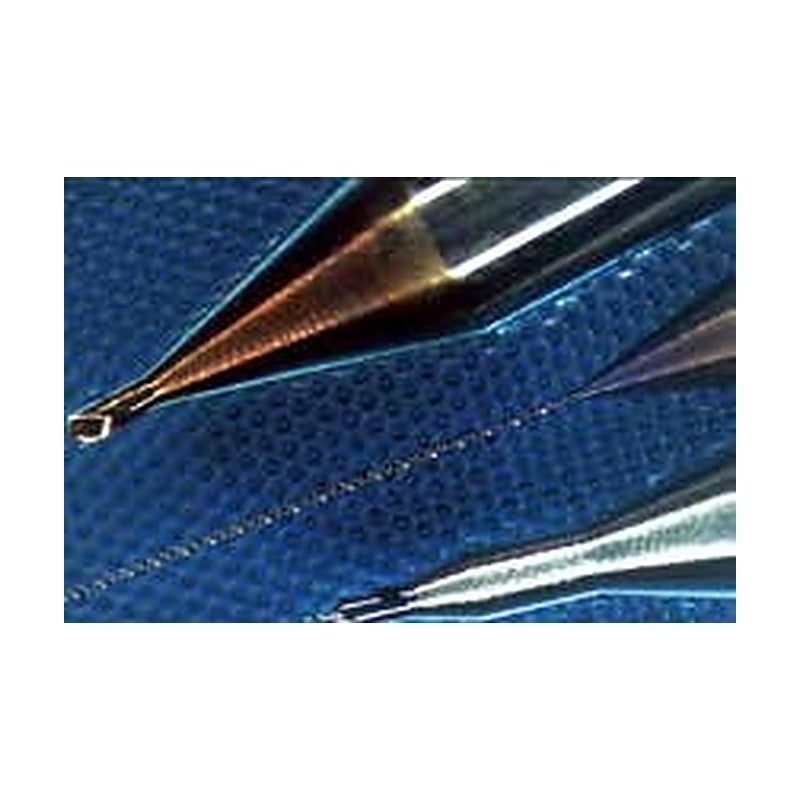

Sumitomo Electric Hardmetal Mini Multi Drill MDSS Type

Sumitomo Electric Hardmetal Mini Multi Drill MDSS Type

Small solid carbide drill 0.20-1.00 mm with a unified 3 mm shank and 38 mm overall length, PVD coated.

Key features

  • Rigid carbide substrate and high-rigidity design
  • PVD coating for small drills
  • Shank 3 mm, OAL 38 mm
  • Grade ACF40B

Specifications

Coolant External
Grade ACF40B
MDSS0020 DC (mm): 0.20 | L/D: 10 | LU (mm): 2.25 | OAL (mm): 38 | PL (mm): 0.04 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0021 DC (mm): 0.21 | L/D: 10 | LU (mm): 2.24 | OAL (mm): 38 | PL (mm): 0.04 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0022 DC (mm): 0.22 | L/D: 10 | LU (mm): 2.23 | OAL (mm): 38 | PL (mm): 0.04 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0023 DC (mm): 0.23 | L/D: 10 | LU (mm): 2.21 | OAL (mm): 38 | PL (mm): 0.04 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0024 DC (mm): 0.24 | L/D: 10 | LU (mm): 2.20 | OAL (mm): 38 | PL (mm): 0.04 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0025 DC (mm): 0.25 | L/D: 10 | LU (mm): 2.19 | OAL (mm): 38 | PL (mm): 0.05 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0026 DC (mm): 0.26 | L/D: 10 | LU (mm): 2.18 | OAL (mm): 38 | PL (mm): 0.05 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0027 DC (mm): 0.27 | L/D: 10 | LU (mm): 2.16 | OAL (mm): 38 | PL (mm): 0.05 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0028 DC (mm): 0.28 | L/D: 10 | LU (mm): 2.15 | OAL (mm): 38 | PL (mm): 0.05 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0029 DC (mm): 0.29 | L/D: 10 | LU (mm): 2.14 | OAL (mm): 38 | PL (mm): 0.05 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0030 DC (mm): 0.30 | L/D: 10 | LU (mm): 2.6 | OAL (mm): 38 | PL (mm): 0.05 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0031 DC (mm): 0.31 | L/D: 10 | LU (mm): 2.6 | OAL (mm): 38 | PL (mm): 0.06 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0032 DC (mm): 0.32 | L/D: 10 | LU (mm): 2.6 | OAL (mm): 38 | PL (mm): 0.06 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0033 DC (mm): 0.33 | L/D: 10 | LU (mm): 2.6 | OAL (mm): 38 | PL (mm): 0.06 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0034 DC (mm): 0.34 | L/D: 10 | LU (mm): 2.6 | OAL (mm): 38 | PL (mm): 0.06 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0035 DC (mm): 0.35 | L/D: 10 | LU (mm): 3.6 | OAL (mm): 38 | PL (mm): 0.06 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0036 DC (mm): 0.36 | L/D: 10 | LU (mm): 3.6 | OAL (mm): 38 | PL (mm): 0.07 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0037 DC (mm): 0.37 | L/D: 10 | LU (mm): 3.5 | OAL (mm): 38 | PL (mm): 0.07 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0038 DC (mm): 0.38 | L/D: 10 | LU (mm): 3.5 | OAL (mm): 38 | PL (mm): 0.07 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0039 DC (mm): 0.39 | L/D: 10 | LU (mm): 3.5 | OAL (mm): 38 | PL (mm): 0.07 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0040 DC (mm): 0.40 | L/D: 10 | LU (mm): 4.5 | OAL (mm): 38 | PL (mm): 0.07 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0041 DC (mm): 0.41 | L/D: 10 | LU (mm): 4.5 | OAL (mm): 38 | PL (mm): 0.07 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0042 DC (mm): 0.42 | L/D: 10 | LU (mm): 4.5 | OAL (mm): 38 | PL (mm): 0.08 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0043 DC (mm): 0.43 | L/D: 10 | LU (mm): 4.5 | OAL (mm): 38 | PL (mm): 0.08 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0044 DC (mm): 0.44 | L/D: 10 | LU (mm): 4.5 | OAL (mm): 38 | PL (mm): 0.08 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0045 DC (mm): 0.45 | L/D: 10 | LU (mm): 4.4 | OAL (mm): 38 | PL (mm): 0.08 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0046 DC (mm): 0.46 | L/D: 10 | LU (mm): 4.4 | OAL (mm): 38 | PL (mm): 0.08 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0047 DC (mm): 0.47 | L/D: 10 | LU (mm): 4.4 | OAL (mm): 38 | PL (mm): 0.09 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0048 DC (mm): 0.48 | L/D: 10 | LU (mm): 4.4 | OAL (mm): 38 | PL (mm): 0.09 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0049 DC (mm): 0.49 | L/D: 10 | LU (mm): 4.4 | OAL (mm): 38 | PL (mm): 0.09 | LS (mm): 28 | DCON (mm): 3.0 | Stock: Yes
MDSS0050 DC (mm): 0.50 | L/D: 10 | LU (mm): 5.4 | OAL (mm): 38 | PL (mm): 0.09 | LS (mm): 27 | DCON (mm): 3.0 | Stock: Yes
MDSS0051 DC (mm): 0.51 | L/D: 10 | LU (mm): 5.4 | OAL (mm): 38 | PL (mm): 0.09 | LS (mm): 27 | DCON (mm): 3.0 | Stock: Yes
MDSS0052 DC (mm): 0.52 | L/D: 10 | LU (mm): 5.4 | OAL (mm): 38 | PL (mm): 0.09 | LS (mm): 27 | DCON (mm): 3.0 | Stock: Yes
MDSS0053 DC (mm): 0.53 | L/D: 10 | LU (mm): 5.3 | OAL (mm): 38 | PL (mm): 0.10 | LS (mm): 27 | DCON (mm): 3.0 | Stock: Yes
MDSS0054 DC (mm): 0.54 | L/D: 10 | LU (mm): 5.3 | OAL (mm): 38 | PL (mm): 0.10 | LS (mm): 27 | DCON (mm): 3.0 | Stock: Yes
MDSS0055 DC (mm): 0.55 | L/D: 10 | LU (mm): 5.3 | OAL (mm): 38 | PL (mm): 0.10 | LS (mm): 27 | DCON (mm): 3.0 | Stock: Yes
MDSS0056 DC (mm): 0.56 | L/D: 10 | LU (mm): 5.3 | OAL (mm): 38 | PL (mm): 0.10 | LS (mm): 27 | DCON (mm): 3.0 | Stock: Yes
MDSS0057 DC (mm): 0.57 | L/D: 10 | LU (mm): 5.3 | OAL (mm): 38 | PL (mm): 0.10 | LS (mm): 27 | DCON (mm): 3.0 | Stock: Yes
MDSS0058 DC (mm): 0.58 | L/D: 10 | LU (mm): 5.3 | OAL (mm): 38 | PL (mm): 0.11 | LS (mm): 27 | DCON (mm): 3.0 | Stock: Yes
MDSS0059 DC (mm): 0.59 | L/D: 10 | LU (mm): 5.3 | OAL (mm): 38 | PL (mm): 0.11 | LS (mm): 27 | DCON (mm): 3.0 | Stock: Yes
MDSS0060 DC (mm): 0.60 | L/D: 10 | LU (mm): 6.3 | OAL (mm): 38 | PL (mm): 0.11 | LS (mm): 26 | DCON (mm): 3.0 | Stock: Yes
MDSS0061 DC (mm): 0.61 | L/D: 10 | LU (mm): 6.2 | OAL (mm): 38 | PL (mm): 0.11 | LS (mm): 26 | DCON (mm): 3.0 | Stock: Yes
MDSS0062 DC (mm): 0.62 | L/D: 10 | LU (mm): 6.2 | OAL (mm): 38 | PL (mm): 0.11 | LS (mm): 26 | DCON (mm): 3.0 | Stock: Yes
MDSS0063 DC (mm): 0.63 | L/D: 10 | LU (mm): 6.2 | OAL (mm): 38 | PL (mm): 0.11 | LS (mm): 26 | DCON (mm): 3.0 | Stock: Yes
MDSS0064 DC (mm): 0.64 | L/D: 10 | LU (mm): 6.2 | OAL (mm): 38 | PL (mm): 0.12 | LS (mm): 26 | DCON (mm): 3.0 | Stock: Yes
MDSS0065 DC (mm): 0.65 | L/D: 10 | LU (mm): 6.2 | OAL (mm): 38 | PL (mm): 0.12 | LS (mm): 26 | DCON (mm): 3.0 | Stock: Yes
MDSS0066 DC (mm): 0.66 | L/D: 10 | LU (mm): 6.2 | OAL (mm): 38 | PL (mm): 0.12 | LS (mm): 26 | DCON (mm): 3.0 | Stock: Yes
MDSS0067 DC (mm): 0.67 | L/D: 10 | LU (mm): 6.2 | OAL (mm): 38 | PL (mm): 0.12 | LS (mm): 26 | DCON (mm): 3.0 | Stock: Yes
MDSS0068 DC (mm): 0.68 | L/D: 10 | LU (mm): 6.2 | OAL (mm): 38 | PL (mm): 0.12 | LS (mm): 26 | DCON (mm): 3.0 | Stock: Yes
MDSS0069 DC (mm): 0.69 | L/D: 10 | LU (mm): 6.1 | OAL (mm): 38 | PL (mm): 0.13 | LS (mm): 26 | DCON (mm): 3.0 | Stock: Yes
MDSS0070 DC (mm): 0.70 | L/D: 10 | LU (mm): 8.1 | OAL (mm): 38 | PL (mm): 0.13 | LS (mm): 24 | DCON (mm): 3.0 | Stock: Yes
MDSS0071 DC (mm): 0.71 | L/D: 10 | LU (mm): 8.1 | OAL (mm): 38 | PL (mm): 0.13 | LS (mm): 24 | DCON (mm): 3.0 | Stock: Yes
MDSS0072 DC (mm): 0.72 | L/D: 10 | LU (mm): 8.1 | OAL (mm): 38 | PL (mm): 0.13 | LS (mm): 24 | DCON (mm): 3.0 | Stock: Yes
MDSS0073 DC (mm): 0.73 | L/D: 10 | LU (mm): 8.1 | OAL (mm): 38 | PL (mm): 0.13 | LS (mm): 24 | DCON (mm): 3.0 | Stock: Yes
MDSS0074 DC (mm): 0.74 | L/D: 10 | LU (mm): 8.1 | OAL (mm): 38 | PL (mm): 0.13 | LS (mm): 24 | DCON (mm): 3.0 | Stock: Yes
MDSS0075 DC (mm): 0.75 | L/D: 10 | LU (mm): 8.1 | OAL (mm): 38 | PL (mm): 0.14 | LS (mm): 24 | DCON (mm): 3.0 | Stock: Yes
MDSS0076 DC (mm): 0.76 | L/D: 10 | LU (mm): 8.1 | OAL (mm): 38 | PL (mm): 0.14 | LS (mm): 24 | DCON (mm): 3.0 | Stock: Yes
MDSS0077 DC (mm): 0.77 | L/D: 10 | LU (mm): 8.0 | OAL (mm): 38 | PL (mm): 0.14 | LS (mm): 24 | DCON (mm): 3.0 | Stock: Yes
MDSS0078 DC (mm): 0.78 | L/D: 10 | LU (mm): 8.0 | OAL (mm): 38 | PL (mm): 0.14 | LS (mm): 24 | DCON (mm): 3.0 | Stock: Yes
MDSS0079 DC (mm): 0.79 | L/D: 10 | LU (mm): 8.0 | OAL (mm): 38 | PL (mm): 0.14 | LS (mm): 24 | DCON (mm): 3.0 | Stock: Yes
MDSS0080 DC (mm): 0.80 | L/D: 10 | LU (mm): 9.0 | OAL (mm): 38 | PL (mm): 0.15 | LS (mm): 23 | DCON (mm): 3.0 | Stock: Yes
MDSS0081 DC (mm): 0.81 | L/D: 10 | LU (mm): 9.0 | OAL (mm): 38 | PL (mm): 0.15 | LS (mm): 23 | DCON (mm): 3.0 | Stock: Yes
MDSS0082 DC (mm): 0.82 | L/D: 10 | LU (mm): 9.0 | OAL (mm): 38 | PL (mm): 0.15 | LS (mm): 23 | DCON (mm): 3.0 | Stock: Yes
MDSS0083 DC (mm): 0.83 | L/D: 10 | LU (mm): 9.0 | OAL (mm): 38 | PL (mm): 0.15 | LS (mm): 23 | DCON (mm): 3.0 | Stock: Yes
MDSS0084 DC (mm): 0.84 | L/D: 10 | LU (mm): 9.0 | OAL (mm): 38 | PL (mm): 0.15 | LS (mm): 23 | DCON (mm): 3.0 | Stock: Yes
MDSS0085 DC (mm): 0.85 | L/D: 10 | LU (mm): 8.9 | OAL (mm): 38 | PL (mm): 0.15 | LS (mm): 23 | DCON (mm): 3.0 | Stock: Yes
MDSS0086 DC (mm): 0.86 | L/D: 10 | LU (mm): 8.9 | OAL (mm): 38 | PL (mm): 0.16 | LS (mm): 23 | DCON (mm): 3.0 | Stock: Yes
MDSS0087 DC (mm): 0.87 | L/D: 10 | LU (mm): 8.9 | OAL (mm): 38 | PL (mm): 0.16 | LS (mm): 23 | DCON (mm): 3.0 | Stock: Yes
MDSS0088 DC (mm): 0.88 | L/D: 10 | LU (mm): 8.9 | OAL (mm): 38 | PL (mm): 0.16 | LS (mm): 23 | DCON (mm): 3.0 | Stock: Yes
MDSS0089 DC (mm): 0.89 | L/D: 10 | LU (mm): 8.9 | OAL (mm): 38 | PL (mm): 0.16 | LS (mm): 23 | DCON (mm): 3.0 | Stock: Yes
MDSS0090 DC (mm): 0.90 | L/D: 10 | LU (mm): 9.9 | OAL (mm): 38 | PL (mm): 0.16 | LS (mm): 22 | DCON (mm): 3.0 | Stock: Yes
MDSS0091 DC (mm): 0.91 | L/D: 10 | LU (mm): 9.9 | OAL (mm): 38 | PL (mm): 0.17 | LS (mm): 22 | DCON (mm): 3.0 | Stock: Yes
MDSS0092 DC (mm): 0.92 | L/D: 10 | LU (mm): 9.9 | OAL (mm): 38 | PL (mm): 0.17 | LS (mm): 22 | DCON (mm): 3.0 | Stock: Yes
MDSS0093 DC (mm): 0.93 | L/D: 10 | LU (mm): 9.8 | OAL (mm): 38 | PL (mm): 0.17 | LS (mm): 22 | DCON (mm): 3.0 | Stock: Yes
MDSS0094 DC (mm): 0.94 | L/D: 10 | LU (mm): 9.8 | OAL (mm): 38 | PL (mm): 0.17 | LS (mm): 22 | DCON (mm): 3.0 | Stock: Yes
MDSS0095 DC (mm): 0.95 | L/D: 10 | LU (mm): 9.8 | OAL (mm): 38 | PL (mm): 0.17 | LS (mm): 22 | DCON (mm): 3.0 | Stock: Yes
MDSS0096 DC (mm): 0.96 | L/D: 10 | LU (mm): 9.8 | OAL (mm): 38 | PL (mm): 0.17 | LS (mm): 22 | DCON (mm): 3.0 | Stock: Yes
MDSS0097 DC (mm): 0.97 | L/D: 10 | LU (mm): 9.8 | OAL (mm): 38 | PL (mm): 0.18 | LS (mm): 22 | DCON (mm): 3.0 | Stock: Yes
MDSS0098 DC (mm): 0.98 | L/D: 10 | LU (mm): 9.8 | OAL (mm): 38 | PL (mm): 0.18 | LS (mm): 22 | DCON (mm): 3.0 | Stock: Yes
MDSS0099 DC (mm): 0.99 | L/D: 10 | LU (mm): 9.8 | OAL (mm): 38 | PL (mm): 0.18 | LS (mm): 22 | DCON (mm): 3.0 | Stock: Yes
MDSS0100 DC (mm): 1.00 | L/D: 10 | LU (mm): 10.8 | OAL (mm): 38 | PL (mm): 0.18 | LS (mm): 21 | DCON (mm): 3.0 | Stock: Yes
DrillsSumitomo Electric Hardmetal
81 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Mini Multi Drill MDSS Type

Brand Sumitomo Electric Hardmetal·Drills

Available part numbers (81)

MDSS0020, MDSS0021, MDSS0022, MDSS0023, MDSS0024, MDSS0025, MDSS0026, MDSS0027, MDSS0028, MDSS0029 + 71 more — see full table ↓
