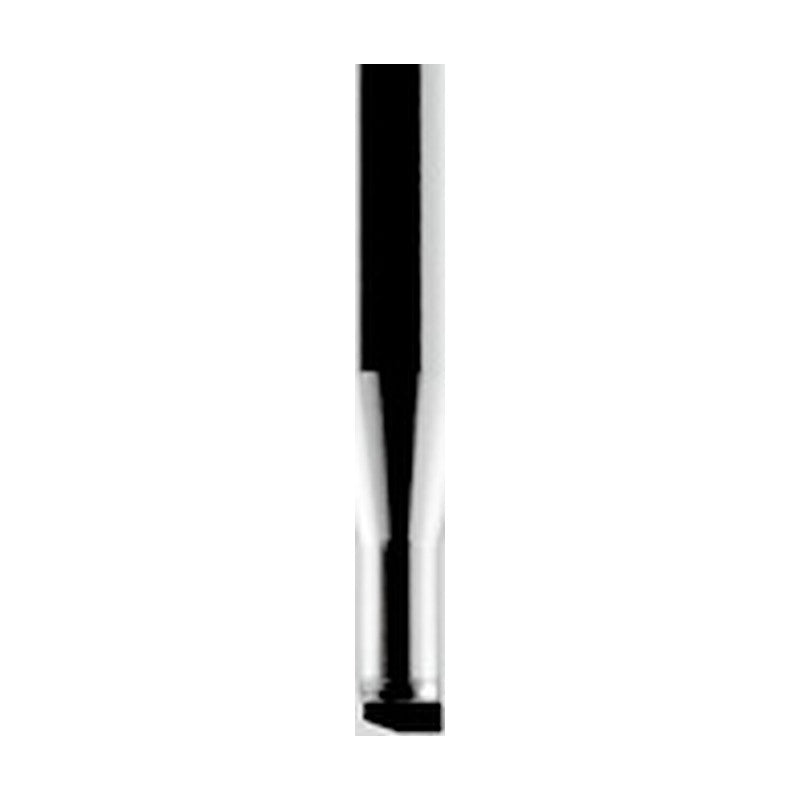

Sumitomo Electric Hardmetal Mold Finish Master SUMIDIA Binderless Radius End Mill NPDRS

Sumitomo Electric Hardmetal Mold Finish Master SUMIDIA Binderless Radius End Mill NPDRS

SUMIDIA binderless (nano-polycrystalline diamond) radius end mill for finishing cemented carbide and hard brittle materials.

Key features

  • Nano-polycrystalline binderless diamond, harder than single-crystal diamond
  • Direct cutting of cemented carbide and hard brittle materials
  • Suited to high-precision finishing with long tool life

Specifications

Flutes 1
Grade NPD10
Workpiece Cemented carbide, Hard brittle materials
Relief neck No
LF (mm) 40
DMM (mm) 4
NPDRS1020R002-006 DC (mm): 0.2 | RE (mm): 0.02 | APMX (mm): 0.1 | LU (mm): 0.6 | DN (mm): 0.175 | Eff. length @0.5deg (mm): 0.63 | Eff. length @1deg (mm): 0.65 | Eff. length @1.5deg (mm): 0.67 | Eff. length @2deg (mm): 0.70 | Eff. length @3deg (mm): 0.75 | Stock: Yes
NPDRS1020R005-006 DC (mm): 0.2 | RE (mm): 0.05 | APMX (mm): 0.1 | LU (mm): 0.6 | DN (mm): 0.175 | Eff. length @0.5deg (mm): 0.63 | Eff. length @1deg (mm): 0.65 | Eff. length @1.5deg (mm): 0.67 | Eff. length @2deg (mm): 0.69 | Eff. length @3deg (mm): 0.74 | Stock: Yes
NPDRS1030R002-010 DC (mm): 0.3 | RE (mm): 0.02 | APMX (mm): 0.15 | LU (mm): 1.0 | DN (mm): 0.27 | Eff. length @0.5deg (mm): 1.04 | Eff. length @1deg (mm): 1.08 | Eff. length @1.5deg (mm): 1.11 | Eff. length @2deg (mm): 1.15 | Eff. length @3deg (mm): 1.24 | Stock: Yes
NPDRS1030R005-010 DC (mm): 0.3 | RE (mm): 0.05 | APMX (mm): 0.15 | LU (mm): 1.0 | DN (mm): 0.27 | Eff. length @0.5deg (mm): 1.04 | Eff. length @1deg (mm): 1.08 | Eff. length @1.5deg (mm): 1.11 | Eff. length @2deg (mm): 1.15 | Eff. length @3deg (mm): 1.23 | Stock: Yes
NPDRS1050R005-015 DC (mm): 0.5 | RE (mm): 0.05 | APMX (mm): 0.25 | LU (mm): 1.5 | DN (mm): 0.47 | Eff. length @0.5deg (mm): 1.56 | Eff. length @1deg (mm): 1.61 | Eff. length @1.5deg (mm): 1.66 | Eff. length @2deg (mm): 1.72 | Eff. length @3deg (mm): 1.84 | Stock: Yes
NPDRS1050R010-015 DC (mm): 0.5 | RE (mm): 0.10 | APMX (mm): 0.25 | LU (mm): 1.5 | DN (mm): 0.47 | Eff. length @0.5deg (mm): 1.56 | Eff. length @1deg (mm): 1.60 | Eff. length @1.5deg (mm): 1.65 | Eff. length @2deg (mm): 1.71 | Eff. length @3deg (mm): 1.83 | Stock: Yes
NPDRS1100R005-030 DC (mm): 1.0 | RE (mm): 0.05 | APMX (mm): 0.55 | LU (mm): 3.0 | DN (mm): 0.95 | Eff. length @0.5deg (mm): 3.14 | Eff. length @1deg (mm): 3.24 | Eff. length @1.5deg (mm): 3.35 | Eff. length @2deg (mm): 3.46 | Eff. length @3deg (mm): 3.72 | Stock: Yes
NPDRS1100R010-030 DC (mm): 1.0 | RE (mm): 0.10 | APMX (mm): 0.55 | LU (mm): 3.0 | DN (mm): 0.95 | Eff. length @0.5deg (mm): 3.14 | Eff. length @1deg (mm): 3.24 | Eff. length @1.5deg (mm): 3.34 | Eff. length @2deg (mm): 3.46 | Eff. length @3deg (mm): 3.71 | Stock: Yes
NPDRS1100R020-030 DC (mm): 1.0 | RE (mm): 0.20 | APMX (mm): 0.55 | LU (mm): 3.0 | DN (mm): 0.95 | Eff. length @0.5deg (mm): 3.14 | Eff. length @1deg (mm): 3.23 | Eff. length @1.5deg (mm): 3.33 | Eff. length @2deg (mm): 3.44 | Eff. length @3deg (mm): 3.69 | Stock: Yes
NPDRS1200R005-040 DC (mm): 2.0 | RE (mm): 0.05 | APMX (mm): 0.55 | LU (mm): 4.0 | DN (mm): 1.95 | Eff. length @0.5deg (mm): 4.17 | Eff. length @1deg (mm): 4.31 | Eff. length @1.5deg (mm): 4.45 | Eff. length @2deg (mm): 4.60 | Eff. length @3deg (mm): 4.94 | Stock: Yes
NPDRS1200R010-040 DC (mm): 2.0 | RE (mm): 0.10 | APMX (mm): 0.55 | LU (mm): 4.0 | DN (mm): 1.95 | Eff. length @0.5deg (mm): 4.17 | Eff. length @1deg (mm): 4.30 | Eff. length @1.5deg (mm): 4.44 | Eff. length @2deg (mm): 4.60 | Eff. length @3deg (mm): 4.93 | Stock: Yes
NPDRS1200R020-040 DC (mm): 2.0 | RE (mm): 0.20 | APMX (mm): 0.55 | LU (mm): 4.0 | DN (mm): 1.95 | Eff. length @0.5deg (mm): 4.17 | Eff. length @1deg (mm): 4.30 | Eff. length @1.5deg (mm): 4.43 | Eff. length @2deg (mm): 4.58 | Eff. length @3deg (mm): 4.91 | Stock: Yes
End MillsSumitomo Electric Hardmetal
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Mold Finish Master SUMIDIA Binderless Radius End Mill NPDRS

Brand Sumitomo Electric Hardmetal·End Mills

Available part numbers (12)

NPDRS1020R002-006, NPDRS1020R005-006, NPDRS1030R002-010, NPDRS1030R005-010, NPDRS1050R005-015, NPDRS1050R010-015, NPDRS1100R005-030, NPDRS1100R010-030, NPDRS1100R020-030, NPDRS1200R005-040 + 2 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NPDRS1020R002-006DC (mm): 0.2 | RE (mm): 0.02 | APMX (mm): 0.1 | LU (mm): 0.6 | DN (mm): 0.175 | Eff. length @0.5deg (mm): 0.63 | Eff. length @1deg (mm): 0.65 | Eff. length @1.5deg (mm): 0.67 | Eff. length @2deg (mm): 0.70 | Eff. length @3deg (mm): 0.75 | Stock: Yes
NPDRS1020R005-006DC (mm): 0.2 | RE (mm): 0.05 | APMX (mm): 0.1 | LU (mm): 0.6 | DN (mm): 0.175 | Eff. length @0.5deg (mm): 0.63 | Eff. length @1deg (mm): 0.65 | Eff. length @1.5deg (mm): 0.67 | Eff. length @2deg (mm): 0.69 | Eff. length @3deg (mm): 0.74 | Stock: Yes
NPDRS1030R002-010DC (mm): 0.3 | RE (mm): 0.02 | APMX (mm): 0.15 | LU (mm): 1.0 | DN (mm): 0.27 | Eff. length @0.5deg (mm): 1.04 | Eff. length @1deg (mm): 1.08 | Eff. length @1.5deg (mm): 1.11 | Eff. length @2deg (mm): 1.15 | Eff. length @3deg (mm): 1.24 | Stock: Yes
NPDRS1030R005-010DC (mm): 0.3 | RE (mm): 0.05 | APMX (mm): 0.15 | LU (mm): 1.0 | DN (mm): 0.27 | Eff. length @0.5deg (mm): 1.04 | Eff. length @1deg (mm): 1.08 | Eff. length @1.5deg (mm): 1.11 | Eff. length @2deg (mm): 1.15 | Eff. length @3deg (mm): 1.23 | Stock: Yes
NPDRS1050R005-015DC (mm): 0.5 | RE (mm): 0.05 | APMX (mm): 0.25 | LU (mm): 1.5 | DN (mm): 0.47 | Eff. length @0.5deg (mm): 1.56 | Eff. length @1deg (mm): 1.61 | Eff. length @1.5deg (mm): 1.66 | Eff. length @2deg (mm): 1.72 | Eff. length @3deg (mm): 1.84 | Stock: Yes
NPDRS1050R010-015DC (mm): 0.5 | RE (mm): 0.10 | APMX (mm): 0.25 | LU (mm): 1.5 | DN (mm): 0.47 | Eff. length @0.5deg (mm): 1.56 | Eff. length @1deg (mm): 1.60 | Eff. length @1.5deg (mm): 1.65 | Eff. length @2deg (mm): 1.71 | Eff. length @3deg (mm): 1.83 | Stock: Yes
NPDRS1100R005-030DC (mm): 1.0 | RE (mm): 0.05 | APMX (mm): 0.55 | LU (mm): 3.0 | DN (mm): 0.95 | Eff. length @0.5deg (mm): 3.14 | Eff. length @1deg (mm): 3.24 | Eff. length @1.5deg (mm): 3.35 | Eff. length @2deg (mm): 3.46 | Eff. length @3deg (mm): 3.72 | Stock: Yes
NPDRS1100R010-030DC (mm): 1.0 | RE (mm): 0.10 | APMX (mm): 0.55 | LU (mm): 3.0 | DN (mm): 0.95 | Eff. length @0.5deg (mm): 3.14 | Eff. length @1deg (mm): 3.24 | Eff. length @1.5deg (mm): 3.34 | Eff. length @2deg (mm): 3.46 | Eff. length @3deg (mm): 3.71 | Stock: Yes
NPDRS1100R020-030DC (mm): 1.0 | RE (mm): 0.20 | APMX (mm): 0.55 | LU (mm): 3.0 | DN (mm): 0.95 | Eff. length @0.5deg (mm): 3.14 | Eff. length @1deg (mm): 3.23 | Eff. length @1.5deg (mm): 3.33 | Eff. length @2deg (mm): 3.44 | Eff. length @3deg (mm): 3.69 | Stock: Yes
NPDRS1200R005-040DC (mm): 2.0 | RE (mm): 0.05 | APMX (mm): 0.55 | LU (mm): 4.0 | DN (mm): 1.95 | Eff. length @0.5deg (mm): 4.17 | Eff. length @1deg (mm): 4.31 | Eff. length @1.5deg (mm): 4.45 | Eff. length @2deg (mm): 4.60 | Eff. length @3deg (mm): 4.94 | Stock: Yes
NPDRS1200R010-040DC (mm): 2.0 | RE (mm): 0.10 | APMX (mm): 0.55 | LU (mm): 4.0 | DN (mm): 1.95 | Eff. length @0.5deg (mm): 4.17 | Eff. length @1deg (mm): 4.30 | Eff. length @1.5deg (mm): 4.44 | Eff. length @2deg (mm): 4.60 | Eff. length @3deg (mm): 4.93 | Stock: Yes
NPDRS1200R020-040DC (mm): 2.0 | RE (mm): 0.20 | APMX (mm): 0.55 | LU (mm): 4.0 | DN (mm): 1.95 | Eff. length @0.5deg (mm): 4.17 | Eff. length @1deg (mm): 4.30 | Eff. length @1.5deg (mm): 4.43 | Eff. length @2deg (mm): 4.58 | Eff. length @3deg (mm): 4.91 | Stock: Yes
