• Sumitomo Electric Hardmetal Mold Finish Master SUMIDIA Coated Ball End Mill SDCB
1 1

Sumitomo Electric Hardmetal Mold Finish Master SUMIDIA Coated Ball End Mill SDCB

Sumitomo Electric Hardmetal Mold Finish Master SUMIDIA Coated Ball End Mill SDCB

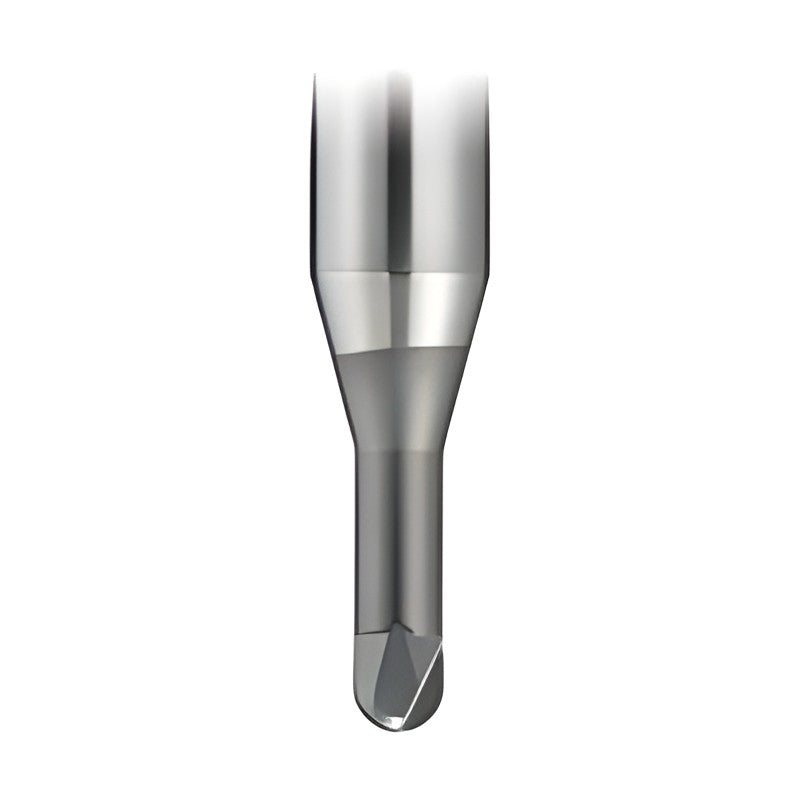

SUMIDIA diamond-coated 2-flute ball end mill for roughing and semi-finishing of cemented carbide.

Key features

  • New diamond coating for stable long tool life
  • High-efficiency roughing and semi-finishing of carbide molds

Specifications

Flutes 2
Grade DCM20
Workpiece Cemented carbide, Hard brittle materials
LF (mm) 50
DMM (mm) 4
SDCB2R050-015 DC (mm): 1.0 | RE (mm): 0.5 | APMX (mm): 0.6 | LU (mm): 1.5 | DN (mm): 0.94 | Stock: Yes
SDCB2R050-020 DC (mm): 1.0 | RE (mm): 0.5 | APMX (mm): 0.6 | LU (mm): 2.0 | DN (mm): 0.94 | Stock: Yes
SDCB2R050-030 DC (mm): 1.0 | RE (mm): 0.5 | APMX (mm): 0.6 | LU (mm): 3.0 | DN (mm): 0.94 | Stock: Yes
SDCB2R050-050 DC (mm): 1.0 | RE (mm): 0.5 | APMX (mm): 0.6 | LU (mm): 5.0 | DN (mm): 0.94 | Stock: Yes
SDCB2R100-025 DC (mm): 2.0 | RE (mm): 1.0 | APMX (mm): 1.4 | LU (mm): 2.5 | DN (mm): 1.92 | Stock: Yes
SDCB2R100-040 DC (mm): 2.0 | RE (mm): 1.0 | APMX (mm): 1.4 | LU (mm): 4.0 | DN (mm): 1.92 | Stock: Yes
SDCB2R100-060 DC (mm): 2.0 | RE (mm): 1.0 | APMX (mm): 1.4 | LU (mm): 6.0 | DN (mm): 1.92 | Stock: Yes
SDCB2R100-100 DC (mm): 2.0 | RE (mm): 1.0 | APMX (mm): 1.4 | LU (mm): 10.0 | DN (mm): 1.92 | Stock: Yes
Ball End MillsSumitomo Electric Hardmetal
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Mold Finish Master SUMIDIA Coated Ball End Mill SDCB

Brand Sumitomo Electric Hardmetal·Ball End Mills

Available part numbers (8)

SDCB2R050-015, SDCB2R050-020, SDCB2R050-030, SDCB2R050-050, SDCB2R100-025, SDCB2R100-040, SDCB2R100-060, SDCB2R100-100

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SDCB2R050-015DC (mm): 1.0 | RE (mm): 0.5 | APMX (mm): 0.6 | LU (mm): 1.5 | DN (mm): 0.94 | Stock: Yes
SDCB2R050-020DC (mm): 1.0 | RE (mm): 0.5 | APMX (mm): 0.6 | LU (mm): 2.0 | DN (mm): 0.94 | Stock: Yes
SDCB2R050-030DC (mm): 1.0 | RE (mm): 0.5 | APMX (mm): 0.6 | LU (mm): 3.0 | DN (mm): 0.94 | Stock: Yes
SDCB2R050-050DC (mm): 1.0 | RE (mm): 0.5 | APMX (mm): 0.6 | LU (mm): 5.0 | DN (mm): 0.94 | Stock: Yes
SDCB2R100-025DC (mm): 2.0 | RE (mm): 1.0 | APMX (mm): 1.4 | LU (mm): 2.5 | DN (mm): 1.92 | Stock: Yes
SDCB2R100-040DC (mm): 2.0 | RE (mm): 1.0 | APMX (mm): 1.4 | LU (mm): 4.0 | DN (mm): 1.92 | Stock: Yes
SDCB2R100-060DC (mm): 2.0 | RE (mm): 1.0 | APMX (mm): 1.4 | LU (mm): 6.0 | DN (mm): 1.92 | Stock: Yes
SDCB2R100-100DC (mm): 2.0 | RE (mm): 1.0 | APMX (mm): 1.4 | LU (mm): 10.0 | DN (mm): 1.92 | Stock: Yes
