Sumitomo Electric Hardmetal Multi Drill MDA Type for Aluminum Alloys

Sumitomo Electric Hardmetal Multi Drill MDA Type for Aluminum Alloys

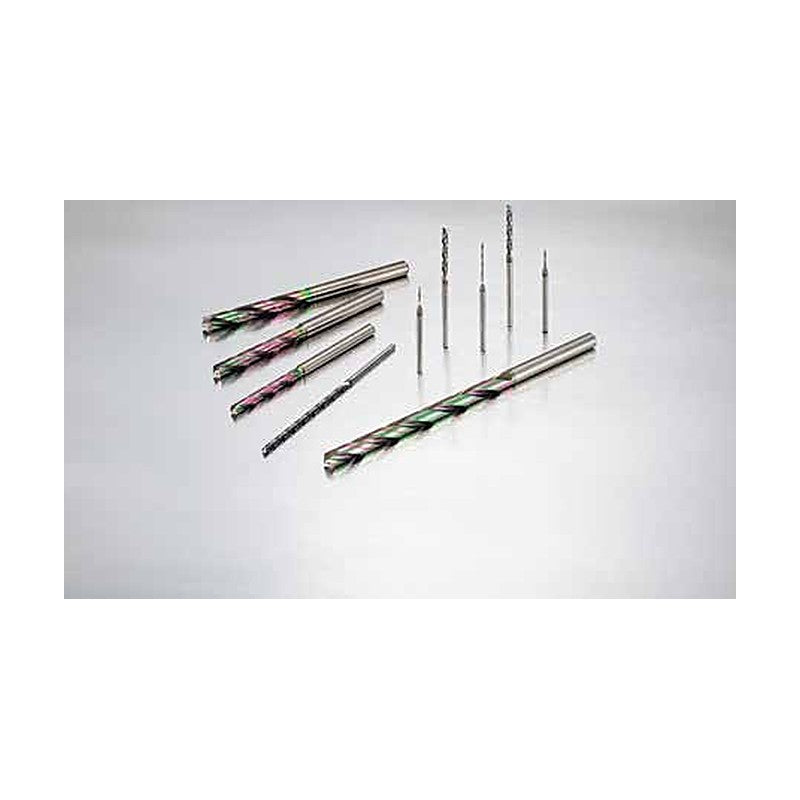

Solid carbide drill for aluminum alloys with Aurora Coat X (DLC) covering high-precision to high-efficiency drilling.

Key features

  • Aurora Coat X DLC coating with improved smoothness
  • Wide double margin from 3.1 mm for hole position stability
  • Hole depth 3D to 20D
  • Grade DLX1700

Specifications

Coolant Internal
Grade DLX1700
Workpiece Aluminum alloys
MDA0100S03H03 DC (mm): 1.0 | LU (mm): 4.5 | LCF (mm): 6.0 | OAL (mm): 45.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0100S03H05 DC (mm): 1.0 | LU (mm): 8.5 | LCF (mm): 10.0 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0100S03H10 DC (mm): 1.0 | LU (mm): 12.5 | LCF (mm): 14.0 | OAL (mm): 55.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0100S03H15 DC (mm): 1.0 | LU (mm): 17.5 | LCF (mm): 19.0 | OAL (mm): 60.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0100S03H20 DC (mm): 1.0 | LU (mm): 22.5 | LCF (mm): 24.0 | OAL (mm): 65.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0110S03H03 DC (mm): 1.1 | LU (mm): 6.4 | LCF (mm): 8.0 | OAL (mm): 45.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0110S03H05 DC (mm): 1.1 | LU (mm): 10.4 | LCF (mm): 12.0 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0110S03H10 DC (mm): 1.1 | LU (mm): 16.4 | LCF (mm): 18.0 | OAL (mm): 55.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0110S03H15 DC (mm): 1.1 | LU (mm): 19.4 | LCF (mm): 21.0 | OAL (mm): 65.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0110S03H20 DC (mm): 1.1 | LU (mm): 24.4 | LCF (mm): 26.0 | OAL (mm): 70.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0120S03H03 DC (mm): 1.2 | LU (mm): 6.2 | LCF (mm): 8.0 | OAL (mm): 48.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0120S03H05 DC (mm): 1.2 | LU (mm): 10.2 | LCF (mm): 12.0 | OAL (mm): 55.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0120S03H10 DC (mm): 1.2 | LU (mm): 16.2 | LCF (mm): 18.0 | OAL (mm): 60.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0120S03H15 DC (mm): 1.2 | LU (mm): 21.2 | LCF (mm): 23.0 | OAL (mm): 65.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0120S03H20 DC (mm): 1.2 | LU (mm): 27.2 | LCF (mm): 29.0 | OAL (mm): 70.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0130S03H03 DC (mm): 1.3 | LU (mm): 6.1 | LCF (mm): 8.0 | OAL (mm): 48.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0130S03H05 DC (mm): 1.3 | LU (mm): 12.1 | LCF (mm): 14.0 | OAL (mm): 55.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0130S03H10 DC (mm): 1.3 | LU (mm): 18.1 | LCF (mm): 20.0 | OAL (mm): 60.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0130S03H15 DC (mm): 1.3 | LU (mm): 23.1 | LCF (mm): 25.0 | OAL (mm): 65.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0130S03H20 DC (mm): 1.3 | LU (mm): 29.1 | LCF (mm): 31.0 | OAL (mm): 75.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0140S03H03 DC (mm): 1.4 | LU (mm): 5.9 | LCF (mm): 8.0 | OAL (mm): 48.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0140S03H05 DC (mm): 1.4 | LU (mm): 11.9 | LCF (mm): 14.0 | OAL (mm): 55.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0140S03H10 DC (mm): 1.4 | LU (mm): 17.9 | LCF (mm): 20.0 | OAL (mm): 60.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0140S03H15 DC (mm): 1.4 | LU (mm): 25.9 | LCF (mm): 28.0 | OAL (mm): 70.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0140S03H20 DC (mm): 1.4 | LU (mm): 31.9 | LCF (mm): 34.0 | OAL (mm): 75.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0150S03H03 DC (mm): 1.5 | LU (mm): 5.8 | LCF (mm): 8.0 | OAL (mm): 48.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0150S03H05 DC (mm): 1.5 | LU (mm): 13.8 | LCF (mm): 16.0 | OAL (mm): 55.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0150S03H10 DC (mm): 1.5 | LU (mm): 20.8 | LCF (mm): 23.0 | OAL (mm): 65.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0150S03H15 DC (mm): 1.5 | LU (mm): 25.8 | LCF (mm): 28.0 | OAL (mm): 70.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0150S03H20 DC (mm): 1.5 | LU (mm): 33.8 | LCF (mm): 36.0 | OAL (mm): 75.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0160S03H03 DC (mm): 1.6 | LU (mm): 7.6 | LCF (mm): 10.0 | OAL (mm): 50.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0160S03H05 DC (mm): 1.6 | LU (mm): 13.6 | LCF (mm): 16.0 | OAL (mm): 55.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0160S03H10 DC (mm): 1.6 | LU (mm): 22.6 | LCF (mm): 25.0 | OAL (mm): 65.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0160S03H15 DC (mm): 1.6 | LU (mm): 29.6 | LCF (mm): 32.0 | OAL (mm): 75.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0160S03H20 DC (mm): 1.6 | LU (mm): 35.6 | LCF (mm): 38.0 | OAL (mm): 80.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0170S03H03 DC (mm): 1.7 | LU (mm): 7.5 | LCF (mm): 10.0 | OAL (mm): 50.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0170S03H05 DC (mm): 1.7 | LU (mm): 15.5 | LCF (mm): 18.0 | OAL (mm): 60.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0170S03H10 DC (mm): 1.7 | LU (mm): 22.5 | LCF (mm): 25.0 | OAL (mm): 65.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0170S03H15 DC (mm): 1.7 | LU (mm): 29.5 | LCF (mm): 32.0 | OAL (mm): 75.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0170S03H20 DC (mm): 1.7 | LU (mm): 38.5 | LCF (mm): 41.0 | OAL (mm): 80.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0180S03H03 DC (mm): 1.8 | LU (mm): 7.3 | LCF (mm): 10.0 | OAL (mm): 50.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0180S03H05 DC (mm): 1.8 | LU (mm): 15.3 | LCF (mm): 18.0 | OAL (mm): 60.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0180S03H10 DC (mm): 1.8 | LU (mm): 25.3 | LCF (mm): 28.0 | OAL (mm): 70.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0180S03H15 DC (mm): 1.8 | LU (mm): 32.3 | LCF (mm): 35.0 | OAL (mm): 75.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0180S03H20 DC (mm): 1.8 | LU (mm): 40.3 | LCF (mm): 43.0 | OAL (mm): 85.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0190S03H03 DC (mm): 1.9 | LU (mm): 7.2 | LCF (mm): 10.0 | OAL (mm): 50.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0190S03H05 DC (mm): 1.9 | LU (mm): 17.2 | LCF (mm): 20.0 | OAL (mm): 60.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0190S03H10 DC (mm): 1.9 | LU (mm): 25.2 | LCF (mm): 28.0 | OAL (mm): 70.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0190S03H15 DC (mm): 1.9 | LU (mm): 32.2 | LCF (mm): 35.0 | OAL (mm): 75.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0190S03H20 DC (mm): 1.9 | LU (mm): 43.2 | LCF (mm): 46.0 | OAL (mm): 85.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0200S03H03 DC (mm): 2.0 | LU (mm): 7.0 | LCF (mm): 10.0 | OAL (mm): 50.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0200S03H05 DC (mm): 2.0 | LU (mm): 17.0 | LCF (mm): 20.0 | OAL (mm): 60.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0200S03H10 DC (mm): 2.0 | LU (mm): 27.0 | LCF (mm): 30.0 | OAL (mm): 70.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0200S03H15 DC (mm): 2.0 | LU (mm): 37.0 | LCF (mm): 40.0 | OAL (mm): 80.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0200S03H20 DC (mm): 2.0 | LU (mm): 45.0 | LCF (mm): 48.0 | OAL (mm): 90.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0210S03H03 DC (mm): 2.1 | L/D: 3 | LU (mm): 9.9 | LCF (mm): 13.0 | OAL (mm): 55.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0210S03H05 DC (mm): 2.1 | L/D: 5 | LU (mm): 18.9 | LCF (mm): 22.0 | OAL (mm): 65.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0210S03H10 DC (mm): 2.1 | L/D: 10 | LU (mm): 26.9 | LCF (mm): 30.0 | OAL (mm): 70.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0210S03H15 DC (mm): 2.1 | L/D: 15 | LU (mm): 36.9 | LCF (mm): 40.0 | OAL (mm): 80.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0210S03H20 DC (mm): 2.1 | L/D: 20 | LU (mm): 46.9 | LCF (mm): 50.0 | OAL (mm): 95.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0220S03H03 DC (mm): 2.2 | L/D: 3 | LU (mm): 9.7 | LCF (mm): 13.0 | OAL (mm): 55.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0220S03H05 DC (mm): 2.2 | L/D: 5 | LU (mm): 18.7 | LCF (mm): 22.0 | OAL (mm): 65.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0220S03H10 DC (mm): 2.2 | L/D: 10 | LU (mm): 28.7 | LCF (mm): 32.0 | OAL (mm): 75.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0220S03H15 DC (mm): 2.2 | L/D: 15 | LU (mm): 38.7 | LCF (mm): 42.0 | OAL (mm): 85.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0220S03H20 DC (mm): 2.2 | L/D: 20 | LU (mm): 47.7 | LCF (mm): 51.0 | OAL (mm): 95.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0230S03H03 DC (mm): 2.3 | L/D: 3 | LU (mm): 9.6 | LCF (mm): 13.0 | OAL (mm): 55.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0230S03H05 DC (mm): 2.3 | L/D: 5 | LU (mm): 20.6 | LCF (mm): 24.0 | OAL (mm): 65.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0230S03H10 DC (mm): 2.3 | L/D: 10 | LU (mm): 28.6 | LCF (mm): 32.0 | OAL (mm): 75.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0230S03H15 DC (mm): 2.3 | L/D: 15 | LU (mm): 41.6 | LCF (mm): 45.0 | OAL (mm): 85.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0230S03H20 DC (mm): 2.3 | L/D: 20 | LU (mm): 49.6 | LCF (mm): 53.0 | OAL (mm): 100.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0240S03H03 DC (mm): 2.4 | L/D: 3 | LU (mm): 9.4 | LCF (mm): 13.0 | OAL (mm): 55.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0240S03H05 DC (mm): 2.4 | L/D: 5 | LU (mm): 20.4 | LCF (mm): 24.0 | OAL (mm): 65.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0240S03H10 DC (mm): 2.4 | L/D: 10 | LU (mm): 31.4 | LCF (mm): 35.0 | OAL (mm): 75.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0240S03H15 DC (mm): 2.4 | L/D: 15 | LU (mm): 41.4 | LCF (mm): 45.0 | OAL (mm): 85.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0240S03H20 DC (mm): 2.4 | L/D: 20 | LU (mm): 52.4 | LCF (mm): 56.0 | OAL (mm): 100.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0250S03H03 DC (mm): 2.5 | L/D: 3 | LU (mm): 9.3 | LCF (mm): 13.0 | OAL (mm): 55.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0250S03H05 DC (mm): 2.5 | L/D: 5 | LU (mm): 22.3 | LCF (mm): 26.0 | OAL (mm): 65.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0250S03H10 DC (mm): 2.5 | L/D: 10 | LU (mm): 31.3 | LCF (mm): 35.0 | OAL (mm): 75.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0250S03H15 DC (mm): 2.5 | L/D: 15 | LU (mm): 41.3 | LCF (mm): 45.0 | OAL (mm): 85.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0250S03H20 DC (mm): 2.5 | L/D: 20 | LU (mm): 56.3 | LCF (mm): 60.0 | OAL (mm): 105.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0260S03H03 DC (mm): 2.6 | L/D: 3 | LU (mm): 11.1 | LCF (mm): 15.0 | OAL (mm): 60.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0260S03H05 DC (mm): 2.6 | L/D: 5 | LU (mm): 22.1 | LCF (mm): 26.0 | OAL (mm): 70.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0260S03H10 DC (mm): 2.6 | L/D: 10 | LU (mm): 34.1 | LCF (mm): 38.0 | OAL (mm): 80.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0260S03H15 DC (mm): 2.6 | L/D: 15 | LU (mm): 46.1 | LCF (mm): 50.0 | OAL (mm): 90.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0260S03H20 DC (mm): 2.6 | L/D: 20 | LU (mm): 57.1 | LCF (mm): 61.0 | OAL (mm): 105.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0270S03H03 DC (mm): 2.7 | L/D: 3 | LU (mm): 11.0 | LCF (mm): 15.0 | OAL (mm): 60.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0270S03H05 DC (mm): 2.7 | L/D: 5 | LU (mm): 24.0 | LCF (mm): 28.0 | OAL (mm): 70.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0270S03H10 DC (mm): 2.7 | L/D: 10 | LU (mm): 34.0 | LCF (mm): 38.0 | OAL (mm): 80.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0270S03H15 DC (mm): 2.7 | L/D: 15 | LU (mm): 46.0 | LCF (mm): 50.0 | OAL (mm): 90.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0270S03H20 DC (mm): 2.7 | L/D: 20 | LU (mm): 59.0 | LCF (mm): 63.0 | OAL (mm): 105.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0280S03H03 DC (mm): 2.8 | L/D: 3 | LU (mm): 10.8 | LCF (mm): 15.0 | OAL (mm): 60.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0280S03H05 DC (mm): 2.8 | L/D: 5 | LU (mm): 23.8 | LCF (mm): 28.0 | OAL (mm): 70.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0280S03H10 DC (mm): 2.8 | L/D: 10 | LU (mm): 35.8 | LCF (mm): 40.0 | OAL (mm): 80.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0280S03H15 DC (mm): 2.8 | L/D: 15 | LU (mm): 50.8 | LCF (mm): 55.0 | OAL (mm): 95.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0280S03H20 DC (mm): 2.8 | L/D: 20 | LU (mm): 60.8 | LCF (mm): 65.0 | OAL (mm): 110.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0290S03H03 DC (mm): 2.9 | L/D: 3 | LU (mm): 10.7 | LCF (mm): 15.0 | OAL (mm): 60.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0290S03H05 DC (mm): 2.9 | L/D: 5 | LU (mm): 25.7 | LCF (mm): 30.0 | OAL (mm): 70.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0290S03H10 DC (mm): 2.9 | L/D: 10 | LU (mm): 35.7 | LCF (mm): 40.0 | OAL (mm): 80.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0290S03H15 DC (mm): 2.9 | L/D: 15 | LU (mm): 50.7 | LCF (mm): 55.0 | OAL (mm): 95.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0290S03H20 DC (mm): 2.9 | L/D: 20 | LU (mm): 62.7 | LCF (mm): 67.0 | OAL (mm): 110.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0300S03H03 DC (mm): 3.0 | L/D: 3 | LU (mm): 10.5 | LCF (mm): 15.0 | OAL (mm): 60.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0300S03H05 DC (mm): 3.0 | L/D: 5 | LU (mm): 25.5 | LCF (mm): 30.0 | OAL (mm): 70.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0300S03H10 DC (mm): 3.0 | L/D: 10 | LU (mm): 37.5 | LCF (mm): 42.0 | OAL (mm): 82.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0300S03H15 DC (mm): 3.0 | L/D: 15 | LU (mm): 53.5 | LCF (mm): 58.0 | OAL (mm): 98.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0300S03H20 DC (mm): 3.0 | L/D: 20 | LU (mm): 64.5 | LCF (mm): 69.0 | OAL (mm): 110.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0310S04H03 DC (mm): 3.1 | LU (mm): 15.8 | LCF (mm): 20.4 | OAL (mm): 72.4 | PL (mm): 0.4 | DCON (mm): 4.0 | Stock: Yes
MDA0310S04H05 DC (mm): 3.1 | LU (mm): 27.8 | LCF (mm): 32.4 | OAL (mm): 86.4 | PL (mm): 0.4 | DCON (mm): 4.0 | Stock: Yes
MDA0310S04H10 DC (mm): 3.1 | LU (mm): 44.9 | LCF (mm): 49.6 | OAL (mm): 106.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDA0320S04H03 DC (mm): 3.2 | LU (mm): 15.6 | LCF (mm): 20.4 | OAL (mm): 72.4 | PL (mm): 0.4 | DCON (mm): 4.0 | Stock: Yes
MDA0320S04H05 DC (mm): 3.2 | LU (mm): 27.6 | LCF (mm): 32.4 | OAL (mm): 86.4 | PL (mm): 0.4 | DCON (mm): 4.0 | Stock: Yes
MDA0320S04H10 DC (mm): 3.2 | LU (mm): 44.8 | LCF (mm): 49.6 | OAL (mm): 106.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDA0330S04H03 DC (mm): 3.3 | LU (mm): 15.5 | LCF (mm): 20.4 | OAL (mm): 72.4 | PL (mm): 0.4 | DCON (mm): 4.0 | Stock: Yes
MDA0330S04H05 DC (mm): 3.3 | LU (mm): 27.5 | LCF (mm): 32.4 | OAL (mm): 86.4 | PL (mm): 0.4 | DCON (mm): 4.0 | Stock: Yes
MDA0330S04H10 DC (mm): 3.3 | LU (mm): 44.7 | LCF (mm): 49.6 | OAL (mm): 106.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Made to order
MDA0340S04H03 DC (mm): 3.4 | LU (mm): 15.4 | LCF (mm): 20.5 | OAL (mm): 72.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Made to order
MDA0340S04H05 DC (mm): 3.4 | LU (mm): 27.4 | LCF (mm): 32.5 | OAL (mm): 86.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Yes
MDA0340S04H10 DC (mm): 3.4 | LU (mm): 44.5 | LCF (mm): 49.6 | OAL (mm): 106.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDA0350S04H03 DC (mm): 3.5 | LU (mm): 15.2 | LCF (mm): 20.5 | OAL (mm): 72.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Yes
MDA0350S04H05 DC (mm): 3.5 | LU (mm): 27.2 | LCF (mm): 32.5 | OAL (mm): 86.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Yes
MDA0350S04H10 DC (mm): 3.5 | LU (mm): 44.4 | LCF (mm): 49.6 | OAL (mm): 106.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDA0360S04H03 DC (mm): 3.6 | LU (mm): 17.6 | LCF (mm): 23.0 | OAL (mm): 72.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Made to order
MDA0360S04H05 DC (mm): 3.6 | LU (mm): 31.1 | LCF (mm): 36.5 | OAL (mm): 86.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Yes
MDA0360S04H10 DC (mm): 3.6 | LU (mm): 51.3 | LCF (mm): 56.7 | OAL (mm): 106.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDA0365S04H03 DC (mm): 3.65 | LU (mm): 17.4 | LCF (mm): 23.0 | OAL (mm): 72.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Yes
MDA0365S04H05 DC (mm): 3.65 | LU (mm): 30.9 | LCF (mm): 36.5 | OAL (mm): 86.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Yes
MDA0366S04H05 DC (mm): 3.66 | LU (mm): 30.9 | LCF (mm): 36.5 | OAL (mm): 86.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Yes
MDA0370S04H03 DC (mm): 3.7 | LU (mm): 17.4 | LCF (mm): 23.0 | OAL (mm): 72.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Made to order
MDA0370S04H05 DC (mm): 3.7 | LU (mm): 30.9 | LCF (mm): 36.5 | OAL (mm): 86.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Yes
MDA0370S04H10 DC (mm): 3.7 | LU (mm): 51.1 | LCF (mm): 56.7 | OAL (mm): 106.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDA0380S04H03 DC (mm): 3.8 | LU (mm): 17.3 | LCF (mm): 23.0 | OAL (mm): 72.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Made to order
MDA0380S04H05 DC (mm): 3.8 | LU (mm): 30.8 | LCF (mm): 36.5 | OAL (mm): 86.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Yes
MDA0380S04H10 DC (mm): 3.8 | LU (mm): 51.0 | LCF (mm): 56.7 | OAL (mm): 106.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDA0390S04H03 DC (mm): 3.9 | LU (mm): 17.2 | LCF (mm): 23.0 | OAL (mm): 72.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Made to order
MDA0390S04H05 DC (mm): 3.9 | LU (mm): 30.7 | LCF (mm): 36.5 | OAL (mm): 86.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Yes
MDA0390S04H10 DC (mm): 3.9 | LU (mm): 50.9 | LCF (mm): 56.7 | OAL (mm): 106.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDA0400S04H03 DC (mm): 4.0 | LU (mm): 17.0 | LCF (mm): 23.0 | OAL (mm): 72.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Yes
MDA0400S04H05 DC (mm): 4.0 | LU (mm): 30.5 | LCF (mm): 36.5 | OAL (mm): 86.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Yes
MDA0400S04H10 DC (mm): 4.0 | LU (mm): 50.7 | LCF (mm): 56.7 | OAL (mm): 106.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDA0410S06H03 DC (mm): 4.1 | LU (mm): 19.4 | LCF (mm): 25.5 | OAL (mm): 80.5 | PL (mm): 0.5 | DCON (mm): 6.0 | Stock: Yes
MDA0410S06H05 DC (mm): 4.1 | LU (mm): 34.4 | LCF (mm): 40.5 | OAL (mm): 98.5 | PL (mm): 0.5 | DCON (mm): 6.0 | Stock: Yes
MDA0410S06H10 DC (mm): 4.1 | LU (mm): 57.6 | LCF (mm): 63.7 | OAL (mm): 121.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Made to order
MDA0420S06H03 DC (mm): 4.2 | LU (mm): 19.3 | LCF (mm): 25.6 | OAL (mm): 80.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Yes
MDA0420S06H05 DC (mm): 4.2 | LU (mm): 34.3 | LCF (mm): 40.6 | OAL (mm): 98.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Yes
MDA0420S06H10 DC (mm): 4.2 | LU (mm): 57.5 | LCF (mm): 63.8 | OAL (mm): 121.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Made to order
MDA0430S06H03 DC (mm): 4.3 | LU (mm): 19.1 | LCF (mm): 25.6 | OAL (mm): 80.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Made to order
MDA0430S06H05 DC (mm): 4.3 | LU (mm): 34.1 | LCF (mm): 40.6 | OAL (mm): 98.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Yes
MDA0430S06H10 DC (mm): 4.3 | LU (mm): 57.3 | LCF (mm): 63.8 | OAL (mm): 121.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Made to order
MDA0440S06H03 DC (mm): 4.4 | LU (mm): 19.0 | LCF (mm): 25.6 | OAL (mm): 80.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Made to order
MDA0440S06H05 DC (mm): 4.4 | LU (mm): 34.0 | LCF (mm): 40.6 | OAL (mm): 98.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Yes
MDA0440S06H10 DC (mm): 4.4 | LU (mm): 57.2 | LCF (mm): 63.8 | OAL (mm): 121.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Made to order
MDA0450S06H03 DC (mm): 4.5 | LU (mm): 18.9 | LCF (mm): 25.6 | OAL (mm): 80.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Yes
MDA0450S06H05 DC (mm): 4.5 | LU (mm): 33.9 | LCF (mm): 40.6 | OAL (mm): 98.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Yes
MDA0450S06H10 DC (mm): 4.5 | LU (mm): 57.1 | LCF (mm): 63.8 | OAL (mm): 121.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDA0460S06H03 DC (mm): 4.6 | L/D: 3 | LU (mm): 20.7 | LCF (mm): 27.6 | OAL (mm): 80.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Yes
MDA0460S06H05 DC (mm): 4.6 | L/D: 5 | LU (mm): 37.7 | LCF (mm): 44.6 | OAL (mm): 98.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Yes
MDA0460S06H10 DC (mm): 4.6 | L/D: 10 | LU (mm): 61.9 | LCF (mm): 68.8 | OAL (mm): 121.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Made to order
MDA0470S06H03 DC (mm): 4.7 | L/D: 3 | LU (mm): 20.6 | LCF (mm): 27.6 | OAL (mm): 80.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Made to order
MDA0470S06H05 DC (mm): 4.7 | L/D: 5 | LU (mm): 37.6 | LCF (mm): 44.6 | OAL (mm): 98.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Yes
MDA0470S06H10 DC (mm): 4.7 | L/D: 10 | LU (mm): 61.8 | LCF (mm): 68.9 | OAL (mm): 121.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Made to order
MDA0480S06H03 DC (mm): 4.8 | L/D: 3 | LU (mm): 20.4 | LCF (mm): 27.6 | OAL (mm): 80.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Made to order
MDA0480S06H05 DC (mm): 4.8 | L/D: 5 | LU (mm): 37.4 | LCF (mm): 44.6 | OAL (mm): 98.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Yes
MDA0480S06H10 DC (mm): 4.8 | L/D: 10 | LU (mm): 61.7 | LCF (mm): 68.9 | OAL (mm): 121.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDA0490S06H03 DC (mm): 4.9 | L/D: 3 | LU (mm): 20.5 | LCF (mm): 27.7 | OAL (mm): 80.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Made to order
MDA0490S06H05 DC (mm): 4.9 | L/D: 5 | LU (mm): 37.5 | LCF (mm): 44.7 | OAL (mm): 98.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Yes
MDA0490S06H10 DC (mm): 4.9 | L/D: 10 | LU (mm): 61.7 | LCF (mm): 68.9 | OAL (mm): 121.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDA0500S06H03 DC (mm): 5.0 | L/D: 3 | LU (mm): 20.2 | LCF (mm): 27.7 | OAL (mm): 80.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Yes
MDA0500S06H05 DC (mm): 5.0 | L/D: 5 | LU (mm): 37.2 | LCF (mm): 44.7 | OAL (mm): 98.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Yes
MDA0500S06H10 DC (mm): 5.0 | L/D: 10 | LU (mm): 61.4 | LCF (mm): 68.9 | OAL (mm): 121.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDA0510S06H03 DC (mm): 5.1 | L/D: 3 | LU (mm): 20.5 | LCF (mm): 28.2 | OAL (mm): 82.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Made to order
MDA0510S06H05 DC (mm): 5.1 | L/D: 5 | LU (mm): 37.0 | LCF (mm): 44.7 | OAL (mm): 100.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Yes
MDA0510S06H10 DC (mm): 5.1 | L/D: 10 | LU (mm): 70.3 | LCF (mm): 77.9 | OAL (mm): 136.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDA0520S06H03 DC (mm): 5.2 | L/D: 3 | LU (mm): 20.4 | LCF (mm): 28.2 | OAL (mm): 82.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Yes
MDA0520S06H05 DC (mm): 5.2 | L/D: 5 | LU (mm): 36.9 | LCF (mm): 44.7 | OAL (mm): 100.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Yes
MDA0520S06H10 DC (mm): 5.2 | L/D: 10 | LU (mm): 70.1 | LCF (mm): 77.9 | OAL (mm): 136.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Made to order
MDA0530S06H03 DC (mm): 5.3 | L/D: 3 | LU (mm): 20.3 | LCF (mm): 28.2 | OAL (mm): 82.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Yes
MDA0530S06H05 DC (mm): 5.3 | L/D: 5 | LU (mm): 36.8 | LCF (mm): 44.7 | OAL (mm): 100.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Yes
MDA0530S06H10 DC (mm): 5.3 | L/D: 10 | LU (mm): 70.0 | LCF (mm): 78.0 | OAL (mm): 137.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Made to order
MDA0540S06H03 DC (mm): 5.4 | L/D: 3 | LU (mm): 20.1 | LCF (mm): 28.2 | OAL (mm): 82.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Made to order
MDA0540S06H05 DC (mm): 5.4 | L/D: 5 | LU (mm): 36.6 | LCF (mm): 44.7 | OAL (mm): 100.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Yes
MDA0540S06H10 DC (mm): 5.4 | L/D: 10 | LU (mm): 69.9 | LCF (mm): 78.0 | OAL (mm): 137.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Made to order
MDA0550S06H03 DC (mm): 5.5 | L/D: 3 | LU (mm): 20.0 | LCF (mm): 28.2 | OAL (mm): 82.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Yes
MDA0550S06H05 DC (mm): 5.5 | L/D: 5 | LU (mm): 36.5 | LCF (mm): 44.7 | OAL (mm): 100.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Yes
MDA0550S06H10 DC (mm): 5.5 | L/D: 10 | LU (mm): 69.8 | LCF (mm): 78.0 | OAL (mm): 137.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDA0560S06H03 DC (mm): 5.6 | L/D: 3 | LU (mm): 22.3 | LCF (mm): 30.7 | OAL (mm): 82.7 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Made to order
MDA0560S06H05 DC (mm): 5.6 | L/D: 5 | LU (mm): 40.3 | LCF (mm): 48.7 | OAL (mm): 100.7 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDA0560S06H10 DC (mm): 5.6 | L/D: 10 | LU (mm): 76.6 | LCF (mm): 85.0 | OAL (mm): 137.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDA0570S06H03 DC (mm): 5.7 | L/D: 3 | LU (mm): 22.2 | LCF (mm): 30.8 | OAL (mm): 82.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Made to order
MDA0570S06H05 DC (mm): 5.7 | L/D: 5 | LU (mm): 40.2 | LCF (mm): 48.8 | OAL (mm): 100.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDA0570S06H10 DC (mm): 5.7 | L/D: 10 | LU (mm): 76.5 | LCF (mm): 85.0 | OAL (mm): 137.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Made to order
MDA0580S06H03 DC (mm): 5.8 | L/D: 3 | LU (mm): 22.1 | LCF (mm): 30.8 | OAL (mm): 82.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Made to order
MDA0580S06H05 DC (mm): 5.8 | L/D: 5 | LU (mm): 40.1 | LCF (mm): 48.8 | OAL (mm): 100.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDA0580S06H10 DC (mm): 5.8 | L/D: 10 | LU (mm): 76.4 | LCF (mm): 85.1 | OAL (mm): 137.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDA0590S06H03 DC (mm): 5.9 | L/D: 3 | LU (mm): 21.9 | LCF (mm): 30.8 | OAL (mm): 82.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDA0590S06H05 DC (mm): 5.9 | L/D: 5 | LU (mm): 39.9 | LCF (mm): 48.8 | OAL (mm): 100.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDA0590S06H10 DC (mm): 5.9 | L/D: 10 | LU (mm): 76.2 | LCF (mm): 85.1 | OAL (mm): 137.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDA0600S06H03 DC (mm): 6.0 | L/D: 3 | LU (mm): 21.8 | LCF (mm): 30.8 | OAL (mm): 82.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDA0600S06H05 DC (mm): 6.0 | L/D: 5 | LU (mm): 39.8 | LCF (mm): 48.8 | OAL (mm): 100.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDA0600S06H10 DC (mm): 6.0 | L/D: 10 | LU (mm): 76.1 | LCF (mm): 85.1 | OAL (mm): 137.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDA0610S08H03 DC (mm): 6.1 | LU (mm): 24.2 | LCF (mm): 33.3 | OAL (mm): 88.8 | PL (mm): 0.8 | DCON (mm): 8.0 | Stock: Made to order
MDA0610S08H05 DC (mm): 6.1 | LU (mm): 43.7 | LCF (mm): 52.8 | OAL (mm): 109.8 | PL (mm): 0.8 | DCON (mm): 8.0 | Stock: Yes
MDA0610S08H10 DC (mm): 6.1 | LU (mm): 83.0 | LCF (mm): 92.1 | OAL (mm): 152.1 | PL (mm): 1.1 | DCON (mm): 8.0 | Stock: Yes
MDA0620S08H03 DC (mm): 6.2 | LU (mm): 24.0 | LCF (mm): 33.3 | OAL (mm): 88.8 | PL (mm): 0.8 | DCON (mm): 8.0 | Stock: Made to order
MDA0620S08H05 DC (mm): 6.2 | LU (mm): 43.5 | LCF (mm): 52.8 | OAL (mm): 109.8 | PL (mm): 0.8 | DCON (mm): 8.0 | Stock: Yes
MDA0620S08H10 DC (mm): 6.2 | LU (mm): 82.8 | LCF (mm): 92.1 | OAL (mm): 152.1 | PL (mm): 1.1 | DCON (mm): 8.0 | Stock: Made to order
MDA0630S08H03 DC (mm): 6.3 | LU (mm): 23.9 | LCF (mm): 33.3 | OAL (mm): 88.8 | PL (mm): 0.8 | DCON (mm): 8.0 | Stock: Made to order
MDA0630S08H05 DC (mm): 6.3 | LU (mm): 43.4 | LCF (mm): 52.8 | OAL (mm): 109.8 | PL (mm): 0.8 | DCON (mm): 8.0 | Stock: Yes
MDA0630S08H10 DC (mm): 6.3 | LU (mm): 82.7 | LCF (mm): 92.1 | OAL (mm): 152.1 | PL (mm): 1.1 | DCON (mm): 8.0 | Stock: Made to order
MDA0640S08H03 DC (mm): 6.4 | LU (mm): 23.8 | LCF (mm): 33.4 | OAL (mm): 88.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Made to order
MDA0640S08H05 DC (mm): 6.4 | LU (mm): 43.3 | LCF (mm): 52.9 | OAL (mm): 109.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Yes
MDA0640S08H10 DC (mm): 6.4 | LU (mm): 82.6 | LCF (mm): 92.2 | OAL (mm): 152.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Made to order
MDA0650S08H03 DC (mm): 6.5 | LU (mm): 23.6 | LCF (mm): 33.4 | OAL (mm): 88.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Yes
MDA0650S08H05 DC (mm): 6.5 | LU (mm): 43.1 | LCF (mm): 52.9 | OAL (mm): 109.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Yes
MDA0650S08H10 DC (mm): 6.5 | LU (mm): 82.4 | LCF (mm): 92.2 | OAL (mm): 152.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDA0660S08H03 DC (mm): 6.6 | LU (mm): 24.0 | LCF (mm): 33.9 | OAL (mm): 88.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Made to order
MDA0660S08H05 DC (mm): 6.6 | LU (mm): 45.0 | LCF (mm): 54.9 | OAL (mm): 109.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Yes
MDA0660S08H10 DC (mm): 6.6 | LU (mm): 87.3 | LCF (mm): 97.2 | OAL (mm): 152.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Made to order
MDA0670S08H03 DC (mm): 6.7 | LU (mm): 24.0 | LCF (mm): 33.9 | OAL (mm): 88.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Yes
MDA0670S08H05 DC (mm): 6.7 | LU (mm): 45.0 | LCF (mm): 54.9 | OAL (mm): 109.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Yes
MDA0670S08H10 DC (mm): 6.7 | LU (mm): 87.3 | LCF (mm): 97.2 | OAL (mm): 152.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Made to order
MDA0680S08H03 DC (mm): 6.8 | LU (mm): 23.7 | LCF (mm): 33.9 | OAL (mm): 88.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Yes
MDA0680S08H05 DC (mm): 6.8 | LU (mm): 44.7 | LCF (mm): 54.9 | OAL (mm): 109.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Yes
MDA0680S08H10 DC (mm): 6.8 | LU (mm): 87.0 | LCF (mm): 97.2 | OAL (mm): 152.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDA0690S08H03 DC (mm): 6.9 | LU (mm): 23.6 | LCF (mm): 33.9 | OAL (mm): 88.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Made to order
MDA0690S08H05 DC (mm): 6.9 | LU (mm): 44.6 | LCF (mm): 54.9 | OAL (mm): 109.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Made to order
MDA0690S08H10 DC (mm): 6.9 | LU (mm): 86.9 | LCF (mm): 97.3 | OAL (mm): 152.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDA0700S08H03 DC (mm): 7.0 | LU (mm): 23.4 | LCF (mm): 33.9 | OAL (mm): 88.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Yes
MDA0700S08H05 DC (mm): 7.0 | LU (mm): 44.4 | LCF (mm): 54.9 | OAL (mm): 109.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Yes
MDA0700S08H10 DC (mm): 7.0 | LU (mm): 86.8 | LCF (mm): 97.3 | OAL (mm): 152.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDA0710S08H03 DC (mm): 7.1 | LU (mm): 27.8 | LCF (mm): 38.4 | OAL (mm): 94.9 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Made to order
MDA0710S08H05 DC (mm): 7.1 | LU (mm): 50.3 | LCF (mm): 60.9 | OAL (mm): 118.9 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0710S08H10 DC (mm): 7.1 | LU (mm): 95.6 | LCF (mm): 106.3 | OAL (mm): 167.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDA0720S08H03 DC (mm): 7.2 | LU (mm): 27.7 | LCF (mm): 38.5 | OAL (mm): 95.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Made to order
MDA0720S08H05 DC (mm): 7.2 | LU (mm): 50.2 | LCF (mm): 61.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0720S08H10 DC (mm): 7.2 | LU (mm): 95.5 | LCF (mm): 106.3 | OAL (mm): 167.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDA0730S08H03 DC (mm): 7.3 | LU (mm): 27.5 | LCF (mm): 38.5 | OAL (mm): 95.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Made to order
MDA0730S08H05 DC (mm): 7.3 | LU (mm): 50.0 | LCF (mm): 61.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0730S08H10 DC (mm): 7.3 | LU (mm): 95.4 | LCF (mm): 106.3 | OAL (mm): 167.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDA0735S08H03 DC (mm): 7.35 | LU (mm): 27.4 | LCF (mm): 38.5 | OAL (mm): 95.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0735S08H05 DC (mm): 7.35 | LU (mm): 49.9 | LCF (mm): 61.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0740S08H03 DC (mm): 7.4 | LU (mm): 27.4 | LCF (mm): 38.5 | OAL (mm): 95.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0740S08H05 DC (mm): 7.4 | LU (mm): 49.9 | LCF (mm): 61.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0740S08H10 DC (mm): 7.4 | LU (mm): 95.2 | LCF (mm): 106.3 | OAL (mm): 167.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDA0750S08H03 DC (mm): 7.5 | LU (mm): 27.3 | LCF (mm): 38.5 | OAL (mm): 95.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0750S08H05 DC (mm): 7.5 | LU (mm): 49.8 | LCF (mm): 61.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0750S08H10 DC (mm): 7.5 | LU (mm): 95.1 | LCF (mm): 106.4 | OAL (mm): 167.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDA0760S08H03 DC (mm): 7.6 | L/D: 3 | LU (mm): 29.6 | LCF (mm): 41.0 | OAL (mm): 95.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Made to order
MDA0760S08H05 DC (mm): 7.6 | L/D: 5 | LU (mm): 53.6 | LCF (mm): 65.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0760S08H10 DC (mm): 7.6 | L/D: 10 | LU (mm): 102.0 | LCF (mm): 113.4 | OAL (mm): 167.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Made to order
MDA0770S08H03 DC (mm): 7.7 | L/D: 3 | LU (mm): 29.5 | LCF (mm): 41.0 | OAL (mm): 95.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Made to order
MDA0770S08H05 DC (mm): 7.7 | L/D: 5 | LU (mm): 53.5 | LCF (mm): 65.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0770S08H10 DC (mm): 7.7 | L/D: 10 | LU (mm): 101.9 | LCF (mm): 113.4 | OAL (mm): 167.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Made to order
MDA0780S08H03 DC (mm): 7.8 | L/D: 3 | LU (mm): 29.3 | LCF (mm): 41.0 | OAL (mm): 95.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0780S08H05 DC (mm): 7.8 | L/D: 5 | LU (mm): 53.3 | LCF (mm): 65.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0780S08H10 DC (mm): 7.8 | L/D: 10 | LU (mm): 101.7 | LCF (mm): 113.4 | OAL (mm): 167.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDA0790S08H03 DC (mm): 7.9 | L/D: 3 | LU (mm): 29.2 | LCF (mm): 41.1 | OAL (mm): 95.1 | PL (mm): 1.1 | DCON (mm): 8.0 | Stock: Made to order
MDA0790S08H05 DC (mm): 7.9 | L/D: 5 | LU (mm): 53.2 | LCF (mm): 65.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 8.0 | Stock: Yes
MDA0790S08H10 DC (mm): 7.9 | L/D: 10 | LU (mm): 101.6 | LCF (mm): 113.4 | OAL (mm): 167.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Made to order
MDA0800S08H03 DC (mm): 8.0 | L/D: 3 | LU (mm): 29.1 | LCF (mm): 41.1 | OAL (mm): 95.1 | PL (mm): 1.1 | DCON (mm): 8.0 | Stock: Yes
MDA0800S08H05 DC (mm): 8.0 | L/D: 5 | LU (mm): 53.1 | LCF (mm): 65.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 8.0 | Stock: Yes
MDA0800S08H10 DC (mm): 8.0 | L/D: 10 | LU (mm): 101.5 | LCF (mm): 113.5 | OAL (mm): 167.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDA0810S10H03 DC (mm): 8.1 | L/D: 3 | LU (mm): 31.4 | LCF (mm): 43.6 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 10.0 | Stock: Made to order
MDA0810S10H05 DC (mm): 8.1 | L/D: 5 | LU (mm): 56.9 | LCF (mm): 69.1 | OAL (mm): 128.1 | PL (mm): 1.1 | DCON (mm): 10.0 | Stock: Yes
MDA0810S10H10 DC (mm): 8.1 | L/D: 10 | LU (mm): 108.3 | LCF (mm): 120.5 | OAL (mm): 182.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDA0820S10H03 DC (mm): 8.2 | L/D: 3 | LU (mm): 31.3 | LCF (mm): 43.6 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 10.0 | Stock: Made to order
MDA0820S10H05 DC (mm): 8.2 | L/D: 5 | LU (mm): 56.8 | LCF (mm): 69.1 | OAL (mm): 128.1 | PL (mm): 1.1 | DCON (mm): 10.0 | Stock: Yes
MDA0820S10H10 DC (mm): 8.2 | L/D: 10 | LU (mm): 108.2 | LCF (mm): 120.5 | OAL (mm): 182.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDA0830S10H03 DC (mm): 8.3 | L/D: 3 | LU (mm): 31.2 | LCF (mm): 43.6 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 10.0 | Stock: Made to order
MDA0830S10H05 DC (mm): 8.3 | L/D: 5 | LU (mm): 56.7 | LCF (mm): 69.1 | OAL (mm): 128.1 | PL (mm): 1.1 | DCON (mm): 10.0 | Stock: Yes
MDA0830S10H10 DC (mm): 8.3 | L/D: 10 | LU (mm): 108.1 | LCF (mm): 120.5 | OAL (mm): 182.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Made to order
MDA0840S10H03 DC (mm): 8.4 | L/D: 3 | LU (mm): 31.0 | LCF (mm): 43.6 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 10.0 | Stock: Made to order
MDA0840S10H05 DC (mm): 8.4 | L/D: 5 | LU (mm): 56.5 | LCF (mm): 69.1 | OAL (mm): 128.1 | PL (mm): 1.1 | DCON (mm): 10.0 | Stock: Yes
MDA0840S10H10 DC (mm): 8.4 | L/D: 10 | LU (mm): 107.9 | LCF (mm): 120.5 | OAL (mm): 182.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Made to order
MDA0850S10H03 DC (mm): 8.5 | L/D: 3 | LU (mm): 31.0 | LCF (mm): 43.6 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 10.0 | Stock: Yes
MDA0850S10H05 DC (mm): 8.5 | L/D: 5 | LU (mm): 56.5 | LCF (mm): 69.1 | OAL (mm): 128.1 | PL (mm): 1.1 | DCON (mm): 10.0 | Stock: Yes
MDA0850S10H10 DC (mm): 8.5 | L/D: 10 | LU (mm): 107.9 | LCF (mm): 120.5 | OAL (mm): 182.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDA0860S10H03 DC (mm): 8.6 | L/D: 3 | LU (mm): 31.2 | LCF (mm): 44.1 | OAL (mm): 101.1 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Yes
MDA0860S10H05 DC (mm): 8.6 | L/D: 5 | LU (mm): 58.2 | LCF (mm): 71.1 | OAL (mm): 128.1 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Yes
MDA0860S10H10 DC (mm): 8.6 | L/D: 10 | LU (mm): 112.7 | LCF (mm): 125.6 | OAL (mm): 182.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Made to order
MDA0870S10H03 DC (mm): 8.7 | L/D: 3 | LU (mm): 31.1 | LCF (mm): 44.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Made to order
MDA0870S10H05 DC (mm): 8.7 | L/D: 5 | LU (mm): 58.1 | LCF (mm): 71.2 | OAL (mm): 128.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Yes
MDA0870S10H10 DC (mm): 8.7 | L/D: 10 | LU (mm): 112.5 | LCF (mm): 125.6 | OAL (mm): 182.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Made to order
MDA0880S10H03 DC (mm): 8.8 | L/D: 3 | LU (mm): 31.0 | LCF (mm): 44.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Yes
MDA0880S10H05 DC (mm): 8.8 | L/D: 5 | LU (mm): 58.0 | LCF (mm): 71.2 | OAL (mm): 128.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Yes
MDA0880S10H10 DC (mm): 8.8 | L/D: 10 | LU (mm): 112.4 | LCF (mm): 125.6 | OAL (mm): 182.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Made to order
MDA0890S10H03 DC (mm): 8.9 | L/D: 3 | LU (mm): 30.8 | LCF (mm): 44.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Made to order
MDA0890S10H05 DC (mm): 8.9 | L/D: 5 | LU (mm): 57.8 | LCF (mm): 71.2 | OAL (mm): 128.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Yes
MDA0890S10H10 DC (mm): 8.9 | L/D: 10 | LU (mm): 112.3 | LCF (mm): 125.6 | OAL (mm): 182.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Made to order
MDA0900S10H03 DC (mm): 9.0 | L/D: 3 | LU (mm): 30.7 | LCF (mm): 44.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Yes
MDA0900S10H05 DC (mm): 9.0 | L/D: 5 | LU (mm): 57.7 | LCF (mm): 71.2 | OAL (mm): 128.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Yes
MDA0900S10H10 DC (mm): 9.0 | L/D: 10 | LU (mm): 112.1 | LCF (mm): 125.6 | OAL (mm): 182.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDA0910S10H03 DC (mm): 9.1 | LU (mm): 35.1 | LCF (mm): 48.7 | OAL (mm): 107.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Made to order
MDA0910S10H05 DC (mm): 9.1 | LU (mm): 63.6 | LCF (mm): 77.2 | OAL (mm): 137.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Yes
MDA0910S10H10 DC (mm): 9.1 | LU (mm): 121.0 | LCF (mm): 134.7 | OAL (mm): 197.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Made to order
MDA0920S10H03 DC (mm): 9.2 | LU (mm): 34.9 | LCF (mm): 48.7 | OAL (mm): 107.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Made to order
MDA0920S10H05 DC (mm): 9.2 | LU (mm): 63.4 | LCF (mm): 77.2 | OAL (mm): 137.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Yes
MDA0920S10H10 DC (mm): 9.2 | LU (mm): 120.9 | LCF (mm): 134.7 | OAL (mm): 197.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Made to order
MDA0921S10H05 DC (mm): 9.21 | LU (mm): 63.3 | LCF (mm): 77.2 | OAL (mm): 137.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Yes
MDA0930S10H03 DC (mm): 9.3 | LU (mm): 34.8 | LCF (mm): 48.7 | OAL (mm): 107.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Made to order
MDA0930S10H05 DC (mm): 9.3 | LU (mm): 63.3 | LCF (mm): 77.2 | OAL (mm): 137.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Yes
MDA0930S10H10 DC (mm): 9.3 | LU (mm): 120.7 | LCF (mm): 134.7 | OAL (mm): 197.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDA0940S10H03 DC (mm): 9.4 | LU (mm): 34.7 | LCF (mm): 48.8 | OAL (mm): 107.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Yes
MDA0940S10H05 DC (mm): 9.4 | LU (mm): 63.2 | LCF (mm): 77.3 | OAL (mm): 137.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Yes
MDA0940S10H10 DC (mm): 9.4 | LU (mm): 120.6 | LCF (mm): 134.7 | OAL (mm): 197.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Made to order
MDA0950S10H03 DC (mm): 9.5 | LU (mm): 34.5 | LCF (mm): 48.8 | OAL (mm): 107.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Yes
MDA0950S10H05 DC (mm): 9.5 | LU (mm): 63.0 | LCF (mm): 77.3 | OAL (mm): 137.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Yes
MDA0950S10H10 DC (mm): 9.5 | LU (mm): 120.5 | LCF (mm): 134.7 | OAL (mm): 197.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDA0960S10H03 DC (mm): 9.6 | LU (mm): 36.9 | LCF (mm): 51.3 | OAL (mm): 107.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Yes
MDA0960S10H05 DC (mm): 9.6 | LU (mm): 66.9 | LCF (mm): 81.3 | OAL (mm): 137.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Yes
MDA0960S10H10 DC (mm): 9.6 | LU (mm): 127.3 | LCF (mm): 141.7 | OAL (mm): 197.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Made to order
MDA0970S10H03 DC (mm): 9.7 | LU (mm): 36.7 | LCF (mm): 51.3 | OAL (mm): 107.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Made to order
MDA0970S10H05 DC (mm): 9.7 | LU (mm): 66.7 | LCF (mm): 81.3 | OAL (mm): 137.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Made to order
MDA0970S10H10 DC (mm): 9.7 | LU (mm): 127.2 | LCF (mm): 141.8 | OAL (mm): 197.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Made to order
MDA0980S10H03 DC (mm): 9.8 | LU (mm): 36.6 | LCF (mm): 51.3 | OAL (mm): 107.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Made to order
MDA0980S10H05 DC (mm): 9.8 | LU (mm): 66.6 | LCF (mm): 81.3 | OAL (mm): 137.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Yes
MDA0980S10H10 DC (mm): 9.8 | LU (mm): 127.1 | LCF (mm): 141.8 | OAL (mm): 197.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDA0990S10H03 DC (mm): 9.9 | LU (mm): 36.5 | LCF (mm): 51.3 | OAL (mm): 107.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Made to order
MDA0990S10H05 DC (mm): 9.9 | LU (mm): 66.5 | LCF (mm): 81.3 | OAL (mm): 137.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Made to order
MDA0990S10H10 DC (mm): 9.9 | LU (mm): 127.0 | LCF (mm): 141.8 | OAL (mm): 197.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Made to order
MDA1000S10H03 DC (mm): 10.0 | LU (mm): 36.3 | LCF (mm): 51.3 | OAL (mm): 107.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Yes
MDA1000S10H05 DC (mm): 10.0 | LU (mm): 66.3 | LCF (mm): 81.3 | OAL (mm): 137.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Yes
MDA1000S10H10 DC (mm): 10.0 | LU (mm): 126.8 | LCF (mm): 141.8 | OAL (mm): 197.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDA1010S12H03 DC (mm): 10.1 | LU (mm): 38.7 | LCF (mm): 53.8 | OAL (mm): 117.3 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Yes
MDA1010S12H05 DC (mm): 10.1 | LU (mm): 70.2 | LCF (mm): 85.3 | OAL (mm): 150.3 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Yes
MDA1010S12H10 DC (mm): 10.1 | LU (mm): 133.7 | LCF (mm): 148.8 | OAL (mm): 216.8 | PL (mm): 1.8 | DCON (mm): 12.0 | Stock: Made to order
MDA1020S12H03 DC (mm): 10.2 | LU (mm): 38.6 | LCF (mm): 53.9 | OAL (mm): 117.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Made to order
MDA1020S12H05 DC (mm): 10.2 | LU (mm): 70.1 | LCF (mm): 85.4 | OAL (mm): 150.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Made to order
MDA1020S12H10 DC (mm): 10.2 | LU (mm): 133.6 | LCF (mm): 148.9 | OAL (mm): 216.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Made to order
MDA1030S12H03 DC (mm): 10.3 | LU (mm): 38.6 | LCF (mm): 53.9 | OAL (mm): 117.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Yes
MDA1030S12H05 DC (mm): 10.3 | LU (mm): 70.1 | LCF (mm): 85.4 | OAL (mm): 150.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Yes
MDA1030S12H10 DC (mm): 10.3 | LU (mm): 133.6 | LCF (mm): 148.9 | OAL (mm): 216.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Made to order
MDA1040S12H03 DC (mm): 10.4 | LU (mm): 38.3 | LCF (mm): 53.9 | OAL (mm): 117.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Yes
MDA1040S12H05 DC (mm): 10.4 | LU (mm): 69.8 | LCF (mm): 85.4 | OAL (mm): 150.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Yes
MDA1040S12H10 DC (mm): 10.4 | LU (mm): 133.3 | LCF (mm): 148.9 | OAL (mm): 216.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Made to order
MDA1050S12H03 DC (mm): 10.5 | LU (mm): 38.2 | LCF (mm): 53.9 | OAL (mm): 117.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Yes
MDA1050S12H05 DC (mm): 10.5 | LU (mm): 69.7 | LCF (mm): 85.4 | OAL (mm): 150.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Yes
MDA1050S12H10 DC (mm): 10.5 | LU (mm): 133.2 | LCF (mm): 148.9 | OAL (mm): 216.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDA1060S12H03 DC (mm): 10.6 | L/D: 3 | LU (mm): 38.5 | LCF (mm): 54.4 | OAL (mm): 117.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Yes
MDA1060S12H05 DC (mm): 10.6 | L/D: 5 | LU (mm): 71.5 | LCF (mm): 87.4 | OAL (mm): 150.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Yes
MDA1060S12H10 DC (mm): 10.6 | L/D: 10 | LU (mm): 138.0 | LCF (mm): 153.9 | OAL (mm): 216.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Made to order
MDA1070S12H03 DC (mm): 10.7 | L/D: 3 | LU (mm): 38.4 | LCF (mm): 54.4 | OAL (mm): 117.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Made to order
MDA1070S12H05 DC (mm): 10.7 | L/D: 5 | LU (mm): 71.4 | LCF (mm): 87.4 | OAL (mm): 150.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Made to order
MDA1070S12H10 DC (mm): 10.7 | L/D: 10 | LU (mm): 137.9 | LCF (mm): 153.9 | OAL (mm): 216.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Made to order
MDA1080S12H03 DC (mm): 10.8 | L/D: 3 | LU (mm): 38.2 | LCF (mm): 54.4 | OAL (mm): 117.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Made to order
MDA1080S12H05 DC (mm): 10.8 | L/D: 5 | LU (mm): 71.2 | LCF (mm): 87.4 | OAL (mm): 150.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Yes
MDA1080S12H10 DC (mm): 10.8 | L/D: 10 | LU (mm): 137.8 | LCF (mm): 154.0 | OAL (mm): 217.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDA1090S12H03 DC (mm): 10.9 | L/D: 3 | LU (mm): 38.1 | LCF (mm): 54.5 | OAL (mm): 117.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Made to order
MDA1090S12H05 DC (mm): 10.9 | L/D: 5 | LU (mm): 71.1 | LCF (mm): 87.5 | OAL (mm): 150.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Made to order
MDA1090S12H10 DC (mm): 10.9 | L/D: 10 | LU (mm): 137.6 | LCF (mm): 154.0 | OAL (mm): 217.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Made to order
MDA1100S12H03 DC (mm): 11.0 | L/D: 3 | LU (mm): 38.0 | LCF (mm): 54.5 | OAL (mm): 117.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Yes
MDA1100S12H05 DC (mm): 11.0 | L/D: 5 | LU (mm): 71.0 | LCF (mm): 87.5 | OAL (mm): 150.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Yes
MDA1100S12H10 DC (mm): 11.0 | L/D: 10 | LU (mm): 137.5 | LCF (mm): 154.0 | OAL (mm): 217.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDA1110S12H03 DC (mm): 11.1 | L/D: 3 | LU (mm): 42.3 | LCF (mm): 59.0 | OAL (mm): 123.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Yes
MDA1110S12H05 DC (mm): 11.1 | L/D: 5 | LU (mm): 76.8 | LCF (mm): 93.5 | OAL (mm): 159.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Yes
MDA1110S12H10 DC (mm): 11.1 | L/D: 10 | LU (mm): 146.4 | LCF (mm): 163.0 | OAL (mm): 232.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Made to order
MDA1120S12H03 DC (mm): 11.2 | L/D: 3 | LU (mm): 42.2 | LCF (mm): 59.0 | OAL (mm): 123.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Made to order
MDA1120S12H05 DC (mm): 11.2 | L/D: 5 | LU (mm): 76.7 | LCF (mm): 93.5 | OAL (mm): 159.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Yes
MDA1120S12H10 DC (mm): 11.2 | L/D: 10 | LU (mm): 146.2 | LCF (mm): 163.0 | OAL (mm): 232.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Made to order
MDA1130S12H03 DC (mm): 11.3 | L/D: 3 | LU (mm): 42.1 | LCF (mm): 59.0 | OAL (mm): 123.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Made to order
MDA1130S12H05 DC (mm): 11.3 | L/D: 5 | LU (mm): 76.6 | LCF (mm): 93.5 | OAL (mm): 159.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Made to order
MDA1130S12H10 DC (mm): 11.3 | L/D: 10 | LU (mm): 146.1 | LCF (mm): 163.1 | OAL (mm): 232.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Made to order
MDA1140S12H03 DC (mm): 11.4 | L/D: 3 | LU (mm): 41.9 | LCF (mm): 59.0 | OAL (mm): 123.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Made to order
MDA1140S12H05 DC (mm): 11.4 | L/D: 5 | LU (mm): 76.4 | LCF (mm): 93.5 | OAL (mm): 159.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Yes
MDA1140S12H10 DC (mm): 11.4 | L/D: 10 | LU (mm): 146.0 | LCF (mm): 163.1 | OAL (mm): 232.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Made to order
MDA1150S12H03 DC (mm): 11.5 | L/D: 3 | LU (mm): 41.8 | LCF (mm): 59.0 | OAL (mm): 123.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Yes
MDA1150S12H05 DC (mm): 11.5 | L/D: 5 | LU (mm): 76.3 | LCF (mm): 93.5 | OAL (mm): 159.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Yes
MDA1150S12H10 DC (mm): 11.5 | L/D: 10 | LU (mm): 145.8 | LCF (mm): 163.1 | OAL (mm): 232.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDA1160S12H03 DC (mm): 11.6 | L/D: 3 | LU (mm): 44.1 | LCF (mm): 61.5 | OAL (mm): 123.5 | PL (mm): 1.6 | DCON (mm): 12.0 | Stock: Made to order
MDA1160S12H05 DC (mm): 11.6 | L/D: 5 | LU (mm): 80.1 | LCF (mm): 97.5 | OAL (mm): 159.5 | PL (mm): 1.6 | DCON (mm): 12.0 | Stock: Made to order
MDA1160S12H10 DC (mm): 11.6 | L/D: 10 | LU (mm): 152.7 | LCF (mm): 170.1 | OAL (mm): 232.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Made to order
MDA1170S12H03 DC (mm): 11.7 | L/D: 3 | LU (mm): 44.0 | LCF (mm): 61.6 | OAL (mm): 123.6 | PL (mm): 1.6 | DCON (mm): 12.0 | Stock: Made to order
MDA1170S12H05 DC (mm): 11.7 | L/D: 5 | LU (mm): 80.0 | LCF (mm): 97.6 | OAL (mm): 159.6 | PL (mm): 1.6 | DCON (mm): 12.0 | Stock: Made to order
MDA1170S12H10 DC (mm): 11.7 | L/D: 10 | LU (mm): 152.6 | LCF (mm): 170.1 | OAL (mm): 232.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Made to order
MDA1180S12H03 DC (mm): 11.8 | L/D: 3 | LU (mm): 43.9 | LCF (mm): 61.6 | OAL (mm): 123.6 | PL (mm): 1.6 | DCON (mm): 12.0 | Stock: Made to order
MDA1180S12H05 DC (mm): 11.8 | L/D: 5 | LU (mm): 79.9 | LCF (mm): 97.6 | OAL (mm): 159.6 | PL (mm): 1.6 | DCON (mm): 12.0 | Stock: Yes
MDA1180S12H10 DC (mm): 11.8 | L/D: 10 | LU (mm): 152.4 | LCF (mm): 170.1 | OAL (mm): 232.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Made to order
MDA1190S12H03 DC (mm): 11.9 | L/D: 3 | LU (mm): 43.7 | LCF (mm): 61.6 | OAL (mm): 123.6 | PL (mm): 1.6 | DCON (mm): 12.0 | Stock: Made to order
MDA1190S12H05 DC (mm): 11.9 | L/D: 5 | LU (mm): 79.7 | LCF (mm): 97.6 | OAL (mm): 159.6 | PL (mm): 1.6 | DCON (mm): 12.0 | Stock: Made to order
MDA1190S12H10 DC (mm): 11.9 | L/D: 10 | LU (mm): 152.3 | LCF (mm): 170.2 | OAL (mm): 232.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Made to order
MDA1200S12H03 DC (mm): 12.0 | L/D: 3 | LU (mm): 43.6 | LCF (mm): 61.6 | OAL (mm): 123.6 | PL (mm): 1.6 | DCON (mm): 12.0 | Stock: Yes
MDA1200S12H05 DC (mm): 12.0 | L/D: 5 | LU (mm): 79.6 | LCF (mm): 97.6 | OAL (mm): 159.6 | PL (mm): 1.6 | DCON (mm): 12.0 | Stock: Yes
MDA1200S12H10 DC (mm): 12.0 | L/D: 10 | LU (mm): 152.2 | LCF (mm): 170.2 | OAL (mm): 232.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
DrillsSumitomo Electric Hardmetal
381 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Multi Drill MDA Type for Aluminum Alloys

Brand Sumitomo Electric Hardmetal·Drills

Available part numbers (381)

MDA0100S03H03, MDA0100S03H05, MDA0100S03H10, MDA0100S03H15, MDA0100S03H20, MDA0110S03H03, MDA0110S03H05, MDA0110S03H10, MDA0110S03H15, MDA0110S03H20 + 371 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MDA0100S03H03DC (mm): 1.0 | LU (mm): 4.5 | LCF (mm): 6.0 | OAL (mm): 45.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0100S03H05DC (mm): 1.0 | LU (mm): 8.5 | LCF (mm): 10.0 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0100S03H10DC (mm): 1.0 | LU (mm): 12.5 | LCF (mm): 14.0 | OAL (mm): 55.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0100S03H15DC (mm): 1.0 | LU (mm): 17.5 | LCF (mm): 19.0 | OAL (mm): 60.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0100S03H20DC (mm): 1.0 | LU (mm): 22.5 | LCF (mm): 24.0 | OAL (mm): 65.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0110S03H03DC (mm): 1.1 | LU (mm): 6.4 | LCF (mm): 8.0 | OAL (mm): 45.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0110S03H05DC (mm): 1.1 | LU (mm): 10.4 | LCF (mm): 12.0 | OAL (mm): 50.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0110S03H10DC (mm): 1.1 | LU (mm): 16.4 | LCF (mm): 18.0 | OAL (mm): 55.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0110S03H15DC (mm): 1.1 | LU (mm): 19.4 | LCF (mm): 21.0 | OAL (mm): 65.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0110S03H20DC (mm): 1.1 | LU (mm): 24.4 | LCF (mm): 26.0 | OAL (mm): 70.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0120S03H03DC (mm): 1.2 | LU (mm): 6.2 | LCF (mm): 8.0 | OAL (mm): 48.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0120S03H05DC (mm): 1.2 | LU (mm): 10.2 | LCF (mm): 12.0 | OAL (mm): 55.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0120S03H10DC (mm): 1.2 | LU (mm): 16.2 | LCF (mm): 18.0 | OAL (mm): 60.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0120S03H15DC (mm): 1.2 | LU (mm): 21.2 | LCF (mm): 23.0 | OAL (mm): 65.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0120S03H20DC (mm): 1.2 | LU (mm): 27.2 | LCF (mm): 29.0 | OAL (mm): 70.0 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDA0130S03H03DC (mm): 1.3 | LU (mm): 6.1 | LCF (mm): 8.0 | OAL (mm): 48.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0130S03H05DC (mm): 1.3 | LU (mm): 12.1 | LCF (mm): 14.0 | OAL (mm): 55.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0130S03H10DC (mm): 1.3 | LU (mm): 18.1 | LCF (mm): 20.0 | OAL (mm): 60.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0130S03H15DC (mm): 1.3 | LU (mm): 23.1 | LCF (mm): 25.0 | OAL (mm): 65.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0130S03H20DC (mm): 1.3 | LU (mm): 29.1 | LCF (mm): 31.0 | OAL (mm): 75.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0140S03H03DC (mm): 1.4 | LU (mm): 5.9 | LCF (mm): 8.0 | OAL (mm): 48.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0140S03H05DC (mm): 1.4 | LU (mm): 11.9 | LCF (mm): 14.0 | OAL (mm): 55.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0140S03H10DC (mm): 1.4 | LU (mm): 17.9 | LCF (mm): 20.0 | OAL (mm): 60.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0140S03H15DC (mm): 1.4 | LU (mm): 25.9 | LCF (mm): 28.0 | OAL (mm): 70.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0140S03H20DC (mm): 1.4 | LU (mm): 31.9 | LCF (mm): 34.0 | OAL (mm): 75.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0150S03H03DC (mm): 1.5 | LU (mm): 5.8 | LCF (mm): 8.0 | OAL (mm): 48.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0150S03H05DC (mm): 1.5 | LU (mm): 13.8 | LCF (mm): 16.0 | OAL (mm): 55.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0150S03H10DC (mm): 1.5 | LU (mm): 20.8 | LCF (mm): 23.0 | OAL (mm): 65.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0150S03H15DC (mm): 1.5 | LU (mm): 25.8 | LCF (mm): 28.0 | OAL (mm): 70.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0150S03H20DC (mm): 1.5 | LU (mm): 33.8 | LCF (mm): 36.0 | OAL (mm): 75.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0160S03H03DC (mm): 1.6 | LU (mm): 7.6 | LCF (mm): 10.0 | OAL (mm): 50.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0160S03H05DC (mm): 1.6 | LU (mm): 13.6 | LCF (mm): 16.0 | OAL (mm): 55.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0160S03H10DC (mm): 1.6 | LU (mm): 22.6 | LCF (mm): 25.0 | OAL (mm): 65.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0160S03H15DC (mm): 1.6 | LU (mm): 29.6 | LCF (mm): 32.0 | OAL (mm): 75.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0160S03H20DC (mm): 1.6 | LU (mm): 35.6 | LCF (mm): 38.0 | OAL (mm): 80.0 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDA0170S03H03DC (mm): 1.7 | LU (mm): 7.5 | LCF (mm): 10.0 | OAL (mm): 50.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0170S03H05DC (mm): 1.7 | LU (mm): 15.5 | LCF (mm): 18.0 | OAL (mm): 60.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0170S03H10DC (mm): 1.7 | LU (mm): 22.5 | LCF (mm): 25.0 | OAL (mm): 65.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0170S03H15DC (mm): 1.7 | LU (mm): 29.5 | LCF (mm): 32.0 | OAL (mm): 75.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0170S03H20DC (mm): 1.7 | LU (mm): 38.5 | LCF (mm): 41.0 | OAL (mm): 80.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0180S03H03DC (mm): 1.8 | LU (mm): 7.3 | LCF (mm): 10.0 | OAL (mm): 50.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0180S03H05DC (mm): 1.8 | LU (mm): 15.3 | LCF (mm): 18.0 | OAL (mm): 60.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0180S03H10DC (mm): 1.8 | LU (mm): 25.3 | LCF (mm): 28.0 | OAL (mm): 70.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0180S03H15DC (mm): 1.8 | LU (mm): 32.3 | LCF (mm): 35.0 | OAL (mm): 75.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0180S03H20DC (mm): 1.8 | LU (mm): 40.3 | LCF (mm): 43.0 | OAL (mm): 85.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0190S03H03DC (mm): 1.9 | LU (mm): 7.2 | LCF (mm): 10.0 | OAL (mm): 50.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0190S03H05DC (mm): 1.9 | LU (mm): 17.2 | LCF (mm): 20.0 | OAL (mm): 60.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0190S03H10DC (mm): 1.9 | LU (mm): 25.2 | LCF (mm): 28.0 | OAL (mm): 70.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0190S03H15DC (mm): 1.9 | LU (mm): 32.2 | LCF (mm): 35.0 | OAL (mm): 75.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0190S03H20DC (mm): 1.9 | LU (mm): 43.2 | LCF (mm): 46.0 | OAL (mm): 85.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0200S03H03DC (mm): 2.0 | LU (mm): 7.0 | LCF (mm): 10.0 | OAL (mm): 50.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0200S03H05DC (mm): 2.0 | LU (mm): 17.0 | LCF (mm): 20.0 | OAL (mm): 60.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0200S03H10DC (mm): 2.0 | LU (mm): 27.0 | LCF (mm): 30.0 | OAL (mm): 70.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0200S03H15DC (mm): 2.0 | LU (mm): 37.0 | LCF (mm): 40.0 | OAL (mm): 80.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0200S03H20DC (mm): 2.0 | LU (mm): 45.0 | LCF (mm): 48.0 | OAL (mm): 90.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0210S03H03DC (mm): 2.1 | L/D: 3 | LU (mm): 9.9 | LCF (mm): 13.0 | OAL (mm): 55.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0210S03H05DC (mm): 2.1 | L/D: 5 | LU (mm): 18.9 | LCF (mm): 22.0 | OAL (mm): 65.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0210S03H10DC (mm): 2.1 | L/D: 10 | LU (mm): 26.9 | LCF (mm): 30.0 | OAL (mm): 70.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0210S03H15DC (mm): 2.1 | L/D: 15 | LU (mm): 36.9 | LCF (mm): 40.0 | OAL (mm): 80.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0210S03H20DC (mm): 2.1 | L/D: 20 | LU (mm): 46.9 | LCF (mm): 50.0 | OAL (mm): 95.0 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDA0220S03H03DC (mm): 2.2 | L/D: 3 | LU (mm): 9.7 | LCF (mm): 13.0 | OAL (mm): 55.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0220S03H05DC (mm): 2.2 | L/D: 5 | LU (mm): 18.7 | LCF (mm): 22.0 | OAL (mm): 65.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0220S03H10DC (mm): 2.2 | L/D: 10 | LU (mm): 28.7 | LCF (mm): 32.0 | OAL (mm): 75.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0220S03H15DC (mm): 2.2 | L/D: 15 | LU (mm): 38.7 | LCF (mm): 42.0 | OAL (mm): 85.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0220S03H20DC (mm): 2.2 | L/D: 20 | LU (mm): 47.7 | LCF (mm): 51.0 | OAL (mm): 95.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0230S03H03DC (mm): 2.3 | L/D: 3 | LU (mm): 9.6 | LCF (mm): 13.0 | OAL (mm): 55.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0230S03H05DC (mm): 2.3 | L/D: 5 | LU (mm): 20.6 | LCF (mm): 24.0 | OAL (mm): 65.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0230S03H10DC (mm): 2.3 | L/D: 10 | LU (mm): 28.6 | LCF (mm): 32.0 | OAL (mm): 75.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0230S03H15DC (mm): 2.3 | L/D: 15 | LU (mm): 41.6 | LCF (mm): 45.0 | OAL (mm): 85.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0230S03H20DC (mm): 2.3 | L/D: 20 | LU (mm): 49.6 | LCF (mm): 53.0 | OAL (mm): 100.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0240S03H03DC (mm): 2.4 | L/D: 3 | LU (mm): 9.4 | LCF (mm): 13.0 | OAL (mm): 55.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0240S03H05DC (mm): 2.4 | L/D: 5 | LU (mm): 20.4 | LCF (mm): 24.0 | OAL (mm): 65.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0240S03H10DC (mm): 2.4 | L/D: 10 | LU (mm): 31.4 | LCF (mm): 35.0 | OAL (mm): 75.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0240S03H15DC (mm): 2.4 | L/D: 15 | LU (mm): 41.4 | LCF (mm): 45.0 | OAL (mm): 85.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0240S03H20DC (mm): 2.4 | L/D: 20 | LU (mm): 52.4 | LCF (mm): 56.0 | OAL (mm): 100.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0250S03H03DC (mm): 2.5 | L/D: 3 | LU (mm): 9.3 | LCF (mm): 13.0 | OAL (mm): 55.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0250S03H05DC (mm): 2.5 | L/D: 5 | LU (mm): 22.3 | LCF (mm): 26.0 | OAL (mm): 65.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0250S03H10DC (mm): 2.5 | L/D: 10 | LU (mm): 31.3 | LCF (mm): 35.0 | OAL (mm): 75.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0250S03H15DC (mm): 2.5 | L/D: 15 | LU (mm): 41.3 | LCF (mm): 45.0 | OAL (mm): 85.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0250S03H20DC (mm): 2.5 | L/D: 20 | LU (mm): 56.3 | LCF (mm): 60.0 | OAL (mm): 105.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0260S03H03DC (mm): 2.6 | L/D: 3 | LU (mm): 11.1 | LCF (mm): 15.0 | OAL (mm): 60.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0260S03H05DC (mm): 2.6 | L/D: 5 | LU (mm): 22.1 | LCF (mm): 26.0 | OAL (mm): 70.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0260S03H10DC (mm): 2.6 | L/D: 10 | LU (mm): 34.1 | LCF (mm): 38.0 | OAL (mm): 80.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0260S03H15DC (mm): 2.6 | L/D: 15 | LU (mm): 46.1 | LCF (mm): 50.0 | OAL (mm): 90.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0260S03H20DC (mm): 2.6 | L/D: 20 | LU (mm): 57.1 | LCF (mm): 61.0 | OAL (mm): 105.0 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDA0270S03H03DC (mm): 2.7 | L/D: 3 | LU (mm): 11.0 | LCF (mm): 15.0 | OAL (mm): 60.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0270S03H05DC (mm): 2.7 | L/D: 5 | LU (mm): 24.0 | LCF (mm): 28.0 | OAL (mm): 70.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0270S03H10DC (mm): 2.7 | L/D: 10 | LU (mm): 34.0 | LCF (mm): 38.0 | OAL (mm): 80.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0270S03H15DC (mm): 2.7 | L/D: 15 | LU (mm): 46.0 | LCF (mm): 50.0 | OAL (mm): 90.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0270S03H20DC (mm): 2.7 | L/D: 20 | LU (mm): 59.0 | LCF (mm): 63.0 | OAL (mm): 105.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0280S03H03DC (mm): 2.8 | L/D: 3 | LU (mm): 10.8 | LCF (mm): 15.0 | OAL (mm): 60.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0280S03H05DC (mm): 2.8 | L/D: 5 | LU (mm): 23.8 | LCF (mm): 28.0 | OAL (mm): 70.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0280S03H10DC (mm): 2.8 | L/D: 10 | LU (mm): 35.8 | LCF (mm): 40.0 | OAL (mm): 80.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0280S03H15DC (mm): 2.8 | L/D: 15 | LU (mm): 50.8 | LCF (mm): 55.0 | OAL (mm): 95.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0280S03H20DC (mm): 2.8 | L/D: 20 | LU (mm): 60.8 | LCF (mm): 65.0 | OAL (mm): 110.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0290S03H03DC (mm): 2.9 | L/D: 3 | LU (mm): 10.7 | LCF (mm): 15.0 | OAL (mm): 60.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0290S03H05DC (mm): 2.9 | L/D: 5 | LU (mm): 25.7 | LCF (mm): 30.0 | OAL (mm): 70.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0290S03H10DC (mm): 2.9 | L/D: 10 | LU (mm): 35.7 | LCF (mm): 40.0 | OAL (mm): 80.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0290S03H15DC (mm): 2.9 | L/D: 15 | LU (mm): 50.7 | LCF (mm): 55.0 | OAL (mm): 95.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0290S03H20DC (mm): 2.9 | L/D: 20 | LU (mm): 62.7 | LCF (mm): 67.0 | OAL (mm): 110.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0300S03H03DC (mm): 3.0 | L/D: 3 | LU (mm): 10.5 | LCF (mm): 15.0 | OAL (mm): 60.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0300S03H05DC (mm): 3.0 | L/D: 5 | LU (mm): 25.5 | LCF (mm): 30.0 | OAL (mm): 70.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0300S03H10DC (mm): 3.0 | L/D: 10 | LU (mm): 37.5 | LCF (mm): 42.0 | OAL (mm): 82.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0300S03H15DC (mm): 3.0 | L/D: 15 | LU (mm): 53.5 | LCF (mm): 58.0 | OAL (mm): 98.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0300S03H20DC (mm): 3.0 | L/D: 20 | LU (mm): 64.5 | LCF (mm): 69.0 | OAL (mm): 110.0 | PL (mm): 0.6 | DCON (mm): 3.0 | Stock: Yes
MDA0310S04H03DC (mm): 3.1 | LU (mm): 15.8 | LCF (mm): 20.4 | OAL (mm): 72.4 | PL (mm): 0.4 | DCON (mm): 4.0 | Stock: Yes
MDA0310S04H05DC (mm): 3.1 | LU (mm): 27.8 | LCF (mm): 32.4 | OAL (mm): 86.4 | PL (mm): 0.4 | DCON (mm): 4.0 | Stock: Yes
MDA0310S04H10DC (mm): 3.1 | LU (mm): 44.9 | LCF (mm): 49.6 | OAL (mm): 106.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDA0320S04H03DC (mm): 3.2 | LU (mm): 15.6 | LCF (mm): 20.4 | OAL (mm): 72.4 | PL (mm): 0.4 | DCON (mm): 4.0 | Stock: Yes
MDA0320S04H05DC (mm): 3.2 | LU (mm): 27.6 | LCF (mm): 32.4 | OAL (mm): 86.4 | PL (mm): 0.4 | DCON (mm): 4.0 | Stock: Yes
MDA0320S04H10DC (mm): 3.2 | LU (mm): 44.8 | LCF (mm): 49.6 | OAL (mm): 106.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDA0330S04H03DC (mm): 3.3 | LU (mm): 15.5 | LCF (mm): 20.4 | OAL (mm): 72.4 | PL (mm): 0.4 | DCON (mm): 4.0 | Stock: Yes
MDA0330S04H05DC (mm): 3.3 | LU (mm): 27.5 | LCF (mm): 32.4 | OAL (mm): 86.4 | PL (mm): 0.4 | DCON (mm): 4.0 | Stock: Yes
MDA0330S04H10DC (mm): 3.3 | LU (mm): 44.7 | LCF (mm): 49.6 | OAL (mm): 106.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Made to order
MDA0340S04H03DC (mm): 3.4 | LU (mm): 15.4 | LCF (mm): 20.5 | OAL (mm): 72.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Made to order
MDA0340S04H05DC (mm): 3.4 | LU (mm): 27.4 | LCF (mm): 32.5 | OAL (mm): 86.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Yes
MDA0340S04H10DC (mm): 3.4 | LU (mm): 44.5 | LCF (mm): 49.6 | OAL (mm): 106.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDA0350S04H03DC (mm): 3.5 | LU (mm): 15.2 | LCF (mm): 20.5 | OAL (mm): 72.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Yes
MDA0350S04H05DC (mm): 3.5 | LU (mm): 27.2 | LCF (mm): 32.5 | OAL (mm): 86.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Yes
MDA0350S04H10DC (mm): 3.5 | LU (mm): 44.4 | LCF (mm): 49.6 | OAL (mm): 106.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDA0360S04H03DC (mm): 3.6 | LU (mm): 17.6 | LCF (mm): 23.0 | OAL (mm): 72.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Made to order
MDA0360S04H05DC (mm): 3.6 | LU (mm): 31.1 | LCF (mm): 36.5 | OAL (mm): 86.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Yes
MDA0360S04H10DC (mm): 3.6 | LU (mm): 51.3 | LCF (mm): 56.7 | OAL (mm): 106.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDA0365S04H03DC (mm): 3.65 | LU (mm): 17.4 | LCF (mm): 23.0 | OAL (mm): 72.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Yes
MDA0365S04H05DC (mm): 3.65 | LU (mm): 30.9 | LCF (mm): 36.5 | OAL (mm): 86.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Yes
MDA0366S04H05DC (mm): 3.66 | LU (mm): 30.9 | LCF (mm): 36.5 | OAL (mm): 86.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Yes
MDA0370S04H03DC (mm): 3.7 | LU (mm): 17.4 | LCF (mm): 23.0 | OAL (mm): 72.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Made to order
MDA0370S04H05DC (mm): 3.7 | LU (mm): 30.9 | LCF (mm): 36.5 | OAL (mm): 86.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Yes
MDA0370S04H10DC (mm): 3.7 | LU (mm): 51.1 | LCF (mm): 56.7 | OAL (mm): 106.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDA0380S04H03DC (mm): 3.8 | LU (mm): 17.3 | LCF (mm): 23.0 | OAL (mm): 72.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Made to order
MDA0380S04H05DC (mm): 3.8 | LU (mm): 30.8 | LCF (mm): 36.5 | OAL (mm): 86.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Yes
MDA0380S04H10DC (mm): 3.8 | LU (mm): 51.0 | LCF (mm): 56.7 | OAL (mm): 106.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDA0390S04H03DC (mm): 3.9 | LU (mm): 17.2 | LCF (mm): 23.0 | OAL (mm): 72.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Made to order
MDA0390S04H05DC (mm): 3.9 | LU (mm): 30.7 | LCF (mm): 36.5 | OAL (mm): 86.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Yes
MDA0390S04H10DC (mm): 3.9 | LU (mm): 50.9 | LCF (mm): 56.7 | OAL (mm): 106.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDA0400S04H03DC (mm): 4.0 | LU (mm): 17.0 | LCF (mm): 23.0 | OAL (mm): 72.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Yes
MDA0400S04H05DC (mm): 4.0 | LU (mm): 30.5 | LCF (mm): 36.5 | OAL (mm): 86.5 | PL (mm): 0.5 | DCON (mm): 4.0 | Stock: Yes
MDA0400S04H10DC (mm): 4.0 | LU (mm): 50.7 | LCF (mm): 56.7 | OAL (mm): 106.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDA0410S06H03DC (mm): 4.1 | LU (mm): 19.4 | LCF (mm): 25.5 | OAL (mm): 80.5 | PL (mm): 0.5 | DCON (mm): 6.0 | Stock: Yes
MDA0410S06H05DC (mm): 4.1 | LU (mm): 34.4 | LCF (mm): 40.5 | OAL (mm): 98.5 | PL (mm): 0.5 | DCON (mm): 6.0 | Stock: Yes
MDA0410S06H10DC (mm): 4.1 | LU (mm): 57.6 | LCF (mm): 63.7 | OAL (mm): 121.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Made to order
MDA0420S06H03DC (mm): 4.2 | LU (mm): 19.3 | LCF (mm): 25.6 | OAL (mm): 80.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Yes
MDA0420S06H05DC (mm): 4.2 | LU (mm): 34.3 | LCF (mm): 40.6 | OAL (mm): 98.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Yes
MDA0420S06H10DC (mm): 4.2 | LU (mm): 57.5 | LCF (mm): 63.8 | OAL (mm): 121.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Made to order
MDA0430S06H03DC (mm): 4.3 | LU (mm): 19.1 | LCF (mm): 25.6 | OAL (mm): 80.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Made to order
MDA0430S06H05DC (mm): 4.3 | LU (mm): 34.1 | LCF (mm): 40.6 | OAL (mm): 98.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Yes
MDA0430S06H10DC (mm): 4.3 | LU (mm): 57.3 | LCF (mm): 63.8 | OAL (mm): 121.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Made to order
MDA0440S06H03DC (mm): 4.4 | LU (mm): 19.0 | LCF (mm): 25.6 | OAL (mm): 80.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Made to order
MDA0440S06H05DC (mm): 4.4 | LU (mm): 34.0 | LCF (mm): 40.6 | OAL (mm): 98.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Yes
MDA0440S06H10DC (mm): 4.4 | LU (mm): 57.2 | LCF (mm): 63.8 | OAL (mm): 121.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Made to order
MDA0450S06H03DC (mm): 4.5 | LU (mm): 18.9 | LCF (mm): 25.6 | OAL (mm): 80.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Yes
MDA0450S06H05DC (mm): 4.5 | LU (mm): 33.9 | LCF (mm): 40.6 | OAL (mm): 98.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Yes
MDA0450S06H10DC (mm): 4.5 | LU (mm): 57.1 | LCF (mm): 63.8 | OAL (mm): 121.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDA0460S06H03DC (mm): 4.6 | L/D: 3 | LU (mm): 20.7 | LCF (mm): 27.6 | OAL (mm): 80.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Yes
MDA0460S06H05DC (mm): 4.6 | L/D: 5 | LU (mm): 37.7 | LCF (mm): 44.6 | OAL (mm): 98.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Yes
MDA0460S06H10DC (mm): 4.6 | L/D: 10 | LU (mm): 61.9 | LCF (mm): 68.8 | OAL (mm): 121.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Made to order
MDA0470S06H03DC (mm): 4.7 | L/D: 3 | LU (mm): 20.6 | LCF (mm): 27.6 | OAL (mm): 80.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Made to order
MDA0470S06H05DC (mm): 4.7 | L/D: 5 | LU (mm): 37.6 | LCF (mm): 44.6 | OAL (mm): 98.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Yes
MDA0470S06H10DC (mm): 4.7 | L/D: 10 | LU (mm): 61.8 | LCF (mm): 68.9 | OAL (mm): 121.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Made to order
MDA0480S06H03DC (mm): 4.8 | L/D: 3 | LU (mm): 20.4 | LCF (mm): 27.6 | OAL (mm): 80.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Made to order
MDA0480S06H05DC (mm): 4.8 | L/D: 5 | LU (mm): 37.4 | LCF (mm): 44.6 | OAL (mm): 98.6 | PL (mm): 0.6 | DCON (mm): 6.0 | Stock: Yes
MDA0480S06H10DC (mm): 4.8 | L/D: 10 | LU (mm): 61.7 | LCF (mm): 68.9 | OAL (mm): 121.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDA0490S06H03DC (mm): 4.9 | L/D: 3 | LU (mm): 20.5 | LCF (mm): 27.7 | OAL (mm): 80.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Made to order
MDA0490S06H05DC (mm): 4.9 | L/D: 5 | LU (mm): 37.5 | LCF (mm): 44.7 | OAL (mm): 98.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Yes
MDA0490S06H10DC (mm): 4.9 | L/D: 10 | LU (mm): 61.7 | LCF (mm): 68.9 | OAL (mm): 121.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDA0500S06H03DC (mm): 5.0 | L/D: 3 | LU (mm): 20.2 | LCF (mm): 27.7 | OAL (mm): 80.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Yes
MDA0500S06H05DC (mm): 5.0 | L/D: 5 | LU (mm): 37.2 | LCF (mm): 44.7 | OAL (mm): 98.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Yes
MDA0500S06H10DC (mm): 5.0 | L/D: 10 | LU (mm): 61.4 | LCF (mm): 68.9 | OAL (mm): 121.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDA0510S06H03DC (mm): 5.1 | L/D: 3 | LU (mm): 20.5 | LCF (mm): 28.2 | OAL (mm): 82.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Made to order
MDA0510S06H05DC (mm): 5.1 | L/D: 5 | LU (mm): 37.0 | LCF (mm): 44.7 | OAL (mm): 100.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Yes
MDA0510S06H10DC (mm): 5.1 | L/D: 10 | LU (mm): 70.3 | LCF (mm): 77.9 | OAL (mm): 136.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDA0520S06H03DC (mm): 5.2 | L/D: 3 | LU (mm): 20.4 | LCF (mm): 28.2 | OAL (mm): 82.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Yes
MDA0520S06H05DC (mm): 5.2 | L/D: 5 | LU (mm): 36.9 | LCF (mm): 44.7 | OAL (mm): 100.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Yes
MDA0520S06H10DC (mm): 5.2 | L/D: 10 | LU (mm): 70.1 | LCF (mm): 77.9 | OAL (mm): 136.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Made to order
MDA0530S06H03DC (mm): 5.3 | L/D: 3 | LU (mm): 20.3 | LCF (mm): 28.2 | OAL (mm): 82.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Yes
MDA0530S06H05DC (mm): 5.3 | L/D: 5 | LU (mm): 36.8 | LCF (mm): 44.7 | OAL (mm): 100.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Yes
MDA0530S06H10DC (mm): 5.3 | L/D: 10 | LU (mm): 70.0 | LCF (mm): 78.0 | OAL (mm): 137.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Made to order
MDA0540S06H03DC (mm): 5.4 | L/D: 3 | LU (mm): 20.1 | LCF (mm): 28.2 | OAL (mm): 82.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Made to order
MDA0540S06H05DC (mm): 5.4 | L/D: 5 | LU (mm): 36.6 | LCF (mm): 44.7 | OAL (mm): 100.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Yes
MDA0540S06H10DC (mm): 5.4 | L/D: 10 | LU (mm): 69.9 | LCF (mm): 78.0 | OAL (mm): 137.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Made to order
MDA0550S06H03DC (mm): 5.5 | L/D: 3 | LU (mm): 20.0 | LCF (mm): 28.2 | OAL (mm): 82.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Yes
MDA0550S06H05DC (mm): 5.5 | L/D: 5 | LU (mm): 36.5 | LCF (mm): 44.7 | OAL (mm): 100.7 | PL (mm): 0.7 | DCON (mm): 6.0 | Stock: Yes
MDA0550S06H10DC (mm): 5.5 | L/D: 10 | LU (mm): 69.8 | LCF (mm): 78.0 | OAL (mm): 137.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDA0560S06H03DC (mm): 5.6 | L/D: 3 | LU (mm): 22.3 | LCF (mm): 30.7 | OAL (mm): 82.7 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Made to order
MDA0560S06H05DC (mm): 5.6 | L/D: 5 | LU (mm): 40.3 | LCF (mm): 48.7 | OAL (mm): 100.7 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDA0560S06H10DC (mm): 5.6 | L/D: 10 | LU (mm): 76.6 | LCF (mm): 85.0 | OAL (mm): 137.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDA0570S06H03DC (mm): 5.7 | L/D: 3 | LU (mm): 22.2 | LCF (mm): 30.8 | OAL (mm): 82.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Made to order
MDA0570S06H05DC (mm): 5.7 | L/D: 5 | LU (mm): 40.2 | LCF (mm): 48.8 | OAL (mm): 100.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDA0570S06H10DC (mm): 5.7 | L/D: 10 | LU (mm): 76.5 | LCF (mm): 85.0 | OAL (mm): 137.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Made to order
MDA0580S06H03DC (mm): 5.8 | L/D: 3 | LU (mm): 22.1 | LCF (mm): 30.8 | OAL (mm): 82.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Made to order
MDA0580S06H05DC (mm): 5.8 | L/D: 5 | LU (mm): 40.1 | LCF (mm): 48.8 | OAL (mm): 100.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDA0580S06H10DC (mm): 5.8 | L/D: 10 | LU (mm): 76.4 | LCF (mm): 85.1 | OAL (mm): 137.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDA0590S06H03DC (mm): 5.9 | L/D: 3 | LU (mm): 21.9 | LCF (mm): 30.8 | OAL (mm): 82.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDA0590S06H05DC (mm): 5.9 | L/D: 5 | LU (mm): 39.9 | LCF (mm): 48.8 | OAL (mm): 100.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDA0590S06H10DC (mm): 5.9 | L/D: 10 | LU (mm): 76.2 | LCF (mm): 85.1 | OAL (mm): 137.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDA0600S06H03DC (mm): 6.0 | L/D: 3 | LU (mm): 21.8 | LCF (mm): 30.8 | OAL (mm): 82.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDA0600S06H05DC (mm): 6.0 | L/D: 5 | LU (mm): 39.8 | LCF (mm): 48.8 | OAL (mm): 100.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDA0600S06H10DC (mm): 6.0 | L/D: 10 | LU (mm): 76.1 | LCF (mm): 85.1 | OAL (mm): 137.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDA0610S08H03DC (mm): 6.1 | LU (mm): 24.2 | LCF (mm): 33.3 | OAL (mm): 88.8 | PL (mm): 0.8 | DCON (mm): 8.0 | Stock: Made to order
MDA0610S08H05DC (mm): 6.1 | LU (mm): 43.7 | LCF (mm): 52.8 | OAL (mm): 109.8 | PL (mm): 0.8 | DCON (mm): 8.0 | Stock: Yes
MDA0610S08H10DC (mm): 6.1 | LU (mm): 83.0 | LCF (mm): 92.1 | OAL (mm): 152.1 | PL (mm): 1.1 | DCON (mm): 8.0 | Stock: Yes
MDA0620S08H03DC (mm): 6.2 | LU (mm): 24.0 | LCF (mm): 33.3 | OAL (mm): 88.8 | PL (mm): 0.8 | DCON (mm): 8.0 | Stock: Made to order
MDA0620S08H05DC (mm): 6.2 | LU (mm): 43.5 | LCF (mm): 52.8 | OAL (mm): 109.8 | PL (mm): 0.8 | DCON (mm): 8.0 | Stock: Yes
MDA0620S08H10DC (mm): 6.2 | LU (mm): 82.8 | LCF (mm): 92.1 | OAL (mm): 152.1 | PL (mm): 1.1 | DCON (mm): 8.0 | Stock: Made to order
MDA0630S08H03DC (mm): 6.3 | LU (mm): 23.9 | LCF (mm): 33.3 | OAL (mm): 88.8 | PL (mm): 0.8 | DCON (mm): 8.0 | Stock: Made to order
MDA0630S08H05DC (mm): 6.3 | LU (mm): 43.4 | LCF (mm): 52.8 | OAL (mm): 109.8 | PL (mm): 0.8 | DCON (mm): 8.0 | Stock: Yes
MDA0630S08H10DC (mm): 6.3 | LU (mm): 82.7 | LCF (mm): 92.1 | OAL (mm): 152.1 | PL (mm): 1.1 | DCON (mm): 8.0 | Stock: Made to order
MDA0640S08H03DC (mm): 6.4 | LU (mm): 23.8 | LCF (mm): 33.4 | OAL (mm): 88.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Made to order
MDA0640S08H05DC (mm): 6.4 | LU (mm): 43.3 | LCF (mm): 52.9 | OAL (mm): 109.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Yes
MDA0640S08H10DC (mm): 6.4 | LU (mm): 82.6 | LCF (mm): 92.2 | OAL (mm): 152.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Made to order
MDA0650S08H03DC (mm): 6.5 | LU (mm): 23.6 | LCF (mm): 33.4 | OAL (mm): 88.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Yes
MDA0650S08H05DC (mm): 6.5 | LU (mm): 43.1 | LCF (mm): 52.9 | OAL (mm): 109.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Yes
MDA0650S08H10DC (mm): 6.5 | LU (mm): 82.4 | LCF (mm): 92.2 | OAL (mm): 152.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDA0660S08H03DC (mm): 6.6 | LU (mm): 24.0 | LCF (mm): 33.9 | OAL (mm): 88.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Made to order
MDA0660S08H05DC (mm): 6.6 | LU (mm): 45.0 | LCF (mm): 54.9 | OAL (mm): 109.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Yes
MDA0660S08H10DC (mm): 6.6 | LU (mm): 87.3 | LCF (mm): 97.2 | OAL (mm): 152.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Made to order
MDA0670S08H03DC (mm): 6.7 | LU (mm): 24.0 | LCF (mm): 33.9 | OAL (mm): 88.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Yes
MDA0670S08H05DC (mm): 6.7 | LU (mm): 45.0 | LCF (mm): 54.9 | OAL (mm): 109.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Yes
MDA0670S08H10DC (mm): 6.7 | LU (mm): 87.3 | LCF (mm): 97.2 | OAL (mm): 152.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Made to order
MDA0680S08H03DC (mm): 6.8 | LU (mm): 23.7 | LCF (mm): 33.9 | OAL (mm): 88.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Yes
MDA0680S08H05DC (mm): 6.8 | LU (mm): 44.7 | LCF (mm): 54.9 | OAL (mm): 109.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Yes
MDA0680S08H10DC (mm): 6.8 | LU (mm): 87.0 | LCF (mm): 97.2 | OAL (mm): 152.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDA0690S08H03DC (mm): 6.9 | LU (mm): 23.6 | LCF (mm): 33.9 | OAL (mm): 88.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Made to order
MDA0690S08H05DC (mm): 6.9 | LU (mm): 44.6 | LCF (mm): 54.9 | OAL (mm): 109.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Made to order
MDA0690S08H10DC (mm): 6.9 | LU (mm): 86.9 | LCF (mm): 97.3 | OAL (mm): 152.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDA0700S08H03DC (mm): 7.0 | LU (mm): 23.4 | LCF (mm): 33.9 | OAL (mm): 88.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Yes
MDA0700S08H05DC (mm): 7.0 | LU (mm): 44.4 | LCF (mm): 54.9 | OAL (mm): 109.9 | PL (mm): 0.9 | DCON (mm): 8.0 | Stock: Yes
MDA0700S08H10DC (mm): 7.0 | LU (mm): 86.8 | LCF (mm): 97.3 | OAL (mm): 152.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDA0710S08H03DC (mm): 7.1 | LU (mm): 27.8 | LCF (mm): 38.4 | OAL (mm): 94.9 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Made to order
MDA0710S08H05DC (mm): 7.1 | LU (mm): 50.3 | LCF (mm): 60.9 | OAL (mm): 118.9 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0710S08H10DC (mm): 7.1 | LU (mm): 95.6 | LCF (mm): 106.3 | OAL (mm): 167.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDA0720S08H03DC (mm): 7.2 | LU (mm): 27.7 | LCF (mm): 38.5 | OAL (mm): 95.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Made to order
MDA0720S08H05DC (mm): 7.2 | LU (mm): 50.2 | LCF (mm): 61.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0720S08H10DC (mm): 7.2 | LU (mm): 95.5 | LCF (mm): 106.3 | OAL (mm): 167.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDA0730S08H03DC (mm): 7.3 | LU (mm): 27.5 | LCF (mm): 38.5 | OAL (mm): 95.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Made to order
MDA0730S08H05DC (mm): 7.3 | LU (mm): 50.0 | LCF (mm): 61.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0730S08H10DC (mm): 7.3 | LU (mm): 95.4 | LCF (mm): 106.3 | OAL (mm): 167.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDA0735S08H03DC (mm): 7.35 | LU (mm): 27.4 | LCF (mm): 38.5 | OAL (mm): 95.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0735S08H05DC (mm): 7.35 | LU (mm): 49.9 | LCF (mm): 61.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0740S08H03DC (mm): 7.4 | LU (mm): 27.4 | LCF (mm): 38.5 | OAL (mm): 95.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0740S08H05DC (mm): 7.4 | LU (mm): 49.9 | LCF (mm): 61.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0740S08H10DC (mm): 7.4 | LU (mm): 95.2 | LCF (mm): 106.3 | OAL (mm): 167.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDA0750S08H03DC (mm): 7.5 | LU (mm): 27.3 | LCF (mm): 38.5 | OAL (mm): 95.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0750S08H05DC (mm): 7.5 | LU (mm): 49.8 | LCF (mm): 61.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0750S08H10DC (mm): 7.5 | LU (mm): 95.1 | LCF (mm): 106.4 | OAL (mm): 167.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDA0760S08H03DC (mm): 7.6 | L/D: 3 | LU (mm): 29.6 | LCF (mm): 41.0 | OAL (mm): 95.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Made to order
MDA0760S08H05DC (mm): 7.6 | L/D: 5 | LU (mm): 53.6 | LCF (mm): 65.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0760S08H10DC (mm): 7.6 | L/D: 10 | LU (mm): 102.0 | LCF (mm): 113.4 | OAL (mm): 167.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Made to order
MDA0770S08H03DC (mm): 7.7 | L/D: 3 | LU (mm): 29.5 | LCF (mm): 41.0 | OAL (mm): 95.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Made to order
MDA0770S08H05DC (mm): 7.7 | L/D: 5 | LU (mm): 53.5 | LCF (mm): 65.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0770S08H10DC (mm): 7.7 | L/D: 10 | LU (mm): 101.9 | LCF (mm): 113.4 | OAL (mm): 167.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Made to order
MDA0780S08H03DC (mm): 7.8 | L/D: 3 | LU (mm): 29.3 | LCF (mm): 41.0 | OAL (mm): 95.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0780S08H05DC (mm): 7.8 | L/D: 5 | LU (mm): 53.3 | LCF (mm): 65.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 8.0 | Stock: Yes
MDA0780S08H10DC (mm): 7.8 | L/D: 10 | LU (mm): 101.7 | LCF (mm): 113.4 | OAL (mm): 167.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDA0790S08H03DC (mm): 7.9 | L/D: 3 | LU (mm): 29.2 | LCF (mm): 41.1 | OAL (mm): 95.1 | PL (mm): 1.1 | DCON (mm): 8.0 | Stock: Made to order
MDA0790S08H05DC (mm): 7.9 | L/D: 5 | LU (mm): 53.2 | LCF (mm): 65.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 8.0 | Stock: Yes
MDA0790S08H10DC (mm): 7.9 | L/D: 10 | LU (mm): 101.6 | LCF (mm): 113.4 | OAL (mm): 167.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Made to order
MDA0800S08H03DC (mm): 8.0 | L/D: 3 | LU (mm): 29.1 | LCF (mm): 41.1 | OAL (mm): 95.1 | PL (mm): 1.1 | DCON (mm): 8.0 | Stock: Yes
MDA0800S08H05DC (mm): 8.0 | L/D: 5 | LU (mm): 53.1 | LCF (mm): 65.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 8.0 | Stock: Yes
MDA0800S08H10DC (mm): 8.0 | L/D: 10 | LU (mm): 101.5 | LCF (mm): 113.5 | OAL (mm): 167.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDA0810S10H03DC (mm): 8.1 | L/D: 3 | LU (mm): 31.4 | LCF (mm): 43.6 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 10.0 | Stock: Made to order
MDA0810S10H05DC (mm): 8.1 | L/D: 5 | LU (mm): 56.9 | LCF (mm): 69.1 | OAL (mm): 128.1 | PL (mm): 1.1 | DCON (mm): 10.0 | Stock: Yes
MDA0810S10H10DC (mm): 8.1 | L/D: 10 | LU (mm): 108.3 | LCF (mm): 120.5 | OAL (mm): 182.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDA0820S10H03DC (mm): 8.2 | L/D: 3 | LU (mm): 31.3 | LCF (mm): 43.6 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 10.0 | Stock: Made to order
MDA0820S10H05DC (mm): 8.2 | L/D: 5 | LU (mm): 56.8 | LCF (mm): 69.1 | OAL (mm): 128.1 | PL (mm): 1.1 | DCON (mm): 10.0 | Stock: Yes
MDA0820S10H10DC (mm): 8.2 | L/D: 10 | LU (mm): 108.2 | LCF (mm): 120.5 | OAL (mm): 182.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDA0830S10H03DC (mm): 8.3 | L/D: 3 | LU (mm): 31.2 | LCF (mm): 43.6 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 10.0 | Stock: Made to order
MDA0830S10H05DC (mm): 8.3 | L/D: 5 | LU (mm): 56.7 | LCF (mm): 69.1 | OAL (mm): 128.1 | PL (mm): 1.1 | DCON (mm): 10.0 | Stock: Yes
MDA0830S10H10DC (mm): 8.3 | L/D: 10 | LU (mm): 108.1 | LCF (mm): 120.5 | OAL (mm): 182.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Made to order
MDA0840S10H03DC (mm): 8.4 | L/D: 3 | LU (mm): 31.0 | LCF (mm): 43.6 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 10.0 | Stock: Made to order
MDA0840S10H05DC (mm): 8.4 | L/D: 5 | LU (mm): 56.5 | LCF (mm): 69.1 | OAL (mm): 128.1 | PL (mm): 1.1 | DCON (mm): 10.0 | Stock: Yes
MDA0840S10H10DC (mm): 8.4 | L/D: 10 | LU (mm): 107.9 | LCF (mm): 120.5 | OAL (mm): 182.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Made to order
MDA0850S10H03DC (mm): 8.5 | L/D: 3 | LU (mm): 31.0 | LCF (mm): 43.6 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 10.0 | Stock: Yes
MDA0850S10H05DC (mm): 8.5 | L/D: 5 | LU (mm): 56.5 | LCF (mm): 69.1 | OAL (mm): 128.1 | PL (mm): 1.1 | DCON (mm): 10.0 | Stock: Yes
MDA0850S10H10DC (mm): 8.5 | L/D: 10 | LU (mm): 107.9 | LCF (mm): 120.5 | OAL (mm): 182.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDA0860S10H03DC (mm): 8.6 | L/D: 3 | LU (mm): 31.2 | LCF (mm): 44.1 | OAL (mm): 101.1 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Yes
MDA0860S10H05DC (mm): 8.6 | L/D: 5 | LU (mm): 58.2 | LCF (mm): 71.1 | OAL (mm): 128.1 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Yes
MDA0860S10H10DC (mm): 8.6 | L/D: 10 | LU (mm): 112.7 | LCF (mm): 125.6 | OAL (mm): 182.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Made to order
MDA0870S10H03DC (mm): 8.7 | L/D: 3 | LU (mm): 31.1 | LCF (mm): 44.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Made to order
MDA0870S10H05DC (mm): 8.7 | L/D: 5 | LU (mm): 58.1 | LCF (mm): 71.2 | OAL (mm): 128.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Yes
MDA0870S10H10DC (mm): 8.7 | L/D: 10 | LU (mm): 112.5 | LCF (mm): 125.6 | OAL (mm): 182.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Made to order
MDA0880S10H03DC (mm): 8.8 | L/D: 3 | LU (mm): 31.0 | LCF (mm): 44.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Yes
MDA0880S10H05DC (mm): 8.8 | L/D: 5 | LU (mm): 58.0 | LCF (mm): 71.2 | OAL (mm): 128.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Yes
MDA0880S10H10DC (mm): 8.8 | L/D: 10 | LU (mm): 112.4 | LCF (mm): 125.6 | OAL (mm): 182.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Made to order
MDA0890S10H03DC (mm): 8.9 | L/D: 3 | LU (mm): 30.8 | LCF (mm): 44.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Made to order
MDA0890S10H05DC (mm): 8.9 | L/D: 5 | LU (mm): 57.8 | LCF (mm): 71.2 | OAL (mm): 128.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Yes
MDA0890S10H10DC (mm): 8.9 | L/D: 10 | LU (mm): 112.3 | LCF (mm): 125.6 | OAL (mm): 182.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Made to order
MDA0900S10H03DC (mm): 9.0 | L/D: 3 | LU (mm): 30.7 | LCF (mm): 44.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Yes
MDA0900S10H05DC (mm): 9.0 | L/D: 5 | LU (mm): 57.7 | LCF (mm): 71.2 | OAL (mm): 128.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Yes
MDA0900S10H10DC (mm): 9.0 | L/D: 10 | LU (mm): 112.1 | LCF (mm): 125.6 | OAL (mm): 182.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDA0910S10H03DC (mm): 9.1 | LU (mm): 35.1 | LCF (mm): 48.7 | OAL (mm): 107.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Made to order
MDA0910S10H05DC (mm): 9.1 | LU (mm): 63.6 | LCF (mm): 77.2 | OAL (mm): 137.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Yes
MDA0910S10H10DC (mm): 9.1 | LU (mm): 121.0 | LCF (mm): 134.7 | OAL (mm): 197.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Made to order
MDA0920S10H03DC (mm): 9.2 | LU (mm): 34.9 | LCF (mm): 48.7 | OAL (mm): 107.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Made to order
MDA0920S10H05DC (mm): 9.2 | LU (mm): 63.4 | LCF (mm): 77.2 | OAL (mm): 137.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Yes
MDA0920S10H10DC (mm): 9.2 | LU (mm): 120.9 | LCF (mm): 134.7 | OAL (mm): 197.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Made to order
MDA0921S10H05DC (mm): 9.21 | LU (mm): 63.3 | LCF (mm): 77.2 | OAL (mm): 137.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Yes
MDA0930S10H03DC (mm): 9.3 | LU (mm): 34.8 | LCF (mm): 48.7 | OAL (mm): 107.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Made to order
MDA0930S10H05DC (mm): 9.3 | LU (mm): 63.3 | LCF (mm): 77.2 | OAL (mm): 137.2 | PL (mm): 1.2 | DCON (mm): 10.0 | Stock: Yes
MDA0930S10H10DC (mm): 9.3 | LU (mm): 120.7 | LCF (mm): 134.7 | OAL (mm): 197.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDA0940S10H03DC (mm): 9.4 | LU (mm): 34.7 | LCF (mm): 48.8 | OAL (mm): 107.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Yes
MDA0940S10H05DC (mm): 9.4 | LU (mm): 63.2 | LCF (mm): 77.3 | OAL (mm): 137.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Yes
MDA0940S10H10DC (mm): 9.4 | LU (mm): 120.6 | LCF (mm): 134.7 | OAL (mm): 197.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Made to order
MDA0950S10H03DC (mm): 9.5 | LU (mm): 34.5 | LCF (mm): 48.8 | OAL (mm): 107.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Yes
MDA0950S10H05DC (mm): 9.5 | LU (mm): 63.0 | LCF (mm): 77.3 | OAL (mm): 137.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Yes
MDA0950S10H10DC (mm): 9.5 | LU (mm): 120.5 | LCF (mm): 134.7 | OAL (mm): 197.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDA0960S10H03DC (mm): 9.6 | LU (mm): 36.9 | LCF (mm): 51.3 | OAL (mm): 107.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Yes
MDA0960S10H05DC (mm): 9.6 | LU (mm): 66.9 | LCF (mm): 81.3 | OAL (mm): 137.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Yes
MDA0960S10H10DC (mm): 9.6 | LU (mm): 127.3 | LCF (mm): 141.7 | OAL (mm): 197.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Made to order
MDA0970S10H03DC (mm): 9.7 | LU (mm): 36.7 | LCF (mm): 51.3 | OAL (mm): 107.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Made to order
MDA0970S10H05DC (mm): 9.7 | LU (mm): 66.7 | LCF (mm): 81.3 | OAL (mm): 137.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Made to order
MDA0970S10H10DC (mm): 9.7 | LU (mm): 127.2 | LCF (mm): 141.8 | OAL (mm): 197.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Made to order
MDA0980S10H03DC (mm): 9.8 | LU (mm): 36.6 | LCF (mm): 51.3 | OAL (mm): 107.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Made to order
MDA0980S10H05DC (mm): 9.8 | LU (mm): 66.6 | LCF (mm): 81.3 | OAL (mm): 137.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Yes
MDA0980S10H10DC (mm): 9.8 | LU (mm): 127.1 | LCF (mm): 141.8 | OAL (mm): 197.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDA0990S10H03DC (mm): 9.9 | LU (mm): 36.5 | LCF (mm): 51.3 | OAL (mm): 107.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Made to order
MDA0990S10H05DC (mm): 9.9 | LU (mm): 66.5 | LCF (mm): 81.3 | OAL (mm): 137.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Made to order
MDA0990S10H10DC (mm): 9.9 | LU (mm): 127.0 | LCF (mm): 141.8 | OAL (mm): 197.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Made to order
MDA1000S10H03DC (mm): 10.0 | LU (mm): 36.3 | LCF (mm): 51.3 | OAL (mm): 107.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Yes
MDA1000S10H05DC (mm): 10.0 | LU (mm): 66.3 | LCF (mm): 81.3 | OAL (mm): 137.3 | PL (mm): 1.3 | DCON (mm): 10.0 | Stock: Yes
MDA1000S10H10DC (mm): 10.0 | LU (mm): 126.8 | LCF (mm): 141.8 | OAL (mm): 197.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDA1010S12H03DC (mm): 10.1 | LU (mm): 38.7 | LCF (mm): 53.8 | OAL (mm): 117.3 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Yes
MDA1010S12H05DC (mm): 10.1 | LU (mm): 70.2 | LCF (mm): 85.3 | OAL (mm): 150.3 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Yes
MDA1010S12H10DC (mm): 10.1 | LU (mm): 133.7 | LCF (mm): 148.8 | OAL (mm): 216.8 | PL (mm): 1.8 | DCON (mm): 12.0 | Stock: Made to order
MDA1020S12H03DC (mm): 10.2 | LU (mm): 38.6 | LCF (mm): 53.9 | OAL (mm): 117.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Made to order
MDA1020S12H05DC (mm): 10.2 | LU (mm): 70.1 | LCF (mm): 85.4 | OAL (mm): 150.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Made to order
MDA1020S12H10DC (mm): 10.2 | LU (mm): 133.6 | LCF (mm): 148.9 | OAL (mm): 216.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Made to order
MDA1030S12H03DC (mm): 10.3 | LU (mm): 38.6 | LCF (mm): 53.9 | OAL (mm): 117.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Yes
MDA1030S12H05DC (mm): 10.3 | LU (mm): 70.1 | LCF (mm): 85.4 | OAL (mm): 150.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Yes
MDA1030S12H10DC (mm): 10.3 | LU (mm): 133.6 | LCF (mm): 148.9 | OAL (mm): 216.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Made to order
MDA1040S12H03DC (mm): 10.4 | LU (mm): 38.3 | LCF (mm): 53.9 | OAL (mm): 117.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Yes
MDA1040S12H05DC (mm): 10.4 | LU (mm): 69.8 | LCF (mm): 85.4 | OAL (mm): 150.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Yes
MDA1040S12H10DC (mm): 10.4 | LU (mm): 133.3 | LCF (mm): 148.9 | OAL (mm): 216.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Made to order
MDA1050S12H03DC (mm): 10.5 | LU (mm): 38.2 | LCF (mm): 53.9 | OAL (mm): 117.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Yes
MDA1050S12H05DC (mm): 10.5 | LU (mm): 69.7 | LCF (mm): 85.4 | OAL (mm): 150.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Yes
MDA1050S12H10DC (mm): 10.5 | LU (mm): 133.2 | LCF (mm): 148.9 | OAL (mm): 216.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDA1060S12H03DC (mm): 10.6 | L/D: 3 | LU (mm): 38.5 | LCF (mm): 54.4 | OAL (mm): 117.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Yes
MDA1060S12H05DC (mm): 10.6 | L/D: 5 | LU (mm): 71.5 | LCF (mm): 87.4 | OAL (mm): 150.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Yes
MDA1060S12H10DC (mm): 10.6 | L/D: 10 | LU (mm): 138.0 | LCF (mm): 153.9 | OAL (mm): 216.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Made to order
MDA1070S12H03DC (mm): 10.7 | L/D: 3 | LU (mm): 38.4 | LCF (mm): 54.4 | OAL (mm): 117.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Made to order
MDA1070S12H05DC (mm): 10.7 | L/D: 5 | LU (mm): 71.4 | LCF (mm): 87.4 | OAL (mm): 150.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Made to order
MDA1070S12H10DC (mm): 10.7 | L/D: 10 | LU (mm): 137.9 | LCF (mm): 153.9 | OAL (mm): 216.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Made to order
MDA1080S12H03DC (mm): 10.8 | L/D: 3 | LU (mm): 38.2 | LCF (mm): 54.4 | OAL (mm): 117.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Made to order
MDA1080S12H05DC (mm): 10.8 | L/D: 5 | LU (mm): 71.2 | LCF (mm): 87.4 | OAL (mm): 150.4 | PL (mm): 1.4 | DCON (mm): 12.0 | Stock: Yes
MDA1080S12H10DC (mm): 10.8 | L/D: 10 | LU (mm): 137.8 | LCF (mm): 154.0 | OAL (mm): 217.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDA1090S12H03DC (mm): 10.9 | L/D: 3 | LU (mm): 38.1 | LCF (mm): 54.5 | OAL (mm): 117.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Made to order
MDA1090S12H05DC (mm): 10.9 | L/D: 5 | LU (mm): 71.1 | LCF (mm): 87.5 | OAL (mm): 150.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Made to order
MDA1090S12H10DC (mm): 10.9 | L/D: 10 | LU (mm): 137.6 | LCF (mm): 154.0 | OAL (mm): 217.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Made to order
MDA1100S12H03DC (mm): 11.0 | L/D: 3 | LU (mm): 38.0 | LCF (mm): 54.5 | OAL (mm): 117.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Yes
MDA1100S12H05DC (mm): 11.0 | L/D: 5 | LU (mm): 71.0 | LCF (mm): 87.5 | OAL (mm): 150.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Yes
MDA1100S12H10DC (mm): 11.0 | L/D: 10 | LU (mm): 137.5 | LCF (mm): 154.0 | OAL (mm): 217.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDA1110S12H03DC (mm): 11.1 | L/D: 3 | LU (mm): 42.3 | LCF (mm): 59.0 | OAL (mm): 123.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Yes
MDA1110S12H05DC (mm): 11.1 | L/D: 5 | LU (mm): 76.8 | LCF (mm): 93.5 | OAL (mm): 159.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Yes
MDA1110S12H10DC (mm): 11.1 | L/D: 10 | LU (mm): 146.4 | LCF (mm): 163.0 | OAL (mm): 232.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Made to order
MDA1120S12H03DC (mm): 11.2 | L/D: 3 | LU (mm): 42.2 | LCF (mm): 59.0 | OAL (mm): 123.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Made to order
MDA1120S12H05DC (mm): 11.2 | L/D: 5 | LU (mm): 76.7 | LCF (mm): 93.5 | OAL (mm): 159.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Yes
MDA1120S12H10DC (mm): 11.2 | L/D: 10 | LU (mm): 146.2 | LCF (mm): 163.0 | OAL (mm): 232.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Made to order
MDA1130S12H03DC (mm): 11.3 | L/D: 3 | LU (mm): 42.1 | LCF (mm): 59.0 | OAL (mm): 123.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Made to order
MDA1130S12H05DC (mm): 11.3 | L/D: 5 | LU (mm): 76.6 | LCF (mm): 93.5 | OAL (mm): 159.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Made to order
MDA1130S12H10DC (mm): 11.3 | L/D: 10 | LU (mm): 146.1 | LCF (mm): 163.1 | OAL (mm): 232.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Made to order
MDA1140S12H03DC (mm): 11.4 | L/D: 3 | LU (mm): 41.9 | LCF (mm): 59.0 | OAL (mm): 123.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Made to order
MDA1140S12H05DC (mm): 11.4 | L/D: 5 | LU (mm): 76.4 | LCF (mm): 93.5 | OAL (mm): 159.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Yes
MDA1140S12H10DC (mm): 11.4 | L/D: 10 | LU (mm): 146.0 | LCF (mm): 163.1 | OAL (mm): 232.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Made to order
MDA1150S12H03DC (mm): 11.5 | L/D: 3 | LU (mm): 41.8 | LCF (mm): 59.0 | OAL (mm): 123.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Yes
MDA1150S12H05DC (mm): 11.5 | L/D: 5 | LU (mm): 76.3 | LCF (mm): 93.5 | OAL (mm): 159.5 | PL (mm): 1.5 | DCON (mm): 12.0 | Stock: Yes
MDA1150S12H10DC (mm): 11.5 | L/D: 10 | LU (mm): 145.8 | LCF (mm): 163.1 | OAL (mm): 232.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDA1160S12H03DC (mm): 11.6 | L/D: 3 | LU (mm): 44.1 | LCF (mm): 61.5 | OAL (mm): 123.5 | PL (mm): 1.6 | DCON (mm): 12.0 | Stock: Made to order
MDA1160S12H05DC (mm): 11.6 | L/D: 5 | LU (mm): 80.1 | LCF (mm): 97.5 | OAL (mm): 159.5 | PL (mm): 1.6 | DCON (mm): 12.0 | Stock: Made to order
MDA1160S12H10DC (mm): 11.6 | L/D: 10 | LU (mm): 152.7 | LCF (mm): 170.1 | OAL (mm): 232.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Made to order
MDA1170S12H03DC (mm): 11.7 | L/D: 3 | LU (mm): 44.0 | LCF (mm): 61.6 | OAL (mm): 123.6 | PL (mm): 1.6 | DCON (mm): 12.0 | Stock: Made to order
MDA1170S12H05DC (mm): 11.7 | L/D: 5 | LU (mm): 80.0 | LCF (mm): 97.6 | OAL (mm): 159.6 | PL (mm): 1.6 | DCON (mm): 12.0 | Stock: Made to order
MDA1170S12H10DC (mm): 11.7 | L/D: 10 | LU (mm): 152.6 | LCF (mm): 170.1 | OAL (mm): 232.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Made to order
MDA1180S12H03DC (mm): 11.8 | L/D: 3 | LU (mm): 43.9 | LCF (mm): 61.6 | OAL (mm): 123.6 | PL (mm): 1.6 | DCON (mm): 12.0 | Stock: Made to order
MDA1180S12H05DC (mm): 11.8 | L/D: 5 | LU (mm): 79.9 | LCF (mm): 97.6 | OAL (mm): 159.6 | PL (mm): 1.6 | DCON (mm): 12.0 | Stock: Yes
MDA1180S12H10DC (mm): 11.8 | L/D: 10 | LU (mm): 152.4 | LCF (mm): 170.1 | OAL (mm): 232.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Made to order
MDA1190S12H03DC (mm): 11.9 | L/D: 3 | LU (mm): 43.7 | LCF (mm): 61.6 | OAL (mm): 123.6 | PL (mm): 1.6 | DCON (mm): 12.0 | Stock: Made to order
MDA1190S12H05DC (mm): 11.9 | L/D: 5 | LU (mm): 79.7 | LCF (mm): 97.6 | OAL (mm): 159.6 | PL (mm): 1.6 | DCON (mm): 12.0 | Stock: Made to order
MDA1190S12H10DC (mm): 11.9 | L/D: 10 | LU (mm): 152.3 | LCF (mm): 170.2 | OAL (mm): 232.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Made to order
MDA1200S12H03DC (mm): 12.0 | L/D: 3 | LU (mm): 43.6 | LCF (mm): 61.6 | OAL (mm): 123.6 | PL (mm): 1.6 | DCON (mm): 12.0 | Stock: Yes
MDA1200S12H05DC (mm): 12.0 | L/D: 5 | LU (mm): 79.6 | LCF (mm): 97.6 | OAL (mm): 159.6 | PL (mm): 1.6 | DCON (mm): 12.0 | Stock: Yes
MDA1200S12H10DC (mm): 12.0 | L/D: 10 | LU (mm): 152.2 | LCF (mm): 170.2 | OAL (mm): 232.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
