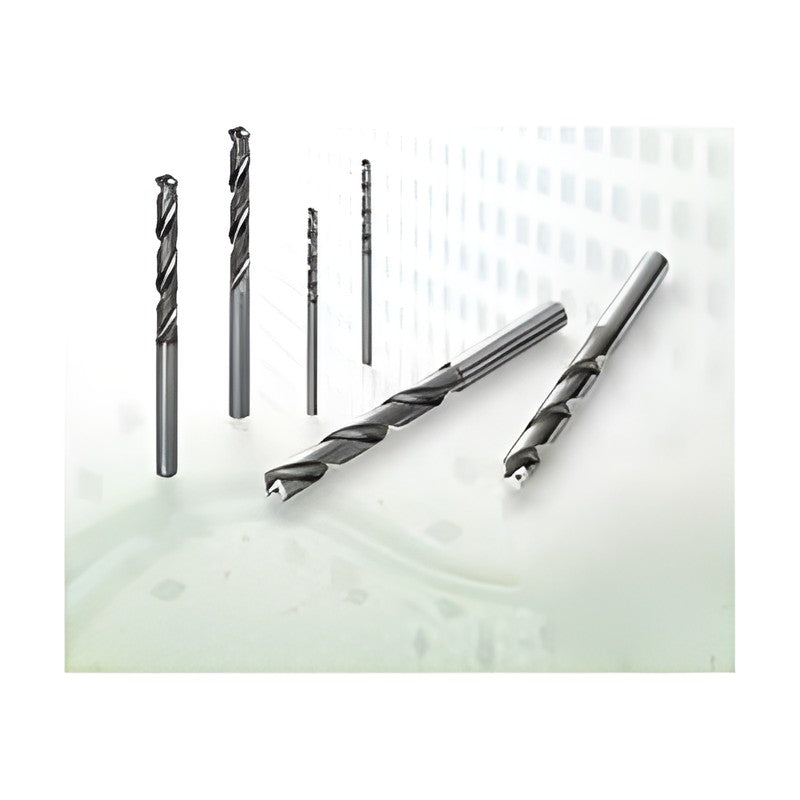

Sumitomo Electric Hardmetal Multi Drill MDH Type (Internal Coolant)

Sumitomo Electric Hardmetal Multi Drill MDH Type (Internal Coolant)

High-efficiency solid carbide drill with RP thinning and HF coating (ACH70) for stable high-feed drilling of steel.

Key features

  • RP thinning minimizes cutting resistance
  • ACH70 HF coating (TiAlCrSi multilayer) for wear and heat resistance
  • Wide chip pocket
  • Hole depth 3D, 5D and 8D

Specifications

Coolant Internal
Point angle 140 deg
Grade ACH70
MDH0300S04H03 DC (mm): 3.0 | L/D: 3 | LU (mm): 16.1 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0300S04H05 DC (mm): 3.0 | L/D: 5 | LU (mm): 28.1 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0300S04H08 DC (mm): 3.0 | L/D: 8 | LU (mm): 31.1 | LCF (mm): 35.6 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0310S04H03 DC (mm): 3.1 | L/D: 3 | LU (mm): 16.0 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0310S04H05 DC (mm): 3.1 | L/D: 5 | LU (mm): 28.0 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0310S04H08 DC (mm): 3.1 | L/D: 8 | LU (mm): 31.0 | LCF (mm): 35.6 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0320S04H03 DC (mm): 3.2 | L/D: 3 | LU (mm): 15.8 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0320S04H05 DC (mm): 3.2 | L/D: 5 | LU (mm): 27.8 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0320S04H08 DC (mm): 3.2 | L/D: 8 | LU (mm): 30.8 | LCF (mm): 35.6 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0330S04H03 DC (mm): 3.3 | L/D: 3 | LU (mm): 15.7 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0330S04H05 DC (mm): 3.3 | L/D: 5 | LU (mm): 27.7 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0330S04H08 DC (mm): 3.3 | L/D: 8 | LU (mm): 30.7 | LCF (mm): 35.6 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0340S04H03 DC (mm): 3.4 | L/D: 3 | LU (mm): 15.5 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0340S04H05 DC (mm): 3.4 | L/D: 5 | LU (mm): 27.5 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0340S04H08 DC (mm): 3.4 | L/D: 8 | LU (mm): 30.5 | LCF (mm): 35.6 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0350S04H03 DC (mm): 3.5 | L/D: 3 | LU (mm): 15.4 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0350S04H05 DC (mm): 3.5 | L/D: 5 | LU (mm): 27.4 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0350S04H08 DC (mm): 3.5 | L/D: 8 | LU (mm): 30.4 | LCF (mm): 35.6 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0360S04H03 DC (mm): 3.6 | L/D: 3 | LU (mm): 17.8 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0360S04H05 DC (mm): 3.6 | L/D: 5 | LU (mm): 31.3 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0360S04H08 DC (mm): 3.6 | L/D: 8 | LU (mm): 37.3 | LCF (mm): 42.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0370S04H03 DC (mm): 3.7 | L/D: 3 | LU (mm): 17.7 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0370S04H05 DC (mm): 3.7 | L/D: 5 | LU (mm): 31.2 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0370S04H08 DC (mm): 3.7 | L/D: 8 | LU (mm): 37.2 | LCF (mm): 42.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0380S04H03 DC (mm): 3.8 | L/D: 3 | LU (mm): 17.5 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0380S04H05 DC (mm): 3.8 | L/D: 5 | LU (mm): 31.0 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0380S04H08 DC (mm): 3.8 | L/D: 8 | LU (mm): 37.0 | LCF (mm): 42.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0390S04H03 DC (mm): 3.9 | L/D: 3 | LU (mm): 17.4 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0390S04H05 DC (mm): 3.9 | L/D: 5 | LU (mm): 30.9 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0390S04H08 DC (mm): 3.9 | L/D: 8 | LU (mm): 36.9 | LCF (mm): 42.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0400S04H03 DC (mm): 4.0 | L/D: 3 | LU (mm): 17.2 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0400S04H05 DC (mm): 4.0 | L/D: 5 | LU (mm): 30.7 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0400S04H08 DC (mm): 4.0 | L/D: 8 | LU (mm): 36.7 | LCF (mm): 42.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0410S06H03 DC (mm): 4.1 | L/D: 3 | LU (mm): 19.7 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0410S06H05 DC (mm): 4.1 | L/D: 5 | LU (mm): 34.7 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0410S06H08 DC (mm): 4.1 | L/D: 8 | LU (mm): 41.7 | LCF (mm): 47.8 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0420S06H03 DC (mm): 4.2 | L/D: 3 | LU (mm): 19.5 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0420S06H05 DC (mm): 4.2 | L/D: 5 | LU (mm): 34.5 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0420S06H08 DC (mm): 4.2 | L/D: 8 | LU (mm): 41.5 | LCF (mm): 47.8 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0430S06H03 DC (mm): 4.3 | L/D: 3 | LU (mm): 19.4 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0430S06H05 DC (mm): 4.3 | L/D: 5 | LU (mm): 34.4 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0430S06H08 DC (mm): 4.3 | L/D: 8 | LU (mm): 41.4 | LCF (mm): 47.8 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0440S06H03 DC (mm): 4.4 | L/D: 3 | LU (mm): 19.2 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0440S06H05 DC (mm): 4.4 | L/D: 5 | LU (mm): 34.2 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0440S06H08 DC (mm): 4.4 | L/D: 8 | LU (mm): 41.2 | LCF (mm): 47.8 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0450S06H03 DC (mm): 4.5 | L/D: 3 | LU (mm): 19.1 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0450S06H05 DC (mm): 4.5 | L/D: 5 | LU (mm): 34.1 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0450S06H08 DC (mm): 4.5 | L/D: 8 | LU (mm): 41.1 | LCF (mm): 47.8 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0460S06H03 DC (mm): 4.6 | L/D: 3 | LU (mm): 21.0 | LCF (mm): 27.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0460S06H05 DC (mm): 4.6 | L/D: 5 | LU (mm): 38.0 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0460S06H08 DC (mm): 4.6 | L/D: 8 | LU (mm): 46.0 | LCF (mm): 52.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0470S06H03 DC (mm): 4.7 | L/D: 3 | LU (mm): 20.9 | LCF (mm): 27.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0470S06H05 DC (mm): 4.7 | L/D: 5 | LU (mm): 37.9 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0470S06H08 DC (mm): 4.7 | L/D: 8 | LU (mm): 45.9 | LCF (mm): 52.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0480S06H03 DC (mm): 4.8 | L/D: 3 | LU (mm): 20.7 | LCF (mm): 27.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0480S06H05 DC (mm): 4.8 | L/D: 5 | LU (mm): 37.7 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0480S06H08 DC (mm): 4.8 | L/D: 8 | LU (mm): 45.7 | LCF (mm): 52.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0490S06H03 DC (mm): 4.9 | L/D: 3 | LU (mm): 20.6 | LCF (mm): 27.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0490S06H05 DC (mm): 4.9 | L/D: 5 | LU (mm): 37.6 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0490S06H08 DC (mm): 4.9 | L/D: 8 | LU (mm): 45.6 | LCF (mm): 52.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0500S06H03 DC (mm): 5.0 | L/D: 3 | LU (mm): 20.4 | LCF (mm): 27.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0500S06H05 DC (mm): 5.0 | L/D: 5 | LU (mm): 37.4 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0500S06H08 DC (mm): 5.0 | L/D: 8 | LU (mm): 45.4 | LCF (mm): 52.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0510S06H03 DC (mm): 5.1 | L/D: 3 | LU (mm): 20.9 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0510S06H05 DC (mm): 5.1 | L/D: 5 | LU (mm): 37.4 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0510S06H08 DC (mm): 5.1 | L/D: 8 | LU (mm): 52.4 | LCF (mm): 60.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0520S06H03 DC (mm): 5.2 | L/D: 3 | LU (mm): 20.7 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0520S06H05 DC (mm): 5.2 | L/D: 5 | LU (mm): 37.2 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0520S06H08 DC (mm): 5.2 | L/D: 8 | LU (mm): 52.2 | LCF (mm): 60.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0530S06H03 DC (mm): 5.3 | L/D: 3 | LU (mm): 20.6 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0530S06H05 DC (mm): 5.3 | L/D: 5 | LU (mm): 37.1 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0530S06H08 DC (mm): 5.3 | L/D: 8 | LU (mm): 52.1 | LCF (mm): 60.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0540S06H03 DC (mm): 5.4 | L/D: 3 | LU (mm): 20.4 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0540S06H05 DC (mm): 5.4 | L/D: 5 | LU (mm): 36.9 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0540S06H08 DC (mm): 5.4 | L/D: 8 | LU (mm): 51.9 | LCF (mm): 60.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0550S06H03 DC (mm): 5.5 | L/D: 3 | LU (mm): 20.3 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0550S06H05 DC (mm): 5.5 | L/D: 5 | LU (mm): 36.8 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0550S06H08 DC (mm): 5.5 | L/D: 8 | LU (mm): 51.8 | LCF (mm): 60.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0560S06H03 DC (mm): 5.6 | L/D: 3 | LU (mm): 22.7 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0560S06H05 DC (mm): 5.6 | L/D: 5 | LU (mm): 40.7 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0560S06H08 DC (mm): 5.6 | L/D: 8 | LU (mm): 58.7 | LCF (mm): 67.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0570S06H03 DC (mm): 5.7 | L/D: 3 | LU (mm): 22.6 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0570S06H05 DC (mm): 5.7 | L/D: 5 | LU (mm): 40.6 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0570S06H08 DC (mm): 5.7 | L/D: 8 | LU (mm): 58.6 | LCF (mm): 67.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0580S06H03 DC (mm): 5.8 | L/D: 3 | LU (mm): 22.4 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0580S06H05 DC (mm): 5.8 | L/D: 5 | LU (mm): 40.4 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0580S06H08 DC (mm): 5.8 | L/D: 8 | LU (mm): 58.4 | LCF (mm): 67.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0590S06H03 DC (mm): 5.9 | L/D: 3 | LU (mm): 22.3 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0590S06H05 DC (mm): 5.9 | L/D: 5 | LU (mm): 40.3 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0590S06H08 DC (mm): 5.9 | L/D: 8 | LU (mm): 58.3 | LCF (mm): 67.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0600S06H03 DC (mm): 6.0 | L/D: 3 | LU (mm): 22.1 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0600S06H05 DC (mm): 6.0 | L/D: 5 | LU (mm): 40.1 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0600S06H08 DC (mm): 6.0 | L/D: 8 | LU (mm): 58.1 | LCF (mm): 67.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0610S08H03 DC (mm): 6.1 | L/D: 3 | LU (mm): 24.6 | LCF (mm): 33.7 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0610S08H05 DC (mm): 6.1 | L/D: 5 | LU (mm): 44.1 | LCF (mm): 53.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0610S08H08 DC (mm): 6.1 | L/D: 8 | LU (mm): 62.1 | LCF (mm): 71.2 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0620S08H03 DC (mm): 6.2 | L/D: 3 | LU (mm): 24.4 | LCF (mm): 33.7 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0620S08H05 DC (mm): 6.2 | L/D: 5 | LU (mm): 43.9 | LCF (mm): 53.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0620S08H08 DC (mm): 6.2 | L/D: 8 | LU (mm): 61.9 | LCF (mm): 71.2 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0630S08H03 DC (mm): 6.3 | L/D: 3 | LU (mm): 24.3 | LCF (mm): 33.7 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0630S08H05 DC (mm): 6.3 | L/D: 5 | LU (mm): 43.8 | LCF (mm): 53.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0630S08H08 DC (mm): 6.3 | L/D: 8 | LU (mm): 61.8 | LCF (mm): 71.2 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0640S08H03 DC (mm): 6.4 | L/D: 3 | LU (mm): 24.1 | LCF (mm): 33.7 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0640S08H05 DC (mm): 6.4 | L/D: 5 | LU (mm): 43.6 | LCF (mm): 53.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0640S08H08 DC (mm): 6.4 | L/D: 8 | LU (mm): 61.6 | LCF (mm): 71.2 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0650S08H03 DC (mm): 6.5 | L/D: 3 | LU (mm): 24.0 | LCF (mm): 33.7 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0650S08H05 DC (mm): 6.5 | L/D: 5 | LU (mm): 43.5 | LCF (mm): 53.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0650S08H08 DC (mm): 6.5 | L/D: 8 | LU (mm): 61.5 | LCF (mm): 71.2 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0660S08H03 DC (mm): 6.6 | L/D: 3 | LU (mm): 24.4 | LCF (mm): 34.3 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0660S08H05 DC (mm): 6.6 | L/D: 5 | LU (mm): 45.4 | LCF (mm): 55.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0660S08H08 DC (mm): 6.6 | L/D: 8 | LU (mm): 66.4 | LCF (mm): 76.3 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0670S08H03 DC (mm): 6.7 | L/D: 3 | LU (mm): 24.3 | LCF (mm): 34.3 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0670S08H05 DC (mm): 6.7 | L/D: 5 | LU (mm): 45.3 | LCF (mm): 55.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0670S08H08 DC (mm): 6.7 | L/D: 8 | LU (mm): 66.3 | LCF (mm): 76.3 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0680S08H03 DC (mm): 6.8 | L/D: 3 | LU (mm): 24.1 | LCF (mm): 34.3 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0680S08H05 DC (mm): 6.8 | L/D: 5 | LU (mm): 45.1 | LCF (mm): 55.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0680S08H08 DC (mm): 6.8 | L/D: 8 | LU (mm): 66.1 | LCF (mm): 76.3 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0690S08H03 DC (mm): 6.9 | L/D: 3 | LU (mm): 24.0 | LCF (mm): 34.3 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0690S08H05 DC (mm): 6.9 | L/D: 5 | LU (mm): 45.0 | LCF (mm): 55.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0690S08H08 DC (mm): 6.9 | L/D: 8 | LU (mm): 66.0 | LCF (mm): 76.3 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0700S08H03 DC (mm): 7.0 | L/D: 3 | LU (mm): 23.8 | LCF (mm): 34.3 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0700S08H05 DC (mm): 7.0 | L/D: 5 | LU (mm): 44.8 | LCF (mm): 55.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0700S08H08 DC (mm): 7.0 | L/D: 8 | LU (mm): 65.8 | LCF (mm): 76.3 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0710S08H03 DC (mm): 7.1 | L/D: 3 | LU (mm): 28.3 | LCF (mm): 38.9 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0710S08H05 DC (mm): 7.1 | L/D: 5 | LU (mm): 50.8 | LCF (mm): 61.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0710S08H08 DC (mm): 7.1 | L/D: 8 | LU (mm): 71.8 | LCF (mm): 82.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0720S08H03 DC (mm): 7.2 | L/D: 3 | LU (mm): 28.1 | LCF (mm): 38.9 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0720S08H05 DC (mm): 7.2 | L/D: 5 | LU (mm): 50.6 | LCF (mm): 61.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0720S08H08 DC (mm): 7.2 | L/D: 8 | LU (mm): 71.6 | LCF (mm): 82.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0730S08H03 DC (mm): 7.3 | L/D: 3 | LU (mm): 28.0 | LCF (mm): 38.9 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0730S08H05 DC (mm): 7.3 | L/D: 5 | LU (mm): 50.5 | LCF (mm): 61.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0730S08H08 DC (mm): 7.3 | L/D: 8 | LU (mm): 71.5 | LCF (mm): 82.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0740S08H03 DC (mm): 7.4 | L/D: 3 | LU (mm): 27.8 | LCF (mm): 38.9 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0740S08H05 DC (mm): 7.4 | L/D: 5 | LU (mm): 50.3 | LCF (mm): 61.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0740S08H08 DC (mm): 7.4 | L/D: 8 | LU (mm): 71.3 | LCF (mm): 82.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0750S08H03 DC (mm): 7.5 | L/D: 3 | LU (mm): 27.7 | LCF (mm): 38.9 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0750S08H05 DC (mm): 7.5 | L/D: 5 | LU (mm): 50.2 | LCF (mm): 61.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0750S08H08 DC (mm): 7.5 | L/D: 8 | LU (mm): 71.2 | LCF (mm): 82.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0760S08H03 DC (mm): 7.6 | L/D: 3 | LU (mm): 30.1 | LCF (mm): 41.5 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0760S08H05 DC (mm): 7.6 | L/D: 5 | LU (mm): 54.1 | LCF (mm): 65.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0760S08H08 DC (mm): 7.6 | L/D: 8 | LU (mm): 78.1 | LCF (mm): 89.5 | OAL (mm): 143.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0770S08H03 DC (mm): 7.7 | L/D: 3 | LU (mm): 30.0 | LCF (mm): 41.5 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0770S08H05 DC (mm): 7.7 | L/D: 5 | LU (mm): 54.0 | LCF (mm): 65.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0770S08H08 DC (mm): 7.7 | L/D: 8 | LU (mm): 78.0 | LCF (mm): 89.5 | OAL (mm): 143.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0780S08H03 DC (mm): 7.8 | L/D: 3 | LU (mm): 29.8 | LCF (mm): 41.5 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0780S08H05 DC (mm): 7.8 | L/D: 5 | LU (mm): 53.8 | LCF (mm): 65.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0780S08H08 DC (mm): 7.8 | L/D: 8 | LU (mm): 77.8 | LCF (mm): 89.5 | OAL (mm): 143.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0790S08H03 DC (mm): 7.9 | L/D: 3 | LU (mm): 29.7 | LCF (mm): 41.5 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0790S08H05 DC (mm): 7.9 | L/D: 5 | LU (mm): 53.7 | LCF (mm): 65.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0790S08H08 DC (mm): 7.9 | L/D: 8 | LU (mm): 77.7 | LCF (mm): 89.5 | OAL (mm): 143.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0800S08H03 DC (mm): 8.0 | L/D: 3 | LU (mm): 29.5 | LCF (mm): 41.5 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0800S08H05 DC (mm): 8.0 | L/D: 5 | LU (mm): 53.5 | LCF (mm): 65.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0800S08H08 DC (mm): 8.0 | L/D: 8 | LU (mm): 77.5 | LCF (mm): 89.5 | OAL (mm): 143.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0810S10H03 DC (mm): 8.1 | L/D: 3 | LU (mm): 31.9 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0810S10H05 DC (mm): 8.1 | L/D: 5 | LU (mm): 57.4 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0810S10H08 DC (mm): 8.1 | L/D: 8 | LU (mm): 81.4 | LCF (mm): 93.5 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0820S10H03 DC (mm): 8.2 | L/D: 3 | LU (mm): 31.7 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0820S10H05 DC (mm): 8.2 | L/D: 5 | LU (mm): 57.2 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0820S10H08 DC (mm): 8.2 | L/D: 8 | LU (mm): 81.2 | LCF (mm): 93.5 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0830S10H03 DC (mm): 8.3 | L/D: 3 | LU (mm): 31.6 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0830S10H05 DC (mm): 8.3 | L/D: 5 | LU (mm): 57.1 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0830S10H08 DC (mm): 8.3 | L/D: 8 | LU (mm): 81.1 | LCF (mm): 93.5 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0840S10H03 DC (mm): 8.4 | L/D: 3 | LU (mm): 31.4 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0840S10H05 DC (mm): 8.4 | L/D: 5 | LU (mm): 56.9 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0840S10H08 DC (mm): 8.4 | L/D: 8 | LU (mm): 80.9 | LCF (mm): 93.5 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0850S10H03 DC (mm): 8.5 | L/D: 3 | LU (mm): 31.3 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0850S10H05 DC (mm): 8.5 | L/D: 5 | LU (mm): 56.8 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0850S10H08 DC (mm): 8.5 | L/D: 8 | LU (mm): 80.8 | LCF (mm): 93.5 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0860S10H03 DC (mm): 8.6 | L/D: 3 | LU (mm): 31.7 | LCF (mm): 44.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0860S10H05 DC (mm): 8.6 | L/D: 5 | LU (mm): 58.7 | LCF (mm): 71.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0860S10H08 DC (mm): 8.6 | L/D: 8 | LU (mm): 85.7 | LCF (mm): 98.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0870S10H03 DC (mm): 8.7 | L/D: 3 | LU (mm): 31.6 | LCF (mm): 44.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0870S10H05 DC (mm): 8.7 | L/D: 5 | LU (mm): 58.6 | LCF (mm): 71.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0870S10H08 DC (mm): 8.7 | L/D: 8 | LU (mm): 85.6 | LCF (mm): 98.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0880S10H03 DC (mm): 8.8 | L/D: 3 | LU (mm): 31.4 | LCF (mm): 44.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0880S10H05 DC (mm): 8.8 | L/D: 5 | LU (mm): 58.4 | LCF (mm): 71.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0880S10H08 DC (mm): 8.8 | L/D: 8 | LU (mm): 85.4 | LCF (mm): 98.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0890S10H03 DC (mm): 8.9 | L/D: 3 | LU (mm): 31.3 | LCF (mm): 44.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0890S10H05 DC (mm): 8.9 | L/D: 5 | LU (mm): 58.3 | LCF (mm): 71.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0890S10H08 DC (mm): 8.9 | L/D: 8 | LU (mm): 85.3 | LCF (mm): 98.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0900S10H03 DC (mm): 9.0 | L/D: 3 | LU (mm): 31.1 | LCF (mm): 44.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0900S10H05 DC (mm): 9.0 | L/D: 5 | LU (mm): 58.1 | LCF (mm): 71.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0900S10H08 DC (mm): 9.0 | L/D: 8 | LU (mm): 85.1 | LCF (mm): 98.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0910S10H03 DC (mm): 9.1 | L/D: 3 | LU (mm): 35.6 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0910S10H05 DC (mm): 9.1 | L/D: 5 | LU (mm): 64.1 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0910S10H08 DC (mm): 9.1 | L/D: 8 | LU (mm): 91.1 | LCF (mm): 104.7 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0920S10H03 DC (mm): 9.2 | L/D: 3 | LU (mm): 35.4 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0920S10H05 DC (mm): 9.2 | L/D: 5 | LU (mm): 63.9 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0920S10H08 DC (mm): 9.2 | L/D: 8 | LU (mm): 90.9 | LCF (mm): 104.7 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0930S10H03 DC (mm): 9.3 | L/D: 3 | LU (mm): 35.3 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0930S10H05 DC (mm): 9.3 | L/D: 5 | LU (mm): 63.8 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0930S10H08 DC (mm): 9.3 | L/D: 8 | LU (mm): 90.8 | LCF (mm): 104.7 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0940S10H03 DC (mm): 9.4 | L/D: 3 | LU (mm): 35.1 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0940S10H05 DC (mm): 9.4 | L/D: 5 | LU (mm): 63.6 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0940S10H08 DC (mm): 9.4 | L/D: 8 | LU (mm): 90.6 | LCF (mm): 104.7 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0950S10H03 DC (mm): 9.5 | L/D: 3 | LU (mm): 35.0 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0950S10H05 DC (mm): 9.5 | L/D: 5 | LU (mm): 63.5 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0950S10H08 DC (mm): 9.5 | L/D: 8 | LU (mm): 90.5 | LCF (mm): 104.7 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0960S10H03 DC (mm): 9.6 | L/D: 3 | LU (mm): 37.4 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH0960S10H05 DC (mm): 9.6 | L/D: 5 | LU (mm): 67.4 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH0960S10H08 DC (mm): 9.6 | L/D: 8 | LU (mm): 97.4 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH0970S10H03 DC (mm): 9.7 | L/D: 3 | LU (mm): 37.3 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH0970S10H05 DC (mm): 9.7 | L/D: 5 | LU (mm): 67.3 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH0970S10H08 DC (mm): 9.7 | L/D: 8 | LU (mm): 97.3 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH0980S10H03 DC (mm): 9.8 | L/D: 3 | LU (mm): 37.1 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH0980S10H05 DC (mm): 9.8 | L/D: 5 | LU (mm): 67.1 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH0980S10H08 DC (mm): 9.8 | L/D: 8 | LU (mm): 97.1 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH0990S10H03 DC (mm): 9.9 | L/D: 3 | LU (mm): 37.0 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH0990S10H05 DC (mm): 9.9 | L/D: 5 | LU (mm): 67.0 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH0990S10H08 DC (mm): 9.9 | L/D: 8 | LU (mm): 97.0 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH1000S10H03 DC (mm): 10.0 | L/D: 3 | LU (mm): 36.8 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH1000S10H05 DC (mm): 10.0 | L/D: 5 | LU (mm): 66.8 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH1000S10H08 DC (mm): 10.0 | L/D: 8 | LU (mm): 96.8 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH1010S12H03 DC (mm): 10.1 | L/D: 3 | LU (mm): 39.3 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1010S12H05 DC (mm): 10.1 | L/D: 5 | LU (mm): 70.8 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1010S12H08 DC (mm): 10.1 | L/D: 8 | LU (mm): 100.8 | LCF (mm): 115.9 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1020S12H03 DC (mm): 10.2 | L/D: 3 | LU (mm): 39.1 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1020S12H05 DC (mm): 10.2 | L/D: 5 | LU (mm): 70.6 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1020S12H08 DC (mm): 10.2 | L/D: 8 | LU (mm): 100.6 | LCF (mm): 115.9 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1030S12H03 DC (mm): 10.3 | L/D: 3 | LU (mm): 39.0 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1030S12H05 DC (mm): 10.3 | L/D: 5 | LU (mm): 70.5 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1030S12H08 DC (mm): 10.3 | L/D: 8 | LU (mm): 100.5 | LCF (mm): 115.9 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1040S12H03 DC (mm): 10.4 | L/D: 3 | LU (mm): 38.8 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1040S12H05 DC (mm): 10.4 | L/D: 5 | LU (mm): 70.3 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1040S12H08 DC (mm): 10.4 | L/D: 8 | LU (mm): 100.3 | LCF (mm): 115.9 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1050S12H03 DC (mm): 10.5 | L/D: 3 | LU (mm): 38.7 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1050S12H05 DC (mm): 10.5 | L/D: 5 | LU (mm): 70.2 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1050S12H08 DC (mm): 10.5 | L/D: 8 | LU (mm): 100.2 | LCF (mm): 115.9 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1060S12H03 DC (mm): 10.6 | L/D: 3 | LU (mm): 39.1 | LCF (mm): 55.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1060S12H05 DC (mm): 10.6 | L/D: 5 | LU (mm): 72.1 | LCF (mm): 88.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1060S12H08 DC (mm): 10.6 | L/D: 8 | LU (mm): 105.1 | LCF (mm): 121.0 | OAL (mm): 184.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1070S12H03 DC (mm): 10.7 | L/D: 3 | LU (mm): 39.0 | LCF (mm): 55.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1070S12H05 DC (mm): 10.7 | L/D: 5 | LU (mm): 72.0 | LCF (mm): 88.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1070S12H08 DC (mm): 10.7 | L/D: 8 | LU (mm): 105.0 | LCF (mm): 121.0 | OAL (mm): 184.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1080S12H03 DC (mm): 10.8 | L/D: 3 | LU (mm): 38.8 | LCF (mm): 55.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1080S12H05 DC (mm): 10.8 | L/D: 5 | LU (mm): 71.8 | LCF (mm): 88.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1080S12H08 DC (mm): 10.8 | L/D: 8 | LU (mm): 104.8 | LCF (mm): 121.0 | OAL (mm): 184.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1090S12H03 DC (mm): 10.9 | L/D: 3 | LU (mm): 38.7 | LCF (mm): 55.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1090S12H05 DC (mm): 10.9 | L/D: 5 | LU (mm): 71.7 | LCF (mm): 88.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1090S12H08 DC (mm): 10.9 | L/D: 8 | LU (mm): 104.7 | LCF (mm): 121.0 | OAL (mm): 184.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1100S12H03 DC (mm): 11.0 | L/D: 3 | LU (mm): 38.5 | LCF (mm): 55.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1100S12H05 DC (mm): 11.0 | L/D: 5 | LU (mm): 71.5 | LCF (mm): 88.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1100S12H08 DC (mm): 11.0 | L/D: 8 | LU (mm): 104.5 | LCF (mm): 121.0 | OAL (mm): 184.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1110S12H03 DC (mm): 11.1 | L/D: 3 | LU (mm): 43.0 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1110S12H05 DC (mm): 11.1 | L/D: 5 | LU (mm): 77.5 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1110S12H08 DC (mm): 11.1 | L/D: 8 | LU (mm): 110.5 | LCF (mm): 127.1 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1120S12H03 DC (mm): 11.2 | L/D: 3 | LU (mm): 42.8 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1120S12H05 DC (mm): 11.2 | L/D: 5 | LU (mm): 77.3 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1120S12H08 DC (mm): 11.2 | L/D: 8 | LU (mm): 110.3 | LCF (mm): 127.1 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1130S12H03 DC (mm): 11.3 | L/D: 3 | LU (mm): 42.7 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1130S12H05 DC (mm): 11.3 | L/D: 5 | LU (mm): 77.2 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1130S12H08 DC (mm): 11.3 | L/D: 8 | LU (mm): 110.2 | LCF (mm): 127.1 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1140S12H03 DC (mm): 11.4 | L/D: 3 | LU (mm): 42.5 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1140S12H05 DC (mm): 11.4 | L/D: 5 | LU (mm): 77.0 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1140S12H08 DC (mm): 11.4 | L/D: 8 | LU (mm): 110.0 | LCF (mm): 127.1 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1150S12H03 DC (mm): 11.5 | L/D: 3 | LU (mm): 42.4 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1150S12H05 DC (mm): 11.5 | L/D: 5 | LU (mm): 76.9 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1150S12H08 DC (mm): 11.5 | L/D: 8 | LU (mm): 109.9 | LCF (mm): 127.1 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1160S12H03 DC (mm): 11.6 | L/D: 3 | LU (mm): 44.8 | LCF (mm): 62.2 | OAL (mm): 124.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1160S12H05 DC (mm): 11.6 | L/D: 5 | LU (mm): 80.8 | LCF (mm): 98.2 | OAL (mm): 160.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1160S12H08 DC (mm): 11.6 | L/D: 8 | LU (mm): 116.8 | LCF (mm): 134.2 | OAL (mm): 196.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1170S12H03 DC (mm): 11.7 | L/D: 3 | LU (mm): 44.7 | LCF (mm): 62.2 | OAL (mm): 124.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1170S12H05 DC (mm): 11.7 | L/D: 5 | LU (mm): 80.7 | LCF (mm): 98.2 | OAL (mm): 160.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1170S12H08 DC (mm): 11.7 | L/D: 8 | LU (mm): 116.7 | LCF (mm): 134.2 | OAL (mm): 196.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1180S12H03 DC (mm): 11.8 | L/D: 3 | LU (mm): 44.5 | LCF (mm): 62.2 | OAL (mm): 124.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1180S12H05 DC (mm): 11.8 | L/D: 5 | LU (mm): 80.5 | LCF (mm): 98.2 | OAL (mm): 160.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1180S12H08 DC (mm): 11.8 | L/D: 8 | LU (mm): 116.5 | LCF (mm): 134.2 | OAL (mm): 196.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1190S12H03 DC (mm): 11.9 | L/D: 3 | LU (mm): 44.4 | LCF (mm): 62.2 | OAL (mm): 124.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1190S12H05 DC (mm): 11.9 | L/D: 5 | LU (mm): 80.4 | LCF (mm): 98.2 | OAL (mm): 160.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1190S12H08 DC (mm): 11.9 | L/D: 8 | LU (mm): 116.4 | LCF (mm): 134.2 | OAL (mm): 196.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1200S12H03 DC (mm): 12.0 | L/D: 3 | LU (mm): 44.2 | LCF (mm): 62.2 | OAL (mm): 124.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1200S12H05 DC (mm): 12.0 | L/D: 5 | LU (mm): 80.2 | LCF (mm): 98.2 | OAL (mm): 160.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1200S12H08 DC (mm): 12.0 | L/D: 8 | LU (mm): 116.2 | LCF (mm): 134.2 | OAL (mm): 196.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1210S14H03 DC (mm): 12.1 | L/D: 3 | LU (mm): 46.7 | LCF (mm): 64.8 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Yes
MDH1210S14H05 DC (mm): 12.1 | L/D: 5 | LU (mm): 84.2 | LCF (mm): 102.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Yes
MDH1210S14H08 DC (mm): 12.1 | L/D: 8 | LU (mm): 120.2 | LCF (mm): 138.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Made to order
MDH1220S14H03 DC (mm): 12.2 | L/D: 3 | LU (mm): 46.5 | LCF (mm): 64.8 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Yes
MDH1220S14H05 DC (mm): 12.2 | L/D: 5 | LU (mm): 84.0 | LCF (mm): 102.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Yes
MDH1220S14H08 DC (mm): 12.2 | L/D: 8 | LU (mm): 120.0 | LCF (mm): 138.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Made to order
MDH1230S14H03 DC (mm): 12.3 | L/D: 3 | LU (mm): 46.4 | LCF (mm): 64.8 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Yes
MDH1230S14H05 DC (mm): 12.3 | L/D: 5 | LU (mm): 83.9 | LCF (mm): 102.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Yes
MDH1230S14H08 DC (mm): 12.3 | L/D: 8 | LU (mm): 119.9 | LCF (mm): 138.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Made to order
MDH1240S14H03 DC (mm): 12.4 | L/D: 3 | LU (mm): 46.2 | LCF (mm): 64.8 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Yes
MDH1240S14H05 DC (mm): 12.4 | L/D: 5 | LU (mm): 83.7 | LCF (mm): 102.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Yes
MDH1240S14H08 DC (mm): 12.4 | L/D: 8 | LU (mm): 119.7 | LCF (mm): 138.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Made to order
MDH1250S14H03 DC (mm): 12.5 | L/D: 3 | LU (mm): 46.1 | LCF (mm): 64.8 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Yes
MDH1250S14H05 DC (mm): 12.5 | L/D: 5 | LU (mm): 83.6 | LCF (mm): 102.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Yes
MDH1250S14H08 DC (mm): 12.5 | L/D: 8 | LU (mm): 119.6 | LCF (mm): 138.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Yes
MDH1260S14H03 DC (mm): 12.6 | L/D: 3 | LU (mm): 46.5 | LCF (mm): 65.4 | OAL (mm): 130.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDH1260S14H05 DC (mm): 12.6 | L/D: 5 | LU (mm): 85.5 | LCF (mm): 104.4 | OAL (mm): 169.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDH1260S14H08 DC (mm): 12.6 | L/D: 8 | LU (mm): 124.5 | LCF (mm): 143.4 | OAL (mm): 208.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDH1270S14H03 DC (mm): 12.7 | L/D: 3 | LU (mm): 46.4 | LCF (mm): 65.4 | OAL (mm): 130.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDH1270S14H05 DC (mm): 12.7 | L/D: 5 | LU (mm): 85.4 | LCF (mm): 104.4 | OAL (mm): 169.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDH1270S14H08 DC (mm): 12.7 | L/D: 8 | LU (mm): 124.4 | LCF (mm): 143.4 | OAL (mm): 208.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDH1280S14H03 DC (mm): 12.8 | L/D: 3 | LU (mm): 46.2 | LCF (mm): 65.4 | OAL (mm): 130.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDH1280S14H05 DC (mm): 12.8 | L/D: 5 | LU (mm): 85.2 | LCF (mm): 104.4 | OAL (mm): 169.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDH1280S14H08 DC (mm): 12.8 | L/D: 8 | LU (mm): 124.2 | LCF (mm): 143.4 | OAL (mm): 208.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDH1290S14H03 DC (mm): 12.9 | L/D: 3 | LU (mm): 46.1 | LCF (mm): 65.4 | OAL (mm): 130.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDH1290S14H05 DC (mm): 12.9 | L/D: 5 | LU (mm): 85.1 | LCF (mm): 104.4 | OAL (mm): 169.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDH1290S14H08 DC (mm): 12.9 | L/D: 8 | LU (mm): 124.1 | LCF (mm): 143.4 | OAL (mm): 208.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDH1300S14H03 DC (mm): 13.0 | L/D: 3 | LU (mm): 45.9 | LCF (mm): 65.4 | OAL (mm): 130.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDH1300S14H05 DC (mm): 13.0 | L/D: 5 | LU (mm): 84.9 | LCF (mm): 104.4 | OAL (mm): 169.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDH1300S14H08 DC (mm): 13.0 | L/D: 8 | LU (mm): 123.9 | LCF (mm): 143.4 | OAL (mm): 208.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDH1310S14H03 DC (mm): 13.1 | L/D: 3 | LU (mm): 50.4 | LCF (mm): 70.0 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1310S14H05 DC (mm): 13.1 | L/D: 5 | LU (mm): 90.9 | LCF (mm): 110.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1310S14H08 DC (mm): 13.1 | L/D: 8 | LU (mm): 129.9 | LCF (mm): 149.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDH1320S14H03 DC (mm): 13.2 | L/D: 3 | LU (mm): 50.2 | LCF (mm): 70.0 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1320S14H05 DC (mm): 13.2 | L/D: 5 | LU (mm): 90.7 | LCF (mm): 110.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1320S14H08 DC (mm): 13.2 | L/D: 8 | LU (mm): 129.7 | LCF (mm): 149.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDH1330S14H03 DC (mm): 13.3 | L/D: 3 | LU (mm): 50.1 | LCF (mm): 70.0 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1330S14H05 DC (mm): 13.3 | L/D: 5 | LU (mm): 90.6 | LCF (mm): 110.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1330S14H08 DC (mm): 13.3 | L/D: 8 | LU (mm): 129.6 | LCF (mm): 149.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDH1340S14H03 DC (mm): 13.4 | L/D: 3 | LU (mm): 49.9 | LCF (mm): 70.0 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1340S14H05 DC (mm): 13.4 | L/D: 5 | LU (mm): 90.4 | LCF (mm): 110.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1340S14H08 DC (mm): 13.4 | L/D: 8 | LU (mm): 129.4 | LCF (mm): 149.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDH1350S14H03 DC (mm): 13.5 | L/D: 3 | LU (mm): 49.8 | LCF (mm): 70.0 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1350S14H05 DC (mm): 13.5 | L/D: 5 | LU (mm): 90.3 | LCF (mm): 110.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1350S14H08 DC (mm): 13.5 | L/D: 8 | LU (mm): 129.3 | LCF (mm): 149.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1360S14H03 DC (mm): 13.6 | L/D: 3 | LU (mm): 52.1 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1360S14H05 DC (mm): 13.6 | L/D: 5 | LU (mm): 94.1 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1360S14H08 DC (mm): 13.6 | L/D: 8 | LU (mm): 136.1 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDH1370S14H03 DC (mm): 13.7 | L/D: 3 | LU (mm): 52.0 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1370S14H05 DC (mm): 13.7 | L/D: 5 | LU (mm): 94.0 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1370S14H08 DC (mm): 13.7 | L/D: 8 | LU (mm): 136.0 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDH1380S14H03 DC (mm): 13.8 | L/D: 3 | LU (mm): 51.8 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1380S14H05 DC (mm): 13.8 | L/D: 5 | LU (mm): 93.8 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1380S14H08 DC (mm): 13.8 | L/D: 8 | LU (mm): 135.8 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDH1390S14H03 DC (mm): 13.9 | L/D: 3 | LU (mm): 51.7 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1390S14H05 DC (mm): 13.9 | L/D: 5 | LU (mm): 93.7 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1390S14H08 DC (mm): 13.9 | L/D: 8 | LU (mm): 135.7 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDH1400S14H03 DC (mm): 14.0 | L/D: 3 | LU (mm): 51.5 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1400S14H05 DC (mm): 14.0 | L/D: 5 | LU (mm): 93.5 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1400S14H08 DC (mm): 14.0 | L/D: 8 | LU (mm): 135.5 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
DrillsSumitomo Electric Hardmetal
333 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Multi Drill MDH Type (Internal Coolant)

Brand Sumitomo Electric Hardmetal·Drills

Available part numbers (333)

MDH0300S04H03, MDH0300S04H05, MDH0300S04H08, MDH0310S04H03, MDH0310S04H05, MDH0310S04H08, MDH0320S04H03, MDH0320S04H05, MDH0320S04H08, MDH0330S04H03 + 323 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MDH0300S04H03DC (mm): 3.0 | L/D: 3 | LU (mm): 16.1 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0300S04H05DC (mm): 3.0 | L/D: 5 | LU (mm): 28.1 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0300S04H08DC (mm): 3.0 | L/D: 8 | LU (mm): 31.1 | LCF (mm): 35.6 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0310S04H03DC (mm): 3.1 | L/D: 3 | LU (mm): 16.0 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0310S04H05DC (mm): 3.1 | L/D: 5 | LU (mm): 28.0 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0310S04H08DC (mm): 3.1 | L/D: 8 | LU (mm): 31.0 | LCF (mm): 35.6 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0320S04H03DC (mm): 3.2 | L/D: 3 | LU (mm): 15.8 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0320S04H05DC (mm): 3.2 | L/D: 5 | LU (mm): 27.8 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0320S04H08DC (mm): 3.2 | L/D: 8 | LU (mm): 30.8 | LCF (mm): 35.6 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0330S04H03DC (mm): 3.3 | L/D: 3 | LU (mm): 15.7 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0330S04H05DC (mm): 3.3 | L/D: 5 | LU (mm): 27.7 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0330S04H08DC (mm): 3.3 | L/D: 8 | LU (mm): 30.7 | LCF (mm): 35.6 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0340S04H03DC (mm): 3.4 | L/D: 3 | LU (mm): 15.5 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0340S04H05DC (mm): 3.4 | L/D: 5 | LU (mm): 27.5 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0340S04H08DC (mm): 3.4 | L/D: 8 | LU (mm): 30.5 | LCF (mm): 35.6 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0350S04H03DC (mm): 3.5 | L/D: 3 | LU (mm): 15.4 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0350S04H05DC (mm): 3.5 | L/D: 5 | LU (mm): 27.4 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0350S04H08DC (mm): 3.5 | L/D: 8 | LU (mm): 30.4 | LCF (mm): 35.6 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDH0360S04H03DC (mm): 3.6 | L/D: 3 | LU (mm): 17.8 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0360S04H05DC (mm): 3.6 | L/D: 5 | LU (mm): 31.3 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0360S04H08DC (mm): 3.6 | L/D: 8 | LU (mm): 37.3 | LCF (mm): 42.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0370S04H03DC (mm): 3.7 | L/D: 3 | LU (mm): 17.7 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0370S04H05DC (mm): 3.7 | L/D: 5 | LU (mm): 31.2 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0370S04H08DC (mm): 3.7 | L/D: 8 | LU (mm): 37.2 | LCF (mm): 42.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0380S04H03DC (mm): 3.8 | L/D: 3 | LU (mm): 17.5 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0380S04H05DC (mm): 3.8 | L/D: 5 | LU (mm): 31.0 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0380S04H08DC (mm): 3.8 | L/D: 8 | LU (mm): 37.0 | LCF (mm): 42.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0390S04H03DC (mm): 3.9 | L/D: 3 | LU (mm): 17.4 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0390S04H05DC (mm): 3.9 | L/D: 5 | LU (mm): 30.9 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0390S04H08DC (mm): 3.9 | L/D: 8 | LU (mm): 36.9 | LCF (mm): 42.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0400S04H03DC (mm): 4.0 | L/D: 3 | LU (mm): 17.2 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0400S04H05DC (mm): 4.0 | L/D: 5 | LU (mm): 30.7 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0400S04H08DC (mm): 4.0 | L/D: 8 | LU (mm): 36.7 | LCF (mm): 42.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDH0410S06H03DC (mm): 4.1 | L/D: 3 | LU (mm): 19.7 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0410S06H05DC (mm): 4.1 | L/D: 5 | LU (mm): 34.7 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0410S06H08DC (mm): 4.1 | L/D: 8 | LU (mm): 41.7 | LCF (mm): 47.8 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0420S06H03DC (mm): 4.2 | L/D: 3 | LU (mm): 19.5 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0420S06H05DC (mm): 4.2 | L/D: 5 | LU (mm): 34.5 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0420S06H08DC (mm): 4.2 | L/D: 8 | LU (mm): 41.5 | LCF (mm): 47.8 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0430S06H03DC (mm): 4.3 | L/D: 3 | LU (mm): 19.4 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0430S06H05DC (mm): 4.3 | L/D: 5 | LU (mm): 34.4 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0430S06H08DC (mm): 4.3 | L/D: 8 | LU (mm): 41.4 | LCF (mm): 47.8 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0440S06H03DC (mm): 4.4 | L/D: 3 | LU (mm): 19.2 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0440S06H05DC (mm): 4.4 | L/D: 5 | LU (mm): 34.2 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0440S06H08DC (mm): 4.4 | L/D: 8 | LU (mm): 41.2 | LCF (mm): 47.8 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0450S06H03DC (mm): 4.5 | L/D: 3 | LU (mm): 19.1 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0450S06H05DC (mm): 4.5 | L/D: 5 | LU (mm): 34.1 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0450S06H08DC (mm): 4.5 | L/D: 8 | LU (mm): 41.1 | LCF (mm): 47.8 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 6.0 | Stock: Yes
MDH0460S06H03DC (mm): 4.6 | L/D: 3 | LU (mm): 21.0 | LCF (mm): 27.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0460S06H05DC (mm): 4.6 | L/D: 5 | LU (mm): 38.0 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0460S06H08DC (mm): 4.6 | L/D: 8 | LU (mm): 46.0 | LCF (mm): 52.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0470S06H03DC (mm): 4.7 | L/D: 3 | LU (mm): 20.9 | LCF (mm): 27.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0470S06H05DC (mm): 4.7 | L/D: 5 | LU (mm): 37.9 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0470S06H08DC (mm): 4.7 | L/D: 8 | LU (mm): 45.9 | LCF (mm): 52.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0480S06H03DC (mm): 4.8 | L/D: 3 | LU (mm): 20.7 | LCF (mm): 27.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0480S06H05DC (mm): 4.8 | L/D: 5 | LU (mm): 37.7 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0480S06H08DC (mm): 4.8 | L/D: 8 | LU (mm): 45.7 | LCF (mm): 52.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0490S06H03DC (mm): 4.9 | L/D: 3 | LU (mm): 20.6 | LCF (mm): 27.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0490S06H05DC (mm): 4.9 | L/D: 5 | LU (mm): 37.6 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0490S06H08DC (mm): 4.9 | L/D: 8 | LU (mm): 45.6 | LCF (mm): 52.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0500S06H03DC (mm): 5.0 | L/D: 3 | LU (mm): 20.4 | LCF (mm): 27.9 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0500S06H05DC (mm): 5.0 | L/D: 5 | LU (mm): 37.4 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0500S06H08DC (mm): 5.0 | L/D: 8 | LU (mm): 45.4 | LCF (mm): 52.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDH0510S06H03DC (mm): 5.1 | L/D: 3 | LU (mm): 20.9 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0510S06H05DC (mm): 5.1 | L/D: 5 | LU (mm): 37.4 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0510S06H08DC (mm): 5.1 | L/D: 8 | LU (mm): 52.4 | LCF (mm): 60.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0520S06H03DC (mm): 5.2 | L/D: 3 | LU (mm): 20.7 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0520S06H05DC (mm): 5.2 | L/D: 5 | LU (mm): 37.2 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0520S06H08DC (mm): 5.2 | L/D: 8 | LU (mm): 52.2 | LCF (mm): 60.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0530S06H03DC (mm): 5.3 | L/D: 3 | LU (mm): 20.6 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0530S06H05DC (mm): 5.3 | L/D: 5 | LU (mm): 37.1 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0530S06H08DC (mm): 5.3 | L/D: 8 | LU (mm): 52.1 | LCF (mm): 60.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0540S06H03DC (mm): 5.4 | L/D: 3 | LU (mm): 20.4 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0540S06H05DC (mm): 5.4 | L/D: 5 | LU (mm): 36.9 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0540S06H08DC (mm): 5.4 | L/D: 8 | LU (mm): 51.9 | LCF (mm): 60.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0550S06H03DC (mm): 5.5 | L/D: 3 | LU (mm): 20.3 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0550S06H05DC (mm): 5.5 | L/D: 5 | LU (mm): 36.8 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0550S06H08DC (mm): 5.5 | L/D: 8 | LU (mm): 51.8 | LCF (mm): 60.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDH0560S06H03DC (mm): 5.6 | L/D: 3 | LU (mm): 22.7 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0560S06H05DC (mm): 5.6 | L/D: 5 | LU (mm): 40.7 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0560S06H08DC (mm): 5.6 | L/D: 8 | LU (mm): 58.7 | LCF (mm): 67.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0570S06H03DC (mm): 5.7 | L/D: 3 | LU (mm): 22.6 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0570S06H05DC (mm): 5.7 | L/D: 5 | LU (mm): 40.6 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0570S06H08DC (mm): 5.7 | L/D: 8 | LU (mm): 58.6 | LCF (mm): 67.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0580S06H03DC (mm): 5.8 | L/D: 3 | LU (mm): 22.4 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0580S06H05DC (mm): 5.8 | L/D: 5 | LU (mm): 40.4 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0580S06H08DC (mm): 5.8 | L/D: 8 | LU (mm): 58.4 | LCF (mm): 67.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0590S06H03DC (mm): 5.9 | L/D: 3 | LU (mm): 22.3 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0590S06H05DC (mm): 5.9 | L/D: 5 | LU (mm): 40.3 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0590S06H08DC (mm): 5.9 | L/D: 8 | LU (mm): 58.3 | LCF (mm): 67.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0600S06H03DC (mm): 6.0 | L/D: 3 | LU (mm): 22.1 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0600S06H05DC (mm): 6.0 | L/D: 5 | LU (mm): 40.1 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0600S06H08DC (mm): 6.0 | L/D: 8 | LU (mm): 58.1 | LCF (mm): 67.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDH0610S08H03DC (mm): 6.1 | L/D: 3 | LU (mm): 24.6 | LCF (mm): 33.7 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0610S08H05DC (mm): 6.1 | L/D: 5 | LU (mm): 44.1 | LCF (mm): 53.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0610S08H08DC (mm): 6.1 | L/D: 8 | LU (mm): 62.1 | LCF (mm): 71.2 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0620S08H03DC (mm): 6.2 | L/D: 3 | LU (mm): 24.4 | LCF (mm): 33.7 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0620S08H05DC (mm): 6.2 | L/D: 5 | LU (mm): 43.9 | LCF (mm): 53.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0620S08H08DC (mm): 6.2 | L/D: 8 | LU (mm): 61.9 | LCF (mm): 71.2 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0630S08H03DC (mm): 6.3 | L/D: 3 | LU (mm): 24.3 | LCF (mm): 33.7 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0630S08H05DC (mm): 6.3 | L/D: 5 | LU (mm): 43.8 | LCF (mm): 53.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0630S08H08DC (mm): 6.3 | L/D: 8 | LU (mm): 61.8 | LCF (mm): 71.2 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0640S08H03DC (mm): 6.4 | L/D: 3 | LU (mm): 24.1 | LCF (mm): 33.7 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0640S08H05DC (mm): 6.4 | L/D: 5 | LU (mm): 43.6 | LCF (mm): 53.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0640S08H08DC (mm): 6.4 | L/D: 8 | LU (mm): 61.6 | LCF (mm): 71.2 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0650S08H03DC (mm): 6.5 | L/D: 3 | LU (mm): 24.0 | LCF (mm): 33.7 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0650S08H05DC (mm): 6.5 | L/D: 5 | LU (mm): 43.5 | LCF (mm): 53.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0650S08H08DC (mm): 6.5 | L/D: 8 | LU (mm): 61.5 | LCF (mm): 71.2 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 8.0 | Stock: Yes
MDH0660S08H03DC (mm): 6.6 | L/D: 3 | LU (mm): 24.4 | LCF (mm): 34.3 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0660S08H05DC (mm): 6.6 | L/D: 5 | LU (mm): 45.4 | LCF (mm): 55.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0660S08H08DC (mm): 6.6 | L/D: 8 | LU (mm): 66.4 | LCF (mm): 76.3 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0670S08H03DC (mm): 6.7 | L/D: 3 | LU (mm): 24.3 | LCF (mm): 34.3 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0670S08H05DC (mm): 6.7 | L/D: 5 | LU (mm): 45.3 | LCF (mm): 55.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0670S08H08DC (mm): 6.7 | L/D: 8 | LU (mm): 66.3 | LCF (mm): 76.3 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0680S08H03DC (mm): 6.8 | L/D: 3 | LU (mm): 24.1 | LCF (mm): 34.3 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0680S08H05DC (mm): 6.8 | L/D: 5 | LU (mm): 45.1 | LCF (mm): 55.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0680S08H08DC (mm): 6.8 | L/D: 8 | LU (mm): 66.1 | LCF (mm): 76.3 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0690S08H03DC (mm): 6.9 | L/D: 3 | LU (mm): 24.0 | LCF (mm): 34.3 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0690S08H05DC (mm): 6.9 | L/D: 5 | LU (mm): 45.0 | LCF (mm): 55.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0690S08H08DC (mm): 6.9 | L/D: 8 | LU (mm): 66.0 | LCF (mm): 76.3 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0700S08H03DC (mm): 7.0 | L/D: 3 | LU (mm): 23.8 | LCF (mm): 34.3 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0700S08H05DC (mm): 7.0 | L/D: 5 | LU (mm): 44.8 | LCF (mm): 55.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0700S08H08DC (mm): 7.0 | L/D: 8 | LU (mm): 65.8 | LCF (mm): 76.3 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDH0710S08H03DC (mm): 7.1 | L/D: 3 | LU (mm): 28.3 | LCF (mm): 38.9 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0710S08H05DC (mm): 7.1 | L/D: 5 | LU (mm): 50.8 | LCF (mm): 61.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0710S08H08DC (mm): 7.1 | L/D: 8 | LU (mm): 71.8 | LCF (mm): 82.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0720S08H03DC (mm): 7.2 | L/D: 3 | LU (mm): 28.1 | LCF (mm): 38.9 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0720S08H05DC (mm): 7.2 | L/D: 5 | LU (mm): 50.6 | LCF (mm): 61.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0720S08H08DC (mm): 7.2 | L/D: 8 | LU (mm): 71.6 | LCF (mm): 82.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0730S08H03DC (mm): 7.3 | L/D: 3 | LU (mm): 28.0 | LCF (mm): 38.9 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0730S08H05DC (mm): 7.3 | L/D: 5 | LU (mm): 50.5 | LCF (mm): 61.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0730S08H08DC (mm): 7.3 | L/D: 8 | LU (mm): 71.5 | LCF (mm): 82.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0740S08H03DC (mm): 7.4 | L/D: 3 | LU (mm): 27.8 | LCF (mm): 38.9 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0740S08H05DC (mm): 7.4 | L/D: 5 | LU (mm): 50.3 | LCF (mm): 61.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0740S08H08DC (mm): 7.4 | L/D: 8 | LU (mm): 71.3 | LCF (mm): 82.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0750S08H03DC (mm): 7.5 | L/D: 3 | LU (mm): 27.7 | LCF (mm): 38.9 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0750S08H05DC (mm): 7.5 | L/D: 5 | LU (mm): 50.2 | LCF (mm): 61.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0750S08H08DC (mm): 7.5 | L/D: 8 | LU (mm): 71.2 | LCF (mm): 82.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDH0760S08H03DC (mm): 7.6 | L/D: 3 | LU (mm): 30.1 | LCF (mm): 41.5 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0760S08H05DC (mm): 7.6 | L/D: 5 | LU (mm): 54.1 | LCF (mm): 65.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0760S08H08DC (mm): 7.6 | L/D: 8 | LU (mm): 78.1 | LCF (mm): 89.5 | OAL (mm): 143.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0770S08H03DC (mm): 7.7 | L/D: 3 | LU (mm): 30.0 | LCF (mm): 41.5 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0770S08H05DC (mm): 7.7 | L/D: 5 | LU (mm): 54.0 | LCF (mm): 65.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0770S08H08DC (mm): 7.7 | L/D: 8 | LU (mm): 78.0 | LCF (mm): 89.5 | OAL (mm): 143.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0780S08H03DC (mm): 7.8 | L/D: 3 | LU (mm): 29.8 | LCF (mm): 41.5 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0780S08H05DC (mm): 7.8 | L/D: 5 | LU (mm): 53.8 | LCF (mm): 65.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0780S08H08DC (mm): 7.8 | L/D: 8 | LU (mm): 77.8 | LCF (mm): 89.5 | OAL (mm): 143.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0790S08H03DC (mm): 7.9 | L/D: 3 | LU (mm): 29.7 | LCF (mm): 41.5 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0790S08H05DC (mm): 7.9 | L/D: 5 | LU (mm): 53.7 | LCF (mm): 65.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0790S08H08DC (mm): 7.9 | L/D: 8 | LU (mm): 77.7 | LCF (mm): 89.5 | OAL (mm): 143.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0800S08H03DC (mm): 8.0 | L/D: 3 | LU (mm): 29.5 | LCF (mm): 41.5 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0800S08H05DC (mm): 8.0 | L/D: 5 | LU (mm): 53.5 | LCF (mm): 65.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0800S08H08DC (mm): 8.0 | L/D: 8 | LU (mm): 77.5 | LCF (mm): 89.5 | OAL (mm): 143.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDH0810S10H03DC (mm): 8.1 | L/D: 3 | LU (mm): 31.9 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0810S10H05DC (mm): 8.1 | L/D: 5 | LU (mm): 57.4 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0810S10H08DC (mm): 8.1 | L/D: 8 | LU (mm): 81.4 | LCF (mm): 93.5 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0820S10H03DC (mm): 8.2 | L/D: 3 | LU (mm): 31.7 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0820S10H05DC (mm): 8.2 | L/D: 5 | LU (mm): 57.2 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0820S10H08DC (mm): 8.2 | L/D: 8 | LU (mm): 81.2 | LCF (mm): 93.5 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0830S10H03DC (mm): 8.3 | L/D: 3 | LU (mm): 31.6 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0830S10H05DC (mm): 8.3 | L/D: 5 | LU (mm): 57.1 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0830S10H08DC (mm): 8.3 | L/D: 8 | LU (mm): 81.1 | LCF (mm): 93.5 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0840S10H03DC (mm): 8.4 | L/D: 3 | LU (mm): 31.4 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0840S10H05DC (mm): 8.4 | L/D: 5 | LU (mm): 56.9 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0840S10H08DC (mm): 8.4 | L/D: 8 | LU (mm): 80.9 | LCF (mm): 93.5 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0850S10H03DC (mm): 8.5 | L/D: 3 | LU (mm): 31.3 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0850S10H05DC (mm): 8.5 | L/D: 5 | LU (mm): 56.8 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0850S10H08DC (mm): 8.5 | L/D: 8 | LU (mm): 80.8 | LCF (mm): 93.5 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 10.0 | Stock: Yes
MDH0860S10H03DC (mm): 8.6 | L/D: 3 | LU (mm): 31.7 | LCF (mm): 44.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0860S10H05DC (mm): 8.6 | L/D: 5 | LU (mm): 58.7 | LCF (mm): 71.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0860S10H08DC (mm): 8.6 | L/D: 8 | LU (mm): 85.7 | LCF (mm): 98.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0870S10H03DC (mm): 8.7 | L/D: 3 | LU (mm): 31.6 | LCF (mm): 44.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0870S10H05DC (mm): 8.7 | L/D: 5 | LU (mm): 58.6 | LCF (mm): 71.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0870S10H08DC (mm): 8.7 | L/D: 8 | LU (mm): 85.6 | LCF (mm): 98.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0880S10H03DC (mm): 8.8 | L/D: 3 | LU (mm): 31.4 | LCF (mm): 44.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0880S10H05DC (mm): 8.8 | L/D: 5 | LU (mm): 58.4 | LCF (mm): 71.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0880S10H08DC (mm): 8.8 | L/D: 8 | LU (mm): 85.4 | LCF (mm): 98.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0890S10H03DC (mm): 8.9 | L/D: 3 | LU (mm): 31.3 | LCF (mm): 44.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0890S10H05DC (mm): 8.9 | L/D: 5 | LU (mm): 58.3 | LCF (mm): 71.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0890S10H08DC (mm): 8.9 | L/D: 8 | LU (mm): 85.3 | LCF (mm): 98.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0900S10H03DC (mm): 9.0 | L/D: 3 | LU (mm): 31.1 | LCF (mm): 44.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0900S10H05DC (mm): 9.0 | L/D: 5 | LU (mm): 58.1 | LCF (mm): 71.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0900S10H08DC (mm): 9.0 | L/D: 8 | LU (mm): 85.1 | LCF (mm): 98.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 10.0 | Stock: Yes
MDH0910S10H03DC (mm): 9.1 | L/D: 3 | LU (mm): 35.6 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0910S10H05DC (mm): 9.1 | L/D: 5 | LU (mm): 64.1 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0910S10H08DC (mm): 9.1 | L/D: 8 | LU (mm): 91.1 | LCF (mm): 104.7 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0920S10H03DC (mm): 9.2 | L/D: 3 | LU (mm): 35.4 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0920S10H05DC (mm): 9.2 | L/D: 5 | LU (mm): 63.9 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0920S10H08DC (mm): 9.2 | L/D: 8 | LU (mm): 90.9 | LCF (mm): 104.7 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0930S10H03DC (mm): 9.3 | L/D: 3 | LU (mm): 35.3 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0930S10H05DC (mm): 9.3 | L/D: 5 | LU (mm): 63.8 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0930S10H08DC (mm): 9.3 | L/D: 8 | LU (mm): 90.8 | LCF (mm): 104.7 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0940S10H03DC (mm): 9.4 | L/D: 3 | LU (mm): 35.1 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0940S10H05DC (mm): 9.4 | L/D: 5 | LU (mm): 63.6 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0940S10H08DC (mm): 9.4 | L/D: 8 | LU (mm): 90.6 | LCF (mm): 104.7 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0950S10H03DC (mm): 9.5 | L/D: 3 | LU (mm): 35.0 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0950S10H05DC (mm): 9.5 | L/D: 5 | LU (mm): 63.5 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0950S10H08DC (mm): 9.5 | L/D: 8 | LU (mm): 90.5 | LCF (mm): 104.7 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDH0960S10H03DC (mm): 9.6 | L/D: 3 | LU (mm): 37.4 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH0960S10H05DC (mm): 9.6 | L/D: 5 | LU (mm): 67.4 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH0960S10H08DC (mm): 9.6 | L/D: 8 | LU (mm): 97.4 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH0970S10H03DC (mm): 9.7 | L/D: 3 | LU (mm): 37.3 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH0970S10H05DC (mm): 9.7 | L/D: 5 | LU (mm): 67.3 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH0970S10H08DC (mm): 9.7 | L/D: 8 | LU (mm): 97.3 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH0980S10H03DC (mm): 9.8 | L/D: 3 | LU (mm): 37.1 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH0980S10H05DC (mm): 9.8 | L/D: 5 | LU (mm): 67.1 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH0980S10H08DC (mm): 9.8 | L/D: 8 | LU (mm): 97.1 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH0990S10H03DC (mm): 9.9 | L/D: 3 | LU (mm): 37.0 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH0990S10H05DC (mm): 9.9 | L/D: 5 | LU (mm): 67.0 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH0990S10H08DC (mm): 9.9 | L/D: 8 | LU (mm): 97.0 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH1000S10H03DC (mm): 10.0 | L/D: 3 | LU (mm): 36.8 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH1000S10H05DC (mm): 10.0 | L/D: 5 | LU (mm): 66.8 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH1000S10H08DC (mm): 10.0 | L/D: 8 | LU (mm): 96.8 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDH1010S12H03DC (mm): 10.1 | L/D: 3 | LU (mm): 39.3 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1010S12H05DC (mm): 10.1 | L/D: 5 | LU (mm): 70.8 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1010S12H08DC (mm): 10.1 | L/D: 8 | LU (mm): 100.8 | LCF (mm): 115.9 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1020S12H03DC (mm): 10.2 | L/D: 3 | LU (mm): 39.1 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1020S12H05DC (mm): 10.2 | L/D: 5 | LU (mm): 70.6 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1020S12H08DC (mm): 10.2 | L/D: 8 | LU (mm): 100.6 | LCF (mm): 115.9 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1030S12H03DC (mm): 10.3 | L/D: 3 | LU (mm): 39.0 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1030S12H05DC (mm): 10.3 | L/D: 5 | LU (mm): 70.5 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1030S12H08DC (mm): 10.3 | L/D: 8 | LU (mm): 100.5 | LCF (mm): 115.9 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1040S12H03DC (mm): 10.4 | L/D: 3 | LU (mm): 38.8 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1040S12H05DC (mm): 10.4 | L/D: 5 | LU (mm): 70.3 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1040S12H08DC (mm): 10.4 | L/D: 8 | LU (mm): 100.3 | LCF (mm): 115.9 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1050S12H03DC (mm): 10.5 | L/D: 3 | LU (mm): 38.7 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1050S12H05DC (mm): 10.5 | L/D: 5 | LU (mm): 70.2 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1050S12H08DC (mm): 10.5 | L/D: 8 | LU (mm): 100.2 | LCF (mm): 115.9 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 12.0 | Stock: Yes
MDH1060S12H03DC (mm): 10.6 | L/D: 3 | LU (mm): 39.1 | LCF (mm): 55.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1060S12H05DC (mm): 10.6 | L/D: 5 | LU (mm): 72.1 | LCF (mm): 88.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1060S12H08DC (mm): 10.6 | L/D: 8 | LU (mm): 105.1 | LCF (mm): 121.0 | OAL (mm): 184.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1070S12H03DC (mm): 10.7 | L/D: 3 | LU (mm): 39.0 | LCF (mm): 55.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1070S12H05DC (mm): 10.7 | L/D: 5 | LU (mm): 72.0 | LCF (mm): 88.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1070S12H08DC (mm): 10.7 | L/D: 8 | LU (mm): 105.0 | LCF (mm): 121.0 | OAL (mm): 184.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1080S12H03DC (mm): 10.8 | L/D: 3 | LU (mm): 38.8 | LCF (mm): 55.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1080S12H05DC (mm): 10.8 | L/D: 5 | LU (mm): 71.8 | LCF (mm): 88.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1080S12H08DC (mm): 10.8 | L/D: 8 | LU (mm): 104.8 | LCF (mm): 121.0 | OAL (mm): 184.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1090S12H03DC (mm): 10.9 | L/D: 3 | LU (mm): 38.7 | LCF (mm): 55.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1090S12H05DC (mm): 10.9 | L/D: 5 | LU (mm): 71.7 | LCF (mm): 88.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1090S12H08DC (mm): 10.9 | L/D: 8 | LU (mm): 104.7 | LCF (mm): 121.0 | OAL (mm): 184.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1100S12H03DC (mm): 11.0 | L/D: 3 | LU (mm): 38.5 | LCF (mm): 55.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1100S12H05DC (mm): 11.0 | L/D: 5 | LU (mm): 71.5 | LCF (mm): 88.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1100S12H08DC (mm): 11.0 | L/D: 8 | LU (mm): 104.5 | LCF (mm): 121.0 | OAL (mm): 184.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDH1110S12H03DC (mm): 11.1 | L/D: 3 | LU (mm): 43.0 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1110S12H05DC (mm): 11.1 | L/D: 5 | LU (mm): 77.5 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1110S12H08DC (mm): 11.1 | L/D: 8 | LU (mm): 110.5 | LCF (mm): 127.1 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1120S12H03DC (mm): 11.2 | L/D: 3 | LU (mm): 42.8 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1120S12H05DC (mm): 11.2 | L/D: 5 | LU (mm): 77.3 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1120S12H08DC (mm): 11.2 | L/D: 8 | LU (mm): 110.3 | LCF (mm): 127.1 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1130S12H03DC (mm): 11.3 | L/D: 3 | LU (mm): 42.7 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1130S12H05DC (mm): 11.3 | L/D: 5 | LU (mm): 77.2 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1130S12H08DC (mm): 11.3 | L/D: 8 | LU (mm): 110.2 | LCF (mm): 127.1 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1140S12H03DC (mm): 11.4 | L/D: 3 | LU (mm): 42.5 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1140S12H05DC (mm): 11.4 | L/D: 5 | LU (mm): 77.0 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1140S12H08DC (mm): 11.4 | L/D: 8 | LU (mm): 110.0 | LCF (mm): 127.1 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1150S12H03DC (mm): 11.5 | L/D: 3 | LU (mm): 42.4 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1150S12H05DC (mm): 11.5 | L/D: 5 | LU (mm): 76.9 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1150S12H08DC (mm): 11.5 | L/D: 8 | LU (mm): 109.9 | LCF (mm): 127.1 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDH1160S12H03DC (mm): 11.6 | L/D: 3 | LU (mm): 44.8 | LCF (mm): 62.2 | OAL (mm): 124.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1160S12H05DC (mm): 11.6 | L/D: 5 | LU (mm): 80.8 | LCF (mm): 98.2 | OAL (mm): 160.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1160S12H08DC (mm): 11.6 | L/D: 8 | LU (mm): 116.8 | LCF (mm): 134.2 | OAL (mm): 196.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1170S12H03DC (mm): 11.7 | L/D: 3 | LU (mm): 44.7 | LCF (mm): 62.2 | OAL (mm): 124.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1170S12H05DC (mm): 11.7 | L/D: 5 | LU (mm): 80.7 | LCF (mm): 98.2 | OAL (mm): 160.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1170S12H08DC (mm): 11.7 | L/D: 8 | LU (mm): 116.7 | LCF (mm): 134.2 | OAL (mm): 196.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1180S12H03DC (mm): 11.8 | L/D: 3 | LU (mm): 44.5 | LCF (mm): 62.2 | OAL (mm): 124.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1180S12H05DC (mm): 11.8 | L/D: 5 | LU (mm): 80.5 | LCF (mm): 98.2 | OAL (mm): 160.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1180S12H08DC (mm): 11.8 | L/D: 8 | LU (mm): 116.5 | LCF (mm): 134.2 | OAL (mm): 196.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1190S12H03DC (mm): 11.9 | L/D: 3 | LU (mm): 44.4 | LCF (mm): 62.2 | OAL (mm): 124.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1190S12H05DC (mm): 11.9 | L/D: 5 | LU (mm): 80.4 | LCF (mm): 98.2 | OAL (mm): 160.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1190S12H08DC (mm): 11.9 | L/D: 8 | LU (mm): 116.4 | LCF (mm): 134.2 | OAL (mm): 196.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1200S12H03DC (mm): 12.0 | L/D: 3 | LU (mm): 44.2 | LCF (mm): 62.2 | OAL (mm): 124.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1200S12H05DC (mm): 12.0 | L/D: 5 | LU (mm): 80.2 | LCF (mm): 98.2 | OAL (mm): 160.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1200S12H08DC (mm): 12.0 | L/D: 8 | LU (mm): 116.2 | LCF (mm): 134.2 | OAL (mm): 196.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDH1210S14H03DC (mm): 12.1 | L/D: 3 | LU (mm): 46.7 | LCF (mm): 64.8 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Yes
MDH1210S14H05DC (mm): 12.1 | L/D: 5 | LU (mm): 84.2 | LCF (mm): 102.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Yes
MDH1210S14H08DC (mm): 12.1 | L/D: 8 | LU (mm): 120.2 | LCF (mm): 138.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Made to order
MDH1220S14H03DC (mm): 12.2 | L/D: 3 | LU (mm): 46.5 | LCF (mm): 64.8 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Yes
MDH1220S14H05DC (mm): 12.2 | L/D: 5 | LU (mm): 84.0 | LCF (mm): 102.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Yes
MDH1220S14H08DC (mm): 12.2 | L/D: 8 | LU (mm): 120.0 | LCF (mm): 138.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Made to order
MDH1230S14H03DC (mm): 12.3 | L/D: 3 | LU (mm): 46.4 | LCF (mm): 64.8 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Yes
MDH1230S14H05DC (mm): 12.3 | L/D: 5 | LU (mm): 83.9 | LCF (mm): 102.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Yes
MDH1230S14H08DC (mm): 12.3 | L/D: 8 | LU (mm): 119.9 | LCF (mm): 138.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Made to order
MDH1240S14H03DC (mm): 12.4 | L/D: 3 | LU (mm): 46.2 | LCF (mm): 64.8 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Yes
MDH1240S14H05DC (mm): 12.4 | L/D: 5 | LU (mm): 83.7 | LCF (mm): 102.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Yes
MDH1240S14H08DC (mm): 12.4 | L/D: 8 | LU (mm): 119.7 | LCF (mm): 138.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Made to order
MDH1250S14H03DC (mm): 12.5 | L/D: 3 | LU (mm): 46.1 | LCF (mm): 64.8 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Yes
MDH1250S14H05DC (mm): 12.5 | L/D: 5 | LU (mm): 83.6 | LCF (mm): 102.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Yes
MDH1250S14H08DC (mm): 12.5 | L/D: 8 | LU (mm): 119.6 | LCF (mm): 138.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 14.0 | Stock: Yes
MDH1260S14H03DC (mm): 12.6 | L/D: 3 | LU (mm): 46.5 | LCF (mm): 65.4 | OAL (mm): 130.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDH1260S14H05DC (mm): 12.6 | L/D: 5 | LU (mm): 85.5 | LCF (mm): 104.4 | OAL (mm): 169.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDH1260S14H08DC (mm): 12.6 | L/D: 8 | LU (mm): 124.5 | LCF (mm): 143.4 | OAL (mm): 208.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDH1270S14H03DC (mm): 12.7 | L/D: 3 | LU (mm): 46.4 | LCF (mm): 65.4 | OAL (mm): 130.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDH1270S14H05DC (mm): 12.7 | L/D: 5 | LU (mm): 85.4 | LCF (mm): 104.4 | OAL (mm): 169.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDH1270S14H08DC (mm): 12.7 | L/D: 8 | LU (mm): 124.4 | LCF (mm): 143.4 | OAL (mm): 208.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDH1280S14H03DC (mm): 12.8 | L/D: 3 | LU (mm): 46.2 | LCF (mm): 65.4 | OAL (mm): 130.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDH1280S14H05DC (mm): 12.8 | L/D: 5 | LU (mm): 85.2 | LCF (mm): 104.4 | OAL (mm): 169.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDH1280S14H08DC (mm): 12.8 | L/D: 8 | LU (mm): 124.2 | LCF (mm): 143.4 | OAL (mm): 208.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDH1290S14H03DC (mm): 12.9 | L/D: 3 | LU (mm): 46.1 | LCF (mm): 65.4 | OAL (mm): 130.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDH1290S14H05DC (mm): 12.9 | L/D: 5 | LU (mm): 85.1 | LCF (mm): 104.4 | OAL (mm): 169.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDH1290S14H08DC (mm): 12.9 | L/D: 8 | LU (mm): 124.1 | LCF (mm): 143.4 | OAL (mm): 208.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDH1300S14H03DC (mm): 13.0 | L/D: 3 | LU (mm): 45.9 | LCF (mm): 65.4 | OAL (mm): 130.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDH1300S14H05DC (mm): 13.0 | L/D: 5 | LU (mm): 84.9 | LCF (mm): 104.4 | OAL (mm): 169.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDH1300S14H08DC (mm): 13.0 | L/D: 8 | LU (mm): 123.9 | LCF (mm): 143.4 | OAL (mm): 208.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDH1310S14H03DC (mm): 13.1 | L/D: 3 | LU (mm): 50.4 | LCF (mm): 70.0 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1310S14H05DC (mm): 13.1 | L/D: 5 | LU (mm): 90.9 | LCF (mm): 110.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1310S14H08DC (mm): 13.1 | L/D: 8 | LU (mm): 129.9 | LCF (mm): 149.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDH1320S14H03DC (mm): 13.2 | L/D: 3 | LU (mm): 50.2 | LCF (mm): 70.0 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1320S14H05DC (mm): 13.2 | L/D: 5 | LU (mm): 90.7 | LCF (mm): 110.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1320S14H08DC (mm): 13.2 | L/D: 8 | LU (mm): 129.7 | LCF (mm): 149.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDH1330S14H03DC (mm): 13.3 | L/D: 3 | LU (mm): 50.1 | LCF (mm): 70.0 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1330S14H05DC (mm): 13.3 | L/D: 5 | LU (mm): 90.6 | LCF (mm): 110.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1330S14H08DC (mm): 13.3 | L/D: 8 | LU (mm): 129.6 | LCF (mm): 149.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDH1340S14H03DC (mm): 13.4 | L/D: 3 | LU (mm): 49.9 | LCF (mm): 70.0 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1340S14H05DC (mm): 13.4 | L/D: 5 | LU (mm): 90.4 | LCF (mm): 110.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1340S14H08DC (mm): 13.4 | L/D: 8 | LU (mm): 129.4 | LCF (mm): 149.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDH1350S14H03DC (mm): 13.5 | L/D: 3 | LU (mm): 49.8 | LCF (mm): 70.0 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1350S14H05DC (mm): 13.5 | L/D: 5 | LU (mm): 90.3 | LCF (mm): 110.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1350S14H08DC (mm): 13.5 | L/D: 8 | LU (mm): 129.3 | LCF (mm): 149.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1360S14H03DC (mm): 13.6 | L/D: 3 | LU (mm): 52.1 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1360S14H05DC (mm): 13.6 | L/D: 5 | LU (mm): 94.1 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1360S14H08DC (mm): 13.6 | L/D: 8 | LU (mm): 136.1 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDH1370S14H03DC (mm): 13.7 | L/D: 3 | LU (mm): 52.0 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1370S14H05DC (mm): 13.7 | L/D: 5 | LU (mm): 94.0 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1370S14H08DC (mm): 13.7 | L/D: 8 | LU (mm): 136.0 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDH1380S14H03DC (mm): 13.8 | L/D: 3 | LU (mm): 51.8 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1380S14H05DC (mm): 13.8 | L/D: 5 | LU (mm): 93.8 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1380S14H08DC (mm): 13.8 | L/D: 8 | LU (mm): 135.8 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDH1390S14H03DC (mm): 13.9 | L/D: 3 | LU (mm): 51.7 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1390S14H05DC (mm): 13.9 | L/D: 5 | LU (mm): 93.7 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1390S14H08DC (mm): 13.9 | L/D: 8 | LU (mm): 135.7 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDH1400S14H03DC (mm): 14.0 | L/D: 3 | LU (mm): 51.5 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1400S14H05DC (mm): 14.0 | L/D: 5 | LU (mm): 93.5 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDH1400S14H08DC (mm): 14.0 | L/D: 8 | LU (mm): 135.5 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
