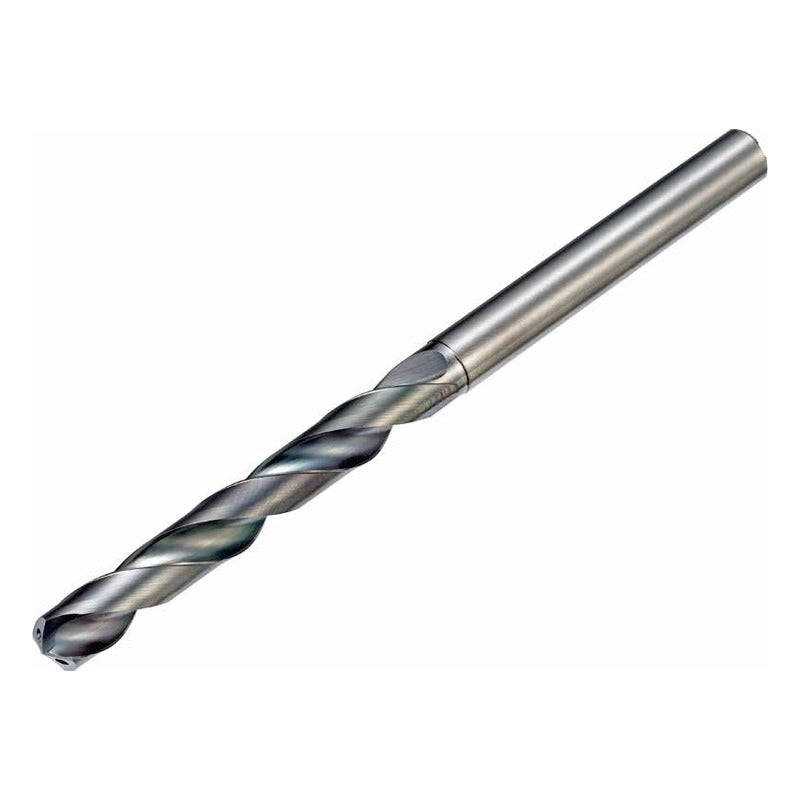

Sumitomo Electric Hardmetal Multi Drill MDM Type (Internal Coolant)

Sumitomo Electric Hardmetal Multi Drill MDM Type (Internal Coolant)

Solid carbide drill for stainless steel and difficult-to-cut materials with oil-hole shape optimized by fluid analysis for edge cooling.

Key features

  • Oil-hole shape cools the cutting edge and reduces adhesion
  • Sharp edge design for good chip control
  • Narrow margin and large back taper
  • Grade ACT70
  • Hole depth 3D and 5D

Specifications

Coolant Internal
Point angle 140 deg
Grade ACT70
MDM0300S03H03 DC (mm): 3.0 | L/D: 3 | LU (mm): 14.0 | LCF (mm): 18.5 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDM0300S03H05 DC (mm): 3.0 | L/D: 5 | LU (mm): 24.0 | LCF (mm): 28.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDM0310S04H03 DC (mm): 3.1 | L/D: 3 | LU (mm): 16.0 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDM0310S04H05 DC (mm): 3.1 | L/D: 5 | LU (mm): 28.0 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDM0320S04H03 DC (mm): 3.2 | L/D: 3 | LU (mm): 15.8 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDM0320S04H05 DC (mm): 3.2 | L/D: 5 | LU (mm): 27.8 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDM0330S04H03 DC (mm): 3.3 | L/D: 3 | LU (mm): 15.7 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDM0330S04H05 DC (mm): 3.3 | L/D: 5 | LU (mm): 27.7 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDM0340S04H03 DC (mm): 3.4 | L/D: 3 | LU (mm): 15.5 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDM0340S04H05 DC (mm): 3.4 | L/D: 5 | LU (mm): 27.5 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDM0350S04H03 DC (mm): 3.5 | L/D: 3 | LU (mm): 15.4 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDM0350S04H05 DC (mm): 3.5 | L/D: 5 | LU (mm): 27.4 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDM0360S04H03 DC (mm): 3.6 | L/D: 3 | LU (mm): 17.8 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDM0360S04H05 DC (mm): 3.6 | L/D: 5 | LU (mm): 31.3 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDM0370S04H03 DC (mm): 3.7 | L/D: 3 | LU (mm): 17.7 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDM0370S04H05 DC (mm): 3.7 | L/D: 5 | LU (mm): 31.2 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDM0380S04H03 DC (mm): 3.8 | L/D: 3 | LU (mm): 17.5 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDM0380S04H05 DC (mm): 3.8 | L/D: 5 | LU (mm): 31.0 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDM0390S04H03 DC (mm): 3.9 | L/D: 3 | LU (mm): 17.4 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDM0390S04H05 DC (mm): 3.9 | L/D: 5 | LU (mm): 30.9 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDM0400S04H03 DC (mm): 4.0 | L/D: 3 | LU (mm): 17.2 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDM0400S04H05 DC (mm): 4.0 | L/D: 5 | LU (mm): 30.7 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDM0410S05H03 DC (mm): 4.1 | L/D: 3 | LU (mm): 19.6 | LCF (mm): 25.7 | OAL (mm): 80.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDM0410S05H05 DC (mm): 4.1 | L/D: 5 | LU (mm): 34.6 | LCF (mm): 40.7 | OAL (mm): 98.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDM0420S05H03 DC (mm): 4.2 | L/D: 3 | LU (mm): 19.5 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDM0420S05H05 DC (mm): 4.2 | L/D: 5 | LU (mm): 34.5 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDM0430S05H03 DC (mm): 4.3 | L/D: 3 | LU (mm): 19.4 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDM0430S05H05 DC (mm): 4.3 | L/D: 5 | LU (mm): 34.4 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDM0440S05H03 DC (mm): 4.4 | L/D: 3 | LU (mm): 19.2 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDM0440S05H05 DC (mm): 4.4 | L/D: 5 | LU (mm): 34.2 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDM0450S05H03 DC (mm): 4.5 | L/D: 3 | LU (mm): 19.1 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDM0450S05H05 DC (mm): 4.5 | L/D: 5 | LU (mm): 34.1 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDM0460S05H03 DC (mm): 4.6 | L/D: 3 | LU (mm): 21.4 | LCF (mm): 28.3 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDM0460S05H05 DC (mm): 4.6 | L/D: 5 | LU (mm): 37.9 | LCF (mm): 44.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDM0470S05H03 DC (mm): 4.7 | L/D: 3 | LU (mm): 21.4 | LCF (mm): 28.4 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDM0470S05H05 DC (mm): 4.7 | L/D: 5 | LU (mm): 37.9 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDM0480S05H03 DC (mm): 4.8 | L/D: 3 | LU (mm): 21.2 | LCF (mm): 28.4 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDM0480S05H05 DC (mm): 4.8 | L/D: 5 | LU (mm): 37.7 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDM0490S05H03 DC (mm): 4.9 | L/D: 3 | LU (mm): 21.1 | LCF (mm): 28.4 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDM0490S05H05 DC (mm): 4.9 | L/D: 5 | LU (mm): 37.6 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDM0500S05H03 DC (mm): 5.0 | L/D: 3 | LU (mm): 20.9 | LCF (mm): 28.4 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDM0500S05H05 DC (mm): 5.0 | L/D: 5 | LU (mm): 37.4 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDM0510S06H03 DC (mm): 5.1 | L/D: 3 | LU (mm): 20.8 | LCF (mm): 28.4 | OAL (mm): 82.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDM0510S06H05 DC (mm): 5.1 | L/D: 5 | LU (mm): 37.3 | LCF (mm): 44.9 | OAL (mm): 100.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDM0520S06H03 DC (mm): 5.2 | L/D: 3 | LU (mm): 20.6 | LCF (mm): 28.4 | OAL (mm): 82.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDM0520S06H05 DC (mm): 5.2 | L/D: 5 | LU (mm): 37.1 | LCF (mm): 44.9 | OAL (mm): 100.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDM0530S06H03 DC (mm): 5.3 | L/D: 3 | LU (mm): 20.6 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDM0530S06H05 DC (mm): 5.3 | L/D: 5 | LU (mm): 37.1 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDM0540S06H03 DC (mm): 5.4 | L/D: 3 | LU (mm): 20.4 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDM0540S06H05 DC (mm): 5.4 | L/D: 5 | LU (mm): 36.9 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDM0550S06H03 DC (mm): 5.5 | L/D: 3 | LU (mm): 20.3 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDM0550S06H05 DC (mm): 5.5 | L/D: 5 | LU (mm): 36.8 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDM0560S06H03 DC (mm): 5.6 | L/D: 3 | LU (mm): 22.6 | LCF (mm): 31.0 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDM0560S06H05 DC (mm): 5.6 | L/D: 5 | LU (mm): 40.6 | LCF (mm): 49.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDM0570S06H03 DC (mm): 5.7 | L/D: 3 | LU (mm): 22.5 | LCF (mm): 31.0 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDM0570S06H05 DC (mm): 5.7 | L/D: 5 | LU (mm): 40.5 | LCF (mm): 49.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDM0580S06H03 DC (mm): 5.8 | L/D: 3 | LU (mm): 22.4 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDM0580S06H05 DC (mm): 5.8 | L/D: 5 | LU (mm): 40.4 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDM0590S06H03 DC (mm): 5.9 | L/D: 3 | LU (mm): 22.3 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDM0590S06H05 DC (mm): 5.9 | L/D: 5 | LU (mm): 40.3 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDM0600S06H03 DC (mm): 6.0 | L/D: 3 | LU (mm): 22.1 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDM0600S06H05 DC (mm): 6.0 | L/D: 5 | LU (mm): 40.1 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDM0610S07H03 DC (mm): 6.1 | L/D: 3 | LU (mm): 24.5 | LCF (mm): 33.6 | OAL (mm): 89.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDM0610S07H05 DC (mm): 6.1 | L/D: 5 | LU (mm): 44.0 | LCF (mm): 53.1 | OAL (mm): 110.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDM0620S07H03 DC (mm): 6.2 | L/D: 3 | LU (mm): 24.3 | LCF (mm): 33.6 | OAL (mm): 89.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDM0620S07H05 DC (mm): 6.2 | L/D: 5 | LU (mm): 43.8 | LCF (mm): 53.1 | OAL (mm): 110.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDM0630S07H03 DC (mm): 6.3 | L/D: 3 | LU (mm): 24.2 | LCF (mm): 33.6 | OAL (mm): 89.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDM0630S07H05 DC (mm): 6.3 | L/D: 5 | LU (mm): 43.7 | LCF (mm): 53.1 | OAL (mm): 110.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDM0640S07H03 DC (mm): 6.4 | L/D: 3 | LU (mm): 24.1 | LCF (mm): 33.7 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDM0640S07H05 DC (mm): 6.4 | L/D: 5 | LU (mm): 43.6 | LCF (mm): 53.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDM0650S07H03 DC (mm): 6.5 | L/D: 3 | LU (mm): 24.0 | LCF (mm): 33.7 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDM0650S07H05 DC (mm): 6.5 | L/D: 5 | LU (mm): 43.5 | LCF (mm): 53.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDM0660S07H03 DC (mm): 6.6 | L/D: 3 | LU (mm): 26.3 | LCF (mm): 36.2 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDM0660S07H05 DC (mm): 6.6 | L/D: 5 | LU (mm): 47.3 | LCF (mm): 57.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDM0670S07H03 DC (mm): 6.7 | L/D: 3 | LU (mm): 26.2 | LCF (mm): 36.2 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDM0670S07H05 DC (mm): 6.7 | L/D: 5 | LU (mm): 47.2 | LCF (mm): 57.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDM0680S07H03 DC (mm): 6.8 | L/D: 3 | LU (mm): 26.0 | LCF (mm): 36.2 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDM0680S07H05 DC (mm): 6.8 | L/D: 5 | LU (mm): 47.0 | LCF (mm): 57.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDM0690S07H03 DC (mm): 6.9 | L/D: 3 | LU (mm): 26.0 | LCF (mm): 36.3 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDM0690S07H05 DC (mm): 6.9 | L/D: 5 | LU (mm): 47.0 | LCF (mm): 57.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDM0700S07H03 DC (mm): 7.0 | L/D: 3 | LU (mm): 25.8 | LCF (mm): 36.3 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDM0700S07H05 DC (mm): 7.0 | L/D: 5 | LU (mm): 46.8 | LCF (mm): 57.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDM0710S08H03 DC (mm): 7.1 | L/D: 3 | LU (mm): 28.2 | LCF (mm): 38.8 | OAL (mm): 95.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDM0710S08H05 DC (mm): 7.1 | L/D: 5 | LU (mm): 50.7 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDM0720S08H03 DC (mm): 7.2 | L/D: 3 | LU (mm): 28.0 | LCF (mm): 38.8 | OAL (mm): 95.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDM0720S08H05 DC (mm): 7.2 | L/D: 5 | LU (mm): 50.5 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDM0730S08H03 DC (mm): 7.3 | L/D: 3 | LU (mm): 27.9 | LCF (mm): 38.8 | OAL (mm): 95.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDM0730S08H05 DC (mm): 7.3 | L/D: 5 | LU (mm): 50.4 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDM0740S08H03 DC (mm): 7.4 | L/D: 3 | LU (mm): 27.7 | LCF (mm): 38.8 | OAL (mm): 95.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDM0740S08H05 DC (mm): 7.4 | L/D: 5 | LU (mm): 50.2 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDM0750S08H03 DC (mm): 7.5 | L/D: 3 | LU (mm): 27.7 | LCF (mm): 38.9 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDM0750S08H05 DC (mm): 7.5 | L/D: 5 | LU (mm): 50.2 | LCF (mm): 61.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDM0760S08H03 DC (mm): 7.6 | L/D: 3 | LU (mm): 30.0 | LCF (mm): 41.4 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDM0760S08H05 DC (mm): 7.6 | L/D: 5 | LU (mm): 54.0 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDM0770S08H03 DC (mm): 7.7 | L/D: 3 | LU (mm): 29.9 | LCF (mm): 41.4 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDM0770S08H05 DC (mm): 7.7 | L/D: 5 | LU (mm): 53.9 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDM0780S08H03 DC (mm): 7.8 | L/D: 3 | LU (mm): 29.7 | LCF (mm): 41.4 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDM0780S08H05 DC (mm): 7.8 | L/D: 5 | LU (mm): 53.7 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDM0790S08H03 DC (mm): 7.9 | L/D: 3 | LU (mm): 29.6 | LCF (mm): 41.4 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDM0790S08H05 DC (mm): 7.9 | L/D: 5 | LU (mm): 53.6 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDM0800S08H03 DC (mm): 8.0 | L/D: 3 | LU (mm): 29.5 | LCF (mm): 41.5 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDM0800S08H05 DC (mm): 8.0 | L/D: 5 | LU (mm): 53.5 | LCF (mm): 65.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDM0810S09H03 DC (mm): 8.1 | L/D: 3 | LU (mm): 31.9 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDM0810S09H05 DC (mm): 8.1 | L/D: 5 | LU (mm): 57.4 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDM0820S09H03 DC (mm): 8.2 | L/D: 3 | LU (mm): 31.7 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDM0820S09H05 DC (mm): 8.2 | L/D: 5 | LU (mm): 57.2 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDM0830S09H03 DC (mm): 8.3 | L/D: 3 | LU (mm): 31.6 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDM0830S09H05 DC (mm): 8.3 | L/D: 5 | LU (mm): 57.1 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDM0840S09H03 DC (mm): 8.4 | L/D: 3 | LU (mm): 31.4 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDM0840S09H05 DC (mm): 8.4 | L/D: 5 | LU (mm): 56.9 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDM0850S09H03 DC (mm): 8.5 | L/D: 3 | LU (mm): 31.3 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDM0850S09H05 DC (mm): 8.5 | L/D: 5 | LU (mm): 56.8 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDM0860S09H03 DC (mm): 8.6 | L/D: 3 | LU (mm): 33.7 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDM0860S09H05 DC (mm): 8.6 | L/D: 5 | LU (mm): 60.7 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDM0870S09H03 DC (mm): 8.7 | L/D: 3 | LU (mm): 33.6 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDM0870S09H05 DC (mm): 8.7 | L/D: 5 | LU (mm): 60.6 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDM0880S09H03 DC (mm): 8.8 | L/D: 3 | LU (mm): 33.4 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDM0880S09H05 DC (mm): 8.8 | L/D: 5 | LU (mm): 60.4 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDM0890S09H03 DC (mm): 8.9 | L/D: 3 | LU (mm): 33.3 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDM0890S09H05 DC (mm): 8.9 | L/D: 5 | LU (mm): 60.3 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDM0900S09H03 DC (mm): 9.0 | L/D: 3 | LU (mm): 33.1 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDM0900S09H05 DC (mm): 9.0 | L/D: 5 | LU (mm): 60.1 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDM0910S10H03 DC (mm): 9.1 | L/D: 3 | LU (mm): 35.6 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDM0910S10H05 DC (mm): 9.1 | L/D: 5 | LU (mm): 64.1 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDM0920S10H03 DC (mm): 9.2 | L/D: 3 | LU (mm): 35.4 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDM0920S10H05 DC (mm): 9.2 | L/D: 5 | LU (mm): 63.9 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDM0930S10H03 DC (mm): 9.3 | L/D: 3 | LU (mm): 35.3 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDM0930S10H05 DC (mm): 9.3 | L/D: 5 | LU (mm): 63.8 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDM0940S10H03 DC (mm): 9.4 | L/D: 3 | LU (mm): 35.1 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDM0940S10H05 DC (mm): 9.4 | L/D: 5 | LU (mm): 63.6 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDM0950S10H03 DC (mm): 9.5 | L/D: 3 | LU (mm): 35.0 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDM0950S10H05 DC (mm): 9.5 | L/D: 5 | LU (mm): 63.5 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDM0960S10H03 DC (mm): 9.6 | L/D: 3 | LU (mm): 37.3 | LCF (mm): 51.7 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDM0960S10H05 DC (mm): 9.6 | L/D: 5 | LU (mm): 67.3 | LCF (mm): 81.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDM0970S10H03 DC (mm): 9.7 | L/D: 3 | LU (mm): 37.3 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDM0970S10H05 DC (mm): 9.7 | L/D: 5 | LU (mm): 67.3 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDM0980S10H03 DC (mm): 9.8 | L/D: 3 | LU (mm): 37.1 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDM0980S10H05 DC (mm): 9.8 | L/D: 5 | LU (mm): 67.1 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDM0990S10H03 DC (mm): 9.9 | L/D: 3 | LU (mm): 37.0 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDM0990S10H05 DC (mm): 9.9 | L/D: 5 | LU (mm): 67.0 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDM1000S10H03 DC (mm): 10.0 | L/D: 3 | LU (mm): 36.8 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDM1000S10H05 DC (mm): 10.0 | L/D: 5 | LU (mm): 66.8 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDM1010S11H03 DC (mm): 10.1 | L/D: 3 | LU (mm): 39.2 | LCF (mm): 54.3 | OAL (mm): 117.8 | PL (mm): 1.8 | DCON (mm): 11.0 | Stock: Yes
MDM1010S11H05 DC (mm): 10.1 | L/D: 5 | LU (mm): 70.7 | LCF (mm): 85.8 | OAL (mm): 150.8 | PL (mm): 1.8 | DCON (mm): 11.0 | Stock: Yes
MDM1020S11H03 DC (mm): 10.2 | L/D: 3 | LU (mm): 39.1 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDM1020S11H05 DC (mm): 10.2 | L/D: 5 | LU (mm): 70.6 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDM1030S11H03 DC (mm): 10.3 | L/D: 3 | LU (mm): 39.0 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDM1030S11H05 DC (mm): 10.3 | L/D: 5 | LU (mm): 70.5 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDM1040S11H03 DC (mm): 10.4 | L/D: 3 | LU (mm): 38.8 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDM1040S11H05 DC (mm): 10.4 | L/D: 5 | LU (mm): 70.3 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDM1050S11H03 DC (mm): 10.5 | L/D: 3 | LU (mm): 38.7 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDM1050S11H05 DC (mm): 10.5 | L/D: 5 | LU (mm): 70.2 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDM1060S11H03 DC (mm): 10.6 | L/D: 3 | LU (mm): 41.0 | LCF (mm): 56.9 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDM1060S11H05 DC (mm): 10.6 | L/D: 5 | LU (mm): 74.0 | LCF (mm): 89.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDM1070S11H03 DC (mm): 10.7 | L/D: 3 | LU (mm): 40.9 | LCF (mm): 56.9 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDM1070S11H05 DC (mm): 10.7 | L/D: 5 | LU (mm): 73.9 | LCF (mm): 89.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDM1080S11H03 DC (mm): 10.8 | L/D: 3 | LU (mm): 40.8 | LCF (mm): 57.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDM1080S11H05 DC (mm): 10.8 | L/D: 5 | LU (mm): 73.8 | LCF (mm): 90.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDM1090S11H03 DC (mm): 10.9 | L/D: 3 | LU (mm): 40.7 | LCF (mm): 57.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDM1090S11H05 DC (mm): 10.9 | L/D: 5 | LU (mm): 73.7 | LCF (mm): 90.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDM1100S11H03 DC (mm): 11.0 | L/D: 3 | LU (mm): 40.5 | LCF (mm): 57.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDM1100S11H05 DC (mm): 11.0 | L/D: 5 | LU (mm): 73.5 | LCF (mm): 90.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDM1110S12H03 DC (mm): 11.1 | L/D: 3 | LU (mm): 42.9 | LCF (mm): 59.5 | OAL (mm): 124.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDM1110S12H05 DC (mm): 11.1 | L/D: 5 | LU (mm): 77.4 | LCF (mm): 94.0 | OAL (mm): 160.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDM1120S12H03 DC (mm): 11.2 | L/D: 3 | LU (mm): 42.7 | LCF (mm): 59.5 | OAL (mm): 124.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDM1120S12H05 DC (mm): 11.2 | L/D: 5 | LU (mm): 77.2 | LCF (mm): 94.0 | OAL (mm): 160.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDM1130S12H03 DC (mm): 11.3 | L/D: 3 | LU (mm): 42.7 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDM1130S12H05 DC (mm): 11.3 | L/D: 5 | LU (mm): 77.2 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDM1140S12H03 DC (mm): 11.4 | L/D: 3 | LU (mm): 42.5 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDM1140S12H05 DC (mm): 11.4 | L/D: 5 | LU (mm): 77.0 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDM1150S12H03 DC (mm): 11.5 | L/D: 3 | LU (mm): 42.4 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDM1150S12H05 DC (mm): 11.5 | L/D: 5 | LU (mm): 76.9 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDM1160S12H03 DC (mm): 11.6 | L/D: 3 | LU (mm): 44.7 | LCF (mm): 62.1 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDM1160S12H05 DC (mm): 11.6 | L/D: 5 | LU (mm): 80.7 | LCF (mm): 98.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDM1170S12H03 DC (mm): 11.7 | L/D: 3 | LU (mm): 44.6 | LCF (mm): 62.1 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDM1170S12H05 DC (mm): 11.7 | L/D: 5 | LU (mm): 80.6 | LCF (mm): 98.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDM1180S12H03 DC (mm): 11.8 | L/D: 3 | LU (mm): 44.4 | LCF (mm): 62.1 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDM1180S12H05 DC (mm): 11.8 | L/D: 5 | LU (mm): 80.4 | LCF (mm): 98.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDM1190S12H03 DC (mm): 11.9 | L/D: 3 | LU (mm): 44.4 | LCF (mm): 62.2 | OAL (mm): 124.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDM1190S12H05 DC (mm): 11.9 | L/D: 5 | LU (mm): 80.4 | LCF (mm): 98.2 | OAL (mm): 160.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDM1200S12H03 DC (mm): 12.0 | L/D: 3 | LU (mm): 44.2 | LCF (mm): 62.2 | OAL (mm): 124.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDM1200S12H05 DC (mm): 12.0 | L/D: 5 | LU (mm): 80.2 | LCF (mm): 98.2 | OAL (mm): 160.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDM1210S13H03 DC (mm): 12.1 | L/D: 3 | LU (mm): 46.6 | LCF (mm): 64.7 | OAL (mm): 130.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDM1210S13H05 DC (mm): 12.1 | L/D: 5 | LU (mm): 84.1 | LCF (mm): 102.2 | OAL (mm): 169.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDM1220S13H03 DC (mm): 12.2 | L/D: 3 | LU (mm): 46.4 | LCF (mm): 64.7 | OAL (mm): 130.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDM1220S13H05 DC (mm): 12.2 | L/D: 5 | LU (mm): 83.9 | LCF (mm): 102.2 | OAL (mm): 169.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDM1230S13H03 DC (mm): 12.3 | L/D: 3 | LU (mm): 46.3 | LCF (mm): 64.7 | OAL (mm): 130.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDM1230S13H05 DC (mm): 12.3 | L/D: 5 | LU (mm): 83.8 | LCF (mm): 102.2 | OAL (mm): 169.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDM1240S13H03 DC (mm): 12.4 | L/D: 3 | LU (mm): 46.2 | LCF (mm): 64.8 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDM1240S13H05 DC (mm): 12.4 | L/D: 5 | LU (mm): 83.7 | LCF (mm): 102.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDM1250S13H03 DC (mm): 12.5 | L/D: 3 | LU (mm): 46.1 | LCF (mm): 64.8 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDM1250S13H05 DC (mm): 12.5 | L/D: 5 | LU (mm): 83.6 | LCF (mm): 102.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDM1260S13H03 DC (mm): 12.6 | L/D: 3 | LU (mm): 48.4 | LCF (mm): 67.3 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDM1260S13H05 DC (mm): 12.6 | L/D: 5 | LU (mm): 87.4 | LCF (mm): 106.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDM1270S13H03 DC (mm): 12.7 | L/D: 3 | LU (mm): 48.3 | LCF (mm): 67.3 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDM1270S13H05 DC (mm): 12.7 | L/D: 5 | LU (mm): 87.3 | LCF (mm): 106.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDM1280S13H03 DC (mm): 12.8 | L/D: 3 | LU (mm): 48.1 | LCF (mm): 67.3 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDM1280S13H05 DC (mm): 12.8 | L/D: 5 | LU (mm): 87.1 | LCF (mm): 106.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDM1290S13H03 DC (mm): 12.9 | L/D: 3 | LU (mm): 48.0 | LCF (mm): 67.3 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDM1290S13H05 DC (mm): 12.9 | L/D: 5 | LU (mm): 87.0 | LCF (mm): 106.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDM1300S13H03 DC (mm): 13.0 | L/D: 3 | LU (mm): 47.9 | LCF (mm): 67.4 | OAL (mm): 130.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDM1300S13H05 DC (mm): 13.0 | L/D: 5 | LU (mm): 86.9 | LCF (mm): 106.4 | OAL (mm): 169.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDM1310S14H03 DC (mm): 13.1 | L/D: 3 | LU (mm): 50.3 | LCF (mm): 69.9 | OAL (mm): 136.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDM1310S14H05 DC (mm): 13.1 | L/D: 5 | LU (mm): 90.8 | LCF (mm): 110.4 | OAL (mm): 178.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDM1320S14H03 DC (mm): 13.2 | L/D: 3 | LU (mm): 50.1 | LCF (mm): 69.9 | OAL (mm): 136.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDM1320S14H05 DC (mm): 13.2 | L/D: 5 | LU (mm): 90.6 | LCF (mm): 110.4 | OAL (mm): 178.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDM1330S14H03 DC (mm): 13.3 | L/D: 3 | LU (mm): 50.0 | LCF (mm): 69.9 | OAL (mm): 136.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDM1330S14H05 DC (mm): 13.3 | L/D: 5 | LU (mm): 90.5 | LCF (mm): 110.4 | OAL (mm): 178.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDM1340S14H03 DC (mm): 13.4 | L/D: 3 | LU (mm): 49.8 | LCF (mm): 69.9 | OAL (mm): 136.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDM1340S14H05 DC (mm): 13.4 | L/D: 5 | LU (mm): 90.3 | LCF (mm): 110.4 | OAL (mm): 178.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDM1350S14H03 DC (mm): 13.5 | L/D: 3 | LU (mm): 49.8 | LCF (mm): 70.0 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDM1350S14H05 DC (mm): 13.5 | L/D: 5 | LU (mm): 90.3 | LCF (mm): 110.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDM1360S14H03 DC (mm): 13.6 | L/D: 3 | LU (mm): 52.1 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDM1360S14H05 DC (mm): 13.6 | L/D: 5 | LU (mm): 94.1 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDM1370S14H03 DC (mm): 13.7 | L/D: 3 | LU (mm): 52.0 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDM1370S14H05 DC (mm): 13.7 | L/D: 5 | LU (mm): 94.0 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDM1380S14H03 DC (mm): 13.8 | L/D: 3 | LU (mm): 51.8 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDM1380S14H05 DC (mm): 13.8 | L/D: 5 | LU (mm): 93.8 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDM1390S14H03 DC (mm): 13.9 | L/D: 3 | LU (mm): 51.7 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDM1390S14H05 DC (mm): 13.9 | L/D: 5 | LU (mm): 93.7 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDM1400S14H03 DC (mm): 14.0 | L/D: 3 | LU (mm): 51.5 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDM1400S14H05 DC (mm): 14.0 | L/D: 5 | LU (mm): 93.5 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDM1410S15H03 DC (mm): 14.1 | L/D: 3 | LU (mm): 54.0 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDM1410S15H05 DC (mm): 14.1 | L/D: 5 | LU (mm): 97.5 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDM1420S15H03 DC (mm): 14.2 | L/D: 3 | LU (mm): 53.8 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDM1420S15H05 DC (mm): 14.2 | L/D: 5 | LU (mm): 97.3 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDM1430S15H03 DC (mm): 14.3 | L/D: 3 | LU (mm): 53.7 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDM1430S15H05 DC (mm): 14.3 | L/D: 5 | LU (mm): 97.2 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDM1440S15H03 DC (mm): 14.4 | L/D: 3 | LU (mm): 53.5 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDM1440S15H05 DC (mm): 14.4 | L/D: 5 | LU (mm): 97.0 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDM1450S15H03 DC (mm): 14.5 | L/D: 3 | LU (mm): 53.4 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDM1450S15H05 DC (mm): 14.5 | L/D: 5 | LU (mm): 96.9 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDM1460S15H03 DC (mm): 14.6 | L/D: 3 | LU (mm): 55.8 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDM1460S15H05 DC (mm): 14.6 | L/D: 5 | LU (mm): 100.8 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDM1470S15H03 DC (mm): 14.7 | L/D: 3 | LU (mm): 55.7 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDM1470S15H05 DC (mm): 14.7 | L/D: 5 | LU (mm): 100.7 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDM1480S15H03 DC (mm): 14.8 | L/D: 3 | LU (mm): 55.5 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDM1480S15H05 DC (mm): 14.8 | L/D: 5 | LU (mm): 100.5 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDM1490S15H03 DC (mm): 14.9 | L/D: 3 | LU (mm): 55.4 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDM1490S15H05 DC (mm): 14.9 | L/D: 5 | LU (mm): 100.4 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDM1500S15H03 DC (mm): 15.0 | L/D: 3 | LU (mm): 55.2 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDM1500S15H05 DC (mm): 15.0 | L/D: 5 | LU (mm): 100.2 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDM1510S16H03 DC (mm): 15.1 | L/D: 3 | LU (mm): 57.6 | LCF (mm): 80.2 | OAL (mm): 148.7 | PL (mm): 2.7 | DCON (mm): 16.0 | Stock: Yes
MDM1510S16H05 DC (mm): 15.1 | L/D: 5 | LU (mm): 104.1 | LCF (mm): 126.7 | OAL (mm): 196.7 | PL (mm): 2.7 | DCON (mm): 16.0 | Stock: Yes
MDM1520S16H03 DC (mm): 15.2 | L/D: 3 | LU (mm): 57.5 | LCF (mm): 80.3 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDM1520S16H05 DC (mm): 15.2 | L/D: 5 | LU (mm): 104.0 | LCF (mm): 126.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDM1530S16H03 DC (mm): 15.3 | L/D: 3 | LU (mm): 57.4 | LCF (mm): 80.3 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDM1530S16H05 DC (mm): 15.3 | L/D: 5 | LU (mm): 103.9 | LCF (mm): 126.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDM1540S16H03 DC (mm): 15.4 | L/D: 3 | LU (mm): 57.2 | LCF (mm): 80.3 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDM1540S16H05 DC (mm): 15.4 | L/D: 5 | LU (mm): 103.7 | LCF (mm): 126.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDM1550S16H03 DC (mm): 15.5 | L/D: 3 | LU (mm): 57.1 | LCF (mm): 80.3 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDM1550S16H05 DC (mm): 15.5 | L/D: 5 | LU (mm): 103.6 | LCF (mm): 126.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDM1560S16H03 DC (mm): 15.6 | L/D: 3 | LU (mm): 59.4 | LCF (mm): 82.8 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDM1560S16H05 DC (mm): 15.6 | L/D: 5 | LU (mm): 107.4 | LCF (mm): 130.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDM1570S16H03 DC (mm): 15.7 | L/D: 3 | LU (mm): 59.4 | LCF (mm): 82.9 | OAL (mm): 148.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDM1570S16H05 DC (mm): 15.7 | L/D: 5 | LU (mm): 107.4 | LCF (mm): 130.9 | OAL (mm): 196.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDM1580S16H03 DC (mm): 15.8 | L/D: 3 | LU (mm): 59.2 | LCF (mm): 82.9 | OAL (mm): 148.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDM1580S16H05 DC (mm): 15.8 | L/D: 5 | LU (mm): 107.2 | LCF (mm): 130.9 | OAL (mm): 196.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDM1590S16H03 DC (mm): 15.9 | L/D: 3 | LU (mm): 59.1 | LCF (mm): 82.9 | OAL (mm): 148.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDM1590S16H05 DC (mm): 15.9 | L/D: 5 | LU (mm): 107.1 | LCF (mm): 130.9 | OAL (mm): 196.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDM1600S16H03 DC (mm): 16.0 | L/D: 3 | LU (mm): 58.9 | LCF (mm): 82.9 | OAL (mm): 148.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDM1600S16H05 DC (mm): 16.0 | L/D: 5 | LU (mm): 106.9 | LCF (mm): 130.9 | OAL (mm): 196.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
DrillsSumitomo Electric Hardmetal
262 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Multi Drill MDM Type (Internal Coolant)

Brand Sumitomo Electric Hardmetal·Drills

Available part numbers (262)

MDM0300S03H03, MDM0300S03H05, MDM0310S04H03, MDM0310S04H05, MDM0320S04H03, MDM0320S04H05, MDM0330S04H03, MDM0330S04H05, MDM0340S04H03, MDM0340S04H05 + 252 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MDM0300S03H03DC (mm): 3.0 | L/D: 3 | LU (mm): 14.0 | LCF (mm): 18.5 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDM0300S03H05DC (mm): 3.0 | L/D: 5 | LU (mm): 24.0 | LCF (mm): 28.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDM0310S04H03DC (mm): 3.1 | L/D: 3 | LU (mm): 16.0 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDM0310S04H05DC (mm): 3.1 | L/D: 5 | LU (mm): 28.0 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDM0320S04H03DC (mm): 3.2 | L/D: 3 | LU (mm): 15.8 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDM0320S04H05DC (mm): 3.2 | L/D: 5 | LU (mm): 27.8 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDM0330S04H03DC (mm): 3.3 | L/D: 3 | LU (mm): 15.7 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDM0330S04H05DC (mm): 3.3 | L/D: 5 | LU (mm): 27.7 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDM0340S04H03DC (mm): 3.4 | L/D: 3 | LU (mm): 15.5 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDM0340S04H05DC (mm): 3.4 | L/D: 5 | LU (mm): 27.5 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDM0350S04H03DC (mm): 3.5 | L/D: 3 | LU (mm): 15.4 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDM0350S04H05DC (mm): 3.5 | L/D: 5 | LU (mm): 27.4 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDM0360S04H03DC (mm): 3.6 | L/D: 3 | LU (mm): 17.8 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDM0360S04H05DC (mm): 3.6 | L/D: 5 | LU (mm): 31.3 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDM0370S04H03DC (mm): 3.7 | L/D: 3 | LU (mm): 17.7 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDM0370S04H05DC (mm): 3.7 | L/D: 5 | LU (mm): 31.2 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDM0380S04H03DC (mm): 3.8 | L/D: 3 | LU (mm): 17.5 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDM0380S04H05DC (mm): 3.8 | L/D: 5 | LU (mm): 31.0 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDM0390S04H03DC (mm): 3.9 | L/D: 3 | LU (mm): 17.4 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDM0390S04H05DC (mm): 3.9 | L/D: 5 | LU (mm): 30.9 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDM0400S04H03DC (mm): 4.0 | L/D: 3 | LU (mm): 17.2 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDM0400S04H05DC (mm): 4.0 | L/D: 5 | LU (mm): 30.7 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDM0410S05H03DC (mm): 4.1 | L/D: 3 | LU (mm): 19.6 | LCF (mm): 25.7 | OAL (mm): 80.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDM0410S05H05DC (mm): 4.1 | L/D: 5 | LU (mm): 34.6 | LCF (mm): 40.7 | OAL (mm): 98.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDM0420S05H03DC (mm): 4.2 | L/D: 3 | LU (mm): 19.5 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDM0420S05H05DC (mm): 4.2 | L/D: 5 | LU (mm): 34.5 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDM0430S05H03DC (mm): 4.3 | L/D: 3 | LU (mm): 19.4 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDM0430S05H05DC (mm): 4.3 | L/D: 5 | LU (mm): 34.4 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDM0440S05H03DC (mm): 4.4 | L/D: 3 | LU (mm): 19.2 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDM0440S05H05DC (mm): 4.4 | L/D: 5 | LU (mm): 34.2 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDM0450S05H03DC (mm): 4.5 | L/D: 3 | LU (mm): 19.1 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDM0450S05H05DC (mm): 4.5 | L/D: 5 | LU (mm): 34.1 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDM0460S05H03DC (mm): 4.6 | L/D: 3 | LU (mm): 21.4 | LCF (mm): 28.3 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDM0460S05H05DC (mm): 4.6 | L/D: 5 | LU (mm): 37.9 | LCF (mm): 44.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDM0470S05H03DC (mm): 4.7 | L/D: 3 | LU (mm): 21.4 | LCF (mm): 28.4 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDM0470S05H05DC (mm): 4.7 | L/D: 5 | LU (mm): 37.9 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDM0480S05H03DC (mm): 4.8 | L/D: 3 | LU (mm): 21.2 | LCF (mm): 28.4 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDM0480S05H05DC (mm): 4.8 | L/D: 5 | LU (mm): 37.7 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDM0490S05H03DC (mm): 4.9 | L/D: 3 | LU (mm): 21.1 | LCF (mm): 28.4 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDM0490S05H05DC (mm): 4.9 | L/D: 5 | LU (mm): 37.6 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDM0500S05H03DC (mm): 5.0 | L/D: 3 | LU (mm): 20.9 | LCF (mm): 28.4 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDM0500S05H05DC (mm): 5.0 | L/D: 5 | LU (mm): 37.4 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDM0510S06H03DC (mm): 5.1 | L/D: 3 | LU (mm): 20.8 | LCF (mm): 28.4 | OAL (mm): 82.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDM0510S06H05DC (mm): 5.1 | L/D: 5 | LU (mm): 37.3 | LCF (mm): 44.9 | OAL (mm): 100.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDM0520S06H03DC (mm): 5.2 | L/D: 3 | LU (mm): 20.6 | LCF (mm): 28.4 | OAL (mm): 82.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDM0520S06H05DC (mm): 5.2 | L/D: 5 | LU (mm): 37.1 | LCF (mm): 44.9 | OAL (mm): 100.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDM0530S06H03DC (mm): 5.3 | L/D: 3 | LU (mm): 20.6 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDM0530S06H05DC (mm): 5.3 | L/D: 5 | LU (mm): 37.1 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDM0540S06H03DC (mm): 5.4 | L/D: 3 | LU (mm): 20.4 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDM0540S06H05DC (mm): 5.4 | L/D: 5 | LU (mm): 36.9 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDM0550S06H03DC (mm): 5.5 | L/D: 3 | LU (mm): 20.3 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDM0550S06H05DC (mm): 5.5 | L/D: 5 | LU (mm): 36.8 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDM0560S06H03DC (mm): 5.6 | L/D: 3 | LU (mm): 22.6 | LCF (mm): 31.0 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDM0560S06H05DC (mm): 5.6 | L/D: 5 | LU (mm): 40.6 | LCF (mm): 49.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDM0570S06H03DC (mm): 5.7 | L/D: 3 | LU (mm): 22.5 | LCF (mm): 31.0 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDM0570S06H05DC (mm): 5.7 | L/D: 5 | LU (mm): 40.5 | LCF (mm): 49.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDM0580S06H03DC (mm): 5.8 | L/D: 3 | LU (mm): 22.4 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDM0580S06H05DC (mm): 5.8 | L/D: 5 | LU (mm): 40.4 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDM0590S06H03DC (mm): 5.9 | L/D: 3 | LU (mm): 22.3 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDM0590S06H05DC (mm): 5.9 | L/D: 5 | LU (mm): 40.3 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDM0600S06H03DC (mm): 6.0 | L/D: 3 | LU (mm): 22.1 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDM0600S06H05DC (mm): 6.0 | L/D: 5 | LU (mm): 40.1 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDM0610S07H03DC (mm): 6.1 | L/D: 3 | LU (mm): 24.5 | LCF (mm): 33.6 | OAL (mm): 89.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDM0610S07H05DC (mm): 6.1 | L/D: 5 | LU (mm): 44.0 | LCF (mm): 53.1 | OAL (mm): 110.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDM0620S07H03DC (mm): 6.2 | L/D: 3 | LU (mm): 24.3 | LCF (mm): 33.6 | OAL (mm): 89.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDM0620S07H05DC (mm): 6.2 | L/D: 5 | LU (mm): 43.8 | LCF (mm): 53.1 | OAL (mm): 110.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDM0630S07H03DC (mm): 6.3 | L/D: 3 | LU (mm): 24.2 | LCF (mm): 33.6 | OAL (mm): 89.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDM0630S07H05DC (mm): 6.3 | L/D: 5 | LU (mm): 43.7 | LCF (mm): 53.1 | OAL (mm): 110.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDM0640S07H03DC (mm): 6.4 | L/D: 3 | LU (mm): 24.1 | LCF (mm): 33.7 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDM0640S07H05DC (mm): 6.4 | L/D: 5 | LU (mm): 43.6 | LCF (mm): 53.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDM0650S07H03DC (mm): 6.5 | L/D: 3 | LU (mm): 24.0 | LCF (mm): 33.7 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDM0650S07H05DC (mm): 6.5 | L/D: 5 | LU (mm): 43.5 | LCF (mm): 53.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDM0660S07H03DC (mm): 6.6 | L/D: 3 | LU (mm): 26.3 | LCF (mm): 36.2 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDM0660S07H05DC (mm): 6.6 | L/D: 5 | LU (mm): 47.3 | LCF (mm): 57.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDM0670S07H03DC (mm): 6.7 | L/D: 3 | LU (mm): 26.2 | LCF (mm): 36.2 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDM0670S07H05DC (mm): 6.7 | L/D: 5 | LU (mm): 47.2 | LCF (mm): 57.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDM0680S07H03DC (mm): 6.8 | L/D: 3 | LU (mm): 26.0 | LCF (mm): 36.2 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDM0680S07H05DC (mm): 6.8 | L/D: 5 | LU (mm): 47.0 | LCF (mm): 57.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDM0690S07H03DC (mm): 6.9 | L/D: 3 | LU (mm): 26.0 | LCF (mm): 36.3 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDM0690S07H05DC (mm): 6.9 | L/D: 5 | LU (mm): 47.0 | LCF (mm): 57.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDM0700S07H03DC (mm): 7.0 | L/D: 3 | LU (mm): 25.8 | LCF (mm): 36.3 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDM0700S07H05DC (mm): 7.0 | L/D: 5 | LU (mm): 46.8 | LCF (mm): 57.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDM0710S08H03DC (mm): 7.1 | L/D: 3 | LU (mm): 28.2 | LCF (mm): 38.8 | OAL (mm): 95.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDM0710S08H05DC (mm): 7.1 | L/D: 5 | LU (mm): 50.7 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDM0720S08H03DC (mm): 7.2 | L/D: 3 | LU (mm): 28.0 | LCF (mm): 38.8 | OAL (mm): 95.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDM0720S08H05DC (mm): 7.2 | L/D: 5 | LU (mm): 50.5 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDM0730S08H03DC (mm): 7.3 | L/D: 3 | LU (mm): 27.9 | LCF (mm): 38.8 | OAL (mm): 95.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDM0730S08H05DC (mm): 7.3 | L/D: 5 | LU (mm): 50.4 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDM0740S08H03DC (mm): 7.4 | L/D: 3 | LU (mm): 27.7 | LCF (mm): 38.8 | OAL (mm): 95.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDM0740S08H05DC (mm): 7.4 | L/D: 5 | LU (mm): 50.2 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDM0750S08H03DC (mm): 7.5 | L/D: 3 | LU (mm): 27.7 | LCF (mm): 38.9 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDM0750S08H05DC (mm): 7.5 | L/D: 5 | LU (mm): 50.2 | LCF (mm): 61.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDM0760S08H03DC (mm): 7.6 | L/D: 3 | LU (mm): 30.0 | LCF (mm): 41.4 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDM0760S08H05DC (mm): 7.6 | L/D: 5 | LU (mm): 54.0 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDM0770S08H03DC (mm): 7.7 | L/D: 3 | LU (mm): 29.9 | LCF (mm): 41.4 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDM0770S08H05DC (mm): 7.7 | L/D: 5 | LU (mm): 53.9 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDM0780S08H03DC (mm): 7.8 | L/D: 3 | LU (mm): 29.7 | LCF (mm): 41.4 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDM0780S08H05DC (mm): 7.8 | L/D: 5 | LU (mm): 53.7 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDM0790S08H03DC (mm): 7.9 | L/D: 3 | LU (mm): 29.6 | LCF (mm): 41.4 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDM0790S08H05DC (mm): 7.9 | L/D: 5 | LU (mm): 53.6 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDM0800S08H03DC (mm): 8.0 | L/D: 3 | LU (mm): 29.5 | LCF (mm): 41.5 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDM0800S08H05DC (mm): 8.0 | L/D: 5 | LU (mm): 53.5 | LCF (mm): 65.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDM0810S09H03DC (mm): 8.1 | L/D: 3 | LU (mm): 31.9 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDM0810S09H05DC (mm): 8.1 | L/D: 5 | LU (mm): 57.4 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDM0820S09H03DC (mm): 8.2 | L/D: 3 | LU (mm): 31.7 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDM0820S09H05DC (mm): 8.2 | L/D: 5 | LU (mm): 57.2 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDM0830S09H03DC (mm): 8.3 | L/D: 3 | LU (mm): 31.6 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDM0830S09H05DC (mm): 8.3 | L/D: 5 | LU (mm): 57.1 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDM0840S09H03DC (mm): 8.4 | L/D: 3 | LU (mm): 31.4 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDM0840S09H05DC (mm): 8.4 | L/D: 5 | LU (mm): 56.9 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDM0850S09H03DC (mm): 8.5 | L/D: 3 | LU (mm): 31.3 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDM0850S09H05DC (mm): 8.5 | L/D: 5 | LU (mm): 56.8 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDM0860S09H03DC (mm): 8.6 | L/D: 3 | LU (mm): 33.7 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDM0860S09H05DC (mm): 8.6 | L/D: 5 | LU (mm): 60.7 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDM0870S09H03DC (mm): 8.7 | L/D: 3 | LU (mm): 33.6 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDM0870S09H05DC (mm): 8.7 | L/D: 5 | LU (mm): 60.6 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDM0880S09H03DC (mm): 8.8 | L/D: 3 | LU (mm): 33.4 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDM0880S09H05DC (mm): 8.8 | L/D: 5 | LU (mm): 60.4 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDM0890S09H03DC (mm): 8.9 | L/D: 3 | LU (mm): 33.3 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDM0890S09H05DC (mm): 8.9 | L/D: 5 | LU (mm): 60.3 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDM0900S09H03DC (mm): 9.0 | L/D: 3 | LU (mm): 33.1 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDM0900S09H05DC (mm): 9.0 | L/D: 5 | LU (mm): 60.1 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDM0910S10H03DC (mm): 9.1 | L/D: 3 | LU (mm): 35.6 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDM0910S10H05DC (mm): 9.1 | L/D: 5 | LU (mm): 64.1 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDM0920S10H03DC (mm): 9.2 | L/D: 3 | LU (mm): 35.4 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDM0920S10H05DC (mm): 9.2 | L/D: 5 | LU (mm): 63.9 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDM0930S10H03DC (mm): 9.3 | L/D: 3 | LU (mm): 35.3 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDM0930S10H05DC (mm): 9.3 | L/D: 5 | LU (mm): 63.8 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDM0940S10H03DC (mm): 9.4 | L/D: 3 | LU (mm): 35.1 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDM0940S10H05DC (mm): 9.4 | L/D: 5 | LU (mm): 63.6 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDM0950S10H03DC (mm): 9.5 | L/D: 3 | LU (mm): 35.0 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDM0950S10H05DC (mm): 9.5 | L/D: 5 | LU (mm): 63.5 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDM0960S10H03DC (mm): 9.6 | L/D: 3 | LU (mm): 37.3 | LCF (mm): 51.7 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDM0960S10H05DC (mm): 9.6 | L/D: 5 | LU (mm): 67.3 | LCF (mm): 81.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDM0970S10H03DC (mm): 9.7 | L/D: 3 | LU (mm): 37.3 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDM0970S10H05DC (mm): 9.7 | L/D: 5 | LU (mm): 67.3 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDM0980S10H03DC (mm): 9.8 | L/D: 3 | LU (mm): 37.1 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDM0980S10H05DC (mm): 9.8 | L/D: 5 | LU (mm): 67.1 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDM0990S10H03DC (mm): 9.9 | L/D: 3 | LU (mm): 37.0 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDM0990S10H05DC (mm): 9.9 | L/D: 5 | LU (mm): 67.0 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDM1000S10H03DC (mm): 10.0 | L/D: 3 | LU (mm): 36.8 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDM1000S10H05DC (mm): 10.0 | L/D: 5 | LU (mm): 66.8 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDM1010S11H03DC (mm): 10.1 | L/D: 3 | LU (mm): 39.2 | LCF (mm): 54.3 | OAL (mm): 117.8 | PL (mm): 1.8 | DCON (mm): 11.0 | Stock: Yes
MDM1010S11H05DC (mm): 10.1 | L/D: 5 | LU (mm): 70.7 | LCF (mm): 85.8 | OAL (mm): 150.8 | PL (mm): 1.8 | DCON (mm): 11.0 | Stock: Yes
MDM1020S11H03DC (mm): 10.2 | L/D: 3 | LU (mm): 39.1 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDM1020S11H05DC (mm): 10.2 | L/D: 5 | LU (mm): 70.6 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDM1030S11H03DC (mm): 10.3 | L/D: 3 | LU (mm): 39.0 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDM1030S11H05DC (mm): 10.3 | L/D: 5 | LU (mm): 70.5 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDM1040S11H03DC (mm): 10.4 | L/D: 3 | LU (mm): 38.8 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDM1040S11H05DC (mm): 10.4 | L/D: 5 | LU (mm): 70.3 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDM1050S11H03DC (mm): 10.5 | L/D: 3 | LU (mm): 38.7 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDM1050S11H05DC (mm): 10.5 | L/D: 5 | LU (mm): 70.2 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDM1060S11H03DC (mm): 10.6 | L/D: 3 | LU (mm): 41.0 | LCF (mm): 56.9 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDM1060S11H05DC (mm): 10.6 | L/D: 5 | LU (mm): 74.0 | LCF (mm): 89.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDM1070S11H03DC (mm): 10.7 | L/D: 3 | LU (mm): 40.9 | LCF (mm): 56.9 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDM1070S11H05DC (mm): 10.7 | L/D: 5 | LU (mm): 73.9 | LCF (mm): 89.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDM1080S11H03DC (mm): 10.8 | L/D: 3 | LU (mm): 40.8 | LCF (mm): 57.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDM1080S11H05DC (mm): 10.8 | L/D: 5 | LU (mm): 73.8 | LCF (mm): 90.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDM1090S11H03DC (mm): 10.9 | L/D: 3 | LU (mm): 40.7 | LCF (mm): 57.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDM1090S11H05DC (mm): 10.9 | L/D: 5 | LU (mm): 73.7 | LCF (mm): 90.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDM1100S11H03DC (mm): 11.0 | L/D: 3 | LU (mm): 40.5 | LCF (mm): 57.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDM1100S11H05DC (mm): 11.0 | L/D: 5 | LU (mm): 73.5 | LCF (mm): 90.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDM1110S12H03DC (mm): 11.1 | L/D: 3 | LU (mm): 42.9 | LCF (mm): 59.5 | OAL (mm): 124.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDM1110S12H05DC (mm): 11.1 | L/D: 5 | LU (mm): 77.4 | LCF (mm): 94.0 | OAL (mm): 160.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDM1120S12H03DC (mm): 11.2 | L/D: 3 | LU (mm): 42.7 | LCF (mm): 59.5 | OAL (mm): 124.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDM1120S12H05DC (mm): 11.2 | L/D: 5 | LU (mm): 77.2 | LCF (mm): 94.0 | OAL (mm): 160.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDM1130S12H03DC (mm): 11.3 | L/D: 3 | LU (mm): 42.7 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDM1130S12H05DC (mm): 11.3 | L/D: 5 | LU (mm): 77.2 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDM1140S12H03DC (mm): 11.4 | L/D: 3 | LU (mm): 42.5 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDM1140S12H05DC (mm): 11.4 | L/D: 5 | LU (mm): 77.0 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDM1150S12H03DC (mm): 11.5 | L/D: 3 | LU (mm): 42.4 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDM1150S12H05DC (mm): 11.5 | L/D: 5 | LU (mm): 76.9 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDM1160S12H03DC (mm): 11.6 | L/D: 3 | LU (mm): 44.7 | LCF (mm): 62.1 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDM1160S12H05DC (mm): 11.6 | L/D: 5 | LU (mm): 80.7 | LCF (mm): 98.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDM1170S12H03DC (mm): 11.7 | L/D: 3 | LU (mm): 44.6 | LCF (mm): 62.1 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDM1170S12H05DC (mm): 11.7 | L/D: 5 | LU (mm): 80.6 | LCF (mm): 98.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDM1180S12H03DC (mm): 11.8 | L/D: 3 | LU (mm): 44.4 | LCF (mm): 62.1 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDM1180S12H05DC (mm): 11.8 | L/D: 5 | LU (mm): 80.4 | LCF (mm): 98.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDM1190S12H03DC (mm): 11.9 | L/D: 3 | LU (mm): 44.4 | LCF (mm): 62.2 | OAL (mm): 124.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDM1190S12H05DC (mm): 11.9 | L/D: 5 | LU (mm): 80.4 | LCF (mm): 98.2 | OAL (mm): 160.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDM1200S12H03DC (mm): 12.0 | L/D: 3 | LU (mm): 44.2 | LCF (mm): 62.2 | OAL (mm): 124.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDM1200S12H05DC (mm): 12.0 | L/D: 5 | LU (mm): 80.2 | LCF (mm): 98.2 | OAL (mm): 160.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDM1210S13H03DC (mm): 12.1 | L/D: 3 | LU (mm): 46.6 | LCF (mm): 64.7 | OAL (mm): 130.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDM1210S13H05DC (mm): 12.1 | L/D: 5 | LU (mm): 84.1 | LCF (mm): 102.2 | OAL (mm): 169.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDM1220S13H03DC (mm): 12.2 | L/D: 3 | LU (mm): 46.4 | LCF (mm): 64.7 | OAL (mm): 130.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDM1220S13H05DC (mm): 12.2 | L/D: 5 | LU (mm): 83.9 | LCF (mm): 102.2 | OAL (mm): 169.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDM1230S13H03DC (mm): 12.3 | L/D: 3 | LU (mm): 46.3 | LCF (mm): 64.7 | OAL (mm): 130.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDM1230S13H05DC (mm): 12.3 | L/D: 5 | LU (mm): 83.8 | LCF (mm): 102.2 | OAL (mm): 169.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDM1240S13H03DC (mm): 12.4 | L/D: 3 | LU (mm): 46.2 | LCF (mm): 64.8 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDM1240S13H05DC (mm): 12.4 | L/D: 5 | LU (mm): 83.7 | LCF (mm): 102.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDM1250S13H03DC (mm): 12.5 | L/D: 3 | LU (mm): 46.1 | LCF (mm): 64.8 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDM1250S13H05DC (mm): 12.5 | L/D: 5 | LU (mm): 83.6 | LCF (mm): 102.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDM1260S13H03DC (mm): 12.6 | L/D: 3 | LU (mm): 48.4 | LCF (mm): 67.3 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDM1260S13H05DC (mm): 12.6 | L/D: 5 | LU (mm): 87.4 | LCF (mm): 106.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDM1270S13H03DC (mm): 12.7 | L/D: 3 | LU (mm): 48.3 | LCF (mm): 67.3 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDM1270S13H05DC (mm): 12.7 | L/D: 5 | LU (mm): 87.3 | LCF (mm): 106.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDM1280S13H03DC (mm): 12.8 | L/D: 3 | LU (mm): 48.1 | LCF (mm): 67.3 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDM1280S13H05DC (mm): 12.8 | L/D: 5 | LU (mm): 87.1 | LCF (mm): 106.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDM1290S13H03DC (mm): 12.9 | L/D: 3 | LU (mm): 48.0 | LCF (mm): 67.3 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDM1290S13H05DC (mm): 12.9 | L/D: 5 | LU (mm): 87.0 | LCF (mm): 106.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDM1300S13H03DC (mm): 13.0 | L/D: 3 | LU (mm): 47.9 | LCF (mm): 67.4 | OAL (mm): 130.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDM1300S13H05DC (mm): 13.0 | L/D: 5 | LU (mm): 86.9 | LCF (mm): 106.4 | OAL (mm): 169.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDM1310S14H03DC (mm): 13.1 | L/D: 3 | LU (mm): 50.3 | LCF (mm): 69.9 | OAL (mm): 136.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDM1310S14H05DC (mm): 13.1 | L/D: 5 | LU (mm): 90.8 | LCF (mm): 110.4 | OAL (mm): 178.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDM1320S14H03DC (mm): 13.2 | L/D: 3 | LU (mm): 50.1 | LCF (mm): 69.9 | OAL (mm): 136.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDM1320S14H05DC (mm): 13.2 | L/D: 5 | LU (mm): 90.6 | LCF (mm): 110.4 | OAL (mm): 178.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDM1330S14H03DC (mm): 13.3 | L/D: 3 | LU (mm): 50.0 | LCF (mm): 69.9 | OAL (mm): 136.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDM1330S14H05DC (mm): 13.3 | L/D: 5 | LU (mm): 90.5 | LCF (mm): 110.4 | OAL (mm): 178.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDM1340S14H03DC (mm): 13.4 | L/D: 3 | LU (mm): 49.8 | LCF (mm): 69.9 | OAL (mm): 136.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDM1340S14H05DC (mm): 13.4 | L/D: 5 | LU (mm): 90.3 | LCF (mm): 110.4 | OAL (mm): 178.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDM1350S14H03DC (mm): 13.5 | L/D: 3 | LU (mm): 49.8 | LCF (mm): 70.0 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDM1350S14H05DC (mm): 13.5 | L/D: 5 | LU (mm): 90.3 | LCF (mm): 110.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDM1360S14H03DC (mm): 13.6 | L/D: 3 | LU (mm): 52.1 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDM1360S14H05DC (mm): 13.6 | L/D: 5 | LU (mm): 94.1 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDM1370S14H03DC (mm): 13.7 | L/D: 3 | LU (mm): 52.0 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDM1370S14H05DC (mm): 13.7 | L/D: 5 | LU (mm): 94.0 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDM1380S14H03DC (mm): 13.8 | L/D: 3 | LU (mm): 51.8 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDM1380S14H05DC (mm): 13.8 | L/D: 5 | LU (mm): 93.8 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDM1390S14H03DC (mm): 13.9 | L/D: 3 | LU (mm): 51.7 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDM1390S14H05DC (mm): 13.9 | L/D: 5 | LU (mm): 93.7 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDM1400S14H03DC (mm): 14.0 | L/D: 3 | LU (mm): 51.5 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDM1400S14H05DC (mm): 14.0 | L/D: 5 | LU (mm): 93.5 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDM1410S15H03DC (mm): 14.1 | L/D: 3 | LU (mm): 54.0 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDM1410S15H05DC (mm): 14.1 | L/D: 5 | LU (mm): 97.5 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDM1420S15H03DC (mm): 14.2 | L/D: 3 | LU (mm): 53.8 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDM1420S15H05DC (mm): 14.2 | L/D: 5 | LU (mm): 97.3 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDM1430S15H03DC (mm): 14.3 | L/D: 3 | LU (mm): 53.7 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDM1430S15H05DC (mm): 14.3 | L/D: 5 | LU (mm): 97.2 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDM1440S15H03DC (mm): 14.4 | L/D: 3 | LU (mm): 53.5 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDM1440S15H05DC (mm): 14.4 | L/D: 5 | LU (mm): 97.0 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDM1450S15H03DC (mm): 14.5 | L/D: 3 | LU (mm): 53.4 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDM1450S15H05DC (mm): 14.5 | L/D: 5 | LU (mm): 96.9 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDM1460S15H03DC (mm): 14.6 | L/D: 3 | LU (mm): 55.8 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDM1460S15H05DC (mm): 14.6 | L/D: 5 | LU (mm): 100.8 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDM1470S15H03DC (mm): 14.7 | L/D: 3 | LU (mm): 55.7 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDM1470S15H05DC (mm): 14.7 | L/D: 5 | LU (mm): 100.7 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDM1480S15H03DC (mm): 14.8 | L/D: 3 | LU (mm): 55.5 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDM1480S15H05DC (mm): 14.8 | L/D: 5 | LU (mm): 100.5 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDM1490S15H03DC (mm): 14.9 | L/D: 3 | LU (mm): 55.4 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDM1490S15H05DC (mm): 14.9 | L/D: 5 | LU (mm): 100.4 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDM1500S15H03DC (mm): 15.0 | L/D: 3 | LU (mm): 55.2 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDM1500S15H05DC (mm): 15.0 | L/D: 5 | LU (mm): 100.2 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDM1510S16H03DC (mm): 15.1 | L/D: 3 | LU (mm): 57.6 | LCF (mm): 80.2 | OAL (mm): 148.7 | PL (mm): 2.7 | DCON (mm): 16.0 | Stock: Yes
MDM1510S16H05DC (mm): 15.1 | L/D: 5 | LU (mm): 104.1 | LCF (mm): 126.7 | OAL (mm): 196.7 | PL (mm): 2.7 | DCON (mm): 16.0 | Stock: Yes
MDM1520S16H03DC (mm): 15.2 | L/D: 3 | LU (mm): 57.5 | LCF (mm): 80.3 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDM1520S16H05DC (mm): 15.2 | L/D: 5 | LU (mm): 104.0 | LCF (mm): 126.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDM1530S16H03DC (mm): 15.3 | L/D: 3 | LU (mm): 57.4 | LCF (mm): 80.3 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDM1530S16H05DC (mm): 15.3 | L/D: 5 | LU (mm): 103.9 | LCF (mm): 126.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDM1540S16H03DC (mm): 15.4 | L/D: 3 | LU (mm): 57.2 | LCF (mm): 80.3 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDM1540S16H05DC (mm): 15.4 | L/D: 5 | LU (mm): 103.7 | LCF (mm): 126.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDM1550S16H03DC (mm): 15.5 | L/D: 3 | LU (mm): 57.1 | LCF (mm): 80.3 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDM1550S16H05DC (mm): 15.5 | L/D: 5 | LU (mm): 103.6 | LCF (mm): 126.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDM1560S16H03DC (mm): 15.6 | L/D: 3 | LU (mm): 59.4 | LCF (mm): 82.8 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDM1560S16H05DC (mm): 15.6 | L/D: 5 | LU (mm): 107.4 | LCF (mm): 130.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDM1570S16H03DC (mm): 15.7 | L/D: 3 | LU (mm): 59.4 | LCF (mm): 82.9 | OAL (mm): 148.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDM1570S16H05DC (mm): 15.7 | L/D: 5 | LU (mm): 107.4 | LCF (mm): 130.9 | OAL (mm): 196.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDM1580S16H03DC (mm): 15.8 | L/D: 3 | LU (mm): 59.2 | LCF (mm): 82.9 | OAL (mm): 148.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDM1580S16H05DC (mm): 15.8 | L/D: 5 | LU (mm): 107.2 | LCF (mm): 130.9 | OAL (mm): 196.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDM1590S16H03DC (mm): 15.9 | L/D: 3 | LU (mm): 59.1 | LCF (mm): 82.9 | OAL (mm): 148.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDM1590S16H05DC (mm): 15.9 | L/D: 5 | LU (mm): 107.1 | LCF (mm): 130.9 | OAL (mm): 196.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDM1600S16H03DC (mm): 16.0 | L/D: 3 | LU (mm): 58.9 | LCF (mm): 82.9 | OAL (mm): 148.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDM1600S16H05DC (mm): 16.0 | L/D: 5 | LU (mm): 106.9 | LCF (mm): 130.9 | OAL (mm): 196.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
