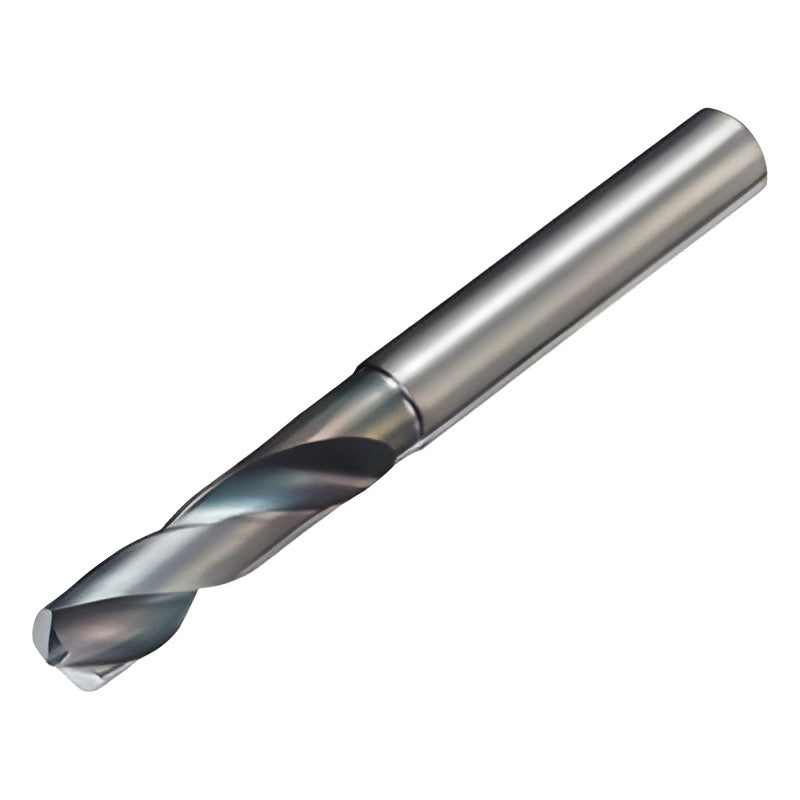

Sumitomo Electric Hardmetal Multi Drill NEXIO MDE-E Type (External Coolant)

Sumitomo Electric Hardmetal Multi Drill NEXIO MDE-E Type (External Coolant)

General-purpose solid carbide drill with external coolant in grade ACT100 for steels, high-carbon and die steels through stainless steel, stable on small machining centers and lathes.

Key features

  • Grade ACT100 with NX coating for wear resistance
  • Strong arc cutting edge for good chip control
  • 140 deg point angle
  • Hole depth 2D and 4D
  • Diameter 1.0-20.0 mm

Specifications

Coolant External
Point angle 140 deg
Grade ACT100
MDE0100S03E02 DC (mm): 1.0 | L/D: 2 | LU (mm): 5.7 | LCF (mm): 7.2 | OAL (mm): 45.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0100S03E04 DC (mm): 1.0 | L/D: 4 | LU (mm): 7.7 | LCF (mm): 9.2 | OAL (mm): 49.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0110S03E02 DC (mm): 1.1 | L/D: 2 | LU (mm): 5.6 | LCF (mm): 7.2 | OAL (mm): 45.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0110S03E04 DC (mm): 1.1 | L/D: 4 | LU (mm): 7.6 | LCF (mm): 9.2 | OAL (mm): 49.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0120S03E02 DC (mm): 1.2 | L/D: 2 | LU (mm): 6.4 | LCF (mm): 8.2 | OAL (mm): 45.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0120S03E04 DC (mm): 1.2 | L/D: 4 | LU (mm): 8.4 | LCF (mm): 10.2 | OAL (mm): 49.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0130S03E02 DC (mm): 1.3 | L/D: 2 | LU (mm): 6.3 | LCF (mm): 8.2 | OAL (mm): 45.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0130S03E04 DC (mm): 1.3 | L/D: 4 | LU (mm): 9.3 | LCF (mm): 11.2 | OAL (mm): 49.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0140S03E02 DC (mm): 1.4 | L/D: 2 | LU (mm): 7.2 | LCF (mm): 9.3 | OAL (mm): 45.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0140S03E04 DC (mm): 1.4 | L/D: 4 | LU (mm): 9.2 | LCF (mm): 11.3 | OAL (mm): 49.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0150S03E02 DC (mm): 1.5 | L/D: 2 | LU (mm): 7.1 | LCF (mm): 9.3 | OAL (mm): 45.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0150S03E04 DC (mm): 1.5 | L/D: 4 | LU (mm): 10.1 | LCF (mm): 12.3 | OAL (mm): 49.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0160S03E02 DC (mm): 1.6 | L/D: 2 | LU (mm): 7.9 | LCF (mm): 10.3 | OAL (mm): 45.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0160S03E04 DC (mm): 1.6 | L/D: 4 | LU (mm): 10.9 | LCF (mm): 13.3 | OAL (mm): 49.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0170S03E02 DC (mm): 1.7 | L/D: 2 | LU (mm): 7.8 | LCF (mm): 10.3 | OAL (mm): 45.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0170S03E04 DC (mm): 1.7 | L/D: 4 | LU (mm): 10.8 | LCF (mm): 13.3 | OAL (mm): 49.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0180S03E02 DC (mm): 1.8 | L/D: 2 | LU (mm): 8.6 | LCF (mm): 11.3 | OAL (mm): 45.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0180S03E04 DC (mm): 1.8 | L/D: 4 | LU (mm): 11.6 | LCF (mm): 14.3 | OAL (mm): 49.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0190S03E02 DC (mm): 1.9 | L/D: 2 | LU (mm): 8.5 | LCF (mm): 11.3 | OAL (mm): 45.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0190S03E04 DC (mm): 1.9 | L/D: 4 | LU (mm): 12.5 | LCF (mm): 15.3 | OAL (mm): 49.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0200S03E02 DC (mm): 2.0 | L/D: 2 | LU (mm): 9.4 | LCF (mm): 12.4 | OAL (mm): 45.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0200S03E04 DC (mm): 2.0 | L/D: 4 | LU (mm): 13.4 | LCF (mm): 16.4 | OAL (mm): 49.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0210S03E02 DC (mm): 2.1 | L/D: 2 | LU (mm): 9.3 | LCF (mm): 12.4 | OAL (mm): 45.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0210S03E04 DC (mm): 2.1 | L/D: 4 | LU (mm): 13.3 | LCF (mm): 16.4 | OAL (mm): 49.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0220S03E02 DC (mm): 2.2 | L/D: 2 | LU (mm): 10.1 | LCF (mm): 13.4 | OAL (mm): 45.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0220S03E04 DC (mm): 2.2 | L/D: 4 | LU (mm): 14.1 | LCF (mm): 17.4 | OAL (mm): 49.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0230S03E02 DC (mm): 2.3 | L/D: 2 | LU (mm): 10.0 | LCF (mm): 13.4 | OAL (mm): 45.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0230S03E04 DC (mm): 2.3 | L/D: 4 | LU (mm): 14.0 | LCF (mm): 17.4 | OAL (mm): 49.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0240S03E02 DC (mm): 2.4 | L/D: 2 | LU (mm): 10.8 | LCF (mm): 14.4 | OAL (mm): 45.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0240S03E04 DC (mm): 2.4 | L/D: 4 | LU (mm): 14.8 | LCF (mm): 18.4 | OAL (mm): 49.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0250S03E02 DC (mm): 2.5 | L/D: 2 | LU (mm): 10.8 | LCF (mm): 14.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0250S03E04 DC (mm): 2.5 | L/D: 4 | LU (mm): 14.8 | LCF (mm): 18.5 | OAL (mm): 49.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0260S03E02 DC (mm): 2.6 | L/D: 2 | LU (mm): 11.6 | LCF (mm): 15.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0260S03E04 DC (mm): 2.6 | L/D: 4 | LU (mm): 15.6 | LCF (mm): 19.5 | OAL (mm): 49.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0270S03E02 DC (mm): 2.7 | L/D: 2 | LU (mm): 11.5 | LCF (mm): 15.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0270S03E04 DC (mm): 2.7 | L/D: 4 | LU (mm): 15.5 | LCF (mm): 19.5 | OAL (mm): 49.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0276S03E02 DC (mm): 2.76 | L/D: 2 | LU (mm): 11.3 | LCF (mm): 15.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0278S03E02 DC (mm): 2.78 | L/D: 2 | LU (mm): 11.3 | LCF (mm): 15.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0280S03E02 DC (mm): 2.8 | L/D: 2 | LU (mm): 11.3 | LCF (mm): 15.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0280S03E04 DC (mm): 2.8 | L/D: 4 | LU (mm): 15.3 | LCF (mm): 19.5 | OAL (mm): 49.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0290S03E02 DC (mm): 2.9 | L/D: 2 | LU (mm): 11.2 | LCF (mm): 15.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0290S03E04 DC (mm): 2.9 | L/D: 4 | LU (mm): 15.2 | LCF (mm): 19.5 | OAL (mm): 49.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0300S03E02 DC (mm): 3.0 | L/D: 2 | LU (mm): 9.0 | LCF (mm): 13.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0300S03E04 DC (mm): 3.0 | L/D: 4 | LU (mm): 15.0 | LCF (mm): 19.5 | OAL (mm): 49.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0310S04E02 DC (mm): 3.1 | L/D: 2 | LU (mm): 15.0 | LCF (mm): 19.6 | OAL (mm): 54.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0310S04E04 DC (mm): 3.1 | L/D: 4 | LU (mm): 20.0 | LCF (mm): 24.6 | OAL (mm): 60.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0320S04E02 DC (mm): 3.2 | L/D: 2 | LU (mm): 14.8 | LCF (mm): 19.6 | OAL (mm): 54.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0320S04E04 DC (mm): 3.2 | L/D: 4 | LU (mm): 19.8 | LCF (mm): 24.6 | OAL (mm): 60.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0330S04E02 DC (mm): 3.3 | L/D: 2 | LU (mm): 14.7 | LCF (mm): 19.6 | OAL (mm): 54.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0330S04E04 DC (mm): 3.3 | L/D: 4 | LU (mm): 19.7 | LCF (mm): 24.6 | OAL (mm): 60.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0340S04E02 DC (mm): 3.4 | L/D: 2 | LU (mm): 14.5 | LCF (mm): 19.6 | OAL (mm): 54.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0340S04E04 DC (mm): 3.4 | L/D: 4 | LU (mm): 19.5 | LCF (mm): 24.6 | OAL (mm): 60.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0350S04E02 DC (mm): 3.5 | L/D: 2 | LU (mm): 14.4 | LCF (mm): 19.6 | OAL (mm): 54.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0350S04E04 DC (mm): 3.5 | L/D: 4 | LU (mm): 19.4 | LCF (mm): 24.6 | OAL (mm): 60.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0360S04E02 DC (mm): 3.6 | L/D: 2 | LU (mm): 16.3 | LCF (mm): 21.7 | OAL (mm): 54.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0360S04E04 DC (mm): 3.6 | L/D: 4 | LU (mm): 22.3 | LCF (mm): 27.7 | OAL (mm): 60.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0366S04E02 DC (mm): 3.66 | L/D: 2 | LU (mm): 16.2 | LCF (mm): 21.7 | OAL (mm): 54.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0368S04E02 DC (mm): 3.68 | L/D: 2 | LU (mm): 16.2 | LCF (mm): 21.7 | OAL (mm): 54.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0370S04E02 DC (mm): 3.7 | L/D: 2 | LU (mm): 16.2 | LCF (mm): 21.7 | OAL (mm): 54.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0370S04E04 DC (mm): 3.7 | L/D: 4 | LU (mm): 22.2 | LCF (mm): 27.7 | OAL (mm): 60.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0380S04E02 DC (mm): 3.8 | L/D: 2 | LU (mm): 16.0 | LCF (mm): 21.7 | OAL (mm): 54.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0380S04E04 DC (mm): 3.8 | L/D: 4 | LU (mm): 22.0 | LCF (mm): 27.7 | OAL (mm): 60.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0390S04E02 DC (mm): 3.9 | L/D: 2 | LU (mm): 15.9 | LCF (mm): 21.7 | OAL (mm): 54.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0390S04E04 DC (mm): 3.9 | L/D: 4 | LU (mm): 21.9 | LCF (mm): 27.7 | OAL (mm): 60.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0400S04E02 DC (mm): 4.0 | L/D: 2 | LU (mm): 15.7 | LCF (mm): 21.7 | OAL (mm): 54.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0400S04E04 DC (mm): 4.0 | L/D: 4 | LU (mm): 21.7 | LCF (mm): 27.7 | OAL (mm): 60.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0410S05E02 DC (mm): 4.1 | L/D: 2 | LU (mm): 17.6 | LCF (mm): 23.7 | OAL (mm): 61.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDE0410S05E04 DC (mm): 4.1 | L/D: 4 | LU (mm): 25.6 | LCF (mm): 31.7 | OAL (mm): 76.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDE0420S05E02 DC (mm): 4.2 | L/D: 2 | LU (mm): 17.5 | LCF (mm): 23.8 | OAL (mm): 61.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0420S05E04 DC (mm): 4.2 | L/D: 4 | LU (mm): 25.5 | LCF (mm): 31.8 | OAL (mm): 76.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0430S05E02 DC (mm): 4.3 | L/D: 2 | LU (mm): 17.4 | LCF (mm): 23.8 | OAL (mm): 61.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0430S05E04 DC (mm): 4.3 | L/D: 4 | LU (mm): 25.4 | LCF (mm): 31.8 | OAL (mm): 76.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0440S05E02 DC (mm): 4.4 | L/D: 2 | LU (mm): 17.2 | LCF (mm): 23.8 | OAL (mm): 61.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0440S05E04 DC (mm): 4.4 | L/D: 4 | LU (mm): 25.2 | LCF (mm): 31.8 | OAL (mm): 76.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0450S05E02 DC (mm): 4.5 | L/D: 2 | LU (mm): 17.1 | LCF (mm): 23.8 | OAL (mm): 61.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0450S05E04 DC (mm): 4.5 | L/D: 4 | LU (mm): 25.1 | LCF (mm): 31.8 | OAL (mm): 76.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0460S05E02 DC (mm): 4.6 | L/D: 2 | LU (mm): 18.9 | LCF (mm): 25.8 | OAL (mm): 61.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0460S05E04 DC (mm): 4.6 | L/D: 4 | LU (mm): 31.9 | LCF (mm): 38.8 | OAL (mm): 76.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0462S05E02 DC (mm): 4.62 | L/D: 2 | LU (mm): 18.9 | LCF (mm): 25.8 | OAL (mm): 61.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0464S05E02 DC (mm): 4.64 | L/D: 2 | LU (mm): 18.9 | LCF (mm): 25.8 | OAL (mm): 61.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0470S05E02 DC (mm): 4.7 | L/D: 2 | LU (mm): 18.9 | LCF (mm): 25.9 | OAL (mm): 61.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0470S05E04 DC (mm): 4.7 | L/D: 4 | LU (mm): 31.9 | LCF (mm): 38.9 | OAL (mm): 76.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0480S05E02 DC (mm): 4.8 | L/D: 2 | LU (mm): 18.7 | LCF (mm): 25.9 | OAL (mm): 61.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0480S05E04 DC (mm): 4.8 | L/D: 4 | LU (mm): 31.7 | LCF (mm): 38.9 | OAL (mm): 76.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0490S05E02 DC (mm): 4.9 | L/D: 2 | LU (mm): 18.6 | LCF (mm): 25.9 | OAL (mm): 61.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0490S05E04 DC (mm): 4.9 | L/D: 4 | LU (mm): 31.6 | LCF (mm): 38.9 | OAL (mm): 76.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0500S05E02 DC (mm): 5.0 | L/D: 2 | LU (mm): 18.4 | LCF (mm): 25.9 | OAL (mm): 61.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0500S05E04 DC (mm): 5.0 | L/D: 4 | LU (mm): 31.4 | LCF (mm): 38.9 | OAL (mm): 76.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0510S06E02 DC (mm): 5.1 | L/D: 2 | LU (mm): 18.3 | LCF (mm): 25.9 | OAL (mm): 65.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDE0510S06E04 DC (mm): 5.1 | L/D: 4 | LU (mm): 32.3 | LCF (mm): 39.9 | OAL (mm): 81.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDE0520S06E02 DC (mm): 5.2 | L/D: 2 | LU (mm): 18.1 | LCF (mm): 25.9 | OAL (mm): 65.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDE0520S06E04 DC (mm): 5.2 | L/D: 4 | LU (mm): 32.1 | LCF (mm): 39.9 | OAL (mm): 81.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDE0530S06E02 DC (mm): 5.3 | L/D: 2 | LU (mm): 18.1 | LCF (mm): 26.0 | OAL (mm): 66.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0530S06E04 DC (mm): 5.3 | L/D: 4 | LU (mm): 32.1 | LCF (mm): 40.0 | OAL (mm): 82.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0540S06E02 DC (mm): 5.4 | L/D: 2 | LU (mm): 17.9 | LCF (mm): 26.0 | OAL (mm): 66.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0540S06E04 DC (mm): 5.4 | L/D: 4 | LU (mm): 31.9 | LCF (mm): 40.0 | OAL (mm): 82.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0550S06E02 DC (mm): 5.5 | L/D: 2 | LU (mm): 17.8 | LCF (mm): 26.0 | OAL (mm): 66.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0550S06E04 DC (mm): 5.5 | L/D: 4 | LU (mm): 31.8 | LCF (mm): 40.0 | OAL (mm): 82.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0552S06E02 DC (mm): 5.52 | L/D: 2 | LU (mm): 19.6 | LCF (mm): 28.0 | OAL (mm): 66.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0554S06E02 DC (mm): 5.54 | L/D: 2 | LU (mm): 19.6 | LCF (mm): 28.0 | OAL (mm): 66.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0560S06E02 DC (mm): 5.6 | L/D: 2 | LU (mm): 19.6 | LCF (mm): 28.0 | OAL (mm): 66.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0560S06E04 DC (mm): 5.6 | L/D: 4 | LU (mm): 33.6 | LCF (mm): 42.0 | OAL (mm): 82.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0570S06E02 DC (mm): 5.7 | L/D: 2 | LU (mm): 19.5 | LCF (mm): 28.0 | OAL (mm): 66.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0570S06E04 DC (mm): 5.7 | L/D: 4 | LU (mm): 33.5 | LCF (mm): 42.0 | OAL (mm): 82.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0580S06E02 DC (mm): 5.8 | L/D: 2 | LU (mm): 19.4 | LCF (mm): 28.1 | OAL (mm): 66.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0580S06E04 DC (mm): 5.8 | L/D: 4 | LU (mm): 33.4 | LCF (mm): 42.1 | OAL (mm): 82.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0590S06E02 DC (mm): 5.9 | L/D: 2 | LU (mm): 19.3 | LCF (mm): 28.1 | OAL (mm): 66.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0590S06E04 DC (mm): 5.9 | L/D: 4 | LU (mm): 33.3 | LCF (mm): 42.1 | OAL (mm): 82.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0600S06E02 DC (mm): 6.0 | L/D: 2 | LU (mm): 19.1 | LCF (mm): 28.1 | OAL (mm): 66.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0600S06E04 DC (mm): 6.0 | L/D: 4 | LU (mm): 33.1 | LCF (mm): 42.1 | OAL (mm): 82.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0610S07E02 DC (mm): 6.1 | L/D: 2 | LU (mm): 23.0 | LCF (mm): 32.1 | OAL (mm): 74.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0610S07E04 DC (mm): 6.1 | L/D: 4 | LU (mm): 34.0 | LCF (mm): 43.1 | OAL (mm): 84.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0620S07E02 DC (mm): 6.2 | L/D: 2 | LU (mm): 22.8 | LCF (mm): 32.1 | OAL (mm): 74.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0620S07E04 DC (mm): 6.2 | L/D: 4 | LU (mm): 33.8 | LCF (mm): 43.1 | OAL (mm): 84.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0630S07E02 DC (mm): 6.3 | L/D: 2 | LU (mm): 22.7 | LCF (mm): 32.1 | OAL (mm): 74.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0630S07E04 DC (mm): 6.3 | L/D: 4 | LU (mm): 33.7 | LCF (mm): 43.1 | OAL (mm): 84.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0640S07E02 DC (mm): 6.4 | L/D: 2 | LU (mm): 22.6 | LCF (mm): 32.2 | OAL (mm): 74.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0640S07E04 DC (mm): 6.4 | L/D: 4 | LU (mm): 33.6 | LCF (mm): 43.2 | OAL (mm): 84.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0650S07E02 DC (mm): 6.5 | L/D: 2 | LU (mm): 22.5 | LCF (mm): 32.2 | OAL (mm): 74.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0650S07E04 DC (mm): 6.5 | L/D: 4 | LU (mm): 33.5 | LCF (mm): 43.2 | OAL (mm): 84.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0660S07E02 DC (mm): 6.6 | L/D: 2 | LU (mm): 24.3 | LCF (mm): 34.2 | OAL (mm): 74.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0660S07E04 DC (mm): 6.6 | L/D: 4 | LU (mm): 34.3 | LCF (mm): 44.2 | OAL (mm): 84.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0670S07E02 DC (mm): 6.7 | L/D: 2 | LU (mm): 24.2 | LCF (mm): 34.2 | OAL (mm): 74.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0670S07E04 DC (mm): 6.7 | L/D: 4 | LU (mm): 34.2 | LCF (mm): 44.2 | OAL (mm): 84.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0680S07E02 DC (mm): 6.8 | L/D: 2 | LU (mm): 24.0 | LCF (mm): 34.2 | OAL (mm): 74.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0680S07E04 DC (mm): 6.8 | L/D: 4 | LU (mm): 34.0 | LCF (mm): 44.2 | OAL (mm): 84.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0690S07E02 DC (mm): 6.9 | L/D: 2 | LU (mm): 24.0 | LCF (mm): 34.3 | OAL (mm): 74.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDE0690S07E04 DC (mm): 6.9 | L/D: 4 | LU (mm): 34.0 | LCF (mm): 44.3 | OAL (mm): 84.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDE0700S07E02 DC (mm): 7.0 | L/D: 2 | LU (mm): 23.8 | LCF (mm): 34.3 | OAL (mm): 74.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDE0700S07E04 DC (mm): 7.0 | L/D: 4 | LU (mm): 33.8 | LCF (mm): 44.3 | OAL (mm): 84.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDE0710S08E02 DC (mm): 7.1 | L/D: 2 | LU (mm): 23.7 | LCF (mm): 34.3 | OAL (mm): 79.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0710S08E04 DC (mm): 7.1 | L/D: 4 | LU (mm): 35.7 | LCF (mm): 46.3 | OAL (mm): 91.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0720S08E02 DC (mm): 7.2 | L/D: 2 | LU (mm): 23.5 | LCF (mm): 34.3 | OAL (mm): 79.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0720S08E04 DC (mm): 7.2 | L/D: 4 | LU (mm): 35.5 | LCF (mm): 46.3 | OAL (mm): 91.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0730S08E02 DC (mm): 7.3 | L/D: 2 | LU (mm): 23.4 | LCF (mm): 34.3 | OAL (mm): 79.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0730S08E04 DC (mm): 7.3 | L/D: 4 | LU (mm): 35.4 | LCF (mm): 46.3 | OAL (mm): 91.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0736S08E02 DC (mm): 7.36 | L/D: 2 | LU (mm): 23.2 | LCF (mm): 34.3 | OAL (mm): 79.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0738S08E02 DC (mm): 7.38 | L/D: 2 | LU (mm): 23.2 | LCF (mm): 34.3 | OAL (mm): 79.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0740S08E02 DC (mm): 7.4 | L/D: 2 | LU (mm): 23.2 | LCF (mm): 34.3 | OAL (mm): 79.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0740S08E04 DC (mm): 7.4 | L/D: 4 | LU (mm): 35.2 | LCF (mm): 46.3 | OAL (mm): 91.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0750S08E02 DC (mm): 7.5 | L/D: 2 | LU (mm): 23.2 | LCF (mm): 34.4 | OAL (mm): 79.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0750S08E04 DC (mm): 7.5 | L/D: 4 | LU (mm): 35.2 | LCF (mm): 46.4 | OAL (mm): 91.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0752S08E02 DC (mm): 7.52 | L/D: 2 | LU (mm): 26.0 | LCF (mm): 37.4 | OAL (mm): 79.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0754S08E02 DC (mm): 7.54 | L/D: 2 | LU (mm): 26.0 | LCF (mm): 37.4 | OAL (mm): 79.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0760S08E02 DC (mm): 7.6 | L/D: 2 | LU (mm): 26.0 | LCF (mm): 37.4 | OAL (mm): 79.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0760S08E04 DC (mm): 7.6 | L/D: 4 | LU (mm): 38.0 | LCF (mm): 49.4 | OAL (mm): 91.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0770S08E02 DC (mm): 7.7 | L/D: 2 | LU (mm): 25.9 | LCF (mm): 37.4 | OAL (mm): 79.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0770S08E04 DC (mm): 7.7 | L/D: 4 | LU (mm): 37.9 | LCF (mm): 49.4 | OAL (mm): 91.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0780S08E02 DC (mm): 7.8 | L/D: 2 | LU (mm): 25.7 | LCF (mm): 37.4 | OAL (mm): 79.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0780S08E04 DC (mm): 7.8 | L/D: 4 | LU (mm): 37.7 | LCF (mm): 49.4 | OAL (mm): 91.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0790S08E02 DC (mm): 7.9 | L/D: 2 | LU (mm): 25.6 | LCF (mm): 37.4 | OAL (mm): 79.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0790S08E04 DC (mm): 7.9 | L/D: 4 | LU (mm): 37.6 | LCF (mm): 49.4 | OAL (mm): 91.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0800S08E02 DC (mm): 8.0 | L/D: 2 | LU (mm): 25.5 | LCF (mm): 37.5 | OAL (mm): 79.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDE0800S08E04 DC (mm): 8.0 | L/D: 4 | LU (mm): 37.5 | LCF (mm): 49.5 | OAL (mm): 91.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDE0810S09E02 DC (mm): 8.1 | L/D: 2 | LU (mm): 25.4 | LCF (mm): 37.5 | OAL (mm): 83.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0810S09E04 DC (mm): 8.1 | L/D: 4 | LU (mm): 42.4 | LCF (mm): 54.5 | OAL (mm): 99.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0820S09E02 DC (mm): 8.2 | L/D: 2 | LU (mm): 25.2 | LCF (mm): 37.5 | OAL (mm): 83.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0820S09E04 DC (mm): 8.2 | L/D: 4 | LU (mm): 42.2 | LCF (mm): 54.5 | OAL (mm): 99.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0830S09E02 DC (mm): 8.3 | L/D: 2 | LU (mm): 25.1 | LCF (mm): 37.5 | OAL (mm): 83.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0830S09E04 DC (mm): 8.3 | L/D: 4 | LU (mm): 42.1 | LCF (mm): 54.5 | OAL (mm): 99.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0840S09E02 DC (mm): 8.4 | L/D: 2 | LU (mm): 24.9 | LCF (mm): 37.5 | OAL (mm): 83.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0840S09E04 DC (mm): 8.4 | L/D: 4 | LU (mm): 41.9 | LCF (mm): 54.5 | OAL (mm): 99.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0850S09E02 DC (mm): 8.5 | L/D: 2 | LU (mm): 24.8 | LCF (mm): 37.5 | OAL (mm): 83.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0850S09E04 DC (mm): 8.5 | L/D: 4 | LU (mm): 41.8 | LCF (mm): 54.5 | OAL (mm): 99.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0860S09E02 DC (mm): 8.6 | L/D: 2 | LU (mm): 26.7 | LCF (mm): 39.6 | OAL (mm): 83.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0860S09E04 DC (mm): 8.6 | L/D: 4 | LU (mm): 43.7 | LCF (mm): 56.6 | OAL (mm): 99.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0870S09E02 DC (mm): 8.7 | L/D: 2 | LU (mm): 26.6 | LCF (mm): 39.6 | OAL (mm): 83.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0870S09E04 DC (mm): 8.7 | L/D: 4 | LU (mm): 43.6 | LCF (mm): 56.6 | OAL (mm): 99.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0880S09E02 DC (mm): 8.8 | L/D: 2 | LU (mm): 26.4 | LCF (mm): 39.6 | OAL (mm): 83.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0880S09E04 DC (mm): 8.8 | L/D: 4 | LU (mm): 43.4 | LCF (mm): 56.6 | OAL (mm): 99.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0890S09E02 DC (mm): 8.9 | L/D: 2 | LU (mm): 26.3 | LCF (mm): 39.6 | OAL (mm): 83.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0890S09E04 DC (mm): 8.9 | L/D: 4 | LU (mm): 43.3 | LCF (mm): 56.6 | OAL (mm): 99.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0900S09E02 DC (mm): 9.0 | L/D: 2 | LU (mm): 26.1 | LCF (mm): 39.6 | OAL (mm): 83.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0900S09E04 DC (mm): 9.0 | L/D: 4 | LU (mm): 43.1 | LCF (mm): 56.6 | OAL (mm): 99.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0910S10E02 DC (mm): 9.1 | L/D: 2 | LU (mm): 26.1 | LCF (mm): 39.7 | OAL (mm): 88.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0910S10E04 DC (mm): 9.1 | L/D: 4 | LU (mm): 46.1 | LCF (mm): 59.7 | OAL (mm): 106.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0920S10E02 DC (mm): 9.2 | L/D: 2 | LU (mm): 25.9 | LCF (mm): 39.7 | OAL (mm): 88.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0920S10E04 DC (mm): 9.2 | L/D: 4 | LU (mm): 45.9 | LCF (mm): 59.7 | OAL (mm): 106.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0924S10E02 DC (mm): 9.24 | L/D: 2 | LU (mm): 25.8 | LCF (mm): 39.7 | OAL (mm): 88.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0926S10E02 DC (mm): 9.26 | L/D: 2 | LU (mm): 25.8 | LCF (mm): 39.7 | OAL (mm): 88.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0930S10E02 DC (mm): 9.3 | L/D: 2 | LU (mm): 25.8 | LCF (mm): 39.7 | OAL (mm): 88.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0930S10E04 DC (mm): 9.3 | L/D: 4 | LU (mm): 45.8 | LCF (mm): 59.7 | OAL (mm): 106.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0936S10E02 DC (mm): 9.36 | L/D: 2 | LU (mm): 25.6 | LCF (mm): 39.7 | OAL (mm): 88.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0938S10E02 DC (mm): 9.38 | L/D: 2 | LU (mm): 25.6 | LCF (mm): 39.7 | OAL (mm): 88.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0940S10E02 DC (mm): 9.4 | L/D: 2 | LU (mm): 25.6 | LCF (mm): 39.7 | OAL (mm): 88.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0940S10E04 DC (mm): 9.4 | L/D: 4 | LU (mm): 45.6 | LCF (mm): 59.7 | OAL (mm): 106.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0950S10E02 DC (mm): 9.5 | L/D: 2 | LU (mm): 25.5 | LCF (mm): 39.7 | OAL (mm): 88.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0950S10E04 DC (mm): 9.5 | L/D: 4 | LU (mm): 45.5 | LCF (mm): 59.7 | OAL (mm): 106.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0952S10E02 DC (mm): 9.52 | L/D: 2 | LU (mm): 28.3 | LCF (mm): 42.7 | OAL (mm): 88.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0954S10E02 DC (mm): 9.54 | L/D: 2 | LU (mm): 28.3 | LCF (mm): 42.7 | OAL (mm): 88.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0960S10E02 DC (mm): 9.6 | L/D: 2 | LU (mm): 28.3 | LCF (mm): 42.7 | OAL (mm): 88.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0960S10E04 DC (mm): 9.6 | L/D: 4 | LU (mm): 47.3 | LCF (mm): 61.7 | OAL (mm): 106.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0970S10E02 DC (mm): 9.7 | L/D: 2 | LU (mm): 28.3 | LCF (mm): 42.8 | OAL (mm): 88.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0970S10E04 DC (mm): 9.7 | L/D: 4 | LU (mm): 47.3 | LCF (mm): 61.8 | OAL (mm): 106.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0980S10E02 DC (mm): 9.8 | L/D: 2 | LU (mm): 28.1 | LCF (mm): 42.8 | OAL (mm): 88.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0980S10E04 DC (mm): 9.8 | L/D: 4 | LU (mm): 47.1 | LCF (mm): 61.8 | OAL (mm): 106.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0990S10E02 DC (mm): 9.9 | L/D: 2 | LU (mm): 28.0 | LCF (mm): 42.8 | OAL (mm): 88.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0990S10E04 DC (mm): 9.9 | L/D: 4 | LU (mm): 47.0 | LCF (mm): 61.8 | OAL (mm): 106.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE1000S10E02 DC (mm): 10.0 | L/D: 2 | LU (mm): 27.8 | LCF (mm): 42.8 | OAL (mm): 88.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE1000S10E04 DC (mm): 10.0 | L/D: 4 | LU (mm): 46.8 | LCF (mm): 61.8 | OAL (mm): 106.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE1010S11E02 DC (mm): 10.1 | L/D: 2 | LU (mm): 27.7 | LCF (mm): 42.8 | OAL (mm): 94.8 | PL (mm): 1.8 | DCON (mm): 11.0 | Stock: Yes
MDE1010S11E04 DC (mm): 10.1 | L/D: 4 | LU (mm): 52.7 | LCF (mm): 67.8 | OAL (mm): 115.8 | PL (mm): 1.8 | DCON (mm): 11.0 | Stock: Yes
MDE1020S11E02 DC (mm): 10.2 | L/D: 2 | LU (mm): 27.6 | LCF (mm): 42.9 | OAL (mm): 94.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1020S11E04 DC (mm): 10.2 | L/D: 4 | LU (mm): 52.6 | LCF (mm): 67.9 | OAL (mm): 115.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1030S11E02 DC (mm): 10.3 | L/D: 2 | LU (mm): 27.5 | LCF (mm): 42.9 | OAL (mm): 94.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1030S11E04 DC (mm): 10.3 | L/D: 4 | LU (mm): 52.5 | LCF (mm): 67.9 | OAL (mm): 115.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1040S11E02 DC (mm): 10.4 | L/D: 2 | LU (mm): 27.3 | LCF (mm): 42.9 | OAL (mm): 94.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1040S11E04 DC (mm): 10.4 | L/D: 4 | LU (mm): 52.3 | LCF (mm): 67.9 | OAL (mm): 115.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1050S11E02 DC (mm): 10.5 | L/D: 2 | LU (mm): 27.2 | LCF (mm): 42.9 | OAL (mm): 94.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1050S11E04 DC (mm): 10.5 | L/D: 4 | LU (mm): 52.2 | LCF (mm): 67.9 | OAL (mm): 115.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1060S11E02 DC (mm): 10.6 | L/D: 2 | LU (mm): 31.0 | LCF (mm): 46.9 | OAL (mm): 94.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1060S11E04 DC (mm): 10.6 | L/D: 4 | LU (mm): 54.0 | LCF (mm): 69.9 | OAL (mm): 115.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1070S11E02 DC (mm): 10.7 | L/D: 2 | LU (mm): 30.9 | LCF (mm): 46.9 | OAL (mm): 94.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1070S11E04 DC (mm): 10.7 | L/D: 4 | LU (mm): 53.9 | LCF (mm): 69.9 | OAL (mm): 115.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1080S11E02 DC (mm): 10.8 | L/D: 2 | LU (mm): 30.8 | LCF (mm): 47.0 | OAL (mm): 95.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1080S11E04 DC (mm): 10.8 | L/D: 4 | LU (mm): 53.8 | LCF (mm): 70.0 | OAL (mm): 116.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1090S11E02 DC (mm): 10.9 | L/D: 2 | LU (mm): 30.7 | LCF (mm): 47.0 | OAL (mm): 95.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1090S11E04 DC (mm): 10.9 | L/D: 4 | LU (mm): 53.7 | LCF (mm): 70.0 | OAL (mm): 116.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1100S11E02 DC (mm): 11.0 | L/D: 2 | LU (mm): 30.5 | LCF (mm): 47.0 | OAL (mm): 95.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1100S11E04 DC (mm): 11.0 | L/D: 4 | LU (mm): 53.5 | LCF (mm): 70.0 | OAL (mm): 116.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1110S12E02 DC (mm): 11.1 | L/D: 2 | LU (mm): 30.4 | LCF (mm): 47.0 | OAL (mm): 102.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1110S12E04 DC (mm): 11.1 | L/D: 4 | LU (mm): 56.4 | LCF (mm): 73.0 | OAL (mm): 123.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1120S12E02 DC (mm): 11.2 | L/D: 2 | LU (mm): 30.2 | LCF (mm): 47.0 | OAL (mm): 102.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1120S12E04 DC (mm): 11.2 | L/D: 4 | LU (mm): 56.2 | LCF (mm): 73.0 | OAL (mm): 123.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1122S12E02 DC (mm): 11.22 | L/D: 2 | LU (mm): 30.2 | LCF (mm): 47.0 | OAL (mm): 102.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1124S12E02 DC (mm): 11.24 | L/D: 2 | LU (mm): 30.2 | LCF (mm): 47.0 | OAL (mm): 102.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1130S12E02 DC (mm): 11.3 | L/D: 2 | LU (mm): 30.2 | LCF (mm): 47.1 | OAL (mm): 102.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1130S12E04 DC (mm): 11.3 | L/D: 4 | LU (mm): 56.2 | LCF (mm): 73.1 | OAL (mm): 123.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1136S12E02 DC (mm): 11.36 | L/D: 2 | LU (mm): 30.0 | LCF (mm): 47.1 | OAL (mm): 102.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1138S12E02 DC (mm): 11.38 | L/D: 2 | LU (mm): 30.0 | LCF (mm): 47.1 | OAL (mm): 102.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1140S12E02 DC (mm): 11.4 | L/D: 2 | LU (mm): 30.0 | LCF (mm): 47.1 | OAL (mm): 102.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1140S12E04 DC (mm): 11.4 | L/D: 4 | LU (mm): 56.0 | LCF (mm): 73.1 | OAL (mm): 123.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1150S12E02 DC (mm): 11.5 | L/D: 2 | LU (mm): 29.9 | LCF (mm): 47.1 | OAL (mm): 102.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1150S12E04 DC (mm): 11.5 | L/D: 4 | LU (mm): 55.9 | LCF (mm): 73.1 | OAL (mm): 123.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1160S12E02 DC (mm): 11.6 | L/D: 2 | LU (mm): 31.7 | LCF (mm): 49.1 | OAL (mm): 102.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1160S12E04 DC (mm): 11.6 | L/D: 4 | LU (mm): 57.7 | LCF (mm): 75.1 | OAL (mm): 123.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1170S12E02 DC (mm): 11.7 | L/D: 2 | LU (mm): 31.6 | LCF (mm): 49.1 | OAL (mm): 102.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1170S12E04 DC (mm): 11.7 | L/D: 4 | LU (mm): 57.6 | LCF (mm): 75.1 | OAL (mm): 123.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1180S12E02 DC (mm): 11.8 | L/D: 2 | LU (mm): 31.4 | LCF (mm): 49.1 | OAL (mm): 102.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1180S12E04 DC (mm): 11.8 | L/D: 4 | LU (mm): 57.4 | LCF (mm): 75.1 | OAL (mm): 123.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1190S12E02 DC (mm): 11.9 | L/D: 2 | LU (mm): 31.4 | LCF (mm): 49.2 | OAL (mm): 102.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDE1190S12E04 DC (mm): 11.9 | L/D: 4 | LU (mm): 57.4 | LCF (mm): 75.2 | OAL (mm): 123.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDE1200S12E02 DC (mm): 12.0 | L/D: 2 | LU (mm): 31.2 | LCF (mm): 49.2 | OAL (mm): 102.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDE1200S12E04 DC (mm): 12.0 | L/D: 4 | LU (mm): 57.2 | LCF (mm): 75.2 | OAL (mm): 123.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDE1210S13E02 DC (mm): 12.1 | L/D: 2 | LU (mm): 31.1 | LCF (mm): 49.2 | OAL (mm): 102.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1210S13E04 DC (mm): 12.1 | L/D: 4 | LU (mm): 60.1 | LCF (mm): 78.2 | OAL (mm): 139.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1220S13E02 DC (mm): 12.2 | L/D: 2 | LU (mm): 30.9 | LCF (mm): 49.2 | OAL (mm): 102.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1220S13E04 DC (mm): 12.2 | L/D: 4 | LU (mm): 59.9 | LCF (mm): 78.2 | OAL (mm): 139.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1230S13E02 DC (mm): 12.3 | L/D: 2 | LU (mm): 30.8 | LCF (mm): 49.2 | OAL (mm): 102.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1230S13E04 DC (mm): 12.3 | L/D: 4 | LU (mm): 59.8 | LCF (mm): 78.2 | OAL (mm): 139.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1240S13E02 DC (mm): 12.4 | L/D: 2 | LU (mm): 30.7 | LCF (mm): 49.3 | OAL (mm): 102.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1240S13E04 DC (mm): 12.4 | L/D: 4 | LU (mm): 59.7 | LCF (mm): 78.3 | OAL (mm): 139.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1250S13E02 DC (mm): 12.5 | L/D: 2 | LU (mm): 30.6 | LCF (mm): 49.3 | OAL (mm): 102.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1250S13E04 DC (mm): 12.5 | L/D: 4 | LU (mm): 59.6 | LCF (mm): 78.3 | OAL (mm): 139.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1260S13E02 DC (mm): 12.6 | L/D: 2 | LU (mm): 32.4 | LCF (mm): 51.3 | OAL (mm): 102.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1260S13E04 DC (mm): 12.6 | L/D: 4 | LU (mm): 61.4 | LCF (mm): 80.3 | OAL (mm): 139.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1270S13E02 DC (mm): 12.7 | L/D: 2 | LU (mm): 32.3 | LCF (mm): 51.3 | OAL (mm): 102.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1270S13E04 DC (mm): 12.7 | L/D: 4 | LU (mm): 61.3 | LCF (mm): 80.3 | OAL (mm): 139.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1280S13E02 DC (mm): 12.8 | L/D: 2 | LU (mm): 32.1 | LCF (mm): 51.3 | OAL (mm): 102.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1280S13E04 DC (mm): 12.8 | L/D: 4 | LU (mm): 61.1 | LCF (mm): 80.3 | OAL (mm): 139.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1290S13E02 DC (mm): 12.9 | L/D: 2 | LU (mm): 32.0 | LCF (mm): 51.3 | OAL (mm): 102.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1290S13E04 DC (mm): 12.9 | L/D: 4 | LU (mm): 61.0 | LCF (mm): 80.3 | OAL (mm): 139.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1300S13E02 DC (mm): 13.0 | L/D: 2 | LU (mm): 31.9 | LCF (mm): 51.4 | OAL (mm): 102.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDE1300S13E04 DC (mm): 13.0 | L/D: 4 | LU (mm): 60.9 | LCF (mm): 80.4 | OAL (mm): 139.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDE1310S14E02 DC (mm): 13.1 | L/D: 2 | LU (mm): 32.8 | LCF (mm): 52.4 | OAL (mm): 107.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1310S14E04 DC (mm): 13.1 | L/D: 4 | LU (mm): 66.8 | LCF (mm): 86.4 | OAL (mm): 149.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1320S14E02 DC (mm): 13.2 | L/D: 2 | LU (mm): 32.6 | LCF (mm): 52.4 | OAL (mm): 107.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1320S14E04 DC (mm): 13.2 | L/D: 4 | LU (mm): 66.6 | LCF (mm): 86.4 | OAL (mm): 149.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1330S14E02 DC (mm): 13.3 | L/D: 2 | LU (mm): 32.5 | LCF (mm): 52.4 | OAL (mm): 107.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1330S14E04 DC (mm): 13.3 | L/D: 4 | LU (mm): 66.5 | LCF (mm): 86.4 | OAL (mm): 149.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1340S14E02 DC (mm): 13.4 | L/D: 2 | LU (mm): 32.3 | LCF (mm): 52.4 | OAL (mm): 107.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1340S14E04 DC (mm): 13.4 | L/D: 4 | LU (mm): 66.3 | LCF (mm): 86.4 | OAL (mm): 149.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1350S14E02 DC (mm): 13.5 | L/D: 2 | LU (mm): 32.3 | LCF (mm): 52.5 | OAL (mm): 107.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1350S14E04 DC (mm): 13.5 | L/D: 4 | LU (mm): 66.3 | LCF (mm): 86.5 | OAL (mm): 149.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1360S14E02 DC (mm): 13.6 | L/D: 2 | LU (mm): 34.1 | LCF (mm): 54.5 | OAL (mm): 107.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1360S14E04 DC (mm): 13.6 | L/D: 4 | LU (mm): 68.1 | LCF (mm): 88.5 | OAL (mm): 149.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1370S14E02 DC (mm): 13.7 | L/D: 2 | LU (mm): 34.0 | LCF (mm): 54.5 | OAL (mm): 107.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1370S14E04 DC (mm): 13.7 | L/D: 4 | LU (mm): 68.0 | LCF (mm): 88.5 | OAL (mm): 149.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1380S14E02 DC (mm): 13.8 | L/D: 2 | LU (mm): 33.8 | LCF (mm): 54.5 | OAL (mm): 107.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1380S14E04 DC (mm): 13.8 | L/D: 4 | LU (mm): 67.8 | LCF (mm): 88.5 | OAL (mm): 149.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1390S14E02 DC (mm): 13.9 | L/D: 2 | LU (mm): 33.7 | LCF (mm): 54.5 | OAL (mm): 107.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1390S14E04 DC (mm): 13.9 | L/D: 4 | LU (mm): 67.7 | LCF (mm): 88.5 | OAL (mm): 149.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1400S14E02 DC (mm): 14.0 | L/D: 2 | LU (mm): 33.5 | LCF (mm): 54.5 | OAL (mm): 107.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1400S14E04 DC (mm): 14.0 | L/D: 4 | LU (mm): 67.5 | LCF (mm): 88.5 | OAL (mm): 149.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1410S15E02 DC (mm): 14.1 | L/D: 2 | LU (mm): 33.5 | LCF (mm): 54.6 | OAL (mm): 110.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1410S15E04 DC (mm): 14.1 | L/D: 4 | LU (mm): 70.5 | LCF (mm): 91.6 | OAL (mm): 155.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1420S15E02 DC (mm): 14.2 | L/D: 2 | LU (mm): 33.3 | LCF (mm): 54.6 | OAL (mm): 110.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1420S15E04 DC (mm): 14.2 | L/D: 4 | LU (mm): 70.3 | LCF (mm): 91.6 | OAL (mm): 155.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1430S15E02 DC (mm): 14.3 | L/D: 2 | LU (mm): 33.2 | LCF (mm): 54.6 | OAL (mm): 110.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1430S15E04 DC (mm): 14.3 | L/D: 4 | LU (mm): 70.2 | LCF (mm): 91.6 | OAL (mm): 155.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1440S15E02 DC (mm): 14.4 | L/D: 2 | LU (mm): 33.0 | LCF (mm): 54.6 | OAL (mm): 110.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1440S15E04 DC (mm): 14.4 | L/D: 4 | LU (mm): 70.0 | LCF (mm): 91.6 | OAL (mm): 155.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1450S15E02 DC (mm): 14.5 | L/D: 2 | LU (mm): 32.9 | LCF (mm): 54.6 | OAL (mm): 110.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1450S15E04 DC (mm): 14.5 | L/D: 4 | LU (mm): 69.9 | LCF (mm): 91.6 | OAL (mm): 155.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1460S15E02 DC (mm): 14.6 | L/D: 2 | LU (mm): 33.8 | LCF (mm): 55.7 | OAL (mm): 110.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1460S15E04 DC (mm): 14.6 | L/D: 4 | LU (mm): 71.8 | LCF (mm): 93.7 | OAL (mm): 155.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1470S15E02 DC (mm): 14.7 | L/D: 2 | LU (mm): 33.7 | LCF (mm): 55.7 | OAL (mm): 110.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1470S15E04 DC (mm): 14.7 | L/D: 4 | LU (mm): 71.7 | LCF (mm): 93.7 | OAL (mm): 155.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1480S15E02 DC (mm): 14.8 | L/D: 2 | LU (mm): 33.5 | LCF (mm): 55.7 | OAL (mm): 110.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1480S15E04 DC (mm): 14.8 | L/D: 4 | LU (mm): 71.5 | LCF (mm): 93.7 | OAL (mm): 155.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1490S15E02 DC (mm): 14.9 | L/D: 2 | LU (mm): 33.4 | LCF (mm): 55.7 | OAL (mm): 110.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1490S15E04 DC (mm): 14.9 | L/D: 4 | LU (mm): 71.4 | LCF (mm): 93.7 | OAL (mm): 155.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1500S15E02 DC (mm): 15.0 | L/D: 2 | LU (mm): 33.2 | LCF (mm): 55.7 | OAL (mm): 110.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1500S15E04 DC (mm): 15.0 | L/D: 4 | LU (mm): 71.2 | LCF (mm): 93.7 | OAL (mm): 155.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1510S16E02 DC (mm): 15.1 | L/D: 2 | LU (mm): 33.1 | LCF (mm): 55.7 | OAL (mm): 114.7 | PL (mm): 2.7 | DCON (mm): 16.0 | Stock: Yes
MDE1510S16E04 DC (mm): 15.1 | L/D: 4 | LU (mm): 74.1 | LCF (mm): 96.7 | OAL (mm): 162.7 | PL (mm): 2.7 | DCON (mm): 16.0 | Stock: Yes
MDE1520S16E02 DC (mm): 15.2 | L/D: 2 | LU (mm): 33.0 | LCF (mm): 55.8 | OAL (mm): 114.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1520S16E04 DC (mm): 15.2 | L/D: 4 | LU (mm): 74.0 | LCF (mm): 96.8 | OAL (mm): 162.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1530S16E02 DC (mm): 15.3 | L/D: 2 | LU (mm): 32.9 | LCF (mm): 55.8 | OAL (mm): 114.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1530S16E04 DC (mm): 15.3 | L/D: 4 | LU (mm): 73.9 | LCF (mm): 96.8 | OAL (mm): 162.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1540S16E02 DC (mm): 15.4 | L/D: 2 | LU (mm): 32.7 | LCF (mm): 55.8 | OAL (mm): 114.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1540S16E04 DC (mm): 15.4 | L/D: 4 | LU (mm): 73.7 | LCF (mm): 96.8 | OAL (mm): 162.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1550S16E02 DC (mm): 15.5 | L/D: 2 | LU (mm): 32.6 | LCF (mm): 55.8 | OAL (mm): 114.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1550S16E04 DC (mm): 15.5 | L/D: 4 | LU (mm): 73.6 | LCF (mm): 96.8 | OAL (mm): 162.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1560S16E02 DC (mm): 15.6 | L/D: 2 | LU (mm): 34.4 | LCF (mm): 57.8 | OAL (mm): 114.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1560S16E04 DC (mm): 15.6 | L/D: 4 | LU (mm): 75.4 | LCF (mm): 98.8 | OAL (mm): 162.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1570S16E02 DC (mm): 15.7 | L/D: 2 | LU (mm): 34.4 | LCF (mm): 57.9 | OAL (mm): 114.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1570S16E04 DC (mm): 15.7 | L/D: 4 | LU (mm): 75.4 | LCF (mm): 98.9 | OAL (mm): 162.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1580S16E02 DC (mm): 15.8 | L/D: 2 | LU (mm): 34.2 | LCF (mm): 57.9 | OAL (mm): 114.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1580S16E04 DC (mm): 15.8 | L/D: 4 | LU (mm): 75.2 | LCF (mm): 98.9 | OAL (mm): 162.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1590S16E02 DC (mm): 15.9 | L/D: 2 | LU (mm): 34.1 | LCF (mm): 57.9 | OAL (mm): 114.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1590S16E04 DC (mm): 15.9 | L/D: 4 | LU (mm): 75.1 | LCF (mm): 98.9 | OAL (mm): 162.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1600S16E02 DC (mm): 16.0 | L/D: 2 | LU (mm): 33.9 | LCF (mm): 57.9 | OAL (mm): 114.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1600S16E04 DC (mm): 16.0 | L/D: 4 | LU (mm): 74.9 | LCF (mm): 98.9 | OAL (mm): 162.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1650S17E02 DC (mm): 16.5 | L/D: 2 | LU (mm): 34.3 | LCF (mm): 59.0 | OAL (mm): 119.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Yes
MDE1650S17E04 DC (mm): 16.5 | L/D: 4 | LU (mm): 76.3 | LCF (mm): 101.0 | OAL (mm): 170.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Yes
MDE1680S17E04 DC (mm): 16.8 | L/D: 4 | LU (mm): 75.9 | LCF (mm): 101.1 | OAL (mm): 170.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Yes
MDE1700S17E02 DC (mm): 17.0 | L/D: 2 | LU (mm): 34.6 | LCF (mm): 60.1 | OAL (mm): 119.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Yes
MDE1700S17E04 DC (mm): 17.0 | L/D: 4 | LU (mm): 75.7 | LCF (mm): 101.2 | OAL (mm): 170.2 | PL (mm): 3.2 | DCON (mm): 17.0 | Stock: Yes
MDE1750S18E02 DC (mm): 17.5 | L/D: 2 | LU (mm): 35.0 | LCF (mm): 61.2 | OAL (mm): 123.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Yes
MDE1750S18E04 DC (mm): 17.5 | L/D: 4 | LU (mm): 77.0 | LCF (mm): 103.2 | OAL (mm): 170.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Yes
MDE1800S18E02 DC (mm): 18.0 | L/D: 2 | LU (mm): 35.3 | LCF (mm): 62.3 | OAL (mm): 123.3 | PL (mm): 3.3 | DCON (mm): 18.0 | Stock: Yes
MDE1800S18E04 DC (mm): 18.0 | L/D: 4 | LU (mm): 78.3 | LCF (mm): 105.3 | OAL (mm): 170.3 | PL (mm): 3.3 | DCON (mm): 18.0 | Stock: Yes
MDE1850S19E02 DC (mm): 18.5 | L/D: 2 | LU (mm): 34.7 | LCF (mm): 62.4 | OAL (mm): 126.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Yes
MDE1850S19E04 DC (mm): 18.5 | L/D: 4 | LU (mm): 79.7 | LCF (mm): 107.4 | OAL (mm): 182.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Yes
MDE1900S19E02 DC (mm): 19.0 | L/D: 2 | LU (mm): 35.0 | LCF (mm): 63.5 | OAL (mm): 126.5 | PL (mm): 3.5 | DCON (mm): 19.0 | Stock: Yes
MDE1900S19E04 DC (mm): 19.0 | L/D: 4 | LU (mm): 80.9 | LCF (mm): 109.4 | OAL (mm): 182.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Yes
MDE1950S20E02 DC (mm): 19.5 | L/D: 2 | LU (mm): 35.3 | LCF (mm): 64.5 | OAL (mm): 130.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Yes
MDE1950S20E04 DC (mm): 19.5 | L/D: 4 | LU (mm): 84.3 | LCF (mm): 113.5 | OAL (mm): 182.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Yes
MDE1970S20E04 DC (mm): 19.7 | L/D: 4 | LU (mm): 88.1 | LCF (mm): 117.6 | OAL (mm): 182.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Yes
MDE2000S20E02 DC (mm): 20.0 | L/D: 2 | LU (mm): 35.6 | LCF (mm): 65.6 | OAL (mm): 130.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Yes
MDE2000S20E04 DC (mm): 20.0 | L/D: 4 | LU (mm): 87.6 | LCF (mm): 117.6 | OAL (mm): 182.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Yes
DrillsSumitomo Electric Hardmetal
342 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Multi Drill NEXIO MDE-E Type (External Coolant)

Brand Sumitomo Electric Hardmetal·Drills

Available part numbers (342)

MDE0100S03E02, MDE0100S03E04, MDE0110S03E02, MDE0110S03E04, MDE0120S03E02, MDE0120S03E04, MDE0130S03E02, MDE0130S03E04, MDE0140S03E02, MDE0140S03E04 + 332 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MDE0100S03E02DC (mm): 1.0 | L/D: 2 | LU (mm): 5.7 | LCF (mm): 7.2 | OAL (mm): 45.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0100S03E04DC (mm): 1.0 | L/D: 4 | LU (mm): 7.7 | LCF (mm): 9.2 | OAL (mm): 49.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0110S03E02DC (mm): 1.1 | L/D: 2 | LU (mm): 5.6 | LCF (mm): 7.2 | OAL (mm): 45.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0110S03E04DC (mm): 1.1 | L/D: 4 | LU (mm): 7.6 | LCF (mm): 9.2 | OAL (mm): 49.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0120S03E02DC (mm): 1.2 | L/D: 2 | LU (mm): 6.4 | LCF (mm): 8.2 | OAL (mm): 45.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0120S03E04DC (mm): 1.2 | L/D: 4 | LU (mm): 8.4 | LCF (mm): 10.2 | OAL (mm): 49.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0130S03E02DC (mm): 1.3 | L/D: 2 | LU (mm): 6.3 | LCF (mm): 8.2 | OAL (mm): 45.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0130S03E04DC (mm): 1.3 | L/D: 4 | LU (mm): 9.3 | LCF (mm): 11.2 | OAL (mm): 49.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0140S03E02DC (mm): 1.4 | L/D: 2 | LU (mm): 7.2 | LCF (mm): 9.3 | OAL (mm): 45.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0140S03E04DC (mm): 1.4 | L/D: 4 | LU (mm): 9.2 | LCF (mm): 11.3 | OAL (mm): 49.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0150S03E02DC (mm): 1.5 | L/D: 2 | LU (mm): 7.1 | LCF (mm): 9.3 | OAL (mm): 45.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0150S03E04DC (mm): 1.5 | L/D: 4 | LU (mm): 10.1 | LCF (mm): 12.3 | OAL (mm): 49.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0160S03E02DC (mm): 1.6 | L/D: 2 | LU (mm): 7.9 | LCF (mm): 10.3 | OAL (mm): 45.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0160S03E04DC (mm): 1.6 | L/D: 4 | LU (mm): 10.9 | LCF (mm): 13.3 | OAL (mm): 49.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0170S03E02DC (mm): 1.7 | L/D: 2 | LU (mm): 7.8 | LCF (mm): 10.3 | OAL (mm): 45.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0170S03E04DC (mm): 1.7 | L/D: 4 | LU (mm): 10.8 | LCF (mm): 13.3 | OAL (mm): 49.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0180S03E02DC (mm): 1.8 | L/D: 2 | LU (mm): 8.6 | LCF (mm): 11.3 | OAL (mm): 45.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0180S03E04DC (mm): 1.8 | L/D: 4 | LU (mm): 11.6 | LCF (mm): 14.3 | OAL (mm): 49.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0190S03E02DC (mm): 1.9 | L/D: 2 | LU (mm): 8.5 | LCF (mm): 11.3 | OAL (mm): 45.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0190S03E04DC (mm): 1.9 | L/D: 4 | LU (mm): 12.5 | LCF (mm): 15.3 | OAL (mm): 49.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0200S03E02DC (mm): 2.0 | L/D: 2 | LU (mm): 9.4 | LCF (mm): 12.4 | OAL (mm): 45.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0200S03E04DC (mm): 2.0 | L/D: 4 | LU (mm): 13.4 | LCF (mm): 16.4 | OAL (mm): 49.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0210S03E02DC (mm): 2.1 | L/D: 2 | LU (mm): 9.3 | LCF (mm): 12.4 | OAL (mm): 45.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0210S03E04DC (mm): 2.1 | L/D: 4 | LU (mm): 13.3 | LCF (mm): 16.4 | OAL (mm): 49.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0220S03E02DC (mm): 2.2 | L/D: 2 | LU (mm): 10.1 | LCF (mm): 13.4 | OAL (mm): 45.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0220S03E04DC (mm): 2.2 | L/D: 4 | LU (mm): 14.1 | LCF (mm): 17.4 | OAL (mm): 49.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0230S03E02DC (mm): 2.3 | L/D: 2 | LU (mm): 10.0 | LCF (mm): 13.4 | OAL (mm): 45.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0230S03E04DC (mm): 2.3 | L/D: 4 | LU (mm): 14.0 | LCF (mm): 17.4 | OAL (mm): 49.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0240S03E02DC (mm): 2.4 | L/D: 2 | LU (mm): 10.8 | LCF (mm): 14.4 | OAL (mm): 45.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0240S03E04DC (mm): 2.4 | L/D: 4 | LU (mm): 14.8 | LCF (mm): 18.4 | OAL (mm): 49.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0250S03E02DC (mm): 2.5 | L/D: 2 | LU (mm): 10.8 | LCF (mm): 14.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0250S03E04DC (mm): 2.5 | L/D: 4 | LU (mm): 14.8 | LCF (mm): 18.5 | OAL (mm): 49.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0260S03E02DC (mm): 2.6 | L/D: 2 | LU (mm): 11.6 | LCF (mm): 15.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0260S03E04DC (mm): 2.6 | L/D: 4 | LU (mm): 15.6 | LCF (mm): 19.5 | OAL (mm): 49.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0270S03E02DC (mm): 2.7 | L/D: 2 | LU (mm): 11.5 | LCF (mm): 15.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0270S03E04DC (mm): 2.7 | L/D: 4 | LU (mm): 15.5 | LCF (mm): 19.5 | OAL (mm): 49.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0276S03E02DC (mm): 2.76 | L/D: 2 | LU (mm): 11.3 | LCF (mm): 15.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0278S03E02DC (mm): 2.78 | L/D: 2 | LU (mm): 11.3 | LCF (mm): 15.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0280S03E02DC (mm): 2.8 | L/D: 2 | LU (mm): 11.3 | LCF (mm): 15.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0280S03E04DC (mm): 2.8 | L/D: 4 | LU (mm): 15.3 | LCF (mm): 19.5 | OAL (mm): 49.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0290S03E02DC (mm): 2.9 | L/D: 2 | LU (mm): 11.2 | LCF (mm): 15.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0290S03E04DC (mm): 2.9 | L/D: 4 | LU (mm): 15.2 | LCF (mm): 19.5 | OAL (mm): 49.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0300S03E02DC (mm): 3.0 | L/D: 2 | LU (mm): 9.0 | LCF (mm): 13.5 | OAL (mm): 45.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0300S03E04DC (mm): 3.0 | L/D: 4 | LU (mm): 15.0 | LCF (mm): 19.5 | OAL (mm): 49.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0310S04E02DC (mm): 3.1 | L/D: 2 | LU (mm): 15.0 | LCF (mm): 19.6 | OAL (mm): 54.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0310S04E04DC (mm): 3.1 | L/D: 4 | LU (mm): 20.0 | LCF (mm): 24.6 | OAL (mm): 60.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0320S04E02DC (mm): 3.2 | L/D: 2 | LU (mm): 14.8 | LCF (mm): 19.6 | OAL (mm): 54.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0320S04E04DC (mm): 3.2 | L/D: 4 | LU (mm): 19.8 | LCF (mm): 24.6 | OAL (mm): 60.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0330S04E02DC (mm): 3.3 | L/D: 2 | LU (mm): 14.7 | LCF (mm): 19.6 | OAL (mm): 54.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0330S04E04DC (mm): 3.3 | L/D: 4 | LU (mm): 19.7 | LCF (mm): 24.6 | OAL (mm): 60.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0340S04E02DC (mm): 3.4 | L/D: 2 | LU (mm): 14.5 | LCF (mm): 19.6 | OAL (mm): 54.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0340S04E04DC (mm): 3.4 | L/D: 4 | LU (mm): 19.5 | LCF (mm): 24.6 | OAL (mm): 60.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0350S04E02DC (mm): 3.5 | L/D: 2 | LU (mm): 14.4 | LCF (mm): 19.6 | OAL (mm): 54.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0350S04E04DC (mm): 3.5 | L/D: 4 | LU (mm): 19.4 | LCF (mm): 24.6 | OAL (mm): 60.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0360S04E02DC (mm): 3.6 | L/D: 2 | LU (mm): 16.3 | LCF (mm): 21.7 | OAL (mm): 54.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0360S04E04DC (mm): 3.6 | L/D: 4 | LU (mm): 22.3 | LCF (mm): 27.7 | OAL (mm): 60.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0366S04E02DC (mm): 3.66 | L/D: 2 | LU (mm): 16.2 | LCF (mm): 21.7 | OAL (mm): 54.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0368S04E02DC (mm): 3.68 | L/D: 2 | LU (mm): 16.2 | LCF (mm): 21.7 | OAL (mm): 54.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0370S04E02DC (mm): 3.7 | L/D: 2 | LU (mm): 16.2 | LCF (mm): 21.7 | OAL (mm): 54.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0370S04E04DC (mm): 3.7 | L/D: 4 | LU (mm): 22.2 | LCF (mm): 27.7 | OAL (mm): 60.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0380S04E02DC (mm): 3.8 | L/D: 2 | LU (mm): 16.0 | LCF (mm): 21.7 | OAL (mm): 54.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0380S04E04DC (mm): 3.8 | L/D: 4 | LU (mm): 22.0 | LCF (mm): 27.7 | OAL (mm): 60.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0390S04E02DC (mm): 3.9 | L/D: 2 | LU (mm): 15.9 | LCF (mm): 21.7 | OAL (mm): 54.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0390S04E04DC (mm): 3.9 | L/D: 4 | LU (mm): 21.9 | LCF (mm): 27.7 | OAL (mm): 60.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0400S04E02DC (mm): 4.0 | L/D: 2 | LU (mm): 15.7 | LCF (mm): 21.7 | OAL (mm): 54.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0400S04E04DC (mm): 4.0 | L/D: 4 | LU (mm): 21.7 | LCF (mm): 27.7 | OAL (mm): 60.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0410S05E02DC (mm): 4.1 | L/D: 2 | LU (mm): 17.6 | LCF (mm): 23.7 | OAL (mm): 61.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDE0410S05E04DC (mm): 4.1 | L/D: 4 | LU (mm): 25.6 | LCF (mm): 31.7 | OAL (mm): 76.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDE0420S05E02DC (mm): 4.2 | L/D: 2 | LU (mm): 17.5 | LCF (mm): 23.8 | OAL (mm): 61.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0420S05E04DC (mm): 4.2 | L/D: 4 | LU (mm): 25.5 | LCF (mm): 31.8 | OAL (mm): 76.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0430S05E02DC (mm): 4.3 | L/D: 2 | LU (mm): 17.4 | LCF (mm): 23.8 | OAL (mm): 61.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0430S05E04DC (mm): 4.3 | L/D: 4 | LU (mm): 25.4 | LCF (mm): 31.8 | OAL (mm): 76.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0440S05E02DC (mm): 4.4 | L/D: 2 | LU (mm): 17.2 | LCF (mm): 23.8 | OAL (mm): 61.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0440S05E04DC (mm): 4.4 | L/D: 4 | LU (mm): 25.2 | LCF (mm): 31.8 | OAL (mm): 76.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0450S05E02DC (mm): 4.5 | L/D: 2 | LU (mm): 17.1 | LCF (mm): 23.8 | OAL (mm): 61.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0450S05E04DC (mm): 4.5 | L/D: 4 | LU (mm): 25.1 | LCF (mm): 31.8 | OAL (mm): 76.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0460S05E02DC (mm): 4.6 | L/D: 2 | LU (mm): 18.9 | LCF (mm): 25.8 | OAL (mm): 61.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0460S05E04DC (mm): 4.6 | L/D: 4 | LU (mm): 31.9 | LCF (mm): 38.8 | OAL (mm): 76.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0462S05E02DC (mm): 4.62 | L/D: 2 | LU (mm): 18.9 | LCF (mm): 25.8 | OAL (mm): 61.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0464S05E02DC (mm): 4.64 | L/D: 2 | LU (mm): 18.9 | LCF (mm): 25.8 | OAL (mm): 61.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0470S05E02DC (mm): 4.7 | L/D: 2 | LU (mm): 18.9 | LCF (mm): 25.9 | OAL (mm): 61.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0470S05E04DC (mm): 4.7 | L/D: 4 | LU (mm): 31.9 | LCF (mm): 38.9 | OAL (mm): 76.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0480S05E02DC (mm): 4.8 | L/D: 2 | LU (mm): 18.7 | LCF (mm): 25.9 | OAL (mm): 61.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0480S05E04DC (mm): 4.8 | L/D: 4 | LU (mm): 31.7 | LCF (mm): 38.9 | OAL (mm): 76.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0490S05E02DC (mm): 4.9 | L/D: 2 | LU (mm): 18.6 | LCF (mm): 25.9 | OAL (mm): 61.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0490S05E04DC (mm): 4.9 | L/D: 4 | LU (mm): 31.6 | LCF (mm): 38.9 | OAL (mm): 76.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0500S05E02DC (mm): 5.0 | L/D: 2 | LU (mm): 18.4 | LCF (mm): 25.9 | OAL (mm): 61.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0500S05E04DC (mm): 5.0 | L/D: 4 | LU (mm): 31.4 | LCF (mm): 38.9 | OAL (mm): 76.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0510S06E02DC (mm): 5.1 | L/D: 2 | LU (mm): 18.3 | LCF (mm): 25.9 | OAL (mm): 65.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDE0510S06E04DC (mm): 5.1 | L/D: 4 | LU (mm): 32.3 | LCF (mm): 39.9 | OAL (mm): 81.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDE0520S06E02DC (mm): 5.2 | L/D: 2 | LU (mm): 18.1 | LCF (mm): 25.9 | OAL (mm): 65.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDE0520S06E04DC (mm): 5.2 | L/D: 4 | LU (mm): 32.1 | LCF (mm): 39.9 | OAL (mm): 81.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDE0530S06E02DC (mm): 5.3 | L/D: 2 | LU (mm): 18.1 | LCF (mm): 26.0 | OAL (mm): 66.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0530S06E04DC (mm): 5.3 | L/D: 4 | LU (mm): 32.1 | LCF (mm): 40.0 | OAL (mm): 82.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0540S06E02DC (mm): 5.4 | L/D: 2 | LU (mm): 17.9 | LCF (mm): 26.0 | OAL (mm): 66.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0540S06E04DC (mm): 5.4 | L/D: 4 | LU (mm): 31.9 | LCF (mm): 40.0 | OAL (mm): 82.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0550S06E02DC (mm): 5.5 | L/D: 2 | LU (mm): 17.8 | LCF (mm): 26.0 | OAL (mm): 66.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0550S06E04DC (mm): 5.5 | L/D: 4 | LU (mm): 31.8 | LCF (mm): 40.0 | OAL (mm): 82.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0552S06E02DC (mm): 5.52 | L/D: 2 | LU (mm): 19.6 | LCF (mm): 28.0 | OAL (mm): 66.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0554S06E02DC (mm): 5.54 | L/D: 2 | LU (mm): 19.6 | LCF (mm): 28.0 | OAL (mm): 66.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0560S06E02DC (mm): 5.6 | L/D: 2 | LU (mm): 19.6 | LCF (mm): 28.0 | OAL (mm): 66.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0560S06E04DC (mm): 5.6 | L/D: 4 | LU (mm): 33.6 | LCF (mm): 42.0 | OAL (mm): 82.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0570S06E02DC (mm): 5.7 | L/D: 2 | LU (mm): 19.5 | LCF (mm): 28.0 | OAL (mm): 66.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0570S06E04DC (mm): 5.7 | L/D: 4 | LU (mm): 33.5 | LCF (mm): 42.0 | OAL (mm): 82.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0580S06E02DC (mm): 5.8 | L/D: 2 | LU (mm): 19.4 | LCF (mm): 28.1 | OAL (mm): 66.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0580S06E04DC (mm): 5.8 | L/D: 4 | LU (mm): 33.4 | LCF (mm): 42.1 | OAL (mm): 82.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0590S06E02DC (mm): 5.9 | L/D: 2 | LU (mm): 19.3 | LCF (mm): 28.1 | OAL (mm): 66.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0590S06E04DC (mm): 5.9 | L/D: 4 | LU (mm): 33.3 | LCF (mm): 42.1 | OAL (mm): 82.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0600S06E02DC (mm): 6.0 | L/D: 2 | LU (mm): 19.1 | LCF (mm): 28.1 | OAL (mm): 66.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0600S06E04DC (mm): 6.0 | L/D: 4 | LU (mm): 33.1 | LCF (mm): 42.1 | OAL (mm): 82.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0610S07E02DC (mm): 6.1 | L/D: 2 | LU (mm): 23.0 | LCF (mm): 32.1 | OAL (mm): 74.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0610S07E04DC (mm): 6.1 | L/D: 4 | LU (mm): 34.0 | LCF (mm): 43.1 | OAL (mm): 84.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0620S07E02DC (mm): 6.2 | L/D: 2 | LU (mm): 22.8 | LCF (mm): 32.1 | OAL (mm): 74.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0620S07E04DC (mm): 6.2 | L/D: 4 | LU (mm): 33.8 | LCF (mm): 43.1 | OAL (mm): 84.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0630S07E02DC (mm): 6.3 | L/D: 2 | LU (mm): 22.7 | LCF (mm): 32.1 | OAL (mm): 74.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0630S07E04DC (mm): 6.3 | L/D: 4 | LU (mm): 33.7 | LCF (mm): 43.1 | OAL (mm): 84.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0640S07E02DC (mm): 6.4 | L/D: 2 | LU (mm): 22.6 | LCF (mm): 32.2 | OAL (mm): 74.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0640S07E04DC (mm): 6.4 | L/D: 4 | LU (mm): 33.6 | LCF (mm): 43.2 | OAL (mm): 84.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0650S07E02DC (mm): 6.5 | L/D: 2 | LU (mm): 22.5 | LCF (mm): 32.2 | OAL (mm): 74.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0650S07E04DC (mm): 6.5 | L/D: 4 | LU (mm): 33.5 | LCF (mm): 43.2 | OAL (mm): 84.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0660S07E02DC (mm): 6.6 | L/D: 2 | LU (mm): 24.3 | LCF (mm): 34.2 | OAL (mm): 74.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0660S07E04DC (mm): 6.6 | L/D: 4 | LU (mm): 34.3 | LCF (mm): 44.2 | OAL (mm): 84.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0670S07E02DC (mm): 6.7 | L/D: 2 | LU (mm): 24.2 | LCF (mm): 34.2 | OAL (mm): 74.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0670S07E04DC (mm): 6.7 | L/D: 4 | LU (mm): 34.2 | LCF (mm): 44.2 | OAL (mm): 84.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0680S07E02DC (mm): 6.8 | L/D: 2 | LU (mm): 24.0 | LCF (mm): 34.2 | OAL (mm): 74.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0680S07E04DC (mm): 6.8 | L/D: 4 | LU (mm): 34.0 | LCF (mm): 44.2 | OAL (mm): 84.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0690S07E02DC (mm): 6.9 | L/D: 2 | LU (mm): 24.0 | LCF (mm): 34.3 | OAL (mm): 74.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDE0690S07E04DC (mm): 6.9 | L/D: 4 | LU (mm): 34.0 | LCF (mm): 44.3 | OAL (mm): 84.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDE0700S07E02DC (mm): 7.0 | L/D: 2 | LU (mm): 23.8 | LCF (mm): 34.3 | OAL (mm): 74.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDE0700S07E04DC (mm): 7.0 | L/D: 4 | LU (mm): 33.8 | LCF (mm): 44.3 | OAL (mm): 84.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDE0710S08E02DC (mm): 7.1 | L/D: 2 | LU (mm): 23.7 | LCF (mm): 34.3 | OAL (mm): 79.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0710S08E04DC (mm): 7.1 | L/D: 4 | LU (mm): 35.7 | LCF (mm): 46.3 | OAL (mm): 91.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0720S08E02DC (mm): 7.2 | L/D: 2 | LU (mm): 23.5 | LCF (mm): 34.3 | OAL (mm): 79.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0720S08E04DC (mm): 7.2 | L/D: 4 | LU (mm): 35.5 | LCF (mm): 46.3 | OAL (mm): 91.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0730S08E02DC (mm): 7.3 | L/D: 2 | LU (mm): 23.4 | LCF (mm): 34.3 | OAL (mm): 79.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0730S08E04DC (mm): 7.3 | L/D: 4 | LU (mm): 35.4 | LCF (mm): 46.3 | OAL (mm): 91.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0736S08E02DC (mm): 7.36 | L/D: 2 | LU (mm): 23.2 | LCF (mm): 34.3 | OAL (mm): 79.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0738S08E02DC (mm): 7.38 | L/D: 2 | LU (mm): 23.2 | LCF (mm): 34.3 | OAL (mm): 79.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0740S08E02DC (mm): 7.4 | L/D: 2 | LU (mm): 23.2 | LCF (mm): 34.3 | OAL (mm): 79.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0740S08E04DC (mm): 7.4 | L/D: 4 | LU (mm): 35.2 | LCF (mm): 46.3 | OAL (mm): 91.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0750S08E02DC (mm): 7.5 | L/D: 2 | LU (mm): 23.2 | LCF (mm): 34.4 | OAL (mm): 79.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0750S08E04DC (mm): 7.5 | L/D: 4 | LU (mm): 35.2 | LCF (mm): 46.4 | OAL (mm): 91.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0752S08E02DC (mm): 7.52 | L/D: 2 | LU (mm): 26.0 | LCF (mm): 37.4 | OAL (mm): 79.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0754S08E02DC (mm): 7.54 | L/D: 2 | LU (mm): 26.0 | LCF (mm): 37.4 | OAL (mm): 79.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0760S08E02DC (mm): 7.6 | L/D: 2 | LU (mm): 26.0 | LCF (mm): 37.4 | OAL (mm): 79.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0760S08E04DC (mm): 7.6 | L/D: 4 | LU (mm): 38.0 | LCF (mm): 49.4 | OAL (mm): 91.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0770S08E02DC (mm): 7.7 | L/D: 2 | LU (mm): 25.9 | LCF (mm): 37.4 | OAL (mm): 79.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0770S08E04DC (mm): 7.7 | L/D: 4 | LU (mm): 37.9 | LCF (mm): 49.4 | OAL (mm): 91.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0780S08E02DC (mm): 7.8 | L/D: 2 | LU (mm): 25.7 | LCF (mm): 37.4 | OAL (mm): 79.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0780S08E04DC (mm): 7.8 | L/D: 4 | LU (mm): 37.7 | LCF (mm): 49.4 | OAL (mm): 91.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0790S08E02DC (mm): 7.9 | L/D: 2 | LU (mm): 25.6 | LCF (mm): 37.4 | OAL (mm): 79.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0790S08E04DC (mm): 7.9 | L/D: 4 | LU (mm): 37.6 | LCF (mm): 49.4 | OAL (mm): 91.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0800S08E02DC (mm): 8.0 | L/D: 2 | LU (mm): 25.5 | LCF (mm): 37.5 | OAL (mm): 79.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDE0800S08E04DC (mm): 8.0 | L/D: 4 | LU (mm): 37.5 | LCF (mm): 49.5 | OAL (mm): 91.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDE0810S09E02DC (mm): 8.1 | L/D: 2 | LU (mm): 25.4 | LCF (mm): 37.5 | OAL (mm): 83.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0810S09E04DC (mm): 8.1 | L/D: 4 | LU (mm): 42.4 | LCF (mm): 54.5 | OAL (mm): 99.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0820S09E02DC (mm): 8.2 | L/D: 2 | LU (mm): 25.2 | LCF (mm): 37.5 | OAL (mm): 83.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0820S09E04DC (mm): 8.2 | L/D: 4 | LU (mm): 42.2 | LCF (mm): 54.5 | OAL (mm): 99.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0830S09E02DC (mm): 8.3 | L/D: 2 | LU (mm): 25.1 | LCF (mm): 37.5 | OAL (mm): 83.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0830S09E04DC (mm): 8.3 | L/D: 4 | LU (mm): 42.1 | LCF (mm): 54.5 | OAL (mm): 99.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0840S09E02DC (mm): 8.4 | L/D: 2 | LU (mm): 24.9 | LCF (mm): 37.5 | OAL (mm): 83.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0840S09E04DC (mm): 8.4 | L/D: 4 | LU (mm): 41.9 | LCF (mm): 54.5 | OAL (mm): 99.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0850S09E02DC (mm): 8.5 | L/D: 2 | LU (mm): 24.8 | LCF (mm): 37.5 | OAL (mm): 83.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0850S09E04DC (mm): 8.5 | L/D: 4 | LU (mm): 41.8 | LCF (mm): 54.5 | OAL (mm): 99.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0860S09E02DC (mm): 8.6 | L/D: 2 | LU (mm): 26.7 | LCF (mm): 39.6 | OAL (mm): 83.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0860S09E04DC (mm): 8.6 | L/D: 4 | LU (mm): 43.7 | LCF (mm): 56.6 | OAL (mm): 99.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0870S09E02DC (mm): 8.7 | L/D: 2 | LU (mm): 26.6 | LCF (mm): 39.6 | OAL (mm): 83.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0870S09E04DC (mm): 8.7 | L/D: 4 | LU (mm): 43.6 | LCF (mm): 56.6 | OAL (mm): 99.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0880S09E02DC (mm): 8.8 | L/D: 2 | LU (mm): 26.4 | LCF (mm): 39.6 | OAL (mm): 83.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0880S09E04DC (mm): 8.8 | L/D: 4 | LU (mm): 43.4 | LCF (mm): 56.6 | OAL (mm): 99.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0890S09E02DC (mm): 8.9 | L/D: 2 | LU (mm): 26.3 | LCF (mm): 39.6 | OAL (mm): 83.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0890S09E04DC (mm): 8.9 | L/D: 4 | LU (mm): 43.3 | LCF (mm): 56.6 | OAL (mm): 99.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0900S09E02DC (mm): 9.0 | L/D: 2 | LU (mm): 26.1 | LCF (mm): 39.6 | OAL (mm): 83.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0900S09E04DC (mm): 9.0 | L/D: 4 | LU (mm): 43.1 | LCF (mm): 56.6 | OAL (mm): 99.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0910S10E02DC (mm): 9.1 | L/D: 2 | LU (mm): 26.1 | LCF (mm): 39.7 | OAL (mm): 88.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0910S10E04DC (mm): 9.1 | L/D: 4 | LU (mm): 46.1 | LCF (mm): 59.7 | OAL (mm): 106.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0920S10E02DC (mm): 9.2 | L/D: 2 | LU (mm): 25.9 | LCF (mm): 39.7 | OAL (mm): 88.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0920S10E04DC (mm): 9.2 | L/D: 4 | LU (mm): 45.9 | LCF (mm): 59.7 | OAL (mm): 106.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0924S10E02DC (mm): 9.24 | L/D: 2 | LU (mm): 25.8 | LCF (mm): 39.7 | OAL (mm): 88.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0926S10E02DC (mm): 9.26 | L/D: 2 | LU (mm): 25.8 | LCF (mm): 39.7 | OAL (mm): 88.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0930S10E02DC (mm): 9.3 | L/D: 2 | LU (mm): 25.8 | LCF (mm): 39.7 | OAL (mm): 88.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0930S10E04DC (mm): 9.3 | L/D: 4 | LU (mm): 45.8 | LCF (mm): 59.7 | OAL (mm): 106.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0936S10E02DC (mm): 9.36 | L/D: 2 | LU (mm): 25.6 | LCF (mm): 39.7 | OAL (mm): 88.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0938S10E02DC (mm): 9.38 | L/D: 2 | LU (mm): 25.6 | LCF (mm): 39.7 | OAL (mm): 88.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0940S10E02DC (mm): 9.4 | L/D: 2 | LU (mm): 25.6 | LCF (mm): 39.7 | OAL (mm): 88.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0940S10E04DC (mm): 9.4 | L/D: 4 | LU (mm): 45.6 | LCF (mm): 59.7 | OAL (mm): 106.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0950S10E02DC (mm): 9.5 | L/D: 2 | LU (mm): 25.5 | LCF (mm): 39.7 | OAL (mm): 88.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0950S10E04DC (mm): 9.5 | L/D: 4 | LU (mm): 45.5 | LCF (mm): 59.7 | OAL (mm): 106.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0952S10E02DC (mm): 9.52 | L/D: 2 | LU (mm): 28.3 | LCF (mm): 42.7 | OAL (mm): 88.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0954S10E02DC (mm): 9.54 | L/D: 2 | LU (mm): 28.3 | LCF (mm): 42.7 | OAL (mm): 88.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0960S10E02DC (mm): 9.6 | L/D: 2 | LU (mm): 28.3 | LCF (mm): 42.7 | OAL (mm): 88.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0960S10E04DC (mm): 9.6 | L/D: 4 | LU (mm): 47.3 | LCF (mm): 61.7 | OAL (mm): 106.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0970S10E02DC (mm): 9.7 | L/D: 2 | LU (mm): 28.3 | LCF (mm): 42.8 | OAL (mm): 88.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0970S10E04DC (mm): 9.7 | L/D: 4 | LU (mm): 47.3 | LCF (mm): 61.8 | OAL (mm): 106.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0980S10E02DC (mm): 9.8 | L/D: 2 | LU (mm): 28.1 | LCF (mm): 42.8 | OAL (mm): 88.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0980S10E04DC (mm): 9.8 | L/D: 4 | LU (mm): 47.1 | LCF (mm): 61.8 | OAL (mm): 106.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0990S10E02DC (mm): 9.9 | L/D: 2 | LU (mm): 28.0 | LCF (mm): 42.8 | OAL (mm): 88.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0990S10E04DC (mm): 9.9 | L/D: 4 | LU (mm): 47.0 | LCF (mm): 61.8 | OAL (mm): 106.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE1000S10E02DC (mm): 10.0 | L/D: 2 | LU (mm): 27.8 | LCF (mm): 42.8 | OAL (mm): 88.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE1000S10E04DC (mm): 10.0 | L/D: 4 | LU (mm): 46.8 | LCF (mm): 61.8 | OAL (mm): 106.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE1010S11E02DC (mm): 10.1 | L/D: 2 | LU (mm): 27.7 | LCF (mm): 42.8 | OAL (mm): 94.8 | PL (mm): 1.8 | DCON (mm): 11.0 | Stock: Yes
MDE1010S11E04DC (mm): 10.1 | L/D: 4 | LU (mm): 52.7 | LCF (mm): 67.8 | OAL (mm): 115.8 | PL (mm): 1.8 | DCON (mm): 11.0 | Stock: Yes
MDE1020S11E02DC (mm): 10.2 | L/D: 2 | LU (mm): 27.6 | LCF (mm): 42.9 | OAL (mm): 94.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1020S11E04DC (mm): 10.2 | L/D: 4 | LU (mm): 52.6 | LCF (mm): 67.9 | OAL (mm): 115.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1030S11E02DC (mm): 10.3 | L/D: 2 | LU (mm): 27.5 | LCF (mm): 42.9 | OAL (mm): 94.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1030S11E04DC (mm): 10.3 | L/D: 4 | LU (mm): 52.5 | LCF (mm): 67.9 | OAL (mm): 115.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1040S11E02DC (mm): 10.4 | L/D: 2 | LU (mm): 27.3 | LCF (mm): 42.9 | OAL (mm): 94.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1040S11E04DC (mm): 10.4 | L/D: 4 | LU (mm): 52.3 | LCF (mm): 67.9 | OAL (mm): 115.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1050S11E02DC (mm): 10.5 | L/D: 2 | LU (mm): 27.2 | LCF (mm): 42.9 | OAL (mm): 94.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1050S11E04DC (mm): 10.5 | L/D: 4 | LU (mm): 52.2 | LCF (mm): 67.9 | OAL (mm): 115.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1060S11E02DC (mm): 10.6 | L/D: 2 | LU (mm): 31.0 | LCF (mm): 46.9 | OAL (mm): 94.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1060S11E04DC (mm): 10.6 | L/D: 4 | LU (mm): 54.0 | LCF (mm): 69.9 | OAL (mm): 115.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1070S11E02DC (mm): 10.7 | L/D: 2 | LU (mm): 30.9 | LCF (mm): 46.9 | OAL (mm): 94.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1070S11E04DC (mm): 10.7 | L/D: 4 | LU (mm): 53.9 | LCF (mm): 69.9 | OAL (mm): 115.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1080S11E02DC (mm): 10.8 | L/D: 2 | LU (mm): 30.8 | LCF (mm): 47.0 | OAL (mm): 95.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1080S11E04DC (mm): 10.8 | L/D: 4 | LU (mm): 53.8 | LCF (mm): 70.0 | OAL (mm): 116.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1090S11E02DC (mm): 10.9 | L/D: 2 | LU (mm): 30.7 | LCF (mm): 47.0 | OAL (mm): 95.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1090S11E04DC (mm): 10.9 | L/D: 4 | LU (mm): 53.7 | LCF (mm): 70.0 | OAL (mm): 116.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1100S11E02DC (mm): 11.0 | L/D: 2 | LU (mm): 30.5 | LCF (mm): 47.0 | OAL (mm): 95.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1100S11E04DC (mm): 11.0 | L/D: 4 | LU (mm): 53.5 | LCF (mm): 70.0 | OAL (mm): 116.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1110S12E02DC (mm): 11.1 | L/D: 2 | LU (mm): 30.4 | LCF (mm): 47.0 | OAL (mm): 102.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1110S12E04DC (mm): 11.1 | L/D: 4 | LU (mm): 56.4 | LCF (mm): 73.0 | OAL (mm): 123.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1120S12E02DC (mm): 11.2 | L/D: 2 | LU (mm): 30.2 | LCF (mm): 47.0 | OAL (mm): 102.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1120S12E04DC (mm): 11.2 | L/D: 4 | LU (mm): 56.2 | LCF (mm): 73.0 | OAL (mm): 123.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1122S12E02DC (mm): 11.22 | L/D: 2 | LU (mm): 30.2 | LCF (mm): 47.0 | OAL (mm): 102.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1124S12E02DC (mm): 11.24 | L/D: 2 | LU (mm): 30.2 | LCF (mm): 47.0 | OAL (mm): 102.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1130S12E02DC (mm): 11.3 | L/D: 2 | LU (mm): 30.2 | LCF (mm): 47.1 | OAL (mm): 102.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1130S12E04DC (mm): 11.3 | L/D: 4 | LU (mm): 56.2 | LCF (mm): 73.1 | OAL (mm): 123.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1136S12E02DC (mm): 11.36 | L/D: 2 | LU (mm): 30.0 | LCF (mm): 47.1 | OAL (mm): 102.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1138S12E02DC (mm): 11.38 | L/D: 2 | LU (mm): 30.0 | LCF (mm): 47.1 | OAL (mm): 102.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1140S12E02DC (mm): 11.4 | L/D: 2 | LU (mm): 30.0 | LCF (mm): 47.1 | OAL (mm): 102.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1140S12E04DC (mm): 11.4 | L/D: 4 | LU (mm): 56.0 | LCF (mm): 73.1 | OAL (mm): 123.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1150S12E02DC (mm): 11.5 | L/D: 2 | LU (mm): 29.9 | LCF (mm): 47.1 | OAL (mm): 102.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1150S12E04DC (mm): 11.5 | L/D: 4 | LU (mm): 55.9 | LCF (mm): 73.1 | OAL (mm): 123.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1160S12E02DC (mm): 11.6 | L/D: 2 | LU (mm): 31.7 | LCF (mm): 49.1 | OAL (mm): 102.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1160S12E04DC (mm): 11.6 | L/D: 4 | LU (mm): 57.7 | LCF (mm): 75.1 | OAL (mm): 123.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1170S12E02DC (mm): 11.7 | L/D: 2 | LU (mm): 31.6 | LCF (mm): 49.1 | OAL (mm): 102.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1170S12E04DC (mm): 11.7 | L/D: 4 | LU (mm): 57.6 | LCF (mm): 75.1 | OAL (mm): 123.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1180S12E02DC (mm): 11.8 | L/D: 2 | LU (mm): 31.4 | LCF (mm): 49.1 | OAL (mm): 102.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1180S12E04DC (mm): 11.8 | L/D: 4 | LU (mm): 57.4 | LCF (mm): 75.1 | OAL (mm): 123.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1190S12E02DC (mm): 11.9 | L/D: 2 | LU (mm): 31.4 | LCF (mm): 49.2 | OAL (mm): 102.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDE1190S12E04DC (mm): 11.9 | L/D: 4 | LU (mm): 57.4 | LCF (mm): 75.2 | OAL (mm): 123.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDE1200S12E02DC (mm): 12.0 | L/D: 2 | LU (mm): 31.2 | LCF (mm): 49.2 | OAL (mm): 102.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDE1200S12E04DC (mm): 12.0 | L/D: 4 | LU (mm): 57.2 | LCF (mm): 75.2 | OAL (mm): 123.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDE1210S13E02DC (mm): 12.1 | L/D: 2 | LU (mm): 31.1 | LCF (mm): 49.2 | OAL (mm): 102.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1210S13E04DC (mm): 12.1 | L/D: 4 | LU (mm): 60.1 | LCF (mm): 78.2 | OAL (mm): 139.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1220S13E02DC (mm): 12.2 | L/D: 2 | LU (mm): 30.9 | LCF (mm): 49.2 | OAL (mm): 102.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1220S13E04DC (mm): 12.2 | L/D: 4 | LU (mm): 59.9 | LCF (mm): 78.2 | OAL (mm): 139.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1230S13E02DC (mm): 12.3 | L/D: 2 | LU (mm): 30.8 | LCF (mm): 49.2 | OAL (mm): 102.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1230S13E04DC (mm): 12.3 | L/D: 4 | LU (mm): 59.8 | LCF (mm): 78.2 | OAL (mm): 139.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1240S13E02DC (mm): 12.4 | L/D: 2 | LU (mm): 30.7 | LCF (mm): 49.3 | OAL (mm): 102.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1240S13E04DC (mm): 12.4 | L/D: 4 | LU (mm): 59.7 | LCF (mm): 78.3 | OAL (mm): 139.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1250S13E02DC (mm): 12.5 | L/D: 2 | LU (mm): 30.6 | LCF (mm): 49.3 | OAL (mm): 102.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1250S13E04DC (mm): 12.5 | L/D: 4 | LU (mm): 59.6 | LCF (mm): 78.3 | OAL (mm): 139.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1260S13E02DC (mm): 12.6 | L/D: 2 | LU (mm): 32.4 | LCF (mm): 51.3 | OAL (mm): 102.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1260S13E04DC (mm): 12.6 | L/D: 4 | LU (mm): 61.4 | LCF (mm): 80.3 | OAL (mm): 139.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1270S13E02DC (mm): 12.7 | L/D: 2 | LU (mm): 32.3 | LCF (mm): 51.3 | OAL (mm): 102.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1270S13E04DC (mm): 12.7 | L/D: 4 | LU (mm): 61.3 | LCF (mm): 80.3 | OAL (mm): 139.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1280S13E02DC (mm): 12.8 | L/D: 2 | LU (mm): 32.1 | LCF (mm): 51.3 | OAL (mm): 102.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1280S13E04DC (mm): 12.8 | L/D: 4 | LU (mm): 61.1 | LCF (mm): 80.3 | OAL (mm): 139.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1290S13E02DC (mm): 12.9 | L/D: 2 | LU (mm): 32.0 | LCF (mm): 51.3 | OAL (mm): 102.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1290S13E04DC (mm): 12.9 | L/D: 4 | LU (mm): 61.0 | LCF (mm): 80.3 | OAL (mm): 139.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1300S13E02DC (mm): 13.0 | L/D: 2 | LU (mm): 31.9 | LCF (mm): 51.4 | OAL (mm): 102.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDE1300S13E04DC (mm): 13.0 | L/D: 4 | LU (mm): 60.9 | LCF (mm): 80.4 | OAL (mm): 139.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDE1310S14E02DC (mm): 13.1 | L/D: 2 | LU (mm): 32.8 | LCF (mm): 52.4 | OAL (mm): 107.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1310S14E04DC (mm): 13.1 | L/D: 4 | LU (mm): 66.8 | LCF (mm): 86.4 | OAL (mm): 149.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1320S14E02DC (mm): 13.2 | L/D: 2 | LU (mm): 32.6 | LCF (mm): 52.4 | OAL (mm): 107.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1320S14E04DC (mm): 13.2 | L/D: 4 | LU (mm): 66.6 | LCF (mm): 86.4 | OAL (mm): 149.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1330S14E02DC (mm): 13.3 | L/D: 2 | LU (mm): 32.5 | LCF (mm): 52.4 | OAL (mm): 107.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1330S14E04DC (mm): 13.3 | L/D: 4 | LU (mm): 66.5 | LCF (mm): 86.4 | OAL (mm): 149.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1340S14E02DC (mm): 13.4 | L/D: 2 | LU (mm): 32.3 | LCF (mm): 52.4 | OAL (mm): 107.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1340S14E04DC (mm): 13.4 | L/D: 4 | LU (mm): 66.3 | LCF (mm): 86.4 | OAL (mm): 149.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1350S14E02DC (mm): 13.5 | L/D: 2 | LU (mm): 32.3 | LCF (mm): 52.5 | OAL (mm): 107.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1350S14E04DC (mm): 13.5 | L/D: 4 | LU (mm): 66.3 | LCF (mm): 86.5 | OAL (mm): 149.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1360S14E02DC (mm): 13.6 | L/D: 2 | LU (mm): 34.1 | LCF (mm): 54.5 | OAL (mm): 107.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1360S14E04DC (mm): 13.6 | L/D: 4 | LU (mm): 68.1 | LCF (mm): 88.5 | OAL (mm): 149.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1370S14E02DC (mm): 13.7 | L/D: 2 | LU (mm): 34.0 | LCF (mm): 54.5 | OAL (mm): 107.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1370S14E04DC (mm): 13.7 | L/D: 4 | LU (mm): 68.0 | LCF (mm): 88.5 | OAL (mm): 149.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1380S14E02DC (mm): 13.8 | L/D: 2 | LU (mm): 33.8 | LCF (mm): 54.5 | OAL (mm): 107.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1380S14E04DC (mm): 13.8 | L/D: 4 | LU (mm): 67.8 | LCF (mm): 88.5 | OAL (mm): 149.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1390S14E02DC (mm): 13.9 | L/D: 2 | LU (mm): 33.7 | LCF (mm): 54.5 | OAL (mm): 107.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1390S14E04DC (mm): 13.9 | L/D: 4 | LU (mm): 67.7 | LCF (mm): 88.5 | OAL (mm): 149.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1400S14E02DC (mm): 14.0 | L/D: 2 | LU (mm): 33.5 | LCF (mm): 54.5 | OAL (mm): 107.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1400S14E04DC (mm): 14.0 | L/D: 4 | LU (mm): 67.5 | LCF (mm): 88.5 | OAL (mm): 149.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1410S15E02DC (mm): 14.1 | L/D: 2 | LU (mm): 33.5 | LCF (mm): 54.6 | OAL (mm): 110.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1410S15E04DC (mm): 14.1 | L/D: 4 | LU (mm): 70.5 | LCF (mm): 91.6 | OAL (mm): 155.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1420S15E02DC (mm): 14.2 | L/D: 2 | LU (mm): 33.3 | LCF (mm): 54.6 | OAL (mm): 110.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1420S15E04DC (mm): 14.2 | L/D: 4 | LU (mm): 70.3 | LCF (mm): 91.6 | OAL (mm): 155.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1430S15E02DC (mm): 14.3 | L/D: 2 | LU (mm): 33.2 | LCF (mm): 54.6 | OAL (mm): 110.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1430S15E04DC (mm): 14.3 | L/D: 4 | LU (mm): 70.2 | LCF (mm): 91.6 | OAL (mm): 155.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1440S15E02DC (mm): 14.4 | L/D: 2 | LU (mm): 33.0 | LCF (mm): 54.6 | OAL (mm): 110.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1440S15E04DC (mm): 14.4 | L/D: 4 | LU (mm): 70.0 | LCF (mm): 91.6 | OAL (mm): 155.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1450S15E02DC (mm): 14.5 | L/D: 2 | LU (mm): 32.9 | LCF (mm): 54.6 | OAL (mm): 110.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1450S15E04DC (mm): 14.5 | L/D: 4 | LU (mm): 69.9 | LCF (mm): 91.6 | OAL (mm): 155.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1460S15E02DC (mm): 14.6 | L/D: 2 | LU (mm): 33.8 | LCF (mm): 55.7 | OAL (mm): 110.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1460S15E04DC (mm): 14.6 | L/D: 4 | LU (mm): 71.8 | LCF (mm): 93.7 | OAL (mm): 155.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1470S15E02DC (mm): 14.7 | L/D: 2 | LU (mm): 33.7 | LCF (mm): 55.7 | OAL (mm): 110.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1470S15E04DC (mm): 14.7 | L/D: 4 | LU (mm): 71.7 | LCF (mm): 93.7 | OAL (mm): 155.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1480S15E02DC (mm): 14.8 | L/D: 2 | LU (mm): 33.5 | LCF (mm): 55.7 | OAL (mm): 110.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1480S15E04DC (mm): 14.8 | L/D: 4 | LU (mm): 71.5 | LCF (mm): 93.7 | OAL (mm): 155.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1490S15E02DC (mm): 14.9 | L/D: 2 | LU (mm): 33.4 | LCF (mm): 55.7 | OAL (mm): 110.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1490S15E04DC (mm): 14.9 | L/D: 4 | LU (mm): 71.4 | LCF (mm): 93.7 | OAL (mm): 155.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1500S15E02DC (mm): 15.0 | L/D: 2 | LU (mm): 33.2 | LCF (mm): 55.7 | OAL (mm): 110.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1500S15E04DC (mm): 15.0 | L/D: 4 | LU (mm): 71.2 | LCF (mm): 93.7 | OAL (mm): 155.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1510S16E02DC (mm): 15.1 | L/D: 2 | LU (mm): 33.1 | LCF (mm): 55.7 | OAL (mm): 114.7 | PL (mm): 2.7 | DCON (mm): 16.0 | Stock: Yes
MDE1510S16E04DC (mm): 15.1 | L/D: 4 | LU (mm): 74.1 | LCF (mm): 96.7 | OAL (mm): 162.7 | PL (mm): 2.7 | DCON (mm): 16.0 | Stock: Yes
MDE1520S16E02DC (mm): 15.2 | L/D: 2 | LU (mm): 33.0 | LCF (mm): 55.8 | OAL (mm): 114.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1520S16E04DC (mm): 15.2 | L/D: 4 | LU (mm): 74.0 | LCF (mm): 96.8 | OAL (mm): 162.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1530S16E02DC (mm): 15.3 | L/D: 2 | LU (mm): 32.9 | LCF (mm): 55.8 | OAL (mm): 114.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1530S16E04DC (mm): 15.3 | L/D: 4 | LU (mm): 73.9 | LCF (mm): 96.8 | OAL (mm): 162.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1540S16E02DC (mm): 15.4 | L/D: 2 | LU (mm): 32.7 | LCF (mm): 55.8 | OAL (mm): 114.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1540S16E04DC (mm): 15.4 | L/D: 4 | LU (mm): 73.7 | LCF (mm): 96.8 | OAL (mm): 162.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1550S16E02DC (mm): 15.5 | L/D: 2 | LU (mm): 32.6 | LCF (mm): 55.8 | OAL (mm): 114.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1550S16E04DC (mm): 15.5 | L/D: 4 | LU (mm): 73.6 | LCF (mm): 96.8 | OAL (mm): 162.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1560S16E02DC (mm): 15.6 | L/D: 2 | LU (mm): 34.4 | LCF (mm): 57.8 | OAL (mm): 114.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1560S16E04DC (mm): 15.6 | L/D: 4 | LU (mm): 75.4 | LCF (mm): 98.8 | OAL (mm): 162.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1570S16E02DC (mm): 15.7 | L/D: 2 | LU (mm): 34.4 | LCF (mm): 57.9 | OAL (mm): 114.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1570S16E04DC (mm): 15.7 | L/D: 4 | LU (mm): 75.4 | LCF (mm): 98.9 | OAL (mm): 162.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1580S16E02DC (mm): 15.8 | L/D: 2 | LU (mm): 34.2 | LCF (mm): 57.9 | OAL (mm): 114.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1580S16E04DC (mm): 15.8 | L/D: 4 | LU (mm): 75.2 | LCF (mm): 98.9 | OAL (mm): 162.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1590S16E02DC (mm): 15.9 | L/D: 2 | LU (mm): 34.1 | LCF (mm): 57.9 | OAL (mm): 114.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1590S16E04DC (mm): 15.9 | L/D: 4 | LU (mm): 75.1 | LCF (mm): 98.9 | OAL (mm): 162.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1600S16E02DC (mm): 16.0 | L/D: 2 | LU (mm): 33.9 | LCF (mm): 57.9 | OAL (mm): 114.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1600S16E04DC (mm): 16.0 | L/D: 4 | LU (mm): 74.9 | LCF (mm): 98.9 | OAL (mm): 162.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1650S17E02DC (mm): 16.5 | L/D: 2 | LU (mm): 34.3 | LCF (mm): 59.0 | OAL (mm): 119.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Yes
MDE1650S17E04DC (mm): 16.5 | L/D: 4 | LU (mm): 76.3 | LCF (mm): 101.0 | OAL (mm): 170.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Yes
MDE1680S17E04DC (mm): 16.8 | L/D: 4 | LU (mm): 75.9 | LCF (mm): 101.1 | OAL (mm): 170.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Yes
MDE1700S17E02DC (mm): 17.0 | L/D: 2 | LU (mm): 34.6 | LCF (mm): 60.1 | OAL (mm): 119.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Yes
MDE1700S17E04DC (mm): 17.0 | L/D: 4 | LU (mm): 75.7 | LCF (mm): 101.2 | OAL (mm): 170.2 | PL (mm): 3.2 | DCON (mm): 17.0 | Stock: Yes
MDE1750S18E02DC (mm): 17.5 | L/D: 2 | LU (mm): 35.0 | LCF (mm): 61.2 | OAL (mm): 123.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Yes
MDE1750S18E04DC (mm): 17.5 | L/D: 4 | LU (mm): 77.0 | LCF (mm): 103.2 | OAL (mm): 170.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Yes
MDE1800S18E02DC (mm): 18.0 | L/D: 2 | LU (mm): 35.3 | LCF (mm): 62.3 | OAL (mm): 123.3 | PL (mm): 3.3 | DCON (mm): 18.0 | Stock: Yes
MDE1800S18E04DC (mm): 18.0 | L/D: 4 | LU (mm): 78.3 | LCF (mm): 105.3 | OAL (mm): 170.3 | PL (mm): 3.3 | DCON (mm): 18.0 | Stock: Yes
MDE1850S19E02DC (mm): 18.5 | L/D: 2 | LU (mm): 34.7 | LCF (mm): 62.4 | OAL (mm): 126.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Yes
MDE1850S19E04DC (mm): 18.5 | L/D: 4 | LU (mm): 79.7 | LCF (mm): 107.4 | OAL (mm): 182.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Yes
MDE1900S19E02DC (mm): 19.0 | L/D: 2 | LU (mm): 35.0 | LCF (mm): 63.5 | OAL (mm): 126.5 | PL (mm): 3.5 | DCON (mm): 19.0 | Stock: Yes
MDE1900S19E04DC (mm): 19.0 | L/D: 4 | LU (mm): 80.9 | LCF (mm): 109.4 | OAL (mm): 182.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Yes
MDE1950S20E02DC (mm): 19.5 | L/D: 2 | LU (mm): 35.3 | LCF (mm): 64.5 | OAL (mm): 130.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Yes
MDE1950S20E04DC (mm): 19.5 | L/D: 4 | LU (mm): 84.3 | LCF (mm): 113.5 | OAL (mm): 182.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Yes
MDE1970S20E04DC (mm): 19.7 | L/D: 4 | LU (mm): 88.1 | LCF (mm): 117.6 | OAL (mm): 182.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Yes
MDE2000S20E02DC (mm): 20.0 | L/D: 2 | LU (mm): 35.6 | LCF (mm): 65.6 | OAL (mm): 130.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Yes
MDE2000S20E04DC (mm): 20.0 | L/D: 4 | LU (mm): 87.6 | LCF (mm): 117.6 | OAL (mm): 182.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
