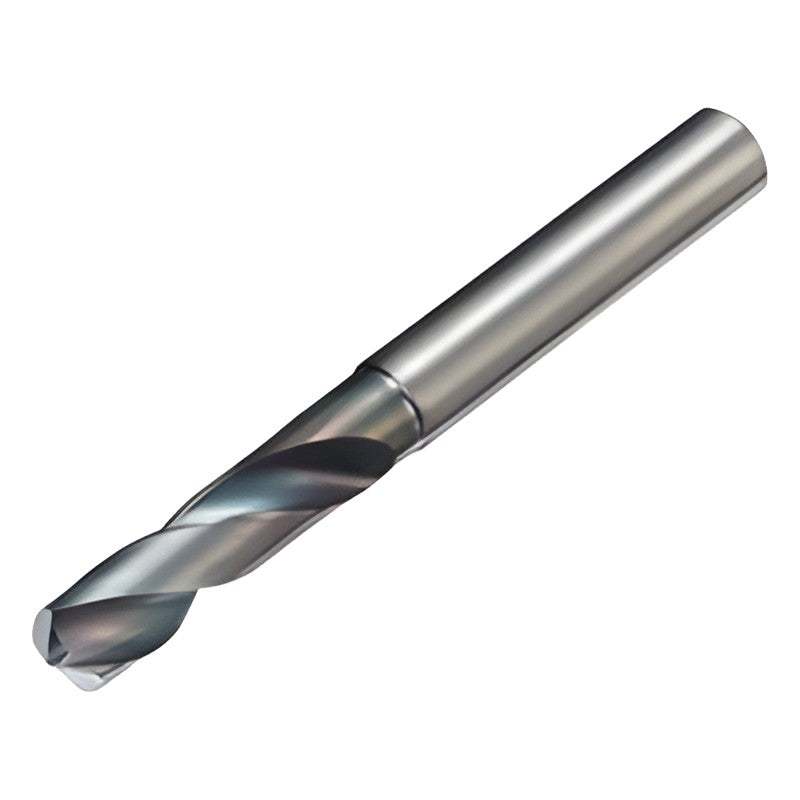

Sumitomo Electric Hardmetal Multi Drill NEXIO MDE-H Type (Internal Coolant)

Sumitomo Electric Hardmetal Multi Drill NEXIO MDE-H Type (Internal Coolant)

General-purpose solid carbide drill with through-coolant holes in grade ACT100, for steels through stainless steel.

Key features

  • Grade ACT100 with NX coating
  • Special double margin for hole accuracy
  • Hole depth 3D, 5D and 8D
  • Diameter 1.0-20.0 mm
  • 140 deg point angle

Specifications

Coolant Internal
Point angle 140 deg
Grade ACT100
MDE0100S03H03 DC (mm): 1.0 | L/D: 3 | LU (mm): 6.7 | LCF (mm): 8.2 | OAL (mm): 57.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0100S03H05 DC (mm): 1.0 | L/D: 5 | LU (mm): 8.7 | LCF (mm): 10.2 | OAL (mm): 59.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0100S03H08 DC (mm): 1.0 | L/D: 8 | LU (mm): 11.7 | LCF (mm): 13.2 | OAL (mm): 62.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0110S03H03 DC (mm): 1.1 | L/D: 3 | LU (mm): 6.6 | LCF (mm): 8.2 | OAL (mm): 57.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0110S03H05 DC (mm): 1.1 | L/D: 5 | LU (mm): 8.6 | LCF (mm): 10.2 | OAL (mm): 59.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0110S03H08 DC (mm): 1.1 | L/D: 8 | LU (mm): 12.6 | LCF (mm): 14.2 | OAL (mm): 62.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0120S03H03 DC (mm): 1.2 | L/D: 3 | LU (mm): 7.4 | LCF (mm): 9.2 | OAL (mm): 57.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0120S03H05 DC (mm): 1.2 | L/D: 5 | LU (mm): 9.4 | LCF (mm): 11.2 | OAL (mm): 59.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0120S03H08 DC (mm): 1.2 | L/D: 8 | LU (mm): 13.4 | LCF (mm): 15.2 | OAL (mm): 62.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0130S03H03 DC (mm): 1.3 | L/D: 3 | LU (mm): 7.3 | LCF (mm): 9.2 | OAL (mm): 57.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0130S03H05 DC (mm): 1.3 | L/D: 5 | LU (mm): 10.3 | LCF (mm): 12.2 | OAL (mm): 59.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0130S03H08 DC (mm): 1.3 | L/D: 8 | LU (mm): 14.3 | LCF (mm): 16.2 | OAL (mm): 62.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0140S03H03 DC (mm): 1.4 | L/D: 3 | LU (mm): 8.2 | LCF (mm): 10.3 | OAL (mm): 57.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0140S03H05 DC (mm): 1.4 | L/D: 5 | LU (mm): 11.2 | LCF (mm): 13.3 | OAL (mm): 59.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0140S03H08 DC (mm): 1.4 | L/D: 8 | LU (mm): 15.2 | LCF (mm): 17.3 | OAL (mm): 62.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0150S03H03 DC (mm): 1.5 | L/D: 3 | LU (mm): 9.1 | LCF (mm): 11.3 | OAL (mm): 57.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0150S03H05 DC (mm): 1.5 | L/D: 5 | LU (mm): 12.1 | LCF (mm): 14.3 | OAL (mm): 59.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0150S03H08 DC (mm): 1.5 | L/D: 8 | LU (mm): 16.1 | LCF (mm): 18.3 | OAL (mm): 62.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0160S03H03 DC (mm): 1.6 | L/D: 3 | LU (mm): 8.9 | LCF (mm): 11.3 | OAL (mm): 59.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0160S03H05 DC (mm): 1.6 | L/D: 5 | LU (mm): 11.9 | LCF (mm): 14.3 | OAL (mm): 62.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0160S03H08 DC (mm): 1.6 | L/D: 8 | LU (mm): 16.9 | LCF (mm): 19.3 | OAL (mm): 67.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0170S03H03 DC (mm): 1.7 | L/D: 3 | LU (mm): 9.8 | LCF (mm): 12.3 | OAL (mm): 59.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0170S03H05 DC (mm): 1.7 | L/D: 5 | LU (mm): 12.8 | LCF (mm): 15.3 | OAL (mm): 62.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0170S03H08 DC (mm): 1.7 | L/D: 8 | LU (mm): 17.8 | LCF (mm): 20.3 | OAL (mm): 67.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0180S03H03 DC (mm): 1.8 | L/D: 3 | LU (mm): 9.6 | LCF (mm): 12.3 | OAL (mm): 59.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0180S03H05 DC (mm): 1.8 | L/D: 5 | LU (mm): 13.6 | LCF (mm): 16.3 | OAL (mm): 62.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0180S03H08 DC (mm): 1.8 | L/D: 8 | LU (mm): 18.6 | LCF (mm): 21.3 | OAL (mm): 67.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0190S03H03 DC (mm): 1.9 | L/D: 3 | LU (mm): 10.5 | LCF (mm): 13.3 | OAL (mm): 59.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0190S03H05 DC (mm): 1.9 | L/D: 5 | LU (mm): 14.5 | LCF (mm): 17.3 | OAL (mm): 62.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0190S03H08 DC (mm): 1.9 | L/D: 8 | LU (mm): 19.5 | LCF (mm): 22.3 | OAL (mm): 70.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0200S03H03 DC (mm): 2.0 | L/D: 3 | LU (mm): 11.4 | LCF (mm): 14.4 | OAL (mm): 59.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0200S03H05 DC (mm): 2.0 | L/D: 5 | LU (mm): 15.4 | LCF (mm): 18.4 | OAL (mm): 62.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0200S03H08 DC (mm): 2.0 | L/D: 8 | LU (mm): 21.4 | LCF (mm): 24.4 | OAL (mm): 70.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0210S03H03 DC (mm): 2.1 | L/D: 3 | LU (mm): 11.3 | LCF (mm): 14.4 | OAL (mm): 59.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0210S03H05 DC (mm): 2.1 | L/D: 5 | LU (mm): 15.3 | LCF (mm): 18.4 | OAL (mm): 62.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0210S03H08 DC (mm): 2.1 | L/D: 8 | LU (mm): 22.3 | LCF (mm): 25.4 | OAL (mm): 70.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0220S03H03 DC (mm): 2.2 | L/D: 3 | LU (mm): 12.1 | LCF (mm): 15.4 | OAL (mm): 59.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0220S03H05 DC (mm): 2.2 | L/D: 5 | LU (mm): 16.1 | LCF (mm): 19.4 | OAL (mm): 62.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0220S03H08 DC (mm): 2.2 | L/D: 8 | LU (mm): 23.1 | LCF (mm): 26.4 | OAL (mm): 70.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0230S03H03 DC (mm): 2.3 | L/D: 3 | LU (mm): 12.0 | LCF (mm): 15.4 | OAL (mm): 63.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0230S03H05 DC (mm): 2.3 | L/D: 5 | LU (mm): 17.0 | LCF (mm): 20.4 | OAL (mm): 68.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0230S03H08 DC (mm): 2.3 | L/D: 8 | LU (mm): 24.0 | LCF (mm): 27.4 | OAL (mm): 75.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0240S03H03 DC (mm): 2.4 | L/D: 3 | LU (mm): 12.8 | LCF (mm): 16.4 | OAL (mm): 63.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0240S03H05 DC (mm): 2.4 | L/D: 5 | LU (mm): 17.8 | LCF (mm): 21.4 | OAL (mm): 68.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0240S03H08 DC (mm): 2.4 | L/D: 8 | LU (mm): 24.8 | LCF (mm): 28.4 | OAL (mm): 75.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0250S03H03 DC (mm): 2.5 | L/D: 3 | LU (mm): 13.8 | LCF (mm): 17.5 | OAL (mm): 63.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0250S03H05 DC (mm): 2.5 | L/D: 5 | LU (mm): 18.8 | LCF (mm): 22.5 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0250S03H08 DC (mm): 2.5 | L/D: 8 | LU (mm): 25.8 | LCF (mm): 29.5 | OAL (mm): 75.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0260S03H03 DC (mm): 2.6 | L/D: 3 | LU (mm): 13.6 | LCF (mm): 17.5 | OAL (mm): 63.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0260S03H05 DC (mm): 2.6 | L/D: 5 | LU (mm): 18.6 | LCF (mm): 22.5 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0260S03H08 DC (mm): 2.6 | L/D: 8 | LU (mm): 26.6 | LCF (mm): 30.5 | OAL (mm): 75.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0270S03H03 DC (mm): 2.7 | L/D: 3 | LU (mm): 14.5 | LCF (mm): 18.5 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0270S03H05 DC (mm): 2.7 | L/D: 5 | LU (mm): 19.5 | LCF (mm): 23.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0270S03H08 DC (mm): 2.7 | L/D: 8 | LU (mm): 27.5 | LCF (mm): 31.5 | OAL (mm): 81.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0276S03H05 DC (mm): 2.76 | L/D: 5 | LU (mm): 20.3 | LCF (mm): 24.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0278S03H05 DC (mm): 2.78 | L/D: 5 | LU (mm): 20.3 | LCF (mm): 24.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0280S03H03 DC (mm): 2.8 | L/D: 3 | LU (mm): 14.3 | LCF (mm): 18.5 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0280S03H05 DC (mm): 2.8 | L/D: 5 | LU (mm): 20.3 | LCF (mm): 24.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0280S03H08 DC (mm): 2.8 | L/D: 8 | LU (mm): 28.3 | LCF (mm): 32.5 | OAL (mm): 81.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0290S03H03 DC (mm): 2.9 | L/D: 3 | LU (mm): 15.2 | LCF (mm): 19.5 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0290S03H05 DC (mm): 2.9 | L/D: 5 | LU (mm): 21.2 | LCF (mm): 25.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0290S03H08 DC (mm): 2.9 | L/D: 8 | LU (mm): 29.2 | LCF (mm): 33.5 | OAL (mm): 81.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0300S03H03 DC (mm): 3.0 | L/D: 3 | LU (mm): 14.0 | LCF (mm): 18.5 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0300S03H05 DC (mm): 3.0 | L/D: 5 | LU (mm): 24.0 | LCF (mm): 28.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0300S03H08 DC (mm): 3.0 | L/D: 8 | LU (mm): 29.0 | LCF (mm): 33.5 | OAL (mm): 81.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0310S04H03 DC (mm): 3.1 | L/D: 3 | LU (mm): 16.0 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0310S04H05 DC (mm): 3.1 | L/D: 5 | LU (mm): 28.0 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0310S04H08 DC (mm): 3.1 | L/D: 8 | LU (mm): 34.5 | LCF (mm): 39.1 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0320S04H03 DC (mm): 3.2 | L/D: 3 | LU (mm): 15.8 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0320S04H05 DC (mm): 3.2 | L/D: 5 | LU (mm): 27.8 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0320S04H08 DC (mm): 3.2 | L/D: 8 | LU (mm): 34.3 | LCF (mm): 39.1 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0330S04H03 DC (mm): 3.3 | L/D: 3 | LU (mm): 15.7 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0330S04H05 DC (mm): 3.3 | L/D: 5 | LU (mm): 27.7 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0330S04H08 DC (mm): 3.3 | L/D: 8 | LU (mm): 34.2 | LCF (mm): 39.1 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0340S04H03 DC (mm): 3.4 | L/D: 3 | LU (mm): 15.5 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0340S04H05 DC (mm): 3.4 | L/D: 5 | LU (mm): 27.5 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0340S04H08 DC (mm): 3.4 | L/D: 8 | LU (mm): 34.0 | LCF (mm): 39.1 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0350S04H03 DC (mm): 3.5 | L/D: 3 | LU (mm): 15.4 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0350S04H05 DC (mm): 3.5 | L/D: 5 | LU (mm): 27.4 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0350S04H08 DC (mm): 3.5 | L/D: 8 | LU (mm): 33.9 | LCF (mm): 39.1 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0360S04H03 DC (mm): 3.6 | L/D: 3 | LU (mm): 17.8 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0360S04H05 DC (mm): 3.6 | L/D: 5 | LU (mm): 31.3 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0360S04H08 DC (mm): 3.6 | L/D: 8 | LU (mm): 39.3 | LCF (mm): 44.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0366S04H05 DC (mm): 3.66 | L/D: 5 | LU (mm): 31.2 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0368S04H05 DC (mm): 3.68 | L/D: 5 | LU (mm): 31.2 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0370S04H03 DC (mm): 3.7 | L/D: 3 | LU (mm): 17.7 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0370S04H05 DC (mm): 3.7 | L/D: 5 | LU (mm): 31.2 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0370S04H08 DC (mm): 3.7 | L/D: 8 | LU (mm): 39.2 | LCF (mm): 44.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0380S04H03 DC (mm): 3.8 | L/D: 3 | LU (mm): 17.5 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0380S04H05 DC (mm): 3.8 | L/D: 5 | LU (mm): 31.0 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0380S04H08 DC (mm): 3.8 | L/D: 8 | LU (mm): 39.0 | LCF (mm): 44.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0390S04H03 DC (mm): 3.9 | L/D: 3 | LU (mm): 17.4 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0390S04H05 DC (mm): 3.9 | L/D: 5 | LU (mm): 30.9 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0390S04H08 DC (mm): 3.9 | L/D: 8 | LU (mm): 38.9 | LCF (mm): 44.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0400S04H03 DC (mm): 4.0 | L/D: 3 | LU (mm): 17.2 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0400S04H05 DC (mm): 4.0 | L/D: 5 | LU (mm): 30.7 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0400S04H08 DC (mm): 4.0 | L/D: 8 | LU (mm): 38.7 | LCF (mm): 44.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0410S05H03 DC (mm): 4.1 | L/D: 3 | LU (mm): 19.6 | LCF (mm): 25.7 | OAL (mm): 80.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDE0410S05H05 DC (mm): 4.1 | L/D: 5 | LU (mm): 34.6 | LCF (mm): 40.7 | OAL (mm): 98.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDE0410S05H08 DC (mm): 4.1 | L/D: 8 | LU (mm): 44.1 | LCF (mm): 50.2 | OAL (mm): 105.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDE0420S05H03 DC (mm): 4.2 | L/D: 3 | LU (mm): 19.5 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0420S05H05 DC (mm): 4.2 | L/D: 5 | LU (mm): 34.5 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0420S05H08 DC (mm): 4.2 | L/D: 8 | LU (mm): 44.0 | LCF (mm): 50.3 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0430S05H03 DC (mm): 4.3 | L/D: 3 | LU (mm): 19.4 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0430S05H05 DC (mm): 4.3 | L/D: 5 | LU (mm): 34.4 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0430S05H08 DC (mm): 4.3 | L/D: 8 | LU (mm): 43.9 | LCF (mm): 50.3 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0440S05H03 DC (mm): 4.4 | L/D: 3 | LU (mm): 19.2 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0440S05H05 DC (mm): 4.4 | L/D: 5 | LU (mm): 34.2 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0440S05H08 DC (mm): 4.4 | L/D: 8 | LU (mm): 43.7 | LCF (mm): 50.3 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0450S05H03 DC (mm): 4.5 | L/D: 3 | LU (mm): 19.1 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0450S05H05 DC (mm): 4.5 | L/D: 5 | LU (mm): 34.1 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0450S05H08 DC (mm): 4.5 | L/D: 8 | LU (mm): 43.6 | LCF (mm): 50.3 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0460S05H03 DC (mm): 4.6 | L/D: 3 | LU (mm): 21.4 | LCF (mm): 28.3 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0460S05H05 DC (mm): 4.6 | L/D: 5 | LU (mm): 37.9 | LCF (mm): 44.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0460S05H08 DC (mm): 4.6 | L/D: 8 | LU (mm): 48.9 | LCF (mm): 55.8 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0462S05H05 DC (mm): 4.62 | L/D: 5 | LU (mm): 37.9 | LCF (mm): 44.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0464S05H05 DC (mm): 4.64 | L/D: 5 | LU (mm): 37.9 | LCF (mm): 44.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0470S05H03 DC (mm): 4.7 | L/D: 3 | LU (mm): 21.4 | LCF (mm): 28.4 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0470S05H05 DC (mm): 4.7 | L/D: 5 | LU (mm): 37.9 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0470S05H08 DC (mm): 4.7 | L/D: 8 | LU (mm): 48.9 | LCF (mm): 55.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0480S05H03 DC (mm): 4.8 | L/D: 3 | LU (mm): 21.2 | LCF (mm): 28.4 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0480S05H05 DC (mm): 4.8 | L/D: 5 | LU (mm): 37.7 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0480S05H08 DC (mm): 4.8 | L/D: 8 | LU (mm): 48.7 | LCF (mm): 55.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0490S05H03 DC (mm): 4.9 | L/D: 3 | LU (mm): 21.1 | LCF (mm): 28.4 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0490S05H05 DC (mm): 4.9 | L/D: 5 | LU (mm): 37.6 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0490S05H08 DC (mm): 4.9 | L/D: 8 | LU (mm): 48.6 | LCF (mm): 55.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0500S05H03 DC (mm): 5.0 | L/D: 3 | LU (mm): 20.9 | LCF (mm): 28.4 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0500S05H05 DC (mm): 5.0 | L/D: 5 | LU (mm): 37.4 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0500S05H08 DC (mm): 5.0 | L/D: 8 | LU (mm): 48.4 | LCF (mm): 55.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0510S06H03 DC (mm): 5.1 | L/D: 3 | LU (mm): 20.8 | LCF (mm): 28.4 | OAL (mm): 82.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDE0510S06H05 DC (mm): 5.1 | L/D: 5 | LU (mm): 37.3 | LCF (mm): 44.9 | OAL (mm): 100.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDE0510S06H08 DC (mm): 5.1 | L/D: 8 | LU (mm): 53.8 | LCF (mm): 61.4 | OAL (mm): 118.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDE0520S06H03 DC (mm): 5.2 | L/D: 3 | LU (mm): 20.6 | LCF (mm): 28.4 | OAL (mm): 82.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDE0520S06H05 DC (mm): 5.2 | L/D: 5 | LU (mm): 37.1 | LCF (mm): 44.9 | OAL (mm): 100.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDE0520S06H08 DC (mm): 5.2 | L/D: 8 | LU (mm): 53.6 | LCF (mm): 61.4 | OAL (mm): 118.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDE0530S06H03 DC (mm): 5.3 | L/D: 3 | LU (mm): 20.6 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0530S06H05 DC (mm): 5.3 | L/D: 5 | LU (mm): 37.1 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0530S06H08 DC (mm): 5.3 | L/D: 8 | LU (mm): 53.6 | LCF (mm): 61.5 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0540S06H03 DC (mm): 5.4 | L/D: 3 | LU (mm): 20.4 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0540S06H05 DC (mm): 5.4 | L/D: 5 | LU (mm): 36.9 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0540S06H08 DC (mm): 5.4 | L/D: 8 | LU (mm): 53.4 | LCF (mm): 61.5 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0550S06H03 DC (mm): 5.5 | L/D: 3 | LU (mm): 20.3 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0550S06H05 DC (mm): 5.5 | L/D: 5 | LU (mm): 36.8 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0550S06H08 DC (mm): 5.5 | L/D: 8 | LU (mm): 53.3 | LCF (mm): 61.5 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0552S06H05 DC (mm): 5.52 | L/D: 5 | LU (mm): 40.6 | LCF (mm): 49.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0554S06H05 DC (mm): 5.54 | L/D: 5 | LU (mm): 40.6 | LCF (mm): 49.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0560S06H03 DC (mm): 5.6 | L/D: 3 | LU (mm): 22.6 | LCF (mm): 31.0 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0560S06H05 DC (mm): 5.6 | L/D: 5 | LU (mm): 40.6 | LCF (mm): 49.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0560S06H08 DC (mm): 5.6 | L/D: 8 | LU (mm): 58.6 | LCF (mm): 67.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0570S06H03 DC (mm): 5.7 | L/D: 3 | LU (mm): 22.5 | LCF (mm): 31.0 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0570S06H05 DC (mm): 5.7 | L/D: 5 | LU (mm): 40.5 | LCF (mm): 49.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0570S06H08 DC (mm): 5.7 | L/D: 8 | LU (mm): 58.5 | LCF (mm): 67.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0580S06H03 DC (mm): 5.8 | L/D: 3 | LU (mm): 22.4 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0580S06H05 DC (mm): 5.8 | L/D: 5 | LU (mm): 40.4 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0580S06H08 DC (mm): 5.8 | L/D: 8 | LU (mm): 58.4 | LCF (mm): 67.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0590S06H03 DC (mm): 5.9 | L/D: 3 | LU (mm): 22.3 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0590S06H05 DC (mm): 5.9 | L/D: 5 | LU (mm): 40.3 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0590S06H08 DC (mm): 5.9 | L/D: 8 | LU (mm): 58.3 | LCF (mm): 67.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0600S06H03 DC (mm): 6.0 | L/D: 3 | LU (mm): 22.1 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0600S06H05 DC (mm): 6.0 | L/D: 5 | LU (mm): 40.1 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0600S06H08 DC (mm): 6.0 | L/D: 8 | LU (mm): 58.1 | LCF (mm): 67.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0610S07H03 DC (mm): 6.1 | L/D: 3 | LU (mm): 24.5 | LCF (mm): 33.6 | OAL (mm): 89.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0610S07H05 DC (mm): 6.1 | L/D: 5 | LU (mm): 44.0 | LCF (mm): 53.1 | OAL (mm): 110.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0610S07H08 DC (mm): 6.1 | L/D: 8 | LU (mm): 63.5 | LCF (mm): 72.6 | OAL (mm): 131.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0620S07H03 DC (mm): 6.2 | L/D: 3 | LU (mm): 24.3 | LCF (mm): 33.6 | OAL (mm): 89.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0620S07H05 DC (mm): 6.2 | L/D: 5 | LU (mm): 43.8 | LCF (mm): 53.1 | OAL (mm): 110.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0620S07H08 DC (mm): 6.2 | L/D: 8 | LU (mm): 63.3 | LCF (mm): 72.6 | OAL (mm): 131.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0630S07H03 DC (mm): 6.3 | L/D: 3 | LU (mm): 24.2 | LCF (mm): 33.6 | OAL (mm): 89.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0630S07H05 DC (mm): 6.3 | L/D: 5 | LU (mm): 43.7 | LCF (mm): 53.1 | OAL (mm): 110.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0630S07H08 DC (mm): 6.3 | L/D: 8 | LU (mm): 63.2 | LCF (mm): 72.6 | OAL (mm): 131.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0640S07H03 DC (mm): 6.4 | L/D: 3 | LU (mm): 24.1 | LCF (mm): 33.7 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0640S07H05 DC (mm): 6.4 | L/D: 5 | LU (mm): 43.6 | LCF (mm): 53.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0640S07H08 DC (mm): 6.4 | L/D: 8 | LU (mm): 63.1 | LCF (mm): 72.7 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0650S07H03 DC (mm): 6.5 | L/D: 3 | LU (mm): 24.0 | LCF (mm): 33.7 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0650S07H05 DC (mm): 6.5 | L/D: 5 | LU (mm): 43.5 | LCF (mm): 53.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0650S07H08 DC (mm): 6.5 | L/D: 8 | LU (mm): 63.0 | LCF (mm): 72.7 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0660S07H03 DC (mm): 6.6 | L/D: 3 | LU (mm): 26.3 | LCF (mm): 36.2 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0660S07H05 DC (mm): 6.6 | L/D: 5 | LU (mm): 47.3 | LCF (mm): 57.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0660S07H08 DC (mm): 6.6 | L/D: 8 | LU (mm): 68.3 | LCF (mm): 78.2 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0670S07H03 DC (mm): 6.7 | L/D: 3 | LU (mm): 26.2 | LCF (mm): 36.2 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0670S07H05 DC (mm): 6.7 | L/D: 5 | LU (mm): 47.2 | LCF (mm): 57.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0670S07H08 DC (mm): 6.7 | L/D: 8 | LU (mm): 68.2 | LCF (mm): 78.2 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0680S07H03 DC (mm): 6.8 | L/D: 3 | LU (mm): 26.0 | LCF (mm): 36.2 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0680S07H05 DC (mm): 6.8 | L/D: 5 | LU (mm): 47.0 | LCF (mm): 57.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0680S07H08 DC (mm): 6.8 | L/D: 8 | LU (mm): 68.0 | LCF (mm): 78.2 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0690S07H03 DC (mm): 6.9 | L/D: 3 | LU (mm): 26.0 | LCF (mm): 36.3 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDE0690S07H05 DC (mm): 6.9 | L/D: 5 | LU (mm): 47.0 | LCF (mm): 57.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDE0690S07H08 DC (mm): 6.9 | L/D: 8 | LU (mm): 68.0 | LCF (mm): 78.3 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDE0700S07H03 DC (mm): 7.0 | L/D: 3 | LU (mm): 25.8 | LCF (mm): 36.3 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDE0700S07H05 DC (mm): 7.0 | L/D: 5 | LU (mm): 46.8 | LCF (mm): 57.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDE0700S07H08 DC (mm): 7.0 | L/D: 8 | LU (mm): 67.8 | LCF (mm): 78.3 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDE0710S08H03 DC (mm): 7.1 | L/D: 3 | LU (mm): 28.2 | LCF (mm): 38.8 | OAL (mm): 95.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0710S08H05 DC (mm): 7.1 | L/D: 5 | LU (mm): 50.7 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0710S08H08 DC (mm): 7.1 | L/D: 8 | LU (mm): 73.2 | LCF (mm): 83.8 | OAL (mm): 143.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0720S08H03 DC (mm): 7.2 | L/D: 3 | LU (mm): 28.0 | LCF (mm): 38.8 | OAL (mm): 95.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0720S08H05 DC (mm): 7.2 | L/D: 5 | LU (mm): 50.5 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0720S08H08 DC (mm): 7.2 | L/D: 8 | LU (mm): 73.0 | LCF (mm): 83.8 | OAL (mm): 143.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0730S08H03 DC (mm): 7.3 | L/D: 3 | LU (mm): 27.9 | LCF (mm): 38.8 | OAL (mm): 95.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0730S08H05 DC (mm): 7.3 | L/D: 5 | LU (mm): 50.4 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0730S08H08 DC (mm): 7.3 | L/D: 8 | LU (mm): 72.9 | LCF (mm): 83.8 | OAL (mm): 143.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0736S08H05 DC (mm): 7.36 | L/D: 5 | LU (mm): 50.2 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0738S08H05 DC (mm): 7.38 | L/D: 5 | LU (mm): 50.2 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0740S08H03 DC (mm): 7.4 | L/D: 3 | LU (mm): 27.7 | LCF (mm): 38.8 | OAL (mm): 95.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0740S08H05 DC (mm): 7.4 | L/D: 5 | LU (mm): 50.2 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0740S08H08 DC (mm): 7.4 | L/D: 8 | LU (mm): 72.7 | LCF (mm): 83.8 | OAL (mm): 143.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0750S08H03 DC (mm): 7.5 | L/D: 3 | LU (mm): 27.7 | LCF (mm): 38.9 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0750S08H05 DC (mm): 7.5 | L/D: 5 | LU (mm): 50.2 | LCF (mm): 61.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0750S08H08 DC (mm): 7.5 | L/D: 8 | LU (mm): 72.7 | LCF (mm): 83.9 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0752S08H05 DC (mm): 7.52 | L/D: 5 | LU (mm): 54.0 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0754S08H05 DC (mm): 7.54 | L/D: 5 | LU (mm): 54.0 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0760S08H03 DC (mm): 7.6 | L/D: 3 | LU (mm): 30.0 | LCF (mm): 41.4 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0760S08H05 DC (mm): 7.6 | L/D: 5 | LU (mm): 54.0 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0760S08H08 DC (mm): 7.6 | L/D: 8 | LU (mm): 78.0 | LCF (mm): 89.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0770S08H03 DC (mm): 7.7 | L/D: 3 | LU (mm): 29.9 | LCF (mm): 41.4 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0770S08H05 DC (mm): 7.7 | L/D: 5 | LU (mm): 53.9 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0770S08H08 DC (mm): 7.7 | L/D: 8 | LU (mm): 77.9 | LCF (mm): 89.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0780S08H03 DC (mm): 7.8 | L/D: 3 | LU (mm): 29.7 | LCF (mm): 41.4 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0780S08H05 DC (mm): 7.8 | L/D: 5 | LU (mm): 53.7 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0780S08H08 DC (mm): 7.8 | L/D: 8 | LU (mm): 77.7 | LCF (mm): 89.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0790S08H03 DC (mm): 7.9 | L/D: 3 | LU (mm): 29.6 | LCF (mm): 41.4 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0790S08H05 DC (mm): 7.9 | L/D: 5 | LU (mm): 53.6 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0790S08H08 DC (mm): 7.9 | L/D: 8 | LU (mm): 77.6 | LCF (mm): 89.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0800S08H03 DC (mm): 8.0 | L/D: 3 | LU (mm): 29.5 | LCF (mm): 41.5 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDE0800S08H05 DC (mm): 8.0 | L/D: 5 | LU (mm): 53.5 | LCF (mm): 65.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDE0800S08H08 DC (mm): 8.0 | L/D: 8 | LU (mm): 77.5 | LCF (mm): 89.5 | OAL (mm): 143.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDE0810S09H03 DC (mm): 8.1 | L/D: 3 | LU (mm): 31.9 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0810S09H05 DC (mm): 8.1 | L/D: 5 | LU (mm): 57.4 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0810S09H08 DC (mm): 8.1 | L/D: 8 | LU (mm): 82.9 | LCF (mm): 95.0 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0820S09H03 DC (mm): 8.2 | L/D: 3 | LU (mm): 31.7 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0820S09H05 DC (mm): 8.2 | L/D: 5 | LU (mm): 57.2 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0820S09H08 DC (mm): 8.2 | L/D: 8 | LU (mm): 82.7 | LCF (mm): 95.0 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0830S09H03 DC (mm): 8.3 | L/D: 3 | LU (mm): 31.6 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0830S09H05 DC (mm): 8.3 | L/D: 5 | LU (mm): 57.1 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0830S09H08 DC (mm): 8.3 | L/D: 8 | LU (mm): 82.6 | LCF (mm): 95.0 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0840S09H03 DC (mm): 8.4 | L/D: 3 | LU (mm): 31.4 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0840S09H05 DC (mm): 8.4 | L/D: 5 | LU (mm): 56.9 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0840S09H08 DC (mm): 8.4 | L/D: 8 | LU (mm): 82.4 | LCF (mm): 95.0 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0850S09H03 DC (mm): 8.5 | L/D: 3 | LU (mm): 31.3 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0850S09H05 DC (mm): 8.5 | L/D: 5 | LU (mm): 56.8 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0850S09H08 DC (mm): 8.5 | L/D: 8 | LU (mm): 82.3 | LCF (mm): 95.0 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0860S09H03 DC (mm): 8.6 | L/D: 3 | LU (mm): 33.7 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0860S09H05 DC (mm): 8.6 | L/D: 5 | LU (mm): 60.7 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0860S09H08 DC (mm): 8.6 | L/D: 8 | LU (mm): 87.7 | LCF (mm): 100.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0870S09H03 DC (mm): 8.7 | L/D: 3 | LU (mm): 33.6 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0870S09H05 DC (mm): 8.7 | L/D: 5 | LU (mm): 60.6 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0870S09H08 DC (mm): 8.7 | L/D: 8 | LU (mm): 87.6 | LCF (mm): 100.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0880S09H03 DC (mm): 8.8 | L/D: 3 | LU (mm): 33.4 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0880S09H05 DC (mm): 8.8 | L/D: 5 | LU (mm): 60.4 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0880S09H08 DC (mm): 8.8 | L/D: 8 | LU (mm): 87.4 | LCF (mm): 100.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0890S09H03 DC (mm): 8.9 | L/D: 3 | LU (mm): 33.3 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0890S09H05 DC (mm): 8.9 | L/D: 5 | LU (mm): 60.3 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0890S09H08 DC (mm): 8.9 | L/D: 8 | LU (mm): 87.3 | LCF (mm): 100.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0900S09H03 DC (mm): 9.0 | L/D: 3 | LU (mm): 33.1 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0900S09H05 DC (mm): 9.0 | L/D: 5 | LU (mm): 60.1 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0900S09H08 DC (mm): 9.0 | L/D: 8 | LU (mm): 87.1 | LCF (mm): 100.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0910S10H03 DC (mm): 9.1 | L/D: 3 | LU (mm): 35.6 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0910S10H05 DC (mm): 9.1 | L/D: 5 | LU (mm): 64.1 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0910S10H08 DC (mm): 9.1 | L/D: 8 | LU (mm): 92.6 | LCF (mm): 106.2 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0920S10H03 DC (mm): 9.2 | L/D: 3 | LU (mm): 35.4 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0920S10H05 DC (mm): 9.2 | L/D: 5 | LU (mm): 63.9 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0920S10H08 DC (mm): 9.2 | L/D: 8 | LU (mm): 92.4 | LCF (mm): 106.2 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0924S10H05 DC (mm): 9.24 | L/D: 5 | LU (mm): 63.8 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0926S10H05 DC (mm): 9.26 | L/D: 5 | LU (mm): 63.8 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0930S10H03 DC (mm): 9.3 | L/D: 3 | LU (mm): 35.3 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0930S10H05 DC (mm): 9.3 | L/D: 5 | LU (mm): 63.8 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0930S10H08 DC (mm): 9.3 | L/D: 8 | LU (mm): 92.3 | LCF (mm): 106.2 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0936S10H05 DC (mm): 9.36 | L/D: 5 | LU (mm): 63.6 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0938S10H05 DC (mm): 9.38 | L/D: 5 | LU (mm): 63.6 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0940S10H03 DC (mm): 9.4 | L/D: 3 | LU (mm): 35.1 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0940S10H05 DC (mm): 9.4 | L/D: 5 | LU (mm): 63.6 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0940S10H08 DC (mm): 9.4 | L/D: 8 | LU (mm): 92.1 | LCF (mm): 106.2 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0950S10H03 DC (mm): 9.5 | L/D: 3 | LU (mm): 35.0 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0950S10H05 DC (mm): 9.5 | L/D: 5 | LU (mm): 63.5 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0950S10H08 DC (mm): 9.5 | L/D: 8 | LU (mm): 92.0 | LCF (mm): 106.2 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0952S10H05 DC (mm): 9.52 | L/D: 5 | LU (mm): 67.3 | LCF (mm): 81.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0954S10H05 DC (mm): 9.54 | L/D: 5 | LU (mm): 67.3 | LCF (mm): 81.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0960S10H03 DC (mm): 9.6 | L/D: 3 | LU (mm): 37.3 | LCF (mm): 51.7 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0960S10H05 DC (mm): 9.6 | L/D: 5 | LU (mm): 67.3 | LCF (mm): 81.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0960S10H08 DC (mm): 9.6 | L/D: 8 | LU (mm): 97.3 | LCF (mm): 111.7 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0970S10H03 DC (mm): 9.7 | L/D: 3 | LU (mm): 37.3 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0970S10H05 DC (mm): 9.7 | L/D: 5 | LU (mm): 67.3 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0970S10H08 DC (mm): 9.7 | L/D: 8 | LU (mm): 97.3 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0980S10H03 DC (mm): 9.8 | L/D: 3 | LU (mm): 37.1 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0980S10H05 DC (mm): 9.8 | L/D: 5 | LU (mm): 67.1 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0980S10H08 DC (mm): 9.8 | L/D: 8 | LU (mm): 97.1 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0990S10H03 DC (mm): 9.9 | L/D: 3 | LU (mm): 37.0 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0990S10H05 DC (mm): 9.9 | L/D: 5 | LU (mm): 67.0 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0990S10H08 DC (mm): 9.9 | L/D: 8 | LU (mm): 97.0 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE1000S10H03 DC (mm): 10.0 | L/D: 3 | LU (mm): 36.8 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE1000S10H05 DC (mm): 10.0 | L/D: 5 | LU (mm): 66.8 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE1000S10H08 DC (mm): 10.0 | L/D: 8 | LU (mm): 96.8 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE1010S11H03 DC (mm): 10.1 | L/D: 3 | LU (mm): 39.2 | LCF (mm): 54.3 | OAL (mm): 117.8 | PL (mm): 1.8 | DCON (mm): 11.0 | Stock: Yes
MDE1010S11H05 DC (mm): 10.1 | L/D: 5 | LU (mm): 70.7 | LCF (mm): 85.8 | OAL (mm): 150.8 | PL (mm): 1.8 | DCON (mm): 11.0 | Stock: Yes
MDE1010S11H08 DC (mm): 10.1 | L/D: 8 | LU (mm): 102.2 | LCF (mm): 117.3 | OAL (mm): 183.8 | PL (mm): 1.8 | DCON (mm): 11.0 | Stock: Yes
MDE1020S11H03 DC (mm): 10.2 | L/D: 3 | LU (mm): 39.1 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1020S11H05 DC (mm): 10.2 | L/D: 5 | LU (mm): 70.6 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1020S11H08 DC (mm): 10.2 | L/D: 8 | LU (mm): 102.1 | LCF (mm): 117.4 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1030S11H03 DC (mm): 10.3 | L/D: 3 | LU (mm): 39.0 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1030S11H05 DC (mm): 10.3 | L/D: 5 | LU (mm): 70.5 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1030S11H08 DC (mm): 10.3 | L/D: 8 | LU (mm): 102.0 | LCF (mm): 117.4 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1040S11H03 DC (mm): 10.4 | L/D: 3 | LU (mm): 38.8 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1040S11H05 DC (mm): 10.4 | L/D: 5 | LU (mm): 70.3 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1040S11H08 DC (mm): 10.4 | L/D: 8 | LU (mm): 101.8 | LCF (mm): 117.4 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1050S11H03 DC (mm): 10.5 | L/D: 3 | LU (mm): 38.7 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1050S11H05 DC (mm): 10.5 | L/D: 5 | LU (mm): 70.2 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1050S11H08 DC (mm): 10.5 | L/D: 8 | LU (mm): 101.7 | LCF (mm): 117.4 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1060S11H03 DC (mm): 10.6 | L/D: 3 | LU (mm): 41.0 | LCF (mm): 56.9 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1060S11H05 DC (mm): 10.6 | L/D: 5 | LU (mm): 74.0 | LCF (mm): 89.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1060S11H08 DC (mm): 10.6 | L/D: 8 | LU (mm): 107.0 | LCF (mm): 122.9 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1070S11H03 DC (mm): 10.7 | L/D: 3 | LU (mm): 40.9 | LCF (mm): 56.9 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1070S11H05 DC (mm): 10.7 | L/D: 5 | LU (mm): 73.9 | LCF (mm): 89.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1070S11H08 DC (mm): 10.7 | L/D: 8 | LU (mm): 106.9 | LCF (mm): 122.9 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1080S11H03 DC (mm): 10.8 | L/D: 3 | LU (mm): 40.8 | LCF (mm): 57.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1080S11H05 DC (mm): 10.8 | L/D: 5 | LU (mm): 73.8 | LCF (mm): 90.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1080S11H08 DC (mm): 10.8 | L/D: 8 | LU (mm): 106.8 | LCF (mm): 123.0 | OAL (mm): 184.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1090S11H03 DC (mm): 10.9 | L/D: 3 | LU (mm): 40.7 | LCF (mm): 57.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1090S11H05 DC (mm): 10.9 | L/D: 5 | LU (mm): 73.7 | LCF (mm): 90.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1090S11H08 DC (mm): 10.9 | L/D: 8 | LU (mm): 106.7 | LCF (mm): 123.0 | OAL (mm): 184.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1100S11H03 DC (mm): 11.0 | L/D: 3 | LU (mm): 40.5 | LCF (mm): 57.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1100S11H05 DC (mm): 11.0 | L/D: 5 | LU (mm): 73.5 | LCF (mm): 90.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1100S11H08 DC (mm): 11.0 | L/D: 8 | LU (mm): 106.5 | LCF (mm): 123.0 | OAL (mm): 184.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1110S12H03 DC (mm): 11.1 | L/D: 3 | LU (mm): 42.9 | LCF (mm): 59.5 | OAL (mm): 124.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1110S12H05 DC (mm): 11.1 | L/D: 5 | LU (mm): 77.4 | LCF (mm): 94.0 | OAL (mm): 160.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1110S12H08 DC (mm): 11.1 | L/D: 8 | LU (mm): 111.9 | LCF (mm): 128.5 | OAL (mm): 196.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1120S12H03 DC (mm): 11.2 | L/D: 3 | LU (mm): 42.7 | LCF (mm): 59.5 | OAL (mm): 124.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1120S12H05 DC (mm): 11.2 | L/D: 5 | LU (mm): 77.2 | LCF (mm): 94.0 | OAL (mm): 160.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1120S12H08 DC (mm): 11.2 | L/D: 8 | LU (mm): 111.7 | LCF (mm): 128.5 | OAL (mm): 196.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1122S12H05 DC (mm): 11.22 | L/D: 5 | LU (mm): 77.2 | LCF (mm): 94.0 | OAL (mm): 160.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1124S12H05 DC (mm): 11.24 | L/D: 5 | LU (mm): 77.2 | LCF (mm): 94.0 | OAL (mm): 160.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1130S12H03 DC (mm): 11.3 | L/D: 3 | LU (mm): 42.7 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1130S12H05 DC (mm): 11.3 | L/D: 5 | LU (mm): 77.2 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1130S12H08 DC (mm): 11.3 | L/D: 8 | LU (mm): 111.7 | LCF (mm): 128.6 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1136S12H05 DC (mm): 11.36 | L/D: 5 | LU (mm): 77.0 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1138S12H05 DC (mm): 11.38 | L/D: 5 | LU (mm): 77.0 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1140S12H03 DC (mm): 11.4 | L/D: 3 | LU (mm): 42.5 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1140S12H05 DC (mm): 11.4 | L/D: 5 | LU (mm): 77.0 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1140S12H08 DC (mm): 11.4 | L/D: 8 | LU (mm): 111.5 | LCF (mm): 128.6 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1150S12H03 DC (mm): 11.5 | L/D: 3 | LU (mm): 42.4 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1150S12H05 DC (mm): 11.5 | L/D: 5 | LU (mm): 76.9 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1150S12H08 DC (mm): 11.5 | L/D: 8 | LU (mm): 111.4 | LCF (mm): 128.6 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1160S12H03 DC (mm): 11.6 | L/D: 3 | LU (mm): 44.7 | LCF (mm): 62.1 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1160S12H05 DC (mm): 11.6 | L/D: 5 | LU (mm): 80.7 | LCF (mm): 98.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1160S12H08 DC (mm): 11.6 | L/D: 8 | LU (mm): 116.7 | LCF (mm): 134.1 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1170S12H03 DC (mm): 11.7 | L/D: 3 | LU (mm): 44.6 | LCF (mm): 62.1 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1170S12H05 DC (mm): 11.7 | L/D: 5 | LU (mm): 80.6 | LCF (mm): 98.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1170S12H08 DC (mm): 11.7 | L/D: 8 | LU (mm): 116.6 | LCF (mm): 134.1 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1180S12H03 DC (mm): 11.8 | L/D: 3 | LU (mm): 44.4 | LCF (mm): 62.1 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1180S12H05 DC (mm): 11.8 | L/D: 5 | LU (mm): 80.4 | LCF (mm): 98.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1180S12H08 DC (mm): 11.8 | L/D: 8 | LU (mm): 116.4 | LCF (mm): 134.1 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1190S12H03 DC (mm): 11.9 | L/D: 3 | LU (mm): 44.4 | LCF (mm): 62.2 | OAL (mm): 124.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDE1190S12H05 DC (mm): 11.9 | L/D: 5 | LU (mm): 80.4 | LCF (mm): 98.2 | OAL (mm): 160.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDE1190S12H08 DC (mm): 11.9 | L/D: 8 | LU (mm): 116.4 | LCF (mm): 134.2 | OAL (mm): 196.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDE1200S12H03 DC (mm): 12.0 | L/D: 3 | LU (mm): 44.2 | LCF (mm): 62.2 | OAL (mm): 124.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDE1200S12H05 DC (mm): 12.0 | L/D: 5 | LU (mm): 80.2 | LCF (mm): 98.2 | OAL (mm): 160.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDE1200S12H08 DC (mm): 12.0 | L/D: 8 | LU (mm): 116.2 | LCF (mm): 134.2 | OAL (mm): 196.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDE1210S13H03 DC (mm): 12.1 | L/D: 3 | LU (mm): 46.6 | LCF (mm): 64.7 | OAL (mm): 130.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1210S13H05 DC (mm): 12.1 | L/D: 5 | LU (mm): 84.1 | LCF (mm): 102.2 | OAL (mm): 169.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1210S13H08 DC (mm): 12.1 | L/D: 8 | LU (mm): 121.6 | LCF (mm): 139.7 | OAL (mm): 208.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1220S13H03 DC (mm): 12.2 | L/D: 3 | LU (mm): 46.4 | LCF (mm): 64.7 | OAL (mm): 130.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1220S13H05 DC (mm): 12.2 | L/D: 5 | LU (mm): 83.9 | LCF (mm): 102.2 | OAL (mm): 169.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1220S13H08 DC (mm): 12.2 | L/D: 8 | LU (mm): 121.4 | LCF (mm): 139.7 | OAL (mm): 208.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1230S13H03 DC (mm): 12.3 | L/D: 3 | LU (mm): 46.3 | LCF (mm): 64.7 | OAL (mm): 130.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1230S13H05 DC (mm): 12.3 | L/D: 5 | LU (mm): 83.8 | LCF (mm): 102.2 | OAL (mm): 169.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1230S13H08 DC (mm): 12.3 | L/D: 8 | LU (mm): 121.3 | LCF (mm): 139.7 | OAL (mm): 208.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1240S13H03 DC (mm): 12.4 | L/D: 3 | LU (mm): 46.2 | LCF (mm): 64.8 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1240S13H05 DC (mm): 12.4 | L/D: 5 | LU (mm): 83.7 | LCF (mm): 102.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1240S13H08 DC (mm): 12.4 | L/D: 8 | LU (mm): 121.2 | LCF (mm): 139.8 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1250S13H03 DC (mm): 12.5 | L/D: 3 | LU (mm): 46.1 | LCF (mm): 64.8 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1250S13H05 DC (mm): 12.5 | L/D: 5 | LU (mm): 83.6 | LCF (mm): 102.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1250S13H08 DC (mm): 12.5 | L/D: 8 | LU (mm): 121.1 | LCF (mm): 139.8 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1260S13H03 DC (mm): 12.6 | L/D: 3 | LU (mm): 48.4 | LCF (mm): 67.3 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1260S13H05 DC (mm): 12.6 | L/D: 5 | LU (mm): 87.4 | LCF (mm): 106.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1260S13H08 DC (mm): 12.6 | L/D: 8 | LU (mm): 126.4 | LCF (mm): 145.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1270S13H03 DC (mm): 12.7 | L/D: 3 | LU (mm): 48.3 | LCF (mm): 67.3 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1270S13H05 DC (mm): 12.7 | L/D: 5 | LU (mm): 87.3 | LCF (mm): 106.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1270S13H08 DC (mm): 12.7 | L/D: 8 | LU (mm): 126.3 | LCF (mm): 145.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1280S13H03 DC (mm): 12.8 | L/D: 3 | LU (mm): 48.1 | LCF (mm): 67.3 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1280S13H05 DC (mm): 12.8 | L/D: 5 | LU (mm): 87.1 | LCF (mm): 106.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1280S13H08 DC (mm): 12.8 | L/D: 8 | LU (mm): 126.1 | LCF (mm): 145.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1290S13H03 DC (mm): 12.9 | L/D: 3 | LU (mm): 48.0 | LCF (mm): 67.3 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1290S13H05 DC (mm): 12.9 | L/D: 5 | LU (mm): 87.0 | LCF (mm): 106.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1290S13H08 DC (mm): 12.9 | L/D: 8 | LU (mm): 126.0 | LCF (mm): 145.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1300S13H03 DC (mm): 13.0 | L/D: 3 | LU (mm): 47.9 | LCF (mm): 67.4 | OAL (mm): 130.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDE1300S13H05 DC (mm): 13.0 | L/D: 5 | LU (mm): 86.9 | LCF (mm): 106.4 | OAL (mm): 169.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDE1300S13H08 DC (mm): 13.0 | L/D: 8 | LU (mm): 125.9 | LCF (mm): 145.4 | OAL (mm): 208.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDE1310S14H03 DC (mm): 13.1 | L/D: 3 | LU (mm): 50.3 | LCF (mm): 69.9 | OAL (mm): 136.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1310S14H05 DC (mm): 13.1 | L/D: 5 | LU (mm): 90.8 | LCF (mm): 110.4 | OAL (mm): 178.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1310S14H08 DC (mm): 13.1 | L/D: 8 | LU (mm): 131.3 | LCF (mm): 150.9 | OAL (mm): 220.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1320S14H03 DC (mm): 13.2 | L/D: 3 | LU (mm): 50.1 | LCF (mm): 69.9 | OAL (mm): 136.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1320S14H05 DC (mm): 13.2 | L/D: 5 | LU (mm): 90.6 | LCF (mm): 110.4 | OAL (mm): 178.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1320S14H08 DC (mm): 13.2 | L/D: 8 | LU (mm): 131.1 | LCF (mm): 150.9 | OAL (mm): 220.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1330S14H03 DC (mm): 13.3 | L/D: 3 | LU (mm): 50.0 | LCF (mm): 69.9 | OAL (mm): 136.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1330S14H05 DC (mm): 13.3 | L/D: 5 | LU (mm): 90.5 | LCF (mm): 110.4 | OAL (mm): 178.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1330S14H08 DC (mm): 13.3 | L/D: 8 | LU (mm): 131.0 | LCF (mm): 150.9 | OAL (mm): 220.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1340S14H03 DC (mm): 13.4 | L/D: 3 | LU (mm): 49.8 | LCF (mm): 69.9 | OAL (mm): 136.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1340S14H05 DC (mm): 13.4 | L/D: 5 | LU (mm): 90.3 | LCF (mm): 110.4 | OAL (mm): 178.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1340S14H08 DC (mm): 13.4 | L/D: 8 | LU (mm): 130.8 | LCF (mm): 150.9 | OAL (mm): 220.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1350S14H03 DC (mm): 13.5 | L/D: 3 | LU (mm): 49.8 | LCF (mm): 70.0 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1350S14H05 DC (mm): 13.5 | L/D: 5 | LU (mm): 90.3 | LCF (mm): 110.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1350S14H08 DC (mm): 13.5 | L/D: 8 | LU (mm): 130.8 | LCF (mm): 151.0 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1360S14H03 DC (mm): 13.6 | L/D: 3 | LU (mm): 52.1 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1360S14H05 DC (mm): 13.6 | L/D: 5 | LU (mm): 94.1 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1360S14H08 DC (mm): 13.6 | L/D: 8 | LU (mm): 136.1 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1370S14H03 DC (mm): 13.7 | L/D: 3 | LU (mm): 52.0 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1370S14H05 DC (mm): 13.7 | L/D: 5 | LU (mm): 94.0 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1370S14H08 DC (mm): 13.7 | L/D: 8 | LU (mm): 136.0 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1380S14H03 DC (mm): 13.8 | L/D: 3 | LU (mm): 51.8 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1380S14H05 DC (mm): 13.8 | L/D: 5 | LU (mm): 93.8 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1380S14H08 DC (mm): 13.8 | L/D: 8 | LU (mm): 135.8 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1390S14H03 DC (mm): 13.9 | L/D: 3 | LU (mm): 51.7 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1390S14H05 DC (mm): 13.9 | L/D: 5 | LU (mm): 93.7 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1390S14H08 DC (mm): 13.9 | L/D: 8 | LU (mm): 135.7 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1400S14H03 DC (mm): 14.0 | L/D: 3 | LU (mm): 51.5 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1400S14H05 DC (mm): 14.0 | L/D: 5 | LU (mm): 93.5 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1400S14H08 DC (mm): 14.0 | L/D: 8 | LU (mm): 135.5 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1410S15H03 DC (mm): 14.1 | L/D: 3 | LU (mm): 54.0 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1410S15H05 DC (mm): 14.1 | L/D: 5 | LU (mm): 97.5 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1410S15H08 DC (mm): 14.1 | L/D: 8 | LU (mm): 141.0 | LCF (mm): 162.1 | OAL (mm): 232.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1420S15H03 DC (mm): 14.2 | L/D: 3 | LU (mm): 53.8 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1420S15H05 DC (mm): 14.2 | L/D: 5 | LU (mm): 97.3 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1420S15H08 DC (mm): 14.2 | L/D: 8 | LU (mm): 140.8 | LCF (mm): 162.1 | OAL (mm): 232.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1430S15H03 DC (mm): 14.3 | L/D: 3 | LU (mm): 53.7 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1430S15H05 DC (mm): 14.3 | L/D: 5 | LU (mm): 97.2 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1430S15H08 DC (mm): 14.3 | L/D: 8 | LU (mm): 140.7 | LCF (mm): 162.1 | OAL (mm): 232.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1440S15H03 DC (mm): 14.4 | L/D: 3 | LU (mm): 53.5 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1440S15H05 DC (mm): 14.4 | L/D: 5 | LU (mm): 97.0 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1440S15H08 DC (mm): 14.4 | L/D: 8 | LU (mm): 140.5 | LCF (mm): 162.1 | OAL (mm): 232.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1450S15H03 DC (mm): 14.5 | L/D: 3 | LU (mm): 53.4 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1450S15H05 DC (mm): 14.5 | L/D: 5 | LU (mm): 96.9 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1450S15H08 DC (mm): 14.5 | L/D: 8 | LU (mm): 140.4 | LCF (mm): 162.1 | OAL (mm): 232.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1460S15H03 DC (mm): 14.6 | L/D: 3 | LU (mm): 55.8 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1460S15H05 DC (mm): 14.6 | L/D: 5 | LU (mm): 100.8 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1460S15H08 DC (mm): 14.6 | L/D: 8 | LU (mm): 145.8 | LCF (mm): 167.7 | OAL (mm): 232.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1470S15H03 DC (mm): 14.7 | L/D: 3 | LU (mm): 55.7 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1470S15H05 DC (mm): 14.7 | L/D: 5 | LU (mm): 100.7 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1470S15H08 DC (mm): 14.7 | L/D: 8 | LU (mm): 145.7 | LCF (mm): 167.7 | OAL (mm): 232.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1480S15H03 DC (mm): 14.8 | L/D: 3 | LU (mm): 55.5 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1480S15H05 DC (mm): 14.8 | L/D: 5 | LU (mm): 100.5 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1480S15H08 DC (mm): 14.8 | L/D: 8 | LU (mm): 145.5 | LCF (mm): 167.7 | OAL (mm): 232.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1490S15H03 DC (mm): 14.9 | L/D: 3 | LU (mm): 55.4 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1490S15H05 DC (mm): 14.9 | L/D: 5 | LU (mm): 100.4 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1490S15H08 DC (mm): 14.9 | L/D: 8 | LU (mm): 145.4 | LCF (mm): 167.7 | OAL (mm): 232.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1500S15H03 DC (mm): 15.0 | L/D: 3 | LU (mm): 55.2 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1500S15H05 DC (mm): 15.0 | L/D: 5 | LU (mm): 100.2 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1500S15H08 DC (mm): 15.0 | L/D: 8 | LU (mm): 145.2 | LCF (mm): 167.7 | OAL (mm): 232.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1510S16H03 DC (mm): 15.1 | L/D: 3 | LU (mm): 57.6 | LCF (mm): 80.2 | OAL (mm): 148.7 | PL (mm): 2.7 | DCON (mm): 16.0 | Stock: Yes
MDE1510S16H05 DC (mm): 15.1 | L/D: 5 | LU (mm): 104.1 | LCF (mm): 126.7 | OAL (mm): 196.7 | PL (mm): 2.7 | DCON (mm): 16.0 | Stock: Yes
MDE1510S16H08 DC (mm): 15.1 | L/D: 8 | LU (mm): 150.6 | LCF (mm): 173.2 | OAL (mm): 244.7 | PL (mm): 2.7 | DCON (mm): 16.0 | Stock: Yes
MDE1520S16H03 DC (mm): 15.2 | L/D: 3 | LU (mm): 57.5 | LCF (mm): 80.3 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1520S16H05 DC (mm): 15.2 | L/D: 5 | LU (mm): 104.0 | LCF (mm): 126.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1520S16H08 DC (mm): 15.2 | L/D: 8 | LU (mm): 150.5 | LCF (mm): 173.3 | OAL (mm): 244.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1530S16H03 DC (mm): 15.3 | L/D: 3 | LU (mm): 57.4 | LCF (mm): 80.3 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1530S16H05 DC (mm): 15.3 | L/D: 5 | LU (mm): 103.9 | LCF (mm): 126.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1530S16H08 DC (mm): 15.3 | L/D: 8 | LU (mm): 150.4 | LCF (mm): 173.3 | OAL (mm): 244.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1540S16H03 DC (mm): 15.4 | L/D: 3 | LU (mm): 57.2 | LCF (mm): 80.3 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1540S16H05 DC (mm): 15.4 | L/D: 5 | LU (mm): 103.7 | LCF (mm): 126.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1540S16H08 DC (mm): 15.4 | L/D: 8 | LU (mm): 150.2 | LCF (mm): 173.3 | OAL (mm): 244.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1550S16H03 DC (mm): 15.5 | L/D: 3 | LU (mm): 57.1 | LCF (mm): 80.3 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1550S16H05 DC (mm): 15.5 | L/D: 5 | LU (mm): 103.6 | LCF (mm): 126.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1550S16H08 DC (mm): 15.5 | L/D: 8 | LU (mm): 150.1 | LCF (mm): 173.3 | OAL (mm): 244.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1560S16H03 DC (mm): 15.6 | L/D: 3 | LU (mm): 59.4 | LCF (mm): 82.8 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1560S16H05 DC (mm): 15.6 | L/D: 5 | LU (mm): 107.4 | LCF (mm): 130.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1560S16H08 DC (mm): 15.6 | L/D: 8 | LU (mm): 155.4 | LCF (mm): 178.8 | OAL (mm): 244.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1570S16H03 DC (mm): 15.7 | L/D: 3 | LU (mm): 59.4 | LCF (mm): 82.9 | OAL (mm): 148.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1570S16H05 DC (mm): 15.7 | L/D: 5 | LU (mm): 107.4 | LCF (mm): 130.9 | OAL (mm): 196.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1570S16H08 DC (mm): 15.7 | L/D: 8 | LU (mm): 155.4 | LCF (mm): 178.9 | OAL (mm): 244.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1580S16H03 DC (mm): 15.8 | L/D: 3 | LU (mm): 59.2 | LCF (mm): 82.9 | OAL (mm): 148.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1580S16H05 DC (mm): 15.8 | L/D: 5 | LU (mm): 107.2 | LCF (mm): 130.9 | OAL (mm): 196.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1580S16H08 DC (mm): 15.8 | L/D: 8 | LU (mm): 155.2 | LCF (mm): 178.9 | OAL (mm): 244.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1590S16H03 DC (mm): 15.9 | L/D: 3 | LU (mm): 59.1 | LCF (mm): 82.9 | OAL (mm): 148.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1590S16H05 DC (mm): 15.9 | L/D: 5 | LU (mm): 107.1 | LCF (mm): 130.9 | OAL (mm): 196.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1590S16H08 DC (mm): 15.9 | L/D: 8 | LU (mm): 155.1 | LCF (mm): 178.9 | OAL (mm): 244.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1600S16H03 DC (mm): 16.0 | L/D: 3 | LU (mm): 58.9 | LCF (mm): 82.9 | OAL (mm): 148.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1600S16H05 DC (mm): 16.0 | L/D: 5 | LU (mm): 106.9 | LCF (mm): 130.9 | OAL (mm): 196.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1600S16H08 DC (mm): 16.0 | L/D: 8 | LU (mm): 154.9 | LCF (mm): 178.9 | OAL (mm): 244.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1650S17H03 DC (mm): 16.5 | L/D: 3 | LU (mm): 60.8 | LCF (mm): 85.5 | OAL (mm): 155.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Yes
MDE1650S17H05 DC (mm): 16.5 | L/D: 5 | LU (mm): 110.3 | LCF (mm): 135.0 | OAL (mm): 206.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Yes
MDE1700S17H03 DC (mm): 17.0 | L/D: 3 | LU (mm): 62.6 | LCF (mm): 88.1 | OAL (mm): 155.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Yes
MDE1700S17H05 DC (mm): 17.0 | L/D: 5 | LU (mm): 113.6 | LCF (mm): 139.1 | OAL (mm): 206.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Yes
MDE1750S18H03 DC (mm): 17.5 | L/D: 3 | LU (mm): 64.5 | LCF (mm): 90.7 | OAL (mm): 161.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Yes
MDE1750S18H05 DC (mm): 17.5 | L/D: 5 | LU (mm): 116.9 | LCF (mm): 143.2 | OAL (mm): 217.3 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Yes
MDE1800S18H03 DC (mm): 18.0 | L/D: 3 | LU (mm): 66.3 | LCF (mm): 93.3 | OAL (mm): 161.3 | PL (mm): 3.3 | DCON (mm): 18.0 | Stock: Yes
MDE1800S18H05 DC (mm): 18.0 | L/D: 5 | LU (mm): 120.3 | LCF (mm): 147.3 | OAL (mm): 217.3 | PL (mm): 3.3 | DCON (mm): 18.0 | Stock: Yes
MDE1850S19H03 DC (mm): 18.5 | L/D: 3 | LU (mm): 68.2 | LCF (mm): 95.9 | OAL (mm): 167.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Yes
MDE1850S19H05 DC (mm): 18.5 | L/D: 5 | LU (mm): 123.6 | LCF (mm): 151.4 | OAL (mm): 224.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Yes
MDE1900S19H03 DC (mm): 19.0 | L/D: 3 | LU (mm): 70.0 | LCF (mm): 98.5 | OAL (mm): 167.5 | PL (mm): 3.5 | DCON (mm): 19.0 | Stock: Yes
MDE1900S19H05 DC (mm): 19.0 | L/D: 5 | LU (mm): 127.0 | LCF (mm): 155.5 | OAL (mm): 224.5 | PL (mm): 3.5 | DCON (mm): 19.0 | Stock: Yes
MDE1950S20H03 DC (mm): 19.5 | L/D: 3 | LU (mm): 71.8 | LCF (mm): 101.0 | OAL (mm): 173.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Yes
MDE1950S20H05 DC (mm): 19.5 | L/D: 5 | LU (mm): 130.3 | LCF (mm): 159.5 | OAL (mm): 233.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Yes
MDE2000S20H03 DC (mm): 20.0 | L/D: 3 | LU (mm): 73.6 | LCF (mm): 103.6 | OAL (mm): 173.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Yes
MDE2000S20H05 DC (mm): 20.0 | L/D: 5 | LU (mm): 133.6 | LCF (mm): 163.6 | OAL (mm): 233.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Yes
DrillsSumitomo Electric Hardmetal
491 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Multi Drill NEXIO MDE-H Type (Internal Coolant)

Brand Sumitomo Electric Hardmetal·Drills

Available part numbers (491)

MDE0100S03H03, MDE0100S03H05, MDE0100S03H08, MDE0110S03H03, MDE0110S03H05, MDE0110S03H08, MDE0120S03H03, MDE0120S03H05, MDE0120S03H08, MDE0130S03H03 + 481 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MDE0100S03H03DC (mm): 1.0 | L/D: 3 | LU (mm): 6.7 | LCF (mm): 8.2 | OAL (mm): 57.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0100S03H05DC (mm): 1.0 | L/D: 5 | LU (mm): 8.7 | LCF (mm): 10.2 | OAL (mm): 59.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0100S03H08DC (mm): 1.0 | L/D: 8 | LU (mm): 11.7 | LCF (mm): 13.2 | OAL (mm): 62.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0110S03H03DC (mm): 1.1 | L/D: 3 | LU (mm): 6.6 | LCF (mm): 8.2 | OAL (mm): 57.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0110S03H05DC (mm): 1.1 | L/D: 5 | LU (mm): 8.6 | LCF (mm): 10.2 | OAL (mm): 59.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0110S03H08DC (mm): 1.1 | L/D: 8 | LU (mm): 12.6 | LCF (mm): 14.2 | OAL (mm): 62.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0120S03H03DC (mm): 1.2 | L/D: 3 | LU (mm): 7.4 | LCF (mm): 9.2 | OAL (mm): 57.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0120S03H05DC (mm): 1.2 | L/D: 5 | LU (mm): 9.4 | LCF (mm): 11.2 | OAL (mm): 59.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0120S03H08DC (mm): 1.2 | L/D: 8 | LU (mm): 13.4 | LCF (mm): 15.2 | OAL (mm): 62.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0130S03H03DC (mm): 1.3 | L/D: 3 | LU (mm): 7.3 | LCF (mm): 9.2 | OAL (mm): 57.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0130S03H05DC (mm): 1.3 | L/D: 5 | LU (mm): 10.3 | LCF (mm): 12.2 | OAL (mm): 59.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0130S03H08DC (mm): 1.3 | L/D: 8 | LU (mm): 14.3 | LCF (mm): 16.2 | OAL (mm): 62.2 | PL (mm): 0.2 | DCON (mm): 3.0 | Stock: Yes
MDE0140S03H03DC (mm): 1.4 | L/D: 3 | LU (mm): 8.2 | LCF (mm): 10.3 | OAL (mm): 57.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0140S03H05DC (mm): 1.4 | L/D: 5 | LU (mm): 11.2 | LCF (mm): 13.3 | OAL (mm): 59.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0140S03H08DC (mm): 1.4 | L/D: 8 | LU (mm): 15.2 | LCF (mm): 17.3 | OAL (mm): 62.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0150S03H03DC (mm): 1.5 | L/D: 3 | LU (mm): 9.1 | LCF (mm): 11.3 | OAL (mm): 57.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0150S03H05DC (mm): 1.5 | L/D: 5 | LU (mm): 12.1 | LCF (mm): 14.3 | OAL (mm): 59.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0150S03H08DC (mm): 1.5 | L/D: 8 | LU (mm): 16.1 | LCF (mm): 18.3 | OAL (mm): 62.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0160S03H03DC (mm): 1.6 | L/D: 3 | LU (mm): 8.9 | LCF (mm): 11.3 | OAL (mm): 59.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0160S03H05DC (mm): 1.6 | L/D: 5 | LU (mm): 11.9 | LCF (mm): 14.3 | OAL (mm): 62.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0160S03H08DC (mm): 1.6 | L/D: 8 | LU (mm): 16.9 | LCF (mm): 19.3 | OAL (mm): 67.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0170S03H03DC (mm): 1.7 | L/D: 3 | LU (mm): 9.8 | LCF (mm): 12.3 | OAL (mm): 59.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0170S03H05DC (mm): 1.7 | L/D: 5 | LU (mm): 12.8 | LCF (mm): 15.3 | OAL (mm): 62.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0170S03H08DC (mm): 1.7 | L/D: 8 | LU (mm): 17.8 | LCF (mm): 20.3 | OAL (mm): 67.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0180S03H03DC (mm): 1.8 | L/D: 3 | LU (mm): 9.6 | LCF (mm): 12.3 | OAL (mm): 59.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0180S03H05DC (mm): 1.8 | L/D: 5 | LU (mm): 13.6 | LCF (mm): 16.3 | OAL (mm): 62.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0180S03H08DC (mm): 1.8 | L/D: 8 | LU (mm): 18.6 | LCF (mm): 21.3 | OAL (mm): 67.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0190S03H03DC (mm): 1.9 | L/D: 3 | LU (mm): 10.5 | LCF (mm): 13.3 | OAL (mm): 59.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0190S03H05DC (mm): 1.9 | L/D: 5 | LU (mm): 14.5 | LCF (mm): 17.3 | OAL (mm): 62.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0190S03H08DC (mm): 1.9 | L/D: 8 | LU (mm): 19.5 | LCF (mm): 22.3 | OAL (mm): 70.3 | PL (mm): 0.3 | DCON (mm): 3.0 | Stock: Yes
MDE0200S03H03DC (mm): 2.0 | L/D: 3 | LU (mm): 11.4 | LCF (mm): 14.4 | OAL (mm): 59.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0200S03H05DC (mm): 2.0 | L/D: 5 | LU (mm): 15.4 | LCF (mm): 18.4 | OAL (mm): 62.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0200S03H08DC (mm): 2.0 | L/D: 8 | LU (mm): 21.4 | LCF (mm): 24.4 | OAL (mm): 70.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0210S03H03DC (mm): 2.1 | L/D: 3 | LU (mm): 11.3 | LCF (mm): 14.4 | OAL (mm): 59.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0210S03H05DC (mm): 2.1 | L/D: 5 | LU (mm): 15.3 | LCF (mm): 18.4 | OAL (mm): 62.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0210S03H08DC (mm): 2.1 | L/D: 8 | LU (mm): 22.3 | LCF (mm): 25.4 | OAL (mm): 70.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0220S03H03DC (mm): 2.2 | L/D: 3 | LU (mm): 12.1 | LCF (mm): 15.4 | OAL (mm): 59.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0220S03H05DC (mm): 2.2 | L/D: 5 | LU (mm): 16.1 | LCF (mm): 19.4 | OAL (mm): 62.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0220S03H08DC (mm): 2.2 | L/D: 8 | LU (mm): 23.1 | LCF (mm): 26.4 | OAL (mm): 70.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0230S03H03DC (mm): 2.3 | L/D: 3 | LU (mm): 12.0 | LCF (mm): 15.4 | OAL (mm): 63.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0230S03H05DC (mm): 2.3 | L/D: 5 | LU (mm): 17.0 | LCF (mm): 20.4 | OAL (mm): 68.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0230S03H08DC (mm): 2.3 | L/D: 8 | LU (mm): 24.0 | LCF (mm): 27.4 | OAL (mm): 75.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0240S03H03DC (mm): 2.4 | L/D: 3 | LU (mm): 12.8 | LCF (mm): 16.4 | OAL (mm): 63.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0240S03H05DC (mm): 2.4 | L/D: 5 | LU (mm): 17.8 | LCF (mm): 21.4 | OAL (mm): 68.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0240S03H08DC (mm): 2.4 | L/D: 8 | LU (mm): 24.8 | LCF (mm): 28.4 | OAL (mm): 75.4 | PL (mm): 0.4 | DCON (mm): 3.0 | Stock: Yes
MDE0250S03H03DC (mm): 2.5 | L/D: 3 | LU (mm): 13.8 | LCF (mm): 17.5 | OAL (mm): 63.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0250S03H05DC (mm): 2.5 | L/D: 5 | LU (mm): 18.8 | LCF (mm): 22.5 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0250S03H08DC (mm): 2.5 | L/D: 8 | LU (mm): 25.8 | LCF (mm): 29.5 | OAL (mm): 75.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0260S03H03DC (mm): 2.6 | L/D: 3 | LU (mm): 13.6 | LCF (mm): 17.5 | OAL (mm): 63.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0260S03H05DC (mm): 2.6 | L/D: 5 | LU (mm): 18.6 | LCF (mm): 22.5 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0260S03H08DC (mm): 2.6 | L/D: 8 | LU (mm): 26.6 | LCF (mm): 30.5 | OAL (mm): 75.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0270S03H03DC (mm): 2.7 | L/D: 3 | LU (mm): 14.5 | LCF (mm): 18.5 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0270S03H05DC (mm): 2.7 | L/D: 5 | LU (mm): 19.5 | LCF (mm): 23.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0270S03H08DC (mm): 2.7 | L/D: 8 | LU (mm): 27.5 | LCF (mm): 31.5 | OAL (mm): 81.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0276S03H05DC (mm): 2.76 | L/D: 5 | LU (mm): 20.3 | LCF (mm): 24.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0278S03H05DC (mm): 2.78 | L/D: 5 | LU (mm): 20.3 | LCF (mm): 24.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0280S03H03DC (mm): 2.8 | L/D: 3 | LU (mm): 14.3 | LCF (mm): 18.5 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0280S03H05DC (mm): 2.8 | L/D: 5 | LU (mm): 20.3 | LCF (mm): 24.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0280S03H08DC (mm): 2.8 | L/D: 8 | LU (mm): 28.3 | LCF (mm): 32.5 | OAL (mm): 81.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0290S03H03DC (mm): 2.9 | L/D: 3 | LU (mm): 15.2 | LCF (mm): 19.5 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0290S03H05DC (mm): 2.9 | L/D: 5 | LU (mm): 21.2 | LCF (mm): 25.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0290S03H08DC (mm): 2.9 | L/D: 8 | LU (mm): 29.2 | LCF (mm): 33.5 | OAL (mm): 81.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0300S03H03DC (mm): 3.0 | L/D: 3 | LU (mm): 14.0 | LCF (mm): 18.5 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0300S03H05DC (mm): 3.0 | L/D: 5 | LU (mm): 24.0 | LCF (mm): 28.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0300S03H08DC (mm): 3.0 | L/D: 8 | LU (mm): 29.0 | LCF (mm): 33.5 | OAL (mm): 81.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDE0310S04H03DC (mm): 3.1 | L/D: 3 | LU (mm): 16.0 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0310S04H05DC (mm): 3.1 | L/D: 5 | LU (mm): 28.0 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0310S04H08DC (mm): 3.1 | L/D: 8 | LU (mm): 34.5 | LCF (mm): 39.1 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0320S04H03DC (mm): 3.2 | L/D: 3 | LU (mm): 15.8 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0320S04H05DC (mm): 3.2 | L/D: 5 | LU (mm): 27.8 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0320S04H08DC (mm): 3.2 | L/D: 8 | LU (mm): 34.3 | LCF (mm): 39.1 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0330S04H03DC (mm): 3.3 | L/D: 3 | LU (mm): 15.7 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0330S04H05DC (mm): 3.3 | L/D: 5 | LU (mm): 27.7 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0330S04H08DC (mm): 3.3 | L/D: 8 | LU (mm): 34.2 | LCF (mm): 39.1 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0340S04H03DC (mm): 3.4 | L/D: 3 | LU (mm): 15.5 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0340S04H05DC (mm): 3.4 | L/D: 5 | LU (mm): 27.5 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0340S04H08DC (mm): 3.4 | L/D: 8 | LU (mm): 34.0 | LCF (mm): 39.1 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0350S04H03DC (mm): 3.5 | L/D: 3 | LU (mm): 15.4 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0350S04H05DC (mm): 3.5 | L/D: 5 | LU (mm): 27.4 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0350S04H08DC (mm): 3.5 | L/D: 8 | LU (mm): 33.9 | LCF (mm): 39.1 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDE0360S04H03DC (mm): 3.6 | L/D: 3 | LU (mm): 17.8 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0360S04H05DC (mm): 3.6 | L/D: 5 | LU (mm): 31.3 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0360S04H08DC (mm): 3.6 | L/D: 8 | LU (mm): 39.3 | LCF (mm): 44.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0366S04H05DC (mm): 3.66 | L/D: 5 | LU (mm): 31.2 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0368S04H05DC (mm): 3.68 | L/D: 5 | LU (mm): 31.2 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0370S04H03DC (mm): 3.7 | L/D: 3 | LU (mm): 17.7 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0370S04H05DC (mm): 3.7 | L/D: 5 | LU (mm): 31.2 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0370S04H08DC (mm): 3.7 | L/D: 8 | LU (mm): 39.2 | LCF (mm): 44.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0380S04H03DC (mm): 3.8 | L/D: 3 | LU (mm): 17.5 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0380S04H05DC (mm): 3.8 | L/D: 5 | LU (mm): 31.0 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0380S04H08DC (mm): 3.8 | L/D: 8 | LU (mm): 39.0 | LCF (mm): 44.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0390S04H03DC (mm): 3.9 | L/D: 3 | LU (mm): 17.4 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0390S04H05DC (mm): 3.9 | L/D: 5 | LU (mm): 30.9 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0390S04H08DC (mm): 3.9 | L/D: 8 | LU (mm): 38.9 | LCF (mm): 44.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0400S04H03DC (mm): 4.0 | L/D: 3 | LU (mm): 17.2 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0400S04H05DC (mm): 4.0 | L/D: 5 | LU (mm): 30.7 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0400S04H08DC (mm): 4.0 | L/D: 8 | LU (mm): 38.7 | LCF (mm): 44.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDE0410S05H03DC (mm): 4.1 | L/D: 3 | LU (mm): 19.6 | LCF (mm): 25.7 | OAL (mm): 80.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDE0410S05H05DC (mm): 4.1 | L/D: 5 | LU (mm): 34.6 | LCF (mm): 40.7 | OAL (mm): 98.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDE0410S05H08DC (mm): 4.1 | L/D: 8 | LU (mm): 44.1 | LCF (mm): 50.2 | OAL (mm): 105.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDE0420S05H03DC (mm): 4.2 | L/D: 3 | LU (mm): 19.5 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0420S05H05DC (mm): 4.2 | L/D: 5 | LU (mm): 34.5 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0420S05H08DC (mm): 4.2 | L/D: 8 | LU (mm): 44.0 | LCF (mm): 50.3 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0430S05H03DC (mm): 4.3 | L/D: 3 | LU (mm): 19.4 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0430S05H05DC (mm): 4.3 | L/D: 5 | LU (mm): 34.4 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0430S05H08DC (mm): 4.3 | L/D: 8 | LU (mm): 43.9 | LCF (mm): 50.3 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0440S05H03DC (mm): 4.4 | L/D: 3 | LU (mm): 19.2 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0440S05H05DC (mm): 4.4 | L/D: 5 | LU (mm): 34.2 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0440S05H08DC (mm): 4.4 | L/D: 8 | LU (mm): 43.7 | LCF (mm): 50.3 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0450S05H03DC (mm): 4.5 | L/D: 3 | LU (mm): 19.1 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0450S05H05DC (mm): 4.5 | L/D: 5 | LU (mm): 34.1 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0450S05H08DC (mm): 4.5 | L/D: 8 | LU (mm): 43.6 | LCF (mm): 50.3 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0460S05H03DC (mm): 4.6 | L/D: 3 | LU (mm): 21.4 | LCF (mm): 28.3 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0460S05H05DC (mm): 4.6 | L/D: 5 | LU (mm): 37.9 | LCF (mm): 44.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0460S05H08DC (mm): 4.6 | L/D: 8 | LU (mm): 48.9 | LCF (mm): 55.8 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0462S05H05DC (mm): 4.62 | L/D: 5 | LU (mm): 37.9 | LCF (mm): 44.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0464S05H05DC (mm): 4.64 | L/D: 5 | LU (mm): 37.9 | LCF (mm): 44.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDE0470S05H03DC (mm): 4.7 | L/D: 3 | LU (mm): 21.4 | LCF (mm): 28.4 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0470S05H05DC (mm): 4.7 | L/D: 5 | LU (mm): 37.9 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0470S05H08DC (mm): 4.7 | L/D: 8 | LU (mm): 48.9 | LCF (mm): 55.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0480S05H03DC (mm): 4.8 | L/D: 3 | LU (mm): 21.2 | LCF (mm): 28.4 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0480S05H05DC (mm): 4.8 | L/D: 5 | LU (mm): 37.7 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0480S05H08DC (mm): 4.8 | L/D: 8 | LU (mm): 48.7 | LCF (mm): 55.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0490S05H03DC (mm): 4.9 | L/D: 3 | LU (mm): 21.1 | LCF (mm): 28.4 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0490S05H05DC (mm): 4.9 | L/D: 5 | LU (mm): 37.6 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0490S05H08DC (mm): 4.9 | L/D: 8 | LU (mm): 48.6 | LCF (mm): 55.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0500S05H03DC (mm): 5.0 | L/D: 3 | LU (mm): 20.9 | LCF (mm): 28.4 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0500S05H05DC (mm): 5.0 | L/D: 5 | LU (mm): 37.4 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0500S05H08DC (mm): 5.0 | L/D: 8 | LU (mm): 48.4 | LCF (mm): 55.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDE0510S06H03DC (mm): 5.1 | L/D: 3 | LU (mm): 20.8 | LCF (mm): 28.4 | OAL (mm): 82.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDE0510S06H05DC (mm): 5.1 | L/D: 5 | LU (mm): 37.3 | LCF (mm): 44.9 | OAL (mm): 100.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDE0510S06H08DC (mm): 5.1 | L/D: 8 | LU (mm): 53.8 | LCF (mm): 61.4 | OAL (mm): 118.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDE0520S06H03DC (mm): 5.2 | L/D: 3 | LU (mm): 20.6 | LCF (mm): 28.4 | OAL (mm): 82.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDE0520S06H05DC (mm): 5.2 | L/D: 5 | LU (mm): 37.1 | LCF (mm): 44.9 | OAL (mm): 100.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDE0520S06H08DC (mm): 5.2 | L/D: 8 | LU (mm): 53.6 | LCF (mm): 61.4 | OAL (mm): 118.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDE0530S06H03DC (mm): 5.3 | L/D: 3 | LU (mm): 20.6 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0530S06H05DC (mm): 5.3 | L/D: 5 | LU (mm): 37.1 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0530S06H08DC (mm): 5.3 | L/D: 8 | LU (mm): 53.6 | LCF (mm): 61.5 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0540S06H03DC (mm): 5.4 | L/D: 3 | LU (mm): 20.4 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0540S06H05DC (mm): 5.4 | L/D: 5 | LU (mm): 36.9 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0540S06H08DC (mm): 5.4 | L/D: 8 | LU (mm): 53.4 | LCF (mm): 61.5 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0550S06H03DC (mm): 5.5 | L/D: 3 | LU (mm): 20.3 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0550S06H05DC (mm): 5.5 | L/D: 5 | LU (mm): 36.8 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0550S06H08DC (mm): 5.5 | L/D: 8 | LU (mm): 53.3 | LCF (mm): 61.5 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0552S06H05DC (mm): 5.52 | L/D: 5 | LU (mm): 40.6 | LCF (mm): 49.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0554S06H05DC (mm): 5.54 | L/D: 5 | LU (mm): 40.6 | LCF (mm): 49.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0560S06H03DC (mm): 5.6 | L/D: 3 | LU (mm): 22.6 | LCF (mm): 31.0 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0560S06H05DC (mm): 5.6 | L/D: 5 | LU (mm): 40.6 | LCF (mm): 49.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0560S06H08DC (mm): 5.6 | L/D: 8 | LU (mm): 58.6 | LCF (mm): 67.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0570S06H03DC (mm): 5.7 | L/D: 3 | LU (mm): 22.5 | LCF (mm): 31.0 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0570S06H05DC (mm): 5.7 | L/D: 5 | LU (mm): 40.5 | LCF (mm): 49.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0570S06H08DC (mm): 5.7 | L/D: 8 | LU (mm): 58.5 | LCF (mm): 67.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDE0580S06H03DC (mm): 5.8 | L/D: 3 | LU (mm): 22.4 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0580S06H05DC (mm): 5.8 | L/D: 5 | LU (mm): 40.4 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0580S06H08DC (mm): 5.8 | L/D: 8 | LU (mm): 58.4 | LCF (mm): 67.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0590S06H03DC (mm): 5.9 | L/D: 3 | LU (mm): 22.3 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0590S06H05DC (mm): 5.9 | L/D: 5 | LU (mm): 40.3 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0590S06H08DC (mm): 5.9 | L/D: 8 | LU (mm): 58.3 | LCF (mm): 67.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0600S06H03DC (mm): 6.0 | L/D: 3 | LU (mm): 22.1 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0600S06H05DC (mm): 6.0 | L/D: 5 | LU (mm): 40.1 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0600S06H08DC (mm): 6.0 | L/D: 8 | LU (mm): 58.1 | LCF (mm): 67.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDE0610S07H03DC (mm): 6.1 | L/D: 3 | LU (mm): 24.5 | LCF (mm): 33.6 | OAL (mm): 89.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0610S07H05DC (mm): 6.1 | L/D: 5 | LU (mm): 44.0 | LCF (mm): 53.1 | OAL (mm): 110.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0610S07H08DC (mm): 6.1 | L/D: 8 | LU (mm): 63.5 | LCF (mm): 72.6 | OAL (mm): 131.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0620S07H03DC (mm): 6.2 | L/D: 3 | LU (mm): 24.3 | LCF (mm): 33.6 | OAL (mm): 89.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0620S07H05DC (mm): 6.2 | L/D: 5 | LU (mm): 43.8 | LCF (mm): 53.1 | OAL (mm): 110.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0620S07H08DC (mm): 6.2 | L/D: 8 | LU (mm): 63.3 | LCF (mm): 72.6 | OAL (mm): 131.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0630S07H03DC (mm): 6.3 | L/D: 3 | LU (mm): 24.2 | LCF (mm): 33.6 | OAL (mm): 89.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0630S07H05DC (mm): 6.3 | L/D: 5 | LU (mm): 43.7 | LCF (mm): 53.1 | OAL (mm): 110.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0630S07H08DC (mm): 6.3 | L/D: 8 | LU (mm): 63.2 | LCF (mm): 72.6 | OAL (mm): 131.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDE0640S07H03DC (mm): 6.4 | L/D: 3 | LU (mm): 24.1 | LCF (mm): 33.7 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0640S07H05DC (mm): 6.4 | L/D: 5 | LU (mm): 43.6 | LCF (mm): 53.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0640S07H08DC (mm): 6.4 | L/D: 8 | LU (mm): 63.1 | LCF (mm): 72.7 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0650S07H03DC (mm): 6.5 | L/D: 3 | LU (mm): 24.0 | LCF (mm): 33.7 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0650S07H05DC (mm): 6.5 | L/D: 5 | LU (mm): 43.5 | LCF (mm): 53.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0650S07H08DC (mm): 6.5 | L/D: 8 | LU (mm): 63.0 | LCF (mm): 72.7 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0660S07H03DC (mm): 6.6 | L/D: 3 | LU (mm): 26.3 | LCF (mm): 36.2 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0660S07H05DC (mm): 6.6 | L/D: 5 | LU (mm): 47.3 | LCF (mm): 57.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0660S07H08DC (mm): 6.6 | L/D: 8 | LU (mm): 68.3 | LCF (mm): 78.2 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0670S07H03DC (mm): 6.7 | L/D: 3 | LU (mm): 26.2 | LCF (mm): 36.2 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0670S07H05DC (mm): 6.7 | L/D: 5 | LU (mm): 47.2 | LCF (mm): 57.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0670S07H08DC (mm): 6.7 | L/D: 8 | LU (mm): 68.2 | LCF (mm): 78.2 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0680S07H03DC (mm): 6.8 | L/D: 3 | LU (mm): 26.0 | LCF (mm): 36.2 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0680S07H05DC (mm): 6.8 | L/D: 5 | LU (mm): 47.0 | LCF (mm): 57.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0680S07H08DC (mm): 6.8 | L/D: 8 | LU (mm): 68.0 | LCF (mm): 78.2 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDE0690S07H03DC (mm): 6.9 | L/D: 3 | LU (mm): 26.0 | LCF (mm): 36.3 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDE0690S07H05DC (mm): 6.9 | L/D: 5 | LU (mm): 47.0 | LCF (mm): 57.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDE0690S07H08DC (mm): 6.9 | L/D: 8 | LU (mm): 68.0 | LCF (mm): 78.3 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDE0700S07H03DC (mm): 7.0 | L/D: 3 | LU (mm): 25.8 | LCF (mm): 36.3 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDE0700S07H05DC (mm): 7.0 | L/D: 5 | LU (mm): 46.8 | LCF (mm): 57.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDE0700S07H08DC (mm): 7.0 | L/D: 8 | LU (mm): 67.8 | LCF (mm): 78.3 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDE0710S08H03DC (mm): 7.1 | L/D: 3 | LU (mm): 28.2 | LCF (mm): 38.8 | OAL (mm): 95.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0710S08H05DC (mm): 7.1 | L/D: 5 | LU (mm): 50.7 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0710S08H08DC (mm): 7.1 | L/D: 8 | LU (mm): 73.2 | LCF (mm): 83.8 | OAL (mm): 143.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0720S08H03DC (mm): 7.2 | L/D: 3 | LU (mm): 28.0 | LCF (mm): 38.8 | OAL (mm): 95.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0720S08H05DC (mm): 7.2 | L/D: 5 | LU (mm): 50.5 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0720S08H08DC (mm): 7.2 | L/D: 8 | LU (mm): 73.0 | LCF (mm): 83.8 | OAL (mm): 143.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0730S08H03DC (mm): 7.3 | L/D: 3 | LU (mm): 27.9 | LCF (mm): 38.8 | OAL (mm): 95.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0730S08H05DC (mm): 7.3 | L/D: 5 | LU (mm): 50.4 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0730S08H08DC (mm): 7.3 | L/D: 8 | LU (mm): 72.9 | LCF (mm): 83.8 | OAL (mm): 143.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0736S08H05DC (mm): 7.36 | L/D: 5 | LU (mm): 50.2 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0738S08H05DC (mm): 7.38 | L/D: 5 | LU (mm): 50.2 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0740S08H03DC (mm): 7.4 | L/D: 3 | LU (mm): 27.7 | LCF (mm): 38.8 | OAL (mm): 95.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0740S08H05DC (mm): 7.4 | L/D: 5 | LU (mm): 50.2 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0740S08H08DC (mm): 7.4 | L/D: 8 | LU (mm): 72.7 | LCF (mm): 83.8 | OAL (mm): 143.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDE0750S08H03DC (mm): 7.5 | L/D: 3 | LU (mm): 27.7 | LCF (mm): 38.9 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0750S08H05DC (mm): 7.5 | L/D: 5 | LU (mm): 50.2 | LCF (mm): 61.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0750S08H08DC (mm): 7.5 | L/D: 8 | LU (mm): 72.7 | LCF (mm): 83.9 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0752S08H05DC (mm): 7.52 | L/D: 5 | LU (mm): 54.0 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0754S08H05DC (mm): 7.54 | L/D: 5 | LU (mm): 54.0 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0760S08H03DC (mm): 7.6 | L/D: 3 | LU (mm): 30.0 | LCF (mm): 41.4 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0760S08H05DC (mm): 7.6 | L/D: 5 | LU (mm): 54.0 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0760S08H08DC (mm): 7.6 | L/D: 8 | LU (mm): 78.0 | LCF (mm): 89.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0770S08H03DC (mm): 7.7 | L/D: 3 | LU (mm): 29.9 | LCF (mm): 41.4 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0770S08H05DC (mm): 7.7 | L/D: 5 | LU (mm): 53.9 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0770S08H08DC (mm): 7.7 | L/D: 8 | LU (mm): 77.9 | LCF (mm): 89.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0780S08H03DC (mm): 7.8 | L/D: 3 | LU (mm): 29.7 | LCF (mm): 41.4 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0780S08H05DC (mm): 7.8 | L/D: 5 | LU (mm): 53.7 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0780S08H08DC (mm): 7.8 | L/D: 8 | LU (mm): 77.7 | LCF (mm): 89.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0790S08H03DC (mm): 7.9 | L/D: 3 | LU (mm): 29.6 | LCF (mm): 41.4 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0790S08H05DC (mm): 7.9 | L/D: 5 | LU (mm): 53.6 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0790S08H08DC (mm): 7.9 | L/D: 8 | LU (mm): 77.6 | LCF (mm): 89.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDE0800S08H03DC (mm): 8.0 | L/D: 3 | LU (mm): 29.5 | LCF (mm): 41.5 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDE0800S08H05DC (mm): 8.0 | L/D: 5 | LU (mm): 53.5 | LCF (mm): 65.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDE0800S08H08DC (mm): 8.0 | L/D: 8 | LU (mm): 77.5 | LCF (mm): 89.5 | OAL (mm): 143.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDE0810S09H03DC (mm): 8.1 | L/D: 3 | LU (mm): 31.9 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0810S09H05DC (mm): 8.1 | L/D: 5 | LU (mm): 57.4 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0810S09H08DC (mm): 8.1 | L/D: 8 | LU (mm): 82.9 | LCF (mm): 95.0 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0820S09H03DC (mm): 8.2 | L/D: 3 | LU (mm): 31.7 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0820S09H05DC (mm): 8.2 | L/D: 5 | LU (mm): 57.2 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0820S09H08DC (mm): 8.2 | L/D: 8 | LU (mm): 82.7 | LCF (mm): 95.0 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0830S09H03DC (mm): 8.3 | L/D: 3 | LU (mm): 31.6 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0830S09H05DC (mm): 8.3 | L/D: 5 | LU (mm): 57.1 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0830S09H08DC (mm): 8.3 | L/D: 8 | LU (mm): 82.6 | LCF (mm): 95.0 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0840S09H03DC (mm): 8.4 | L/D: 3 | LU (mm): 31.4 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0840S09H05DC (mm): 8.4 | L/D: 5 | LU (mm): 56.9 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0840S09H08DC (mm): 8.4 | L/D: 8 | LU (mm): 82.4 | LCF (mm): 95.0 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0850S09H03DC (mm): 8.5 | L/D: 3 | LU (mm): 31.3 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0850S09H05DC (mm): 8.5 | L/D: 5 | LU (mm): 56.8 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0850S09H08DC (mm): 8.5 | L/D: 8 | LU (mm): 82.3 | LCF (mm): 95.0 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDE0860S09H03DC (mm): 8.6 | L/D: 3 | LU (mm): 33.7 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0860S09H05DC (mm): 8.6 | L/D: 5 | LU (mm): 60.7 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0860S09H08DC (mm): 8.6 | L/D: 8 | LU (mm): 87.7 | LCF (mm): 100.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0870S09H03DC (mm): 8.7 | L/D: 3 | LU (mm): 33.6 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0870S09H05DC (mm): 8.7 | L/D: 5 | LU (mm): 60.6 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0870S09H08DC (mm): 8.7 | L/D: 8 | LU (mm): 87.6 | LCF (mm): 100.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0880S09H03DC (mm): 8.8 | L/D: 3 | LU (mm): 33.4 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0880S09H05DC (mm): 8.8 | L/D: 5 | LU (mm): 60.4 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0880S09H08DC (mm): 8.8 | L/D: 8 | LU (mm): 87.4 | LCF (mm): 100.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0890S09H03DC (mm): 8.9 | L/D: 3 | LU (mm): 33.3 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0890S09H05DC (mm): 8.9 | L/D: 5 | LU (mm): 60.3 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0890S09H08DC (mm): 8.9 | L/D: 8 | LU (mm): 87.3 | LCF (mm): 100.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0900S09H03DC (mm): 9.0 | L/D: 3 | LU (mm): 33.1 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0900S09H05DC (mm): 9.0 | L/D: 5 | LU (mm): 60.1 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0900S09H08DC (mm): 9.0 | L/D: 8 | LU (mm): 87.1 | LCF (mm): 100.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDE0910S10H03DC (mm): 9.1 | L/D: 3 | LU (mm): 35.6 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0910S10H05DC (mm): 9.1 | L/D: 5 | LU (mm): 64.1 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0910S10H08DC (mm): 9.1 | L/D: 8 | LU (mm): 92.6 | LCF (mm): 106.2 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0920S10H03DC (mm): 9.2 | L/D: 3 | LU (mm): 35.4 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0920S10H05DC (mm): 9.2 | L/D: 5 | LU (mm): 63.9 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0920S10H08DC (mm): 9.2 | L/D: 8 | LU (mm): 92.4 | LCF (mm): 106.2 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0924S10H05DC (mm): 9.24 | L/D: 5 | LU (mm): 63.8 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0926S10H05DC (mm): 9.26 | L/D: 5 | LU (mm): 63.8 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0930S10H03DC (mm): 9.3 | L/D: 3 | LU (mm): 35.3 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0930S10H05DC (mm): 9.3 | L/D: 5 | LU (mm): 63.8 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0930S10H08DC (mm): 9.3 | L/D: 8 | LU (mm): 92.3 | LCF (mm): 106.2 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0936S10H05DC (mm): 9.36 | L/D: 5 | LU (mm): 63.6 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0938S10H05DC (mm): 9.38 | L/D: 5 | LU (mm): 63.6 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0940S10H03DC (mm): 9.4 | L/D: 3 | LU (mm): 35.1 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0940S10H05DC (mm): 9.4 | L/D: 5 | LU (mm): 63.6 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0940S10H08DC (mm): 9.4 | L/D: 8 | LU (mm): 92.1 | LCF (mm): 106.2 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0950S10H03DC (mm): 9.5 | L/D: 3 | LU (mm): 35.0 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0950S10H05DC (mm): 9.5 | L/D: 5 | LU (mm): 63.5 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0950S10H08DC (mm): 9.5 | L/D: 8 | LU (mm): 92.0 | LCF (mm): 106.2 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0952S10H05DC (mm): 9.52 | L/D: 5 | LU (mm): 67.3 | LCF (mm): 81.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0954S10H05DC (mm): 9.54 | L/D: 5 | LU (mm): 67.3 | LCF (mm): 81.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0960S10H03DC (mm): 9.6 | L/D: 3 | LU (mm): 37.3 | LCF (mm): 51.7 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0960S10H05DC (mm): 9.6 | L/D: 5 | LU (mm): 67.3 | LCF (mm): 81.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0960S10H08DC (mm): 9.6 | L/D: 8 | LU (mm): 97.3 | LCF (mm): 111.7 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDE0970S10H03DC (mm): 9.7 | L/D: 3 | LU (mm): 37.3 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0970S10H05DC (mm): 9.7 | L/D: 5 | LU (mm): 67.3 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0970S10H08DC (mm): 9.7 | L/D: 8 | LU (mm): 97.3 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0980S10H03DC (mm): 9.8 | L/D: 3 | LU (mm): 37.1 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0980S10H05DC (mm): 9.8 | L/D: 5 | LU (mm): 67.1 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0980S10H08DC (mm): 9.8 | L/D: 8 | LU (mm): 97.1 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0990S10H03DC (mm): 9.9 | L/D: 3 | LU (mm): 37.0 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0990S10H05DC (mm): 9.9 | L/D: 5 | LU (mm): 67.0 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE0990S10H08DC (mm): 9.9 | L/D: 8 | LU (mm): 97.0 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE1000S10H03DC (mm): 10.0 | L/D: 3 | LU (mm): 36.8 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE1000S10H05DC (mm): 10.0 | L/D: 5 | LU (mm): 66.8 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE1000S10H08DC (mm): 10.0 | L/D: 8 | LU (mm): 96.8 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDE1010S11H03DC (mm): 10.1 | L/D: 3 | LU (mm): 39.2 | LCF (mm): 54.3 | OAL (mm): 117.8 | PL (mm): 1.8 | DCON (mm): 11.0 | Stock: Yes
MDE1010S11H05DC (mm): 10.1 | L/D: 5 | LU (mm): 70.7 | LCF (mm): 85.8 | OAL (mm): 150.8 | PL (mm): 1.8 | DCON (mm): 11.0 | Stock: Yes
MDE1010S11H08DC (mm): 10.1 | L/D: 8 | LU (mm): 102.2 | LCF (mm): 117.3 | OAL (mm): 183.8 | PL (mm): 1.8 | DCON (mm): 11.0 | Stock: Yes
MDE1020S11H03DC (mm): 10.2 | L/D: 3 | LU (mm): 39.1 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1020S11H05DC (mm): 10.2 | L/D: 5 | LU (mm): 70.6 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1020S11H08DC (mm): 10.2 | L/D: 8 | LU (mm): 102.1 | LCF (mm): 117.4 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1030S11H03DC (mm): 10.3 | L/D: 3 | LU (mm): 39.0 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1030S11H05DC (mm): 10.3 | L/D: 5 | LU (mm): 70.5 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1030S11H08DC (mm): 10.3 | L/D: 8 | LU (mm): 102.0 | LCF (mm): 117.4 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1040S11H03DC (mm): 10.4 | L/D: 3 | LU (mm): 38.8 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1040S11H05DC (mm): 10.4 | L/D: 5 | LU (mm): 70.3 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1040S11H08DC (mm): 10.4 | L/D: 8 | LU (mm): 101.8 | LCF (mm): 117.4 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1050S11H03DC (mm): 10.5 | L/D: 3 | LU (mm): 38.7 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1050S11H05DC (mm): 10.5 | L/D: 5 | LU (mm): 70.2 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1050S11H08DC (mm): 10.5 | L/D: 8 | LU (mm): 101.7 | LCF (mm): 117.4 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1060S11H03DC (mm): 10.6 | L/D: 3 | LU (mm): 41.0 | LCF (mm): 56.9 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1060S11H05DC (mm): 10.6 | L/D: 5 | LU (mm): 74.0 | LCF (mm): 89.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1060S11H08DC (mm): 10.6 | L/D: 8 | LU (mm): 107.0 | LCF (mm): 122.9 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1070S11H03DC (mm): 10.7 | L/D: 3 | LU (mm): 40.9 | LCF (mm): 56.9 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1070S11H05DC (mm): 10.7 | L/D: 5 | LU (mm): 73.9 | LCF (mm): 89.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1070S11H08DC (mm): 10.7 | L/D: 8 | LU (mm): 106.9 | LCF (mm): 122.9 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDE1080S11H03DC (mm): 10.8 | L/D: 3 | LU (mm): 40.8 | LCF (mm): 57.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1080S11H05DC (mm): 10.8 | L/D: 5 | LU (mm): 73.8 | LCF (mm): 90.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1080S11H08DC (mm): 10.8 | L/D: 8 | LU (mm): 106.8 | LCF (mm): 123.0 | OAL (mm): 184.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1090S11H03DC (mm): 10.9 | L/D: 3 | LU (mm): 40.7 | LCF (mm): 57.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1090S11H05DC (mm): 10.9 | L/D: 5 | LU (mm): 73.7 | LCF (mm): 90.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1090S11H08DC (mm): 10.9 | L/D: 8 | LU (mm): 106.7 | LCF (mm): 123.0 | OAL (mm): 184.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1100S11H03DC (mm): 11.0 | L/D: 3 | LU (mm): 40.5 | LCF (mm): 57.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1100S11H05DC (mm): 11.0 | L/D: 5 | LU (mm): 73.5 | LCF (mm): 90.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1100S11H08DC (mm): 11.0 | L/D: 8 | LU (mm): 106.5 | LCF (mm): 123.0 | OAL (mm): 184.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDE1110S12H03DC (mm): 11.1 | L/D: 3 | LU (mm): 42.9 | LCF (mm): 59.5 | OAL (mm): 124.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1110S12H05DC (mm): 11.1 | L/D: 5 | LU (mm): 77.4 | LCF (mm): 94.0 | OAL (mm): 160.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1110S12H08DC (mm): 11.1 | L/D: 8 | LU (mm): 111.9 | LCF (mm): 128.5 | OAL (mm): 196.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1120S12H03DC (mm): 11.2 | L/D: 3 | LU (mm): 42.7 | LCF (mm): 59.5 | OAL (mm): 124.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1120S12H05DC (mm): 11.2 | L/D: 5 | LU (mm): 77.2 | LCF (mm): 94.0 | OAL (mm): 160.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1120S12H08DC (mm): 11.2 | L/D: 8 | LU (mm): 111.7 | LCF (mm): 128.5 | OAL (mm): 196.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1122S12H05DC (mm): 11.22 | L/D: 5 | LU (mm): 77.2 | LCF (mm): 94.0 | OAL (mm): 160.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1124S12H05DC (mm): 11.24 | L/D: 5 | LU (mm): 77.2 | LCF (mm): 94.0 | OAL (mm): 160.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDE1130S12H03DC (mm): 11.3 | L/D: 3 | LU (mm): 42.7 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1130S12H05DC (mm): 11.3 | L/D: 5 | LU (mm): 77.2 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1130S12H08DC (mm): 11.3 | L/D: 8 | LU (mm): 111.7 | LCF (mm): 128.6 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1136S12H05DC (mm): 11.36 | L/D: 5 | LU (mm): 77.0 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1138S12H05DC (mm): 11.38 | L/D: 5 | LU (mm): 77.0 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1140S12H03DC (mm): 11.4 | L/D: 3 | LU (mm): 42.5 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1140S12H05DC (mm): 11.4 | L/D: 5 | LU (mm): 77.0 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1140S12H08DC (mm): 11.4 | L/D: 8 | LU (mm): 111.5 | LCF (mm): 128.6 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1150S12H03DC (mm): 11.5 | L/D: 3 | LU (mm): 42.4 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1150S12H05DC (mm): 11.5 | L/D: 5 | LU (mm): 76.9 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1150S12H08DC (mm): 11.5 | L/D: 8 | LU (mm): 111.4 | LCF (mm): 128.6 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1160S12H03DC (mm): 11.6 | L/D: 3 | LU (mm): 44.7 | LCF (mm): 62.1 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1160S12H05DC (mm): 11.6 | L/D: 5 | LU (mm): 80.7 | LCF (mm): 98.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1160S12H08DC (mm): 11.6 | L/D: 8 | LU (mm): 116.7 | LCF (mm): 134.1 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1170S12H03DC (mm): 11.7 | L/D: 3 | LU (mm): 44.6 | LCF (mm): 62.1 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1170S12H05DC (mm): 11.7 | L/D: 5 | LU (mm): 80.6 | LCF (mm): 98.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1170S12H08DC (mm): 11.7 | L/D: 8 | LU (mm): 116.6 | LCF (mm): 134.1 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1180S12H03DC (mm): 11.8 | L/D: 3 | LU (mm): 44.4 | LCF (mm): 62.1 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1180S12H05DC (mm): 11.8 | L/D: 5 | LU (mm): 80.4 | LCF (mm): 98.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1180S12H08DC (mm): 11.8 | L/D: 8 | LU (mm): 116.4 | LCF (mm): 134.1 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDE1190S12H03DC (mm): 11.9 | L/D: 3 | LU (mm): 44.4 | LCF (mm): 62.2 | OAL (mm): 124.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDE1190S12H05DC (mm): 11.9 | L/D: 5 | LU (mm): 80.4 | LCF (mm): 98.2 | OAL (mm): 160.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDE1190S12H08DC (mm): 11.9 | L/D: 8 | LU (mm): 116.4 | LCF (mm): 134.2 | OAL (mm): 196.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDE1200S12H03DC (mm): 12.0 | L/D: 3 | LU (mm): 44.2 | LCF (mm): 62.2 | OAL (mm): 124.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDE1200S12H05DC (mm): 12.0 | L/D: 5 | LU (mm): 80.2 | LCF (mm): 98.2 | OAL (mm): 160.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDE1200S12H08DC (mm): 12.0 | L/D: 8 | LU (mm): 116.2 | LCF (mm): 134.2 | OAL (mm): 196.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDE1210S13H03DC (mm): 12.1 | L/D: 3 | LU (mm): 46.6 | LCF (mm): 64.7 | OAL (mm): 130.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1210S13H05DC (mm): 12.1 | L/D: 5 | LU (mm): 84.1 | LCF (mm): 102.2 | OAL (mm): 169.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1210S13H08DC (mm): 12.1 | L/D: 8 | LU (mm): 121.6 | LCF (mm): 139.7 | OAL (mm): 208.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1220S13H03DC (mm): 12.2 | L/D: 3 | LU (mm): 46.4 | LCF (mm): 64.7 | OAL (mm): 130.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1220S13H05DC (mm): 12.2 | L/D: 5 | LU (mm): 83.9 | LCF (mm): 102.2 | OAL (mm): 169.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1220S13H08DC (mm): 12.2 | L/D: 8 | LU (mm): 121.4 | LCF (mm): 139.7 | OAL (mm): 208.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1230S13H03DC (mm): 12.3 | L/D: 3 | LU (mm): 46.3 | LCF (mm): 64.7 | OAL (mm): 130.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1230S13H05DC (mm): 12.3 | L/D: 5 | LU (mm): 83.8 | LCF (mm): 102.2 | OAL (mm): 169.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1230S13H08DC (mm): 12.3 | L/D: 8 | LU (mm): 121.3 | LCF (mm): 139.7 | OAL (mm): 208.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Yes
MDE1240S13H03DC (mm): 12.4 | L/D: 3 | LU (mm): 46.2 | LCF (mm): 64.8 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1240S13H05DC (mm): 12.4 | L/D: 5 | LU (mm): 83.7 | LCF (mm): 102.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1240S13H08DC (mm): 12.4 | L/D: 8 | LU (mm): 121.2 | LCF (mm): 139.8 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1250S13H03DC (mm): 12.5 | L/D: 3 | LU (mm): 46.1 | LCF (mm): 64.8 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1250S13H05DC (mm): 12.5 | L/D: 5 | LU (mm): 83.6 | LCF (mm): 102.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1250S13H08DC (mm): 12.5 | L/D: 8 | LU (mm): 121.1 | LCF (mm): 139.8 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1260S13H03DC (mm): 12.6 | L/D: 3 | LU (mm): 48.4 | LCF (mm): 67.3 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1260S13H05DC (mm): 12.6 | L/D: 5 | LU (mm): 87.4 | LCF (mm): 106.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1260S13H08DC (mm): 12.6 | L/D: 8 | LU (mm): 126.4 | LCF (mm): 145.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1270S13H03DC (mm): 12.7 | L/D: 3 | LU (mm): 48.3 | LCF (mm): 67.3 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1270S13H05DC (mm): 12.7 | L/D: 5 | LU (mm): 87.3 | LCF (mm): 106.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1270S13H08DC (mm): 12.7 | L/D: 8 | LU (mm): 126.3 | LCF (mm): 145.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1280S13H03DC (mm): 12.8 | L/D: 3 | LU (mm): 48.1 | LCF (mm): 67.3 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1280S13H05DC (mm): 12.8 | L/D: 5 | LU (mm): 87.1 | LCF (mm): 106.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1280S13H08DC (mm): 12.8 | L/D: 8 | LU (mm): 126.1 | LCF (mm): 145.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1290S13H03DC (mm): 12.9 | L/D: 3 | LU (mm): 48.0 | LCF (mm): 67.3 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1290S13H05DC (mm): 12.9 | L/D: 5 | LU (mm): 87.0 | LCF (mm): 106.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1290S13H08DC (mm): 12.9 | L/D: 8 | LU (mm): 126.0 | LCF (mm): 145.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDE1300S13H03DC (mm): 13.0 | L/D: 3 | LU (mm): 47.9 | LCF (mm): 67.4 | OAL (mm): 130.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDE1300S13H05DC (mm): 13.0 | L/D: 5 | LU (mm): 86.9 | LCF (mm): 106.4 | OAL (mm): 169.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDE1300S13H08DC (mm): 13.0 | L/D: 8 | LU (mm): 125.9 | LCF (mm): 145.4 | OAL (mm): 208.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDE1310S14H03DC (mm): 13.1 | L/D: 3 | LU (mm): 50.3 | LCF (mm): 69.9 | OAL (mm): 136.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1310S14H05DC (mm): 13.1 | L/D: 5 | LU (mm): 90.8 | LCF (mm): 110.4 | OAL (mm): 178.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1310S14H08DC (mm): 13.1 | L/D: 8 | LU (mm): 131.3 | LCF (mm): 150.9 | OAL (mm): 220.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1320S14H03DC (mm): 13.2 | L/D: 3 | LU (mm): 50.1 | LCF (mm): 69.9 | OAL (mm): 136.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1320S14H05DC (mm): 13.2 | L/D: 5 | LU (mm): 90.6 | LCF (mm): 110.4 | OAL (mm): 178.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1320S14H08DC (mm): 13.2 | L/D: 8 | LU (mm): 131.1 | LCF (mm): 150.9 | OAL (mm): 220.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1330S14H03DC (mm): 13.3 | L/D: 3 | LU (mm): 50.0 | LCF (mm): 69.9 | OAL (mm): 136.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1330S14H05DC (mm): 13.3 | L/D: 5 | LU (mm): 90.5 | LCF (mm): 110.4 | OAL (mm): 178.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1330S14H08DC (mm): 13.3 | L/D: 8 | LU (mm): 131.0 | LCF (mm): 150.9 | OAL (mm): 220.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1340S14H03DC (mm): 13.4 | L/D: 3 | LU (mm): 49.8 | LCF (mm): 69.9 | OAL (mm): 136.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1340S14H05DC (mm): 13.4 | L/D: 5 | LU (mm): 90.3 | LCF (mm): 110.4 | OAL (mm): 178.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1340S14H08DC (mm): 13.4 | L/D: 8 | LU (mm): 130.8 | LCF (mm): 150.9 | OAL (mm): 220.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Yes
MDE1350S14H03DC (mm): 13.5 | L/D: 3 | LU (mm): 49.8 | LCF (mm): 70.0 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1350S14H05DC (mm): 13.5 | L/D: 5 | LU (mm): 90.3 | LCF (mm): 110.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1350S14H08DC (mm): 13.5 | L/D: 8 | LU (mm): 130.8 | LCF (mm): 151.0 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1360S14H03DC (mm): 13.6 | L/D: 3 | LU (mm): 52.1 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1360S14H05DC (mm): 13.6 | L/D: 5 | LU (mm): 94.1 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1360S14H08DC (mm): 13.6 | L/D: 8 | LU (mm): 136.1 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1370S14H03DC (mm): 13.7 | L/D: 3 | LU (mm): 52.0 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1370S14H05DC (mm): 13.7 | L/D: 5 | LU (mm): 94.0 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1370S14H08DC (mm): 13.7 | L/D: 8 | LU (mm): 136.0 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1380S14H03DC (mm): 13.8 | L/D: 3 | LU (mm): 51.8 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1380S14H05DC (mm): 13.8 | L/D: 5 | LU (mm): 93.8 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1380S14H08DC (mm): 13.8 | L/D: 8 | LU (mm): 135.8 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1390S14H03DC (mm): 13.9 | L/D: 3 | LU (mm): 51.7 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1390S14H05DC (mm): 13.9 | L/D: 5 | LU (mm): 93.7 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1390S14H08DC (mm): 13.9 | L/D: 8 | LU (mm): 135.7 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1400S14H03DC (mm): 14.0 | L/D: 3 | LU (mm): 51.5 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1400S14H05DC (mm): 14.0 | L/D: 5 | LU (mm): 93.5 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1400S14H08DC (mm): 14.0 | L/D: 8 | LU (mm): 135.5 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDE1410S15H03DC (mm): 14.1 | L/D: 3 | LU (mm): 54.0 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1410S15H05DC (mm): 14.1 | L/D: 5 | LU (mm): 97.5 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1410S15H08DC (mm): 14.1 | L/D: 8 | LU (mm): 141.0 | LCF (mm): 162.1 | OAL (mm): 232.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1420S15H03DC (mm): 14.2 | L/D: 3 | LU (mm): 53.8 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1420S15H05DC (mm): 14.2 | L/D: 5 | LU (mm): 97.3 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1420S15H08DC (mm): 14.2 | L/D: 8 | LU (mm): 140.8 | LCF (mm): 162.1 | OAL (mm): 232.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1430S15H03DC (mm): 14.3 | L/D: 3 | LU (mm): 53.7 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1430S15H05DC (mm): 14.3 | L/D: 5 | LU (mm): 97.2 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1430S15H08DC (mm): 14.3 | L/D: 8 | LU (mm): 140.7 | LCF (mm): 162.1 | OAL (mm): 232.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1440S15H03DC (mm): 14.4 | L/D: 3 | LU (mm): 53.5 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1440S15H05DC (mm): 14.4 | L/D: 5 | LU (mm): 97.0 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1440S15H08DC (mm): 14.4 | L/D: 8 | LU (mm): 140.5 | LCF (mm): 162.1 | OAL (mm): 232.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1450S15H03DC (mm): 14.5 | L/D: 3 | LU (mm): 53.4 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1450S15H05DC (mm): 14.5 | L/D: 5 | LU (mm): 96.9 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1450S15H08DC (mm): 14.5 | L/D: 8 | LU (mm): 140.4 | LCF (mm): 162.1 | OAL (mm): 232.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDE1460S15H03DC (mm): 14.6 | L/D: 3 | LU (mm): 55.8 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1460S15H05DC (mm): 14.6 | L/D: 5 | LU (mm): 100.8 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1460S15H08DC (mm): 14.6 | L/D: 8 | LU (mm): 145.8 | LCF (mm): 167.7 | OAL (mm): 232.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1470S15H03DC (mm): 14.7 | L/D: 3 | LU (mm): 55.7 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1470S15H05DC (mm): 14.7 | L/D: 5 | LU (mm): 100.7 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1470S15H08DC (mm): 14.7 | L/D: 8 | LU (mm): 145.7 | LCF (mm): 167.7 | OAL (mm): 232.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1480S15H03DC (mm): 14.8 | L/D: 3 | LU (mm): 55.5 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1480S15H05DC (mm): 14.8 | L/D: 5 | LU (mm): 100.5 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1480S15H08DC (mm): 14.8 | L/D: 8 | LU (mm): 145.5 | LCF (mm): 167.7 | OAL (mm): 232.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1490S15H03DC (mm): 14.9 | L/D: 3 | LU (mm): 55.4 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1490S15H05DC (mm): 14.9 | L/D: 5 | LU (mm): 100.4 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1490S15H08DC (mm): 14.9 | L/D: 8 | LU (mm): 145.4 | LCF (mm): 167.7 | OAL (mm): 232.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1500S15H03DC (mm): 15.0 | L/D: 3 | LU (mm): 55.2 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1500S15H05DC (mm): 15.0 | L/D: 5 | LU (mm): 100.2 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1500S15H08DC (mm): 15.0 | L/D: 8 | LU (mm): 145.2 | LCF (mm): 167.7 | OAL (mm): 232.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDE1510S16H03DC (mm): 15.1 | L/D: 3 | LU (mm): 57.6 | LCF (mm): 80.2 | OAL (mm): 148.7 | PL (mm): 2.7 | DCON (mm): 16.0 | Stock: Yes
MDE1510S16H05DC (mm): 15.1 | L/D: 5 | LU (mm): 104.1 | LCF (mm): 126.7 | OAL (mm): 196.7 | PL (mm): 2.7 | DCON (mm): 16.0 | Stock: Yes
MDE1510S16H08DC (mm): 15.1 | L/D: 8 | LU (mm): 150.6 | LCF (mm): 173.2 | OAL (mm): 244.7 | PL (mm): 2.7 | DCON (mm): 16.0 | Stock: Yes
MDE1520S16H03DC (mm): 15.2 | L/D: 3 | LU (mm): 57.5 | LCF (mm): 80.3 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1520S16H05DC (mm): 15.2 | L/D: 5 | LU (mm): 104.0 | LCF (mm): 126.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1520S16H08DC (mm): 15.2 | L/D: 8 | LU (mm): 150.5 | LCF (mm): 173.3 | OAL (mm): 244.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1530S16H03DC (mm): 15.3 | L/D: 3 | LU (mm): 57.4 | LCF (mm): 80.3 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1530S16H05DC (mm): 15.3 | L/D: 5 | LU (mm): 103.9 | LCF (mm): 126.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1530S16H08DC (mm): 15.3 | L/D: 8 | LU (mm): 150.4 | LCF (mm): 173.3 | OAL (mm): 244.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1540S16H03DC (mm): 15.4 | L/D: 3 | LU (mm): 57.2 | LCF (mm): 80.3 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1540S16H05DC (mm): 15.4 | L/D: 5 | LU (mm): 103.7 | LCF (mm): 126.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1540S16H08DC (mm): 15.4 | L/D: 8 | LU (mm): 150.2 | LCF (mm): 173.3 | OAL (mm): 244.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1550S16H03DC (mm): 15.5 | L/D: 3 | LU (mm): 57.1 | LCF (mm): 80.3 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1550S16H05DC (mm): 15.5 | L/D: 5 | LU (mm): 103.6 | LCF (mm): 126.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1550S16H08DC (mm): 15.5 | L/D: 8 | LU (mm): 150.1 | LCF (mm): 173.3 | OAL (mm): 244.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1560S16H03DC (mm): 15.6 | L/D: 3 | LU (mm): 59.4 | LCF (mm): 82.8 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1560S16H05DC (mm): 15.6 | L/D: 5 | LU (mm): 107.4 | LCF (mm): 130.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1560S16H08DC (mm): 15.6 | L/D: 8 | LU (mm): 155.4 | LCF (mm): 178.8 | OAL (mm): 244.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDE1570S16H03DC (mm): 15.7 | L/D: 3 | LU (mm): 59.4 | LCF (mm): 82.9 | OAL (mm): 148.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1570S16H05DC (mm): 15.7 | L/D: 5 | LU (mm): 107.4 | LCF (mm): 130.9 | OAL (mm): 196.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1570S16H08DC (mm): 15.7 | L/D: 8 | LU (mm): 155.4 | LCF (mm): 178.9 | OAL (mm): 244.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1580S16H03DC (mm): 15.8 | L/D: 3 | LU (mm): 59.2 | LCF (mm): 82.9 | OAL (mm): 148.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1580S16H05DC (mm): 15.8 | L/D: 5 | LU (mm): 107.2 | LCF (mm): 130.9 | OAL (mm): 196.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1580S16H08DC (mm): 15.8 | L/D: 8 | LU (mm): 155.2 | LCF (mm): 178.9 | OAL (mm): 244.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1590S16H03DC (mm): 15.9 | L/D: 3 | LU (mm): 59.1 | LCF (mm): 82.9 | OAL (mm): 148.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1590S16H05DC (mm): 15.9 | L/D: 5 | LU (mm): 107.1 | LCF (mm): 130.9 | OAL (mm): 196.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1590S16H08DC (mm): 15.9 | L/D: 8 | LU (mm): 155.1 | LCF (mm): 178.9 | OAL (mm): 244.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1600S16H03DC (mm): 16.0 | L/D: 3 | LU (mm): 58.9 | LCF (mm): 82.9 | OAL (mm): 148.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1600S16H05DC (mm): 16.0 | L/D: 5 | LU (mm): 106.9 | LCF (mm): 130.9 | OAL (mm): 196.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1600S16H08DC (mm): 16.0 | L/D: 8 | LU (mm): 154.9 | LCF (mm): 178.9 | OAL (mm): 244.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDE1650S17H03DC (mm): 16.5 | L/D: 3 | LU (mm): 60.8 | LCF (mm): 85.5 | OAL (mm): 155.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Yes
MDE1650S17H05DC (mm): 16.5 | L/D: 5 | LU (mm): 110.3 | LCF (mm): 135.0 | OAL (mm): 206.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Yes
MDE1700S17H03DC (mm): 17.0 | L/D: 3 | LU (mm): 62.6 | LCF (mm): 88.1 | OAL (mm): 155.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Yes
MDE1700S17H05DC (mm): 17.0 | L/D: 5 | LU (mm): 113.6 | LCF (mm): 139.1 | OAL (mm): 206.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Yes
MDE1750S18H03DC (mm): 17.5 | L/D: 3 | LU (mm): 64.5 | LCF (mm): 90.7 | OAL (mm): 161.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Yes
MDE1750S18H05DC (mm): 17.5 | L/D: 5 | LU (mm): 116.9 | LCF (mm): 143.2 | OAL (mm): 217.3 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Yes
MDE1800S18H03DC (mm): 18.0 | L/D: 3 | LU (mm): 66.3 | LCF (mm): 93.3 | OAL (mm): 161.3 | PL (mm): 3.3 | DCON (mm): 18.0 | Stock: Yes
MDE1800S18H05DC (mm): 18.0 | L/D: 5 | LU (mm): 120.3 | LCF (mm): 147.3 | OAL (mm): 217.3 | PL (mm): 3.3 | DCON (mm): 18.0 | Stock: Yes
MDE1850S19H03DC (mm): 18.5 | L/D: 3 | LU (mm): 68.2 | LCF (mm): 95.9 | OAL (mm): 167.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Yes
MDE1850S19H05DC (mm): 18.5 | L/D: 5 | LU (mm): 123.6 | LCF (mm): 151.4 | OAL (mm): 224.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Yes
MDE1900S19H03DC (mm): 19.0 | L/D: 3 | LU (mm): 70.0 | LCF (mm): 98.5 | OAL (mm): 167.5 | PL (mm): 3.5 | DCON (mm): 19.0 | Stock: Yes
MDE1900S19H05DC (mm): 19.0 | L/D: 5 | LU (mm): 127.0 | LCF (mm): 155.5 | OAL (mm): 224.5 | PL (mm): 3.5 | DCON (mm): 19.0 | Stock: Yes
MDE1950S20H03DC (mm): 19.5 | L/D: 3 | LU (mm): 71.8 | LCF (mm): 101.0 | OAL (mm): 173.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Yes
MDE1950S20H05DC (mm): 19.5 | L/D: 5 | LU (mm): 130.3 | LCF (mm): 159.5 | OAL (mm): 233.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Yes
MDE2000S20H03DC (mm): 20.0 | L/D: 3 | LU (mm): 73.6 | LCF (mm): 103.6 | OAL (mm): 173.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Yes
MDE2000S20H05DC (mm): 20.0 | L/D: 5 | LU (mm): 133.6 | LCF (mm): 163.6 | OAL (mm): 233.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
