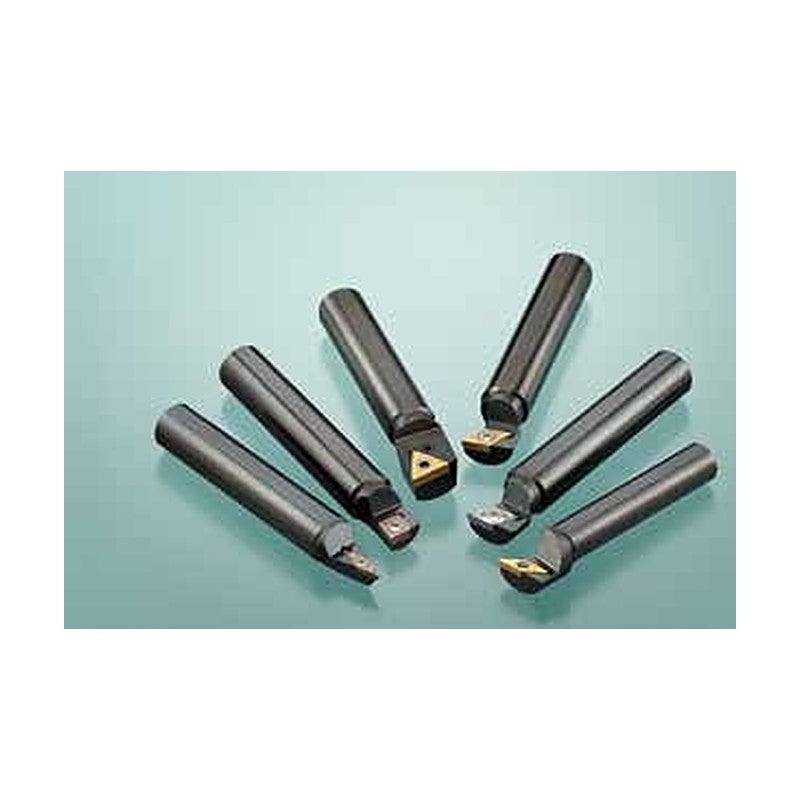

Sumitomo Electric Hardmetal Round Shank Holder RS-SCL

Sumitomo Electric Hardmetal Round Shank Holder RS-SCL

Round-shank holder for external turning on small lathes using sleeve holders, screw-on clamping, for 80° rhombic inserts.

Key features

  • Round shank
  • Screw-on

Specifications

WF (mm) 6.0
Usable length LU (mm) 20
RS15H-SCLL06 Shank dia. DCON (mm): 15.875 | Height H (mm): 15 | Length LF (mm): 100 | Insert: CC□□0602 | Insert screw: BFTX02507NT | Stock: Yes
RS19X-SCLL06 Shank dia. DCON (mm): 19.05 | Height H (mm): 18 | Length LF (mm): 120 | Insert: CC□□0602 | Insert screw: BFTX02507NT | Stock: Yes
RS20X-SCLL06X Shank dia. DCON (mm): 20 | Height H (mm): 19 | Length LF (mm): 95 | Insert: CC□□0602 | Insert screw: BFTX02507NT | Stock: Yes
RS20X-SCLL06 Shank dia. DCON (mm): 20 | Height H (mm): 19 | Length LF (mm): 120 | Insert: CC□□0602 | Insert screw: BFTX02507NT | Stock: Yes
RS22X-SCLL06 Shank dia. DCON (mm): 22 | Height H (mm): 21 | Length LF (mm): 120 | Insert: CC□□0602 | Insert screw: BFTX02507NT | Stock: Yes
RS25X-SCLL06 Shank dia. DCON (mm): 25 | Height H (mm): 24 | Length LF (mm): 120 | Insert: CC□□0602 | Insert screw: BFTX02507NT | Stock: Yes
RS25M-SCLL06 Shank dia. DCON (mm): 25.4 | Height H (mm): 24 | Length LF (mm): 150 | Insert: CC□□0602 | Insert screw: BFTX02507NT | Stock: Yes
RS15H-SCLL09 Shank dia. DCON (mm): 15.875 | Height H (mm): 15 | Length LF (mm): 100 | Insert: CC□□09T3 | Insert screw: BFTX0408NT | Stock: Yes
RS19X-SCLL09 Shank dia. DCON (mm): 19.05 | Height H (mm): 18 | Length LF (mm): 120 | Insert: CC□□09T3 | Insert screw: BFTX0408NT | Stock: Yes
RS20X-SCLL09S Shank dia. DCON (mm): 20 | Height H (mm): 19 | Length LF (mm): 95 | Insert: CC□□09T3 | Insert screw: BFTX0408NT | Stock: Yes
RS20X-SCLL09 Shank dia. DCON (mm): 20 | Height H (mm): 19 | Length LF (mm): 120 | Insert: CC□□09T3 | Insert screw: BFTX0408NT | Stock: Yes
RS22X-SCLL09 Shank dia. DCON (mm): 22 | Height H (mm): 21 | Length LF (mm): 120 | Insert: CC□□09T3 | Insert screw: BFTX0408NT | Stock: Yes
RS25X-SCLL09 Shank dia. DCON (mm): 25 | Height H (mm): 24 | Length LF (mm): 120 | Insert: CC□□09T3 | Insert screw: BFTX0408NT | Stock: Yes
RS25M-SCLL09 Shank dia. DCON (mm): 25.4 | Height H (mm): 24 | Length LF (mm): 150 | Insert: CC□□09T3 | Insert screw: BFTX0408NT | Stock: Yes
Turning HoldersSumitomo Electric Hardmetal
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Round Shank Holder RS-SCL

Brand Sumitomo Electric Hardmetal·Turning Holders

Available part numbers (14)

RS15H-SCLL06, RS19X-SCLL06, RS20X-SCLL06X, RS20X-SCLL06, RS22X-SCLL06, RS25X-SCLL06, RS25M-SCLL06, RS15H-SCLL09, RS19X-SCLL09, RS20X-SCLL09S + 4 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RS15H-SCLL06Shank dia. DCON (mm): 15.875 | Height H (mm): 15 | Length LF (mm): 100 | Insert: CC□□0602 | Insert screw: BFTX02507NT | Stock: Yes
RS19X-SCLL06Shank dia. DCON (mm): 19.05 | Height H (mm): 18 | Length LF (mm): 120 | Insert: CC□□0602 | Insert screw: BFTX02507NT | Stock: Yes
RS20X-SCLL06XShank dia. DCON (mm): 20 | Height H (mm): 19 | Length LF (mm): 95 | Insert: CC□□0602 | Insert screw: BFTX02507NT | Stock: Yes
RS20X-SCLL06Shank dia. DCON (mm): 20 | Height H (mm): 19 | Length LF (mm): 120 | Insert: CC□□0602 | Insert screw: BFTX02507NT | Stock: Yes
RS22X-SCLL06Shank dia. DCON (mm): 22 | Height H (mm): 21 | Length LF (mm): 120 | Insert: CC□□0602 | Insert screw: BFTX02507NT | Stock: Yes
RS25X-SCLL06Shank dia. DCON (mm): 25 | Height H (mm): 24 | Length LF (mm): 120 | Insert: CC□□0602 | Insert screw: BFTX02507NT | Stock: Yes
RS25M-SCLL06Shank dia. DCON (mm): 25.4 | Height H (mm): 24 | Length LF (mm): 150 | Insert: CC□□0602 | Insert screw: BFTX02507NT | Stock: Yes
RS15H-SCLL09Shank dia. DCON (mm): 15.875 | Height H (mm): 15 | Length LF (mm): 100 | Insert: CC□□09T3 | Insert screw: BFTX0408NT | Stock: Yes
RS19X-SCLL09Shank dia. DCON (mm): 19.05 | Height H (mm): 18 | Length LF (mm): 120 | Insert: CC□□09T3 | Insert screw: BFTX0408NT | Stock: Yes
RS20X-SCLL09SShank dia. DCON (mm): 20 | Height H (mm): 19 | Length LF (mm): 95 | Insert: CC□□09T3 | Insert screw: BFTX0408NT | Stock: Yes
RS20X-SCLL09Shank dia. DCON (mm): 20 | Height H (mm): 19 | Length LF (mm): 120 | Insert: CC□□09T3 | Insert screw: BFTX0408NT | Stock: Yes
RS22X-SCLL09Shank dia. DCON (mm): 22 | Height H (mm): 21 | Length LF (mm): 120 | Insert: CC□□09T3 | Insert screw: BFTX0408NT | Stock: Yes
RS25X-SCLL09Shank dia. DCON (mm): 25 | Height H (mm): 24 | Length LF (mm): 120 | Insert: CC□□09T3 | Insert screw: BFTX0408NT | Stock: Yes
RS25M-SCLL09Shank dia. DCON (mm): 25.4 | Height H (mm): 24 | Length LF (mm): 150 | Insert: CC□□09T3 | Insert screw: BFTX0408NT | Stock: Yes
