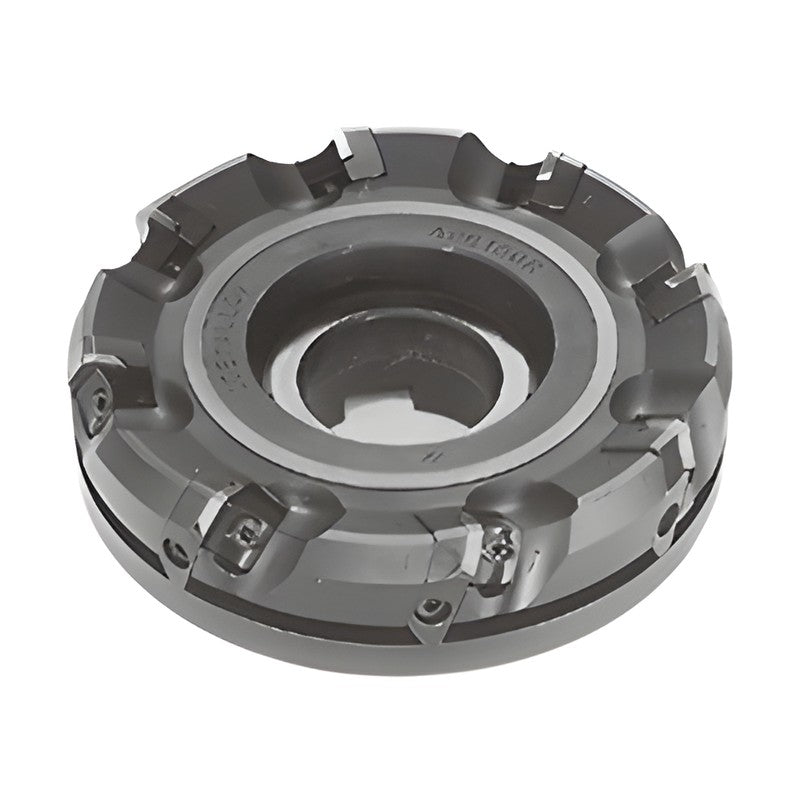

Sumitomo Electric Hardmetal SEC-Ace Mill APG 4000 Milling Cutter

Indexable face milling cutter for aluminium and non-ferrous metals using SDC/SDCH 42 inserts, with wiper insert APW available.

Specifications

Insert	Not included (sold separately)

APG4080R		DC (mm): 80 \| BD body dia (mm): 90 \| DCSFMS boss dia (mm): 60 \| LF length (mm): 50 \| DCB bore dia (mm): 25.4 \| KWW keyway width (mm): 9.5 \| KDP keyway depth (mm): 6 \| CBDP mounting depth (mm): 25 \| Teeth: 5 \| Weight (kg): 1.6 \| Hand: Right \| Stock: Yes
APG4100R		DC (mm): 100 \| BD body dia (mm): 110 \| DCSFMS boss dia (mm): 75 \| LF length (mm): 60 \| DCB bore dia (mm): 31.75 \| KWW keyway width (mm): 12.7 \| KDP keyway depth (mm): 8 \| CBDP mounting depth (mm): 32 \| Teeth: 5 \| Weight (kg): 2.7 \| Hand: Right \| Stock: Yes
APG4125R		DC (mm): 125 \| BD body dia (mm): 134 \| DCSFMS boss dia (mm): 75 \| LF length (mm): 60 \| DCB bore dia (mm): 38.1 \| KWW keyway width (mm): 15.9 \| KDP keyway depth (mm): 10 \| CBDP mounting depth (mm): 38 \| Teeth: 6 \| Weight (kg): 4.0 \| Hand: Right \| Stock: Yes
APG4160R		DC (mm): 160 \| BD body dia (mm): 169 \| DCSFMS boss dia (mm): 100 \| LF length (mm): 60 \| DCB bore dia (mm): 50.8 \| KWW keyway width (mm): 19.1 \| KDP keyway depth (mm): 11 \| CBDP mounting depth (mm): 38 \| Teeth: 8 \| Weight (kg): 6.5 \| Hand: Right \| Stock: Yes
APG4200R		DC (mm): 200 \| BD body dia (mm): 208 \| DCSFMS boss dia (mm): 130 \| LF length (mm): 60 \| DCB bore dia (mm): 47.625 \| KWW keyway width (mm): 25.4 \| KDP keyway depth (mm): 13.5 \| CBDP mounting depth (mm): 38 \| Teeth: 10 \| Weight (kg): 9.1 \| Hand: Right \| Stock: Yes
APG4250R		DC (mm): 250 \| BD body dia (mm): 258 \| DCSFMS boss dia (mm): 200 \| LF length (mm): 70 \| DCB bore dia (mm): 47.625 \| KWW keyway width (mm): 25.4 \| KDP keyway depth (mm): 13.5 \| CBDP mounting depth (mm): 40 \| Teeth: 12 \| Weight (kg): 18.3 \| Hand: Right \| Stock: Yes
APG4315R		DC (mm): 315 \| BD body dia (mm): 323 \| DCSFMS boss dia (mm): 240 \| LF length (mm): 70 \| DCB bore dia (mm): 47.625 \| KWW keyway width (mm): 25.4 \| KDP keyway depth (mm): 13.5 \| CBDP mounting depth (mm): 40 \| Teeth: 16 \| Weight (kg): 27.6 \| Hand: Right \| Stock: Yes

Milling CuttersSumitomo Electric Hardmetal

7 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Ace Mill APG 4000 Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (7)

APG4080R, APG4100R, APG4125R, APG4160R, APG4200R, APG4250R, APG4315R

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	APG4080R	DC (mm): 80 \| BD body dia (mm): 90 \| DCSFMS boss dia (mm): 60 \| LF length (mm): 50 \| DCB bore dia (mm): 25.4 \| KWW keyway width (mm): 9.5 \| KDP keyway depth (mm): 6 \| CBDP mounting depth (mm): 25 \| Teeth: 5 \| Weight (kg): 1.6 \| Hand: Right \| Stock: Yes
	APG4100R	DC (mm): 100 \| BD body dia (mm): 110 \| DCSFMS boss dia (mm): 75 \| LF length (mm): 60 \| DCB bore dia (mm): 31.75 \| KWW keyway width (mm): 12.7 \| KDP keyway depth (mm): 8 \| CBDP mounting depth (mm): 32 \| Teeth: 5 \| Weight (kg): 2.7 \| Hand: Right \| Stock: Yes
	APG4125R	DC (mm): 125 \| BD body dia (mm): 134 \| DCSFMS boss dia (mm): 75 \| LF length (mm): 60 \| DCB bore dia (mm): 38.1 \| KWW keyway width (mm): 15.9 \| KDP keyway depth (mm): 10 \| CBDP mounting depth (mm): 38 \| Teeth: 6 \| Weight (kg): 4.0 \| Hand: Right \| Stock: Yes
	APG4160R	DC (mm): 160 \| BD body dia (mm): 169 \| DCSFMS boss dia (mm): 100 \| LF length (mm): 60 \| DCB bore dia (mm): 50.8 \| KWW keyway width (mm): 19.1 \| KDP keyway depth (mm): 11 \| CBDP mounting depth (mm): 38 \| Teeth: 8 \| Weight (kg): 6.5 \| Hand: Right \| Stock: Yes
	APG4200R	DC (mm): 200 \| BD body dia (mm): 208 \| DCSFMS boss dia (mm): 130 \| LF length (mm): 60 \| DCB bore dia (mm): 47.625 \| KWW keyway width (mm): 25.4 \| KDP keyway depth (mm): 13.5 \| CBDP mounting depth (mm): 38 \| Teeth: 10 \| Weight (kg): 9.1 \| Hand: Right \| Stock: Yes
	APG4250R	DC (mm): 250 \| BD body dia (mm): 258 \| DCSFMS boss dia (mm): 200 \| LF length (mm): 70 \| DCB bore dia (mm): 47.625 \| KWW keyway width (mm): 25.4 \| KDP keyway depth (mm): 13.5 \| CBDP mounting depth (mm): 40 \| Teeth: 12 \| Weight (kg): 18.3 \| Hand: Right \| Stock: Yes
	APG4315R	DC (mm): 315 \| BD body dia (mm): 323 \| DCSFMS boss dia (mm): 240 \| LF length (mm): 70 \| DCB bore dia (mm): 47.625 \| KWW keyway width (mm): 25.4 \| KDP keyway depth (mm): 13.5 \| CBDP mounting depth (mm): 40 \| Teeth: 16 \| Weight (kg): 27.6 \| Hand: Right \| Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →
