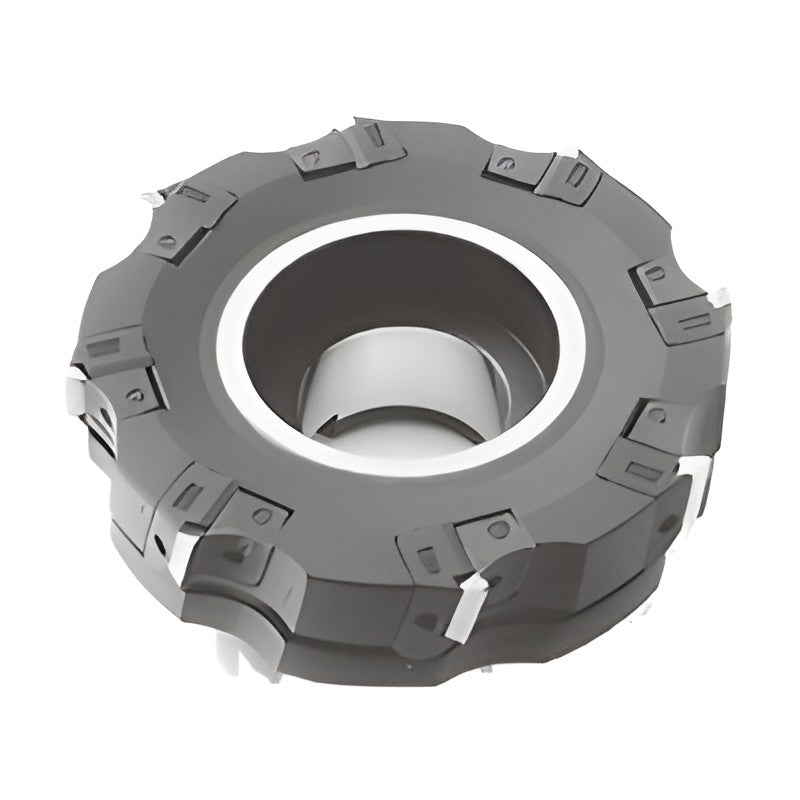

Sumitomo Electric Hardmetal SEC-Ace Mill CHG 4000 Shoulder Milling Cutter

Sumitomo Electric Hardmetal SEC-Ace Mill CHG 4000 Shoulder Milling Cutter

90 degree shoulder milling cutter of the SEC-Ace Mill series using TEEN/TEKN triangular inserts.

CHG4080R Cutting dia DC (mm): 80 | Body dia BD (mm): 78 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Teeth: 4 | Weight (kg): 1.3 | Stock: Yes
CHG4100R Cutting dia DC (mm): 100 | Body dia BD (mm): 96 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Teeth: 5 | Weight (kg): 2.0 | Stock: Yes
CHG4125R Cutting dia DC (mm): 125 | Body dia BD (mm): 120 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Teeth: 6 | Weight (kg): 3.1 | Stock: Yes
CHG4160R Cutting dia DC (mm): 160 | Body dia BD (mm): 154 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Teeth: 8 | Weight (kg): 5.3 | Stock: Yes
CHG4200R Cutting dia DC (mm): 200 | Body dia BD (mm): 193 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 13.5 | Counterbore depth CBDP (mm): 38 | Teeth: 10 | Weight (kg): 8.1 | Stock: Yes
CHG4250R Cutting dia DC (mm): 250 | Body dia BD (mm): 242 | Boss dia DCSFMS (mm): 180 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 13.5 | Counterbore depth CBDP (mm): 40 | Teeth: 12 | Weight (kg): 13.8 | Stock: Not marked
CHG4315R Cutting dia DC (mm): 315 | Body dia BD (mm): 307 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 13.5 | Counterbore depth CBDP (mm): 40 | Teeth: 14 | Weight (kg): 21.9 | Stock: Not marked
Milling CuttersSumitomo Electric Hardmetal
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Ace Mill CHG 4000 Shoulder Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (7)

CHG4080R, CHG4100R, CHG4125R, CHG4160R, CHG4200R, CHG4250R, CHG4315R

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CHG4080RCutting dia DC (mm): 80 | Body dia BD (mm): 78 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Teeth: 4 | Weight (kg): 1.3 | Stock: Yes
CHG4100RCutting dia DC (mm): 100 | Body dia BD (mm): 96 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Teeth: 5 | Weight (kg): 2.0 | Stock: Yes
CHG4125RCutting dia DC (mm): 125 | Body dia BD (mm): 120 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Teeth: 6 | Weight (kg): 3.1 | Stock: Yes
CHG4160RCutting dia DC (mm): 160 | Body dia BD (mm): 154 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Teeth: 8 | Weight (kg): 5.3 | Stock: Yes
CHG4200RCutting dia DC (mm): 200 | Body dia BD (mm): 193 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 13.5 | Counterbore depth CBDP (mm): 38 | Teeth: 10 | Weight (kg): 8.1 | Stock: Yes
CHG4250RCutting dia DC (mm): 250 | Body dia BD (mm): 242 | Boss dia DCSFMS (mm): 180 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 13.5 | Counterbore depth CBDP (mm): 40 | Teeth: 12 | Weight (kg): 13.8 | Stock: Not marked
CHG4315RCutting dia DC (mm): 315 | Body dia BD (mm): 307 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 13.5 | Counterbore depth CBDP (mm): 40 | Teeth: 14 | Weight (kg): 21.9 | Stock: Not marked
