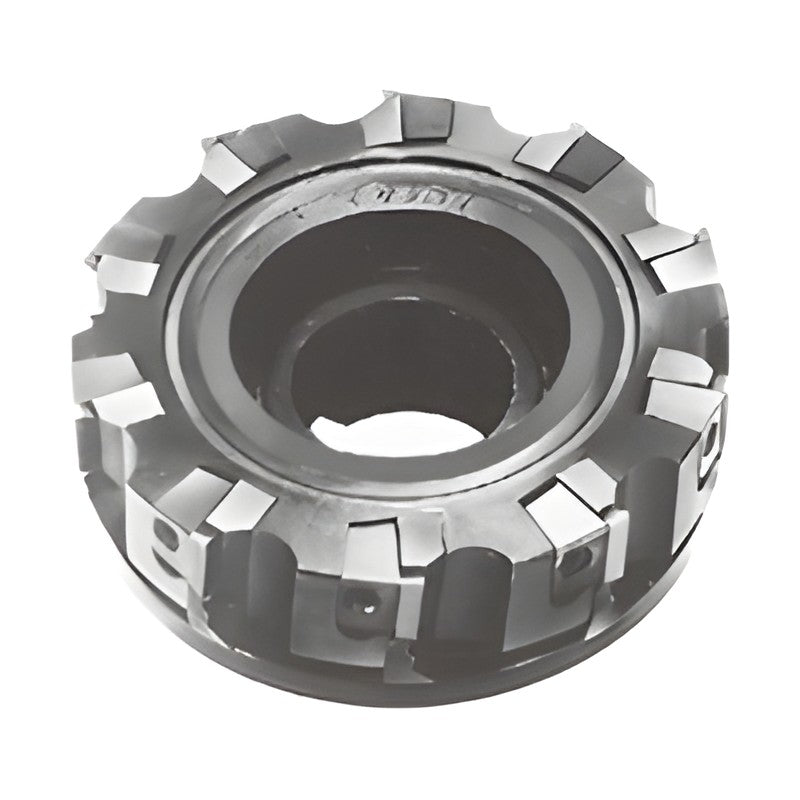

Sumitomo Electric Hardmetal SEC-Ace Mill CPG 4000 Milling Cutter

Sumitomo Electric Hardmetal SEC-Ace Mill CPG 4000 Milling Cutter

Milling cutter of the SEC-Ace Mill series using TPCH/TPMN triangular inserts.

CPG4080R Cutting dia DC (mm): 80 | Body dia BD (mm): 77 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Teeth: 5 | Weight (kg): 1.2 | Stock: Yes
CPG4100R Cutting dia DC (mm): 100 | Body dia BD (mm): 97 | Boss dia DCSFMS (mm): 75 | Height LF (mm): 60 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Teeth: 6 | Weight (kg): 2.0 | Stock: Yes
CPG4125R Cutting dia DC (mm): 125 | Body dia BD (mm): 121 | Boss dia DCSFMS (mm): 75 | Height LF (mm): 60 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Teeth: 8 | Weight (kg): 3.3 | Stock: Yes
CPG4160R Cutting dia DC (mm): 160 | Body dia BD (mm): 155 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 60 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Teeth: 10 | Weight (kg): 5.5 | Stock: Yes
CPG4200R Cutting dia DC (mm): 200 | Body dia BD (mm): 194 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 60 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 13.5 | Counterbore depth CBDP (mm): 38 | Teeth: 12 | Weight (kg): 8.6 | Stock: Yes
CPG4250R Cutting dia DC (mm): 250 | Body dia BD (mm): 243 | Boss dia DCSFMS (mm): 200 | Height LF (mm): 70 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 13.5 | Counterbore depth CBDP (mm): 52 | Teeth: 14 | Weight (kg): 17.9 | Stock: Not marked | Hand: Right
CPG4250L Cutting dia DC (mm): 250 | Body dia BD (mm): 243 | Boss dia DCSFMS (mm): 200 | Height LF (mm): 70 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 13.5 | Counterbore depth CBDP (mm): 52 | Teeth: 14 | Weight (kg): 17.9 | Stock: Not marked | Hand: Left
CPG4315R Cutting dia DC (mm): 315 | Body dia BD (mm): 308 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 70 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 13.5 | Counterbore depth CBDP (mm): 52 | Teeth: 18 | Weight (kg): 25.5 | Stock: Not marked | Hand: Right
CPG4315L Cutting dia DC (mm): 315 | Body dia BD (mm): 308 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 70 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 13.5 | Counterbore depth CBDP (mm): 52 | Teeth: 18 | Weight (kg): 25.5 | Stock: Not marked | Hand: Left
Milling CuttersSumitomo Electric Hardmetal
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Ace Mill CPG 4000 Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (9)

CPG4080R, CPG4100R, CPG4125R, CPG4160R, CPG4200R, CPG4250R, CPG4250L, CPG4315R, CPG4315L

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CPG4080RCutting dia DC (mm): 80 | Body dia BD (mm): 77 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Teeth: 5 | Weight (kg): 1.2 | Stock: Yes
CPG4100RCutting dia DC (mm): 100 | Body dia BD (mm): 97 | Boss dia DCSFMS (mm): 75 | Height LF (mm): 60 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Teeth: 6 | Weight (kg): 2.0 | Stock: Yes
CPG4125RCutting dia DC (mm): 125 | Body dia BD (mm): 121 | Boss dia DCSFMS (mm): 75 | Height LF (mm): 60 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Teeth: 8 | Weight (kg): 3.3 | Stock: Yes
CPG4160RCutting dia DC (mm): 160 | Body dia BD (mm): 155 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 60 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Teeth: 10 | Weight (kg): 5.5 | Stock: Yes
CPG4200RCutting dia DC (mm): 200 | Body dia BD (mm): 194 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 60 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 13.5 | Counterbore depth CBDP (mm): 38 | Teeth: 12 | Weight (kg): 8.6 | Stock: Yes
CPG4250RCutting dia DC (mm): 250 | Body dia BD (mm): 243 | Boss dia DCSFMS (mm): 200 | Height LF (mm): 70 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 13.5 | Counterbore depth CBDP (mm): 52 | Teeth: 14 | Weight (kg): 17.9 | Stock: Not marked | Hand: Right
CPG4250LCutting dia DC (mm): 250 | Body dia BD (mm): 243 | Boss dia DCSFMS (mm): 200 | Height LF (mm): 70 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 13.5 | Counterbore depth CBDP (mm): 52 | Teeth: 14 | Weight (kg): 17.9 | Stock: Not marked | Hand: Left
CPG4315RCutting dia DC (mm): 315 | Body dia BD (mm): 308 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 70 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 13.5 | Counterbore depth CBDP (mm): 52 | Teeth: 18 | Weight (kg): 25.5 | Stock: Not marked | Hand: Right
CPG4315LCutting dia DC (mm): 315 | Body dia BD (mm): 308 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 70 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 13.5 | Counterbore depth CBDP (mm): 52 | Teeth: 18 | Weight (kg): 25.5 | Stock: Not marked | Hand: Left
