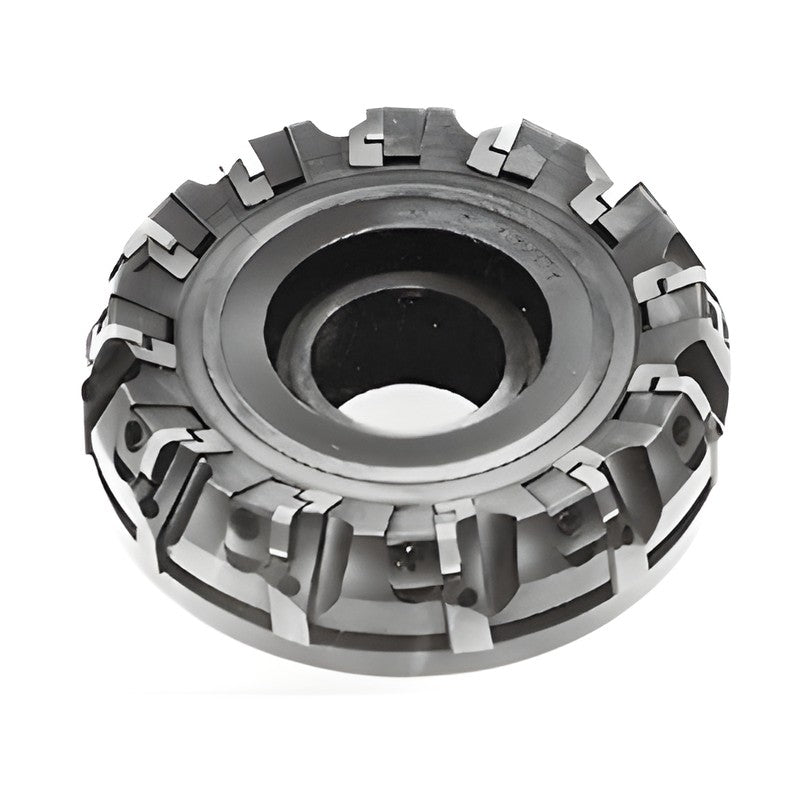

Sumitomo Electric Hardmetal SEC-Ace Mill DNF 4000 Milling Cutter

Sumitomo Electric Hardmetal SEC-Ace Mill DNF 4000 Milling Cutter

Indexable face milling cutter for cast iron using CSN/SNMN 43 type square inserts, with optional wiper insert NW 100.

Key features

  • Locator change to LNFW40R(L) required when using wiper inserts

Specifications

Insert Not included (sold separately)
DNF4080R DC (mm): 80 | BD body dia (mm): 96 | DCSFMS boss dia (mm): 60 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | Teeth: 6 | Weight (kg): 1.8 | Hand: Right | Stock: Yes
DNF4100R DC (mm): 100 | BD body dia (mm): 116 | DCSFMS boss dia (mm): 75 | LF length (mm): 60 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | Teeth: 8 | Weight (kg): 3.0 | Hand: Right | Stock: Yes
DNF4100L DC (mm): 100 | BD body dia (mm): 116 | DCSFMS boss dia (mm): 75 | LF length (mm): 60 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | Teeth: 8 | Weight (kg): 3.0 | Hand: Left | Stock: Yes
DNF4125R DC (mm): 125 | BD body dia (mm): 141 | DCSFMS boss dia (mm): 75 | LF length (mm): 60 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 38 | Teeth: 10 | Weight (kg): 4.3 | Hand: Right | Stock: Yes
DNF4160R DC (mm): 160 | BD body dia (mm): 176 | DCSFMS boss dia (mm): 100 | LF length (mm): 60 | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11 | CBDP mounting depth (mm): 38 | Teeth: 12 | Weight (kg): 6.8 | Hand: Right | Stock: Yes
DNF4200R DC (mm): 200 | BD body dia (mm): 216 | DCSFMS boss dia (mm): 130 | LF length (mm): 60 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 13.5 | CBDP mounting depth (mm): 36 | Teeth: 16 | Weight (kg): 9.8 | Hand: Right | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Ace Mill DNF 4000 Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (6)

DNF4080R, DNF4100R, DNF4100L, DNF4125R, DNF4160R, DNF4200R

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DNF4080RDC (mm): 80 | BD body dia (mm): 96 | DCSFMS boss dia (mm): 60 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | Teeth: 6 | Weight (kg): 1.8 | Hand: Right | Stock: Yes
DNF4100RDC (mm): 100 | BD body dia (mm): 116 | DCSFMS boss dia (mm): 75 | LF length (mm): 60 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | Teeth: 8 | Weight (kg): 3.0 | Hand: Right | Stock: Yes
DNF4100LDC (mm): 100 | BD body dia (mm): 116 | DCSFMS boss dia (mm): 75 | LF length (mm): 60 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | Teeth: 8 | Weight (kg): 3.0 | Hand: Left | Stock: Yes
DNF4125RDC (mm): 125 | BD body dia (mm): 141 | DCSFMS boss dia (mm): 75 | LF length (mm): 60 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 38 | Teeth: 10 | Weight (kg): 4.3 | Hand: Right | Stock: Yes
DNF4160RDC (mm): 160 | BD body dia (mm): 176 | DCSFMS boss dia (mm): 100 | LF length (mm): 60 | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11 | CBDP mounting depth (mm): 38 | Teeth: 12 | Weight (kg): 6.8 | Hand: Right | Stock: Yes
DNF4200RDC (mm): 200 | BD body dia (mm): 216 | DCSFMS boss dia (mm): 130 | LF length (mm): 60 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 13.5 | CBDP mounting depth (mm): 36 | Teeth: 16 | Weight (kg): 9.8 | Hand: Right | Stock: Yes
