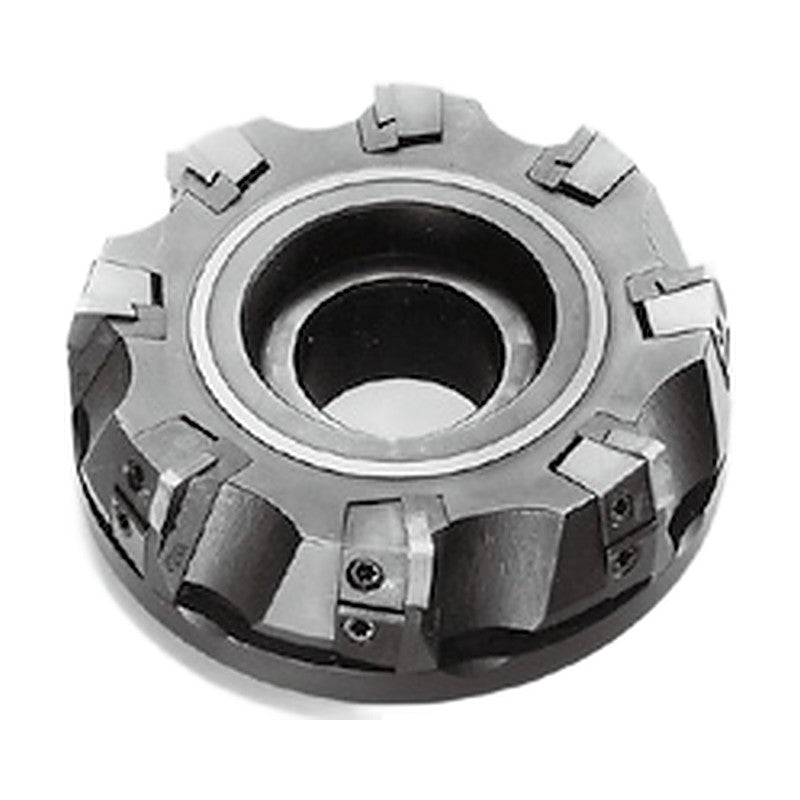

Sumitomo Electric Hardmetal SEC-Ace Mill DPGF 4000 Milling Cutter

Sumitomo Electric Hardmetal SEC-Ace Mill DPGF 4000 Milling Cutter

Indexable face milling cutter for SPCH/SPMN/SPG square inserts for face milling of steel and cast iron, with wiper inserts available (fine pitch version).

Specifications

Insert Not included (sold separately)
Pitch Fine pitch
DPGF4080R DC (mm): 80 | BD body dia (mm): 90 | DCSFMS boss dia (mm): 60 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | Teeth: 6 | Weight (kg): 1.5 | Hand: Right | Stock: Yes
DPGF4100R DC (mm): 105 | BD body dia (mm): 115 | DCSFMS boss dia (mm): 75 | LF length (mm): 60 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | Teeth: 8 | Weight (kg): 3.0 | Hand: Right | Stock: Yes
DPGF4125R DC (mm): 125 | BD body dia (mm): 135 | DCSFMS boss dia (mm): 75 | LF length (mm): 60 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 38 | Teeth: 10 | Weight (kg): 4.0 | Hand: Right | Stock: Yes
DPGF4160R DC (mm): 157 | BD body dia (mm): 167 | DCSFMS boss dia (mm): 100 | LF length (mm): 60 | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11 | CBDP mounting depth (mm): 38 | Teeth: 12 | Weight (kg): 6.1 | Hand: Right | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Ace Mill DPGF 4000 Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (4)

DPGF4080R, DPGF4100R, DPGF4125R, DPGF4160R

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DPGF4080RDC (mm): 80 | BD body dia (mm): 90 | DCSFMS boss dia (mm): 60 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | Teeth: 6 | Weight (kg): 1.5 | Hand: Right | Stock: Yes
DPGF4100RDC (mm): 105 | BD body dia (mm): 115 | DCSFMS boss dia (mm): 75 | LF length (mm): 60 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | Teeth: 8 | Weight (kg): 3.0 | Hand: Right | Stock: Yes
DPGF4125RDC (mm): 125 | BD body dia (mm): 135 | DCSFMS boss dia (mm): 75 | LF length (mm): 60 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 38 | Teeth: 10 | Weight (kg): 4.0 | Hand: Right | Stock: Yes
DPGF4160RDC (mm): 157 | BD body dia (mm): 167 | DCSFMS boss dia (mm): 100 | LF length (mm): 60 | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11 | CBDP mounting depth (mm): 38 | Teeth: 12 | Weight (kg): 6.1 | Hand: Right | Stock: Yes
