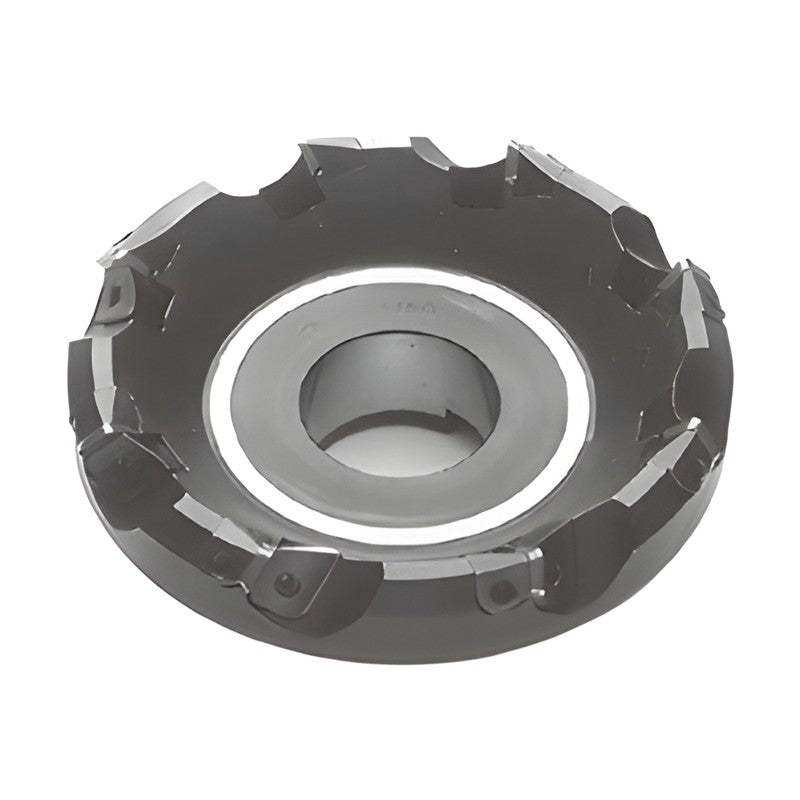

Sumitomo Electric Hardmetal SEC-Ace Mill EHG 4000 Milling Cutter

Sumitomo Electric Hardmetal SEC-Ace Mill EHG 4000 Milling Cutter

Indexable face milling cutter for SE-type square inserts (SEKN/SEEN/SECN etc.) for face milling of steel, cast iron and non-ferrous metals.

Specifications

Insert Not included (sold separately)
EHG4080R DC (mm): 80 | DCX max cutting dia (mm): 95 | DCSFMS boss dia (mm): 60 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | Teeth: 4 | Weight (kg): 1.3 | Stock: Yes
EHG4100R DC (mm): 100 | DCX max cutting dia (mm): 114 | DCSFMS boss dia (mm): 70 | LF length (mm): 50 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | Teeth: 5 | Weight (kg): 2.0 | Stock: Yes
EHG4125R DC (mm): 125 | DCX max cutting dia (mm): 138 | DCSFMS boss dia (mm): 75 | LF length (mm): 63 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 38 | Teeth: 6 | Weight (kg): 3.3 | Stock: Yes
EHG4160R DC (mm): 160 | DCX max cutting dia (mm): 173 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11 | CBDP mounting depth (mm): 38 | Teeth: 8 | Weight (kg): 4.8 | Stock: Yes
EHG4200R DC (mm): 200 | DCX max cutting dia (mm): 213 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 13.5 | CBDP mounting depth (mm): 35 | Teeth: 10 | Weight (kg): 7.1 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Ace Mill EHG 4000 Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (5)

EHG4080R, EHG4100R, EHG4125R, EHG4160R, EHG4200R

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EHG4080RDC (mm): 80 | DCX max cutting dia (mm): 95 | DCSFMS boss dia (mm): 60 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | Teeth: 4 | Weight (kg): 1.3 | Stock: Yes
EHG4100RDC (mm): 100 | DCX max cutting dia (mm): 114 | DCSFMS boss dia (mm): 70 | LF length (mm): 50 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | Teeth: 5 | Weight (kg): 2.0 | Stock: Yes
EHG4125RDC (mm): 125 | DCX max cutting dia (mm): 138 | DCSFMS boss dia (mm): 75 | LF length (mm): 63 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 38 | Teeth: 6 | Weight (kg): 3.3 | Stock: Yes
EHG4160RDC (mm): 160 | DCX max cutting dia (mm): 173 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11 | CBDP mounting depth (mm): 38 | Teeth: 8 | Weight (kg): 4.8 | Stock: Yes
EHG4200RDC (mm): 200 | DCX max cutting dia (mm): 213 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 13.5 | CBDP mounting depth (mm): 35 | Teeth: 10 | Weight (kg): 7.1 | Stock: Yes
