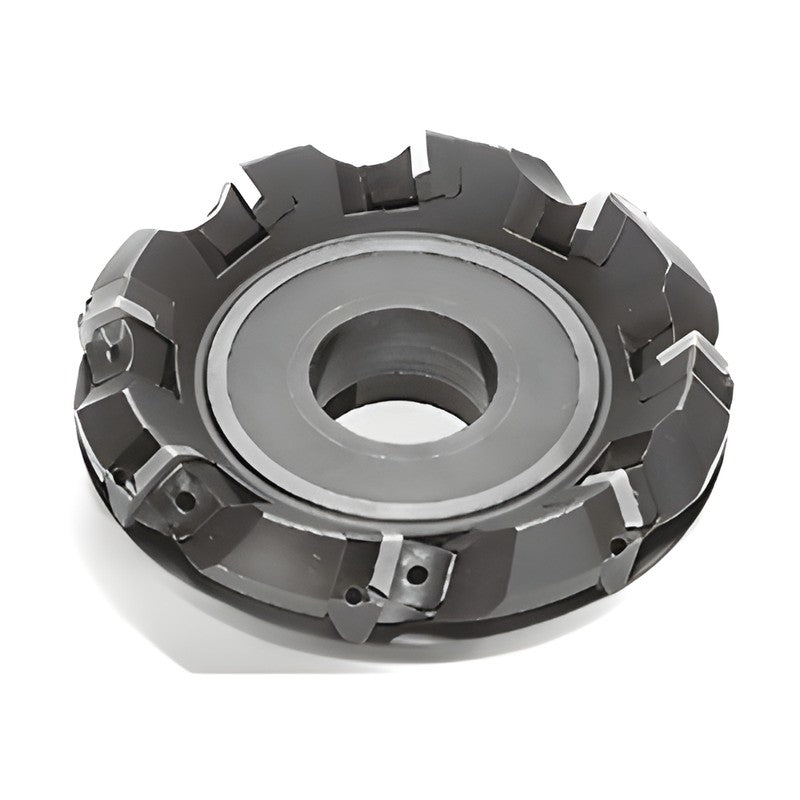

Sumitomo Electric Hardmetal SEC-Ace Mill FPG 4000 Milling Cutter

Sumitomo Electric Hardmetal SEC-Ace Mill FPG 4000 Milling Cutter

Indexable face milling cutter with 45-degree lead angle using SD-type square inserts (SDKN/SDEX/SDMR etc.) for steel, stainless steel, cast iron and non-ferrous metals.

Key features

  • 45-degree lead angle face mill
  • Locator and clamp design with replaceable locators
  • T-wrenches TH030/TH040 supplied as standard accessories

Specifications

Insert Not included (sold separately)
FPG4080R DC (mm): 80 | BD body dia (mm): 104 | DCSFMS boss dia (mm): 60 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | Teeth: 4 | Weight (kg): 1.9 | Hand: Right | Stock: Yes
FPG4080L DC (mm): 80 | BD body dia (mm): 104 | DCSFMS boss dia (mm): 60 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | Teeth: 4 | Weight (kg): 1.9 | Hand: Left | Stock: Yes
FPG4100R DC (mm): 100 | BD body dia (mm): 124 | DCSFMS boss dia (mm): 70 | LF length (mm): 60 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | Teeth: 5 | Weight (kg): 3.0 | Hand: Right | Stock: Yes
FPG4125R DC (mm): 125 | BD body dia (mm): 148 | DCSFMS boss dia (mm): 105 | LF length (mm): 60 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 38 | Teeth: 6 | Weight (kg): 4.5 | Hand: Right | Stock: Yes
FPG4125L DC (mm): 125 | BD body dia (mm): 148 | DCSFMS boss dia (mm): 105 | LF length (mm): 60 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 38 | Teeth: 6 | Weight (kg): 4.5 | Hand: Left | Stock: Yes
FPG4160R DC (mm): 160 | BD body dia (mm): 182 | DCSFMS boss dia (mm): 135 | LF length (mm): 60 | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11 | CBDP mounting depth (mm): 38 | Teeth: 8 | Weight (kg): 6.7 | Hand: Right | Stock: Yes
FPG4160L DC (mm): 160 | BD body dia (mm): 182 | DCSFMS boss dia (mm): 135 | LF length (mm): 60 | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11 | CBDP mounting depth (mm): 38 | Teeth: 8 | Weight (kg): 6.7 | Hand: Left | Stock: Yes
FPG4200R DC (mm): 200 | BD body dia (mm): 221 | DCSFMS boss dia (mm): 130 | LF length (mm): 60 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 13.5 | CBDP mounting depth (mm): 40 | Teeth: 10 | Weight (kg): 9.4 | Hand: Right | Stock: Yes
FPG4250R DC (mm): 250 | BD body dia (mm): 271 | DCSFMS boss dia (mm): 130 | LF length (mm): 70 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 13.5 | CBDP mounting depth (mm): 40 | Teeth: 12 | Weight (kg): 16.2 | Hand: Right | Stock: Yes
FPG4315R DC (mm): 315 | BD body dia (mm): 335 | DCSFMS boss dia (mm): 240 | LF length (mm): 70 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 13.5 | CBDP mounting depth (mm): 40 | Teeth: 14 | Weight (kg): 24.6 | Hand: Right | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Ace Mill FPG 4000 Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (10)

FPG4080R, FPG4080L, FPG4100R, FPG4125R, FPG4125L, FPG4160R, FPG4160L, FPG4200R, FPG4250R, FPG4315R

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FPG4080RDC (mm): 80 | BD body dia (mm): 104 | DCSFMS boss dia (mm): 60 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | Teeth: 4 | Weight (kg): 1.9 | Hand: Right | Stock: Yes
FPG4080LDC (mm): 80 | BD body dia (mm): 104 | DCSFMS boss dia (mm): 60 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | Teeth: 4 | Weight (kg): 1.9 | Hand: Left | Stock: Yes
FPG4100RDC (mm): 100 | BD body dia (mm): 124 | DCSFMS boss dia (mm): 70 | LF length (mm): 60 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | Teeth: 5 | Weight (kg): 3.0 | Hand: Right | Stock: Yes
FPG4125RDC (mm): 125 | BD body dia (mm): 148 | DCSFMS boss dia (mm): 105 | LF length (mm): 60 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 38 | Teeth: 6 | Weight (kg): 4.5 | Hand: Right | Stock: Yes
FPG4125LDC (mm): 125 | BD body dia (mm): 148 | DCSFMS boss dia (mm): 105 | LF length (mm): 60 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 38 | Teeth: 6 | Weight (kg): 4.5 | Hand: Left | Stock: Yes
FPG4160RDC (mm): 160 | BD body dia (mm): 182 | DCSFMS boss dia (mm): 135 | LF length (mm): 60 | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11 | CBDP mounting depth (mm): 38 | Teeth: 8 | Weight (kg): 6.7 | Hand: Right | Stock: Yes
FPG4160LDC (mm): 160 | BD body dia (mm): 182 | DCSFMS boss dia (mm): 135 | LF length (mm): 60 | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11 | CBDP mounting depth (mm): 38 | Teeth: 8 | Weight (kg): 6.7 | Hand: Left | Stock: Yes
FPG4200RDC (mm): 200 | BD body dia (mm): 221 | DCSFMS boss dia (mm): 130 | LF length (mm): 60 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 13.5 | CBDP mounting depth (mm): 40 | Teeth: 10 | Weight (kg): 9.4 | Hand: Right | Stock: Yes
FPG4250RDC (mm): 250 | BD body dia (mm): 271 | DCSFMS boss dia (mm): 130 | LF length (mm): 70 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 13.5 | CBDP mounting depth (mm): 40 | Teeth: 12 | Weight (kg): 16.2 | Hand: Right | Stock: Yes
FPG4315RDC (mm): 315 | BD body dia (mm): 335 | DCSFMS boss dia (mm): 240 | LF length (mm): 70 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 13.5 | CBDP mounting depth (mm): 40 | Teeth: 14 | Weight (kg): 24.6 | Hand: Right | Stock: Yes
