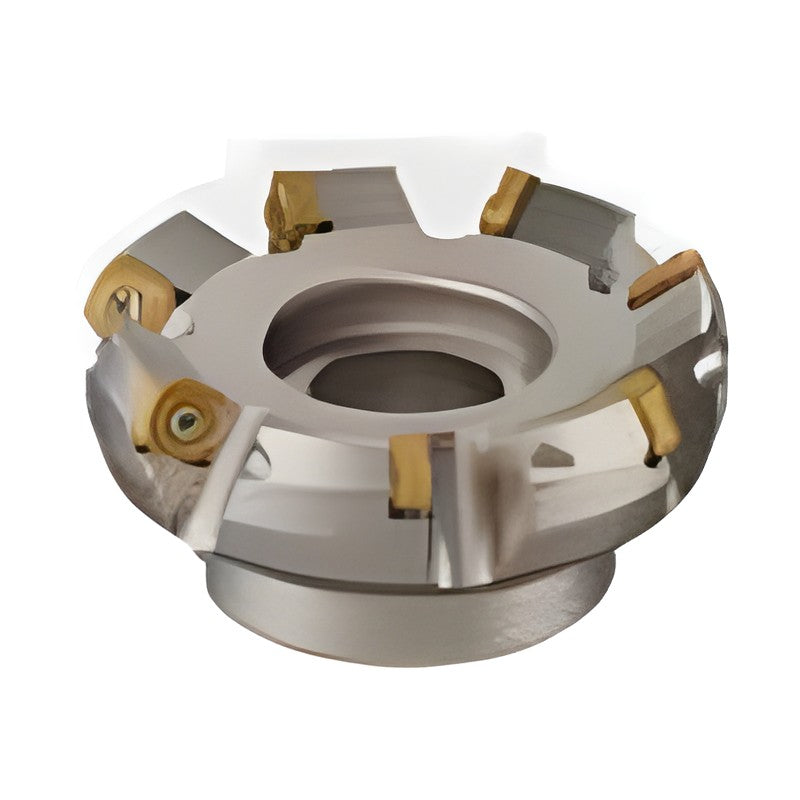

Sumitomo Electric Hardmetal SEC-DNX 12000 Milling Cutter

Sumitomo Electric Hardmetal SEC-DNX 12000 Milling Cutter

High-efficiency face milling cutter for cast iron and cast steel using double-negative SNMT 1205 inserts with 8 usable corners and depth of cut up to 8 mm.

Key features

  • Depth of cut up to 8 mm for high-efficiency machining
  • Double-negative body with high-strength negative insert breaker
  • 8 usable corners per insert
  • Three body types from general-purpose to high-feed

Specifications

Insert Not included (sold separately)
DNX12080RS DC (mm): 80 | DCX max cutting dia (mm): 88 | DCSFMS boss dia (mm): 60 | LF length (mm): 50 | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7 | CBDP mounting depth (mm): 25 | D1 (mm): 13.5 | Teeth: 6 | Effective teeth: 6 | Weight (kg): 1.2 | Stock: Yes
DNX12100RS DC (mm): 100 | DCX max cutting dia (mm): 108 | DCSFMS boss dia (mm): 80 | LF length (mm): 50 | DCB bore dia (mm): 32 | KWW keyway width (mm): 14.4 | KDP keyway depth (mm): 8.5 | CBDP mounting depth (mm): 29 | D1 (mm): 46 | Teeth: 7 | Effective teeth: 7 | Weight (kg): 1.6 | Stock: Yes
DNX12125RS DC (mm): 125 | DCX max cutting dia (mm): 133 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9.5 | CBDP mounting depth (mm): 29 | D1 (mm): 56 | Teeth: 8 | Effective teeth: 8 | Weight (kg): 2.8 | Stock: Yes
DNX12160RS DC (mm): 160 | DCX max cutting dia (mm): 168 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9.5 | CBDP mounting depth (mm): 29 | D1 (mm): 88 | Teeth: 10 | Effective teeth: 10 | Weight (kg): 4.4 | Stock: Yes
DNX12080R DC (mm): 80 | DCX max cutting dia (mm): 88 | DCSFMS boss dia (mm): 60 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | D1 (mm): 13 | Teeth: 6 | Effective teeth: 6 | Weight (kg): 1.2 | Stock: Yes
DNX12100R DC (mm): 100 | DCX max cutting dia (mm): 108 | DCSFMS boss dia (mm): 70 | LF length (mm): 50 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | Teeth: 7 | Effective teeth: 7 | Weight (kg): 1.6 | Stock: Yes
DNX12125R DC (mm): 125 | DCX max cutting dia (mm): 133 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 38 | D1 (mm): 56 | Teeth: 8 | Effective teeth: 8 | Weight (kg): 2.8 | Stock: Yes
DNX12160R DC (mm): 160 | DCX max cutting dia (mm): 168 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11 | CBDP mounting depth (mm): 38 | D1 (mm): 72 | Teeth: 10 | Effective teeth: 10 | Weight (kg): 4.4 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-DNX 12000 Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (8)

DNX12080RS, DNX12100RS, DNX12125RS, DNX12160RS, DNX12080R, DNX12100R, DNX12125R, DNX12160R

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DNX12080RSDC (mm): 80 | DCX max cutting dia (mm): 88 | DCSFMS boss dia (mm): 60 | LF length (mm): 50 | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7 | CBDP mounting depth (mm): 25 | D1 (mm): 13.5 | Teeth: 6 | Effective teeth: 6 | Weight (kg): 1.2 | Stock: Yes
DNX12100RSDC (mm): 100 | DCX max cutting dia (mm): 108 | DCSFMS boss dia (mm): 80 | LF length (mm): 50 | DCB bore dia (mm): 32 | KWW keyway width (mm): 14.4 | KDP keyway depth (mm): 8.5 | CBDP mounting depth (mm): 29 | D1 (mm): 46 | Teeth: 7 | Effective teeth: 7 | Weight (kg): 1.6 | Stock: Yes
DNX12125RSDC (mm): 125 | DCX max cutting dia (mm): 133 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9.5 | CBDP mounting depth (mm): 29 | D1 (mm): 56 | Teeth: 8 | Effective teeth: 8 | Weight (kg): 2.8 | Stock: Yes
DNX12160RSDC (mm): 160 | DCX max cutting dia (mm): 168 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9.5 | CBDP mounting depth (mm): 29 | D1 (mm): 88 | Teeth: 10 | Effective teeth: 10 | Weight (kg): 4.4 | Stock: Yes
DNX12080RDC (mm): 80 | DCX max cutting dia (mm): 88 | DCSFMS boss dia (mm): 60 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | D1 (mm): 13 | Teeth: 6 | Effective teeth: 6 | Weight (kg): 1.2 | Stock: Yes
DNX12100RDC (mm): 100 | DCX max cutting dia (mm): 108 | DCSFMS boss dia (mm): 70 | LF length (mm): 50 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | Teeth: 7 | Effective teeth: 7 | Weight (kg): 1.6 | Stock: Yes
DNX12125RDC (mm): 125 | DCX max cutting dia (mm): 133 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 38 | D1 (mm): 56 | Teeth: 8 | Effective teeth: 8 | Weight (kg): 2.8 | Stock: Yes
DNX12160RDC (mm): 160 | DCX max cutting dia (mm): 168 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11 | CBDP mounting depth (mm): 38 | D1 (mm): 72 | Teeth: 10 | Effective teeth: 10 | Weight (kg): 4.4 | Stock: Yes
