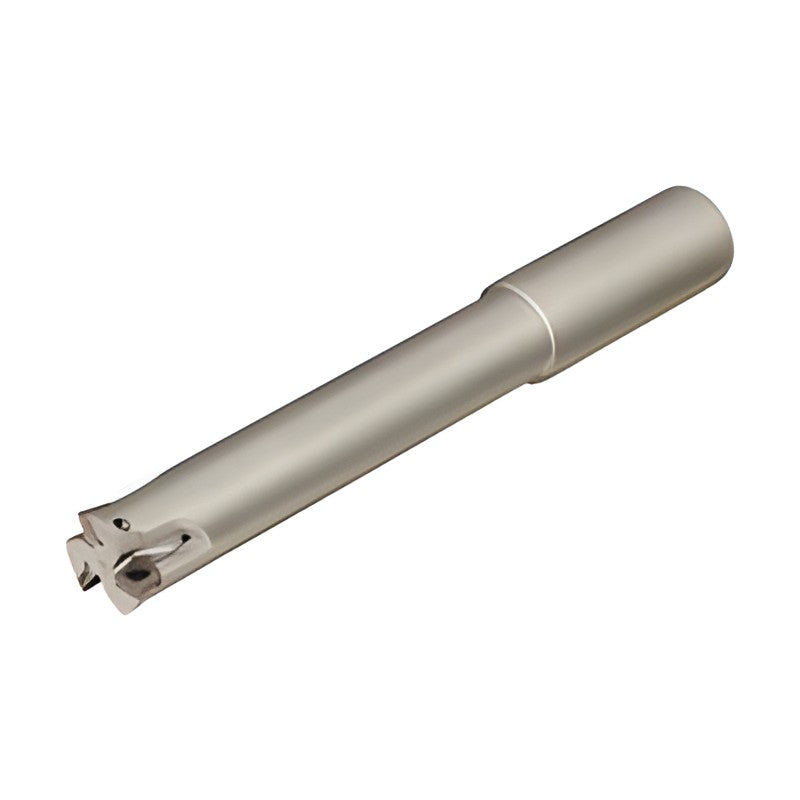

Sumitomo Electric Hardmetal SEC Flat Drill PDL Type 2D/3D (Internal Coolant)

Sumitomo Electric Hardmetal SEC Flat Drill PDL Type 2D/3D (Internal Coolant)

Flat-bottom indexable drill with a center edge for pocketing, radial cutting, peck feed and hole making, using WDXT inserts.

Key features

  • Flat drill point gives a nearly flat hole bottom
  • Internal coolant on all sizes
  • Special surface treatment for body durability
  • Drilling depth 2xD and 3xD
PDL160D2S20 Drilling depth: 2xD | DC (mm): 16.0 | LU (mm): 32 | LUX (mm): 35 | LPR (mm): 50 | OAL (mm): 94 | LS (mm): 44 | DCSFMS (mm): 28 | DCON (mm): 20 | Insert: WDXT052504 | Stock: Yes
PDL200D2S25 Drilling depth: 2xD | DC (mm): 20.0 | LU (mm): 40 | LUX (mm): 43 | LPR (mm): 58 | OAL (mm): 114 | LS (mm): 56 | DCSFMS (mm): 33 | DCON (mm): 25 | Insert: WDXT063006 | Stock: Yes
PDL250D2S25 Drilling depth: 2xD | DC (mm): 25.0 | LU (mm): 50 | LUX (mm): 53 | LPR (mm): 71 | OAL (mm): 127 | LS (mm): 56 | DCSFMS (mm): 37 | DCON (mm): 25 | Insert: WDXT073506 | Stock: Yes
PDL320D2S40 Drilling depth: 2xD | DC (mm): 32.0 | LU (mm): 64 | LUX (mm): 68 | LPR (mm): 92 | OAL (mm): 162 | LS (mm): 70 | DCSFMS (mm): 54 | DCON (mm): 40 | Insert: WDXT094008 | Stock: Yes
PDL400D2S40 Drilling depth: 2xD | DC (mm): 40.0 | LU (mm): 80 | LUX (mm): 85 | LPR (mm): 115 | OAL (mm): 185 | LS (mm): 70 | DCSFMS (mm): 54 | DCON (mm): 40 | Insert: WDXT125012 | Stock: Yes
PDL160D3S20 Drilling depth: 3xD | DC (mm): 16.0 | LU (mm): 48 | LUX (mm): 51 | LPR (mm): 66 | OAL (mm): 110 | LS (mm): 44 | DCSFMS (mm): 28 | DCON (mm): 20 | Insert: WDXT052504 | Stock: Yes
PDL200D3S25 Drilling depth: 3xD | DC (mm): 20.0 | LU (mm): 60 | LUX (mm): 63 | LPR (mm): 78 | OAL (mm): 134 | LS (mm): 56 | DCSFMS (mm): 33 | DCON (mm): 25 | Insert: WDXT063006 | Stock: Yes
PDL250D3S25 Drilling depth: 3xD | DC (mm): 25.0 | LU (mm): 75 | LUX (mm): 78 | LPR (mm): 96 | OAL (mm): 152 | LS (mm): 56 | DCSFMS (mm): 37 | DCON (mm): 25 | Insert: WDXT073506 | Stock: Yes
PDL320D3S40 Drilling depth: 3xD | DC (mm): 32.0 | LU (mm): 96 | LUX (mm): 100 | LPR (mm): 124 | OAL (mm): 194 | LS (mm): 70 | DCSFMS (mm): 54 | DCON (mm): 40 | Insert: WDXT094008 | Stock: Yes
PDL400D3S40 Drilling depth: 3xD | DC (mm): 40.0 | LU (mm): 120 | LUX (mm): 125 | LPR (mm): 155 | OAL (mm): 225 | LS (mm): 70 | DCSFMS (mm): 54 | DCON (mm): 40 | Insert: WDXT125012 | Stock: Yes
DrillsSumitomo Electric Hardmetal
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC Flat Drill PDL Type 2D/3D (Internal Coolant)

Brand Sumitomo Electric Hardmetal·Drills

Available part numbers (10)

PDL160D2S20, PDL200D2S25, PDL250D2S25, PDL320D2S40, PDL400D2S40, PDL160D3S20, PDL200D3S25, PDL250D3S25, PDL320D3S40, PDL400D3S40

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PDL160D2S20Drilling depth: 2xD | DC (mm): 16.0 | LU (mm): 32 | LUX (mm): 35 | LPR (mm): 50 | OAL (mm): 94 | LS (mm): 44 | DCSFMS (mm): 28 | DCON (mm): 20 | Insert: WDXT052504 | Stock: Yes
PDL200D2S25Drilling depth: 2xD | DC (mm): 20.0 | LU (mm): 40 | LUX (mm): 43 | LPR (mm): 58 | OAL (mm): 114 | LS (mm): 56 | DCSFMS (mm): 33 | DCON (mm): 25 | Insert: WDXT063006 | Stock: Yes
PDL250D2S25Drilling depth: 2xD | DC (mm): 25.0 | LU (mm): 50 | LUX (mm): 53 | LPR (mm): 71 | OAL (mm): 127 | LS (mm): 56 | DCSFMS (mm): 37 | DCON (mm): 25 | Insert: WDXT073506 | Stock: Yes
PDL320D2S40Drilling depth: 2xD | DC (mm): 32.0 | LU (mm): 64 | LUX (mm): 68 | LPR (mm): 92 | OAL (mm): 162 | LS (mm): 70 | DCSFMS (mm): 54 | DCON (mm): 40 | Insert: WDXT094008 | Stock: Yes
PDL400D2S40Drilling depth: 2xD | DC (mm): 40.0 | LU (mm): 80 | LUX (mm): 85 | LPR (mm): 115 | OAL (mm): 185 | LS (mm): 70 | DCSFMS (mm): 54 | DCON (mm): 40 | Insert: WDXT125012 | Stock: Yes
PDL160D3S20Drilling depth: 3xD | DC (mm): 16.0 | LU (mm): 48 | LUX (mm): 51 | LPR (mm): 66 | OAL (mm): 110 | LS (mm): 44 | DCSFMS (mm): 28 | DCON (mm): 20 | Insert: WDXT052504 | Stock: Yes
PDL200D3S25Drilling depth: 3xD | DC (mm): 20.0 | LU (mm): 60 | LUX (mm): 63 | LPR (mm): 78 | OAL (mm): 134 | LS (mm): 56 | DCSFMS (mm): 33 | DCON (mm): 25 | Insert: WDXT063006 | Stock: Yes
PDL250D3S25Drilling depth: 3xD | DC (mm): 25.0 | LU (mm): 75 | LUX (mm): 78 | LPR (mm): 96 | OAL (mm): 152 | LS (mm): 56 | DCSFMS (mm): 37 | DCON (mm): 25 | Insert: WDXT073506 | Stock: Yes
PDL320D3S40Drilling depth: 3xD | DC (mm): 32.0 | LU (mm): 96 | LUX (mm): 100 | LPR (mm): 124 | OAL (mm): 194 | LS (mm): 70 | DCSFMS (mm): 54 | DCON (mm): 40 | Insert: WDXT094008 | Stock: Yes
PDL400D3S40Drilling depth: 3xD | DC (mm): 40.0 | LU (mm): 120 | LUX (mm): 125 | LPR (mm): 155 | OAL (mm): 225 | LS (mm): 70 | DCSFMS (mm): 54 | DCON (mm): 40 | Insert: WDXT125012 | Stock: Yes
