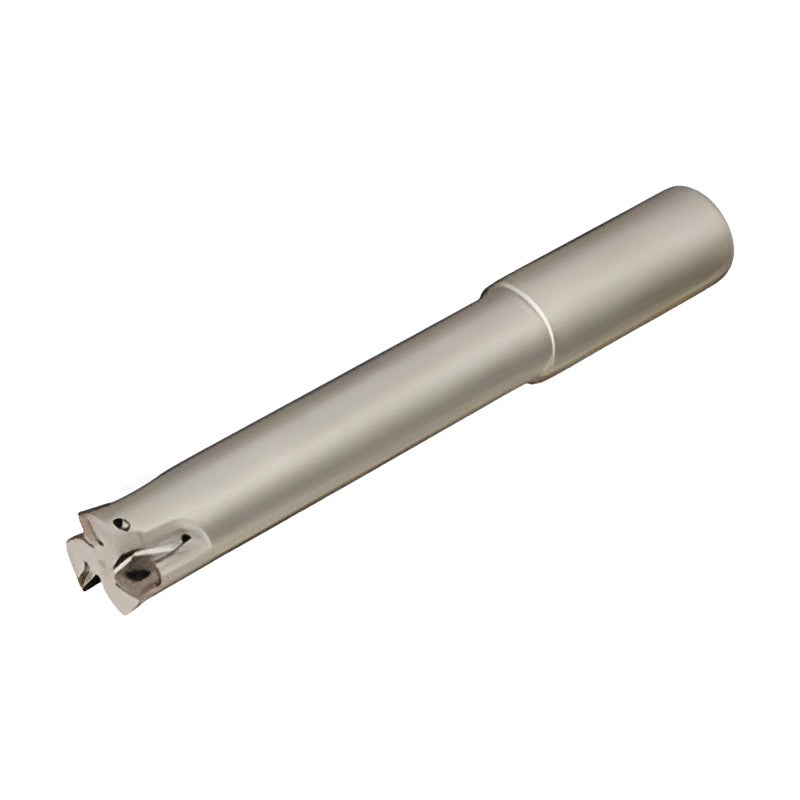

Sumitomo Electric Hardmetal SEC Flat Mill PCT Type 3D/5D (Internal Coolant)

Flat-bottom indexable mill without center edge, with multiple effective teeth for high-efficiency corner, hole-enlarging and deep-hole machining, using WDXT inserts.

Key features

Multiple effective teeth for high-efficiency machining
Internal coolant
Depth of 3xD and 5xD

PCT160D3S16		Machining depth: 3xD \| DC (mm): 16.0 \| ae max (mm): 4.0 \| LH (mm): 53 \| OAL (mm): 123 \| LS (mm): 70 \| DCON (mm): 16 \| Number of teeth: 2 \| Insert: WDXT052504 \| Stock: Yes
PCT200D3S20		Machining depth: 3xD \| DC (mm): 20.0 \| ae max (mm): 5.0 \| LH (mm): 65 \| OAL (mm): 145 \| LS (mm): 80 \| DCON (mm): 20 \| Number of teeth: 2 \| Insert: WDXT063006 \| Stock: Yes
PCT250D3S25		Machining depth: 3xD \| DC (mm): 25.0 \| ae max (mm): 6.5 \| LH (mm): 80 \| OAL (mm): 160 \| LS (mm): 80 \| DCON (mm): 25 \| Number of teeth: 2 \| Insert: WDXT073506 \| Stock: Yes
PCT320D3S32		Machining depth: 3xD \| DC (mm): 32.0 \| ae max (mm): 8.5 \| LH (mm): 101 \| OAL (mm): 191 \| LS (mm): 90 \| DCON (mm): 32 \| Number of teeth: 2 \| Insert: WDXT094008 \| Stock: Yes
PCT400D3S42		Machining depth: 3xD \| DC (mm): 40.0 \| ae max (mm): 11.0 \| LH (mm): 125 \| OAL (mm): 225 \| LS (mm): 100 \| DCON (mm): 42 \| Number of teeth: 3 \| Insert: WDXT125012 \| Stock: Yes
PCT160D5S16		Machining depth: 5xD \| DC (mm): 16.0 \| ae max (mm): 4.0 \| LH (mm): 85 \| OAL (mm): 155 \| LS (mm): 70 \| DCON (mm): 16 \| Number of teeth: 2 \| Insert: WDXT052504 \| Stock: Yes
PCT200D5S20		Machining depth: 5xD \| DC (mm): 20.0 \| ae max (mm): 5.0 \| LH (mm): 105 \| OAL (mm): 185 \| LS (mm): 80 \| DCON (mm): 20 \| Number of teeth: 2 \| Insert: WDXT063006 \| Stock: Yes
PCT250D5S25		Machining depth: 5xD \| DC (mm): 25.0 \| ae max (mm): 6.5 \| LH (mm): 130 \| OAL (mm): 210 \| LS (mm): 80 \| DCON (mm): 25 \| Number of teeth: 2 \| Insert: WDXT073506 \| Stock: Yes
PCT320D5S32		Machining depth: 5xD \| DC (mm): 32.0 \| ae max (mm): 8.5 \| LH (mm): 165 \| OAL (mm): 255 \| LS (mm): 90 \| DCON (mm): 32 \| Number of teeth: 2 \| Insert: WDXT094008 \| Stock: Yes
PCT400D5S42		Machining depth: 5xD \| DC (mm): 40.0 \| ae max (mm): 11.0 \| LH (mm): 205 \| OAL (mm): 305 \| LS (mm): 100 \| DCON (mm): 42 \| Number of teeth: 3 \| Insert: WDXT125012 \| Stock: Yes

Milling CuttersSumitomo Electric Hardmetal

10 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC Flat Mill PCT Type 3D/5D (Internal Coolant)

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (10)

PCT160D3S16, PCT200D3S20, PCT250D3S25, PCT320D3S32, PCT400D3S42, PCT160D5S16, PCT200D5S20, PCT250D5S25, PCT320D5S32, PCT400D5S42

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

	Product code	Spec
	PCT160D3S16	Machining depth: 3xD \| DC (mm): 16.0 \| ae max (mm): 4.0 \| LH (mm): 53 \| OAL (mm): 123 \| LS (mm): 70 \| DCON (mm): 16 \| Number of teeth: 2 \| Insert: WDXT052504 \| Stock: Yes
	PCT200D3S20	Machining depth: 3xD \| DC (mm): 20.0 \| ae max (mm): 5.0 \| LH (mm): 65 \| OAL (mm): 145 \| LS (mm): 80 \| DCON (mm): 20 \| Number of teeth: 2 \| Insert: WDXT063006 \| Stock: Yes
	PCT250D3S25	Machining depth: 3xD \| DC (mm): 25.0 \| ae max (mm): 6.5 \| LH (mm): 80 \| OAL (mm): 160 \| LS (mm): 80 \| DCON (mm): 25 \| Number of teeth: 2 \| Insert: WDXT073506 \| Stock: Yes
	PCT320D3S32	Machining depth: 3xD \| DC (mm): 32.0 \| ae max (mm): 8.5 \| LH (mm): 101 \| OAL (mm): 191 \| LS (mm): 90 \| DCON (mm): 32 \| Number of teeth: 2 \| Insert: WDXT094008 \| Stock: Yes
	PCT400D3S42	Machining depth: 3xD \| DC (mm): 40.0 \| ae max (mm): 11.0 \| LH (mm): 125 \| OAL (mm): 225 \| LS (mm): 100 \| DCON (mm): 42 \| Number of teeth: 3 \| Insert: WDXT125012 \| Stock: Yes
	PCT160D5S16	Machining depth: 5xD \| DC (mm): 16.0 \| ae max (mm): 4.0 \| LH (mm): 85 \| OAL (mm): 155 \| LS (mm): 70 \| DCON (mm): 16 \| Number of teeth: 2 \| Insert: WDXT052504 \| Stock: Yes
	PCT200D5S20	Machining depth: 5xD \| DC (mm): 20.0 \| ae max (mm): 5.0 \| LH (mm): 105 \| OAL (mm): 185 \| LS (mm): 80 \| DCON (mm): 20 \| Number of teeth: 2 \| Insert: WDXT063006 \| Stock: Yes
	PCT250D5S25	Machining depth: 5xD \| DC (mm): 25.0 \| ae max (mm): 6.5 \| LH (mm): 130 \| OAL (mm): 210 \| LS (mm): 80 \| DCON (mm): 25 \| Number of teeth: 2 \| Insert: WDXT073506 \| Stock: Yes
	PCT320D5S32	Machining depth: 5xD \| DC (mm): 32.0 \| ae max (mm): 8.5 \| LH (mm): 165 \| OAL (mm): 255 \| LS (mm): 90 \| DCON (mm): 32 \| Number of teeth: 2 \| Insert: WDXT094008 \| Stock: Yes
	PCT400D5S42	Machining depth: 5xD \| DC (mm): 40.0 \| ae max (mm): 11.0 \| LH (mm): 205 \| OAL (mm): 305 \| LS (mm): 100 \| DCON (mm): 42 \| Number of teeth: 3 \| Insert: WDXT125012 \| Stock: Yes
