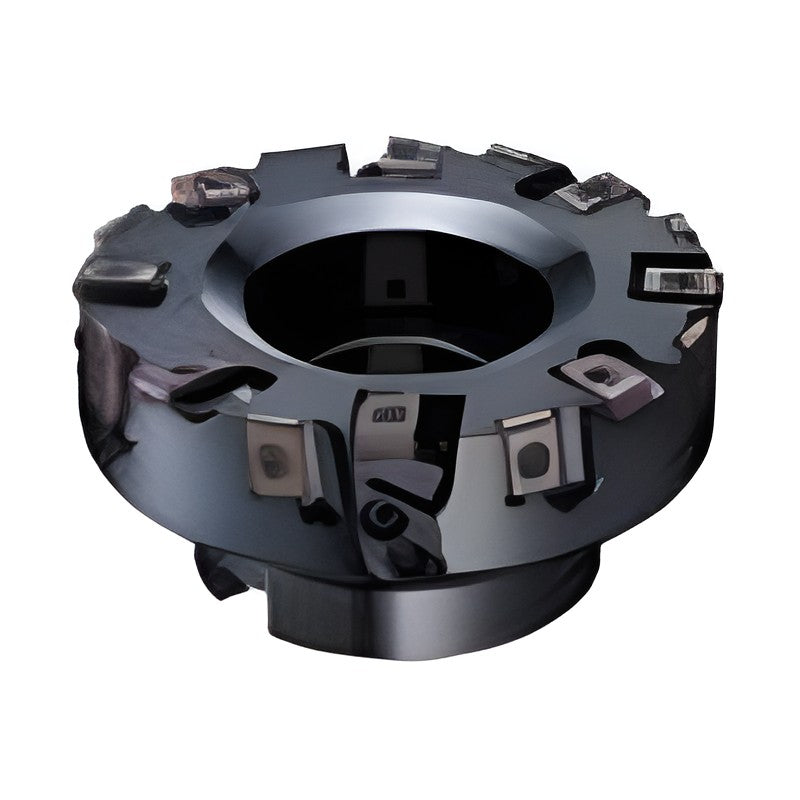

Sumitomo Electric Hardmetal SEC-Goal Mill GFX 13000 Finishing Cutter for Cast Iron

Sumitomo Electric Hardmetal SEC-Goal Mill GFX 13000 Finishing Cutter for Cast Iron

SEC-Goal Mill high-feed cutter for high-efficiency roughing and finishing of cast iron parts such as cylinder blocks and transmission cases.

Key features

  • High-feed cutter dedicated to cast iron
  • Multi-tooth design (about 3 teeth per inch)
  • Simple runout fine adjustment mechanism
GFX13080R Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 67.3 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Total teeth: 8 | Finishing teeth: 2 | Teeth: 8 | Weight (kg): 1.4 | Stock: Yes
GFX13100R Max cutting dia DCX (mm): 100 | Cutting dia DC (mm): 87.3 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 50 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Total teeth: 12 | Finishing teeth: 3 | Teeth: 12 | Weight (kg): 1.9 | Stock: Yes
GFX13125R Max cutting dia DCX (mm): 125 | Cutting dia DC (mm): 112.3 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Total teeth: 16 | Finishing teeth: 4 | Teeth: 16 | Weight (kg): 3.3 | Stock: Yes
GFX13160R Max cutting dia DCX (mm): 160 | Cutting dia DC (mm): 147.3 | Boss dia DCSFMS (mm): 120 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Total teeth: 20 | Finishing teeth: 5 | Teeth: 20 | Weight (kg): 6.4 | Stock: Yes
GFX13200R Max cutting dia DCX (mm): 200 | Cutting dia DC (mm): 187.3 | Boss dia DCSFMS (mm): 150 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 28 | Finishing teeth: 7 | Teeth: 28 | Weight (kg): 7.8 | Stock: Not marked | Hand: Right
GFX13200L Max cutting dia DCX (mm): 200 | Cutting dia DC (mm): 187.3 | Boss dia DCSFMS (mm): 150 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 28 | Finishing teeth: 7 | Teeth: 28 | Weight (kg): 7.8 | Stock: Not marked | Hand: Left
GFX13250R Max cutting dia DCX (mm): 250 | Cutting dia DC (mm): 237.3 | Boss dia DCSFMS (mm): 200 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 36 | Finishing teeth: 9 | Teeth: 36 | Weight (kg): 12.6 | Stock: Not marked | Hand: Right
GFX13250L Max cutting dia DCX (mm): 250 | Cutting dia DC (mm): 237.3 | Boss dia DCSFMS (mm): 200 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 36 | Finishing teeth: 9 | Teeth: 36 | Weight (kg): 12.6 | Stock: Not marked | Hand: Left
GFX13315R Max cutting dia DCX (mm): 315 | Cutting dia DC (mm): 302.3 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 80 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 44 | Finishing teeth: 11 | Teeth: 44 | Weight (kg): 20.2 | Stock: Not marked | Hand: Right
GFX13315L Max cutting dia DCX (mm): 315 | Cutting dia DC (mm): 302.3 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 80 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 44 | Finishing teeth: 11 | Teeth: 44 | Weight (kg): 20.2 | Stock: Not marked | Hand: Left
Milling CuttersSumitomo Electric Hardmetal
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Goal Mill GFX 13000 Finishing Cutter for Cast Iron

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (10)

GFX13080R, GFX13100R, GFX13125R, GFX13160R, GFX13200R, GFX13200L, GFX13250R, GFX13250L, GFX13315R, GFX13315L

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GFX13080RMax cutting dia DCX (mm): 80 | Cutting dia DC (mm): 67.3 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Total teeth: 8 | Finishing teeth: 2 | Teeth: 8 | Weight (kg): 1.4 | Stock: Yes
GFX13100RMax cutting dia DCX (mm): 100 | Cutting dia DC (mm): 87.3 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 50 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Total teeth: 12 | Finishing teeth: 3 | Teeth: 12 | Weight (kg): 1.9 | Stock: Yes
GFX13125RMax cutting dia DCX (mm): 125 | Cutting dia DC (mm): 112.3 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Total teeth: 16 | Finishing teeth: 4 | Teeth: 16 | Weight (kg): 3.3 | Stock: Yes
GFX13160RMax cutting dia DCX (mm): 160 | Cutting dia DC (mm): 147.3 | Boss dia DCSFMS (mm): 120 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Total teeth: 20 | Finishing teeth: 5 | Teeth: 20 | Weight (kg): 6.4 | Stock: Yes
GFX13200RMax cutting dia DCX (mm): 200 | Cutting dia DC (mm): 187.3 | Boss dia DCSFMS (mm): 150 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 28 | Finishing teeth: 7 | Teeth: 28 | Weight (kg): 7.8 | Stock: Not marked | Hand: Right
GFX13200LMax cutting dia DCX (mm): 200 | Cutting dia DC (mm): 187.3 | Boss dia DCSFMS (mm): 150 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 28 | Finishing teeth: 7 | Teeth: 28 | Weight (kg): 7.8 | Stock: Not marked | Hand: Left
GFX13250RMax cutting dia DCX (mm): 250 | Cutting dia DC (mm): 237.3 | Boss dia DCSFMS (mm): 200 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 36 | Finishing teeth: 9 | Teeth: 36 | Weight (kg): 12.6 | Stock: Not marked | Hand: Right
GFX13250LMax cutting dia DCX (mm): 250 | Cutting dia DC (mm): 237.3 | Boss dia DCSFMS (mm): 200 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 36 | Finishing teeth: 9 | Teeth: 36 | Weight (kg): 12.6 | Stock: Not marked | Hand: Left
GFX13315RMax cutting dia DCX (mm): 315 | Cutting dia DC (mm): 302.3 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 80 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 44 | Finishing teeth: 11 | Teeth: 44 | Weight (kg): 20.2 | Stock: Not marked | Hand: Right
GFX13315LMax cutting dia DCX (mm): 315 | Cutting dia DC (mm): 302.3 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 80 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 44 | Finishing teeth: 11 | Teeth: 44 | Weight (kg): 20.2 | Stock: Not marked | Hand: Left
