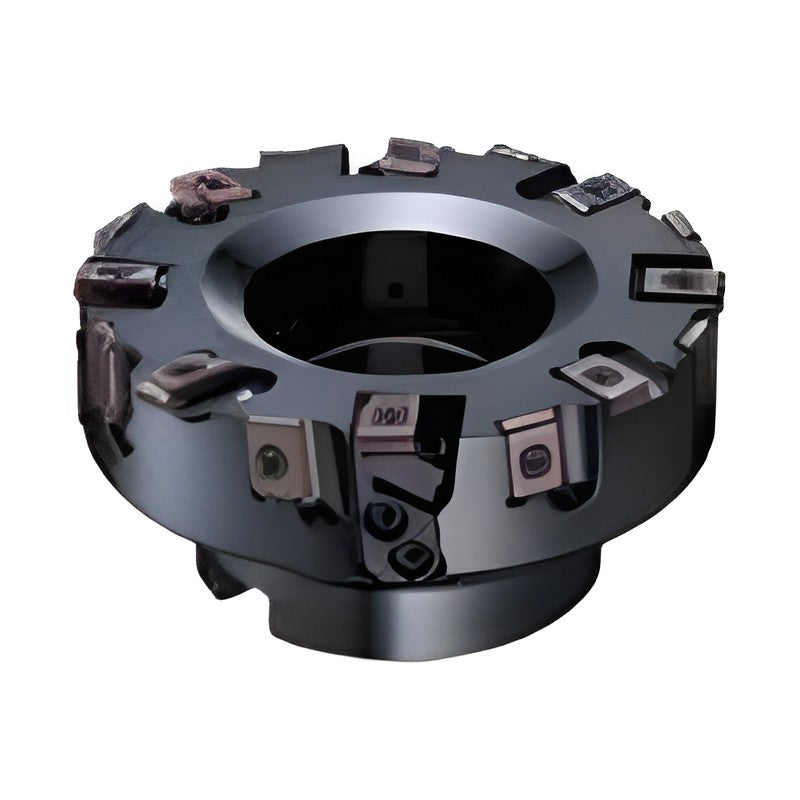

Sumitomo Electric Hardmetal SEC-Goal Mill GFX 16000 Finishing Cutter for Cast Iron

Sumitomo Electric Hardmetal SEC-Goal Mill GFX 16000 Finishing Cutter for Cast Iron

SEC-Goal Mill high-feed cutter for high-efficiency roughing and finishing of cast iron parts such as cylinder blocks and transmission cases.

Key features

  • High-feed cutter dedicated to cast iron
  • Multi-tooth design (about 3 teeth per inch)
GFX16080R Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 64.1 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Total teeth: 8 | Finishing teeth: 2 | Teeth: 8 | Weight (kg): 1.4 | Stock: Not marked | Hand: Right
GFX16080L Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 64.1 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Total teeth: 8 | Finishing teeth: 2 | Teeth: 8 | Weight (kg): 1.4 | Stock: Not marked | Hand: Left
GFX16100R Max cutting dia DCX (mm): 100 | Cutting dia DC (mm): 84.125 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 50 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Total teeth: 12 | Finishing teeth: 3 | Teeth: 12 | Weight (kg): 1.9 | Stock: Yes
GFX16125R Max cutting dia DCX (mm): 125 | Cutting dia DC (mm): 109.125 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Total teeth: 16 | Finishing teeth: 4 | Teeth: 16 | Weight (kg): 3.3 | Stock: Yes
GFX16160R Max cutting dia DCX (mm): 160 | Cutting dia DC (mm): 144.125 | Boss dia DCSFMS (mm): 120 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Total teeth: 20 | Finishing teeth: 5 | Teeth: 20 | Weight (kg): 6.4 | Stock: Yes
GFX16200R Max cutting dia DCX (mm): 200 | Cutting dia DC (mm): 184.125 | Boss dia DCSFMS (mm): 150 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 28 | Finishing teeth: 7 | Teeth: 28 | Weight (kg): 7.8 | Stock: Yes
GFX16250R Max cutting dia DCX (mm): 250 | Cutting dia DC (mm): 234.1 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 36 | Finishing teeth: 9 | Teeth: 36 | Weight (kg): 12.6 | Stock: Not marked | Hand: Right
GFX16250L Max cutting dia DCX (mm): 250 | Cutting dia DC (mm): 234.1 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 36 | Finishing teeth: 9 | Teeth: 36 | Weight (kg): 12.6 | Stock: Not marked | Hand: Left
GFX16315R Max cutting dia DCX (mm): 315 | Cutting dia DC (mm): 299.125 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 80 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 44 | Finishing teeth: 11 | Teeth: 44 | Weight (kg): 20.8 | Stock: Not marked | Hand: Right
GFX16315L Max cutting dia DCX (mm): 315 | Cutting dia DC (mm): 299.125 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 80 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 44 | Finishing teeth: 11 | Teeth: 44 | Weight (kg): 20.8 | Stock: Not marked | Hand: Left
Milling CuttersSumitomo Electric Hardmetal
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Goal Mill GFX 16000 Finishing Cutter for Cast Iron

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (10)

GFX16080R, GFX16080L, GFX16100R, GFX16125R, GFX16160R, GFX16200R, GFX16250R, GFX16250L, GFX16315R, GFX16315L

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GFX16080RMax cutting dia DCX (mm): 80 | Cutting dia DC (mm): 64.1 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Total teeth: 8 | Finishing teeth: 2 | Teeth: 8 | Weight (kg): 1.4 | Stock: Not marked | Hand: Right
GFX16080LMax cutting dia DCX (mm): 80 | Cutting dia DC (mm): 64.1 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Total teeth: 8 | Finishing teeth: 2 | Teeth: 8 | Weight (kg): 1.4 | Stock: Not marked | Hand: Left
GFX16100RMax cutting dia DCX (mm): 100 | Cutting dia DC (mm): 84.125 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 50 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Total teeth: 12 | Finishing teeth: 3 | Teeth: 12 | Weight (kg): 1.9 | Stock: Yes
GFX16125RMax cutting dia DCX (mm): 125 | Cutting dia DC (mm): 109.125 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Total teeth: 16 | Finishing teeth: 4 | Teeth: 16 | Weight (kg): 3.3 | Stock: Yes
GFX16160RMax cutting dia DCX (mm): 160 | Cutting dia DC (mm): 144.125 | Boss dia DCSFMS (mm): 120 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Total teeth: 20 | Finishing teeth: 5 | Teeth: 20 | Weight (kg): 6.4 | Stock: Yes
GFX16200RMax cutting dia DCX (mm): 200 | Cutting dia DC (mm): 184.125 | Boss dia DCSFMS (mm): 150 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 28 | Finishing teeth: 7 | Teeth: 28 | Weight (kg): 7.8 | Stock: Yes
GFX16250RMax cutting dia DCX (mm): 250 | Cutting dia DC (mm): 234.1 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 36 | Finishing teeth: 9 | Teeth: 36 | Weight (kg): 12.6 | Stock: Not marked | Hand: Right
GFX16250LMax cutting dia DCX (mm): 250 | Cutting dia DC (mm): 234.1 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 36 | Finishing teeth: 9 | Teeth: 36 | Weight (kg): 12.6 | Stock: Not marked | Hand: Left
GFX16315RMax cutting dia DCX (mm): 315 | Cutting dia DC (mm): 299.125 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 80 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 44 | Finishing teeth: 11 | Teeth: 44 | Weight (kg): 20.8 | Stock: Not marked | Hand: Right
GFX16315LMax cutting dia DCX (mm): 315 | Cutting dia DC (mm): 299.125 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 80 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 44 | Finishing teeth: 11 | Teeth: 44 | Weight (kg): 20.8 | Stock: Not marked | Hand: Left
