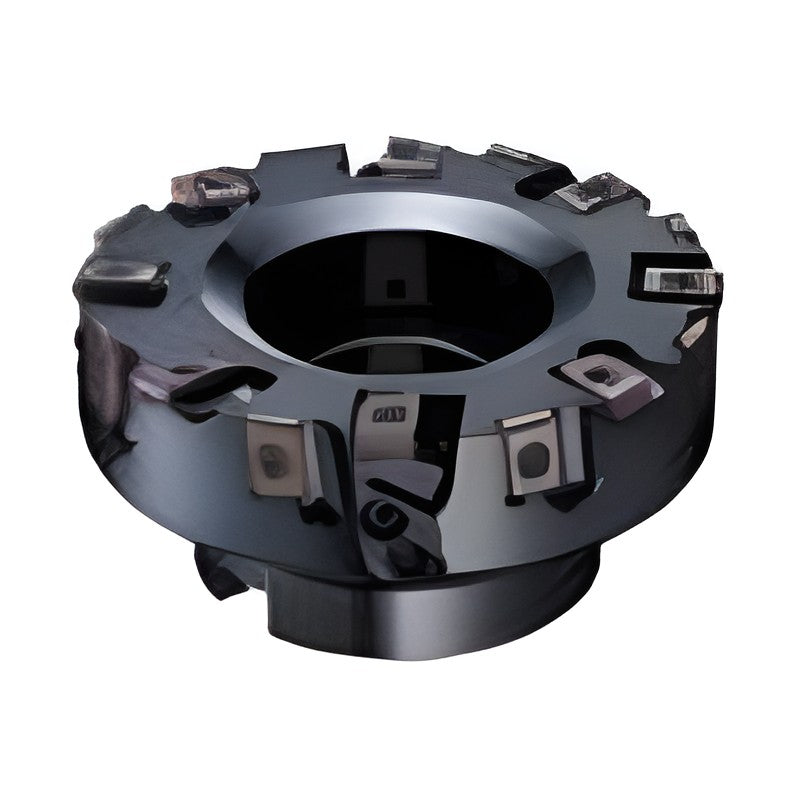

Sumitomo Electric Hardmetal SEC-Goal Mill GFXC 13000 Coarse Pitch Cutter for Cast Iron

Sumitomo Electric Hardmetal SEC-Goal Mill GFXC 13000 Coarse Pitch Cutter for Cast Iron

SEC-Goal Mill high-feed cutter for high-efficiency roughing and finishing of cast iron parts such as cylinder blocks and transmission cases.

Key features

  • Coarse pitch
  • Number of mounted teeth can be reduced
GFXC13063RS Max cutting dia DCX (mm): 63 | Cutting dia DC (mm): 50.3 | Boss dia DCSFMS (mm): 50 | Height LF (mm): 50 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Total teeth: 4 | Finishing teeth: 1 | Teeth: 4 | Weight (kg): 0.9 | Stock: Yes
GFXC13080R Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 67.3 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Total teeth: 6 | Finishing teeth: 1 | Teeth: 6 | Weight (kg): 1.4 | Stock: Yes
GFXC13100R Max cutting dia DCX (mm): 100 | Cutting dia DC (mm): 87.3 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 50 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Total teeth: 8 | Finishing teeth: 2 | Teeth: 8 | Weight (kg): 1.9 | Stock: Yes
GFXC13125R Max cutting dia DCX (mm): 125 | Cutting dia DC (mm): 112.3 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Total teeth: 10 | Finishing teeth: 2 | Teeth: 10 | Weight (kg): 3.3 | Stock: Yes
GFXC13160R Max cutting dia DCX (mm): 160 | Cutting dia DC (mm): 147.3 | Boss dia DCSFMS (mm): 120 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Total teeth: 12 | Finishing teeth: 3 | Teeth: 12 | Weight (kg): 5.9 | Stock: Yes
GFXC13200R Max cutting dia DCX (mm): 200 | Cutting dia DC (mm): 187.3 | Boss dia DCSFMS (mm): 150 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 16 | Finishing teeth: 4 | Teeth: 16 | Weight (kg): 7.8 | Stock: Yes
GFXC13250R Max cutting dia DCX (mm): 250 | Cutting dia DC (mm): 237.3 | Boss dia DCSFMS (mm): 184 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 20 | Finishing teeth: 5 | Teeth: 20 | Weight (kg): 9.4 | Stock: Yes
GFXC13315R Max cutting dia DCX (mm): 315 | Cutting dia DC (mm): 302.3 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 80 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 24 | Finishing teeth: 6 | Teeth: 24 | Weight (kg): 17.9 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Goal Mill GFXC 13000 Coarse Pitch Cutter for Cast Iron

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (8)

GFXC13063RS, GFXC13080R, GFXC13100R, GFXC13125R, GFXC13160R, GFXC13200R, GFXC13250R, GFXC13315R

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GFXC13063RSMax cutting dia DCX (mm): 63 | Cutting dia DC (mm): 50.3 | Boss dia DCSFMS (mm): 50 | Height LF (mm): 50 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Total teeth: 4 | Finishing teeth: 1 | Teeth: 4 | Weight (kg): 0.9 | Stock: Yes
GFXC13080RMax cutting dia DCX (mm): 80 | Cutting dia DC (mm): 67.3 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Total teeth: 6 | Finishing teeth: 1 | Teeth: 6 | Weight (kg): 1.4 | Stock: Yes
GFXC13100RMax cutting dia DCX (mm): 100 | Cutting dia DC (mm): 87.3 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 50 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Total teeth: 8 | Finishing teeth: 2 | Teeth: 8 | Weight (kg): 1.9 | Stock: Yes
GFXC13125RMax cutting dia DCX (mm): 125 | Cutting dia DC (mm): 112.3 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Total teeth: 10 | Finishing teeth: 2 | Teeth: 10 | Weight (kg): 3.3 | Stock: Yes
GFXC13160RMax cutting dia DCX (mm): 160 | Cutting dia DC (mm): 147.3 | Boss dia DCSFMS (mm): 120 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Total teeth: 12 | Finishing teeth: 3 | Teeth: 12 | Weight (kg): 5.9 | Stock: Yes
GFXC13200RMax cutting dia DCX (mm): 200 | Cutting dia DC (mm): 187.3 | Boss dia DCSFMS (mm): 150 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 16 | Finishing teeth: 4 | Teeth: 16 | Weight (kg): 7.8 | Stock: Yes
GFXC13250RMax cutting dia DCX (mm): 250 | Cutting dia DC (mm): 237.3 | Boss dia DCSFMS (mm): 184 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 20 | Finishing teeth: 5 | Teeth: 20 | Weight (kg): 9.4 | Stock: Yes
GFXC13315RMax cutting dia DCX (mm): 315 | Cutting dia DC (mm): 302.3 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 80 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 24 | Finishing teeth: 6 | Teeth: 24 | Weight (kg): 17.9 | Stock: Yes
