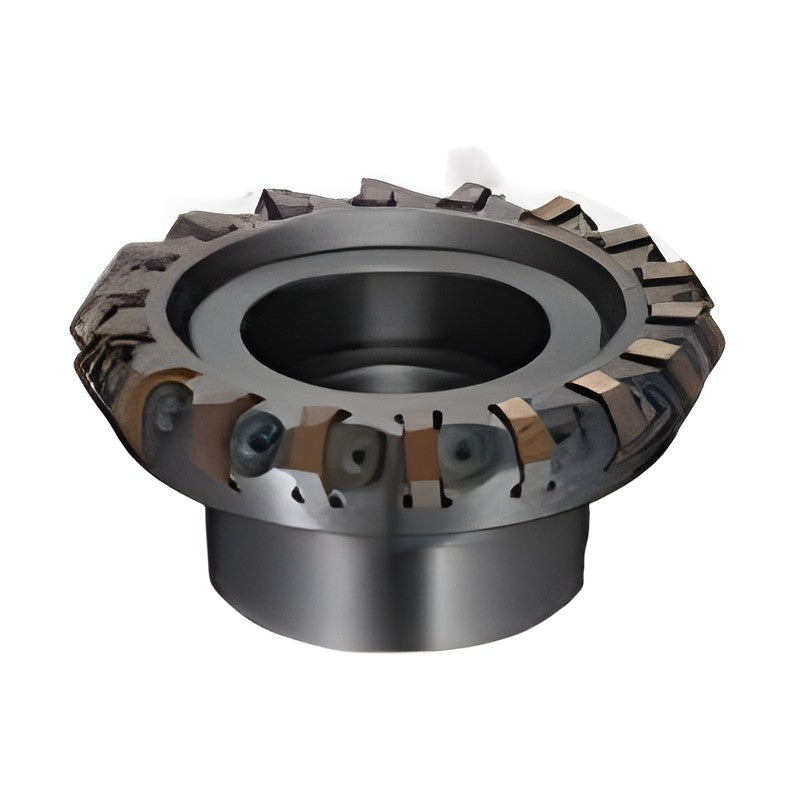

Sumitomo Electric Hardmetal SEC-Goal Mill GRHNF 17000 Fine Pitch Roughing Cutter for Cast Iron

Sumitomo Electric Hardmetal SEC-Goal Mill GRHNF 17000 Fine Pitch Roughing Cutter for Cast Iron

SEC-Goal Mill high-feed cutter for high-efficiency roughing and finishing of cast iron parts such as cylinder blocks and transmission cases.

Key features

  • Roughing (Ra 12.5)
  • Fine pitch
  • Hexagonal HNEF inserts
GRHNF17080R Cutting dia DC (mm): 80 | Max cutting dia DCX (mm): 90.5 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Total teeth: 10 | Weight (kg): 1.2 | Stock: Yes
GRHNF17100R Cutting dia DC (mm): 100 | Max cutting dia DCX (mm): 110.5 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 50 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Total teeth: 14 | Weight (kg): 1.8 | Stock: Yes
GRHNF17125R Cutting dia DC (mm): 125 | Max cutting dia DCX (mm): 135.5 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Total teeth: 18 | Weight (kg): 2.9 | Stock: Yes
GRHNF17160R Cutting dia DC (mm): 160 | Max cutting dia DCX (mm): 170.5 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Total teeth: 22 | Weight (kg): 4.5 | Stock: Yes
GRHNF17200R Cutting dia DC (mm): 200 | Max cutting dia DCX (mm): 210.5 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 28 | Weight (kg): 7.3 | Stock: Yes
GRHNF17250R Cutting dia DC (mm): 250 | Max cutting dia DCX (mm): 260.5 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 36 | Weight (kg): 13.1 | Stock: Yes
GRHNF17315R Cutting dia DC (mm): 315 | Max cutting dia DCX (mm): 325.5 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 80 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Total teeth: 44 | Weight (kg): 24.5 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Goal Mill GRHNF 17000 Fine Pitch Roughing Cutter for Cast Iron

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (7)

GRHNF17080R, GRHNF17100R, GRHNF17125R, GRHNF17160R, GRHNF17200R, GRHNF17250R, GRHNF17315R

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GRHNF17080RCutting dia DC (mm): 80 | Max cutting dia DCX (mm): 90.5 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Total teeth: 10 | Weight (kg): 1.2 | Stock: Yes
GRHNF17100RCutting dia DC (mm): 100 | Max cutting dia DCX (mm): 110.5 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 50 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Total teeth: 14 | Weight (kg): 1.8 | Stock: Yes
GRHNF17125RCutting dia DC (mm): 125 | Max cutting dia DCX (mm): 135.5 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Total teeth: 18 | Weight (kg): 2.9 | Stock: Yes
GRHNF17160RCutting dia DC (mm): 160 | Max cutting dia DCX (mm): 170.5 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Total teeth: 22 | Weight (kg): 4.5 | Stock: Yes
GRHNF17200RCutting dia DC (mm): 200 | Max cutting dia DCX (mm): 210.5 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 28 | Weight (kg): 7.3 | Stock: Yes
GRHNF17250RCutting dia DC (mm): 250 | Max cutting dia DCX (mm): 260.5 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Total teeth: 36 | Weight (kg): 13.1 | Stock: Yes
GRHNF17315RCutting dia DC (mm): 315 | Max cutting dia DCX (mm): 325.5 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 80 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Total teeth: 44 | Weight (kg): 24.5 | Stock: Yes
