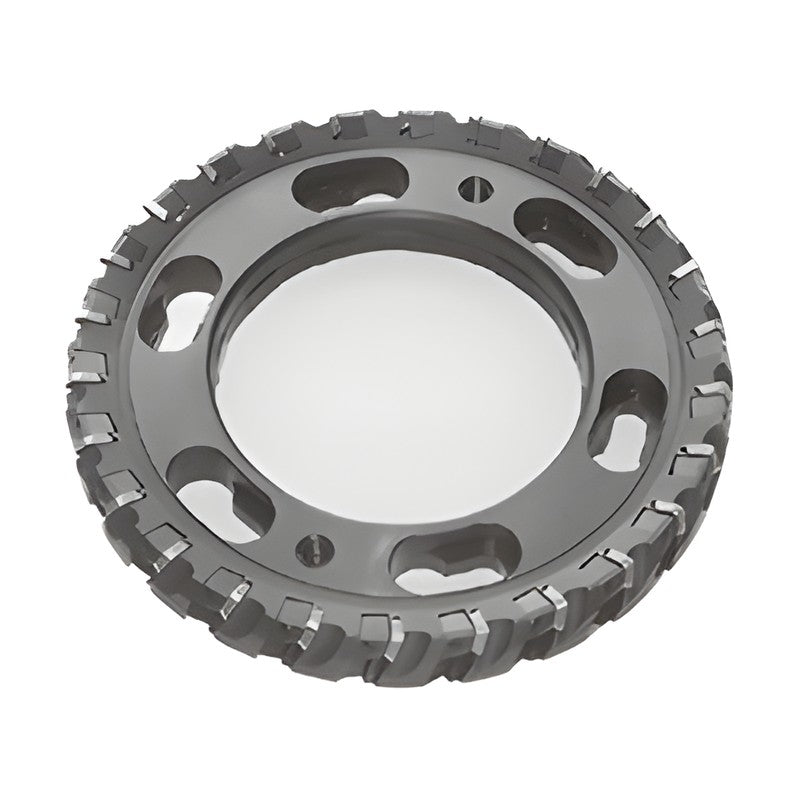

Sumitomo Electric Hardmetal SEC-High Feed Cutter APV 5000

Sumitomo Electric Hardmetal SEC-High Feed Cutter APV 5000

SEC-High Feed cutter with edge-referenced multi-tooth design (about 3 teeth per inch) for high-feed machining of cast iron and light alloy parts.

APVZ5200R Cutting dia DC (mm): 200 | Max cutting dia DCX (mm): 211 | Height LF (mm): 40 | Bore dia DCB (mm): 80 | Teeth: 18 | Weight (kg): 7.0 | Stock: Not marked | Hand: Right
APVZ5200L Cutting dia DC (mm): 200 | Max cutting dia DCX (mm): 211 | Height LF (mm): 40 | Bore dia DCB (mm): 80 | Teeth: 18 | Weight (kg): 7.0 | Stock: Not marked | Hand: Left
APVZ5250R Cutting dia DC (mm): 250 | Max cutting dia DCX (mm): 261 | Height LF (mm): 40 | Bore dia DCB (mm): 120 | Teeth: 22 | Weight (kg): 10.8 | Stock: Not marked | Hand: Right
APVZ5250L Cutting dia DC (mm): 250 | Max cutting dia DCX (mm): 261 | Height LF (mm): 40 | Bore dia DCB (mm): 120 | Teeth: 22 | Weight (kg): 10.8 | Stock: Not marked | Hand: Left
APVZ5315R Cutting dia DC (mm): 315 | Max cutting dia DCX (mm): 326 | Height LF (mm): 40 | Bore dia DCB (mm): 180 | Teeth: 26 | Weight (kg): 13.7 | Stock: Not marked | Hand: Right
APVZ5315L Cutting dia DC (mm): 315 | Max cutting dia DCX (mm): 326 | Height LF (mm): 40 | Bore dia DCB (mm): 180 | Teeth: 26 | Weight (kg): 13.7 | Stock: Not marked | Hand: Left
APVZ5355R Cutting dia DC (mm): 355 | Max cutting dia DCX (mm): 366 | Height LF (mm): 40 | Bore dia DCB (mm): 220 | Teeth: 32 | Weight (kg): 16.3 | Stock: Not marked | Hand: Right
APVZ5355L Cutting dia DC (mm): 355 | Max cutting dia DCX (mm): 366 | Height LF (mm): 40 | Bore dia DCB (mm): 220 | Teeth: 32 | Weight (kg): 16.3 | Stock: Not marked | Hand: Left
APVZ5400R Cutting dia DC (mm): 400 | Max cutting dia DCX (mm): 411 | Height LF (mm): 40 | Bore dia DCB (mm): 250 | Teeth: 36 | Weight (kg): 20.0 | Stock: Not marked | Hand: Right
APVZ5400L Cutting dia DC (mm): 400 | Max cutting dia DCX (mm): 411 | Height LF (mm): 40 | Bore dia DCB (mm): 250 | Teeth: 36 | Weight (kg): 20.0 | Stock: Not marked | Hand: Left
APVZ5450R Cutting dia DC (mm): 450 | Max cutting dia DCX (mm): 461 | Height LF (mm): 40 | Bore dia DCB (mm): 300 | Teeth: 40 | Weight (kg): 23.6 | Stock: Not marked | Hand: Right
APVZ5450L Cutting dia DC (mm): 450 | Max cutting dia DCX (mm): 461 | Height LF (mm): 40 | Bore dia DCB (mm): 300 | Teeth: 40 | Weight (kg): 23.6 | Stock: Not marked | Hand: Left
Milling CuttersSumitomo Electric Hardmetal
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-High Feed Cutter APV 5000

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (12)

APVZ5200R, APVZ5200L, APVZ5250R, APVZ5250L, APVZ5315R, APVZ5315L, APVZ5355R, APVZ5355L, APVZ5400R, APVZ5400L + 2 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APVZ5200RCutting dia DC (mm): 200 | Max cutting dia DCX (mm): 211 | Height LF (mm): 40 | Bore dia DCB (mm): 80 | Teeth: 18 | Weight (kg): 7.0 | Stock: Not marked | Hand: Right
APVZ5200LCutting dia DC (mm): 200 | Max cutting dia DCX (mm): 211 | Height LF (mm): 40 | Bore dia DCB (mm): 80 | Teeth: 18 | Weight (kg): 7.0 | Stock: Not marked | Hand: Left
APVZ5250RCutting dia DC (mm): 250 | Max cutting dia DCX (mm): 261 | Height LF (mm): 40 | Bore dia DCB (mm): 120 | Teeth: 22 | Weight (kg): 10.8 | Stock: Not marked | Hand: Right
APVZ5250LCutting dia DC (mm): 250 | Max cutting dia DCX (mm): 261 | Height LF (mm): 40 | Bore dia DCB (mm): 120 | Teeth: 22 | Weight (kg): 10.8 | Stock: Not marked | Hand: Left
APVZ5315RCutting dia DC (mm): 315 | Max cutting dia DCX (mm): 326 | Height LF (mm): 40 | Bore dia DCB (mm): 180 | Teeth: 26 | Weight (kg): 13.7 | Stock: Not marked | Hand: Right
APVZ5315LCutting dia DC (mm): 315 | Max cutting dia DCX (mm): 326 | Height LF (mm): 40 | Bore dia DCB (mm): 180 | Teeth: 26 | Weight (kg): 13.7 | Stock: Not marked | Hand: Left
APVZ5355RCutting dia DC (mm): 355 | Max cutting dia DCX (mm): 366 | Height LF (mm): 40 | Bore dia DCB (mm): 220 | Teeth: 32 | Weight (kg): 16.3 | Stock: Not marked | Hand: Right
APVZ5355LCutting dia DC (mm): 355 | Max cutting dia DCX (mm): 366 | Height LF (mm): 40 | Bore dia DCB (mm): 220 | Teeth: 32 | Weight (kg): 16.3 | Stock: Not marked | Hand: Left
APVZ5400RCutting dia DC (mm): 400 | Max cutting dia DCX (mm): 411 | Height LF (mm): 40 | Bore dia DCB (mm): 250 | Teeth: 36 | Weight (kg): 20.0 | Stock: Not marked | Hand: Right
APVZ5400LCutting dia DC (mm): 400 | Max cutting dia DCX (mm): 411 | Height LF (mm): 40 | Bore dia DCB (mm): 250 | Teeth: 36 | Weight (kg): 20.0 | Stock: Not marked | Hand: Left
APVZ5450RCutting dia DC (mm): 450 | Max cutting dia DCX (mm): 461 | Height LF (mm): 40 | Bore dia DCB (mm): 300 | Teeth: 40 | Weight (kg): 23.6 | Stock: Not marked | Hand: Right
APVZ5450LCutting dia DC (mm): 450 | Max cutting dia DCX (mm): 461 | Height LF (mm): 40 | Bore dia DCB (mm): 300 | Teeth: 40 | Weight (kg): 23.6 | Stock: Not marked | Hand: Left
