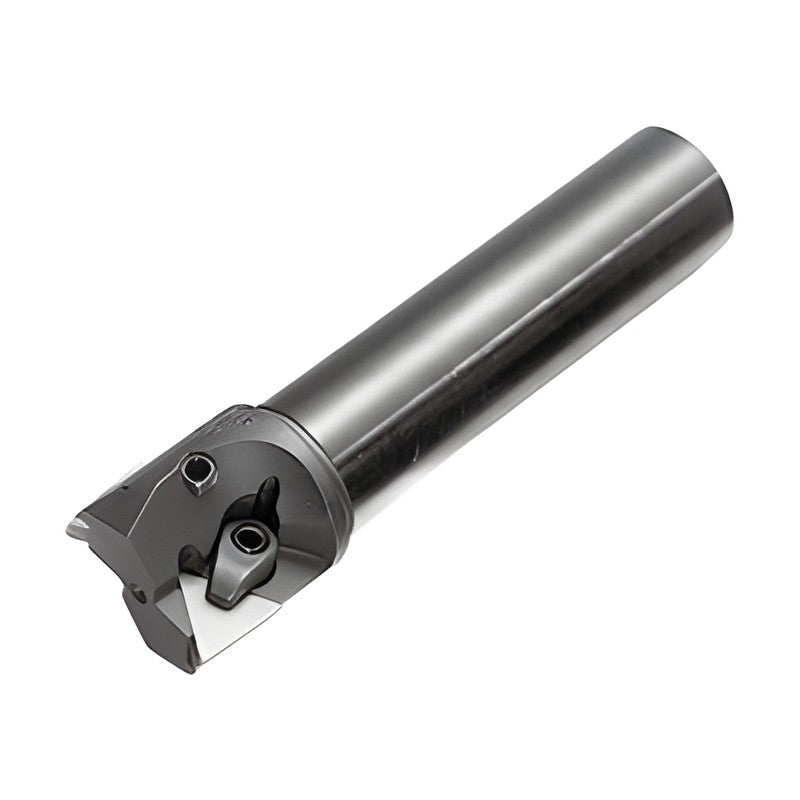

Sumitomo Electric Hardmetal SEC-Light Mill FMS Shank Type Cutter

Sumitomo Electric Hardmetal SEC-Light Mill FMS Shank Type Cutter

Shank type milling cutter of the SEC-Light Mill series using TPKN/TPMN triangular inserts.

FMS216 Cutting dia DC (mm): 16 | Max depth of cut APMX (mm): 8 | Shank dia DMM (mm): 16 | Overall length LF (mm): 70 | Teeth: 1 | Axial rake: +3° | Radial rake: -6° | Stock: Yes
FMS220 Cutting dia DC (mm): 20 | Max depth of cut APMX (mm): 8 | Shank dia DMM (mm): 20 | Overall length LF (mm): 100 | Teeth: 2 | Axial rake: +3° | Radial rake: -4° | Stock: Yes
FMS225 Cutting dia DC (mm): 25 | Max depth of cut APMX (mm): 8 | Shank dia DMM (mm): 25 | Overall length LF (mm): 110 | Teeth: 2 | Axial rake: +7° | Radial rake: -4° | Stock: Yes
FMS330 Cutting dia DC (mm): 30 | Max depth of cut APMX (mm): 13 | Shank dia DMM (mm): 32 | Overall length LF (mm): 160 | Teeth: 2 | Axial rake: +7° | Radial rake: -4° | Stock: Yes
FMS332 Cutting dia DC (mm): 32 | Max depth of cut APMX (mm): 13 | Shank dia DMM (mm): 32 | Overall length LF (mm): 160 | Teeth: 2 | Axial rake: +7° | Radial rake: -4° | Stock: Yes
FMS335 Cutting dia DC (mm): 35 | Max depth of cut APMX (mm): 13 | Shank dia DMM (mm): 32 | Overall length LF (mm): 160 | Teeth: 2 | Axial rake: +7° | Radial rake: -4° | Stock: Yes
FMS440 Cutting dia DC (mm): 40 | Max depth of cut APMX (mm): 19 | Shank dia DMM (mm): 32 | Overall length LF (mm): 160 | Teeth: 2 | Axial rake: +7° | Radial rake: -4° | Stock: Yes
FMS450 Cutting dia DC (mm): 50 | Max depth of cut APMX (mm): 19 | Shank dia DMM (mm): 32 | Overall length LF (mm): 160 | Teeth: 2 | Axial rake: +7° | Radial rake: -4° | Stock: Yes
FMS460 Cutting dia DC (mm): 60 | Max depth of cut APMX (mm): 19 | Shank dia DMM (mm): 32 | Overall length LF (mm): 160 | Teeth: 3 | Axial rake: +7° | Radial rake: -4° | Stock: Yes
FMS440B Cutting dia DC (mm): 40 | Max depth of cut APMX (mm): 19 | Shank dia DMM (mm): 42 | Overall length LF (mm): 160 | Teeth: 2 | Axial rake: +7° | Radial rake: -4° | Stock: Not marked
Milling CuttersSumitomo Electric Hardmetal
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Light Mill FMS Shank Type Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (10)

FMS216, FMS220, FMS225, FMS330, FMS332, FMS335, FMS440, FMS450, FMS460, FMS440B

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FMS216Cutting dia DC (mm): 16 | Max depth of cut APMX (mm): 8 | Shank dia DMM (mm): 16 | Overall length LF (mm): 70 | Teeth: 1 | Axial rake: +3° | Radial rake: -6° | Stock: Yes
FMS220Cutting dia DC (mm): 20 | Max depth of cut APMX (mm): 8 | Shank dia DMM (mm): 20 | Overall length LF (mm): 100 | Teeth: 2 | Axial rake: +3° | Radial rake: -4° | Stock: Yes
FMS225Cutting dia DC (mm): 25 | Max depth of cut APMX (mm): 8 | Shank dia DMM (mm): 25 | Overall length LF (mm): 110 | Teeth: 2 | Axial rake: +7° | Radial rake: -4° | Stock: Yes
FMS330Cutting dia DC (mm): 30 | Max depth of cut APMX (mm): 13 | Shank dia DMM (mm): 32 | Overall length LF (mm): 160 | Teeth: 2 | Axial rake: +7° | Radial rake: -4° | Stock: Yes
FMS332Cutting dia DC (mm): 32 | Max depth of cut APMX (mm): 13 | Shank dia DMM (mm): 32 | Overall length LF (mm): 160 | Teeth: 2 | Axial rake: +7° | Radial rake: -4° | Stock: Yes
FMS335Cutting dia DC (mm): 35 | Max depth of cut APMX (mm): 13 | Shank dia DMM (mm): 32 | Overall length LF (mm): 160 | Teeth: 2 | Axial rake: +7° | Radial rake: -4° | Stock: Yes
FMS440Cutting dia DC (mm): 40 | Max depth of cut APMX (mm): 19 | Shank dia DMM (mm): 32 | Overall length LF (mm): 160 | Teeth: 2 | Axial rake: +7° | Radial rake: -4° | Stock: Yes
FMS450Cutting dia DC (mm): 50 | Max depth of cut APMX (mm): 19 | Shank dia DMM (mm): 32 | Overall length LF (mm): 160 | Teeth: 2 | Axial rake: +7° | Radial rake: -4° | Stock: Yes
FMS460Cutting dia DC (mm): 60 | Max depth of cut APMX (mm): 19 | Shank dia DMM (mm): 32 | Overall length LF (mm): 160 | Teeth: 3 | Axial rake: +7° | Radial rake: -4° | Stock: Yes
FMS440BCutting dia DC (mm): 40 | Max depth of cut APMX (mm): 19 | Shank dia DMM (mm): 42 | Overall length LF (mm): 160 | Teeth: 2 | Axial rake: +7° | Radial rake: -4° | Stock: Not marked
