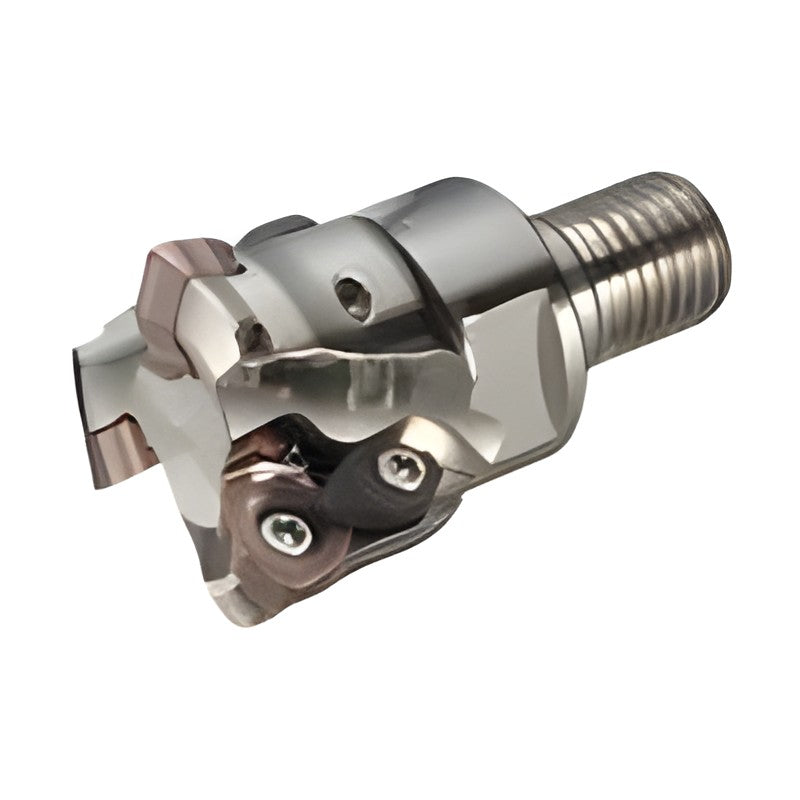

Sumitomo Electric Hardmetal SEC-Metal Slash Mill MSX 06000M/08000M/12000M Modular Head

Sumitomo Electric Hardmetal SEC-Metal Slash Mill MSX 06000M/08000M/12000M Modular Head

Exchangeable head of the SEC-Modular Tool system, screw-mounted on carbide, steel or BBT integrated arbors.

Key features

  • Screw-mounted exchangeable head
  • Combines with carbide, steel or BBT30 integrated arbors
MSX06016M08Z2 Max cutting dia DCX (mm): 16 | Boss dia DCSFMS (mm): 15.0 | Connection dia DCON (mm): 8.5 | Connection thread CRKS: M8 | Overall length OAL (mm): 42 | Effective length LF (mm): 25 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 13 | Teeth: 2 | Stock: Phase-out (check stock)
MSX06018M08Z2 Max cutting dia DCX (mm): 18 | Boss dia DCSFMS (mm): 15.0 | Connection dia DCON (mm): 8.5 | Connection thread CRKS: M8 | Overall length OAL (mm): 42 | Effective length LF (mm): 25 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 13 | Teeth: 2 | Stock: Phase-out (check stock)
MSX06020M10Z3 Max cutting dia DCX (mm): 20 | Boss dia DCSFMS (mm): 18.0 | Connection dia DCON (mm): 10.5 | Connection thread CRKS: M10 | Overall length OAL (mm): 49 | Effective length LF (mm): 30 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 15 | Teeth: 3 | Stock: Phase-out (check stock)
MSX06022M10Z3 Max cutting dia DCX (mm): 22 | Boss dia DCSFMS (mm): 18.0 | Connection dia DCON (mm): 10.5 | Connection thread CRKS: M10 | Overall length OAL (mm): 49 | Effective length LF (mm): 30 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 15 | Teeth: 3 | Stock: Phase-out (check stock)
MSX06025M12Z3 Max cutting dia DCX (mm): 25 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 3 | Stock: Phase-out (check stock)
MSX08025M12Z2 Max cutting dia DCX (mm): 25 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 2 | Stock: Phase-out (check stock)
MSX08028M12Z2 Max cutting dia DCX (mm): 28 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 2 | Stock: Phase-out (check stock)
MSX08030M16Z3 Max cutting dia DCX (mm): 30 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Stock: Phase-out (check stock)
MSX08032M16Z3 Max cutting dia DCX (mm): 32 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Stock: Phase-out (check stock)
MSX08035M16Z3 Max cutting dia DCX (mm): 35 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Stock: Phase-out (check stock)
MSX12032M16Z2 Max cutting dia DCX (mm): 32 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 2 | Stock: Phase-out (check stock)
MSX12035M16Z2 Max cutting dia DCX (mm): 35 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 2 | Stock: Phase-out (check stock)
MSX12040M16Z3 Max cutting dia DCX (mm): 40 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Stock: Phase-out (check stock)
Milling CuttersSumitomo Electric Hardmetal
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Metal Slash Mill MSX 06000M/08000M/12000M Modular Head

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (13)

MSX06016M08Z2, MSX06018M08Z2, MSX06020M10Z3, MSX06022M10Z3, MSX06025M12Z3, MSX08025M12Z2, MSX08028M12Z2, MSX08030M16Z3, MSX08032M16Z3, MSX08035M16Z3 + 3 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MSX06016M08Z2Max cutting dia DCX (mm): 16 | Boss dia DCSFMS (mm): 15.0 | Connection dia DCON (mm): 8.5 | Connection thread CRKS: M8 | Overall length OAL (mm): 42 | Effective length LF (mm): 25 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 13 | Teeth: 2 | Stock: Phase-out (check stock)
MSX06018M08Z2Max cutting dia DCX (mm): 18 | Boss dia DCSFMS (mm): 15.0 | Connection dia DCON (mm): 8.5 | Connection thread CRKS: M8 | Overall length OAL (mm): 42 | Effective length LF (mm): 25 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 13 | Teeth: 2 | Stock: Phase-out (check stock)
MSX06020M10Z3Max cutting dia DCX (mm): 20 | Boss dia DCSFMS (mm): 18.0 | Connection dia DCON (mm): 10.5 | Connection thread CRKS: M10 | Overall length OAL (mm): 49 | Effective length LF (mm): 30 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 15 | Teeth: 3 | Stock: Phase-out (check stock)
MSX06022M10Z3Max cutting dia DCX (mm): 22 | Boss dia DCSFMS (mm): 18.0 | Connection dia DCON (mm): 10.5 | Connection thread CRKS: M10 | Overall length OAL (mm): 49 | Effective length LF (mm): 30 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 15 | Teeth: 3 | Stock: Phase-out (check stock)
MSX06025M12Z3Max cutting dia DCX (mm): 25 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 3 | Stock: Phase-out (check stock)
MSX08025M12Z2Max cutting dia DCX (mm): 25 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 2 | Stock: Phase-out (check stock)
MSX08028M12Z2Max cutting dia DCX (mm): 28 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 2 | Stock: Phase-out (check stock)
MSX08030M16Z3Max cutting dia DCX (mm): 30 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Stock: Phase-out (check stock)
MSX08032M16Z3Max cutting dia DCX (mm): 32 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Stock: Phase-out (check stock)
MSX08035M16Z3Max cutting dia DCX (mm): 35 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Stock: Phase-out (check stock)
MSX12032M16Z2Max cutting dia DCX (mm): 32 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 2 | Stock: Phase-out (check stock)
MSX12035M16Z2Max cutting dia DCX (mm): 35 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 2 | Stock: Phase-out (check stock)
MSX12040M16Z3Max cutting dia DCX (mm): 40 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Stock: Phase-out (check stock)
