• Sumitomo Electric Hardmetal SEC-Metal Slash Mill MSX Shank Type High-Feed Cutter
1 1

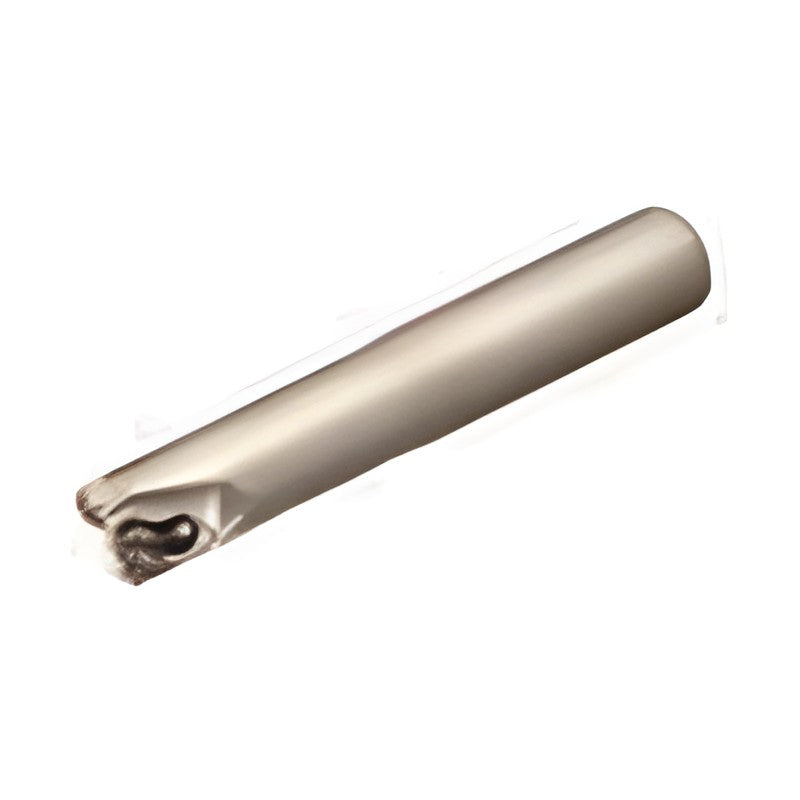

Sumitomo Electric Hardmetal SEC-Metal Slash Mill MSX Shank Type High-Feed Cutter

Sumitomo Electric Hardmetal SEC-Metal Slash Mill MSX Shank Type High-Feed Cutter

Multi-function ultra-high-feed roughing cutter with four insert sizes covering cutting diameters from 16 mm to 100 mm.

Key features

  • Low vibration in pocketing
  • 3-corner WDMT inserts
MSX06016ES Max cutting dia DCX (mm): 16 | Shank dia DMM (mm): 16 | Head length LH (mm): 30 | Overall length LF (mm): 110 | Teeth: 2 | Weight (kg): 0.2 | Stock: Phase-out (check stock)
MSX06016EM Max cutting dia DCX (mm): 16 | Shank dia DMM (mm): 16 | Head length LH (mm): 70 | Overall length LF (mm): 150 | Teeth: 2 | Weight (kg): 0.2 | Stock: Phase-out (check stock)
MSX06017EM Max cutting dia DCX (mm): 17 | Shank dia DMM (mm): 16 | Head length LH (mm): 20 | Overall length LF (mm): 150 | Teeth: 2 | Weight (kg): 0.2 | Stock: Phase-out (check stock)
MSX06018EM Max cutting dia DCX (mm): 18 | Shank dia DMM (mm): 16 | Head length LH (mm): 20 | Overall length LF (mm): 150 | Teeth: 2 | Weight (kg): 0.2 | Stock: Phase-out (check stock)
MSX06020ES Max cutting dia DCX (mm): 20 | Shank dia DMM (mm): 20 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 3 | Weight (kg): 0.3 | Stock: Phase-out (check stock)
MSX06020EM Max cutting dia DCX (mm): 20 | Shank dia DMM (mm): 20 | Head length LH (mm): 100 | Overall length LF (mm): 180 | Teeth: 3 | Weight (kg): 0.4 | Stock: Phase-out (check stock)
MSX06022EM Max cutting dia DCX (mm): 22 | Shank dia DMM (mm): 20 | Head length LH (mm): 30 | Overall length LF (mm): 180 | Teeth: 3 | Weight (kg): 0.4 | Stock: Phase-out (check stock)
MSX06025ES Max cutting dia DCX (mm): 25 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Overall length LF (mm): 140 | Teeth: 3 | Weight (kg): 0.5 | Stock: Phase-out (check stock)
MSX06025EM Max cutting dia DCX (mm): 25 | Shank dia DMM (mm): 25 | Head length LH (mm): 120 | Overall length LF (mm): 250 | Teeth: 3 | Weight (kg): 0.8 | Stock: Phase-out (check stock)
MSX12032ES Max cutting dia DCX (mm): 32 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 150 | Teeth: 2 | Weight (kg): 0.8 | Stock: Phase-out (check stock)
MSX12032EM Max cutting dia DCX (mm): 32 | Shank dia DMM (mm): 32 | Head length LH (mm): 120 | Overall length LF (mm): 250 | Teeth: 2 | Weight (kg): 1.4 | Stock: Phase-out (check stock)
MSX12035EM Max cutting dia DCX (mm): 35 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 250 | Teeth: 2 | Weight (kg): 1.4 | Stock: Phase-out (check stock)
MSX12040ES Max cutting dia DCX (mm): 40 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Teeth: 3 | Weight (kg): 0.9 | Stock: Phase-out (check stock)
MSX12040EM Max cutting dia DCX (mm): 40 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 250 | Teeth: 3 | Weight (kg): 1.5 | Stock: Phase-out (check stock)
MSX12050EM Max cutting dia DCX (mm): 50 | Shank dia DMM (mm): 42 | Head length LH (mm): 50 | Overall length LF (mm): 250 | Teeth: 4 | Weight (kg): 2.6 | Stock: Phase-out (check stock)
MSX14040ES Max cutting dia DCX (mm): 40 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Teeth: 2 | Weight (kg): 0.9 | Stock: Phase-out (check stock)
MSX08020ES Max cutting dia DCX (mm): 20 | Shank dia DMM (mm): 20 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 2 | Weight (kg): 0.3 | Stock: Phase-out (check stock)
MSX08020EM Max cutting dia DCX (mm): 20 | Shank dia DMM (mm): 20 | Head length LH (mm): 100 | Overall length LF (mm): 180 | Teeth: 2 | Weight (kg): 0.3 | Stock: Phase-out (check stock)
MSX08022EM Max cutting dia DCX (mm): 22 | Shank dia DMM (mm): 20 | Head length LH (mm): 30 | Overall length LF (mm): 180 | Teeth: 2 | Weight (kg): 0.4 | Stock: Phase-out (check stock)
MSX08025ES Max cutting dia DCX (mm): 25 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Overall length LF (mm): 140 | Teeth: 2 | Weight (kg): 0.4 | Stock: Phase-out (check stock)
MSX08025EM Max cutting dia DCX (mm): 25 | Shank dia DMM (mm): 25 | Head length LH (mm): 120 | Overall length LF (mm): 250 | Teeth: 2 | Weight (kg): 0.8 | Stock: Phase-out (check stock)
MSX08028EM Max cutting dia DCX (mm): 28 | Shank dia DMM (mm): 25 | Head length LH (mm): 40 | Overall length LF (mm): 250 | Teeth: 2 | Weight (kg): 0.9 | Stock: Phase-out (check stock)
MSX08032ES Max cutting dia DCX (mm): 32 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 150 | Teeth: 3 | Weight (kg): 0.8 | Stock: Phase-out (check stock)
MSX08032EM Max cutting dia DCX (mm): 32 | Shank dia DMM (mm): 32 | Head length LH (mm): 120 | Overall length LF (mm): 250 | Teeth: 3 | Weight (kg): 1.4 | Stock: Phase-out (check stock)
MSX08035EM Max cutting dia DCX (mm): 35 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 250 | Teeth: 3 | Weight (kg): 1.5 | Stock: Phase-out (check stock)
Milling CuttersSumitomo Electric Hardmetal
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Metal Slash Mill MSX Shank Type High-Feed Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (25)

MSX06016ES, MSX06016EM, MSX06017EM, MSX06018EM, MSX06020ES, MSX06020EM, MSX06022EM, MSX06025ES, MSX06025EM, MSX12032ES + 15 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MSX06016ESMax cutting dia DCX (mm): 16 | Shank dia DMM (mm): 16 | Head length LH (mm): 30 | Overall length LF (mm): 110 | Teeth: 2 | Weight (kg): 0.2 | Stock: Phase-out (check stock)
MSX06016EMMax cutting dia DCX (mm): 16 | Shank dia DMM (mm): 16 | Head length LH (mm): 70 | Overall length LF (mm): 150 | Teeth: 2 | Weight (kg): 0.2 | Stock: Phase-out (check stock)
MSX06017EMMax cutting dia DCX (mm): 17 | Shank dia DMM (mm): 16 | Head length LH (mm): 20 | Overall length LF (mm): 150 | Teeth: 2 | Weight (kg): 0.2 | Stock: Phase-out (check stock)
MSX06018EMMax cutting dia DCX (mm): 18 | Shank dia DMM (mm): 16 | Head length LH (mm): 20 | Overall length LF (mm): 150 | Teeth: 2 | Weight (kg): 0.2 | Stock: Phase-out (check stock)
MSX06020ESMax cutting dia DCX (mm): 20 | Shank dia DMM (mm): 20 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 3 | Weight (kg): 0.3 | Stock: Phase-out (check stock)
MSX06020EMMax cutting dia DCX (mm): 20 | Shank dia DMM (mm): 20 | Head length LH (mm): 100 | Overall length LF (mm): 180 | Teeth: 3 | Weight (kg): 0.4 | Stock: Phase-out (check stock)
MSX06022EMMax cutting dia DCX (mm): 22 | Shank dia DMM (mm): 20 | Head length LH (mm): 30 | Overall length LF (mm): 180 | Teeth: 3 | Weight (kg): 0.4 | Stock: Phase-out (check stock)
MSX06025ESMax cutting dia DCX (mm): 25 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Overall length LF (mm): 140 | Teeth: 3 | Weight (kg): 0.5 | Stock: Phase-out (check stock)
MSX06025EMMax cutting dia DCX (mm): 25 | Shank dia DMM (mm): 25 | Head length LH (mm): 120 | Overall length LF (mm): 250 | Teeth: 3 | Weight (kg): 0.8 | Stock: Phase-out (check stock)
MSX12032ESMax cutting dia DCX (mm): 32 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 150 | Teeth: 2 | Weight (kg): 0.8 | Stock: Phase-out (check stock)
MSX12032EMMax cutting dia DCX (mm): 32 | Shank dia DMM (mm): 32 | Head length LH (mm): 120 | Overall length LF (mm): 250 | Teeth: 2 | Weight (kg): 1.4 | Stock: Phase-out (check stock)
MSX12035EMMax cutting dia DCX (mm): 35 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 250 | Teeth: 2 | Weight (kg): 1.4 | Stock: Phase-out (check stock)
MSX12040ESMax cutting dia DCX (mm): 40 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Teeth: 3 | Weight (kg): 0.9 | Stock: Phase-out (check stock)
MSX12040EMMax cutting dia DCX (mm): 40 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 250 | Teeth: 3 | Weight (kg): 1.5 | Stock: Phase-out (check stock)
MSX12050EMMax cutting dia DCX (mm): 50 | Shank dia DMM (mm): 42 | Head length LH (mm): 50 | Overall length LF (mm): 250 | Teeth: 4 | Weight (kg): 2.6 | Stock: Phase-out (check stock)
MSX14040ESMax cutting dia DCX (mm): 40 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Teeth: 2 | Weight (kg): 0.9 | Stock: Phase-out (check stock)
MSX08020ESMax cutting dia DCX (mm): 20 | Shank dia DMM (mm): 20 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 2 | Weight (kg): 0.3 | Stock: Phase-out (check stock)
MSX08020EMMax cutting dia DCX (mm): 20 | Shank dia DMM (mm): 20 | Head length LH (mm): 100 | Overall length LF (mm): 180 | Teeth: 2 | Weight (kg): 0.3 | Stock: Phase-out (check stock)
MSX08022EMMax cutting dia DCX (mm): 22 | Shank dia DMM (mm): 20 | Head length LH (mm): 30 | Overall length LF (mm): 180 | Teeth: 2 | Weight (kg): 0.4 | Stock: Phase-out (check stock)
MSX08025ESMax cutting dia DCX (mm): 25 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Overall length LF (mm): 140 | Teeth: 2 | Weight (kg): 0.4 | Stock: Phase-out (check stock)
MSX08025EMMax cutting dia DCX (mm): 25 | Shank dia DMM (mm): 25 | Head length LH (mm): 120 | Overall length LF (mm): 250 | Teeth: 2 | Weight (kg): 0.8 | Stock: Phase-out (check stock)
MSX08028EMMax cutting dia DCX (mm): 28 | Shank dia DMM (mm): 25 | Head length LH (mm): 40 | Overall length LF (mm): 250 | Teeth: 2 | Weight (kg): 0.9 | Stock: Phase-out (check stock)
MSX08032ESMax cutting dia DCX (mm): 32 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 150 | Teeth: 3 | Weight (kg): 0.8 | Stock: Phase-out (check stock)
MSX08032EMMax cutting dia DCX (mm): 32 | Shank dia DMM (mm): 32 | Head length LH (mm): 120 | Overall length LF (mm): 250 | Teeth: 3 | Weight (kg): 1.4 | Stock: Phase-out (check stock)
MSX08035EMMax cutting dia DCX (mm): 35 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 250 | Teeth: 3 | Weight (kg): 1.5 | Stock: Phase-out (check stock)
