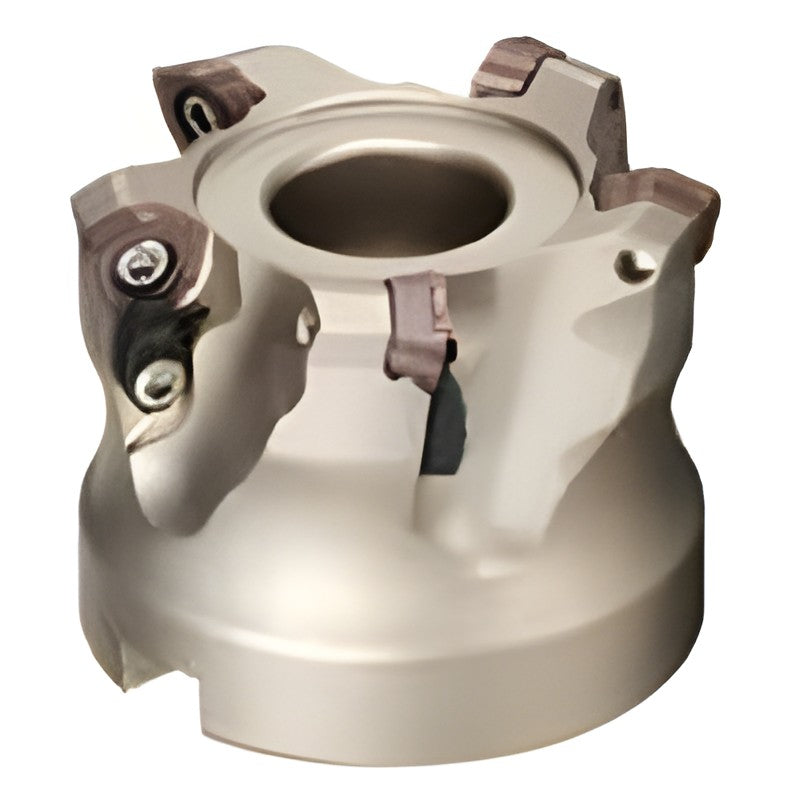

Sumitomo Electric Hardmetal SEC-Metal Slash Mill MSX Shell Type High-Feed Cutter

Sumitomo Electric Hardmetal SEC-Metal Slash Mill MSX Shell Type High-Feed Cutter

Multi-function ultra-high-feed roughing cutter with four insert sizes covering cutting diameters from 16 mm to 100 mm.

Key features

  • Low vibration in pocketing
  • Double clamp
  • 3-corner WDMT inserts
MSX08040RS Max cutting dia DCX (mm): 40 | Boss dia DCSFMS (mm): 37 | Height LF (mm): 45 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 13.5 | Bolt dia D2 (mm): 9 | Teeth: 4 | Weight (kg): 0.2 | Stock: Phase-out (check stock)
MSX12050RS Max cutting dia DCX (mm): 50 | Boss dia DCSFMS (mm): 47 | Height LF (mm): 50 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.3 | Stock: Phase-out (check stock)
MSX12063RS Max cutting dia DCX (mm): 63 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.6 | Stock: Phase-out (check stock)
MSX14050RS Max cutting dia DCX (mm): 50 | Boss dia DCSFMS (mm): 47 | Height LF (mm): 50 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 17 | Bolt dia D2 (mm): 11 | Teeth: 3 | Weight (kg): 0.3 | Stock: Phase-out (check stock)
MSX14063RS Max cutting dia DCX (mm): 63 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.6 | Stock: Phase-out (check stock)
MSX14080RS Max cutting dia DCX (mm): 80 | Boss dia DCSFMS (mm): 76 | Height LF (mm): 63 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 13.5 | Teeth: 5 | Weight (kg): 1.4 | Stock: Phase-out (check stock)
MSX14100RS Max cutting dia DCX (mm): 100 | Boss dia DCSFMS (mm): 96 | Height LF (mm): 63 | Bore dia DCB (mm): 32 | Keyway width KWW (mm): 14.4 | Keyway depth KDP (mm): 8.5 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 44 | Teeth: 6 | Weight (kg): 2.2 | Stock: Phase-out (check stock)
MSX14080R Max cutting dia DCX (mm): 80 | Boss dia DCSFMS (mm): 76 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8.0 | Counterbore depth CBDP (mm): 32.5 | Bolt dia D1 (mm): 28 | Bolt dia D2 (mm): 17 | Teeth: 5 | Weight (kg): 1.3 | Stock: Phase-out (check stock)
MSX14100R Max cutting dia DCX (mm): 100 | Boss dia DCSFMS (mm): 96 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8.0 | Counterbore depth CBDP (mm): 32.5 | Bolt dia D1 (mm): 28 | Bolt dia D2 (mm): 17 | Teeth: 6 | Weight (kg): 2.4 | Stock: Phase-out (check stock)
Milling CuttersSumitomo Electric Hardmetal
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Metal Slash Mill MSX Shell Type High-Feed Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (9)

MSX08040RS, MSX12050RS, MSX12063RS, MSX14050RS, MSX14063RS, MSX14080RS, MSX14100RS, MSX14080R, MSX14100R

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MSX08040RSMax cutting dia DCX (mm): 40 | Boss dia DCSFMS (mm): 37 | Height LF (mm): 45 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 13.5 | Bolt dia D2 (mm): 9 | Teeth: 4 | Weight (kg): 0.2 | Stock: Phase-out (check stock)
MSX12050RSMax cutting dia DCX (mm): 50 | Boss dia DCSFMS (mm): 47 | Height LF (mm): 50 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.3 | Stock: Phase-out (check stock)
MSX12063RSMax cutting dia DCX (mm): 63 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.6 | Stock: Phase-out (check stock)
MSX14050RSMax cutting dia DCX (mm): 50 | Boss dia DCSFMS (mm): 47 | Height LF (mm): 50 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 17 | Bolt dia D2 (mm): 11 | Teeth: 3 | Weight (kg): 0.3 | Stock: Phase-out (check stock)
MSX14063RSMax cutting dia DCX (mm): 63 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.6 | Stock: Phase-out (check stock)
MSX14080RSMax cutting dia DCX (mm): 80 | Boss dia DCSFMS (mm): 76 | Height LF (mm): 63 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 13.5 | Teeth: 5 | Weight (kg): 1.4 | Stock: Phase-out (check stock)
MSX14100RSMax cutting dia DCX (mm): 100 | Boss dia DCSFMS (mm): 96 | Height LF (mm): 63 | Bore dia DCB (mm): 32 | Keyway width KWW (mm): 14.4 | Keyway depth KDP (mm): 8.5 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 44 | Teeth: 6 | Weight (kg): 2.2 | Stock: Phase-out (check stock)
MSX14080RMax cutting dia DCX (mm): 80 | Boss dia DCSFMS (mm): 76 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8.0 | Counterbore depth CBDP (mm): 32.5 | Bolt dia D1 (mm): 28 | Bolt dia D2 (mm): 17 | Teeth: 5 | Weight (kg): 1.3 | Stock: Phase-out (check stock)
MSX14100RMax cutting dia DCX (mm): 100 | Boss dia DCSFMS (mm): 96 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8.0 | Counterbore depth CBDP (mm): 32.5 | Bolt dia D1 (mm): 28 | Bolt dia D2 (mm): 17 | Teeth: 6 | Weight (kg): 2.4 | Stock: Phase-out (check stock)
