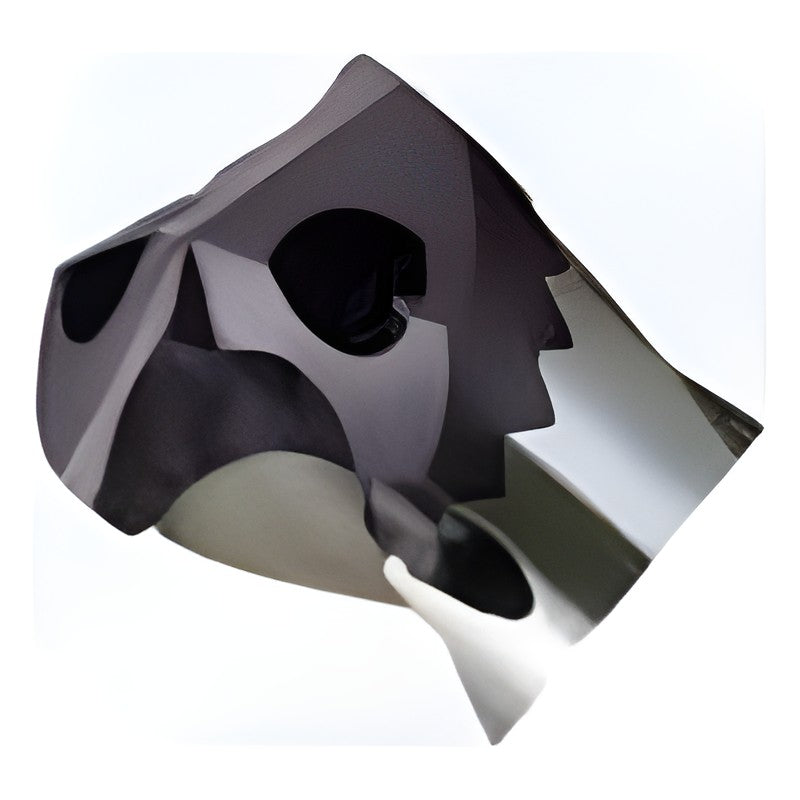

Sumitomo Electric Hardmetal SEC-Multi Drill SMD Exchangeable Head MEL Type (Cast Iron)

Sumitomo Electric Hardmetal SEC-Multi Drill SMD Exchangeable Head MEL Type (Cast Iron)

Exchangeable carbide drill head for the SEC-Multi Drill SMD system, mounted on SMDH holders with internal coolant. MEL type for cast iron.

Key features

  • Head exchange without re-setting
  • Grade ACX80

Specifications

Grade ACX80
Workpiece Cast iron
SMDT1200MEL DC (mm): 12.0 | INSL (mm): 9.1 | PL (mm): 2.2 | Applicable holder: SMDH120 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1210MEL DC (mm): 12.1 | INSL (mm): 9.1 | PL (mm): 2.2 | Applicable holder: SMDH120 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1220MEL DC (mm): 12.2 | INSL (mm): 9.1 | PL (mm): 2.2 | Applicable holder: SMDH120 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1230MEL DC (mm): 12.3 | INSL (mm): 9.1 | PL (mm): 2.2 | Applicable holder: SMDH120 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1240MEL DC (mm): 12.4 | INSL (mm): 9.1 | PL (mm): 2.3 | Applicable holder: SMDH120 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1250MEL DC (mm): 12.5 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1260MEL DC (mm): 12.6 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1270MEL DC (mm): 12.7 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1280MEL DC (mm): 12.8 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1290MEL DC (mm): 12.9 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1300MEL DC (mm): 13.0 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1310MEL DC (mm): 13.1 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1320MEL DC (mm): 13.2 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1330MEL DC (mm): 13.3 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1340MEL DC (mm): 13.4 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1350MEL DC (mm): 13.5 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1360MEL DC (mm): 13.6 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1370MEL DC (mm): 13.7 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1380MEL DC (mm): 13.8 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1390MEL DC (mm): 13.9 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1400MEL DC (mm): 14.0 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1410MEL DC (mm): 14.1 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1420MEL DC (mm): 14.2 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1430MEL DC (mm): 14.3 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1440MEL DC (mm): 14.4 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1450MEL DC (mm): 14.5 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1460MEL DC (mm): 14.6 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1470MEL DC (mm): 14.7 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1480MEL DC (mm): 14.8 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1490MEL DC (mm): 14.9 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1500MEL DC (mm): 15.0 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1510MEL DC (mm): 15.1 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1520MEL DC (mm): 15.2 | INSL (mm): 11.0 | PL (mm): 2.8 | Applicable holder: SMDH150 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1530MEL DC (mm): 15.3 | INSL (mm): 11.0 | PL (mm): 2.8 | Applicable holder: SMDH150 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1540MEL DC (mm): 15.4 | INSL (mm): 11.0 | PL (mm): 2.8 | Applicable holder: SMDH150 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1550MEL DC (mm): 15.5 | INSL (mm): 11.0 | PL (mm): 2.8 | Applicable holder: SMDH150 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1560MEL DC (mm): 15.6 | INSL (mm): 11.6 | PL (mm): 2.8 | Applicable holder: SMDH160 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1570MEL DC (mm): 15.7 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1580MEL DC (mm): 15.8 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1590MEL DC (mm): 15.9 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1600MEL DC (mm): 16.0 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1610MEL DC (mm): 16.1 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1620MEL DC (mm): 16.2 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1630MEL DC (mm): 16.3 | INSL (mm): 11.6 | PL (mm): 3.0 | Applicable holder: SMDH160 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1640MEL DC (mm): 16.4 | INSL (mm): 11.6 | PL (mm): 3.0 | Applicable holder: SMDH160 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1650MEL DC (mm): 16.5 | INSL (mm): 11.6 | PL (mm): 3.0 | Applicable holder: SMDH160 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1660MEL DC (mm): 16.6 | INSL (mm): 12.2 | PL (mm): 3.0 | Applicable holder: SMDH170 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1670MEL DC (mm): 16.7 | INSL (mm): 12.2 | PL (mm): 3.0 | Applicable holder: SMDH170 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1680MEL DC (mm): 16.8 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1690MEL DC (mm): 16.9 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1700MEL DC (mm): 17.0 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1710MEL DC (mm): 17.1 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1720MEL DC (mm): 17.2 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1730MEL DC (mm): 17.3 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1740MEL DC (mm): 17.4 | INSL (mm): 12.2 | PL (mm): 3.2 | Applicable holder: SMDH170 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1750MEL DC (mm): 17.5 | INSL (mm): 12.2 | PL (mm): 3.2 | Applicable holder: SMDH170 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1760MEL DC (mm): 17.6 | INSL (mm): 12.9 | PL (mm): 3.2 | Applicable holder: SMDH180 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1770MEL DC (mm): 17.7 | INSL (mm): 12.9 | PL (mm): 3.2 | Applicable holder: SMDH180 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1780MEL DC (mm): 17.8 | INSL (mm): 12.9 | PL (mm): 3.2 | Applicable holder: SMDH180 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1790MEL DC (mm): 17.9 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1800MEL DC (mm): 18.0 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1810MEL DC (mm): 18.1 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1820MEL DC (mm): 18.2 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1830MEL DC (mm): 18.3 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1840MEL DC (mm): 18.4 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1850MEL DC (mm): 18.5 | INSL (mm): 12.9 | PL (mm): 3.4 | Applicable holder: SMDH180 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1860MEL DC (mm): 18.6 | INSL (mm): 13.5 | PL (mm): 3.4 | Applicable holder: SMDH190 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1870MEL DC (mm): 18.7 | INSL (mm): 13.5 | PL (mm): 3.4 | Applicable holder: SMDH190 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1880MEL DC (mm): 18.8 | INSL (mm): 13.5 | PL (mm): 3.4 | Applicable holder: SMDH190 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1890MEL DC (mm): 18.9 | INSL (mm): 13.5 | PL (mm): 3.4 | Applicable holder: SMDH190 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1900MEL DC (mm): 19.0 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1910MEL DC (mm): 19.1 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1920MEL DC (mm): 19.2 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1930MEL DC (mm): 19.3 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1940MEL DC (mm): 19.4 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1950MEL DC (mm): 19.5 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1960MEL DC (mm): 19.6 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1970MEL DC (mm): 19.7 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1980MEL DC (mm): 19.8 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1990MEL DC (mm): 19.9 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2000MEL DC (mm): 20.0 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2010MEL DC (mm): 20.1 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2020MEL DC (mm): 20.2 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2030MEL DC (mm): 20.3 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2040MEL DC (mm): 20.4 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2050MEL DC (mm): 20.5 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2060MEL DC (mm): 20.6 | INSL (mm): 14.8 | PL (mm): 3.7 | Applicable holder: SMDH210 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2070MEL DC (mm): 20.7 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2080MEL DC (mm): 20.8 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2090MEL DC (mm): 20.9 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2100MEL DC (mm): 21.0 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2110MEL DC (mm): 21.1 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2120MEL DC (mm): 21.2 | INSL (mm): 14.8 | PL (mm): 3.9 | Applicable holder: SMDH210 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2130MEL DC (mm): 21.3 | INSL (mm): 14.8 | PL (mm): 3.9 | Applicable holder: SMDH210 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2140MEL DC (mm): 21.4 | INSL (mm): 14.8 | PL (mm): 3.9 | Applicable holder: SMDH210 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2150MEL DC (mm): 21.5 | INSL (mm): 14.8 | PL (mm): 3.9 | Applicable holder: SMDH210 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2160MEL DC (mm): 21.6 | INSL (mm): 15.0 | PL (mm): 3.9 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2170MEL DC (mm): 21.7 | INSL (mm): 15.0 | PL (mm): 3.9 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2180MEL DC (mm): 21.8 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2190MEL DC (mm): 21.9 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2200MEL DC (mm): 22.0 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2210MEL DC (mm): 22.1 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2220MEL DC (mm): 22.2 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2230MEL DC (mm): 22.3 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2240MEL DC (mm): 22.4 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2250MEL DC (mm): 22.5 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2260MEL DC (mm): 22.6 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2270MEL DC (mm): 22.7 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2280MEL DC (mm): 22.8 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2290MEL DC (mm): 22.9 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2300MEL DC (mm): 23.0 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2310MEL DC (mm): 23.1 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2320MEL DC (mm): 23.2 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2330MEL DC (mm): 23.3 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2340MEL DC (mm): 23.4 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2350MEL DC (mm): 23.5 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2360MEL DC (mm): 23.6 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2370MEL DC (mm): 23.7 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2380MEL DC (mm): 23.8 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2390MEL DC (mm): 23.9 | INSL (mm): 15.4 | PL (mm): 4.3 | Applicable holder: SMDH240 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2400MEL DC (mm): 24.0 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2410MEL DC (mm): 24.1 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2420MEL DC (mm): 24.2 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2430MEL DC (mm): 24.3 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2440MEL DC (mm): 24.4 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2450MEL DC (mm): 24.5 | INSL (mm): 15.4 | PL (mm): 4.5 | Applicable holder: SMDH240 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2460MEL DC (mm): 24.6 | INSL (mm): 15.4 | PL (mm): 4.5 | Applicable holder: SMDH240 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2470MEL DC (mm): 24.7 | INSL (mm): 15.4 | PL (mm): 4.5 | Applicable holder: SMDH240 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2480MEL DC (mm): 24.8 | INSL (mm): 15.4 | PL (mm): 4.5 | Applicable holder: SMDH240 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2490MEL DC (mm): 24.9 | INSL (mm): 15.8 | PL (mm): 4.5 | Applicable holder: SMDH250 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2500MEL DC (mm): 25.0 | INSL (mm): 15.8 | PL (mm): 4.5 | Applicable holder: SMDH250 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2510MEL DC (mm): 25.1 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2520MEL DC (mm): 25.2 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2530MEL DC (mm): 25.3 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2540MEL DC (mm): 25.4 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2550MEL DC (mm): 25.5 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2560MEL DC (mm): 25.6 | INSL (mm): 15.8 | PL (mm): 4.7 | Applicable holder: SMDH250 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2570MEL DC (mm): 25.7 | INSL (mm): 15.8 | PL (mm): 4.7 | Applicable holder: SMDH250 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2580MEL DC (mm): 25.8 | INSL (mm): 15.8 | PL (mm): 4.7 | Applicable holder: SMDH250 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2590MEL DC (mm): 25.9 | INSL (mm): 16.4 | PL (mm): 4.7 | Applicable holder: SMDH260 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2600MEL DC (mm): 26.0 | INSL (mm): 16.4 | PL (mm): 4.7 | Applicable holder: SMDH260 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2610MEL DC (mm): 26.1 | INSL (mm): 16.4 | PL (mm): 4.7 | Applicable holder: SMDH260 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2620MEL DC (mm): 26.2 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2630MEL DC (mm): 26.3 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2640MEL DC (mm): 26.4 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2650MEL DC (mm): 26.5 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2660MEL DC (mm): 26.6 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2670MEL DC (mm): 26.7 | INSL (mm): 16.4 | PL (mm): 4.9 | Applicable holder: SMDH260 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2680MEL DC (mm): 26.8 | INSL (mm): 16.4 | PL (mm): 4.9 | Applicable holder: SMDH260 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2690MEL DC (mm): 26.9 | INSL (mm): 17.1 | PL (mm): 4.9 | Applicable holder: SMDH270 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2700MEL DC (mm): 27.0 | INSL (mm): 17.1 | PL (mm): 4.9 | Applicable holder: SMDH270 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2710MEL DC (mm): 27.1 | INSL (mm): 17.1 | PL (mm): 4.9 | Applicable holder: SMDH270 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2720MEL DC (mm): 27.2 | INSL (mm): 17.1 | PL (mm): 4.9 | Applicable holder: SMDH270 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2730MEL DC (mm): 27.3 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2740MEL DC (mm): 27.4 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2750MEL DC (mm): 27.5 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2760MEL DC (mm): 27.6 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2770MEL DC (mm): 27.7 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2780MEL DC (mm): 27.8 | INSL (mm): 17.1 | PL (mm): 5.1 | Applicable holder: SMDH270 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2790MEL DC (mm): 27.9 | INSL (mm): 17.7 | PL (mm): 5.1 | Applicable holder: SMDH280 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2800MEL DC (mm): 28.0 | INSL (mm): 17.7 | PL (mm): 5.1 | Applicable holder: SMDH280 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2810MEL DC (mm): 28.1 | INSL (mm): 17.7 | PL (mm): 5.1 | Applicable holder: SMDH280 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2820MEL DC (mm): 28.2 | INSL (mm): 17.7 | PL (mm): 5.1 | Applicable holder: SMDH280 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2830MEL DC (mm): 28.3 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2840MEL DC (mm): 28.4 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2850MEL DC (mm): 28.5 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2860MEL DC (mm): 28.6 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2870MEL DC (mm): 28.7 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2880MEL DC (mm): 28.8 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2890MEL DC (mm): 28.9 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2900MEL DC (mm): 29.0 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2910MEL DC (mm): 29.1 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2920MEL DC (mm): 29.2 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2930MEL DC (mm): 29.3 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2940MEL DC (mm): 29.4 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2950MEL DC (mm): 29.5 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2960MEL DC (mm): 29.6 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2970MEL DC (mm): 29.7 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2980MEL DC (mm): 29.8 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2990MEL DC (mm): 29.9 | INSL (mm): 19.0 | PL (mm): 5.4 | Applicable holder: SMDH300 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT3000MEL DC (mm): 30.0 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT3010MEL DC (mm): 30.1 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT3020MEL DC (mm): 30.2 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT3030MEL DC (mm): 30.3 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT3040MEL DC (mm): 30.4 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT3050MEL DC (mm): 30.5 | INSL (mm): 19.0 | PL (mm): 5.6 | Applicable holder: SMDH300 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT3060MEL DC (mm): 30.6 | INSL (mm): 19.0 | PL (mm): 5.6 | Applicable holder: SMDH300 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT3070MEL DC (mm): 30.7 | INSL (mm): 19.0 | PL (mm): 5.6 | Applicable holder: SMDH300 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT3080MEL DC (mm): 30.8 | INSL (mm): 19.0 | PL (mm): 5.6 | Applicable holder: SMDH300 series | Grade: ACX80 | Stock: Phase-out (check availability)
Drill InsertsSumitomo Electric Hardmetal
189 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Multi Drill SMD Exchangeable Head MEL Type (Cast Iron)

Brand Sumitomo Electric Hardmetal·Drill Inserts

Available part numbers (189)

SMDT1200MEL, SMDT1210MEL, SMDT1220MEL, SMDT1230MEL, SMDT1240MEL, SMDT1250MEL, SMDT1260MEL, SMDT1270MEL, SMDT1280MEL, SMDT1290MEL + 179 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SMDT1200MELDC (mm): 12.0 | INSL (mm): 9.1 | PL (mm): 2.2 | Applicable holder: SMDH120 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1210MELDC (mm): 12.1 | INSL (mm): 9.1 | PL (mm): 2.2 | Applicable holder: SMDH120 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1220MELDC (mm): 12.2 | INSL (mm): 9.1 | PL (mm): 2.2 | Applicable holder: SMDH120 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1230MELDC (mm): 12.3 | INSL (mm): 9.1 | PL (mm): 2.2 | Applicable holder: SMDH120 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1240MELDC (mm): 12.4 | INSL (mm): 9.1 | PL (mm): 2.3 | Applicable holder: SMDH120 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1250MELDC (mm): 12.5 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1260MELDC (mm): 12.6 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1270MELDC (mm): 12.7 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1280MELDC (mm): 12.8 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1290MELDC (mm): 12.9 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1300MELDC (mm): 13.0 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1310MELDC (mm): 13.1 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1320MELDC (mm): 13.2 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1330MELDC (mm): 13.3 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1340MELDC (mm): 13.4 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1350MELDC (mm): 13.5 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1360MELDC (mm): 13.6 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1370MELDC (mm): 13.7 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1380MELDC (mm): 13.8 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1390MELDC (mm): 13.9 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1400MELDC (mm): 14.0 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1410MELDC (mm): 14.1 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1420MELDC (mm): 14.2 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1430MELDC (mm): 14.3 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1440MELDC (mm): 14.4 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1450MELDC (mm): 14.5 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1460MELDC (mm): 14.6 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1470MELDC (mm): 14.7 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1480MELDC (mm): 14.8 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1490MELDC (mm): 14.9 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1500MELDC (mm): 15.0 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1510MELDC (mm): 15.1 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1520MELDC (mm): 15.2 | INSL (mm): 11.0 | PL (mm): 2.8 | Applicable holder: SMDH150 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1530MELDC (mm): 15.3 | INSL (mm): 11.0 | PL (mm): 2.8 | Applicable holder: SMDH150 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1540MELDC (mm): 15.4 | INSL (mm): 11.0 | PL (mm): 2.8 | Applicable holder: SMDH150 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1550MELDC (mm): 15.5 | INSL (mm): 11.0 | PL (mm): 2.8 | Applicable holder: SMDH150 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1560MELDC (mm): 15.6 | INSL (mm): 11.6 | PL (mm): 2.8 | Applicable holder: SMDH160 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1570MELDC (mm): 15.7 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1580MELDC (mm): 15.8 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1590MELDC (mm): 15.9 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1600MELDC (mm): 16.0 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1610MELDC (mm): 16.1 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1620MELDC (mm): 16.2 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1630MELDC (mm): 16.3 | INSL (mm): 11.6 | PL (mm): 3.0 | Applicable holder: SMDH160 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1640MELDC (mm): 16.4 | INSL (mm): 11.6 | PL (mm): 3.0 | Applicable holder: SMDH160 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1650MELDC (mm): 16.5 | INSL (mm): 11.6 | PL (mm): 3.0 | Applicable holder: SMDH160 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1660MELDC (mm): 16.6 | INSL (mm): 12.2 | PL (mm): 3.0 | Applicable holder: SMDH170 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1670MELDC (mm): 16.7 | INSL (mm): 12.2 | PL (mm): 3.0 | Applicable holder: SMDH170 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1680MELDC (mm): 16.8 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1690MELDC (mm): 16.9 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1700MELDC (mm): 17.0 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1710MELDC (mm): 17.1 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1720MELDC (mm): 17.2 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1730MELDC (mm): 17.3 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1740MELDC (mm): 17.4 | INSL (mm): 12.2 | PL (mm): 3.2 | Applicable holder: SMDH170 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1750MELDC (mm): 17.5 | INSL (mm): 12.2 | PL (mm): 3.2 | Applicable holder: SMDH170 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1760MELDC (mm): 17.6 | INSL (mm): 12.9 | PL (mm): 3.2 | Applicable holder: SMDH180 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1770MELDC (mm): 17.7 | INSL (mm): 12.9 | PL (mm): 3.2 | Applicable holder: SMDH180 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1780MELDC (mm): 17.8 | INSL (mm): 12.9 | PL (mm): 3.2 | Applicable holder: SMDH180 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1790MELDC (mm): 17.9 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1800MELDC (mm): 18.0 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1810MELDC (mm): 18.1 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1820MELDC (mm): 18.2 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1830MELDC (mm): 18.3 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1840MELDC (mm): 18.4 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1850MELDC (mm): 18.5 | INSL (mm): 12.9 | PL (mm): 3.4 | Applicable holder: SMDH180 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1860MELDC (mm): 18.6 | INSL (mm): 13.5 | PL (mm): 3.4 | Applicable holder: SMDH190 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1870MELDC (mm): 18.7 | INSL (mm): 13.5 | PL (mm): 3.4 | Applicable holder: SMDH190 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1880MELDC (mm): 18.8 | INSL (mm): 13.5 | PL (mm): 3.4 | Applicable holder: SMDH190 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1890MELDC (mm): 18.9 | INSL (mm): 13.5 | PL (mm): 3.4 | Applicable holder: SMDH190 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1900MELDC (mm): 19.0 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1910MELDC (mm): 19.1 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1920MELDC (mm): 19.2 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1930MELDC (mm): 19.3 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1940MELDC (mm): 19.4 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1950MELDC (mm): 19.5 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1960MELDC (mm): 19.6 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1970MELDC (mm): 19.7 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1980MELDC (mm): 19.8 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT1990MELDC (mm): 19.9 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2000MELDC (mm): 20.0 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2010MELDC (mm): 20.1 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2020MELDC (mm): 20.2 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2030MELDC (mm): 20.3 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2040MELDC (mm): 20.4 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2050MELDC (mm): 20.5 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2060MELDC (mm): 20.6 | INSL (mm): 14.8 | PL (mm): 3.7 | Applicable holder: SMDH210 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2070MELDC (mm): 20.7 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2080MELDC (mm): 20.8 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2090MELDC (mm): 20.9 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2100MELDC (mm): 21.0 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2110MELDC (mm): 21.1 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2120MELDC (mm): 21.2 | INSL (mm): 14.8 | PL (mm): 3.9 | Applicable holder: SMDH210 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2130MELDC (mm): 21.3 | INSL (mm): 14.8 | PL (mm): 3.9 | Applicable holder: SMDH210 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2140MELDC (mm): 21.4 | INSL (mm): 14.8 | PL (mm): 3.9 | Applicable holder: SMDH210 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2150MELDC (mm): 21.5 | INSL (mm): 14.8 | PL (mm): 3.9 | Applicable holder: SMDH210 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2160MELDC (mm): 21.6 | INSL (mm): 15.0 | PL (mm): 3.9 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2170MELDC (mm): 21.7 | INSL (mm): 15.0 | PL (mm): 3.9 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2180MELDC (mm): 21.8 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2190MELDC (mm): 21.9 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2200MELDC (mm): 22.0 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2210MELDC (mm): 22.1 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2220MELDC (mm): 22.2 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2230MELDC (mm): 22.3 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2240MELDC (mm): 22.4 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2250MELDC (mm): 22.5 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2260MELDC (mm): 22.6 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2270MELDC (mm): 22.7 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2280MELDC (mm): 22.8 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2290MELDC (mm): 22.9 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2300MELDC (mm): 23.0 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2310MELDC (mm): 23.1 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2320MELDC (mm): 23.2 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2330MELDC (mm): 23.3 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2340MELDC (mm): 23.4 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2350MELDC (mm): 23.5 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2360MELDC (mm): 23.6 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2370MELDC (mm): 23.7 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2380MELDC (mm): 23.8 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2390MELDC (mm): 23.9 | INSL (mm): 15.4 | PL (mm): 4.3 | Applicable holder: SMDH240 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2400MELDC (mm): 24.0 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2410MELDC (mm): 24.1 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2420MELDC (mm): 24.2 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2430MELDC (mm): 24.3 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2440MELDC (mm): 24.4 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2450MELDC (mm): 24.5 | INSL (mm): 15.4 | PL (mm): 4.5 | Applicable holder: SMDH240 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2460MELDC (mm): 24.6 | INSL (mm): 15.4 | PL (mm): 4.5 | Applicable holder: SMDH240 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2470MELDC (mm): 24.7 | INSL (mm): 15.4 | PL (mm): 4.5 | Applicable holder: SMDH240 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2480MELDC (mm): 24.8 | INSL (mm): 15.4 | PL (mm): 4.5 | Applicable holder: SMDH240 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2490MELDC (mm): 24.9 | INSL (mm): 15.8 | PL (mm): 4.5 | Applicable holder: SMDH250 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2500MELDC (mm): 25.0 | INSL (mm): 15.8 | PL (mm): 4.5 | Applicable holder: SMDH250 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2510MELDC (mm): 25.1 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2520MELDC (mm): 25.2 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2530MELDC (mm): 25.3 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2540MELDC (mm): 25.4 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2550MELDC (mm): 25.5 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2560MELDC (mm): 25.6 | INSL (mm): 15.8 | PL (mm): 4.7 | Applicable holder: SMDH250 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2570MELDC (mm): 25.7 | INSL (mm): 15.8 | PL (mm): 4.7 | Applicable holder: SMDH250 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2580MELDC (mm): 25.8 | INSL (mm): 15.8 | PL (mm): 4.7 | Applicable holder: SMDH250 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2590MELDC (mm): 25.9 | INSL (mm): 16.4 | PL (mm): 4.7 | Applicable holder: SMDH260 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2600MELDC (mm): 26.0 | INSL (mm): 16.4 | PL (mm): 4.7 | Applicable holder: SMDH260 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2610MELDC (mm): 26.1 | INSL (mm): 16.4 | PL (mm): 4.7 | Applicable holder: SMDH260 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2620MELDC (mm): 26.2 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2630MELDC (mm): 26.3 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2640MELDC (mm): 26.4 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2650MELDC (mm): 26.5 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2660MELDC (mm): 26.6 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2670MELDC (mm): 26.7 | INSL (mm): 16.4 | PL (mm): 4.9 | Applicable holder: SMDH260 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2680MELDC (mm): 26.8 | INSL (mm): 16.4 | PL (mm): 4.9 | Applicable holder: SMDH260 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2690MELDC (mm): 26.9 | INSL (mm): 17.1 | PL (mm): 4.9 | Applicable holder: SMDH270 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2700MELDC (mm): 27.0 | INSL (mm): 17.1 | PL (mm): 4.9 | Applicable holder: SMDH270 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2710MELDC (mm): 27.1 | INSL (mm): 17.1 | PL (mm): 4.9 | Applicable holder: SMDH270 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2720MELDC (mm): 27.2 | INSL (mm): 17.1 | PL (mm): 4.9 | Applicable holder: SMDH270 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2730MELDC (mm): 27.3 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2740MELDC (mm): 27.4 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2750MELDC (mm): 27.5 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2760MELDC (mm): 27.6 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2770MELDC (mm): 27.7 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2780MELDC (mm): 27.8 | INSL (mm): 17.1 | PL (mm): 5.1 | Applicable holder: SMDH270 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2790MELDC (mm): 27.9 | INSL (mm): 17.7 | PL (mm): 5.1 | Applicable holder: SMDH280 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2800MELDC (mm): 28.0 | INSL (mm): 17.7 | PL (mm): 5.1 | Applicable holder: SMDH280 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2810MELDC (mm): 28.1 | INSL (mm): 17.7 | PL (mm): 5.1 | Applicable holder: SMDH280 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2820MELDC (mm): 28.2 | INSL (mm): 17.7 | PL (mm): 5.1 | Applicable holder: SMDH280 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2830MELDC (mm): 28.3 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2840MELDC (mm): 28.4 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2850MELDC (mm): 28.5 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2860MELDC (mm): 28.6 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2870MELDC (mm): 28.7 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2880MELDC (mm): 28.8 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2890MELDC (mm): 28.9 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2900MELDC (mm): 29.0 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2910MELDC (mm): 29.1 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2920MELDC (mm): 29.2 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2930MELDC (mm): 29.3 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2940MELDC (mm): 29.4 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2950MELDC (mm): 29.5 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2960MELDC (mm): 29.6 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2970MELDC (mm): 29.7 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2980MELDC (mm): 29.8 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT2990MELDC (mm): 29.9 | INSL (mm): 19.0 | PL (mm): 5.4 | Applicable holder: SMDH300 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT3000MELDC (mm): 30.0 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT3010MELDC (mm): 30.1 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT3020MELDC (mm): 30.2 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT3030MELDC (mm): 30.3 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT3040MELDC (mm): 30.4 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT3050MELDC (mm): 30.5 | INSL (mm): 19.0 | PL (mm): 5.6 | Applicable holder: SMDH300 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT3060MELDC (mm): 30.6 | INSL (mm): 19.0 | PL (mm): 5.6 | Applicable holder: SMDH300 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT3070MELDC (mm): 30.7 | INSL (mm): 19.0 | PL (mm): 5.6 | Applicable holder: SMDH300 series | Grade: ACX80 | Stock: Phase-out (check availability)
SMDT3080MELDC (mm): 30.8 | INSL (mm): 19.0 | PL (mm): 5.6 | Applicable holder: SMDH300 series | Grade: ACX80 | Stock: Phase-out (check availability)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
