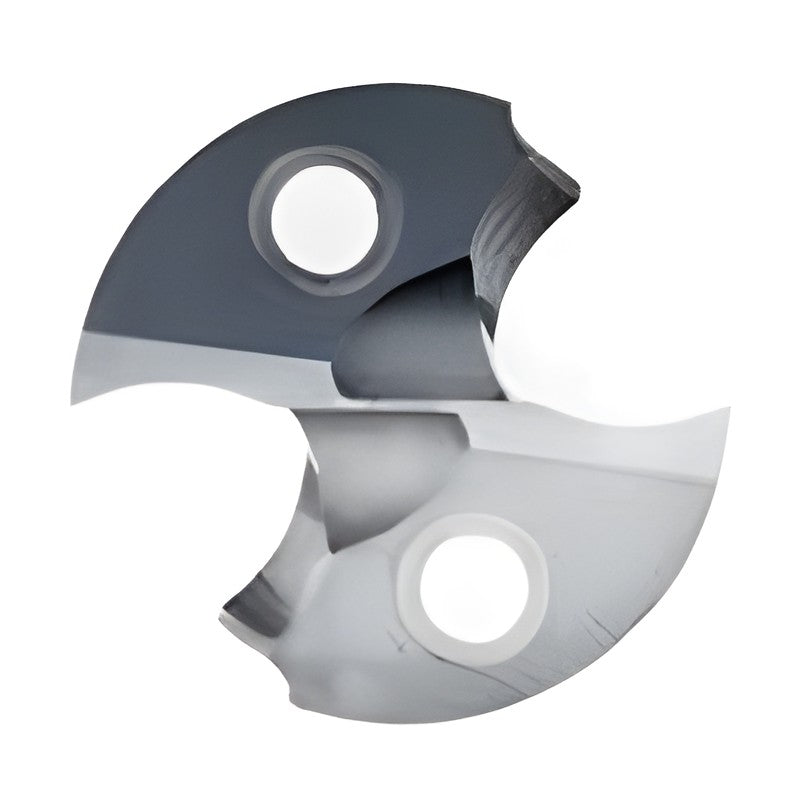

Sumitomo Electric Hardmetal SEC-Multi Drill SMD Exchangeable Head MFS Type (Flat Bottom)

Sumitomo Electric Hardmetal SEC-Multi Drill SMD Exchangeable Head MFS Type (Flat Bottom)

Exchangeable carbide drill head for the SEC-Multi Drill SMD system, mounted on SMDH holders with internal coolant. MFS flat-bottom type for counterboring and burr control on non-flat surfaces.

Key features

  • Flat bottom for counterboring
  • Burr control on inclined or curved surfaces
  • Usable on 1.5D-12D holders
  • Grade ACX70

Specifications

Grade ACX70
SMDT1200MFS DC (mm): 12.0 | INSL (mm): 7.1 | Applicable holder: SMDH120 series | Grade: ACX70 | Stock: Yes
SMDT1250MFS DC (mm): 12.5 | INSL (mm): 7.2 | Applicable holder: SMDH125 series | Grade: ACX70 | Stock: Yes
SMDT1300MFS DC (mm): 13.0 | INSL (mm): 7.5 | Applicable holder: SMDH130 series | Grade: ACX70 | Stock: Yes
SMDT1350MFS DC (mm): 13.5 | INSL (mm): 7.9 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1400MFS DC (mm): 14.0 | INSL (mm): 7.9 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1450MFS DC (mm): 14.5 | INSL (mm): 7.9 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1500MFS DC (mm): 15.0 | INSL (mm): 8.3 | Applicable holder: SMDH150 series | Grade: ACX70 | Stock: Yes
SMDT1550MFS DC (mm): 15.5 | INSL (mm): 8.3 | Applicable holder: SMDH150 series | Grade: ACX70 | Stock: Yes
SMDT1600MFS DC (mm): 16.0 | INSL (mm): 8.8 | Applicable holder: SMDH160 series | Grade: ACX70 | Stock: Yes
SMDT1650MFS DC (mm): 16.5 | INSL (mm): 8.8 | Applicable holder: SMDH160 series | Grade: ACX70 | Stock: Yes
SMDT1700MFS DC (mm): 17.0 | INSL (mm): 9.3 | Applicable holder: SMDH170 series | Grade: ACX70 | Stock: Yes
SMDT1750MFS DC (mm): 17.5 | INSL (mm): 9.3 | Applicable holder: SMDH170 series | Grade: ACX70 | Stock: Yes
SMDT1800MFS DC (mm): 18.0 | INSL (mm): 9.8 | Applicable holder: SMDH180 series | Grade: ACX70 | Stock: Yes
SMDT1850MFS DC (mm): 18.5 | INSL (mm): 9.8 | Applicable holder: SMDH180 series | Grade: ACX70 | Stock: Yes
SMDT1900MFS DC (mm): 19.0 | INSL (mm): 10.2 | Applicable holder: SMDH190 series | Grade: ACX70 | Stock: Yes
SMDT1950MFS DC (mm): 19.5 | INSL (mm): 10.2 | Applicable holder: SMDH190 series | Grade: ACX70 | Stock: Yes
SMDT2000MFS DC (mm): 20.0 | INSL (mm): 10.7 | Applicable holder: SMDH200 series | Grade: ACX70 | Stock: Yes
SMDT2050MFS DC (mm): 20.5 | INSL (mm): 10.7 | Applicable holder: SMDH200 series | Grade: ACX70 | Stock: Yes
SMDT2100MFS DC (mm): 21.0 | INSL (mm): 11.2 | Applicable holder: SMDH210 series | Grade: ACX70 | Stock: Yes
SMDT2150MFS DC (mm): 21.5 | INSL (mm): 11.2 | Applicable holder: SMDH210 series | Grade: ACX70 | Stock: Yes
SMDT2200MFS DC (mm): 22.0 | INSL (mm): 11.2 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2250MFS DC (mm): 22.5 | INSL (mm): 11.2 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2300MFS DC (mm): 23.0 | INSL (mm): 11.2 | Applicable holder: SMDH230 series | Grade: ACX70 | Stock: Yes
SMDT2350MFS DC (mm): 23.5 | INSL (mm): 11.2 | Applicable holder: SMDH230 series | Grade: ACX70 | Stock: Yes
SMDT2400MFS DC (mm): 24.0 | INSL (mm): 11.3 | Applicable holder: SMDH240 series | Grade: ACX70 | Stock: Yes
SMDT2450MFS DC (mm): 24.5 | INSL (mm): 11.3 | Applicable holder: SMDH240 series | Grade: ACX70 | Stock: Yes
SMDT2500MFS DC (mm): 25.0 | INSL (mm): 11.7 | Applicable holder: SMDH250 series | Grade: ACX70 | Stock: Yes
SMDT2550MFS DC (mm): 25.5 | INSL (mm): 11.7 | Applicable holder: SMDH250 series | Grade: ACX70 | Stock: Yes
SMDT2600MFS DC (mm): 26.0 | INSL (mm): 12.2 | Applicable holder: SMDH260 series | Grade: ACX70 | Stock: Yes
SMDT2650MFS DC (mm): 26.5 | INSL (mm): 12.2 | Applicable holder: SMDH260 series | Grade: ACX70 | Stock: Yes
SMDT2700MFS DC (mm): 27.0 | INSL (mm): 12.7 | Applicable holder: SMDH270 series | Grade: ACX70 | Stock: Yes
SMDT2750MFS DC (mm): 27.5 | INSL (mm): 12.7 | Applicable holder: SMDH270 series | Grade: ACX70 | Stock: Yes
SMDT2800MFS DC (mm): 28.0 | INSL (mm): 13.2 | Applicable holder: SMDH280 series | Grade: ACX70 | Stock: Yes
SMDT2850MFS DC (mm): 28.5 | INSL (mm): 13.2 | Applicable holder: SMDH280 series | Grade: ACX70 | Stock: Yes
SMDT2900MFS DC (mm): 29.0 | INSL (mm): 13.6 | Applicable holder: SMDH290 series | Grade: ACX70 | Stock: Yes
SMDT2950MFS DC (mm): 29.5 | INSL (mm): 13.6 | Applicable holder: SMDH290 series | Grade: ACX70 | Stock: Yes
SMDT3000MFS DC (mm): 30.0 | INSL (mm): 14.1 | Applicable holder: SMDH300 series | Grade: ACX70 | Stock: Yes
Drill InsertsSumitomo Electric Hardmetal
37 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Multi Drill SMD Exchangeable Head MFS Type (Flat Bottom)

Brand Sumitomo Electric Hardmetal·Drill Inserts

Available part numbers (37)

SMDT1200MFS, SMDT1250MFS, SMDT1300MFS, SMDT1350MFS, SMDT1400MFS, SMDT1450MFS, SMDT1500MFS, SMDT1550MFS, SMDT1600MFS, SMDT1650MFS + 27 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SMDT1200MFSDC (mm): 12.0 | INSL (mm): 7.1 | Applicable holder: SMDH120 series | Grade: ACX70 | Stock: Yes
SMDT1250MFSDC (mm): 12.5 | INSL (mm): 7.2 | Applicable holder: SMDH125 series | Grade: ACX70 | Stock: Yes
SMDT1300MFSDC (mm): 13.0 | INSL (mm): 7.5 | Applicable holder: SMDH130 series | Grade: ACX70 | Stock: Yes
SMDT1350MFSDC (mm): 13.5 | INSL (mm): 7.9 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1400MFSDC (mm): 14.0 | INSL (mm): 7.9 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1450MFSDC (mm): 14.5 | INSL (mm): 7.9 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1500MFSDC (mm): 15.0 | INSL (mm): 8.3 | Applicable holder: SMDH150 series | Grade: ACX70 | Stock: Yes
SMDT1550MFSDC (mm): 15.5 | INSL (mm): 8.3 | Applicable holder: SMDH150 series | Grade: ACX70 | Stock: Yes
SMDT1600MFSDC (mm): 16.0 | INSL (mm): 8.8 | Applicable holder: SMDH160 series | Grade: ACX70 | Stock: Yes
SMDT1650MFSDC (mm): 16.5 | INSL (mm): 8.8 | Applicable holder: SMDH160 series | Grade: ACX70 | Stock: Yes
SMDT1700MFSDC (mm): 17.0 | INSL (mm): 9.3 | Applicable holder: SMDH170 series | Grade: ACX70 | Stock: Yes
SMDT1750MFSDC (mm): 17.5 | INSL (mm): 9.3 | Applicable holder: SMDH170 series | Grade: ACX70 | Stock: Yes
SMDT1800MFSDC (mm): 18.0 | INSL (mm): 9.8 | Applicable holder: SMDH180 series | Grade: ACX70 | Stock: Yes
SMDT1850MFSDC (mm): 18.5 | INSL (mm): 9.8 | Applicable holder: SMDH180 series | Grade: ACX70 | Stock: Yes
SMDT1900MFSDC (mm): 19.0 | INSL (mm): 10.2 | Applicable holder: SMDH190 series | Grade: ACX70 | Stock: Yes
SMDT1950MFSDC (mm): 19.5 | INSL (mm): 10.2 | Applicable holder: SMDH190 series | Grade: ACX70 | Stock: Yes
SMDT2000MFSDC (mm): 20.0 | INSL (mm): 10.7 | Applicable holder: SMDH200 series | Grade: ACX70 | Stock: Yes
SMDT2050MFSDC (mm): 20.5 | INSL (mm): 10.7 | Applicable holder: SMDH200 series | Grade: ACX70 | Stock: Yes
SMDT2100MFSDC (mm): 21.0 | INSL (mm): 11.2 | Applicable holder: SMDH210 series | Grade: ACX70 | Stock: Yes
SMDT2150MFSDC (mm): 21.5 | INSL (mm): 11.2 | Applicable holder: SMDH210 series | Grade: ACX70 | Stock: Yes
SMDT2200MFSDC (mm): 22.0 | INSL (mm): 11.2 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2250MFSDC (mm): 22.5 | INSL (mm): 11.2 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2300MFSDC (mm): 23.0 | INSL (mm): 11.2 | Applicable holder: SMDH230 series | Grade: ACX70 | Stock: Yes
SMDT2350MFSDC (mm): 23.5 | INSL (mm): 11.2 | Applicable holder: SMDH230 series | Grade: ACX70 | Stock: Yes
SMDT2400MFSDC (mm): 24.0 | INSL (mm): 11.3 | Applicable holder: SMDH240 series | Grade: ACX70 | Stock: Yes
SMDT2450MFSDC (mm): 24.5 | INSL (mm): 11.3 | Applicable holder: SMDH240 series | Grade: ACX70 | Stock: Yes
SMDT2500MFSDC (mm): 25.0 | INSL (mm): 11.7 | Applicable holder: SMDH250 series | Grade: ACX70 | Stock: Yes
SMDT2550MFSDC (mm): 25.5 | INSL (mm): 11.7 | Applicable holder: SMDH250 series | Grade: ACX70 | Stock: Yes
SMDT2600MFSDC (mm): 26.0 | INSL (mm): 12.2 | Applicable holder: SMDH260 series | Grade: ACX70 | Stock: Yes
SMDT2650MFSDC (mm): 26.5 | INSL (mm): 12.2 | Applicable holder: SMDH260 series | Grade: ACX70 | Stock: Yes
SMDT2700MFSDC (mm): 27.0 | INSL (mm): 12.7 | Applicable holder: SMDH270 series | Grade: ACX70 | Stock: Yes
SMDT2750MFSDC (mm): 27.5 | INSL (mm): 12.7 | Applicable holder: SMDH270 series | Grade: ACX70 | Stock: Yes
SMDT2800MFSDC (mm): 28.0 | INSL (mm): 13.2 | Applicable holder: SMDH280 series | Grade: ACX70 | Stock: Yes
SMDT2850MFSDC (mm): 28.5 | INSL (mm): 13.2 | Applicable holder: SMDH280 series | Grade: ACX70 | Stock: Yes
SMDT2900MFSDC (mm): 29.0 | INSL (mm): 13.6 | Applicable holder: SMDH290 series | Grade: ACX70 | Stock: Yes
SMDT2950MFSDC (mm): 29.5 | INSL (mm): 13.6 | Applicable holder: SMDH290 series | Grade: ACX70 | Stock: Yes
SMDT3000MFSDC (mm): 30.0 | INSL (mm): 14.1 | Applicable holder: SMDH300 series | Grade: ACX70 | Stock: Yes
