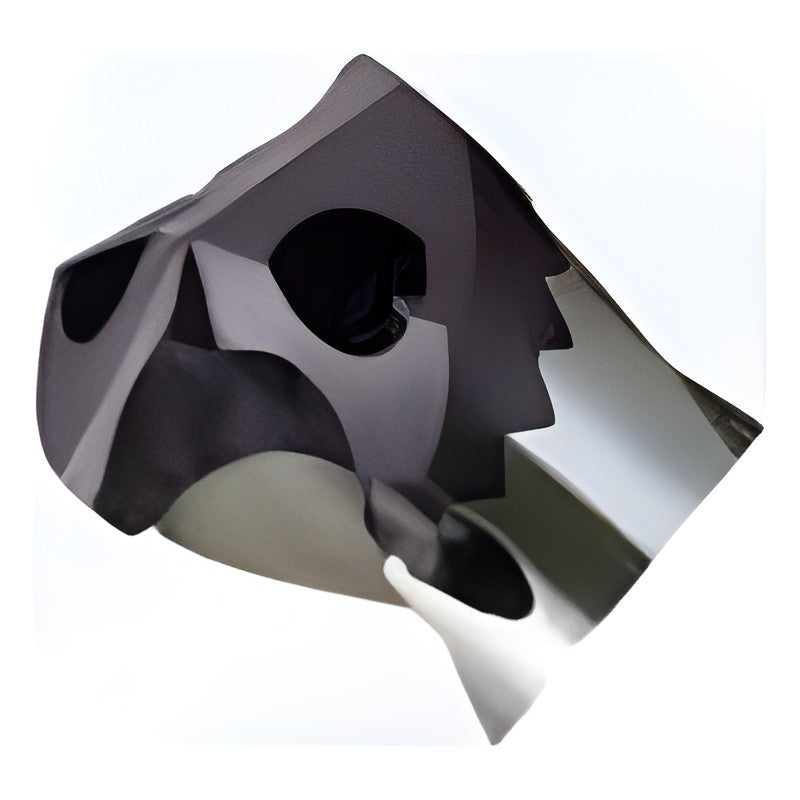

Sumitomo Electric Hardmetal SEC-Multi Drill SMD Exchangeable Head MSL Type (Stainless Steel)

Sumitomo Electric Hardmetal SEC-Multi Drill SMD Exchangeable Head MSL Type (Stainless Steel)

Exchangeable carbide drill head for the SEC-Multi Drill SMD system, mounted on SMDH holders with internal coolant. MSL type for stainless steel.

Key features

  • Head exchange without re-setting
  • 140 deg point angle
  • NX coating
  • Grade ACT100

Specifications

Point angle 140 deg
Grade ACT100
Workpiece Stainless steel
SMDT1200MSL DC (mm): 12.0 | INSL (mm): 9.1 | PL (mm): 2.2 | Applicable holder: SMDH120 series | Grade: ACT100 | Stock: Yes
SMDT1210MSL DC (mm): 12.1 | INSL (mm): 9.1 | PL (mm): 2.2 | Applicable holder: SMDH120 series | Grade: ACT100 | Stock: Yes
SMDT1220MSL DC (mm): 12.2 | INSL (mm): 9.1 | PL (mm): 2.2 | Applicable holder: SMDH120 series | Grade: ACT100 | Stock: Yes
SMDT1230MSL DC (mm): 12.3 | INSL (mm): 9.1 | PL (mm): 2.2 | Applicable holder: SMDH120 series | Grade: ACT100 | Stock: Yes
SMDT1240MSL DC (mm): 12.4 | INSL (mm): 9.1 | PL (mm): 2.3 | Applicable holder: SMDH120 series | Grade: ACT100 | Stock: Yes
SMDT1250MSL DC (mm): 12.5 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACT100 | Stock: Yes
SMDT1260MSL DC (mm): 12.6 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACT100 | Stock: Yes
SMDT1270MSL DC (mm): 12.7 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACT100 | Stock: Yes
SMDT1280MSL DC (mm): 12.8 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACT100 | Stock: Yes
SMDT1290MSL DC (mm): 12.9 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACT100 | Stock: Yes
SMDT1300MSL DC (mm): 13.0 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACT100 | Stock: Yes
SMDT1310MSL DC (mm): 13.1 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACT100 | Stock: Yes
SMDT1320MSL DC (mm): 13.2 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACT100 | Stock: Yes
SMDT1330MSL DC (mm): 13.3 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACT100 | Stock: Yes
SMDT1340MSL DC (mm): 13.4 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACT100 | Stock: Yes
SMDT1350MSL DC (mm): 13.5 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACT100 | Stock: Yes
SMDT1360MSL DC (mm): 13.6 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACT100 | Stock: Yes
SMDT1370MSL DC (mm): 13.7 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACT100 | Stock: Yes
SMDT1380MSL DC (mm): 13.8 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACT100 | Stock: Yes
SMDT1390MSL DC (mm): 13.9 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACT100 | Stock: Yes
SMDT1400MSL DC (mm): 14.0 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACT100 | Stock: Yes
SMDT1410MSL DC (mm): 14.1 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACT100 | Stock: Yes
SMDT1420MSL DC (mm): 14.2 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACT100 | Stock: Yes
SMDT1430MSL DC (mm): 14.3 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACT100 | Stock: Yes
SMDT1440MSL DC (mm): 14.4 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACT100 | Stock: Yes
SMDT1450MSL DC (mm): 14.5 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACT100 | Stock: Yes
SMDT1460MSL DC (mm): 14.6 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACT100 | Stock: Yes
SMDT1470MSL DC (mm): 14.7 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACT100 | Stock: Yes
SMDT1480MSL DC (mm): 14.8 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACT100 | Stock: Yes
SMDT1490MSL DC (mm): 14.9 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACT100 | Stock: Yes
SMDT1500MSL DC (mm): 15.0 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACT100 | Stock: Yes
SMDT1510MSL DC (mm): 15.1 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACT100 | Stock: Yes
SMDT1520MSL DC (mm): 15.2 | INSL (mm): 11.0 | PL (mm): 2.8 | Applicable holder: SMDH150 series | Grade: ACT100 | Stock: Yes
SMDT1530MSL DC (mm): 15.3 | INSL (mm): 11.0 | PL (mm): 2.8 | Applicable holder: SMDH150 series | Grade: ACT100 | Stock: Yes
SMDT1540MSL DC (mm): 15.4 | INSL (mm): 11.0 | PL (mm): 2.8 | Applicable holder: SMDH150 series | Grade: ACT100 | Stock: Yes
SMDT1550MSL DC (mm): 15.5 | INSL (mm): 11.0 | PL (mm): 2.8 | Applicable holder: SMDH150 series | Grade: ACT100 | Stock: Yes
SMDT1560MSL DC (mm): 15.6 | INSL (mm): 11.6 | PL (mm): 2.8 | Applicable holder: SMDH160 series | Grade: ACT100 | Stock: Yes
SMDT1570MSL DC (mm): 15.7 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACT100 | Stock: Yes
SMDT1580MSL DC (mm): 15.8 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACT100 | Stock: Yes
SMDT1590MSL DC (mm): 15.9 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACT100 | Stock: Yes
SMDT1600MSL DC (mm): 16.0 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACT100 | Stock: Yes
SMDT1610MSL DC (mm): 16.1 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACT100 | Stock: Yes
SMDT1620MSL DC (mm): 16.2 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACT100 | Stock: Yes
SMDT1630MSL DC (mm): 16.3 | INSL (mm): 11.6 | PL (mm): 3.0 | Applicable holder: SMDH160 series | Grade: ACT100 | Stock: Yes
SMDT1640MSL DC (mm): 16.4 | INSL (mm): 11.6 | PL (mm): 3.0 | Applicable holder: SMDH160 series | Grade: ACT100 | Stock: Yes
SMDT1650MSL DC (mm): 16.5 | INSL (mm): 11.6 | PL (mm): 3.0 | Applicable holder: SMDH160 series | Grade: ACT100 | Stock: Yes
SMDT1660MSL DC (mm): 16.6 | INSL (mm): 12.2 | PL (mm): 3.0 | Applicable holder: SMDH170 series | Grade: ACT100 | Stock: Yes
SMDT1670MSL DC (mm): 16.7 | INSL (mm): 12.2 | PL (mm): 3.0 | Applicable holder: SMDH170 series | Grade: ACT100 | Stock: Yes
SMDT1680MSL DC (mm): 16.8 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACT100 | Stock: Yes
SMDT1690MSL DC (mm): 16.9 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACT100 | Stock: Yes
SMDT1700MSL DC (mm): 17.0 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACT100 | Stock: Yes
SMDT1710MSL DC (mm): 17.1 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACT100 | Stock: Yes
SMDT1720MSL DC (mm): 17.2 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACT100 | Stock: Yes
SMDT1730MSL DC (mm): 17.3 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACT100 | Stock: Yes
SMDT1740MSL DC (mm): 17.4 | INSL (mm): 12.2 | PL (mm): 3.2 | Applicable holder: SMDH170 series | Grade: ACT100 | Stock: Yes
SMDT1750MSL DC (mm): 17.5 | INSL (mm): 12.2 | PL (mm): 3.2 | Applicable holder: SMDH170 series | Grade: ACT100 | Stock: Yes
SMDT1760MSL DC (mm): 17.6 | INSL (mm): 12.9 | PL (mm): 3.2 | Applicable holder: SMDH180 series | Grade: ACT100 | Stock: Yes
SMDT1770MSL DC (mm): 17.7 | INSL (mm): 12.9 | PL (mm): 3.2 | Applicable holder: SMDH180 series | Grade: ACT100 | Stock: Yes
SMDT1780MSL DC (mm): 17.8 | INSL (mm): 12.9 | PL (mm): 3.2 | Applicable holder: SMDH180 series | Grade: ACT100 | Stock: Yes
SMDT1790MSL DC (mm): 17.9 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACT100 | Stock: Yes
SMDT1800MSL DC (mm): 18.0 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACT100 | Stock: Yes
SMDT1810MSL DC (mm): 18.1 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACT100 | Stock: Yes
SMDT1820MSL DC (mm): 18.2 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACT100 | Stock: Yes
SMDT1830MSL DC (mm): 18.3 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACT100 | Stock: Yes
SMDT1840MSL DC (mm): 18.4 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACT100 | Stock: Yes
SMDT1850MSL DC (mm): 18.5 | INSL (mm): 12.9 | PL (mm): 3.4 | Applicable holder: SMDH180 series | Grade: ACT100 | Stock: Yes
SMDT1860MSL DC (mm): 18.6 | INSL (mm): 13.5 | PL (mm): 3.4 | Applicable holder: SMDH190 series | Grade: ACT100 | Stock: Yes
SMDT1870MSL DC (mm): 18.7 | INSL (mm): 13.5 | PL (mm): 3.4 | Applicable holder: SMDH190 series | Grade: ACT100 | Stock: Yes
SMDT1880MSL DC (mm): 18.8 | INSL (mm): 13.5 | PL (mm): 3.4 | Applicable holder: SMDH190 series | Grade: ACT100 | Stock: Yes
SMDT1890MSL DC (mm): 18.9 | INSL (mm): 13.5 | PL (mm): 3.4 | Applicable holder: SMDH190 series | Grade: ACT100 | Stock: Yes
SMDT1900MSL DC (mm): 19.0 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACT100 | Stock: Yes
SMDT1910MSL DC (mm): 19.1 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACT100 | Stock: Yes
SMDT1920MSL DC (mm): 19.2 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACT100 | Stock: Yes
SMDT1930MSL DC (mm): 19.3 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACT100 | Stock: Yes
SMDT1940MSL DC (mm): 19.4 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACT100 | Stock: Yes
SMDT1950MSL DC (mm): 19.5 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACT100 | Stock: Yes
SMDT1960MSL DC (mm): 19.6 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACT100 | Stock: Yes
SMDT1970MSL DC (mm): 19.7 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACT100 | Stock: Yes
SMDT1980MSL DC (mm): 19.8 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACT100 | Stock: Yes
SMDT1990MSL DC (mm): 19.9 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACT100 | Stock: Yes
SMDT2000MSL DC (mm): 20.0 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACT100 | Stock: Yes
SMDT2010MSL DC (mm): 20.1 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACT100 | Stock: Yes
SMDT2020MSL DC (mm): 20.2 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACT100 | Stock: Yes
SMDT2030MSL DC (mm): 20.3 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACT100 | Stock: Yes
SMDT2040MSL DC (mm): 20.4 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACT100 | Stock: Yes
SMDT2050MSL DC (mm): 20.5 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACT100 | Stock: Yes
SMDT2060MSL DC (mm): 20.6 | INSL (mm): 14.8 | PL (mm): 3.7 | Applicable holder: SMDH210 series | Grade: ACT100 | Stock: Yes
SMDT2070MSL DC (mm): 20.7 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACT100 | Stock: Yes
SMDT2080MSL DC (mm): 20.8 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACT100 | Stock: Yes
SMDT2090MSL DC (mm): 20.9 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACT100 | Stock: Yes
SMDT2100MSL DC (mm): 21.0 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACT100 | Stock: Yes
SMDT2110MSL DC (mm): 21.1 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACT100 | Stock: Yes
SMDT2120MSL DC (mm): 21.2 | INSL (mm): 14.8 | PL (mm): 3.9 | Applicable holder: SMDH210 series | Grade: ACT100 | Stock: Yes
SMDT2130MSL DC (mm): 21.3 | INSL (mm): 14.8 | PL (mm): 3.9 | Applicable holder: SMDH210 series | Grade: ACT100 | Stock: Yes
SMDT2140MSL DC (mm): 21.4 | INSL (mm): 14.8 | PL (mm): 3.9 | Applicable holder: SMDH210 series | Grade: ACT100 | Stock: Yes
SMDT2150MSL DC (mm): 21.5 | INSL (mm): 14.8 | PL (mm): 3.9 | Applicable holder: SMDH210 series | Grade: ACT100 | Stock: Yes
SMDT2160MSL DC (mm): 21.6 | INSL (mm): 15.0 | PL (mm): 3.9 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2170MSL DC (mm): 21.7 | INSL (mm): 15.0 | PL (mm): 3.9 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2180MSL DC (mm): 21.8 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2190MSL DC (mm): 21.9 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2200MSL DC (mm): 22.0 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2210MSL DC (mm): 22.1 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2220MSL DC (mm): 22.2 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2230MSL DC (mm): 22.3 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2240MSL DC (mm): 22.4 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2250MSL DC (mm): 22.5 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2260MSL DC (mm): 22.6 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2270MSL DC (mm): 22.7 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2280MSL DC (mm): 22.8 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2290MSL DC (mm): 22.9 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACT100 | Stock: Yes
SMDT2300MSL DC (mm): 23.0 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACT100 | Stock: Yes
SMDT2310MSL DC (mm): 23.1 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACT100 | Stock: Yes
SMDT2320MSL DC (mm): 23.2 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACT100 | Stock: Yes
SMDT2330MSL DC (mm): 23.3 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACT100 | Stock: Yes
SMDT2340MSL DC (mm): 23.4 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACT100 | Stock: Yes
SMDT2350MSL DC (mm): 23.5 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACT100 | Stock: Yes
SMDT2360MSL DC (mm): 23.6 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACT100 | Stock: Yes
SMDT2370MSL DC (mm): 23.7 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACT100 | Stock: Yes
SMDT2380MSL DC (mm): 23.8 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACT100 | Stock: Yes
SMDT2390MSL DC (mm): 23.9 | INSL (mm): 15.4 | PL (mm): 4.3 | Applicable holder: SMDH240 series | Grade: ACT100 | Stock: Yes
SMDT2400MSL DC (mm): 24.0 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACT100 | Stock: Yes
SMDT2410MSL DC (mm): 24.1 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACT100 | Stock: Yes
SMDT2420MSL DC (mm): 24.2 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACT100 | Stock: Yes
SMDT2430MSL DC (mm): 24.3 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACT100 | Stock: Yes
SMDT2440MSL DC (mm): 24.4 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACT100 | Stock: Yes
SMDT2450MSL DC (mm): 24.5 | INSL (mm): 15.4 | PL (mm): 4.5 | Applicable holder: SMDH240 series | Grade: ACT100 | Stock: Yes
SMDT2460MSL DC (mm): 24.6 | INSL (mm): 15.4 | PL (mm): 4.5 | Applicable holder: SMDH240 series | Grade: ACT100 | Stock: Yes
SMDT2470MSL DC (mm): 24.7 | INSL (mm): 15.4 | PL (mm): 4.5 | Applicable holder: SMDH240 series | Grade: ACT100 | Stock: Yes
SMDT2480MSL DC (mm): 24.8 | INSL (mm): 15.4 | PL (mm): 4.5 | Applicable holder: SMDH240 series | Grade: ACT100 | Stock: Yes
SMDT2490MSL DC (mm): 24.9 | INSL (mm): 15.8 | PL (mm): 4.5 | Applicable holder: SMDH250 series | Grade: ACT100 | Stock: Yes
SMDT2500MSL DC (mm): 25.0 | INSL (mm): 15.8 | PL (mm): 4.5 | Applicable holder: SMDH250 series | Grade: ACT100 | Stock: Yes
SMDT2510MSL DC (mm): 25.1 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACT100 | Stock: Yes
SMDT2520MSL DC (mm): 25.2 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACT100 | Stock: Yes
SMDT2530MSL DC (mm): 25.3 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACT100 | Stock: Yes
SMDT2540MSL DC (mm): 25.4 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACT100 | Stock: Yes
SMDT2550MSL DC (mm): 25.5 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACT100 | Stock: Yes
SMDT2560MSL DC (mm): 25.6 | INSL (mm): 15.8 | PL (mm): 4.7 | Applicable holder: SMDH250 series | Grade: ACT100 | Stock: Yes
SMDT2570MSL DC (mm): 25.7 | INSL (mm): 15.8 | PL (mm): 4.7 | Applicable holder: SMDH250 series | Grade: ACT100 | Stock: Yes
SMDT2580MSL DC (mm): 25.8 | INSL (mm): 15.8 | PL (mm): 4.7 | Applicable holder: SMDH250 series | Grade: ACT100 | Stock: Yes
SMDT2590MSL DC (mm): 25.9 | INSL (mm): 16.4 | PL (mm): 4.7 | Applicable holder: SMDH260 series | Grade: ACT100 | Stock: Yes
SMDT2600MSL DC (mm): 26.0 | INSL (mm): 16.4 | PL (mm): 4.7 | Applicable holder: SMDH260 series | Grade: ACT100 | Stock: Yes
SMDT2610MSL DC (mm): 26.1 | INSL (mm): 16.4 | PL (mm): 4.7 | Applicable holder: SMDH260 series | Grade: ACT100 | Stock: Yes
SMDT2620MSL DC (mm): 26.2 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACT100 | Stock: Yes
SMDT2630MSL DC (mm): 26.3 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACT100 | Stock: Yes
SMDT2640MSL DC (mm): 26.4 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACT100 | Stock: Yes
SMDT2650MSL DC (mm): 26.5 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACT100 | Stock: Yes
SMDT2660MSL DC (mm): 26.6 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACT100 | Stock: Yes
SMDT2670MSL DC (mm): 26.7 | INSL (mm): 16.4 | PL (mm): 4.9 | Applicable holder: SMDH260 series | Grade: ACT100 | Stock: Yes
SMDT2680MSL DC (mm): 26.8 | INSL (mm): 16.4 | PL (mm): 4.9 | Applicable holder: SMDH260 series | Grade: ACT100 | Stock: Yes
SMDT2690MSL DC (mm): 26.9 | INSL (mm): 17.1 | PL (mm): 4.9 | Applicable holder: SMDH270 series | Grade: ACT100 | Stock: Yes
SMDT2700MSL DC (mm): 27.0 | INSL (mm): 17.1 | PL (mm): 4.9 | Applicable holder: SMDH270 series | Grade: ACT100 | Stock: Yes
SMDT2710MSL DC (mm): 27.1 | INSL (mm): 17.1 | PL (mm): 4.9 | Applicable holder: SMDH270 series | Grade: ACT100 | Stock: Yes
SMDT2720MSL DC (mm): 27.2 | INSL (mm): 17.1 | PL (mm): 4.9 | Applicable holder: SMDH270 series | Grade: ACT100 | Stock: Yes
SMDT2730MSL DC (mm): 27.3 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACT100 | Stock: Yes
SMDT2740MSL DC (mm): 27.4 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACT100 | Stock: Yes
SMDT2750MSL DC (mm): 27.5 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACT100 | Stock: Yes
SMDT2760MSL DC (mm): 27.6 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACT100 | Stock: Yes
SMDT2770MSL DC (mm): 27.7 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACT100 | Stock: Yes
SMDT2780MSL DC (mm): 27.8 | INSL (mm): 17.1 | PL (mm): 5.1 | Applicable holder: SMDH270 series | Grade: ACT100 | Stock: Yes
SMDT2790MSL DC (mm): 27.9 | INSL (mm): 17.7 | PL (mm): 5.1 | Applicable holder: SMDH280 series | Grade: ACT100 | Stock: Yes
SMDT2800MSL DC (mm): 28.0 | INSL (mm): 17.7 | PL (mm): 5.1 | Applicable holder: SMDH280 series | Grade: ACT100 | Stock: Yes
SMDT2810MSL DC (mm): 28.1 | INSL (mm): 17.7 | PL (mm): 5.1 | Applicable holder: SMDH280 series | Grade: ACT100 | Stock: Yes
SMDT2820MSL DC (mm): 28.2 | INSL (mm): 17.7 | PL (mm): 5.1 | Applicable holder: SMDH280 series | Grade: ACT100 | Stock: Yes
SMDT2830MSL DC (mm): 28.3 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACT100 | Stock: Yes
SMDT2840MSL DC (mm): 28.4 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACT100 | Stock: Yes
SMDT2850MSL DC (mm): 28.5 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACT100 | Stock: Yes
SMDT2860MSL DC (mm): 28.6 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACT100 | Stock: Yes
SMDT2870MSL DC (mm): 28.7 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACT100 | Stock: Yes
SMDT2880MSL DC (mm): 28.8 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACT100 | Stock: Yes
SMDT2890MSL DC (mm): 28.9 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACT100 | Stock: Yes
SMDT2900MSL DC (mm): 29.0 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACT100 | Stock: Yes
SMDT2910MSL DC (mm): 29.1 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACT100 | Stock: Yes
SMDT2920MSL DC (mm): 29.2 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACT100 | Stock: Yes
SMDT2930MSL DC (mm): 29.3 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACT100 | Stock: Yes
SMDT2940MSL DC (mm): 29.4 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACT100 | Stock: Yes
SMDT2950MSL DC (mm): 29.5 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACT100 | Stock: Yes
SMDT2960MSL DC (mm): 29.6 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACT100 | Stock: Yes
SMDT2970MSL DC (mm): 29.7 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACT100 | Stock: Yes
SMDT2980MSL DC (mm): 29.8 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACT100 | Stock: Yes
SMDT2990MSL DC (mm): 29.9 | INSL (mm): 19.0 | PL (mm): 5.4 | Applicable holder: SMDH300 series | Grade: ACT100 | Stock: Yes
SMDT3000MSL DC (mm): 30.0 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACT100 | Stock: Yes
SMDT3010MSL DC (mm): 30.1 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACT100 | Stock: Yes
SMDT3020MSL DC (mm): 30.2 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACT100 | Stock: Yes
SMDT3030MSL DC (mm): 30.3 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACT100 | Stock: Yes
SMDT3040MSL DC (mm): 30.4 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACT100 | Stock: Yes
SMDT3050MSL DC (mm): 30.5 | INSL (mm): 19.0 | PL (mm): 5.6 | Applicable holder: SMDH300 series | Grade: ACT100 | Stock: Yes
SMDT3060MSL DC (mm): 30.6 | INSL (mm): 19.0 | PL (mm): 5.6 | Applicable holder: SMDH300 series | Grade: ACT100 | Stock: Yes
SMDT3070MSL DC (mm): 30.7 | INSL (mm): 19.0 | PL (mm): 5.6 | Applicable holder: SMDH300 series | Grade: ACT100 | Stock: Yes
SMDT3080MSL DC (mm): 30.8 | INSL (mm): 19.0 | PL (mm): 5.6 | Applicable holder: SMDH300 series | Grade: ACT100 | Stock: Yes
Drill InsertsSumitomo Electric Hardmetal
189 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Multi Drill SMD Exchangeable Head MSL Type (Stainless Steel)

Brand Sumitomo Electric Hardmetal·Drill Inserts

Available part numbers (189)

SMDT1200MSL, SMDT1210MSL, SMDT1220MSL, SMDT1230MSL, SMDT1240MSL, SMDT1250MSL, SMDT1260MSL, SMDT1270MSL, SMDT1280MSL, SMDT1290MSL + 179 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SMDT1200MSLDC (mm): 12.0 | INSL (mm): 9.1 | PL (mm): 2.2 | Applicable holder: SMDH120 series | Grade: ACT100 | Stock: Yes
SMDT1210MSLDC (mm): 12.1 | INSL (mm): 9.1 | PL (mm): 2.2 | Applicable holder: SMDH120 series | Grade: ACT100 | Stock: Yes
SMDT1220MSLDC (mm): 12.2 | INSL (mm): 9.1 | PL (mm): 2.2 | Applicable holder: SMDH120 series | Grade: ACT100 | Stock: Yes
SMDT1230MSLDC (mm): 12.3 | INSL (mm): 9.1 | PL (mm): 2.2 | Applicable holder: SMDH120 series | Grade: ACT100 | Stock: Yes
SMDT1240MSLDC (mm): 12.4 | INSL (mm): 9.1 | PL (mm): 2.3 | Applicable holder: SMDH120 series | Grade: ACT100 | Stock: Yes
SMDT1250MSLDC (mm): 12.5 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACT100 | Stock: Yes
SMDT1260MSLDC (mm): 12.6 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACT100 | Stock: Yes
SMDT1270MSLDC (mm): 12.7 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACT100 | Stock: Yes
SMDT1280MSLDC (mm): 12.8 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACT100 | Stock: Yes
SMDT1290MSLDC (mm): 12.9 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACT100 | Stock: Yes
SMDT1300MSLDC (mm): 13.0 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACT100 | Stock: Yes
SMDT1310MSLDC (mm): 13.1 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACT100 | Stock: Yes
SMDT1320MSLDC (mm): 13.2 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACT100 | Stock: Yes
SMDT1330MSLDC (mm): 13.3 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACT100 | Stock: Yes
SMDT1340MSLDC (mm): 13.4 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACT100 | Stock: Yes
SMDT1350MSLDC (mm): 13.5 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACT100 | Stock: Yes
SMDT1360MSLDC (mm): 13.6 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACT100 | Stock: Yes
SMDT1370MSLDC (mm): 13.7 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACT100 | Stock: Yes
SMDT1380MSLDC (mm): 13.8 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACT100 | Stock: Yes
SMDT1390MSLDC (mm): 13.9 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACT100 | Stock: Yes
SMDT1400MSLDC (mm): 14.0 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACT100 | Stock: Yes
SMDT1410MSLDC (mm): 14.1 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACT100 | Stock: Yes
SMDT1420MSLDC (mm): 14.2 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACT100 | Stock: Yes
SMDT1430MSLDC (mm): 14.3 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACT100 | Stock: Yes
SMDT1440MSLDC (mm): 14.4 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACT100 | Stock: Yes
SMDT1450MSLDC (mm): 14.5 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACT100 | Stock: Yes
SMDT1460MSLDC (mm): 14.6 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACT100 | Stock: Yes
SMDT1470MSLDC (mm): 14.7 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACT100 | Stock: Yes
SMDT1480MSLDC (mm): 14.8 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACT100 | Stock: Yes
SMDT1490MSLDC (mm): 14.9 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACT100 | Stock: Yes
SMDT1500MSLDC (mm): 15.0 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACT100 | Stock: Yes
SMDT1510MSLDC (mm): 15.1 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACT100 | Stock: Yes
SMDT1520MSLDC (mm): 15.2 | INSL (mm): 11.0 | PL (mm): 2.8 | Applicable holder: SMDH150 series | Grade: ACT100 | Stock: Yes
SMDT1530MSLDC (mm): 15.3 | INSL (mm): 11.0 | PL (mm): 2.8 | Applicable holder: SMDH150 series | Grade: ACT100 | Stock: Yes
SMDT1540MSLDC (mm): 15.4 | INSL (mm): 11.0 | PL (mm): 2.8 | Applicable holder: SMDH150 series | Grade: ACT100 | Stock: Yes
SMDT1550MSLDC (mm): 15.5 | INSL (mm): 11.0 | PL (mm): 2.8 | Applicable holder: SMDH150 series | Grade: ACT100 | Stock: Yes
SMDT1560MSLDC (mm): 15.6 | INSL (mm): 11.6 | PL (mm): 2.8 | Applicable holder: SMDH160 series | Grade: ACT100 | Stock: Yes
SMDT1570MSLDC (mm): 15.7 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACT100 | Stock: Yes
SMDT1580MSLDC (mm): 15.8 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACT100 | Stock: Yes
SMDT1590MSLDC (mm): 15.9 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACT100 | Stock: Yes
SMDT1600MSLDC (mm): 16.0 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACT100 | Stock: Yes
SMDT1610MSLDC (mm): 16.1 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACT100 | Stock: Yes
SMDT1620MSLDC (mm): 16.2 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACT100 | Stock: Yes
SMDT1630MSLDC (mm): 16.3 | INSL (mm): 11.6 | PL (mm): 3.0 | Applicable holder: SMDH160 series | Grade: ACT100 | Stock: Yes
SMDT1640MSLDC (mm): 16.4 | INSL (mm): 11.6 | PL (mm): 3.0 | Applicable holder: SMDH160 series | Grade: ACT100 | Stock: Yes
SMDT1650MSLDC (mm): 16.5 | INSL (mm): 11.6 | PL (mm): 3.0 | Applicable holder: SMDH160 series | Grade: ACT100 | Stock: Yes
SMDT1660MSLDC (mm): 16.6 | INSL (mm): 12.2 | PL (mm): 3.0 | Applicable holder: SMDH170 series | Grade: ACT100 | Stock: Yes
SMDT1670MSLDC (mm): 16.7 | INSL (mm): 12.2 | PL (mm): 3.0 | Applicable holder: SMDH170 series | Grade: ACT100 | Stock: Yes
SMDT1680MSLDC (mm): 16.8 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACT100 | Stock: Yes
SMDT1690MSLDC (mm): 16.9 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACT100 | Stock: Yes
SMDT1700MSLDC (mm): 17.0 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACT100 | Stock: Yes
SMDT1710MSLDC (mm): 17.1 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACT100 | Stock: Yes
SMDT1720MSLDC (mm): 17.2 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACT100 | Stock: Yes
SMDT1730MSLDC (mm): 17.3 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACT100 | Stock: Yes
SMDT1740MSLDC (mm): 17.4 | INSL (mm): 12.2 | PL (mm): 3.2 | Applicable holder: SMDH170 series | Grade: ACT100 | Stock: Yes
SMDT1750MSLDC (mm): 17.5 | INSL (mm): 12.2 | PL (mm): 3.2 | Applicable holder: SMDH170 series | Grade: ACT100 | Stock: Yes
SMDT1760MSLDC (mm): 17.6 | INSL (mm): 12.9 | PL (mm): 3.2 | Applicable holder: SMDH180 series | Grade: ACT100 | Stock: Yes
SMDT1770MSLDC (mm): 17.7 | INSL (mm): 12.9 | PL (mm): 3.2 | Applicable holder: SMDH180 series | Grade: ACT100 | Stock: Yes
SMDT1780MSLDC (mm): 17.8 | INSL (mm): 12.9 | PL (mm): 3.2 | Applicable holder: SMDH180 series | Grade: ACT100 | Stock: Yes
SMDT1790MSLDC (mm): 17.9 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACT100 | Stock: Yes
SMDT1800MSLDC (mm): 18.0 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACT100 | Stock: Yes
SMDT1810MSLDC (mm): 18.1 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACT100 | Stock: Yes
SMDT1820MSLDC (mm): 18.2 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACT100 | Stock: Yes
SMDT1830MSLDC (mm): 18.3 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACT100 | Stock: Yes
SMDT1840MSLDC (mm): 18.4 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACT100 | Stock: Yes
SMDT1850MSLDC (mm): 18.5 | INSL (mm): 12.9 | PL (mm): 3.4 | Applicable holder: SMDH180 series | Grade: ACT100 | Stock: Yes
SMDT1860MSLDC (mm): 18.6 | INSL (mm): 13.5 | PL (mm): 3.4 | Applicable holder: SMDH190 series | Grade: ACT100 | Stock: Yes
SMDT1870MSLDC (mm): 18.7 | INSL (mm): 13.5 | PL (mm): 3.4 | Applicable holder: SMDH190 series | Grade: ACT100 | Stock: Yes
SMDT1880MSLDC (mm): 18.8 | INSL (mm): 13.5 | PL (mm): 3.4 | Applicable holder: SMDH190 series | Grade: ACT100 | Stock: Yes
SMDT1890MSLDC (mm): 18.9 | INSL (mm): 13.5 | PL (mm): 3.4 | Applicable holder: SMDH190 series | Grade: ACT100 | Stock: Yes
SMDT1900MSLDC (mm): 19.0 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACT100 | Stock: Yes
SMDT1910MSLDC (mm): 19.1 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACT100 | Stock: Yes
SMDT1920MSLDC (mm): 19.2 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACT100 | Stock: Yes
SMDT1930MSLDC (mm): 19.3 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACT100 | Stock: Yes
SMDT1940MSLDC (mm): 19.4 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACT100 | Stock: Yes
SMDT1950MSLDC (mm): 19.5 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACT100 | Stock: Yes
SMDT1960MSLDC (mm): 19.6 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACT100 | Stock: Yes
SMDT1970MSLDC (mm): 19.7 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACT100 | Stock: Yes
SMDT1980MSLDC (mm): 19.8 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACT100 | Stock: Yes
SMDT1990MSLDC (mm): 19.9 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACT100 | Stock: Yes
SMDT2000MSLDC (mm): 20.0 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACT100 | Stock: Yes
SMDT2010MSLDC (mm): 20.1 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACT100 | Stock: Yes
SMDT2020MSLDC (mm): 20.2 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACT100 | Stock: Yes
SMDT2030MSLDC (mm): 20.3 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACT100 | Stock: Yes
SMDT2040MSLDC (mm): 20.4 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACT100 | Stock: Yes
SMDT2050MSLDC (mm): 20.5 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACT100 | Stock: Yes
SMDT2060MSLDC (mm): 20.6 | INSL (mm): 14.8 | PL (mm): 3.7 | Applicable holder: SMDH210 series | Grade: ACT100 | Stock: Yes
SMDT2070MSLDC (mm): 20.7 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACT100 | Stock: Yes
SMDT2080MSLDC (mm): 20.8 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACT100 | Stock: Yes
SMDT2090MSLDC (mm): 20.9 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACT100 | Stock: Yes
SMDT2100MSLDC (mm): 21.0 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACT100 | Stock: Yes
SMDT2110MSLDC (mm): 21.1 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACT100 | Stock: Yes
SMDT2120MSLDC (mm): 21.2 | INSL (mm): 14.8 | PL (mm): 3.9 | Applicable holder: SMDH210 series | Grade: ACT100 | Stock: Yes
SMDT2130MSLDC (mm): 21.3 | INSL (mm): 14.8 | PL (mm): 3.9 | Applicable holder: SMDH210 series | Grade: ACT100 | Stock: Yes
SMDT2140MSLDC (mm): 21.4 | INSL (mm): 14.8 | PL (mm): 3.9 | Applicable holder: SMDH210 series | Grade: ACT100 | Stock: Yes
SMDT2150MSLDC (mm): 21.5 | INSL (mm): 14.8 | PL (mm): 3.9 | Applicable holder: SMDH210 series | Grade: ACT100 | Stock: Yes
SMDT2160MSLDC (mm): 21.6 | INSL (mm): 15.0 | PL (mm): 3.9 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2170MSLDC (mm): 21.7 | INSL (mm): 15.0 | PL (mm): 3.9 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2180MSLDC (mm): 21.8 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2190MSLDC (mm): 21.9 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2200MSLDC (mm): 22.0 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2210MSLDC (mm): 22.1 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2220MSLDC (mm): 22.2 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2230MSLDC (mm): 22.3 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2240MSLDC (mm): 22.4 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2250MSLDC (mm): 22.5 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2260MSLDC (mm): 22.6 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2270MSLDC (mm): 22.7 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2280MSLDC (mm): 22.8 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACT100 | Stock: Yes
SMDT2290MSLDC (mm): 22.9 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACT100 | Stock: Yes
SMDT2300MSLDC (mm): 23.0 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACT100 | Stock: Yes
SMDT2310MSLDC (mm): 23.1 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACT100 | Stock: Yes
SMDT2320MSLDC (mm): 23.2 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACT100 | Stock: Yes
SMDT2330MSLDC (mm): 23.3 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACT100 | Stock: Yes
SMDT2340MSLDC (mm): 23.4 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACT100 | Stock: Yes
SMDT2350MSLDC (mm): 23.5 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACT100 | Stock: Yes
SMDT2360MSLDC (mm): 23.6 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACT100 | Stock: Yes
SMDT2370MSLDC (mm): 23.7 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACT100 | Stock: Yes
SMDT2380MSLDC (mm): 23.8 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACT100 | Stock: Yes
SMDT2390MSLDC (mm): 23.9 | INSL (mm): 15.4 | PL (mm): 4.3 | Applicable holder: SMDH240 series | Grade: ACT100 | Stock: Yes
SMDT2400MSLDC (mm): 24.0 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACT100 | Stock: Yes
SMDT2410MSLDC (mm): 24.1 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACT100 | Stock: Yes
SMDT2420MSLDC (mm): 24.2 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACT100 | Stock: Yes
SMDT2430MSLDC (mm): 24.3 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACT100 | Stock: Yes
SMDT2440MSLDC (mm): 24.4 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACT100 | Stock: Yes
SMDT2450MSLDC (mm): 24.5 | INSL (mm): 15.4 | PL (mm): 4.5 | Applicable holder: SMDH240 series | Grade: ACT100 | Stock: Yes
SMDT2460MSLDC (mm): 24.6 | INSL (mm): 15.4 | PL (mm): 4.5 | Applicable holder: SMDH240 series | Grade: ACT100 | Stock: Yes
SMDT2470MSLDC (mm): 24.7 | INSL (mm): 15.4 | PL (mm): 4.5 | Applicable holder: SMDH240 series | Grade: ACT100 | Stock: Yes
SMDT2480MSLDC (mm): 24.8 | INSL (mm): 15.4 | PL (mm): 4.5 | Applicable holder: SMDH240 series | Grade: ACT100 | Stock: Yes
SMDT2490MSLDC (mm): 24.9 | INSL (mm): 15.8 | PL (mm): 4.5 | Applicable holder: SMDH250 series | Grade: ACT100 | Stock: Yes
SMDT2500MSLDC (mm): 25.0 | INSL (mm): 15.8 | PL (mm): 4.5 | Applicable holder: SMDH250 series | Grade: ACT100 | Stock: Yes
SMDT2510MSLDC (mm): 25.1 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACT100 | Stock: Yes
SMDT2520MSLDC (mm): 25.2 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACT100 | Stock: Yes
SMDT2530MSLDC (mm): 25.3 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACT100 | Stock: Yes
SMDT2540MSLDC (mm): 25.4 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACT100 | Stock: Yes
SMDT2550MSLDC (mm): 25.5 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACT100 | Stock: Yes
SMDT2560MSLDC (mm): 25.6 | INSL (mm): 15.8 | PL (mm): 4.7 | Applicable holder: SMDH250 series | Grade: ACT100 | Stock: Yes
SMDT2570MSLDC (mm): 25.7 | INSL (mm): 15.8 | PL (mm): 4.7 | Applicable holder: SMDH250 series | Grade: ACT100 | Stock: Yes
SMDT2580MSLDC (mm): 25.8 | INSL (mm): 15.8 | PL (mm): 4.7 | Applicable holder: SMDH250 series | Grade: ACT100 | Stock: Yes
SMDT2590MSLDC (mm): 25.9 | INSL (mm): 16.4 | PL (mm): 4.7 | Applicable holder: SMDH260 series | Grade: ACT100 | Stock: Yes
SMDT2600MSLDC (mm): 26.0 | INSL (mm): 16.4 | PL (mm): 4.7 | Applicable holder: SMDH260 series | Grade: ACT100 | Stock: Yes
SMDT2610MSLDC (mm): 26.1 | INSL (mm): 16.4 | PL (mm): 4.7 | Applicable holder: SMDH260 series | Grade: ACT100 | Stock: Yes
SMDT2620MSLDC (mm): 26.2 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACT100 | Stock: Yes
SMDT2630MSLDC (mm): 26.3 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACT100 | Stock: Yes
SMDT2640MSLDC (mm): 26.4 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACT100 | Stock: Yes
SMDT2650MSLDC (mm): 26.5 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACT100 | Stock: Yes
SMDT2660MSLDC (mm): 26.6 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACT100 | Stock: Yes
SMDT2670MSLDC (mm): 26.7 | INSL (mm): 16.4 | PL (mm): 4.9 | Applicable holder: SMDH260 series | Grade: ACT100 | Stock: Yes
SMDT2680MSLDC (mm): 26.8 | INSL (mm): 16.4 | PL (mm): 4.9 | Applicable holder: SMDH260 series | Grade: ACT100 | Stock: Yes
SMDT2690MSLDC (mm): 26.9 | INSL (mm): 17.1 | PL (mm): 4.9 | Applicable holder: SMDH270 series | Grade: ACT100 | Stock: Yes
SMDT2700MSLDC (mm): 27.0 | INSL (mm): 17.1 | PL (mm): 4.9 | Applicable holder: SMDH270 series | Grade: ACT100 | Stock: Yes
SMDT2710MSLDC (mm): 27.1 | INSL (mm): 17.1 | PL (mm): 4.9 | Applicable holder: SMDH270 series | Grade: ACT100 | Stock: Yes
SMDT2720MSLDC (mm): 27.2 | INSL (mm): 17.1 | PL (mm): 4.9 | Applicable holder: SMDH270 series | Grade: ACT100 | Stock: Yes
SMDT2730MSLDC (mm): 27.3 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACT100 | Stock: Yes
SMDT2740MSLDC (mm): 27.4 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACT100 | Stock: Yes
SMDT2750MSLDC (mm): 27.5 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACT100 | Stock: Yes
SMDT2760MSLDC (mm): 27.6 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACT100 | Stock: Yes
SMDT2770MSLDC (mm): 27.7 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACT100 | Stock: Yes
SMDT2780MSLDC (mm): 27.8 | INSL (mm): 17.1 | PL (mm): 5.1 | Applicable holder: SMDH270 series | Grade: ACT100 | Stock: Yes
SMDT2790MSLDC (mm): 27.9 | INSL (mm): 17.7 | PL (mm): 5.1 | Applicable holder: SMDH280 series | Grade: ACT100 | Stock: Yes
SMDT2800MSLDC (mm): 28.0 | INSL (mm): 17.7 | PL (mm): 5.1 | Applicable holder: SMDH280 series | Grade: ACT100 | Stock: Yes
SMDT2810MSLDC (mm): 28.1 | INSL (mm): 17.7 | PL (mm): 5.1 | Applicable holder: SMDH280 series | Grade: ACT100 | Stock: Yes
SMDT2820MSLDC (mm): 28.2 | INSL (mm): 17.7 | PL (mm): 5.1 | Applicable holder: SMDH280 series | Grade: ACT100 | Stock: Yes
SMDT2830MSLDC (mm): 28.3 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACT100 | Stock: Yes
SMDT2840MSLDC (mm): 28.4 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACT100 | Stock: Yes
SMDT2850MSLDC (mm): 28.5 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACT100 | Stock: Yes
SMDT2860MSLDC (mm): 28.6 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACT100 | Stock: Yes
SMDT2870MSLDC (mm): 28.7 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACT100 | Stock: Yes
SMDT2880MSLDC (mm): 28.8 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACT100 | Stock: Yes
SMDT2890MSLDC (mm): 28.9 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACT100 | Stock: Yes
SMDT2900MSLDC (mm): 29.0 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACT100 | Stock: Yes
SMDT2910MSLDC (mm): 29.1 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACT100 | Stock: Yes
SMDT2920MSLDC (mm): 29.2 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACT100 | Stock: Yes
SMDT2930MSLDC (mm): 29.3 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACT100 | Stock: Yes
SMDT2940MSLDC (mm): 29.4 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACT100 | Stock: Yes
SMDT2950MSLDC (mm): 29.5 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACT100 | Stock: Yes
SMDT2960MSLDC (mm): 29.6 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACT100 | Stock: Yes
SMDT2970MSLDC (mm): 29.7 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACT100 | Stock: Yes
SMDT2980MSLDC (mm): 29.8 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACT100 | Stock: Yes
SMDT2990MSLDC (mm): 29.9 | INSL (mm): 19.0 | PL (mm): 5.4 | Applicable holder: SMDH300 series | Grade: ACT100 | Stock: Yes
SMDT3000MSLDC (mm): 30.0 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACT100 | Stock: Yes
SMDT3010MSLDC (mm): 30.1 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACT100 | Stock: Yes
SMDT3020MSLDC (mm): 30.2 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACT100 | Stock: Yes
SMDT3030MSLDC (mm): 30.3 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACT100 | Stock: Yes
SMDT3040MSLDC (mm): 30.4 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACT100 | Stock: Yes
SMDT3050MSLDC (mm): 30.5 | INSL (mm): 19.0 | PL (mm): 5.6 | Applicable holder: SMDH300 series | Grade: ACT100 | Stock: Yes
SMDT3060MSLDC (mm): 30.6 | INSL (mm): 19.0 | PL (mm): 5.6 | Applicable holder: SMDH300 series | Grade: ACT100 | Stock: Yes
SMDT3070MSLDC (mm): 30.7 | INSL (mm): 19.0 | PL (mm): 5.6 | Applicable holder: SMDH300 series | Grade: ACT100 | Stock: Yes
SMDT3080MSLDC (mm): 30.8 | INSL (mm): 19.0 | PL (mm): 5.6 | Applicable holder: SMDH300 series | Grade: ACT100 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
