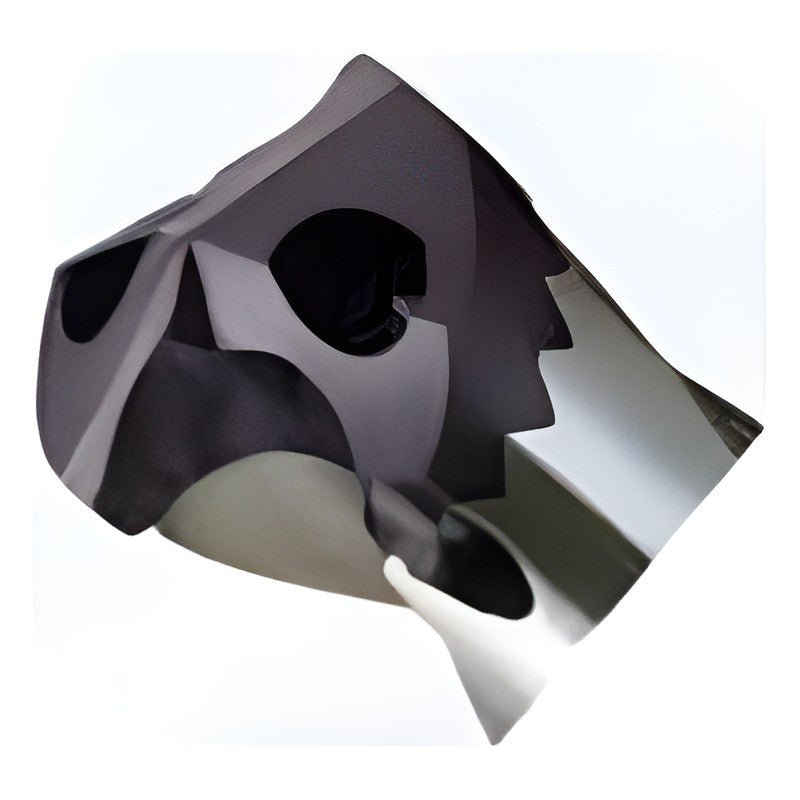

Sumitomo Electric Hardmetal SEC-Multi Drill SMD Exchangeable Head MTL Type (General Steel)

Sumitomo Electric Hardmetal SEC-Multi Drill SMD Exchangeable Head MTL Type (General Steel)

Exchangeable carbide drill head for the SEC-Multi Drill SMD system, mounted on SMDH holders with internal coolant. MTL type for general steel.

Key features

  • Head exchange without re-setting
  • 140 deg point angle
  • DEX coating
  • Diameter 12.0-42.5 mm

Specifications

Point angle 140 deg
Workpiece Steel
SMDT1200MTL DC (mm): 12.0 | INSL (mm): 9.1 | PL (mm): 2.2 | Applicable holder: SMDH120 series | Grade: ACX70 | Stock: Yes
SMDT1210MTL DC (mm): 12.1 | INSL (mm): 9.1 | PL (mm): 2.2 | Applicable holder: SMDH120 series | Grade: ACX70 | Stock: Yes
SMDT1220MTL DC (mm): 12.2 | INSL (mm): 9.1 | PL (mm): 2.2 | Applicable holder: SMDH120 series | Grade: ACX70 | Stock: Yes
SMDT1230MTL DC (mm): 12.3 | INSL (mm): 9.1 | PL (mm): 2.2 | Applicable holder: SMDH120 series | Grade: ACX70 | Stock: Yes
SMDT1240MTL DC (mm): 12.4 | INSL (mm): 9.1 | PL (mm): 2.3 | Applicable holder: SMDH120 series | Grade: ACX70 | Stock: Yes
SMDT1250MTL DC (mm): 12.5 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACX70 | Stock: Yes
SMDT1260MTL DC (mm): 12.6 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACX70 | Stock: Yes
SMDT1270MTL DC (mm): 12.7 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACX70 | Stock: Yes
SMDT1280MTL DC (mm): 12.8 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACX70 | Stock: Yes
SMDT1290MTL DC (mm): 12.9 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACX70 | Stock: Yes
SMDT1300MTL DC (mm): 13.0 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACX70 | Stock: Yes
SMDT1310MTL DC (mm): 13.1 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACX70 | Stock: Yes
SMDT1320MTL DC (mm): 13.2 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACX70 | Stock: Yes
SMDT1330MTL DC (mm): 13.3 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACX70 | Stock: Yes
SMDT1340MTL DC (mm): 13.4 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACX70 | Stock: Yes
SMDT1350MTL DC (mm): 13.5 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1360MTL DC (mm): 13.6 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1370MTL DC (mm): 13.7 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1380MTL DC (mm): 13.8 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1390MTL DC (mm): 13.9 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1400MTL DC (mm): 14.0 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1410MTL DC (mm): 14.1 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1420MTL DC (mm): 14.2 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1430MTL DC (mm): 14.3 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1440MTL DC (mm): 14.4 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1450MTL DC (mm): 14.5 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1460MTL DC (mm): 14.6 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACX70 | Stock: Yes
SMDT1470MTL DC (mm): 14.7 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACX70 | Stock: Yes
SMDT1480MTL DC (mm): 14.8 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACX70 | Stock: Yes
SMDT1490MTL DC (mm): 14.9 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACX70 | Stock: Yes
SMDT1500MTL DC (mm): 15.0 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACX70 | Stock: Yes
SMDT1510MTL DC (mm): 15.1 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACX70 | Stock: Yes
SMDT1520MTL DC (mm): 15.2 | INSL (mm): 11.0 | PL (mm): 2.8 | Applicable holder: SMDH150 series | Grade: ACX70 | Stock: Yes
SMDT1530MTL DC (mm): 15.3 | INSL (mm): 11.0 | PL (mm): 2.8 | Applicable holder: SMDH150 series | Grade: ACX70 | Stock: Yes
SMDT1540MTL DC (mm): 15.4 | INSL (mm): 11.0 | PL (mm): 2.8 | Applicable holder: SMDH150 series | Grade: ACX70 | Stock: Yes
SMDT1550MTL DC (mm): 15.5 | INSL (mm): 11.0 | PL (mm): 2.8 | Applicable holder: SMDH150 series | Grade: ACX70 | Stock: Yes
SMDT1560MTL DC (mm): 15.6 | INSL (mm): 11.6 | PL (mm): 2.8 | Applicable holder: SMDH160 series | Grade: ACX70 | Stock: Yes
SMDT1570MTL DC (mm): 15.7 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACX70 | Stock: Yes
SMDT1580MTL DC (mm): 15.8 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACX70 | Stock: Yes
SMDT1590MTL DC (mm): 15.9 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACX70 | Stock: Yes
SMDT1600MTL DC (mm): 16.0 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACX70 | Stock: Yes
SMDT1610MTL DC (mm): 16.1 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACX70 | Stock: Yes
SMDT1620MTL DC (mm): 16.2 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACX70 | Stock: Yes
SMDT1630MTL DC (mm): 16.3 | INSL (mm): 11.6 | PL (mm): 3.0 | Applicable holder: SMDH160 series | Grade: ACX70 | Stock: Yes
SMDT1640MTL DC (mm): 16.4 | INSL (mm): 11.6 | PL (mm): 3.0 | Applicable holder: SMDH160 series | Grade: ACX70 | Stock: Yes
SMDT1650MTL DC (mm): 16.5 | INSL (mm): 11.6 | PL (mm): 3.0 | Applicable holder: SMDH160 series | Grade: ACX70 | Stock: Yes
SMDT1660MTL DC (mm): 16.6 | INSL (mm): 12.2 | PL (mm): 3.0 | Applicable holder: SMDH170 series | Grade: ACX70 | Stock: Yes
SMDT1670MTL DC (mm): 16.7 | INSL (mm): 12.2 | PL (mm): 3.0 | Applicable holder: SMDH170 series | Grade: ACX70 | Stock: Yes
SMDT1680MTL DC (mm): 16.8 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACX70 | Stock: Yes
SMDT1690MTL DC (mm): 16.9 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACX70 | Stock: Yes
SMDT1700MTL DC (mm): 17.0 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACX70 | Stock: Yes
SMDT1710MTL DC (mm): 17.1 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACX70 | Stock: Yes
SMDT1720MTL DC (mm): 17.2 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACX70 | Stock: Yes
SMDT1730MTL DC (mm): 17.3 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACX70 | Stock: Yes
SMDT1740MTL DC (mm): 17.4 | INSL (mm): 12.2 | PL (mm): 3.2 | Applicable holder: SMDH170 series | Grade: ACX70 | Stock: Yes
SMDT1750MTL DC (mm): 17.5 | INSL (mm): 12.2 | PL (mm): 3.2 | Applicable holder: SMDH170 series | Grade: ACX70 | Stock: Yes
SMDT1760MTL DC (mm): 17.6 | INSL (mm): 12.9 | PL (mm): 3.2 | Applicable holder: SMDH180 series | Grade: ACX70 | Stock: Yes
SMDT1770MTL DC (mm): 17.7 | INSL (mm): 12.9 | PL (mm): 3.2 | Applicable holder: SMDH180 series | Grade: ACX70 | Stock: Yes
SMDT1780MTL DC (mm): 17.8 | INSL (mm): 12.9 | PL (mm): 3.2 | Applicable holder: SMDH180 series | Grade: ACX70 | Stock: Yes
SMDT1790MTL DC (mm): 17.9 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACX70 | Stock: Yes
SMDT1800MTL DC (mm): 18.0 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACX70 | Stock: Yes
SMDT1810MTL DC (mm): 18.1 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACX70 | Stock: Yes
SMDT1820MTL DC (mm): 18.2 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACX70 | Stock: Yes
SMDT1830MTL DC (mm): 18.3 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACX70 | Stock: Yes
SMDT1840MTL DC (mm): 18.4 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACX70 | Stock: Yes
SMDT1850MTL DC (mm): 18.5 | INSL (mm): 12.9 | PL (mm): 3.4 | Applicable holder: SMDH180 series | Grade: ACX70 | Stock: Yes
SMDT1860MTL DC (mm): 18.6 | INSL (mm): 13.5 | PL (mm): 3.4 | Applicable holder: SMDH190 series | Grade: ACX70 | Stock: Yes
SMDT1870MTL DC (mm): 18.7 | INSL (mm): 13.5 | PL (mm): 3.4 | Applicable holder: SMDH190 series | Grade: ACX70 | Stock: Yes
SMDT1880MTL DC (mm): 18.8 | INSL (mm): 13.5 | PL (mm): 3.4 | Applicable holder: SMDH190 series | Grade: ACX70 | Stock: Yes
SMDT1890MTL DC (mm): 18.9 | INSL (mm): 13.5 | PL (mm): 3.4 | Applicable holder: SMDH190 series | Grade: ACX70 | Stock: Yes
SMDT1900MTL DC (mm): 19.0 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACX70 | Stock: Yes
SMDT1910MTL DC (mm): 19.1 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACX70 | Stock: Yes
SMDT1920MTL DC (mm): 19.2 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACX70 | Stock: Yes
SMDT1930MTL DC (mm): 19.3 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACX70 | Stock: Yes
SMDT1940MTL DC (mm): 19.4 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACX70 | Stock: Yes
SMDT1950MTL DC (mm): 19.5 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACX70 | Stock: Yes
SMDT1960MTL DC (mm): 19.6 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACX70 | Stock: Yes
SMDT1970MTL DC (mm): 19.7 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACX70 | Stock: Yes
SMDT1980MTL DC (mm): 19.8 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACX70 | Stock: Yes
SMDT1990MTL DC (mm): 19.9 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACX70 | Stock: Yes
SMDT2000MTL DC (mm): 20.0 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACX70 | Stock: Yes
SMDT2010MTL DC (mm): 20.1 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACX70 | Stock: Yes
SMDT2020MTL DC (mm): 20.2 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACX70 | Stock: Yes
SMDT2030MTL DC (mm): 20.3 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACX70 | Stock: Yes
SMDT2040MTL DC (mm): 20.4 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACX70 | Stock: Yes
SMDT2050MTL DC (mm): 20.5 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACX70 | Stock: Yes
SMDT2060MTL DC (mm): 20.6 | INSL (mm): 14.8 | PL (mm): 3.7 | Applicable holder: SMDH210 series | Grade: ACX70 | Stock: Yes
SMDT2070MTL DC (mm): 20.7 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACX70 | Stock: Yes
SMDT2080MTL DC (mm): 20.8 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACX70 | Stock: Yes
SMDT2090MTL DC (mm): 20.9 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACX70 | Stock: Yes
SMDT2100MTL DC (mm): 21.0 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACX70 | Stock: Yes
SMDT2110MTL DC (mm): 21.1 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACX70 | Stock: Yes
SMDT2120MTL DC (mm): 21.2 | INSL (mm): 14.8 | PL (mm): 3.9 | Applicable holder: SMDH210 series | Grade: ACX70 | Stock: Yes
SMDT2130MTL DC (mm): 21.3 | INSL (mm): 14.8 | PL (mm): 3.9 | Applicable holder: SMDH210 series | Grade: ACX70 | Stock: Yes
SMDT2140MTL DC (mm): 21.4 | INSL (mm): 14.8 | PL (mm): 3.9 | Applicable holder: SMDH210 series | Grade: ACX70 | Stock: Yes
SMDT2150MTL DC (mm): 21.5 | INSL (mm): 14.8 | PL (mm): 3.9 | Applicable holder: SMDH210 series | Grade: ACX70 | Stock: Yes
SMDT2160MTL DC (mm): 21.6 | INSL (mm): 15.0 | PL (mm): 3.9 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2170MTL DC (mm): 21.7 | INSL (mm): 15.0 | PL (mm): 3.9 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2180MTL DC (mm): 21.8 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2190MTL DC (mm): 21.9 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2200MTL DC (mm): 22.0 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2210MTL DC (mm): 22.1 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2220MTL DC (mm): 22.2 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2230MTL DC (mm): 22.3 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2240MTL DC (mm): 22.4 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2250MTL DC (mm): 22.5 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2260MTL DC (mm): 22.6 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2270MTL DC (mm): 22.7 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2280MTL DC (mm): 22.8 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2290MTL DC (mm): 22.9 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACX70 | Stock: Yes
SMDT2300MTL DC (mm): 23.0 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACX70 | Stock: Yes
SMDT2310MTL DC (mm): 23.1 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACX70 | Stock: Yes
SMDT2320MTL DC (mm): 23.2 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACX70 | Stock: Yes
SMDT2330MTL DC (mm): 23.3 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACX70 | Stock: Yes
SMDT2340MTL DC (mm): 23.4 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACX70 | Stock: Yes
SMDT2350MTL DC (mm): 23.5 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACX70 | Stock: Yes
SMDT2360MTL DC (mm): 23.6 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACX70 | Stock: Yes
SMDT2370MTL DC (mm): 23.7 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACX70 | Stock: Yes
SMDT2380MTL DC (mm): 23.8 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACX70 | Stock: Yes
SMDT2390MTL DC (mm): 23.9 | INSL (mm): 15.4 | PL (mm): 4.3 | Applicable holder: SMDH240 series | Grade: ACX70 | Stock: Yes
SMDT2400MTL DC (mm): 24.0 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACX70 | Stock: Yes
SMDT2410MTL DC (mm): 24.1 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACX70 | Stock: Yes
SMDT2420MTL DC (mm): 24.2 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACX70 | Stock: Yes
SMDT2430MTL DC (mm): 24.3 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACX70 | Stock: Yes
SMDT2440MTL DC (mm): 24.4 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACX70 | Stock: Yes
SMDT2450MTL DC (mm): 24.5 | INSL (mm): 15.4 | PL (mm): 4.5 | Applicable holder: SMDH240 series | Grade: ACX70 | Stock: Yes
SMDT2460MTL DC (mm): 24.6 | INSL (mm): 15.4 | PL (mm): 4.5 | Applicable holder: SMDH240 series | Grade: ACX70 | Stock: Yes
SMDT2470MTL DC (mm): 24.7 | INSL (mm): 15.4 | PL (mm): 4.5 | Applicable holder: SMDH240 series | Grade: ACX70 | Stock: Yes
SMDT2480MTL DC (mm): 24.8 | INSL (mm): 15.4 | PL (mm): 4.5 | Applicable holder: SMDH240 series | Grade: ACX70 | Stock: Yes
SMDT2490MTL DC (mm): 24.9 | INSL (mm): 15.8 | PL (mm): 4.5 | Applicable holder: SMDH250 series | Grade: ACX70 | Stock: Yes
SMDT2500MTL DC (mm): 25.0 | INSL (mm): 15.8 | PL (mm): 4.5 | Applicable holder: SMDH250 series | Grade: ACX70 | Stock: Yes
SMDT2510MTL DC (mm): 25.1 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACX70 | Stock: Yes
SMDT2520MTL DC (mm): 25.2 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACX70 | Stock: Yes
SMDT2530MTL DC (mm): 25.3 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACX70 | Stock: Yes
SMDT2540MTL DC (mm): 25.4 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACX70 | Stock: Yes
SMDT2550MTL DC (mm): 25.5 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACX70 | Stock: Yes
SMDT2560MTL DC (mm): 25.6 | INSL (mm): 15.8 | PL (mm): 4.7 | Applicable holder: SMDH250 series | Grade: ACX70 | Stock: Yes
SMDT2570MTL DC (mm): 25.7 | INSL (mm): 15.8 | PL (mm): 4.7 | Applicable holder: SMDH250 series | Grade: ACX70 | Stock: Yes
SMDT2580MTL DC (mm): 25.8 | INSL (mm): 15.8 | PL (mm): 4.7 | Applicable holder: SMDH250 series | Grade: ACX70 | Stock: Yes
SMDT2590MTL DC (mm): 25.9 | INSL (mm): 16.4 | PL (mm): 4.7 | Applicable holder: SMDH260 series | Grade: ACX70 | Stock: Yes
SMDT2600MTL DC (mm): 26.0 | INSL (mm): 16.4 | PL (mm): 4.7 | Applicable holder: SMDH260 series | Grade: ACX70 | Stock: Yes
SMDT2610MTL DC (mm): 26.1 | INSL (mm): 16.4 | PL (mm): 4.7 | Applicable holder: SMDH260 series | Grade: ACX70 | Stock: Yes
SMDT2620MTL DC (mm): 26.2 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACX70 | Stock: Yes
SMDT2630MTL DC (mm): 26.3 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACX70 | Stock: Yes
SMDT2640MTL DC (mm): 26.4 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACX70 | Stock: Yes
SMDT2650MTL DC (mm): 26.5 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACX70 | Stock: Yes
SMDT2660MTL DC (mm): 26.6 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACX70 | Stock: Yes
SMDT2670MTL DC (mm): 26.7 | INSL (mm): 16.4 | PL (mm): 4.9 | Applicable holder: SMDH260 series | Grade: ACX70 | Stock: Yes
SMDT2680MTL DC (mm): 26.8 | INSL (mm): 16.4 | PL (mm): 4.9 | Applicable holder: SMDH260 series | Grade: ACX70 | Stock: Yes
SMDT2690MTL DC (mm): 26.9 | INSL (mm): 17.1 | PL (mm): 4.9 | Applicable holder: SMDH270 series | Grade: ACX70 | Stock: Yes
SMDT2700MTL DC (mm): 27.0 | INSL (mm): 17.1 | PL (mm): 4.9 | Applicable holder: SMDH270 series | Grade: ACX70 | Stock: Yes
SMDT2710MTL DC (mm): 27.1 | INSL (mm): 17.1 | PL (mm): 4.9 | Applicable holder: SMDH270 series | Grade: ACX70 | Stock: Yes
SMDT2720MTL DC (mm): 27.2 | INSL (mm): 17.1 | PL (mm): 4.9 | Applicable holder: SMDH270 series | Grade: ACX70 | Stock: Yes
SMDT2730MTL DC (mm): 27.3 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACX70 | Stock: Yes
SMDT2740MTL DC (mm): 27.4 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACX70 | Stock: Yes
SMDT2750MTL DC (mm): 27.5 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACX70 | Stock: Yes
SMDT2760MTL DC (mm): 27.6 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACX70 | Stock: Yes
SMDT2770MTL DC (mm): 27.7 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACX70 | Stock: Yes
SMDT2780MTL DC (mm): 27.8 | INSL (mm): 17.1 | PL (mm): 5.1 | Applicable holder: SMDH270 series | Grade: ACX70 | Stock: Yes
SMDT2790MTL DC (mm): 27.9 | INSL (mm): 17.7 | PL (mm): 5.1 | Applicable holder: SMDH280 series | Grade: ACX70 | Stock: Yes
SMDT2800MTL DC (mm): 28.0 | INSL (mm): 17.7 | PL (mm): 5.1 | Applicable holder: SMDH280 series | Grade: ACX70 | Stock: Yes
SMDT2810MTL DC (mm): 28.1 | INSL (mm): 17.7 | PL (mm): 5.1 | Applicable holder: SMDH280 series | Grade: ACX70 | Stock: Yes
SMDT2820MTL DC (mm): 28.2 | INSL (mm): 17.7 | PL (mm): 5.1 | Applicable holder: SMDH280 series | Grade: ACX70 | Stock: Yes
SMDT2830MTL DC (mm): 28.3 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACX70 | Stock: Yes
SMDT2840MTL DC (mm): 28.4 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACX70 | Stock: Yes
SMDT2850MTL DC (mm): 28.5 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACX70 | Stock: Yes
SMDT2860MTL DC (mm): 28.6 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACX70 | Stock: Yes
SMDT2870MTL DC (mm): 28.7 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACX70 | Stock: Yes
SMDT2880MTL DC (mm): 28.8 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACX70 | Stock: Yes
SMDT2890MTL DC (mm): 28.9 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACX70 | Stock: Yes
SMDT2900MTL DC (mm): 29.0 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACX70 | Stock: Yes
SMDT2910MTL DC (mm): 29.1 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACX70 | Stock: Yes
SMDT2920MTL DC (mm): 29.2 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACX70 | Stock: Yes
SMDT2930MTL DC (mm): 29.3 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACX70 | Stock: Yes
SMDT2940MTL DC (mm): 29.4 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACX70 | Stock: Yes
SMDT2950MTL DC (mm): 29.5 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACX70 | Stock: Yes
SMDT2960MTL DC (mm): 29.6 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACX70 | Stock: Yes
SMDT2970MTL DC (mm): 29.7 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACX70 | Stock: Yes
SMDT2980MTL DC (mm): 29.8 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACX70 | Stock: Yes
SMDT2990MTL DC (mm): 29.9 | INSL (mm): 19.0 | PL (mm): 5.4 | Applicable holder: SMDH300 series | Grade: ACX70 | Stock: Yes
SMDT3000MTL DC (mm): 30.0 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACX70 | Stock: Yes
SMDT3010MTL DC (mm): 30.1 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACX70 | Stock: Yes
SMDT3020MTL DC (mm): 30.2 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACX70 | Stock: Yes
SMDT3030MTL DC (mm): 30.3 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACX70 | Stock: Yes
SMDT3040MTL DC (mm): 30.4 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACX70 | Stock: Yes
SMDT3050MTL DC (mm): 30.5 | INSL (mm): 19.0 | PL (mm): 5.6 | Applicable holder: SMDH300 series | Grade: ACX70 | Stock: Yes
SMDT3060MTL DC (mm): 30.6 | INSL (mm): 19.0 | PL (mm): 5.6 | Applicable holder: SMDH300 series | Grade: ACX70 | Stock: Yes
SMDT3070MTL DC (mm): 30.7 | INSL (mm): 19.0 | PL (mm): 5.6 | Applicable holder: SMDH300 series | Grade: ACX70 | Stock: Yes
SMDT3080MTL DC (mm): 30.8 | INSL (mm): 19.0 | PL (mm): 5.6 | Applicable holder: SMDH300 series | Grade: ACX70 | Stock: Yes
SMDT3100MTL DC (mm): 31.0 | INSL (mm): 21.0 | PL (mm): 5.6 | Applicable holder: SMDH320 series | Grade: ACX80 | Stock: Yes
SMDT3150MTL DC (mm): 31.5 | INSL (mm): 21.0 | PL (mm): 5.7 | Applicable holder: SMDH320 series | Grade: ACX80 | Stock: Made to order
SMDT3200MTL DC (mm): 32.0 | INSL (mm): 21.0 | PL (mm): 5.8 | Applicable holder: SMDH320 series | Grade: ACX80 | Stock: Yes
SMDT3250MTL DC (mm): 32.5 | INSL (mm): 21.0 | PL (mm): 5.9 | Applicable holder: SMDH335 series | Grade: ACX80 | Stock: Made to order
SMDT3300MTL DC (mm): 33.0 | INSL (mm): 21.0 | PL (mm): 6.0 | Applicable holder: SMDH335 series | Grade: ACX80 | Stock: Yes
SMDT3350MTL DC (mm): 33.5 | INSL (mm): 21.0 | PL (mm): 6.1 | Applicable holder: SMDH335 series | Grade: ACX80 | Stock: Made to order
SMDT3400MTL DC (mm): 34.0 | INSL (mm): 23.0 | PL (mm): 6.2 | Applicable holder: SMDH350 series | Grade: ACX80 | Stock: Yes
SMDT3450MTL DC (mm): 34.5 | INSL (mm): 23.0 | PL (mm): 6.3 | Applicable holder: SMDH350 series | Grade: ACX80 | Stock: Made to order
SMDT3500MTL DC (mm): 35.0 | INSL (mm): 23.0 | PL (mm): 6.4 | Applicable holder: SMDH350 series | Grade: ACX80 | Stock: Yes
SMDT3550MTL DC (mm): 35.5 | INSL (mm): 23.0 | PL (mm): 6.5 | Applicable holder: SMDH365 series | Grade: ACX80 | Stock: Made to order
SMDT3600MTL DC (mm): 36.0 | INSL (mm): 23.0 | PL (mm): 6.6 | Applicable holder: SMDH365 series | Grade: ACX80 | Stock: Yes
SMDT3650MTL DC (mm): 36.5 | INSL (mm): 23.0 | PL (mm): 6.6 | Applicable holder: SMDH365 series | Grade: ACX80 | Stock: Made to order
SMDT3700MTL DC (mm): 37.0 | INSL (mm): 25.0 | PL (mm): 6.7 | Applicable holder: SMDH380 series | Grade: ACX80 | Stock: Yes
SMDT3750MTL DC (mm): 37.5 | INSL (mm): 25.0 | PL (mm): 6.8 | Applicable holder: SMDH380 series | Grade: ACX80 | Stock: Yes
SMDT3800MTL DC (mm): 38.0 | INSL (mm): 25.0 | PL (mm): 6.9 | Applicable holder: SMDH380 series | Grade: ACX80 | Stock: Yes
SMDT3850MTL DC (mm): 38.5 | INSL (mm): 25.0 | PL (mm): 7.0 | Applicable holder: SMDH395 series | Grade: ACX80 | Stock: Made to order
SMDT3900MTL DC (mm): 39.0 | INSL (mm): 25.0 | PL (mm): 7.1 | Applicable holder: SMDH395 series | Grade: ACX80 | Stock: Yes
SMDT3950MTL DC (mm): 39.5 | INSL (mm): 25.0 | PL (mm): 7.2 | Applicable holder: SMDH395 series | Grade: ACX80 | Stock: Made to order
SMDT4000MTL DC (mm): 40.0 | INSL (mm): 27.0 | PL (mm): 7.3 | Applicable holder: SMDH410 series | Grade: ACX80 | Stock: Yes
SMDT4050MTL DC (mm): 40.5 | INSL (mm): 27.0 | PL (mm): 7.4 | Applicable holder: SMDH410 series | Grade: ACX80 | Stock: Yes
SMDT4100MTL DC (mm): 41.0 | INSL (mm): 27.0 | PL (mm): 7.5 | Applicable holder: SMDH410 series | Grade: ACX80 | Stock: Yes
SMDT4150MTL DC (mm): 41.5 | INSL (mm): 27.0 | PL (mm): 7.6 | Applicable holder: SMDH425 series | Grade: ACX80 | Stock: Made to order
SMDT4200MTL DC (mm): 42.0 | INSL (mm): 27.0 | PL (mm): 7.6 | Applicable holder: SMDH425 series | Grade: ACX80 | Stock: Yes
SMDT4250MTL DC (mm): 42.5 | INSL (mm): 27.0 | PL (mm): 7.7 | Applicable holder: SMDH425 series | Grade: ACX80 | Stock: Made to order
Drill InsertsSumitomo Electric Hardmetal
213 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Multi Drill SMD Exchangeable Head MTL Type (General Steel)

Brand Sumitomo Electric Hardmetal·Drill Inserts

Available part numbers (213)

SMDT1200MTL, SMDT1210MTL, SMDT1220MTL, SMDT1230MTL, SMDT1240MTL, SMDT1250MTL, SMDT1260MTL, SMDT1270MTL, SMDT1280MTL, SMDT1290MTL + 203 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SMDT1200MTLDC (mm): 12.0 | INSL (mm): 9.1 | PL (mm): 2.2 | Applicable holder: SMDH120 series | Grade: ACX70 | Stock: Yes
SMDT1210MTLDC (mm): 12.1 | INSL (mm): 9.1 | PL (mm): 2.2 | Applicable holder: SMDH120 series | Grade: ACX70 | Stock: Yes
SMDT1220MTLDC (mm): 12.2 | INSL (mm): 9.1 | PL (mm): 2.2 | Applicable holder: SMDH120 series | Grade: ACX70 | Stock: Yes
SMDT1230MTLDC (mm): 12.3 | INSL (mm): 9.1 | PL (mm): 2.2 | Applicable holder: SMDH120 series | Grade: ACX70 | Stock: Yes
SMDT1240MTLDC (mm): 12.4 | INSL (mm): 9.1 | PL (mm): 2.3 | Applicable holder: SMDH120 series | Grade: ACX70 | Stock: Yes
SMDT1250MTLDC (mm): 12.5 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACX70 | Stock: Yes
SMDT1260MTLDC (mm): 12.6 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACX70 | Stock: Yes
SMDT1270MTLDC (mm): 12.7 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACX70 | Stock: Yes
SMDT1280MTLDC (mm): 12.8 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACX70 | Stock: Yes
SMDT1290MTLDC (mm): 12.9 | INSL (mm): 9.4 | PL (mm): 2.3 | Applicable holder: SMDH125 series | Grade: ACX70 | Stock: Yes
SMDT1300MTLDC (mm): 13.0 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACX70 | Stock: Yes
SMDT1310MTLDC (mm): 13.1 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACX70 | Stock: Yes
SMDT1320MTLDC (mm): 13.2 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACX70 | Stock: Yes
SMDT1330MTLDC (mm): 13.3 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACX70 | Stock: Yes
SMDT1340MTLDC (mm): 13.4 | INSL (mm): 9.7 | PL (mm): 2.4 | Applicable holder: SMDH130 series | Grade: ACX70 | Stock: Yes
SMDT1350MTLDC (mm): 13.5 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1360MTLDC (mm): 13.6 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1370MTLDC (mm): 13.7 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1380MTLDC (mm): 13.8 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1390MTLDC (mm): 13.9 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1400MTLDC (mm): 14.0 | INSL (mm): 10.3 | PL (mm): 2.5 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1410MTLDC (mm): 14.1 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1420MTLDC (mm): 14.2 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1430MTLDC (mm): 14.3 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1440MTLDC (mm): 14.4 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1450MTLDC (mm): 14.5 | INSL (mm): 10.3 | PL (mm): 2.6 | Applicable holder: SMDH140 series | Grade: ACX70 | Stock: Yes
SMDT1460MTLDC (mm): 14.6 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACX70 | Stock: Yes
SMDT1470MTLDC (mm): 14.7 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACX70 | Stock: Yes
SMDT1480MTLDC (mm): 14.8 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACX70 | Stock: Yes
SMDT1490MTLDC (mm): 14.9 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACX70 | Stock: Yes
SMDT1500MTLDC (mm): 15.0 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACX70 | Stock: Yes
SMDT1510MTLDC (mm): 15.1 | INSL (mm): 11.0 | PL (mm): 2.7 | Applicable holder: SMDH150 series | Grade: ACX70 | Stock: Yes
SMDT1520MTLDC (mm): 15.2 | INSL (mm): 11.0 | PL (mm): 2.8 | Applicable holder: SMDH150 series | Grade: ACX70 | Stock: Yes
SMDT1530MTLDC (mm): 15.3 | INSL (mm): 11.0 | PL (mm): 2.8 | Applicable holder: SMDH150 series | Grade: ACX70 | Stock: Yes
SMDT1540MTLDC (mm): 15.4 | INSL (mm): 11.0 | PL (mm): 2.8 | Applicable holder: SMDH150 series | Grade: ACX70 | Stock: Yes
SMDT1550MTLDC (mm): 15.5 | INSL (mm): 11.0 | PL (mm): 2.8 | Applicable holder: SMDH150 series | Grade: ACX70 | Stock: Yes
SMDT1560MTLDC (mm): 15.6 | INSL (mm): 11.6 | PL (mm): 2.8 | Applicable holder: SMDH160 series | Grade: ACX70 | Stock: Yes
SMDT1570MTLDC (mm): 15.7 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACX70 | Stock: Yes
SMDT1580MTLDC (mm): 15.8 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACX70 | Stock: Yes
SMDT1590MTLDC (mm): 15.9 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACX70 | Stock: Yes
SMDT1600MTLDC (mm): 16.0 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACX70 | Stock: Yes
SMDT1610MTLDC (mm): 16.1 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACX70 | Stock: Yes
SMDT1620MTLDC (mm): 16.2 | INSL (mm): 11.6 | PL (mm): 2.9 | Applicable holder: SMDH160 series | Grade: ACX70 | Stock: Yes
SMDT1630MTLDC (mm): 16.3 | INSL (mm): 11.6 | PL (mm): 3.0 | Applicable holder: SMDH160 series | Grade: ACX70 | Stock: Yes
SMDT1640MTLDC (mm): 16.4 | INSL (mm): 11.6 | PL (mm): 3.0 | Applicable holder: SMDH160 series | Grade: ACX70 | Stock: Yes
SMDT1650MTLDC (mm): 16.5 | INSL (mm): 11.6 | PL (mm): 3.0 | Applicable holder: SMDH160 series | Grade: ACX70 | Stock: Yes
SMDT1660MTLDC (mm): 16.6 | INSL (mm): 12.2 | PL (mm): 3.0 | Applicable holder: SMDH170 series | Grade: ACX70 | Stock: Yes
SMDT1670MTLDC (mm): 16.7 | INSL (mm): 12.2 | PL (mm): 3.0 | Applicable holder: SMDH170 series | Grade: ACX70 | Stock: Yes
SMDT1680MTLDC (mm): 16.8 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACX70 | Stock: Yes
SMDT1690MTLDC (mm): 16.9 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACX70 | Stock: Yes
SMDT1700MTLDC (mm): 17.0 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACX70 | Stock: Yes
SMDT1710MTLDC (mm): 17.1 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACX70 | Stock: Yes
SMDT1720MTLDC (mm): 17.2 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACX70 | Stock: Yes
SMDT1730MTLDC (mm): 17.3 | INSL (mm): 12.2 | PL (mm): 3.1 | Applicable holder: SMDH170 series | Grade: ACX70 | Stock: Yes
SMDT1740MTLDC (mm): 17.4 | INSL (mm): 12.2 | PL (mm): 3.2 | Applicable holder: SMDH170 series | Grade: ACX70 | Stock: Yes
SMDT1750MTLDC (mm): 17.5 | INSL (mm): 12.2 | PL (mm): 3.2 | Applicable holder: SMDH170 series | Grade: ACX70 | Stock: Yes
SMDT1760MTLDC (mm): 17.6 | INSL (mm): 12.9 | PL (mm): 3.2 | Applicable holder: SMDH180 series | Grade: ACX70 | Stock: Yes
SMDT1770MTLDC (mm): 17.7 | INSL (mm): 12.9 | PL (mm): 3.2 | Applicable holder: SMDH180 series | Grade: ACX70 | Stock: Yes
SMDT1780MTLDC (mm): 17.8 | INSL (mm): 12.9 | PL (mm): 3.2 | Applicable holder: SMDH180 series | Grade: ACX70 | Stock: Yes
SMDT1790MTLDC (mm): 17.9 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACX70 | Stock: Yes
SMDT1800MTLDC (mm): 18.0 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACX70 | Stock: Yes
SMDT1810MTLDC (mm): 18.1 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACX70 | Stock: Yes
SMDT1820MTLDC (mm): 18.2 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACX70 | Stock: Yes
SMDT1830MTLDC (mm): 18.3 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACX70 | Stock: Yes
SMDT1840MTLDC (mm): 18.4 | INSL (mm): 12.9 | PL (mm): 3.3 | Applicable holder: SMDH180 series | Grade: ACX70 | Stock: Yes
SMDT1850MTLDC (mm): 18.5 | INSL (mm): 12.9 | PL (mm): 3.4 | Applicable holder: SMDH180 series | Grade: ACX70 | Stock: Yes
SMDT1860MTLDC (mm): 18.6 | INSL (mm): 13.5 | PL (mm): 3.4 | Applicable holder: SMDH190 series | Grade: ACX70 | Stock: Yes
SMDT1870MTLDC (mm): 18.7 | INSL (mm): 13.5 | PL (mm): 3.4 | Applicable holder: SMDH190 series | Grade: ACX70 | Stock: Yes
SMDT1880MTLDC (mm): 18.8 | INSL (mm): 13.5 | PL (mm): 3.4 | Applicable holder: SMDH190 series | Grade: ACX70 | Stock: Yes
SMDT1890MTLDC (mm): 18.9 | INSL (mm): 13.5 | PL (mm): 3.4 | Applicable holder: SMDH190 series | Grade: ACX70 | Stock: Yes
SMDT1900MTLDC (mm): 19.0 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACX70 | Stock: Yes
SMDT1910MTLDC (mm): 19.1 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACX70 | Stock: Yes
SMDT1920MTLDC (mm): 19.2 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACX70 | Stock: Yes
SMDT1930MTLDC (mm): 19.3 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACX70 | Stock: Yes
SMDT1940MTLDC (mm): 19.4 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACX70 | Stock: Yes
SMDT1950MTLDC (mm): 19.5 | INSL (mm): 13.5 | PL (mm): 3.5 | Applicable holder: SMDH190 series | Grade: ACX70 | Stock: Yes
SMDT1960MTLDC (mm): 19.6 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACX70 | Stock: Yes
SMDT1970MTLDC (mm): 19.7 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACX70 | Stock: Yes
SMDT1980MTLDC (mm): 19.8 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACX70 | Stock: Yes
SMDT1990MTLDC (mm): 19.9 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACX70 | Stock: Yes
SMDT2000MTLDC (mm): 20.0 | INSL (mm): 14.1 | PL (mm): 3.6 | Applicable holder: SMDH200 series | Grade: ACX70 | Stock: Yes
SMDT2010MTLDC (mm): 20.1 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACX70 | Stock: Yes
SMDT2020MTLDC (mm): 20.2 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACX70 | Stock: Yes
SMDT2030MTLDC (mm): 20.3 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACX70 | Stock: Yes
SMDT2040MTLDC (mm): 20.4 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACX70 | Stock: Yes
SMDT2050MTLDC (mm): 20.5 | INSL (mm): 14.1 | PL (mm): 3.7 | Applicable holder: SMDH200 series | Grade: ACX70 | Stock: Yes
SMDT2060MTLDC (mm): 20.6 | INSL (mm): 14.8 | PL (mm): 3.7 | Applicable holder: SMDH210 series | Grade: ACX70 | Stock: Yes
SMDT2070MTLDC (mm): 20.7 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACX70 | Stock: Yes
SMDT2080MTLDC (mm): 20.8 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACX70 | Stock: Yes
SMDT2090MTLDC (mm): 20.9 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACX70 | Stock: Yes
SMDT2100MTLDC (mm): 21.0 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACX70 | Stock: Yes
SMDT2110MTLDC (mm): 21.1 | INSL (mm): 14.8 | PL (mm): 3.8 | Applicable holder: SMDH210 series | Grade: ACX70 | Stock: Yes
SMDT2120MTLDC (mm): 21.2 | INSL (mm): 14.8 | PL (mm): 3.9 | Applicable holder: SMDH210 series | Grade: ACX70 | Stock: Yes
SMDT2130MTLDC (mm): 21.3 | INSL (mm): 14.8 | PL (mm): 3.9 | Applicable holder: SMDH210 series | Grade: ACX70 | Stock: Yes
SMDT2140MTLDC (mm): 21.4 | INSL (mm): 14.8 | PL (mm): 3.9 | Applicable holder: SMDH210 series | Grade: ACX70 | Stock: Yes
SMDT2150MTLDC (mm): 21.5 | INSL (mm): 14.8 | PL (mm): 3.9 | Applicable holder: SMDH210 series | Grade: ACX70 | Stock: Yes
SMDT2160MTLDC (mm): 21.6 | INSL (mm): 15.0 | PL (mm): 3.9 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2170MTLDC (mm): 21.7 | INSL (mm): 15.0 | PL (mm): 3.9 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2180MTLDC (mm): 21.8 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2190MTLDC (mm): 21.9 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2200MTLDC (mm): 22.0 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2210MTLDC (mm): 22.1 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2220MTLDC (mm): 22.2 | INSL (mm): 15.0 | PL (mm): 4.0 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2230MTLDC (mm): 22.3 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2240MTLDC (mm): 22.4 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2250MTLDC (mm): 22.5 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2260MTLDC (mm): 22.6 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2270MTLDC (mm): 22.7 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2280MTLDC (mm): 22.8 | INSL (mm): 15.0 | PL (mm): 4.1 | Applicable holder: SMDH220 series | Grade: ACX70 | Stock: Yes
SMDT2290MTLDC (mm): 22.9 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACX70 | Stock: Yes
SMDT2300MTLDC (mm): 23.0 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACX70 | Stock: Yes
SMDT2310MTLDC (mm): 23.1 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACX70 | Stock: Yes
SMDT2320MTLDC (mm): 23.2 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACX70 | Stock: Yes
SMDT2330MTLDC (mm): 23.3 | INSL (mm): 15.1 | PL (mm): 4.2 | Applicable holder: SMDH230 series | Grade: ACX70 | Stock: Yes
SMDT2340MTLDC (mm): 23.4 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACX70 | Stock: Yes
SMDT2350MTLDC (mm): 23.5 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACX70 | Stock: Yes
SMDT2360MTLDC (mm): 23.6 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACX70 | Stock: Yes
SMDT2370MTLDC (mm): 23.7 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACX70 | Stock: Yes
SMDT2380MTLDC (mm): 23.8 | INSL (mm): 15.1 | PL (mm): 4.3 | Applicable holder: SMDH230 series | Grade: ACX70 | Stock: Yes
SMDT2390MTLDC (mm): 23.9 | INSL (mm): 15.4 | PL (mm): 4.3 | Applicable holder: SMDH240 series | Grade: ACX70 | Stock: Yes
SMDT2400MTLDC (mm): 24.0 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACX70 | Stock: Yes
SMDT2410MTLDC (mm): 24.1 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACX70 | Stock: Yes
SMDT2420MTLDC (mm): 24.2 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACX70 | Stock: Yes
SMDT2430MTLDC (mm): 24.3 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACX70 | Stock: Yes
SMDT2440MTLDC (mm): 24.4 | INSL (mm): 15.4 | PL (mm): 4.4 | Applicable holder: SMDH240 series | Grade: ACX70 | Stock: Yes
SMDT2450MTLDC (mm): 24.5 | INSL (mm): 15.4 | PL (mm): 4.5 | Applicable holder: SMDH240 series | Grade: ACX70 | Stock: Yes
SMDT2460MTLDC (mm): 24.6 | INSL (mm): 15.4 | PL (mm): 4.5 | Applicable holder: SMDH240 series | Grade: ACX70 | Stock: Yes
SMDT2470MTLDC (mm): 24.7 | INSL (mm): 15.4 | PL (mm): 4.5 | Applicable holder: SMDH240 series | Grade: ACX70 | Stock: Yes
SMDT2480MTLDC (mm): 24.8 | INSL (mm): 15.4 | PL (mm): 4.5 | Applicable holder: SMDH240 series | Grade: ACX70 | Stock: Yes
SMDT2490MTLDC (mm): 24.9 | INSL (mm): 15.8 | PL (mm): 4.5 | Applicable holder: SMDH250 series | Grade: ACX70 | Stock: Yes
SMDT2500MTLDC (mm): 25.0 | INSL (mm): 15.8 | PL (mm): 4.5 | Applicable holder: SMDH250 series | Grade: ACX70 | Stock: Yes
SMDT2510MTLDC (mm): 25.1 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACX70 | Stock: Yes
SMDT2520MTLDC (mm): 25.2 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACX70 | Stock: Yes
SMDT2530MTLDC (mm): 25.3 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACX70 | Stock: Yes
SMDT2540MTLDC (mm): 25.4 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACX70 | Stock: Yes
SMDT2550MTLDC (mm): 25.5 | INSL (mm): 15.8 | PL (mm): 4.6 | Applicable holder: SMDH250 series | Grade: ACX70 | Stock: Yes
SMDT2560MTLDC (mm): 25.6 | INSL (mm): 15.8 | PL (mm): 4.7 | Applicable holder: SMDH250 series | Grade: ACX70 | Stock: Yes
SMDT2570MTLDC (mm): 25.7 | INSL (mm): 15.8 | PL (mm): 4.7 | Applicable holder: SMDH250 series | Grade: ACX70 | Stock: Yes
SMDT2580MTLDC (mm): 25.8 | INSL (mm): 15.8 | PL (mm): 4.7 | Applicable holder: SMDH250 series | Grade: ACX70 | Stock: Yes
SMDT2590MTLDC (mm): 25.9 | INSL (mm): 16.4 | PL (mm): 4.7 | Applicable holder: SMDH260 series | Grade: ACX70 | Stock: Yes
SMDT2600MTLDC (mm): 26.0 | INSL (mm): 16.4 | PL (mm): 4.7 | Applicable holder: SMDH260 series | Grade: ACX70 | Stock: Yes
SMDT2610MTLDC (mm): 26.1 | INSL (mm): 16.4 | PL (mm): 4.7 | Applicable holder: SMDH260 series | Grade: ACX70 | Stock: Yes
SMDT2620MTLDC (mm): 26.2 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACX70 | Stock: Yes
SMDT2630MTLDC (mm): 26.3 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACX70 | Stock: Yes
SMDT2640MTLDC (mm): 26.4 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACX70 | Stock: Yes
SMDT2650MTLDC (mm): 26.5 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACX70 | Stock: Yes
SMDT2660MTLDC (mm): 26.6 | INSL (mm): 16.4 | PL (mm): 4.8 | Applicable holder: SMDH260 series | Grade: ACX70 | Stock: Yes
SMDT2670MTLDC (mm): 26.7 | INSL (mm): 16.4 | PL (mm): 4.9 | Applicable holder: SMDH260 series | Grade: ACX70 | Stock: Yes
SMDT2680MTLDC (mm): 26.8 | INSL (mm): 16.4 | PL (mm): 4.9 | Applicable holder: SMDH260 series | Grade: ACX70 | Stock: Yes
SMDT2690MTLDC (mm): 26.9 | INSL (mm): 17.1 | PL (mm): 4.9 | Applicable holder: SMDH270 series | Grade: ACX70 | Stock: Yes
SMDT2700MTLDC (mm): 27.0 | INSL (mm): 17.1 | PL (mm): 4.9 | Applicable holder: SMDH270 series | Grade: ACX70 | Stock: Yes
SMDT2710MTLDC (mm): 27.1 | INSL (mm): 17.1 | PL (mm): 4.9 | Applicable holder: SMDH270 series | Grade: ACX70 | Stock: Yes
SMDT2720MTLDC (mm): 27.2 | INSL (mm): 17.1 | PL (mm): 4.9 | Applicable holder: SMDH270 series | Grade: ACX70 | Stock: Yes
SMDT2730MTLDC (mm): 27.3 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACX70 | Stock: Yes
SMDT2740MTLDC (mm): 27.4 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACX70 | Stock: Yes
SMDT2750MTLDC (mm): 27.5 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACX70 | Stock: Yes
SMDT2760MTLDC (mm): 27.6 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACX70 | Stock: Yes
SMDT2770MTLDC (mm): 27.7 | INSL (mm): 17.1 | PL (mm): 5.0 | Applicable holder: SMDH270 series | Grade: ACX70 | Stock: Yes
SMDT2780MTLDC (mm): 27.8 | INSL (mm): 17.1 | PL (mm): 5.1 | Applicable holder: SMDH270 series | Grade: ACX70 | Stock: Yes
SMDT2790MTLDC (mm): 27.9 | INSL (mm): 17.7 | PL (mm): 5.1 | Applicable holder: SMDH280 series | Grade: ACX70 | Stock: Yes
SMDT2800MTLDC (mm): 28.0 | INSL (mm): 17.7 | PL (mm): 5.1 | Applicable holder: SMDH280 series | Grade: ACX70 | Stock: Yes
SMDT2810MTLDC (mm): 28.1 | INSL (mm): 17.7 | PL (mm): 5.1 | Applicable holder: SMDH280 series | Grade: ACX70 | Stock: Yes
SMDT2820MTLDC (mm): 28.2 | INSL (mm): 17.7 | PL (mm): 5.1 | Applicable holder: SMDH280 series | Grade: ACX70 | Stock: Yes
SMDT2830MTLDC (mm): 28.3 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACX70 | Stock: Yes
SMDT2840MTLDC (mm): 28.4 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACX70 | Stock: Yes
SMDT2850MTLDC (mm): 28.5 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACX70 | Stock: Yes
SMDT2860MTLDC (mm): 28.6 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACX70 | Stock: Yes
SMDT2870MTLDC (mm): 28.7 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACX70 | Stock: Yes
SMDT2880MTLDC (mm): 28.8 | INSL (mm): 17.7 | PL (mm): 5.2 | Applicable holder: SMDH280 series | Grade: ACX70 | Stock: Yes
SMDT2890MTLDC (mm): 28.9 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACX70 | Stock: Yes
SMDT2900MTLDC (mm): 29.0 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACX70 | Stock: Yes
SMDT2910MTLDC (mm): 29.1 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACX70 | Stock: Yes
SMDT2920MTLDC (mm): 29.2 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACX70 | Stock: Yes
SMDT2930MTLDC (mm): 29.3 | INSL (mm): 18.3 | PL (mm): 5.3 | Applicable holder: SMDH290 series | Grade: ACX70 | Stock: Yes
SMDT2940MTLDC (mm): 29.4 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACX70 | Stock: Yes
SMDT2950MTLDC (mm): 29.5 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACX70 | Stock: Yes
SMDT2960MTLDC (mm): 29.6 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACX70 | Stock: Yes
SMDT2970MTLDC (mm): 29.7 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACX70 | Stock: Yes
SMDT2980MTLDC (mm): 29.8 | INSL (mm): 18.3 | PL (mm): 5.4 | Applicable holder: SMDH290 series | Grade: ACX70 | Stock: Yes
SMDT2990MTLDC (mm): 29.9 | INSL (mm): 19.0 | PL (mm): 5.4 | Applicable holder: SMDH300 series | Grade: ACX70 | Stock: Yes
SMDT3000MTLDC (mm): 30.0 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACX70 | Stock: Yes
SMDT3010MTLDC (mm): 30.1 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACX70 | Stock: Yes
SMDT3020MTLDC (mm): 30.2 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACX70 | Stock: Yes
SMDT3030MTLDC (mm): 30.3 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACX70 | Stock: Yes
SMDT3040MTLDC (mm): 30.4 | INSL (mm): 19.0 | PL (mm): 5.5 | Applicable holder: SMDH300 series | Grade: ACX70 | Stock: Yes
SMDT3050MTLDC (mm): 30.5 | INSL (mm): 19.0 | PL (mm): 5.6 | Applicable holder: SMDH300 series | Grade: ACX70 | Stock: Yes
SMDT3060MTLDC (mm): 30.6 | INSL (mm): 19.0 | PL (mm): 5.6 | Applicable holder: SMDH300 series | Grade: ACX70 | Stock: Yes
SMDT3070MTLDC (mm): 30.7 | INSL (mm): 19.0 | PL (mm): 5.6 | Applicable holder: SMDH300 series | Grade: ACX70 | Stock: Yes
SMDT3080MTLDC (mm): 30.8 | INSL (mm): 19.0 | PL (mm): 5.6 | Applicable holder: SMDH300 series | Grade: ACX70 | Stock: Yes
SMDT3100MTLDC (mm): 31.0 | INSL (mm): 21.0 | PL (mm): 5.6 | Applicable holder: SMDH320 series | Grade: ACX80 | Stock: Yes
SMDT3150MTLDC (mm): 31.5 | INSL (mm): 21.0 | PL (mm): 5.7 | Applicable holder: SMDH320 series | Grade: ACX80 | Stock: Made to order
SMDT3200MTLDC (mm): 32.0 | INSL (mm): 21.0 | PL (mm): 5.8 | Applicable holder: SMDH320 series | Grade: ACX80 | Stock: Yes
SMDT3250MTLDC (mm): 32.5 | INSL (mm): 21.0 | PL (mm): 5.9 | Applicable holder: SMDH335 series | Grade: ACX80 | Stock: Made to order
SMDT3300MTLDC (mm): 33.0 | INSL (mm): 21.0 | PL (mm): 6.0 | Applicable holder: SMDH335 series | Grade: ACX80 | Stock: Yes
SMDT3350MTLDC (mm): 33.5 | INSL (mm): 21.0 | PL (mm): 6.1 | Applicable holder: SMDH335 series | Grade: ACX80 | Stock: Made to order
SMDT3400MTLDC (mm): 34.0 | INSL (mm): 23.0 | PL (mm): 6.2 | Applicable holder: SMDH350 series | Grade: ACX80 | Stock: Yes
SMDT3450MTLDC (mm): 34.5 | INSL (mm): 23.0 | PL (mm): 6.3 | Applicable holder: SMDH350 series | Grade: ACX80 | Stock: Made to order
SMDT3500MTLDC (mm): 35.0 | INSL (mm): 23.0 | PL (mm): 6.4 | Applicable holder: SMDH350 series | Grade: ACX80 | Stock: Yes
SMDT3550MTLDC (mm): 35.5 | INSL (mm): 23.0 | PL (mm): 6.5 | Applicable holder: SMDH365 series | Grade: ACX80 | Stock: Made to order
SMDT3600MTLDC (mm): 36.0 | INSL (mm): 23.0 | PL (mm): 6.6 | Applicable holder: SMDH365 series | Grade: ACX80 | Stock: Yes
SMDT3650MTLDC (mm): 36.5 | INSL (mm): 23.0 | PL (mm): 6.6 | Applicable holder: SMDH365 series | Grade: ACX80 | Stock: Made to order
SMDT3700MTLDC (mm): 37.0 | INSL (mm): 25.0 | PL (mm): 6.7 | Applicable holder: SMDH380 series | Grade: ACX80 | Stock: Yes
SMDT3750MTLDC (mm): 37.5 | INSL (mm): 25.0 | PL (mm): 6.8 | Applicable holder: SMDH380 series | Grade: ACX80 | Stock: Yes
SMDT3800MTLDC (mm): 38.0 | INSL (mm): 25.0 | PL (mm): 6.9 | Applicable holder: SMDH380 series | Grade: ACX80 | Stock: Yes
SMDT3850MTLDC (mm): 38.5 | INSL (mm): 25.0 | PL (mm): 7.0 | Applicable holder: SMDH395 series | Grade: ACX80 | Stock: Made to order
SMDT3900MTLDC (mm): 39.0 | INSL (mm): 25.0 | PL (mm): 7.1 | Applicable holder: SMDH395 series | Grade: ACX80 | Stock: Yes
SMDT3950MTLDC (mm): 39.5 | INSL (mm): 25.0 | PL (mm): 7.2 | Applicable holder: SMDH395 series | Grade: ACX80 | Stock: Made to order
SMDT4000MTLDC (mm): 40.0 | INSL (mm): 27.0 | PL (mm): 7.3 | Applicable holder: SMDH410 series | Grade: ACX80 | Stock: Yes
SMDT4050MTLDC (mm): 40.5 | INSL (mm): 27.0 | PL (mm): 7.4 | Applicable holder: SMDH410 series | Grade: ACX80 | Stock: Yes
SMDT4100MTLDC (mm): 41.0 | INSL (mm): 27.0 | PL (mm): 7.5 | Applicable holder: SMDH410 series | Grade: ACX80 | Stock: Yes
SMDT4150MTLDC (mm): 41.5 | INSL (mm): 27.0 | PL (mm): 7.6 | Applicable holder: SMDH425 series | Grade: ACX80 | Stock: Made to order
SMDT4200MTLDC (mm): 42.0 | INSL (mm): 27.0 | PL (mm): 7.6 | Applicable holder: SMDH425 series | Grade: ACX80 | Stock: Yes
SMDT4250MTLDC (mm): 42.5 | INSL (mm): 27.0 | PL (mm): 7.7 | Applicable holder: SMDH425 series | Grade: ACX80 | Stock: Made to order

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
