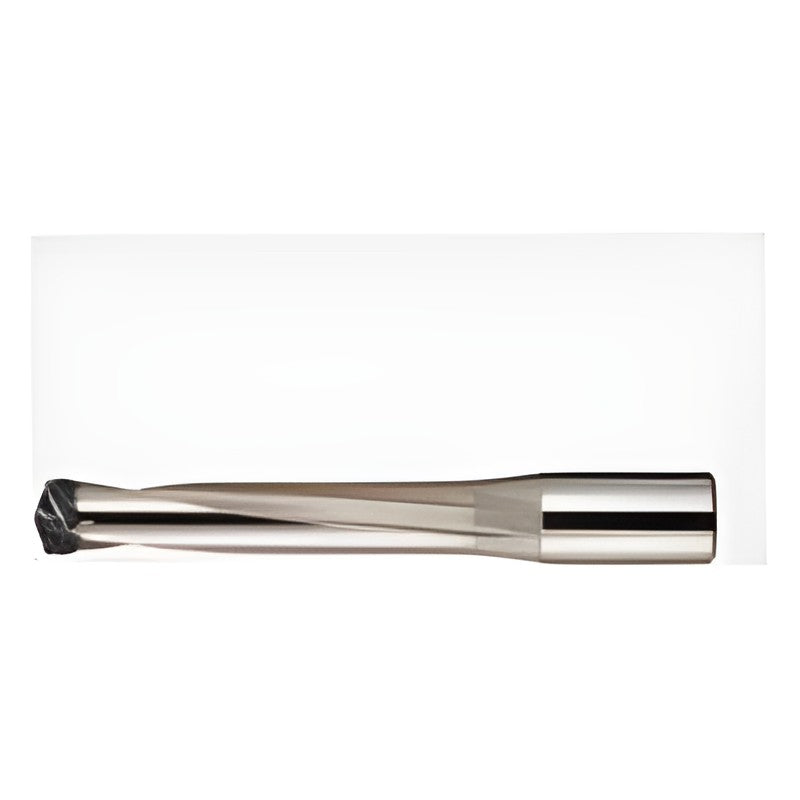

Steel holder body for SEC-Multi Drill SMD exchangeable heads (MTL / MSL / MEL / MFS), internal coolant, shank with flat and flange.

Key features

  • Accepts MTL, MSL, MEL and MFS heads
  • Hole depth 1.5D, 3D, 5D and 8D
  • Shank with flat and flange

Specifications

Coolant Internal
Shank Flat, with flange
SMDH120-1.5DF Head DC range (mm): 12.0 to <12.5 | L/D: 1.5 | LU (mm): 23.0 | OAL (mm): 90.5 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 21.0 | OAL with MFS head (mm): 88.5 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH120-3DF Head DC range (mm): 12.0 to <12.5 | L/D: 3 | LU (mm): 42.0 | OAL (mm): 107.2 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 40.0 | OAL with MFS head (mm): 105.2 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH120-5DF Head DC range (mm): 12.0 to <12.5 | L/D: 5 | LU (mm): 67.0 | OAL (mm): 132.2 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 65.0 | OAL with MFS head (mm): 130.2 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH120-8DF Head DC range (mm): 12.0 to <12.5 | L/D: 8 | LU (mm): 98.0 | OAL (mm): 164.4 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 96.0 | OAL with MFS head (mm): 162.4 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH125-1.5DF Head DC range (mm): 12.5 to <13.0 | L/D: 1.5 | LU (mm): 24.0 | OAL (mm): 91.0 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 22.0 | OAL with MFS head (mm): 88.8 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH125-3DF Head DC range (mm): 12.5 to <13.0 | L/D: 3 | LU (mm): 44.0 | OAL (mm): 107.3 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 41.0 | OAL with MFS head (mm): 105.1 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH125-5DF Head DC range (mm): 12.5 to <13.0 | L/D: 5 | LU (mm): 69.0 | OAL (mm): 132.3 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 67.0 | OAL with MFS head (mm): 130.1 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH125-8DF Head DC range (mm): 12.5 to <13.0 | L/D: 8 | LU (mm): 102.0 | OAL (mm): 170.1 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 100.0 | OAL with MFS head (mm): 167.9 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH130-1.5DF Head DC range (mm): 13.0 to <13.5 | L/D: 1.5 | LU (mm): 25.0 | OAL (mm): 92.2 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 23.0 | OAL with MFS head (mm): 90.0 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH130-3DF Head DC range (mm): 13.0 to <13.5 | L/D: 3 | LU (mm): 45.0 | OAL (mm): 112.4 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 43.0 | OAL with MFS head (mm): 110.2 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH130-5DF Head DC range (mm): 13.0 to <13.5 | L/D: 5 | LU (mm): 72.0 | OAL (mm): 142.4 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 70.0 | OAL with MFS head (mm): 140.2 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH130-8DF Head DC range (mm): 13.0 to <13.5 | L/D: 8 | LU (mm): 106.0 | OAL (mm): 178.4 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 104.0 | OAL with MFS head (mm): 176.2 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH140-1.5DF Head DC range (mm): 13.5 to 14.5 | L/D: 1.5 | LU (mm): 29.0 | OAL (mm): 96.3 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 26.0 | OAL with MFS head (mm): 93.9 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH140-3DF Head DC range (mm): 13.5 to 14.5 | L/D: 3 | LU (mm): 51.0 | OAL (mm): 119.0 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 48.0 | OAL with MFS head (mm): 116.6 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH140-5DF Head DC range (mm): 13.5 to 14.5 | L/D: 5 | LU (mm): 80.0 | OAL (mm): 149.0 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 77.0 | OAL with MFS head (mm): 146.6 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH140-8DF Head DC range (mm): 13.5 to 14.5 | L/D: 8 | LU (mm): 123.0 | OAL (mm): 194.0 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 121.0 | OAL with MFS head (mm): 191.6 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH150-1.5DF Head DC range (mm): >14.5 to 15.5 | L/D: 1.5 | LU (mm): 31.0 | OAL (mm): 100.0 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 28.0 | OAL with MFS head (mm): 97.3 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH150-3DF Head DC range (mm): >14.5 to 15.5 | L/D: 3 | LU (mm): 54.0 | OAL (mm): 129.2 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 51.0 | OAL with MFS head (mm): 126.6 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH150-5DF Head DC range (mm): >14.5 to 15.5 | L/D: 5 | LU (mm): 85.0 | OAL (mm): 159.2 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 82.0 | OAL with MFS head (mm): 156.6 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH150-8DF Head DC range (mm): >14.5 to 15.5 | L/D: 8 | LU (mm): 131.0 | OAL (mm): 204.2 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 129.0 | OAL with MFS head (mm): 201.6 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH160-1.5DF Head DC range (mm): >15.5 to 16.5 | L/D: 1.5 | LU (mm): 32.0 | OAL (mm): 102.7 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 29.0 | OAL with MFS head (mm): 99.9 | Cap screw: BXD02509IPC | Screw torque (N·m): 0.93~1.24 | Wrench: TRDR10IP | Stock: Yes
SMDH160-3DF Head DC range (mm): >15.5 to 16.5 | L/D: 3 | LU (mm): 57.0 | OAL (mm): 134.4 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 54.0 | OAL with MFS head (mm): 131.6 | Cap screw: BXD02509IPC | Screw torque (N·m): 0.93~1.24 | Wrench: TRDR10IP | Stock: Yes
SMDH160-5DF Head DC range (mm): >15.5 to 16.5 | L/D: 5 | LU (mm): 90.0 | OAL (mm): 169.4 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 87.0 | OAL with MFS head (mm): 166.6 | Cap screw: BXD02509IPC | Screw torque (N·m): 0.93~1.24 | Wrench: TRDR10IP | Stock: Yes
SMDH160-8DF Head DC range (mm): >15.5 to 16.5 | L/D: 8 | LU (mm): 140.0 | OAL (mm): 214.4 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 137.0 | OAL with MFS head (mm): 211.6 | Cap screw: BXD02509IPC | Screw torque (N·m): 0.93~1.24 | Wrench: TRDR10IP | Stock: Yes
SMDH170-1.5DF Head DC range (mm): >16.5 to 17.5 | L/D: 1.5 | LU (mm): 34.0 | OAL (mm): 104.4 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 31.0 | OAL with MFS head (mm): 101.4 | Cap screw: BXD02509IPC | Screw torque (N·m): 0.93~1.24 | Wrench: TRDR10IP | Stock: Yes
SMDH170-3DF Head DC range (mm): >16.5 to 17.5 | L/D: 3 | LU (mm): 60.0 | OAL (mm): 139.6 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 57.0 | OAL with MFS head (mm): 136.6 | Cap screw: BXD02509IPC | Screw torque (N·m): 0.93~1.24 | Wrench: TRDR10IP | Stock: Yes
SMDH170-5DF Head DC range (mm): >16.5 to 17.5 | L/D: 5 | LU (mm): 95.0 | OAL (mm): 174.6 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 92.0 | OAL with MFS head (mm): 171.6 | Cap screw: BXD02509IPC | Screw torque (N·m): 0.93~1.24 | Wrench: TRDR10IP | Stock: Yes
SMDH170-8DF Head DC range (mm): >16.5 to 17.5 | L/D: 8 | LU (mm): 148.0 | OAL (mm): 224.6 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 145.0 | OAL with MFS head (mm): 221.6 | Cap screw: BXD02509IPC | Screw torque (N·m): 0.93~1.24 | Wrench: TRDR10IP | Stock: Yes
SMDH180-1.5DF Head DC range (mm): >17.5 to 18.5 | L/D: 1.5 | LU (mm): 36.0 | OAL (mm): 107.1 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 32.0 | OAL with MFS head (mm): 104.0 | Cap screw: BXD02509IPC | Screw torque (N·m): 0.93~1.24 | Wrench: TRDR10IP | Stock: Yes
SMDH180-3DF Head DC range (mm): >17.5 to 18.5 | L/D: 3 | LU (mm): 63.0 | OAL (mm): 144.8 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 60.0 | OAL with MFS head (mm): 141.7 | Cap screw: BXD02509IPC | Screw torque (N·m): 0.93~1.24 | Wrench: TRDR10IP | Stock: Yes
SMDH180-5DF Head DC range (mm): >17.5 to 18.5 | L/D: 5 | LU (mm): 100.0 | OAL (mm): 179.8 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 97.0 | OAL with MFS head (mm): 176.7 | Cap screw: BXD02509IPC | Screw torque (N·m): 0.93~1.24 | Wrench: TRDR10IP | Stock: Yes
SMDH180-8DF Head DC range (mm): >17.5 to 18.5 | L/D: 8 | LU (mm): 156.0 | OAL (mm): 229.8 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 153.0 | OAL with MFS head (mm): 226.7 | Cap screw: BXD02509IPC | Screw torque (N·m): 0.93~1.24 | Wrench: TRDR10IP | Stock: Yes
SMDH190-1.5DF Head DC range (mm): >18.5 to 19.5 | L/D: 1.5 | LU (mm): 37.0 | OAL (mm): 114.8 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 34.0 | OAL with MFS head (mm): 111.4 | Cap screw: BXD03011IPC | Screw torque (N·m): 1.83~2.44 | Wrench: TRDR15IP | Stock: Yes
SMDH190-3DF Head DC range (mm): >18.5 to 19.5 | L/D: 3 | LU (mm): 67.0 | OAL (mm): 160.0 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 63.0 | OAL with MFS head (mm): 156.6 | Cap screw: BXD03011IPC | Screw torque (N·m): 1.83~2.44 | Wrench: TRDR15IP | Stock: Yes
SMDH190-5DF Head DC range (mm): >18.5 to 19.5 | L/D: 5 | LU (mm): 106.0 | OAL (mm): 195.0 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 102.0 | OAL with MFS head (mm): 191.6 | Cap screw: BXD03011IPC | Screw torque (N·m): 1.83~2.44 | Wrench: TRDR15IP | Stock: Yes
SMDH190-8DF Head DC range (mm): >18.5 to 19.5 | L/D: 8 | LU (mm): 164.0 | OAL (mm): 255.0 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 161.0 | OAL with MFS head (mm): 251.6 | Cap screw: BXD03011IPC | Screw torque (N·m): 1.83~2.44 | Wrench: TRDR15IP | Stock: Yes
SMDH200-1.5DF Head DC range (mm): >19.5 to 20.5 | L/D: 1.5 | LU (mm): 39.0 | OAL (mm): 117.4 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 35.0 | OAL with MFS head (mm): 114.0 | Cap screw: BXD03011IPC | Screw torque (N·m): 1.83~2.44 | Wrench: TRDR15IP | Stock: Yes
SMDH200-3DF Head DC range (mm): >19.5 to 20.5 | L/D: 3 | LU (mm): 70.0 | OAL (mm): 160.1 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 66.0 | OAL with MFS head (mm): 156.7 | Cap screw: BXD03011IPC | Screw torque (N·m): 1.83~2.44 | Wrench: TRDR15IP | Stock: Yes
SMDH200-5DF Head DC range (mm): >19.5 to 20.5 | L/D: 5 | LU (mm): 111.0 | OAL (mm): 200.1 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 107.0 | OAL with MFS head (mm): 196.7 | Cap screw: BXD03011IPC | Screw torque (N·m): 1.83~2.44 | Wrench: TRDR15IP | Stock: Yes
SMDH200-8DF Head DC range (mm): >19.5 to 20.5 | L/D: 8 | LU (mm): 172.0 | OAL (mm): 265.1 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 169.0 | OAL with MFS head (mm): 261.7 | Cap screw: BXD03011IPC | Screw torque (N·m): 1.83~2.44 | Wrench: TRDR15IP | Stock: Yes
SMDH210-1.5DF Head DC range (mm): >20.5 to 21.5 | L/D: 1.5 | LU (mm): 41.0 | OAL (mm): 119.1 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 37.0 | OAL with MFS head (mm): 115.5 | Cap screw: BXD03011IPC | Screw torque (N·m): 1.83~2.44 | Wrench: TRDR15IP | Stock: Yes
SMDH210-3DF Head DC range (mm): >20.5 to 21.5 | L/D: 3 | LU (mm): 73.0 | OAL (mm): 160.3 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 69.0 | OAL with MFS head (mm): 156.7 | Cap screw: BXD03011IPC | Screw torque (N·m): 1.83~2.44 | Wrench: TRDR15IP | Stock: Yes
SMDH210-5DF Head DC range (mm): >20.5 to 21.5 | L/D: 5 | LU (mm): 116.0 | OAL (mm): 200.3 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 112.0 | OAL with MFS head (mm): 196.7 | Cap screw: BXD03011IPC | Screw torque (N·m): 1.83~2.44 | Wrench: TRDR15IP | Stock: Yes
SMDH210-8DF Head DC range (mm): >20.5 to 21.5 | L/D: 8 | LU (mm): 180.0 | OAL (mm): 270.3 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 177.0 | OAL with MFS head (mm): 266.7 | Cap screw: BXD03011IPC | Screw torque (N·m): 1.83~2.44 | Wrench: TRDR15IP | Stock: Yes
SMDH220-1.5DF Head DC range (mm): >21.5 to 22.8 | L/D: 1.5 | LU (mm): 43.0 | OAL (mm): 120.9 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 39.0 | OAL with MFS head (mm): 117.1 | Cap screw: BXD03512IPC | Screw torque (N·m): 2.79~3.72 | Wrench: TRDR15IP | Stock: Yes
SMDH220-3DF Head DC range (mm): >21.5 to 22.8 | L/D: 3 | LU (mm): 77.0 | OAL (mm): 165.1 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 73.0 | OAL with MFS head (mm): 161.3 | Cap screw: BXD03512IPC | Screw torque (N·m): 2.79~3.72 | Wrench: TRDR15IP | Stock: Yes
SMDH220-5DF Head DC range (mm): >21.5 to 22.8 | L/D: 5 | LU (mm): 123.0 | OAL (mm): 205.1 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 119.0 | OAL with MFS head (mm): 201.3 | Cap screw: BXD03512IPC | Screw torque (N·m): 2.79~3.72 | Wrench: TRDR15IP | Stock: Yes
SMDH220-8DF Head DC range (mm): >21.5 to 22.8 | L/D: 8 | LU (mm): 191.0 | OAL (mm): 275.1 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 187.0 | OAL with MFS head (mm): 271.3 | Cap screw: BXD03512IPC | Screw torque (N·m): 2.79~3.72 | Wrench: TRDR15IP | Stock: Yes
SMDH230-1.5DF Head DC range (mm): >22.8 to 23.8 | L/D: 1.5 | LU (mm): 45.0 | OAL (mm): 122.0 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 40.0 | OAL with MFS head (mm): 118.0 | Cap screw: BXD03512IPC | Screw torque (N·m): 2.79~3.72 | Wrench: TRDR15IP | Stock: Yes
SMDH230-3DF Head DC range (mm): >22.8 to 23.8 | L/D: 3 | LU (mm): 80.0 | OAL (mm): 164.7 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 76.0 | OAL with MFS head (mm): 160.7 | Cap screw: BXD03512IPC | Screw torque (N·m): 2.79~3.72 | Wrench: TRDR15IP | Stock: Yes
SMDH230-5DF Head DC range (mm): >22.8 to 23.8 | L/D: 5 | LU (mm): 128.0 | OAL (mm): 214.7 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 124.0 | OAL with MFS head (mm): 210.7 | Cap screw: BXD03512IPC | Screw torque (N·m): 2.79~3.72 | Wrench: TRDR15IP | Stock: Yes
SMDH230-8DF Head DC range (mm): >22.8 to 23.8 | L/D: 8 | LU (mm): 199.0 | OAL (mm): 284.7 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 195.0 | OAL with MFS head (mm): 280.7 | Cap screw: BXD03512IPC | Screw torque (N·m): 2.79~3.72 | Wrench: TRDR15IP | Stock: Yes
SMDH240-1.5DF Head DC range (mm): >23.8 to 24.8 | L/D: 1.5 | LU (mm): 46.0 | OAL (mm): 128.4 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 42.0 | OAL with MFS head (mm): 124.3 | Cap screw: BXD03512IPC | Screw torque (N·m): 2.79~3.72 | Wrench: TRDR15IP | Stock: Yes
SMDH240-3DF Head DC range (mm): >23.8 to 24.8 | L/D: 3 | LU (mm): 83.0 | OAL (mm): 174.6 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 79.0 | OAL with MFS head (mm): 170.5 | Cap screw: BXD03512IPC | Screw torque (N·m): 2.79~3.72 | Wrench: TRDR15IP | Stock: Yes
SMDH240-5DF Head DC range (mm): >23.8 to 24.8 | L/D: 5 | LU (mm): 133.0 | OAL (mm): 224.6 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 129.0 | OAL with MFS head (mm): 220.5 | Cap screw: BXD03512IPC | Screw torque (N·m): 2.79~3.72 | Wrench: TRDR15IP | Stock: Yes
SMDH240-8DF Head DC range (mm): >23.8 to 24.8 | L/D: 8 | LU (mm): 207.0 | OAL (mm): 299.6 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 203.0 | OAL with MFS head (mm): 295.5 | Cap screw: BXD03512IPC | Screw torque (N·m): 2.79~3.72 | Wrench: TRDR15IP | Stock: Yes
SMDH250-1.5DF Head DC range (mm): >24.8 to 25.8 | L/D: 1.5 | LU (mm): 48.0 | OAL (mm): 128.8 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 43.0 | OAL with MFS head (mm): 124.7 | Cap screw: BXD04014IPC | Screw torque (N·m): 4.14~5.52 | Wrench: TRDR20IP | Stock: Yes
SMDH250-3DF Head DC range (mm): >24.8 to 25.8 | L/D: 3 | LU (mm): 87.0 | OAL (mm): 174.5 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 82.0 | OAL with MFS head (mm): 170.4 | Cap screw: BXD04014IPC | Screw torque (N·m): 4.14~5.52 | Wrench: TRDR20IP | Stock: Yes
SMDH250-5DF Head DC range (mm): >24.8 to 25.8 | L/D: 5 | LU (mm): 138.0 | OAL (mm): 229.5 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 134.0 | OAL with MFS head (mm): 225.4 | Cap screw: BXD04014IPC | Screw torque (N·m): 4.14~5.52 | Wrench: TRDR20IP | Stock: Yes
SMDH250-8DF Head DC range (mm): >24.8 to 25.8 | L/D: 8 | LU (mm): 216.0 | OAL (mm): 304.5 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 211.0 | OAL with MFS head (mm): 300.4 | Cap screw: BXD04014IPC | Screw torque (N·m): 4.14~5.52 | Wrench: TRDR20IP | Stock: Yes
SMDH260-1.5DF Head DC range (mm): >25.8 to 26.8 | L/D: 1.5 | LU (mm): 50.0 | OAL (mm): 131.5 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 45.0 | OAL with MFS head (mm): 127.3 | Cap screw: BXD04014IPC | Screw torque (N·m): 4.14~5.52 | Wrench: TRDR20IP | Stock: Yes
SMDH260-3DF Head DC range (mm): >25.8 to 26.8 | L/D: 3 | LU (mm): 90.0 | OAL (mm): 179.7 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 85.0 | OAL with MFS head (mm): 175.5 | Cap screw: BXD04014IPC | Screw torque (N·m): 4.14~5.52 | Wrench: TRDR20IP | Stock: Yes
SMDH260-5DF Head DC range (mm): >25.8 to 26.8 | L/D: 5 | LU (mm): 143.0 | OAL (mm): 234.7 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 139.0 | OAL with MFS head (mm): 230.5 | Cap screw: BXD04014IPC | Screw torque (N·m): 4.14~5.52 | Wrench: TRDR20IP | Stock: Yes
SMDH260-8DF Head DC range (mm): >25.8 to 26.8 | L/D: 8 | LU (mm): 224.0 | OAL (mm): 314.7 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 219.0 | OAL with MFS head (mm): 310.5 | Cap screw: BXD04014IPC | Screw torque (N·m): 4.14~5.52 | Wrench: TRDR20IP | Stock: Yes
SMDH270-1.5DF Head DC range (mm): >26.8 to 27.8 | L/D: 1.5 | LU (mm): 51.0 | OAL (mm): 132.2 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 46.0 | OAL with MFS head (mm): 127.8 | Cap screw: BXD04014IPC | Screw torque (N·m): 4.14~5.52 | Wrench: TRDR20IP | Stock: Yes
SMDH270-3DF Head DC range (mm): >26.8 to 27.8 | L/D: 3 | LU (mm): 93.0 | OAL (mm): 179.9 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 88.0 | OAL with MFS head (mm): 175.5 | Cap screw: BXD04014IPC | Screw torque (N·m): 4.14~5.52 | Wrench: TRDR20IP | Stock: Yes
SMDH270-5DF Head DC range (mm): >26.8 to 27.8 | L/D: 5 | LU (mm): 149.0 | OAL (mm): 239.9 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 144.0 | OAL with MFS head (mm): 235.5 | Cap screw: BXD04014IPC | Screw torque (N·m): 4.14~5.52 | Wrench: TRDR20IP | Stock: Yes
SMDH270-8DF Head DC range (mm): >26.8 to 27.8 | L/D: 8 | LU (mm): 232.0 | OAL (mm): 324.9 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 227.0 | OAL with MFS head (mm): 320.5 | Cap screw: BXD04014IPC | Screw torque (N·m): 4.14~5.52 | Wrench: TRDR20IP | Stock: Yes
SMDH280-1.5DF Head DC range (mm): >27.8 to 28.8 | L/D: 1.5 | LU (mm): 53.0 | OAL (mm): 133.9 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 48.0 | OAL with MFS head (mm): 129.4 | Cap screw: BXD04515IPC | Screw torque (N·m): 4.98~6.64 | Wrench: TRDR25IP | Stock: Yes
SMDH280-3DF Head DC range (mm): >27.8 to 28.8 | L/D: 3 | LU (mm): 96.0 | OAL (mm): 185.1 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 91.0 | OAL with MFS head (mm): 180.6 | Cap screw: BXD04515IPC | Screw torque (N·m): 4.98~6.64 | Wrench: TRDR25IP | Stock: Yes
SMDH280-5DF Head DC range (mm): >27.8 to 28.8 | L/D: 5 | LU (mm): 154.0 | OAL (mm): 245.1 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 149.0 | OAL with MFS head (mm): 240.6 | Cap screw: BXD04515IPC | Screw torque (N·m): 4.98~6.64 | Wrench: TRDR25IP | Stock: Yes
SMDH280-8DF Head DC range (mm): >27.8 to 28.8 | L/D: 8 | LU (mm): 240.0 | OAL (mm): 330.1 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 235.0 | OAL with MFS head (mm): 325.6 | Cap screw: BXD04515IPC | Screw torque (N·m): 4.98~6.64 | Wrench: TRDR25IP | Stock: Yes
SMDH290-1.5DF Head DC range (mm): >28.8 to 29.8 | L/D: 1.5 | LU (mm): 55.0 | OAL (mm): 135.6 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 49.0 | OAL with MFS head (mm): 130.8 | Cap screw: BXD04515IPC | Screw torque (N·m): 4.98~6.64 | Wrench: TRDR25IP | Stock: Yes
SMDH290-3DF Head DC range (mm): >28.8 to 29.8 | L/D: 3 | LU (mm): 99.0 | OAL (mm): 190.3 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 94.0 | OAL with MFS head (mm): 185.4 | Cap screw: BXD04515IPC | Screw torque (N·m): 4.98~6.64 | Wrench: TRDR25IP | Stock: Yes
SMDH290-5DF Head DC range (mm): >28.8 to 29.8 | L/D: 5 | LU (mm): 159.0 | OAL (mm): 250.3 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 154.0 | OAL with MFS head (mm): 245.4 | Cap screw: BXD04515IPC | Screw torque (N·m): 4.98~6.64 | Wrench: TRDR25IP | Stock: Yes
SMDH290-8DF Head DC range (mm): >28.8 to 29.8 | L/D: 8 | LU (mm): 248.0 | OAL (mm): 340.3 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 243.0 | OAL with MFS head (mm): 335.4 | Cap screw: BXD04515IPC | Screw torque (N·m): 4.98~6.64 | Wrench: TRDR25IP | Stock: Yes
SMDH300-1.5DF Head DC range (mm): >29.8 to 30.8 | L/D: 1.5 | LU (mm): 56.0 | OAL (mm): 138.3 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 51.0 | OAL with MFS head (mm): 133.4 | Cap screw: BXD04515IPC | Screw torque (N·m): 4.98~6.64 | Wrench: TRDR25IP | Stock: Yes
SMDH300-3DF Head DC range (mm): >29.8 to 30.8 | L/D: 3 | LU (mm): 103.0 | OAL (mm): 190.5 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 97.0 | OAL with MFS head (mm): 185.6 | Cap screw: BXD04515IPC | Screw torque (N·m): 4.98~6.64 | Wrench: TRDR25IP | Stock: Yes
SMDH300-5DF Head DC range (mm): >29.8 to 30.8 | L/D: 5 | LU (mm): 164.0 | OAL (mm): 260.5 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 159.0 | OAL with MFS head (mm): 255.6 | Cap screw: BXD04515IPC | Screw torque (N·m): 4.98~6.64 | Wrench: TRDR25IP | Stock: Yes
SMDH300-8DF Head DC range (mm): >29.8 to 30.8 | L/D: 8 | LU (mm): 257.0 | OAL (mm): 350.5 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 251.0 | OAL with MFS head (mm): 345.6 | Cap screw: BXD04515IPC | Screw torque (N·m): 4.98~6.64 | Wrench: TRDR25IP | Stock: Yes
DrillsSumitomo Electric Hardmetal
80 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Multi Drill SMD Holder, Flat Shank with Flange

Brand Sumitomo Electric Hardmetal·Drills

Available part numbers (80)

SMDH120-1.5DF, SMDH120-3DF, SMDH120-5DF, SMDH120-8DF, SMDH125-1.5DF, SMDH125-3DF, SMDH125-5DF, SMDH125-8DF, SMDH130-1.5DF, SMDH130-3DF + 70 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SMDH120-1.5DFHead DC range (mm): 12.0 to <12.5 | L/D: 1.5 | LU (mm): 23.0 | OAL (mm): 90.5 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 21.0 | OAL with MFS head (mm): 88.5 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH120-3DFHead DC range (mm): 12.0 to <12.5 | L/D: 3 | LU (mm): 42.0 | OAL (mm): 107.2 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 40.0 | OAL with MFS head (mm): 105.2 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH120-5DFHead DC range (mm): 12.0 to <12.5 | L/D: 5 | LU (mm): 67.0 | OAL (mm): 132.2 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 65.0 | OAL with MFS head (mm): 130.2 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH120-8DFHead DC range (mm): 12.0 to <12.5 | L/D: 8 | LU (mm): 98.0 | OAL (mm): 164.4 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 96.0 | OAL with MFS head (mm): 162.4 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH125-1.5DFHead DC range (mm): 12.5 to <13.0 | L/D: 1.5 | LU (mm): 24.0 | OAL (mm): 91.0 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 22.0 | OAL with MFS head (mm): 88.8 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH125-3DFHead DC range (mm): 12.5 to <13.0 | L/D: 3 | LU (mm): 44.0 | OAL (mm): 107.3 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 41.0 | OAL with MFS head (mm): 105.1 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH125-5DFHead DC range (mm): 12.5 to <13.0 | L/D: 5 | LU (mm): 69.0 | OAL (mm): 132.3 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 67.0 | OAL with MFS head (mm): 130.1 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH125-8DFHead DC range (mm): 12.5 to <13.0 | L/D: 8 | LU (mm): 102.0 | OAL (mm): 170.1 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 100.0 | OAL with MFS head (mm): 167.9 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH130-1.5DFHead DC range (mm): 13.0 to <13.5 | L/D: 1.5 | LU (mm): 25.0 | OAL (mm): 92.2 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 23.0 | OAL with MFS head (mm): 90.0 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH130-3DFHead DC range (mm): 13.0 to <13.5 | L/D: 3 | LU (mm): 45.0 | OAL (mm): 112.4 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 43.0 | OAL with MFS head (mm): 110.2 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH130-5DFHead DC range (mm): 13.0 to <13.5 | L/D: 5 | LU (mm): 72.0 | OAL (mm): 142.4 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 70.0 | OAL with MFS head (mm): 140.2 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH130-8DFHead DC range (mm): 13.0 to <13.5 | L/D: 8 | LU (mm): 106.0 | OAL (mm): 178.4 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 104.0 | OAL with MFS head (mm): 176.2 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH140-1.5DFHead DC range (mm): 13.5 to 14.5 | L/D: 1.5 | LU (mm): 29.0 | OAL (mm): 96.3 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 26.0 | OAL with MFS head (mm): 93.9 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH140-3DFHead DC range (mm): 13.5 to 14.5 | L/D: 3 | LU (mm): 51.0 | OAL (mm): 119.0 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 48.0 | OAL with MFS head (mm): 116.6 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH140-5DFHead DC range (mm): 13.5 to 14.5 | L/D: 5 | LU (mm): 80.0 | OAL (mm): 149.0 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 77.0 | OAL with MFS head (mm): 146.6 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH140-8DFHead DC range (mm): 13.5 to 14.5 | L/D: 8 | LU (mm): 123.0 | OAL (mm): 194.0 | LS (mm): 48 | DCSFMS (mm): 20 | DCON (mm): 16 | LU with MFS head (mm): 121.0 | OAL with MFS head (mm): 191.6 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH150-1.5DFHead DC range (mm): >14.5 to 15.5 | L/D: 1.5 | LU (mm): 31.0 | OAL (mm): 100.0 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 28.0 | OAL with MFS head (mm): 97.3 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH150-3DFHead DC range (mm): >14.5 to 15.5 | L/D: 3 | LU (mm): 54.0 | OAL (mm): 129.2 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 51.0 | OAL with MFS head (mm): 126.6 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH150-5DFHead DC range (mm): >14.5 to 15.5 | L/D: 5 | LU (mm): 85.0 | OAL (mm): 159.2 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 82.0 | OAL with MFS head (mm): 156.6 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH150-8DFHead DC range (mm): >14.5 to 15.5 | L/D: 8 | LU (mm): 131.0 | OAL (mm): 204.2 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 129.0 | OAL with MFS head (mm): 201.6 | Cap screw: BXD02208IPC | Screw torque (N·m): 0.75~1.00 | Wrench: TRDR08IP | Stock: Yes
SMDH160-1.5DFHead DC range (mm): >15.5 to 16.5 | L/D: 1.5 | LU (mm): 32.0 | OAL (mm): 102.7 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 29.0 | OAL with MFS head (mm): 99.9 | Cap screw: BXD02509IPC | Screw torque (N·m): 0.93~1.24 | Wrench: TRDR10IP | Stock: Yes
SMDH160-3DFHead DC range (mm): >15.5 to 16.5 | L/D: 3 | LU (mm): 57.0 | OAL (mm): 134.4 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 54.0 | OAL with MFS head (mm): 131.6 | Cap screw: BXD02509IPC | Screw torque (N·m): 0.93~1.24 | Wrench: TRDR10IP | Stock: Yes
SMDH160-5DFHead DC range (mm): >15.5 to 16.5 | L/D: 5 | LU (mm): 90.0 | OAL (mm): 169.4 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 87.0 | OAL with MFS head (mm): 166.6 | Cap screw: BXD02509IPC | Screw torque (N·m): 0.93~1.24 | Wrench: TRDR10IP | Stock: Yes
SMDH160-8DFHead DC range (mm): >15.5 to 16.5 | L/D: 8 | LU (mm): 140.0 | OAL (mm): 214.4 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 137.0 | OAL with MFS head (mm): 211.6 | Cap screw: BXD02509IPC | Screw torque (N·m): 0.93~1.24 | Wrench: TRDR10IP | Stock: Yes
SMDH170-1.5DFHead DC range (mm): >16.5 to 17.5 | L/D: 1.5 | LU (mm): 34.0 | OAL (mm): 104.4 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 31.0 | OAL with MFS head (mm): 101.4 | Cap screw: BXD02509IPC | Screw torque (N·m): 0.93~1.24 | Wrench: TRDR10IP | Stock: Yes
SMDH170-3DFHead DC range (mm): >16.5 to 17.5 | L/D: 3 | LU (mm): 60.0 | OAL (mm): 139.6 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 57.0 | OAL with MFS head (mm): 136.6 | Cap screw: BXD02509IPC | Screw torque (N·m): 0.93~1.24 | Wrench: TRDR10IP | Stock: Yes
SMDH170-5DFHead DC range (mm): >16.5 to 17.5 | L/D: 5 | LU (mm): 95.0 | OAL (mm): 174.6 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 92.0 | OAL with MFS head (mm): 171.6 | Cap screw: BXD02509IPC | Screw torque (N·m): 0.93~1.24 | Wrench: TRDR10IP | Stock: Yes
SMDH170-8DFHead DC range (mm): >16.5 to 17.5 | L/D: 8 | LU (mm): 148.0 | OAL (mm): 224.6 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 145.0 | OAL with MFS head (mm): 221.6 | Cap screw: BXD02509IPC | Screw torque (N·m): 0.93~1.24 | Wrench: TRDR10IP | Stock: Yes
SMDH180-1.5DFHead DC range (mm): >17.5 to 18.5 | L/D: 1.5 | LU (mm): 36.0 | OAL (mm): 107.1 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 32.0 | OAL with MFS head (mm): 104.0 | Cap screw: BXD02509IPC | Screw torque (N·m): 0.93~1.24 | Wrench: TRDR10IP | Stock: Yes
SMDH180-3DFHead DC range (mm): >17.5 to 18.5 | L/D: 3 | LU (mm): 63.0 | OAL (mm): 144.8 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 60.0 | OAL with MFS head (mm): 141.7 | Cap screw: BXD02509IPC | Screw torque (N·m): 0.93~1.24 | Wrench: TRDR10IP | Stock: Yes
SMDH180-5DFHead DC range (mm): >17.5 to 18.5 | L/D: 5 | LU (mm): 100.0 | OAL (mm): 179.8 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 97.0 | OAL with MFS head (mm): 176.7 | Cap screw: BXD02509IPC | Screw torque (N·m): 0.93~1.24 | Wrench: TRDR10IP | Stock: Yes
SMDH180-8DFHead DC range (mm): >17.5 to 18.5 | L/D: 8 | LU (mm): 156.0 | OAL (mm): 229.8 | LS (mm): 50 | DCSFMS (mm): 25 | DCON (mm): 20 | LU with MFS head (mm): 153.0 | OAL with MFS head (mm): 226.7 | Cap screw: BXD02509IPC | Screw torque (N·m): 0.93~1.24 | Wrench: TRDR10IP | Stock: Yes
SMDH190-1.5DFHead DC range (mm): >18.5 to 19.5 | L/D: 1.5 | LU (mm): 37.0 | OAL (mm): 114.8 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 34.0 | OAL with MFS head (mm): 111.4 | Cap screw: BXD03011IPC | Screw torque (N·m): 1.83~2.44 | Wrench: TRDR15IP | Stock: Yes
SMDH190-3DFHead DC range (mm): >18.5 to 19.5 | L/D: 3 | LU (mm): 67.0 | OAL (mm): 160.0 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 63.0 | OAL with MFS head (mm): 156.6 | Cap screw: BXD03011IPC | Screw torque (N·m): 1.83~2.44 | Wrench: TRDR15IP | Stock: Yes
SMDH190-5DFHead DC range (mm): >18.5 to 19.5 | L/D: 5 | LU (mm): 106.0 | OAL (mm): 195.0 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 102.0 | OAL with MFS head (mm): 191.6 | Cap screw: BXD03011IPC | Screw torque (N·m): 1.83~2.44 | Wrench: TRDR15IP | Stock: Yes
SMDH190-8DFHead DC range (mm): >18.5 to 19.5 | L/D: 8 | LU (mm): 164.0 | OAL (mm): 255.0 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 161.0 | OAL with MFS head (mm): 251.6 | Cap screw: BXD03011IPC | Screw torque (N·m): 1.83~2.44 | Wrench: TRDR15IP | Stock: Yes
SMDH200-1.5DFHead DC range (mm): >19.5 to 20.5 | L/D: 1.5 | LU (mm): 39.0 | OAL (mm): 117.4 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 35.0 | OAL with MFS head (mm): 114.0 | Cap screw: BXD03011IPC | Screw torque (N·m): 1.83~2.44 | Wrench: TRDR15IP | Stock: Yes
SMDH200-3DFHead DC range (mm): >19.5 to 20.5 | L/D: 3 | LU (mm): 70.0 | OAL (mm): 160.1 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 66.0 | OAL with MFS head (mm): 156.7 | Cap screw: BXD03011IPC | Screw torque (N·m): 1.83~2.44 | Wrench: TRDR15IP | Stock: Yes
SMDH200-5DFHead DC range (mm): >19.5 to 20.5 | L/D: 5 | LU (mm): 111.0 | OAL (mm): 200.1 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 107.0 | OAL with MFS head (mm): 196.7 | Cap screw: BXD03011IPC | Screw torque (N·m): 1.83~2.44 | Wrench: TRDR15IP | Stock: Yes
SMDH200-8DFHead DC range (mm): >19.5 to 20.5 | L/D: 8 | LU (mm): 172.0 | OAL (mm): 265.1 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 169.0 | OAL with MFS head (mm): 261.7 | Cap screw: BXD03011IPC | Screw torque (N·m): 1.83~2.44 | Wrench: TRDR15IP | Stock: Yes
SMDH210-1.5DFHead DC range (mm): >20.5 to 21.5 | L/D: 1.5 | LU (mm): 41.0 | OAL (mm): 119.1 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 37.0 | OAL with MFS head (mm): 115.5 | Cap screw: BXD03011IPC | Screw torque (N·m): 1.83~2.44 | Wrench: TRDR15IP | Stock: Yes
SMDH210-3DFHead DC range (mm): >20.5 to 21.5 | L/D: 3 | LU (mm): 73.0 | OAL (mm): 160.3 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 69.0 | OAL with MFS head (mm): 156.7 | Cap screw: BXD03011IPC | Screw torque (N·m): 1.83~2.44 | Wrench: TRDR15IP | Stock: Yes
SMDH210-5DFHead DC range (mm): >20.5 to 21.5 | L/D: 5 | LU (mm): 116.0 | OAL (mm): 200.3 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 112.0 | OAL with MFS head (mm): 196.7 | Cap screw: BXD03011IPC | Screw torque (N·m): 1.83~2.44 | Wrench: TRDR15IP | Stock: Yes
SMDH210-8DFHead DC range (mm): >20.5 to 21.5 | L/D: 8 | LU (mm): 180.0 | OAL (mm): 270.3 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 177.0 | OAL with MFS head (mm): 266.7 | Cap screw: BXD03011IPC | Screw torque (N·m): 1.83~2.44 | Wrench: TRDR15IP | Stock: Yes
SMDH220-1.5DFHead DC range (mm): >21.5 to 22.8 | L/D: 1.5 | LU (mm): 43.0 | OAL (mm): 120.9 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 39.0 | OAL with MFS head (mm): 117.1 | Cap screw: BXD03512IPC | Screw torque (N·m): 2.79~3.72 | Wrench: TRDR15IP | Stock: Yes
SMDH220-3DFHead DC range (mm): >21.5 to 22.8 | L/D: 3 | LU (mm): 77.0 | OAL (mm): 165.1 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 73.0 | OAL with MFS head (mm): 161.3 | Cap screw: BXD03512IPC | Screw torque (N·m): 2.79~3.72 | Wrench: TRDR15IP | Stock: Yes
SMDH220-5DFHead DC range (mm): >21.5 to 22.8 | L/D: 5 | LU (mm): 123.0 | OAL (mm): 205.1 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 119.0 | OAL with MFS head (mm): 201.3 | Cap screw: BXD03512IPC | Screw torque (N·m): 2.79~3.72 | Wrench: TRDR15IP | Stock: Yes
SMDH220-8DFHead DC range (mm): >21.5 to 22.8 | L/D: 8 | LU (mm): 191.0 | OAL (mm): 275.1 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 187.0 | OAL with MFS head (mm): 271.3 | Cap screw: BXD03512IPC | Screw torque (N·m): 2.79~3.72 | Wrench: TRDR15IP | Stock: Yes
SMDH230-1.5DFHead DC range (mm): >22.8 to 23.8 | L/D: 1.5 | LU (mm): 45.0 | OAL (mm): 122.0 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 40.0 | OAL with MFS head (mm): 118.0 | Cap screw: BXD03512IPC | Screw torque (N·m): 2.79~3.72 | Wrench: TRDR15IP | Stock: Yes
SMDH230-3DFHead DC range (mm): >22.8 to 23.8 | L/D: 3 | LU (mm): 80.0 | OAL (mm): 164.7 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 76.0 | OAL with MFS head (mm): 160.7 | Cap screw: BXD03512IPC | Screw torque (N·m): 2.79~3.72 | Wrench: TRDR15IP | Stock: Yes
SMDH230-5DFHead DC range (mm): >22.8 to 23.8 | L/D: 5 | LU (mm): 128.0 | OAL (mm): 214.7 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 124.0 | OAL with MFS head (mm): 210.7 | Cap screw: BXD03512IPC | Screw torque (N·m): 2.79~3.72 | Wrench: TRDR15IP | Stock: Yes
SMDH230-8DFHead DC range (mm): >22.8 to 23.8 | L/D: 8 | LU (mm): 199.0 | OAL (mm): 284.7 | LS (mm): 56 | DCSFMS (mm): 30 | DCON (mm): 25 | LU with MFS head (mm): 195.0 | OAL with MFS head (mm): 280.7 | Cap screw: BXD03512IPC | Screw torque (N·m): 2.79~3.72 | Wrench: TRDR15IP | Stock: Yes
SMDH240-1.5DFHead DC range (mm): >23.8 to 24.8 | L/D: 1.5 | LU (mm): 46.0 | OAL (mm): 128.4 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 42.0 | OAL with MFS head (mm): 124.3 | Cap screw: BXD03512IPC | Screw torque (N·m): 2.79~3.72 | Wrench: TRDR15IP | Stock: Yes
SMDH240-3DFHead DC range (mm): >23.8 to 24.8 | L/D: 3 | LU (mm): 83.0 | OAL (mm): 174.6 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 79.0 | OAL with MFS head (mm): 170.5 | Cap screw: BXD03512IPC | Screw torque (N·m): 2.79~3.72 | Wrench: TRDR15IP | Stock: Yes
SMDH240-5DFHead DC range (mm): >23.8 to 24.8 | L/D: 5 | LU (mm): 133.0 | OAL (mm): 224.6 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 129.0 | OAL with MFS head (mm): 220.5 | Cap screw: BXD03512IPC | Screw torque (N·m): 2.79~3.72 | Wrench: TRDR15IP | Stock: Yes
SMDH240-8DFHead DC range (mm): >23.8 to 24.8 | L/D: 8 | LU (mm): 207.0 | OAL (mm): 299.6 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 203.0 | OAL with MFS head (mm): 295.5 | Cap screw: BXD03512IPC | Screw torque (N·m): 2.79~3.72 | Wrench: TRDR15IP | Stock: Yes
SMDH250-1.5DFHead DC range (mm): >24.8 to 25.8 | L/D: 1.5 | LU (mm): 48.0 | OAL (mm): 128.8 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 43.0 | OAL with MFS head (mm): 124.7 | Cap screw: BXD04014IPC | Screw torque (N·m): 4.14~5.52 | Wrench: TRDR20IP | Stock: Yes
SMDH250-3DFHead DC range (mm): >24.8 to 25.8 | L/D: 3 | LU (mm): 87.0 | OAL (mm): 174.5 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 82.0 | OAL with MFS head (mm): 170.4 | Cap screw: BXD04014IPC | Screw torque (N·m): 4.14~5.52 | Wrench: TRDR20IP | Stock: Yes
SMDH250-5DFHead DC range (mm): >24.8 to 25.8 | L/D: 5 | LU (mm): 138.0 | OAL (mm): 229.5 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 134.0 | OAL with MFS head (mm): 225.4 | Cap screw: BXD04014IPC | Screw torque (N·m): 4.14~5.52 | Wrench: TRDR20IP | Stock: Yes
SMDH250-8DFHead DC range (mm): >24.8 to 25.8 | L/D: 8 | LU (mm): 216.0 | OAL (mm): 304.5 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 211.0 | OAL with MFS head (mm): 300.4 | Cap screw: BXD04014IPC | Screw torque (N·m): 4.14~5.52 | Wrench: TRDR20IP | Stock: Yes
SMDH260-1.5DFHead DC range (mm): >25.8 to 26.8 | L/D: 1.5 | LU (mm): 50.0 | OAL (mm): 131.5 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 45.0 | OAL with MFS head (mm): 127.3 | Cap screw: BXD04014IPC | Screw torque (N·m): 4.14~5.52 | Wrench: TRDR20IP | Stock: Yes
SMDH260-3DFHead DC range (mm): >25.8 to 26.8 | L/D: 3 | LU (mm): 90.0 | OAL (mm): 179.7 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 85.0 | OAL with MFS head (mm): 175.5 | Cap screw: BXD04014IPC | Screw torque (N·m): 4.14~5.52 | Wrench: TRDR20IP | Stock: Yes
SMDH260-5DFHead DC range (mm): >25.8 to 26.8 | L/D: 5 | LU (mm): 143.0 | OAL (mm): 234.7 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 139.0 | OAL with MFS head (mm): 230.5 | Cap screw: BXD04014IPC | Screw torque (N·m): 4.14~5.52 | Wrench: TRDR20IP | Stock: Yes
SMDH260-8DFHead DC range (mm): >25.8 to 26.8 | L/D: 8 | LU (mm): 224.0 | OAL (mm): 314.7 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 219.0 | OAL with MFS head (mm): 310.5 | Cap screw: BXD04014IPC | Screw torque (N·m): 4.14~5.52 | Wrench: TRDR20IP | Stock: Yes
SMDH270-1.5DFHead DC range (mm): >26.8 to 27.8 | L/D: 1.5 | LU (mm): 51.0 | OAL (mm): 132.2 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 46.0 | OAL with MFS head (mm): 127.8 | Cap screw: BXD04014IPC | Screw torque (N·m): 4.14~5.52 | Wrench: TRDR20IP | Stock: Yes
SMDH270-3DFHead DC range (mm): >26.8 to 27.8 | L/D: 3 | LU (mm): 93.0 | OAL (mm): 179.9 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 88.0 | OAL with MFS head (mm): 175.5 | Cap screw: BXD04014IPC | Screw torque (N·m): 4.14~5.52 | Wrench: TRDR20IP | Stock: Yes
SMDH270-5DFHead DC range (mm): >26.8 to 27.8 | L/D: 5 | LU (mm): 149.0 | OAL (mm): 239.9 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 144.0 | OAL with MFS head (mm): 235.5 | Cap screw: BXD04014IPC | Screw torque (N·m): 4.14~5.52 | Wrench: TRDR20IP | Stock: Yes
SMDH270-8DFHead DC range (mm): >26.8 to 27.8 | L/D: 8 | LU (mm): 232.0 | OAL (mm): 324.9 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 227.0 | OAL with MFS head (mm): 320.5 | Cap screw: BXD04014IPC | Screw torque (N·m): 4.14~5.52 | Wrench: TRDR20IP | Stock: Yes
SMDH280-1.5DFHead DC range (mm): >27.8 to 28.8 | L/D: 1.5 | LU (mm): 53.0 | OAL (mm): 133.9 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 48.0 | OAL with MFS head (mm): 129.4 | Cap screw: BXD04515IPC | Screw torque (N·m): 4.98~6.64 | Wrench: TRDR25IP | Stock: Yes
SMDH280-3DFHead DC range (mm): >27.8 to 28.8 | L/D: 3 | LU (mm): 96.0 | OAL (mm): 185.1 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 91.0 | OAL with MFS head (mm): 180.6 | Cap screw: BXD04515IPC | Screw torque (N·m): 4.98~6.64 | Wrench: TRDR25IP | Stock: Yes
SMDH280-5DFHead DC range (mm): >27.8 to 28.8 | L/D: 5 | LU (mm): 154.0 | OAL (mm): 245.1 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 149.0 | OAL with MFS head (mm): 240.6 | Cap screw: BXD04515IPC | Screw torque (N·m): 4.98~6.64 | Wrench: TRDR25IP | Stock: Yes
SMDH280-8DFHead DC range (mm): >27.8 to 28.8 | L/D: 8 | LU (mm): 240.0 | OAL (mm): 330.1 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 235.0 | OAL with MFS head (mm): 325.6 | Cap screw: BXD04515IPC | Screw torque (N·m): 4.98~6.64 | Wrench: TRDR25IP | Stock: Yes
SMDH290-1.5DFHead DC range (mm): >28.8 to 29.8 | L/D: 1.5 | LU (mm): 55.0 | OAL (mm): 135.6 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 49.0 | OAL with MFS head (mm): 130.8 | Cap screw: BXD04515IPC | Screw torque (N·m): 4.98~6.64 | Wrench: TRDR25IP | Stock: Yes
SMDH290-3DFHead DC range (mm): >28.8 to 29.8 | L/D: 3 | LU (mm): 99.0 | OAL (mm): 190.3 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 94.0 | OAL with MFS head (mm): 185.4 | Cap screw: BXD04515IPC | Screw torque (N·m): 4.98~6.64 | Wrench: TRDR25IP | Stock: Yes
SMDH290-5DFHead DC range (mm): >28.8 to 29.8 | L/D: 5 | LU (mm): 159.0 | OAL (mm): 250.3 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 154.0 | OAL with MFS head (mm): 245.4 | Cap screw: BXD04515IPC | Screw torque (N·m): 4.98~6.64 | Wrench: TRDR25IP | Stock: Yes
SMDH290-8DFHead DC range (mm): >28.8 to 29.8 | L/D: 8 | LU (mm): 248.0 | OAL (mm): 340.3 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 243.0 | OAL with MFS head (mm): 335.4 | Cap screw: BXD04515IPC | Screw torque (N·m): 4.98~6.64 | Wrench: TRDR25IP | Stock: Yes
SMDH300-1.5DFHead DC range (mm): >29.8 to 30.8 | L/D: 1.5 | LU (mm): 56.0 | OAL (mm): 138.3 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 51.0 | OAL with MFS head (mm): 133.4 | Cap screw: BXD04515IPC | Screw torque (N·m): 4.98~6.64 | Wrench: TRDR25IP | Stock: Yes
SMDH300-3DFHead DC range (mm): >29.8 to 30.8 | L/D: 3 | LU (mm): 103.0 | OAL (mm): 190.5 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 97.0 | OAL with MFS head (mm): 185.6 | Cap screw: BXD04515IPC | Screw torque (N·m): 4.98~6.64 | Wrench: TRDR25IP | Stock: Yes
SMDH300-5DFHead DC range (mm): >29.8 to 30.8 | L/D: 5 | LU (mm): 164.0 | OAL (mm): 260.5 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 159.0 | OAL with MFS head (mm): 255.6 | Cap screw: BXD04515IPC | Screw torque (N·m): 4.98~6.64 | Wrench: TRDR25IP | Stock: Yes
SMDH300-8DFHead DC range (mm): >29.8 to 30.8 | L/D: 8 | LU (mm): 257.0 | OAL (mm): 350.5 | LS (mm): 60 | DCSFMS (mm): 37 | DCON (mm): 32 | LU with MFS head (mm): 251.0 | OAL with MFS head (mm): 345.6 | Cap screw: BXD04515IPC | Screw torque (N·m): 4.98~6.64 | Wrench: TRDR25IP | Stock: Yes
