Sumitomo Electric Hardmetal SEC-Multi Mill CHE 2000 Shank Type Cutter

Sumitomo Electric Hardmetal SEC-Multi Mill CHE 2000 Shank Type Cutter

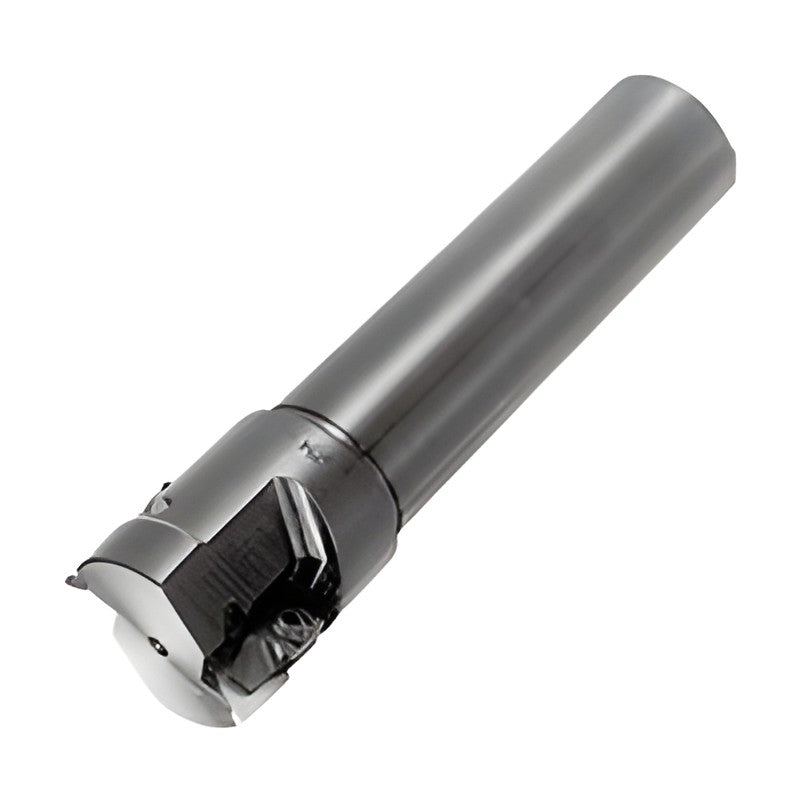

90 degree shank type shoulder milling cutter of the SEC-Multi Mill series using 22-size triangular inserts.

CHE2016R Cutting dia DC (mm): 16 | Shank dia DMM (mm): 16 | Head length LH (mm): 25 | Overall length LF (mm): 100 | Teeth: 1 | Axial rake: +6° | Radial rake: -3° | Stock: Yes
CHE2018R Cutting dia DC (mm): 18 | Shank dia DMM (mm): 20 | Head length LH (mm): 30 | Overall length LF (mm): 110 | Teeth: 1 | Axial rake: +8° | Radial rake: -2° | Stock: Yes
CHE2020R Cutting dia DC (mm): 20 | Shank dia DMM (mm): 20 | Head length LH (mm): 30 | Overall length LF (mm): 110 | Teeth: 2 | Axial rake: +10° | Radial rake: -2° | Stock: Yes
CHE2022R Cutting dia DC (mm): 22 | Shank dia DMM (mm): 20 | Head length LH (mm): 30 | Overall length LF (mm): 110 | Teeth: 2 | Axial rake: +12° | Radial rake: -1° | Stock: Yes
CHE2025R Cutting dia DC (mm): 25 | Shank dia DMM (mm): 25 | Head length LH (mm): 35 | Overall length LF (mm): 120 | Teeth: 2 | Axial rake: +15° | Radial rake: -1° | Stock: Yes
CHE2028R Cutting dia DC (mm): 28 | Shank dia DMM (mm): 25 | Head length LH (mm): 35 | Overall length LF (mm): 120 | Teeth: 2 | Axial rake: +15° | Radial rake: 0° | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Multi Mill CHE 2000 Shank Type Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (6)

CHE2016R, CHE2018R, CHE2020R, CHE2022R, CHE2025R, CHE2028R

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CHE2016RCutting dia DC (mm): 16 | Shank dia DMM (mm): 16 | Head length LH (mm): 25 | Overall length LF (mm): 100 | Teeth: 1 | Axial rake: +6° | Radial rake: -3° | Stock: Yes
CHE2018RCutting dia DC (mm): 18 | Shank dia DMM (mm): 20 | Head length LH (mm): 30 | Overall length LF (mm): 110 | Teeth: 1 | Axial rake: +8° | Radial rake: -2° | Stock: Yes
CHE2020RCutting dia DC (mm): 20 | Shank dia DMM (mm): 20 | Head length LH (mm): 30 | Overall length LF (mm): 110 | Teeth: 2 | Axial rake: +10° | Radial rake: -2° | Stock: Yes
CHE2022RCutting dia DC (mm): 22 | Shank dia DMM (mm): 20 | Head length LH (mm): 30 | Overall length LF (mm): 110 | Teeth: 2 | Axial rake: +12° | Radial rake: -1° | Stock: Yes
CHE2025RCutting dia DC (mm): 25 | Shank dia DMM (mm): 25 | Head length LH (mm): 35 | Overall length LF (mm): 120 | Teeth: 2 | Axial rake: +15° | Radial rake: -1° | Stock: Yes
CHE2028RCutting dia DC (mm): 28 | Shank dia DMM (mm): 25 | Head length LH (mm): 35 | Overall length LF (mm): 120 | Teeth: 2 | Axial rake: +15° | Radial rake: 0° | Stock: Yes
