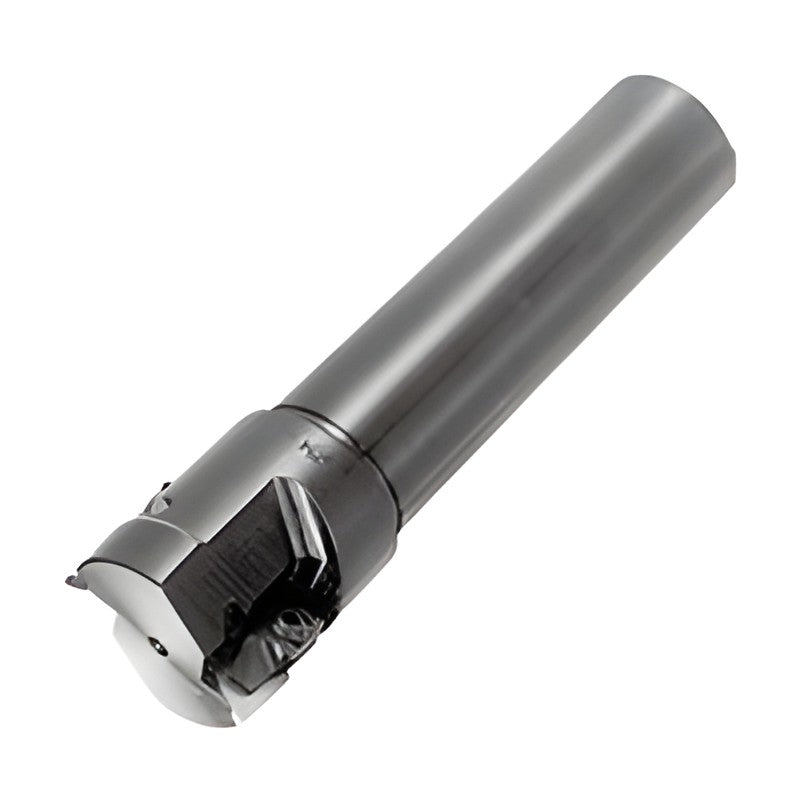

Sumitomo Electric Hardmetal SEC-Multi Mill CHE 3000 Shank Type Cutter

Sumitomo Electric Hardmetal SEC-Multi Mill CHE 3000 Shank Type Cutter

90 degree shank type shoulder milling cutter of the SEC-Multi Mill series using 32-size triangular inserts.

CHE3030R Cutting dia DC (mm): 30 | Shank dia DMM (mm): 32 | Head length LH (mm): 45 | Overall length LF (mm): 160 | Teeth: 2 | Axial rake: +15° | Radial rake: -3° | Stock: Yes
CHE3032R Cutting dia DC (mm): 32 | Shank dia DMM (mm): 32 | Head length LH (mm): 45 | Overall length LF (mm): 160 | Teeth: 2 | Axial rake: +15° | Radial rake: -2° | Stock: Yes
CHE3036R Cutting dia DC (mm): 36 | Shank dia DMM (mm): 32 | Head length LH (mm): 45 | Overall length LF (mm): 160 | Teeth: 2 | Axial rake: +15° | Radial rake: -1° | Stock: Yes
CHE3040R Cutting dia DC (mm): 40 | Shank dia DMM (mm): 32 | Head length LH (mm): 45 | Overall length LF (mm): 160 | Teeth: 2 | Axial rake: +15° | Radial rake: 0° | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Multi Mill CHE 3000 Shank Type Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (4)

CHE3030R, CHE3032R, CHE3036R, CHE3040R

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CHE3030RCutting dia DC (mm): 30 | Shank dia DMM (mm): 32 | Head length LH (mm): 45 | Overall length LF (mm): 160 | Teeth: 2 | Axial rake: +15° | Radial rake: -3° | Stock: Yes
CHE3032RCutting dia DC (mm): 32 | Shank dia DMM (mm): 32 | Head length LH (mm): 45 | Overall length LF (mm): 160 | Teeth: 2 | Axial rake: +15° | Radial rake: -2° | Stock: Yes
CHE3036RCutting dia DC (mm): 36 | Shank dia DMM (mm): 32 | Head length LH (mm): 45 | Overall length LF (mm): 160 | Teeth: 2 | Axial rake: +15° | Radial rake: -1° | Stock: Yes
CHE3040RCutting dia DC (mm): 40 | Shank dia DMM (mm): 32 | Head length LH (mm): 45 | Overall length LF (mm): 160 | Teeth: 2 | Axial rake: +15° | Radial rake: 0° | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →
