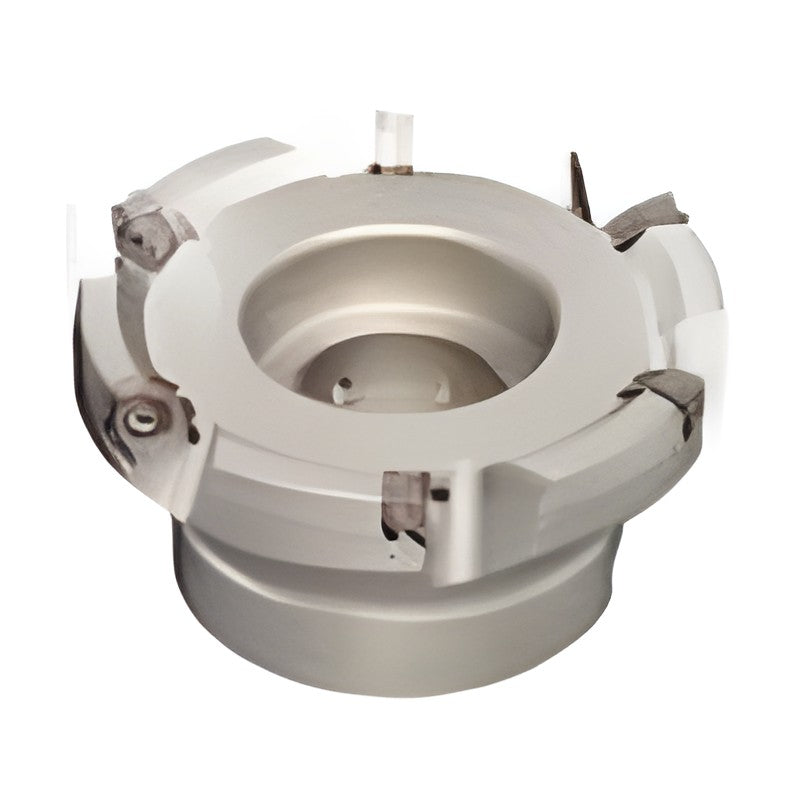

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill DFC 09000R(S) Milling Cutter

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill DFC 09000R(S) Milling Cutter

High-efficiency general-purpose and shoulder milling cutter using XNMU 0606 double-sided inserts, combining cutting performance and edge strength from roughing to finishing.

Key features

  • Original insert shape with good sharpness and edge strength
  • GS breaker for shoulder milling
  • New ACS grades for stainless steel and difficult-to-cut materials

Specifications

Insert Not included (sold separately)
DFC09050RS DC (mm): 50 | DCSFMS boss dia (mm): 41 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.3 | Stock: Yes
DFC09063RS DC (mm): 63 | DCSFMS boss dia (mm): 50 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.5 | Stock: Yes
DFC09080RS DC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7 | CBDP mounting depth (mm): 22 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 5 | Weight (kg): 1.0 | Stock: Yes
DFC09100RS DC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 50 | DCB bore dia (mm): 32 | KWW keyway width (mm): 14.4 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | Teeth: 6 | Weight (kg): 1.4 | Stock: Yes
DFC09125RS DC (mm): 125 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9 | CBDP mounting depth (mm): 29 | D1 (mm): 52 | D2 (mm): 29 | Teeth: 7 | Weight (kg): 2.8 | Stock: Yes
DFC09160RS DC (mm): 160 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9 | CBDP mounting depth (mm): 29 | D1 (mm): 90 | Teeth: 8 | Weight (kg): 4.6 | Stock: Yes
DFC09200RS DC (mm): 200 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 60 | KWW keyway width (mm): 25.7 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | D1 (mm): 135 | Teeth: 10 | Weight (kg): 5.7 | Stock: Yes
DFC09080R DC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 5 | Weight (kg): 1.0 | Stock: Yes
DFC09100R DC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 63 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | D2 (mm): 27 | Teeth: 6 | Weight (kg): 2.0 | Stock: Yes
DFC09125R DC (mm): 125 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 35.5 | D1 (mm): 55 | D2 (mm): 30 | Teeth: 7 | Weight (kg): 2.8 | Stock: Yes
DFC09160R DC (mm): 160 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11 | CBDP mounting depth (mm): 38 | D1 (mm): 72 | Teeth: 8 | Weight (kg): 3.6 | Stock: Yes
DFC09200R DC (mm): 200 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | D1 (mm): 135 | Teeth: 10 | Weight (kg): 6.0 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill DFC 09000R(S) Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (12)

DFC09050RS, DFC09063RS, DFC09080RS, DFC09100RS, DFC09125RS, DFC09160RS, DFC09200RS, DFC09080R, DFC09100R, DFC09125R + 2 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DFC09050RSDC (mm): 50 | DCSFMS boss dia (mm): 41 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.3 | Stock: Yes
DFC09063RSDC (mm): 63 | DCSFMS boss dia (mm): 50 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.5 | Stock: Yes
DFC09080RSDC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7 | CBDP mounting depth (mm): 22 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 5 | Weight (kg): 1.0 | Stock: Yes
DFC09100RSDC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 50 | DCB bore dia (mm): 32 | KWW keyway width (mm): 14.4 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | Teeth: 6 | Weight (kg): 1.4 | Stock: Yes
DFC09125RSDC (mm): 125 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9 | CBDP mounting depth (mm): 29 | D1 (mm): 52 | D2 (mm): 29 | Teeth: 7 | Weight (kg): 2.8 | Stock: Yes
DFC09160RSDC (mm): 160 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9 | CBDP mounting depth (mm): 29 | D1 (mm): 90 | Teeth: 8 | Weight (kg): 4.6 | Stock: Yes
DFC09200RSDC (mm): 200 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 60 | KWW keyway width (mm): 25.7 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | D1 (mm): 135 | Teeth: 10 | Weight (kg): 5.7 | Stock: Yes
DFC09080RDC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 5 | Weight (kg): 1.0 | Stock: Yes
DFC09100RDC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 63 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | D2 (mm): 27 | Teeth: 6 | Weight (kg): 2.0 | Stock: Yes
DFC09125RDC (mm): 125 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 35.5 | D1 (mm): 55 | D2 (mm): 30 | Teeth: 7 | Weight (kg): 2.8 | Stock: Yes
DFC09160RDC (mm): 160 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11 | CBDP mounting depth (mm): 38 | D1 (mm): 72 | Teeth: 8 | Weight (kg): 3.6 | Stock: Yes
DFC09200RDC (mm): 200 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | D1 (mm): 135 | Teeth: 10 | Weight (kg): 6.0 | Stock: Yes
